USER MANUAL MP-WU8701W MAXELL

MP-WU8801W/MP-WU8801B

MP-WU8701W/MP-WU8701B

User's Manual (detailed)

Operating Guide – Technical

Supported signals for COMPUTER IN

Resolution (H x V)Signal mode H. frequency (kHz)V. frequency (Hz)RatingFRAME LOCK
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA ○
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA ○
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16" mode 49.7 74.5
1024 x 768 XGGA (60Hz) 48.4 60 VESA ○
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz)6075 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 8641152 x 864 (75Hz)67.5 75 VESA
1280 x 768 W-XGA (60Hz)47.7 60 VESA ○
1280 x 800 1280 x 800 (60Hz)49.7 60 VESA ○
1280 x 1024SXGA (60Hz)6460VESA ○
SXGA (75Hz)8075 VESA
SXGA (85Hz) 91.1 85 VESA
1440 x 900 WXGA+ (60Hz)55.9 59.9 VESA ○
1600 x 900 WXGA++ (60Hz) 6060 VESA ○
1680 x 1050WSXGA+ (60Hz)65.3 60 VESA ○
1600 x 1200UXGA (60Hz)7560VESA ○
1920 x 1080Full HD (60Hz)67.560VESA ○
1920 x 1200W-UXGA (60Hz) Reduced Blanking7460 VESA ○

(continued on next page)

Supported signals for HDMI1

Resolution(H x V)Signal mode H. frequency (kHz)V. frequency (Hz)RatingFRAME LOCK
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGAGA (60Hz) 31.5 59.9 VESA ○
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA ○
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac16" mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA ○
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 VESA75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 8641152 x 864 (75Hz)67.5 75 VESA
1280 x 768 W-XGA (60Hz)47.7 60 VESA ○
1280 x 800 1280 x 800 (60Hz)49.7 60 VESA ○
1280 x 1024SXGA (60Hz)6460VESA○
SXGA (75Hz)8075 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz)47.7 59.8 VESA ○
1440 x 900 WXGA+ (60Hz)55.9 59.9 VESA ○
1600 x 900 WXGA++ (60Hz)6060 VESA ○
1400 x 1050SXGA+ (60Hz)65.260VESA○
1680 x 1050WSXGA+ (60Hz)65.3 60 VESA ○
1600 x 1200UXGA (60Hz)7560VESA○
1920 x 1200W-UXGA (60Hz) Reduced Blanking7460 VESA ○

(continued on next page)

Supported signals for HDMI1

Resolution (H x V)Signal mode H. frequency(kHz)V. frequency (Hz)RatingFRAME LOCK
720(1440) x 480i480i 15.7 60 CEA ○
720(1440) x 576i576i 15.6 50 CEA ○
720 x 480p 480p 31.5 60 CEA ○
720 x 576p 576p 31.3 50 CEA ○
1280 x 720p 7220p (50Hz) 37.5 50 CEA ○
720p (60Hz) 45 60 CEA ○
1920 x 1080i 10080i (50Hz) 28.1 50 CEA ○
1080i (60Hz) 33.8 60 CEA ○
1920 x 1080p1080p (50Hz)56.350CEA○
1080p (60Hz)67.5 60 CEA ○
3840 x 2160p4K (24Hz)54 24 CEA ○
4K (25Hz)56.3 25 CEA ○
4K (30Hz)67.5 30 CEA ○
4K (50Hz)112.550 CEA ○
4K (60Hz)13560 CEA ○
4096 x 2160p4K (SMPTE) (24Hz) 54 24 CEA ○
4K (SMPTE) (25Hz)56.3 25 CEA ○
4K (SMPTE) (30Hz)67.5 30 CEA ○
4K (SMPTE) (50Hz)112.550 CEA ○
4K (SMPTE) (60Hz)13560 CEA ○

(continued on next page)

Supported signals for HDMI2

Resolution (H x V)Signal mode H. frequency(kHz)V. frequency(Hz)RatingFRAME LOCK
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9VESA ○
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA ○
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac16" mode 49.7 74.5
1024 x 768 XGGA (60Hz) 48.4 60 VESA ○
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 8641152 x 864 (75Hz)67.5 75 VESA
1280 x 768 W-XGA (60Hz)47.7 60 VESA ○
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA ○
1280 x 1024SXGA (60Hz)6460VESA○
SXGA (75Hz)8075 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz)47.7 59.8 VESA ○
1440 x 900 WXGA+ (60Hz)55.9 59.9 VESA ○
1600 x 900 WXGA++ (60Hz)6060 VESA ○
1400 x 1050SXGA+ (60Hz)65.260VESA○
1680 x 1050WSXGA+ (60Hz)65.3 60 VESA ○
1600 x 1200UXGA (60Hz)7560VESA○
1920 x 1200W-UXGA (60Hz)Reduced Blanking7460 VESA ○

(continued on next page)

Supported signals for HDMI2

Resolution (H x V) Signal mode H. frequency(kHz)V. frequency(Hz)RatingFRAME LOCK
720(1440) x 480i 480i 15.7 60 CEA ○
720(1440) x 576i 576i 15.6 50 CEA ○
720 x 480p 480p 31.5 60 CEA ○
720 x 576p 576p 31.3 50 CEA ○
1280 x 720p 720p (50Hz) 37.5 50 CEA ○
1920 x 1080i 1080i (50Hz) 28.1 50 CEA ○
1920 x 1080p1080p (50Hz)56.350CEA○
1080p (60Hz)67.5 60 CEA ○

(continued on next page)

Supported signals for HDBaseT

Resolution (H x V)Signal mode H. frequency (kHz)V. frequency (Hz)RatingFRAME LOCK
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA ○
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA ○
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac16" mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA ○
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 8641152 x 864 (75Hz)67.5 75 VESA
1280 x 768 WXGA (60Hz)47.7 60 VESA ○
1280 x 800 1280 x 800 (60Hz)49.7 60 VESA ○
1280 x 1024SXGA (60Hz)6460VESA ○
SXGA (75Hz)8075 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz)47.7 59.8 VESA ○
1440 x 900 WXGA+ (60Hz)55.9 59.9 VESA ○
1600 x 900 WXGA++ (60Hz)6060 VESA ○
1400 x 1050SXGA+ (60Hz)65.260VESA ○
1680 x 1050WSXGA+ (60Hz)65.3 60 VESA ○
1600 x 1200UXGA (60Hz)7560VESA ○
1920 x 1200W-UXGA (60Hz) Reduced Blanking7460 VESA ○

(continued on next page)

Supported signals for HDBaseT

Resolution (H x V) Signal mode H. frequency(kHz)V. frequency(Hz)RatingFRAME LOCK
720(1440) x 480i480i 15.7 60 CEA ○
720(1440) x 576i576i 15.6 50 CEA ○
720 x 480p 480p 31.5 60 CEA ○
720 x 576p 576p 31.3 50 CEA ○
1280 x 720p 720p (50Hz) 37.5 50 CEA ○
1920 x 1080i 1080i (50Hz) 28.1 50 CEA ○
1920 x 1080p1080p (50Hz)56.350CEA○
1080p (60Hz)67.5 60 CEA ○
3840 x 2160p4K (24Hz)54 24 CEA ○
4K (25Hz)56.3 25 CEA ○
4K (30Hz)67.5 30 CEA ○
4K (50Hz)112.550 CEA ○
4K (60Hz)13560 CEA ○
4096 x 2160p4K (SMPTE) (24Hz)5424CEA○
4K (SMPTE) (25Hz)56.3 25 CEA ○
4K (SMPTE) (30Hz)67.5 30 CEA ○
4K (SMPTE) (50Hz)112.550 CEA ○
4K (SMPTE) (60Hz)13560 CEA ○

(continued on next page)

Supported signals for DisplayPort

Resolution (H x V)Signal mode H. frequency(kHz)V. frequency(Hz)RatingFRAME LOCK
720 x 400 TEXT37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA ○
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA ○
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac16" mode 49.7 74.5
1024 x 768 XGAGA (60Hz) 48.4 60 VESA ○
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz)6075 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 8641152 x 864 (75Hz)67.5 75 VESA
1280 x 768W-XGA (60Hz)47.760VESA○
1280 x 8001280 x 800 (60Hz)49.760VESA○
1280 x 1024SXGA (60Hz)6460VESA○
SXGA (75Hz)8075 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA(60Hz)47.7 59.8 VESA ○
1440 x 900 WXGA+ (60Hz)55.9 59.9 VESA ○
1600 x 900 WXGA++ (60Hz) 6060 VESA ○
1400 x 1050SXGA+ (60Hz)65.260VESA○
1680 x 1050WSXGA+ (60Hz)65.360VESA○
1600 x 1200UXGA (60Hz)7560VESA○
1920 x 1200W-UXGA (60Hz)Reduced Blanking7460 VESA ○

(continued on next page)

Supported signals for DisplayPort

Resolution (H x V) SSignal mode H. frequency(kHz)V. frequency(Hz)RatingFRAME LOCK
720 x 480p 480p 31.5 60 CEA ○
720 x 576p 576p 31.3 50 CEA ○
1280 x 720p 720p (50Hz) 37.5 50 CEA ○
720p (60Hz) 45 60 CEA ○
1920 x 1080i 1080i (50Hz) 28.1 50 CEA ○
1080i (60Hz) 33.8 60 CEA ○
1920 x 1080p 1080p (50Hz)56.3 50 CEA ○
1080p (60Hz)67.5 60 CEA ○
3840 x 2160p 4K (24Hz)54 24 CEA ○
4K (25Hz)56.3 25 CEA ○
4K (30Hz)67.5 30 CEA ○
4096 x 2160p 4K (SMPTE) (24Hz)54 24 CEA ○

(continued on next page)

Supported signals for SDI

Resolution (H x V) Sgnal mode H. frequency(kHz)V. frequency(Hz)RatingFRAME LOCK
720 x 480i 480i15.7 60SMPTE○
720 x 576i 576i15.6 50SMPTE○
1280 x 720p 720p (50Hz) 37.5 50SMPTE○
1920 x 1080i 1080i (50Hz) 28.1 50SMPTE○
1920 x 1080sf 1080i (25Hz) 28.1 50SMPTE○
1920 x 1080p 1080p (50Hz)56.3 50SMPTE○

Only support 3G-SDI Level-A signal.

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

  • Some PCs may have multiple display screen modes. Use of some of these modes is not possible with this projector.
  • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
  • The signal is converted to the projector's panel resolution before being displayed. The best display performance is achieved if the resolutions of the input signal and projector panel are identical.
    • Automatic adjustment may not function correctly with some input signals.
    • The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.
    • The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

▶ Only the signal that is input from the COMPUTER IN can be output from the MONITOR OUT port.

MP-WU8701W MP-WU8701B

WIRELESS DCW PC LAN COMPRESS HDMI CONTROL N OUT VDD AUDIO IN 2 AUDIO IN 2 COMPUTS UP IN 1 A B HDMI OUT AUDIO OUT HDMI OUT HDMI1 HDMI2 HMI3

MP-WU8801W MP-WU8801B

3D-301 OUTPUT PORT WIRELESS DCSW 2.2A LAN- CONTROL AUDIO IN 2 AUDIO IN 2 COMPUTER ADP IN 1 B OUTPUT CONTROL IN OUT MONITOR OUT AUDIO OUT KONOUT KON1 KON2 KON3

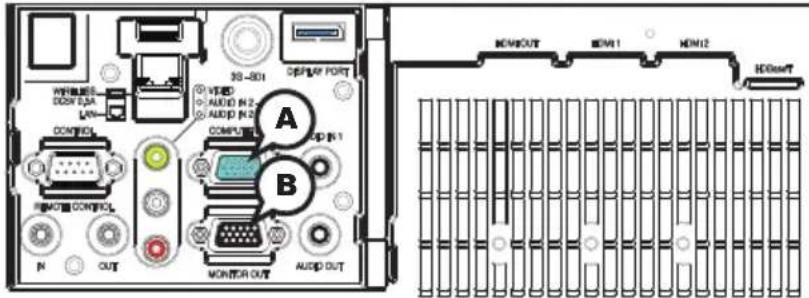

ⒶCOMPUTER IN, ⒷMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level

• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated
- System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60

PinSignal Pin Signal
1Video Red, Cr/Pr 9 (No connection)
2Video Green, Y 10 Ground
3Video Blue, Cb/Pb 11 (No connection)
4(No connection) 12MAXELL MP-WU8701W - ⒶCOMPUTER IN, ⒷMONITOR OUT - 1
5Ground 13 H. sync / Composite sync.
6Ground Red, Ground Cr/Pr 14 V. sync.
7Ground Green, Ground Y15MAXELL MP-WU8701W - ⒶCOMPUTER IN, ⒷMONITOR OUT - 2
8Ground Blue, Ground Cb/Pb

Connection to the ports (continued)

MP-WU8701W MP-WU8701B

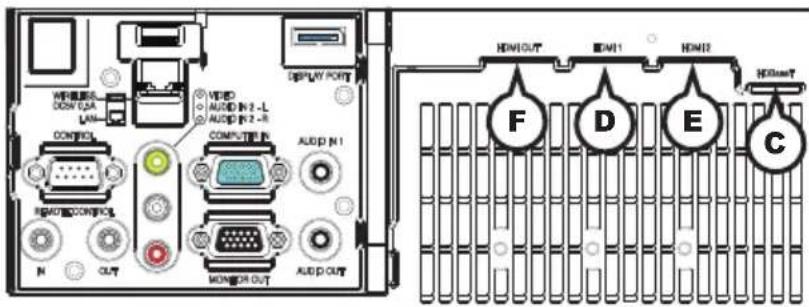

WHEELS DOWN OCA LAN- CONTROL COMPUT R N OUT MONITOR OUT DISPLAY PORT VHD AUDD IN 1 -L AUDD IN 2 -R AUDD IN 1 HDMIOUT HDMI1 HDMI2 HDIOUT F D E C

MP-WU8801W MP-WU8801B

3G-301 VDD AUDIO IN 2-L AUDIO IN 2-R COMPUTER N AUDIO IN 1 N OUT MONITOR OUT DISPLAY PORT F D E C

©HDBaseT

RJ-45 jack

MAXELL MP-WU8701W - ©HDBaseT - 1

PinSignalPinSignalPinSignal
1HDBaseT0+4 HDDBaseT2+7 HDBaseT3+
2HDBaseT0-5 HDDBaseT2-8 HDDBaseT3-
3HDBaseT1+6 HDDBaseT1-

DHDMI 1, EHDMI 2, FHDMI OUT

HDMI ^TM connector

• Audio signal: Linear PCM (Sampling rate; 32/44.1/48 kHz)

MAXELL MP-WU8701W - DHDMI 1, EHDMI 2, FHDMI OUT - 1

PinSignal Pin Signal Pin Signal
1 T.M.D.S. Data2 + 8 T.M.DS. Data0 Shield 15 SCL
2 T.M.D.S. Data2 Shield 9 T.M.DS. Data0 - 16 SDA
3 T.M.D.S. Data2 - 10 T.M.D.S.Clock + 17 DDC/CEC Ground
4 T.M.D.S. Data1 + 11 T.M.D.S.Clock Shield18+5V Power
5 T.M.D.S. Data1 Shield 12T.M.D.S. Clock -19Hot Plug Detect
6 T.M.D.S. Data1 - 13 CEC
7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)

MP-WU8701W MP-WU8701B

MP-WU8801W MP-WU8801B

G DISPLAY PORT HOMOUT BEM11 HOM12 H00out CONTROL COMPUTER IN AUD IN 1 H OUTPUT MONITOR OUT G DISPLAY PORT CONTROL COMPUTER IN AUD IN 1 H OUTPUT MONITOR OUT H OUTPUT H00OUT BEM11 HOM12 H00out

©DisplayPort

DisplayPort connector

MAXELL MP-WU8701W - ©DisplayPort - 1

PinSignal Pin Signal Pin Signal
1Main Link Lane 3 - 8 GND15AUX CH +
2GND 9 Main Link Lane 1 + 16 GND
3Main Link Lane 3 + 10 Main Link Lane 0 - 17 AUX CH -
4Main Link Lane 2 - 11 GND18Hot Plug Detect
5GND 12 Main Link Lane 0 + 19 Return
6Main Link Lane 2 + 13 CONFIG 120DP_PWR
7Main Link Lane 1 - 14 CONFIG 2

HVIDEO

RCA jack

• Composite video signal, Analog, 1.0±0.1Vp-p, 75Ω terminator
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Connection to the ports (continued)

MP-WU8701W MP-WU8701B

M J K I L N O U O D O U T N O U T N O U T N O U T N O U T N O U T N O U T N O U T N O U T N O U T N O U T N O U T N O U T

MP-WU8801W MP-WU8801B

WIRELESS DCY 3.5A LAN- CONTROL M J K MORIANT CONTROL N OUT DISPLAY PORT AUDIO IN 2 AUDIO IN 2 AUDIO IN 1 AUDIO IN 1 I L HOMOUT BAM1 HBM2 HOSORT

①AUDIO IN1

* About the details of RS-232C communication, please refer to the next section.

⑨ ⑧ ⑦ ⑥ ⑥ ④ ③ ② ①

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)

MP-WU8701W MP-WU8701B

P Q N O DOWN OUT LAM CONTROL HND OUT MORR OUT DISPLAY PORT Audi Out HDMIOUT HDMI1 HDMI2 HDMI3T

MP-WU8801W MP-WU8801B

P Q N 3S-801 O OUTPUT POINT N OUTPUT OUT MONITOR OUT AUDIO IN 1 AUDIO IN 2-L AUDIO IN 3-L AUDIO IN 4-L AUDIO IN 5-L AUDIO IN 6-L AUDIO IN 7-L AUDIO IN 8-L AUDIO IN 9-L AUDIO IN 10-L AUDIO IN 11-L AUDIO IN 12-L AUDIO IN 13-L AUDIO IN 14-L AUDIO IN 15-L AUDIO IN 16-L AUDIO IN 17-L AUDIO IN 18-L AUDIO IN 19-L AUDIO IN 20-L AUDIO IN 21-L AUDIO IN 22-L AUDIO IN 23-L AUDIO IN 24-L AUDIO IN 25-L AUDIO IN 26-L AUDIO IN 27-L AUDIO IN 28-L AUDIO IN 29-L AUDIO IN 30-L AUDIO IN 31-L AUDIO IN 32-L AUDIO IN 33-L AUDIO IN 34-L AUDIO IN 35-L AUDIO IN 36-L AUDIO IN 37-L AUDIO IN 38-L AUDIO IN 39-L AUDIO IN 40-L AUDIO IN 41-L AUDIO IN 42-L AUDIO IN 43-L AUDIO IN 44-L AUDIO IN 45-L AUDIO IN 46-L AUDIO IN 47-L AUDIO IN 48-L AUDIO IN 49-L AUDIO IN 50-L AUDIO IN 51-L AUDIO IN 52-L AUDIO IN 53-L AUDIO IN 54-L AUDIO IN 55-L AUDIO IN 56-L AUDIO IN 57-L AUDIO IN 58-L AUDIO IN 59-L AUDIO IN 60-L AUDIO IN 61-L AUDIO IN 62-L AUDIO IN 63-L AUDIO IN 64-L AUDIO IN 65-L AUDIO IN 66-L AUDIO IN 67-L AUDIO IN 68-L AUDIO IN 69-L AUDIO IN 70-L AUDIO IN 71-L AUDIO IN 72-L AUDIO IN 73-L AUDIO IN 74-L AUDIO IN 75-L AUDIO IN 76-L AUDIO IN 77-L AUDIO IN 78-L AUDIO IN 79-L AUDIO IN 80-L AUDIO IN 81-L AUDIO IN 82-L AUDIO IN 83-L AUDIO IN 84-L AUDIO IN 85-L AUDIO IN 86-L AUDIO IN 87-L AUDIO IN 88-L AUDIO IN 89-L AUDIO IN 90-L AUDIO IN 91-L AUDIO IN 92-L AUDIO IN 93-L AUDIO IN 94-L AUDIO IN 95-L AUDIO IN 96-L AUDIO IN 97-L AUDIO IN 98-L AUDIO IN 99-L AUDIO IN 100-L

©LAN

RJ-45 jack

* About the details of network communication, please refer to the Network Guide.

MAXELL MP-WU8701W - ©LAN - 1

Pin Signal Pin Signal Pin Signal
1T X +4 - 7-
2T X -5-8-
3R X +6R X -

©WIRELESS PORT

Only for USB wireless adapter.

MAXELL MP-WU8701W - ©WIRELESS PORT - 1

Pin Signal
1+5V
2 - Data
3 + Data
4 Ground

REMOTE CONTROL ⓅIN, ⓆOUT

Connection to the ports (continued)

MP-WU8701W MP-WU8701B

WIRELESS DOWI 2.5A LAN- CONTROL RND/CONTROL N OUT COMPUTER R AUD P N1 AUD P OUT DISPLAY PORT HDMIOUT HDMI1 HDMI2 HDMI4T

MP-WU8801W MP-WU8801B

3G-80V PORT WIRELESS DCN 5.2A LAN COMP OUT N OUT COMPUTER N AUDIO IN 1 AUDIO IN 1 AUDIO IN 1 R HOMOUT HOM1 HOM2 HOM7

R3G-SDI

BNC jack

• SD/HD/3G-SDI signal, Digital, 0.8V±10%, 75Ω terminated
- System:

SD-SDI signal: conforming to SMPTE ST 259-C standard

YCBCR 4:2:2 10-bit

480i, 576i

Single link HD-SDI signal: conforming to SMPTE ST 292 standard

YPBPR 4:2:2 10-bit

720p@50/60, 1080i@50/60, 1080sf@25/30

3G-SDI Level-A signal: conforming to SMPTE ST 424 standard

YPBPR 4:2:2 10-bit

1080p@50/60

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (26).

Connection

  1. Turn off the projector and the computer.
  2. Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfi IIs the specifi cation shown in fi gure.
  3. Turn the computer on, and after the computer has started up turn the projector on.
  4. Set the COMMUNICATION TYPE to OFF in the COMMUNICATION menu of the OPTION - SERVICE menu.

RS-232C CONTROL RS-232C cable (cross)

RS-232C port of the computer
MAXELL MP-WU8701W - Connection - 2

CONTROL port of the projector
MAXELL MP-WU8701W - Connection - 3

MAXELL MP-WU8701W - Connection - 4

Communication settings

1. Protocol

19200bps, 8N1

2. Command format ("h" shows hexadecimal)

Byte Number012345789101
CommandActionHeader Data
Header codePacket LData sizeCRC flagAction TypeSetting code
LHLHLHLHLHLH
Change setting to desired value [(cL)(cH)] by [(bL)(bH)].03h06h00h(aL)(aH)01h00h(bL)(bH)(cL)(cH)
Read projector internal setup value [(bL) (bH)].(aL)(aH)02h00h(bL)(bH)00h00h
Increment setup value [(bL)(bH)] by 1.(aL)(aH)04h00h(bL)(bH)00h00h
Decrement setup value [(bL)(bH)] by 1.(aL)(aH)05h00h(bL)(bH)00h00h
Run a command [(bL)(bH)].(aL)(aH)06h00h(bL)(bH)00h00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 to 4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication / Network command table (26).

[Action]

Set functional code to byte number 7, 8.

= [01h, 00h], = [02h, 00h], = [04h, 00h]

= [05h, 00h], = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number 9 to 12, refer to RS-232C Communication / Network command table (☐26).

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply: 06h

When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code.

(2) NAK reply: 15h

When the projector cannot understand the received command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply: 1Ch + 0000h

When the projector cannot execute the received command for any reasons, the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply: 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.

NOTE • For connecting the projector to your devices, read the manual for each devices, and connect them correctly with suitable cables.

  • Operation cannot be guaranteed when the projector receives an undefined command or data.
  • Provide an interval of at least 40ms between the response code and any other code.
  • The projector outputs test data when the power supply is switched ON, and when the light source is lit. Ignore this data.
  • Commands are not accepted during warm-up.
  • When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer.

Command Control via the Network

When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser.

For details of RS-232C commands, refer to RS-232C Communication / Network command table (26).

NOTE • If data is transferred using wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

  1. Turn off the projector and the computer.
  2. If you use wired LAN, connect the projector's LAN or HDBaseT™ port to the computer's LAN or HDBaseT port with a LAN cable. Use the cable that fulfi lls the specifi cation shown in fi gure. If you use wireless LAN, insert the USB wireless adapter into the WIRELESS port of the projector.
  3. Turn the computer on, and after the computer has started up turn the projector on.

MAXELL MP-WU8701W - Connection - 1

• LAN cable (CAT-5e or greater) or
- For HDBaseT connection

  • CAT-5e or greater
  • shielded type (connectors included)
  • straight cable
  • single cable

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Configure the following items from a web browser when command control is used.

Port Settings
Network Control Port1 (Port: 23)Port openClick the [Enable] checkbox to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is Enable.
AuthenticationClick the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is Disable.
Network Control Port2 (Port: 9715)Port openClick the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is Enable.
AuthenticationClick the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is Enable.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network ControlPassword Enterthe required authentication password. Confirm this setting is the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
Re-enter Password

Command control settings

[TCP #23]

1. Command format

Same as RS-232C communication, refer to RS-232C Communication command format.

2. Response code / Error code ("h" shows hexadecimal)

Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)\~(4). One authentication error reply (5) is added.

(1) ACK reply : 06h Refer to RS-232C communication (19).
(2) NAK reply : 15h Refer to RS-232C communication (19).
(3) Error reply : 1Ch + 0000h Refer to RS-232C communication (19).
(4) Data reply : 1Dh + xxxxh Refer to RS-232C communication (19).
(5) Authentication error reply : 1Fh + 0400h When authentication error occurred, the projector returns the error code.

[TCP #9715]

1. Command format

The commands some datum are added to the head and the end of the ones of TCP#9715 are used.

Header Datalength RS-232C command Check sumConnection ID
02h 0Dh13 bytes 1 byte 1byte

02, Fixed

[Data Length]

RS-232C commands byte length (0Dh, Fixed)

[RS-232C commands]

Refer to RS-232C Communication command format (18).

[Check Sum]

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

[Connection ID]

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.
- Provide an interval of at least 40ms between the response code and any other code.
- Commands are not accepted during warm-up.

2. Response code / Error code ("h" shows hexadecimal)

The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.

(1) ACK reply: 06h + ××h (××h : connection ID)
(2) NAK reply: 15h + xxh
(3) Error reply: 1Ch + 0000h + xxh
(4) Data reply: 1Dh + xxxxh + xxh
(5) Authentication error reply: 1Fh + 0400h + xxh
(6) Projector busy reply: 1Fh + xxxxh + xxh

When the projector is too busy to receive the command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

Automatic Connection Break

The TCP connection is automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm.

When the projector is connected to a LAN, a random 8 bytes is returned if authentication is enabled. Bind this received 8 bytes and the authentication password, and digest the data with the MD5 algorithm, and add it in front of the commands to send.

The following is a sample of authentication process.

Authentication password: password (example)

Random 8 bytes: a572f60c (example)

1) Select a projector and receive the random 8 bytes from the projector. → "a572f60c"

2) Bind the random 8 bytes and the authentication password.

→ "a572f60cpassword"

3) Digest this bound with MD5 algorithm.
→ “e3d97429adffa11bce1f7275813d4bde”

4) Add this code in front of the commands and send the data.

→ “e3d97429adffa11bce1f7275813d4bde” + [command].

5) When the sent data is correct, the command is performed and the reply data is returned. Otherwise, an authentication error is returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted for the same connection.

Network Bridge Communication

This projector is equipped with NETWORK BRIDGE function.

When the projector connects to the computer by wired or wireless LAN communication, an external device connected with this projector by RS-232C communication can be controlled from the computer as a network terminal.

For details, see the 7. Network Bridge function in the Network Guide.

NOTE • If data is transferred using wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

  1. If you use wired LAN or HDBaseT, connect the computer's LAN port and the projector's LAN or HDBaseT port with a LAN cable. Use the cable that fulfi lls the specifi cation shown in fi gure. If you use wireless LAN, insert the USB wireless adapter into the projector's WIRELESS port.
  2. Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable.
  3. Turn the computer on, and after the computer has started up turn the projector on.
  4. Set the COMMUNICATION TYPE to NETWORK BRIDGE in the COMMUNICATION menu of the OPTION - SERVICE menu.

MAXELL MP-WU8701W - Connection - 1

Communication settings

For communication setting, use the COMMUNICATION menu in the OPTION - SERVICE menu

Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (fixed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (fixed)
Stop bit 1 bit (fixed)
Transmission method HALF-DUPLEX/FULL-DUPLEX

NOTE • For connecting the projector to your devices, read the manual for each devices, and connect them correctly with suitable cables.

  • Turn off the power and unplug both the projector and other devices before connecting them.
  • For details of Transmission method, refer to 7.4 Transmission method in the Network Guide.

RS-232C Communication / Network command table

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
PowerSetTurn off BEEF 03 0600 2AD3 01 0000 60 0000
Turn on BEEF 03 0600 BAD2 01 0000 60 0100
GetBE EF 03 0600 19 D302 00 0060 00 00
[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input SourceSetCOMPUTER IN BEEF 03 0600FE D2 0100 00 200000
LAN BE EF03 06 00CE D501 0000 20 0800
HDMI 1 BEEF 03 0600 0ED2 01 0000 2003 00
HDMI 2 BEEF 03 0600 6ED6 01 0000 200D 00
HDBaseTBE EF0306 00AE DE01 0000 2011 00
VIDEOBE EF03 0600 6E D301 00 002001 00
3G-SDI*BE EF03 0600 5E DE01 00 0020 12 00
DisplayPortBE EF0306 00CE DF01 0000 2013 00
GetBE EF0306 00CD D202 0000 2000 00
Error StatusGetBE EF03 0600 D9 D802 00 206000 00
[Example return]00 00 30 00 02 00 03 00[Normal] [Fan warning] [Fan error] [Light Source error]04 00,5A 00,5D 00,63 00 05 00 07 00,0A 00[Temp error] [Air flow error] [Cold error]08 00 10 00 13 00,23 00,24 00,25 00,68 00,69 00[Filter error] [Lens Shift error] [Light Source warning]65 00,80 00[Other error]
FOCUSIncrementBE EF03 0600 6A 9304 00 0024 00 00
DecrementBE EF03 0600 BB 9205 00 0024 00 00
GetBE EF03 0600 0C 9302 00 0024 00 00
ZOOMIncrementBE EF03 0600 96 9204 00 0124 00 00
DecrementBE EF03 0600 47 9305 00 0124 00 00
GetBE EF03 0600 F0 9202 00 0124 00 00
LENS SHIFT - VIncrementBE EF03 0600 D2 9204 00 0224 00 00
DecrementBE EF03 0600 03 9305 00 0224 00 00
GetBE EF03 0600 B4 9202 00 0224 00 00
LENS SHIFT - HIncrementBE EF03 0600 2E 9304 00 0324 00 00
DecrementBE EF03 0600 FF 9205 00 0324 00 00
GetBE EF03 0600 48 9302 00 0324 00 00
LENS SHIFT CENTERINGExecute BE EF03 0600 B893 06 0004 2400 00
LENS MEMORY INDEXSet1BE EF03 0600 4B 9201 00 0724 00 00
2BE EF0306 00DB 9301 0007 2401 00
3BE EF03 0600 2B 9301 00 0724 02 00
GetBE EF03 0600 78 9202 00 0724 00 00
LENS MEMORY LOADExecute BE EF03 0600 E890 06 0008 2400 00
LENS MEMORY SAVEExecute BE EF03 0600 1491 06 0009 2400 00
LENS MEMORY CLEARExecute BE EF03 0600 5091 06 000A 24 0000
LENS MEMORY LENS SHIFT - VGet BE EF 0306 00 A091 0200 0D24 00 00
LENS MEMORY LENS SHIFT - HGet BE EF 0306 00 E491 0200 0E24 00 00
LENS MEMORY LENS TYPEGet BE EF 0306 00 1890 0200 0F24 00 00
MAGNIFYGet BE EF 0306 00 7CD2 0200 0730 00 00
Increment BE EF03 06 001A D2 04 00 0730 00 00
DecrementBE EF03 0600 CB D305 0007 30 0000
MAGNIFY Position HGet BE EF 0306 00 C8D7 0200 1030 00 00
Increment BE EF03 06 00AE D7 04 00 1030 00 00
DecrementBE EF03 0600 7F D605 00 1030 00 00
MAGNIFY Position VGet BE EF 0306 00 34D6 0200 1130 0000
Increment BE EF03 06 0052 D6 04 00 113000 00
DecrementBE EF03 0600 83 D705 00 1130 00 00
FREEZESetNORMALBE EF03 0600 83 D201 00 0230 00 00
FREEZEBE EF03 0600 13 D301 00 0230 01 00
Get BE EF 0306 00 B0D2 0200 0230 00 00
SHUTTERSetOFFBE EF03 0600 F3 9301 00 0524 00 00
ONBE EF03 0600 63 9201 00 0524 01 00
Get BE EF 0306 00 C093 0200 0524 00 00
PbyP/PinPSetOFFBE EF03 0600 3E 2601 00 1023 00 00
PbyPBE EF03 0600 AE 2701 00 1023 01 00
PinPBE EF03 0600 5E 2701 00 1023 02 00
Get BE EF 0306 00 0D26 0200 1023 00 00
PbyP MAIN SIZESetSMALLBE EF03 0600 F2 0701 00 1123 7F 00
MIDDLEBE EF03 0600 02 4601 00 1123 80 00
LARGEBE EF03 0600 92 4701 00 1123 81 00
Get BE EF 0306 00 F127 0200 1123 0000
PbyP RIGHT SOURCESetCOMPUTER IN BEEF 0306 0086 27 0100 12 2300 00
HDMI 1BE EF03 0600 76 2701 00 1223 03 00
HDMI 2BE EF03 0600 16 2301 00 1223 0D 00
HDBaseTBE EF03 0600 D6 2B01 00 122311 00
VIDEOBE EF03 0600 16 2601 00 1223 01 00
3G-SDI*BE EF03 0600 26 2B01 00 1223 12 00
DisplayPortBE EF03 0600 B6 2A01 00 1223 13 00
Get BE EF 0306 00 B527 0200 1223 00 00
PbyP MAIN AREASetLEFTBE EF03 0600 7A26 01 0013 23 0000
RIGHTBE EF03 0600 EA27 01 0013 23 0100
Get BE EF 0306 00 4926 0200 1323 00 00
PbyP LEFT SOURCESetCOMPUTER IN BEEF 0306 00F2 26 0100 15 2300 00
HDMI 1BE EF03 0600 02 2601 00 1523 03 00
HDMI 2BE EF03 0600 62 2201 00 1523 0D 00
HDBaseTBE EF03 0600 A2 2A01 00 152311 00
VIDEOBE EF03 0600 62 2701 00 1523 01 00
3G-SDI*BE EF03 0600 52 2A01 0015 23 1200
DisplayPortBE EF03 0600 C2 2B01 00 1523 13 00
Get BE EF 0306 00C1 2602 0015 23 0000
PinP POSITIONSetTOP LEFT BEEF 03 0600 0223 01 0001 23 0000
TOP RIGHT BEEF 03 0600 9222 01 0001 23 001 00
BOTTOM LEFT BEEF 03 0600 0062 22 0100 01 2302 00
BOTTOM RIGHT BEEF 03 0600 00F2 23 0100 01 2303 00
Get BE EF 0306 00 3123 0200 01 2300 00
PinP MAIN AREASetPRIMARY BEEF 03 0600 3222 01 0005 23 0000
SECONDARYBE EF 0306 0000 A2 2301 00 0523 01 00
Get BE EF 0306 00 0122 0200 05 2300 00
PinP PRIMARY SOURCESetCOMPUTER INBE EF0306 00CE 2301 0004 2300 00
HDMI 1BE EF03 0600 3E 2301 00 0423 03 00
HDMI 2BE EF03 0600 5E 2701 00 0423 00 D 00
HDBaseTBE EF0306 009E 2F01 0004 2311 00
VIDEOBE EF03 0600 5E 2201 00 0423 01 00
3G-SDI*BE EF03 0600 6E 2F01 0004 23 1200
DisplayPortBE EF0306 00FE 2E01 0004 2313 00
Get BE EF 0306 00FD 2302 00 0423 00 00
PinP SECONDARY SOURCESetCOMPUTER IN BEEF 030600 46 2301 00 0223 00 00
HDMI 1BE EF03 0600 B6 2301 00 0223 03 00
HDMI 2BE EF0306 00D6 2701 0002 230D 00
HDBaseTBE EF03 0600 16 2F01 00 0223 11 00
VIDEOBE EF03 0600 D6 2201 0002 23 0100
3G-SDI*BE EF03 0600 E6 2F01 0002 23 1200
DisplayPortBE EF03 0600 76 2E01 00 0223 13 00
Get BE EF 0306 00 7523 0200 02 2300 00
PbyP/PinP SWAPExecute BE EF03 0600 0127 06 0016 23 0000
PbyP / PinP FRAME LOCKSetLEFT / PRIMARYBE EF03 0600 4A 2701 00 1723 00 00
RIGHT / SECONDARYBE EF03 0600 DA26 0100 17 2301 00
Get BE EF 0306 00 7927 0200 17 2300 00
PICTURE MODESetSTANDARD BEEF 03 0600 83F5 01 00BA 3006 00
NATURAL BEEF 03 0600 23F6 01 00BA 3000 00
CINEMABE EF0306 00B3 F701 00BA 3001 00
DYNAMICBE EF0306 00E3 F401 00BA 3004 00
WHITEBOARDBE EF0306 0083 EE01 00BA 3022 00
DICOM SIM.BE EF0306 0073 C601 00BA 3041 00
HDR-CINEMABE EF0306 0023 DE01 00BA 3060 00
HDR-BROADCASTBE EF0306 00B3 DF01 00BA 3061 00
USER-1BE EF0306 00E3 FB01 00BA 3010 00
USER-2BE EF0306 0073 FA01 00BA 3011 00
USER-3BE EF0306 0083 FA01 00BA 3012 00
Get BE EF 0306 00 10F602 00 BA3000 00

* Supported only for MP-WU8801W/MP-WU8801B

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
BRIGHTNESSGet BE EF 0306 00 89D2 0200 03 20 00 00
Increment BE EF03 06 00EF D2 04 00 0320 00 00
Decrement BE EF03 06 003E D3 05 00 0320 00 00
BRIGHTNESS ResetExecute BE EF03 06 0058 D306 00 0070 00 00
CONTRASTGet BE EF 0306 00 FDD3 0200 0420 00 00
Increment BE EF03 06 009B D304 00 0420 00 00
Decrement BE EF03 06 004A D205 00 0420 00 00
CONTRAST ResetExecute BE EF03 06 00A4 D206 00 0170 00 00
GAMMASet1 DEFAULT BEEF 03 0600 07E9 01 00A1 3020 00
1 CUSTOMBE EF 030600 07 FD01 00 A13010 00
2 DEFAULT BEEF 03 0600 97E8 01 00A1 3021 00
2 CUSTOMBE EF 030600 97 FC01 00 A130 11 00
3 DEFAULT BEEF 03 0600 67E8 01 00A1 3022 00
3 CUSTOMBE EF 030600 67 FC01 00 A13012 00
4 DEFAULT BEEF 03 0600 F7E9 01 00A1 3023 00
4 CUSTOMBE EF 030600 F7 FD01 00 A13013 00
5 DEFAULT BEEF 03 0600 C7EB 01 00A1 3024 00
5 CUSTOMBE EF 030600 C7 FF01 00 A13014 00
6 DEFAULT BEEF 03 0600 57EA 01 00A1 3025 00
6 CUSTOMBE EF 030600 57 FE01 00 A13015 00
7 DEFAULT BEEF 03 0600 A7EA 01 00A1 3026 00
7 CUSTOMBE EF 030600 A7 FE01 00 A13016 00
8 DEFAULT BEEF 03 0600 37EB 01 00A1 3027 00
8 CUSTOMBE EF 030600 37 FF01 00 A13017 00
Get BE EF 0306 00 F4F0 0200 A1 3000
User GAMMA Point 1Get BE EF 0306 00 08FE 0200 90 3000 00
Increment BE EF03 06 006E FE04 00 9030 00 00
Decrement BE EF03 06 00BF FF05 00 9030 00 00
User GAMMA Point 1 ResetExecute BE EF03 06 0058 C206 00 5070 00 00
User GAMMA Point 2Get BE EF 0306 00 F4FF 0200 91 3000 00
Increment BE EF03 06 0092 FF04 00 9130 00 00
Decrement BE EF03 06 0043 FE05 00 9130 00 00
User GAMMA Point 2 ResetExecute BE EF03 06 00A4 C306 00 5170 00 00
User GAMMA Point 3Get BE EF 0306 00 B0FF 0200 92 3000 00
Increment BE EF03 06 00D6 FF04 00 9230 00 00
Decrement BE EF03 06 0007 FE05 00 9230 00 00
User GAMMA Point 3 ResetExecute BE EF03 06 00E0 C306 00 5270 00 00
User GAMMA Point 4Get BE EF 0306 00 4CFE 0200 9330 00 00
Increment BE EF03 06 002A FE04 00 9330 00 00
Decrement BE EF03 06 00FB FF05 00 9330 00 00
User GAMMA Point 4 ResetExecute BE EF03 06 001C C206 00 5370 00 00
User GAMMA Point 5Get BE EF 0306 00 38FF 0200 94 3000 00
Increment BE EF03 06 005E FF04 00 9430 00 00
Decrement BE EF03 06 008F FE05 00 9430 00 00
User GAMMA Point 5 ResetExecute BE EF03 06 0068 C306 00 5470 00 00
User GAMMA Point 6Get BE EF 0306 00 C4FE 0200 9530 00 00
Increment BE EF03 06 00A2 FE04 00 9530 00 00
Decrement BE EF03 06 0073 FF05 00 9530 00 00
User GAMMA Point 6 ResetExecute BE EF03 06 0094 C206 00 5570 00 00
User GAMMA Point 7Get BE EF 0306 00 80FE 0200 96 3000 00
Increment BE EF03 06 00E6 FE04 00 9630 00 00
Decrement BE EF03 06 0037 FF05 00 9630 00 00
User GAMMA Point 7 ResetExecute BE EF03 06 00D0 C206 00 5670 00 00
User GAMMA Point 8Get BE EF 0306 00 7CFF 0200 9730 00 00
Increment BE EF03 06 001A FF04 00 9730 00 00
Decrement BE EF03 06 00CB FE05 0097 30 00 00
User GAMMA Point 8 ResetExecute BE EF03 06 002C C306 00 5770 00 00
COLOR TEMPSet1 HIGHBE EF03 0600 0B F501 00 B030 03 00
1 CUSTOMBE EF03 0600 CB F801 00 B03013 00
2 MID-1BE EF03 0600 9B F401 00 B03002 00
2 CUSTOMBE EF03 0600 5B F901 00 B03012 00
3 MID-2BE EF03 0600 3B F701 00 B03004 00
3 CUSTOMBE EF03 0600 FB FA01 00 B03014 00
4 LOWBE EF03 0600 6B F401 00 B03001 00
4 CUSTOMBE EF03 0600 AB F901 00 B030 11 00
5 Hi-BRIGHT-1BE EF 0306 003B F2 0100 B0 300800
5 CUSTOMBE EF03 0600 FB FF01 00 B03018 00
6 Hi-BRIGHT-2BE EF 0306 00AB F3 0100 B0 300900
6 CUSTOMBE EF03 0600 6B FE01 00 B03019 00
7 Hi-BRIGHT-3BE EF 0306 005B F3 0100 B0 300A00
7 CUSTOMBE EF03 0600 9B FE01 00 B0301A 00
Get BE EF 0306 00 C8F5 0200 B030 0000

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
COLOR TEMP GAIN RGet BE EF 0306 00 34F4 0200 B130 00 00
Increment BE EF03 06 0052 F404 00 B130 00 00
Decrement BE EF03 06 0083 F505 00 B130 00 00
COLOR TEMP GAIN R ResetExecute BE EF03 06 0010 C606 00 4670 00 00
COLOR TEMP GAIN GGet BE EF 0306 00 70F4 0200 B230 00 00
Increment BE EF03 06 0016 F404 00 B230 00 00
Decrement BE EF03 06 00C7 F505 00B2 30 00 00
COLOR TEMP GAIN G ResetExecute BE EF03 06 00ECC7 0600 47 7000 00
COLOR TEMP GAIN BGet BE EF 0306 00 8CF5 0200 B330 00 00
Increment BE EF03 06 00EA F504 00B3 30 00 00
Decrement BE EF03 06 003B F405 00B3 30 00 00
COLOR TEMP GAIN B ResetExecute BE EF03 06 00F8 C406 00 4870 00 00
COLOR TEMP OFFSET RGet BE EF 0306 00 04F5 0200 B530 00 00
Increment BE EF03 06 0062 F504 00B5 30 00 00
Decrement BE EF03 06 00B3 F405 00B5 30 00 00
COLOR TEMP OFFSET R ResetExecute BE EF03 06 0040 C506 00 4A70 00 00
COLOR TEMP OFFSET GGet BE EF 0306 00 40F5 0200 B630 00 00
Increment BE EF03 06 0026 F504 00B6 30 00 00
DecrementBE EF0306 00F7 F405 00B6 3000 00
COLOR TEMP OFFSET G ResetExecuteBE EF0306 00BC C406 004B 7000 00
COLOR TEMP OFFSET BGet BE EF 0306 00 BCF4 0200 B730 00 00
Increment BE EF03 06 00DA F404 00B7 30 00 00
Decrement BE EF03 06 00OB F505 00B7 30 00 00
COLOR TEMP OFFSET B ResetExecute BE EF03 06 00C8 C506 004C 70 00 00
COLORGet BE EF 0306 00B5 7202 0002 22 00 00
Increment BE EF03 06 00D3 7204 0002 2200 00
Decrement BE EF03 06 0002 7305 00 0222 00 00
COLOR ResetExecute BE EF03 06 0080 D006 00 0A70 00 00
TINTGet BE EF 0306 00 4973 0200 03 22 00 00
Increment BE EF03 06 002F 7304 00 0322 00 00
Decrement BE EF03 06 00FE 72 05 00 0322 00 00
TINT ResetExecute BE EF03 06 007C D106 00 0B7000 00
SHARPNESSGet BE EF 0306 00 F172 0200 01 22 00 00
Increment BE EF03 06 0097 7204 00 0122 00 00
Decrement BE EF03 06 0046 7305 00 0122 00 00
SHARPNESS ResetExecute BE EF03 06 00C4 D006 00 0970 00 00
DYNAMIC BLACKSetOFFBE EF0306 00FE 5A01 0080 2200 00
ONBE EF0306 006E 5B01 0080 2201 00
GetBE EF0306 00CD 5A02 0080 2200 00
ACCENTUALIZERGet BE EF 0306 00 5D70 0200 0C22 0000
Increment BE EF03 06 003B 7004 00 0C2200 00
Decrement BE EF03 06 00EA 7105 00 0C2200 00
ACCENTUALIZER ResetExecute BE EF03 06 00C8 DB06 00 2C7000 00
HDCRGet BE EF 0306 00 A171 0200 0D22 0000
Increment BE EF03 06 00C7 7104 00 0D2200 00
Decrement BE EF03 06 0016 7005 00 0D2200 00
HDCR ResetExecute BE EF03 06 0034 DA06 00 2D7000 00
MY MEMORY LoadSet1BE EF03 0600 0E D701 00 1420 00 00
2BE EF03 0600 9E D601 00 1420 01 00
3BE EF03 0600 6E D601 00 1420 02 00
4BE EF03 0600 FE D701 00 1420 03 00
MY MEMORY SaveSet1BE EF03 0600 F2 D601 00 1520 00 00
2BE EF03 0600 62 D701 00 1520 01 00
3BE EF03 0600 92 D701 00 1520 02 00
4BE EF03 0600 02 D601 00 1520 03 00
COLOR MANAGEMENT HUE RGet BE EF 0306 00 0C63 0200 00 2700 00
Increment BE EF03 06 006A 6304 00 0027 00 00
Decrement BE EF03 06 00BB 6205 00 0027 00 00
COLOR MANAGEMENT HUE R ResetExecute BE EF 03 06 00 98EB 0600D0 7000 00
COLOR MANAGEMENT HUE YGet BE EF 0306 00 F062 0200 01 2700 00
Increment BE EF03 06 0096 6204 00 0127 00 00
Decrement BE EF03 06 0047 6305 00 0127 00 00
COLOR MANAGEMENT HUE Y ResetExecute BE EF 03 06 00 64EA 0600D1 7000 00
COLOR MANAGEMENT HUE GGet BE EF 0306 00 B462 0200 02 2700 00
Increment BE EF03 06 00D2 6204 00 0227 00 00
Decrement BE EF03 06 0003 6305 00 0227 00 00
COLOR MANAGEMENT HUE G ResetExecute BE EF 03 06 00 20EA 0600D2 7000 00
COLOR MANAGEMENT HUE CGet BE EF 0306 00 4863 0200 03 2700 00
Increment BE EF03 06 002E 6304 00 0327 00 00
Decrement BE EF03 06 00FF 6205 00 0327 00 00
COLOR MANAGEMENT HUE C ResetExecuteBE EF0306 00DC EB06 00D3 7000 00
COLOR MANAGEMENT HUE BGet BE EF 0306 00 3C62 0200 04 2700 00
Increment BE EF03 06 005A 6204 00 0427 00 00
Decrement BE EF03 06 008B 6305 00 0427 00 00
COLOR MANAGEMENT HUE B ResetExecuteBE EF0306 00A8 EA06 00D4 7000 00
COLOR MANAGEMENT HUE MGet BE EF 0306 00 C063 0200 05 2700 00
Increment BE EF03 06 00A6 6304 00 0527 00 00
Decrement BE EF03 06 0077 6205 00 0527 00 00
COLOR MANAGEMENT HUE M ResetExecute BE EF 03 06 00 54EB 0600D5 7000 00
COLOR MANAGEMENT SATURATION RGet BE EF 0306 00CC 6702 0010 27 0000
Increment BE EF03 06 00AA 6704 00 1027 00 00
Decrement BE EF03 06 007B 6605 00 1027 00 00
COLOR MANAGEMENT SATURATION R ResetExecute BE EF 03 06 00 F8E9 0600D8 7000 00
COLOR MANAGEMENT SATURATION YGet BE EF 0306 00 3066 02 0011 27 0000
Increment BE EF03 06 0056 66 0400 11 2700 00
Decrement BE EF03 06 0087 6705 00 1127 00 00
COLOR MANAGEMENT SATURATION Y ResetExecute BE EF 0306 00 04E8 0600D9 7000 00
COLOR MANAGEMENT SATURATION GGet BE EF 0306 00 7466 02 00122700 00
Increment BE EF03 06 0012 66 040012 2700 00
Decrement BE EF03 06 00C3 6705 0012 2700 00
COLOR MANAGEMENT SATURATION G ResetExecute BE EF 0306 00 40E8 0600DA 7000 00
COLOR MANAGEMENT SATURATION CGet BE EF 0306 00 8867 02 00132700 00
Increment BE EF03 06 00EE 6704 0013 2700 00
Decrement BE EF03 06 003F 6605 0013 2700 00
COLOR MANAGEMENT SATURATION C ResetExecuteBE EF0306 00BC E906 00DB 7000 00
COLOR MANAGEMENT SATURATION BGet BE EF 0306 00 FC66 02 00142700 00
Increment BE EF03 06 009A 6604 0014 2700 00
Decrement BE EF03 06 004B 6705 0014 2700 00
COLOR MANAGEMENT SATURATION B ResetExecuteBE EF0306 00C8 E806 00DC 7000 00
COLOR MANAGEMENT SATURATION MGet BE EF 0306 00 0067 02 00152700 00
Increment BE EF03 06 0066 6704 0015 2700 00
Decrement BE EF03 06 00B7 6605 0015 2700 00
COLOR MANAGEMENT SATURATION M ResetExecute BE EF 0306 00 34E9 0600DD 7000 00
COLOR MANAGEMENT LUMINANCE RGetBE EF0306 00CC 6802 0020 2700 00
Increment BE EF03 06 00AA 6804 0020 2700 00
Decrement BE EF03 06 007B 6905 0020 2700 00
COLOR MANAGEMENT LUMINANCE R ResetExecute BE EF 0306 00 98E4 0600E0 7000 00
COLOR MANAGEMENT LUMINANCE YGet BE EF 0306 00 3069 02 00212700 00
Increment BE EF03 06 0056 6904 0021 2700 00
Decrement BE EF03 06 0087 6805 0021 2700 00
COLOR MANAGEMENT LUMINANCE Y ResetExecute BE EF 0306 00 64E5 0600E1 7000 00
COLOR MANAGEMENT LUMINANCE GGet BE EF 0306 00 7469 02 00222700 00
Increment BE EF03 06 0012 6904 0022 2700 00
Decrement BE EF03 06 00C3 6805 0022 2700 00
COLOR MANAGEMENT LUMINANCE G ResetExecute BE EF 0306 00 20E5 0600E2 7000 00
COLOR MANAGEMENT LUMINANCE CGet BE EF 0306 00 8868 0200 23 2700 00
Increment BE EF03 06 00EE 6804 00 2327 00 00
Decrement BE EF03 06 003F 6905 00 2327 00 00
COLOR MANAGEMENT LUMINANCE C ResetExecuteBE EF0306 00DC E406 00E3 7000 00
COLOR MANAGEMENT LUMINANCE BGet BE EF 0306 00 FC69 0200 24 2700 00
Increment BE EF03 06 009A 6904 00 2427 00 00
Decrement BE EF03 06 004B 6805 00 2427 00 00
COLOR MANAGEMENT LUMINANCE B ResetExecute BE EF03 06 00 A8 E506 00E4 7000 00
COLOR MANAGEMENT LUMINANCE MGet BE EF 0306 00 0068 0200 25 2700 00
Increment BE EF03 06 0066 6804 00 2527 00 00
Decrement BE EF03 06 00B7 6905 00 2527 00 00
COLOR MANAGEMENT LUMINANCE M ResetExecute BE EF03 06 0054 E406 00E5 7000 00
ASPECTSetNORMALBE EF0306 005E DD01 0008 2010 00
4:3BE EF0306 009E D001 0008 2000 00
16:9BE EF0306 000E D101 0008 2001 00
16:10BE EF0306 003E D601 0008 200A 00
14:9BE EF0306 00CE D601 0008 2009 00
NATIVEBE EF0306 005E D701 0008 2008 00
ZOOMBE EF0306 009E C401 0008 2030 00
GetBE EF0306 00AD D002 0008 2000 00
OVER SCANGetBE EF0306 0091 7002 0009 2200 00
IncrementBE EF0306 00F7 7004 0009 2200 00
DecrementBE EF0306 0026 7105 0009 2200 00
OVER SCAN ResetExecuteBE EF0306 00EC D906 0027 7000 00
V POSITIONGetBE EF0306 000D 8302 0000 2100 00
IncrementBE EF0306 006B 8304 0000 2100 00
DecrementBE EF0306 00BA 8205 0000 2100 00
V POSITION ResetExecuteBE EF0306 00E0 D206 0002 7000 00
H POSITIONGet BE EF 0306 00 F182 0200 01 21 00 00
Increment BE EF03 06 0097 8204 00 0121 00 00
Decrement BE EF03 06 0046 8305 00 0121 00 00
H POSITION ResetExecute BE EF03 06 001C D306 00 0370 00 00
H PHASEGet BE EF 0306 00 4983 0200 03 21 00 00
Increment BE EF03 06 002F 8304 00 0321 00 00
Decrement BE EF03 06 00FE 8205 00 0321 00 00
H SIZEGet BE EF 0306 00 B582 0200 02 21 00 00
Increment BE EF03 06 00D3 8204 00 0221 00 00
Decrement BE EF03 06 0002 8305 00 0221 00 00
H SIZE ResetExecute BE EF03 06 0068 D206 00 0470 00 00
AUTO ADJUST EXECUTEExecute BE EF03 06 0091 D006 00 0A20 00 00
PROGRESSIVESetOFFBE EF03 0600 4A 7201 00 0722 00 00
TVBE EF03 0600 DA 7301 00 0722 01 00
FILM BE EF03 06 002A 7301 00 0722 02 00
Get BE EF 0306 00 7972 0200 07 222 00 00
VIDEO NRSetLOW BE EF03 06 0026 7201 00 0622 01 00
MIDBE EF03 0600 D6 7201 00 0622 02 00
HIGHBE EF03 0600 46 7301 00 0622 03 00
Get BE EF 0306 00 8573 0200 06 222 00 00
COLOR SPACESetAUTOBE EF03 0600 0E 7201 00 0422 00 00
RGB BE EF03 06 009E 7301 00 0422 01 00
SMPTE240BE EF03 0600 6E 7301 00 0422 02 00
REC2020BE EF03 0600 5E 7101 00 0422 05 00
REC709BE EF03 0600 FE 7201 00 0422 03 00
REC601BE EF03 0600 CE 7001 00 0422 04 00
Get BE EF 0306 00 3D72 0200 04 222 00 00
C-VIDEO FORMATSetAUTOBE EF03 0600 A2 7001 00 1122 0A 00
NTSC BE EF03 06 00C2 7401 00 111 22 0400
PALBE EF03 0600 52 7501 00 1122 05 00
SECAMBE EF03 0600 52 7001 00 1122 09 00
NTSC4.43BE EF03 0600 62 7701 00 1122 02 00
M-PALBE EF03 0600 C2 7101 00 1122 08 00
N-PALBE EF03 0600 32 7401 00 1122 07 00
Get BE EF 0306 00 3176 0200 11 222 00 00
DIGITAL SIGNAL FORMAT - HDMI 1Set2K COMPATIBLEBE EF03 0600 02 3D01 00 6123 00 00
4K STANDARD BEEF 0306 0092 3C 0100 61 2301 00
4K ENHANCED BEEF 0306 0062 3C 0100 61 2302 00
Get BE EF 0306 00 313D 0200 61 23 00 00
DIGITAL SIGNAL FORMAT - DisplayPortSet2K COMPATIBLEBE EF03 0600 9E 3E01 00 6823 00 00
4K STANDARD BEEF 0306 00DE 3F 0100 68 2301 00
Get BE EF 0306 00 AD3E 0200 6823 00 00
DIGITAL SIGNAL FORMAT - HDBaseTSet2K COMPATIBLEBE EF03 0600 76 3C01 00 6623 00 00
4K STANDARD BEEF 0306 00E6 3D 0100 66 2301 00
Get BE EF 0306 00 453C 0200 66 23 00 00

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
HDMI 1 RANGESetAUTO BE EF 03 06 00 86 D8 01 00 22 20 00 00
NORMAL BE EF 03 06 00 16 D9 01 00 22 20 01 00
ENHANCED BE EF 03 06 00 E6 D9 01 00 22 20 02 00
Get BE EF 03 06 00 B5 D8 02 00 22 20 00 00
HDMI 2 RANGESetAUTO BE EF 03 06 00 7A D9 01 00 23 20 00 00
NORMAL BE EF 03 06 00 EA D8 01 00 23 20 01 00
ENHANCED BE EF 03 06 00 1A D8 01 00 23 20 02 00
Get BE EF 03 06 00 49 D9 02 00 23 20 00 00
HDBaseT RANGESetAUTO BE EF 03 06 00 86 E B 01 00 D2 20 00 00
NORMAL BE EF 03 06 00 16 EA 01 00 D2 20 01 00
ENHANCED BE EF 03 06 00 E6 EA 01 00 D2 20 02 00
Get BE EF 03 06 00 B5 EB 02 00 D2 20 00 00
3G-SDI RANGE*SetNORMAL BE EF 03 06 00 16 E5 01 00 E2 20 01 00
ENHANCED BE EF 03 06 00 E6 E5 01 00 E2 20 02 00
Get BE EF 03 06 00 B5 E4 02 00 E2 20 00 00
DisplayPort RANGESetAUTO BE EF 03 06 00 46 E 01 00 F2 20 00 00
NORMAL BE EF 03 06 00 D6 E1 01 00 F2 20 01 00
ENHANCED BE EF 03 06 00 26 E1 01 00 F2 20 02 00
Get BE EF 03 06 00 75 E0 02 00 F2 20 00 00
COMPUTER INSetAUTO BE EF 03 06 00 CE D6 01 00 10 20 03 00
SYNC ON G OFF BE EF 03 06 00 5E D7 01 00 10 20 02 00
Get BE EF 03 06 00 0D D6 02 00 10 20 00 00
FRAME LOCK - COMPUTER INSetOFF BE EF 03 06 00 3B C2 01 00 50 30 00 00
ON BE EF 03 06 00 AB C3 01 00 50 30 01 00
Get BE EF 03 06 00 08 C2 02 00 50 30 00 00
FRAME LOCK - HDMI 1SetOFF BE EF 03 06 00 7F C2 01 00 53 30 00 00
ON BE EF 03 06 00 EF C3 01 00 53 30 01 00
Get BE EF 03 06 00 4C C2 02 00 53 30 00 00
FRAME LOCK - HDMI 2SetOFF BE EF 03 06 00 97 C0 01 00 5D 30 00 00
ON BE EF 03 06 00 07 C1 01 00 5D 30 01 00
Get BE EF 03 06 00 A4 C0 02 00 5D 30 00 00
FRAME LOCK - HDBaseTSetOFF BE EF 03 06 00 C2 EB 01 00 D1 20 00 00
ON BE EF 03 06 00 52 EA 01 00 D1 20 01 00
Get BE EF 03 06 00 F1 EB 02 00 D1 20 00 00

* Supported only for MP-WU8801W/MP-WU8801B

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
FRAME LOCK - 3G-SDI*SetOFF BE EF03 06 00C2 E4 01 00 E1 20 00 00
ON BE EF03 06 0052 E501 00 E120 01 00
Get BE EF 0306 00 F1E4 0200 E1 2000 00
FRAME LOCK - DisplayPortSetOFF BE EF03 06 0002 E0 01 00 F120 00 00
ON BE EF03 06 0092 E101 00 F120 01 00
Get BE EF 0306 00 31E0 0200 F1 2000 00
PICTURE POSITION VSetTOP BE EF03 06 0002 D0 01 00 0920 02 00
MIDDLEBE EF03 0600 62 D101 00 0920 00 00
BOTTOMBE EF03 0600 F2 D001 00 0920 01 00
Get BE EF 0306 00 51D1 0200 09 2000 00
PICTURE POSITION HSetRIGHTBE EF03 0600 46 D501 00 1E20 01 00
MIDDLEBE EF03 0600 D6 D401 00 1E20 00 00
LEFTBE EF03 0600 B6 D501 00 1E20 02 00
Get BE EF 0306 00 E5D4 0200 1E20 00 00
GEOMETRIC MODESetKEYSTONEBE EF03 0600 6B 8C01 0030 31 0100
PERFECT FITBE EF03 0600 9B 8C01 0030 31 0200
WARPINGBE EF03 0600 3B 8F01 0030 31 0400
Get BE EF 0306 00 C88D 0200 3031 00 00
KEYSTONE VGet BE EF 0306 00 B9D3 0200 0720 00 00
IncrementBE EF03 0600 DF D304 0007 20 0000
DecrementBE EF03 0600 0E D205 0007 20 0000
KEYSTONE V ResetExecuteBE EF0306 0008 D006 000C 7000 00
KEYSTONE HGet BE EF 0306 00 E9D0 0200 0B 2000 00
IncrementBE EF03 0600 8F D004 000B 20 0000
DecrementBE EF03 0600 5E D105 00 0B20 00 00
KEYSTONE H ResetExecuteBE EF0306 0098 D806 0020 7000 00
PERFECT FIT Left Top - HGetBE EF0306 0031 8902 0021 2100 00
IncrementBE EF0306 0057 8904 0021 2100 00
DecrementBE EF0306 0086 8805 0021 2100 00
PERFECT FIT Left Top - VGetBE EF0306 0075 8902 0022 2100 00
IncrementBE EF0306 0013 8904 0022 2100 00
DecrementBE EF0306 00C2 8805 0022 2100 00
PERFECT FIT Right Top - HGetBE EF0306 0089 8802 0023 2100 00
IncrementBE EF0306 00EF 8804 0023 2100 00
DecrementBE EF03 0600 3E 8905 0023 21 0000
PERFECT FIT Right Top - VGet BE EF 0306 00 FD8902 0024 21 0000
IncrementBE EF03 0600 9B 8904 0024 21 0000
DecrementBE EF03 0600 4A 8805 0024 21 0000

* Supported only for MP-WU8801W/MP-WU8801B

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
PERFECT FIT Left Bottom - HGet BE EF 0306 00 0188 0200 25210000
Increment BE EF03 06 0067 8804 00 25210000
Decrement BE EF03 06 00B6 8905 00 25210000
PERFECT FIT Left Bottom - VGet BE EF 0306 00 4588 0200 26210000
Increment BE EF03 06 0023 8804 00 26210000
Decrement BE EF03 06 00F2 8905 00 26210000
PERFECT FIT Right Bottom - HGet BE EF 0306 00 B989 0200 27210000
Increment BE EF03 06 00DF 8904 00 27210000
Decrement BE EF03 06 00OE 8805 00 27210000
PERFECT FIT Right Bottom - VGet BE EF 0306 00 AD8A 0200 28210000
Increment BE EF03 06 00CB 8A04 00 28210000
Decrement BE EF03 06 001A 8B05 00 28210000
PERFECT FIT All Corners ResetExecute BE EF03 06 00D5 8A06 00 29210000
PERFECT FIT Left Side DistortionGet BE EF 0306 00 3197 0200 41210000
Increment BE EF03 06 0057 9704 00 41210000
Decrement BE EF03 06 0086 9605 00 41210000
PERFECT FIT Right Side DistortionGet BE EF 0306 00 7597 0200 42210000
Increment BE EF03 06 0013 9704 00 42210000
Decrement BE EF03 06 00C2 9605 00 42210000
PERFECT FIT Top Side DistortionGet BE EF 0306 00 FD97 0200 44210000
Increment BE EF03 06 009B 9704 00 44210000
Decrement BE EF03 06 004A 9605 00 44210000
PERFECT FIT Bottom Side DistortionGet BE EF 0306 00 0196 0200 45210000
Increment BE EF03 06 0067 9604 00 45210000
Decrement BE EF03 06 00B6 9705 00 45210000
PERFECT FIT All Sides ResetExecute BE EF03 06 003D 9606 00 47210000
PERFECT FIT Memory Save-1Execute BE EF03 06 0029 9506 00 48210000
PERFECT FIT Memory Save-2Execute BE EF03 06 00D5 9406 00 49210000
PERFECT FIT Memory Save-3Execute BE EF03 06 0091 9406 00 4A210000
PERFECT FIT Memory Load-1Execute BE EF03 06 006D 9506 00 4B210000
PERFECT FIT Memory Load-2Execute BE EF03 06 0019 9406 00 4C210000
PERFECT FIT Memory Load-3Execute BE EF03 06 00E5 9506 00 4D210000

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
EDGE BLENDING MODESetOFF BE EF 03 0600 6B 9401 004C 31 00 00
MANUAL BE EF 0306 00 FB95 0100 4C 3101 00
CAMERA BE EF 0306 00 0B95 0100 4C 3102 00
Get BE EF 0306 00 5894 0200 4C 3100 00
EDGE BLENDING REGION ResetExecuteBE EF 0306 008C 96 0600 40 3100 00
EDGE BLENDING LEVELIncrementBE EF 0306 0092 96 0400 41 3100 00
DecrementBE EF 0306 0043 97 0500 41 3100 00
Get BE EF 0306 00 F496 0200 41 3100 00
EDGE BLENDING LEFTGet BE EF 0306 00 6895 0200 48 3100 00
IncrementBE EF 0306 000E 95 0400 48 3100 00
DecrementBE EF 0306 00DF 94 0500 48 3100 00
EDGE BLENDING RIGHTGet BE EF 0306 00 9494 0200 49 3100 00
IncrementBE EF 0306 00F2 94 0400 49 3100 00
DecrementBE EF 0306 0023 95 0500 49 3100 00
EDGE BLENDING TOPGet BE EF 0306 00 D094 0200 4A 3100 00
IncrementBE EF 0306 00B6 94 0400 4A 3100 00
DecrementBE EF 0306 0067 95 0500 4A 3100 00
EDGE BLENDING BOTTOMGet BE EF 0306 00 2C95 0200 4B 3100 00
IncrementBE EF 0306 004A 95 0400 4B 3100 00
DecrementBE EF 0306 009B 94 0500 4B 3100 00
Names Operation Type HeaderCRCCommand Data
Action Type Setting code
CROPPING MODESetOFF BE EF03 06 00FB 9301 00 50 31 00 00
ON BE EF03 06 00 6B 92 01 00 50 3101 00
Get BE EF 0306 00 C893 0200 50 31 00 00
CROPPING SETUP XGet BE EF 0306 00 A891 0200 58 31 00 00
IncrementBE EF 0306 000 CE 9104 00 5831 00 00
DecrementBE EF 0306 000 1F 90 055 00 58 3100 00
CROPPING SETUP YGet BE EF 0306 00 5490 0200 59 31 00 00
IncrementBE EF 0306 000 32 90 0400 59 3100 00
DecrementBE EF 0306 000 E3 91 055 00 59 3100 00
CROPPING SETUP WGet BE EF 0306 00 1090 0200 5A 31 00 00
IncrementBE EF 0306 000 76 90 0400 5A 3100 00
DecrementBE EF 0306 000 A7 91 055 00 5A 3100 00
CROPPING SETUP HGet BE EF 0306 00EC 9102 00 5B31 00 00
IncrementBE EF 0306 000 8A 91 0400 5B 3100 00
DecrementBE EF 0306 000 5B 90 055 00 5B 3100 00
CROPPING ApplyExecuteBE EF 0306 000 B0 93 0600 51 3100 00
CROPPING ResetExecuteBE EF 0306 000 F4 93 0600 52 3100 00
WARPING MODESetOFF BE EF03 06 00FB9C01 00 60 3100 00
MODE-1BE EF 0306 006B9D 01 00 6031 01 00
MODE-2BE EF 0306 009B9D 01 00 6031 02 00
MODE-3BE EF 0306 000B9C 01 00 6031 03 00
Get BE EF 0306 00C8 9C02 0060 31 00 00
WHITE BALANCE OFFSET RGet BE EF 0306 00 0C72 0200 50 2700 00
IncrementBE EF 0306 000 6A 72 0400 50 2700 00
DecrementBE EF 0306 00BB 73 055 00 50 2700 00
WHITE BALANCE OFFSET R ResetExecuteBE EF 0306 000 38 E2 0600 F8 7000 00
WHITE BALANCE OFFSET GGet BE EF 0306 00 F073 0200 51 2700 00
IncrementBE EF 0306 000 96 73 0400 51 2700 00
DecrementBE EF 0306 000 47 72 055 00 51 2700 00
WHITE BALANCE OFFSET G ResetExecuteBE EF 0306 00C4 E306 00 F970 00 00
WHITE BALANCE OFFSET BGet BE EF 0306 00 B473 0200 52 2700 00
IncrementBE EF 0306 00D2 73 0400 52 2700 00
DecrementBE EF 0306 0003 72 055 00 52 2700 00
WHITE BALANCE OFFSET B ResetExecuteBE EF 0306 0080 E3 0600 FA 7000 00
WHITE BALANCE GAIN RGet BE EF 0306 00 3C73 0200 54 270 00
Increment BE EF03 06 005A 7304 00 5427 00 00
Decrement BE EF03 06 008B 7205 00 5427 00 00
WHITE BALANCE GAIN R ResetExecute BE EF 0306 00 08E3 0600 FC 7000 00
WHITE BALANCE GAIN GGet BE EF 0306 00 C072 0200 55 2700 00
Increment BE EF03 06 00A6 7204 00 5527 00 00
Decrement BE EF03 06 0077 7305 00 5527 00 00
WHITE BALANCE GAIN G ResetExecute BE EF 0306 00 F4E2 0600 FD 7000 00
WHITE BALANCE GAIN BGet BE EF 0306 00 8472 0200 56 2700 00
Increment BE EF03 06 00E2 7204 00 5627 00 00
Decrement BE EF03 06 0033 7305 00 5627 00 00
WHITE BALANCE GAIN B ResetExecute BE EF 0306 00 B0E2 0600 FE 7000 00
BLACK LEVEL RGetBE EF0306 00CC 7602 0040 2700 00
Increment BE EF03 06 00AA 7604 00 4027 00 00
Decrement BE EF03 06 007B 7705 00 4027 00 00
BLACK LEVEL R ResetExecute BE EF 0306 00 68E1 0600 F4 7000 00
BLACK LEVEL GGet BE EF 0306 00 3077 0200 41 2700 00
Increment BE EF03 06 0056 7704 00 4127 00 00
Decrement BE EF03 06 0087 7605 00 4127 00 00
BLACK LEVEL G ResetExecute BE EF 0306 00 94E0 0600 F5 7000 00
BLACK LEVEL BGet BE EF 0306 00 7477 0200 42 2700 00
Increment BE EF03 06 0012 7704 00 4227 00 00
Decrement BE EF03 06 00C3 7605 00 4227 00 00
BLACK LEVEL B ResetExecute BE EF 0306 00D0 E006 00 F670 00 00
BLACK LEVEL WGet BE EF 0306 00 8876 0200 43 2700 00
Increment BE EF03 06 00EE 7604 00 4327 00 00
Decrement BE EF03 06 003F 7705 00 4327 00 00
BLACK LEVEL W ResetExecute BE EF 0306 002C E106 00 F770 00 00

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
LIGHT OUTPUTSetNORMAL BEEF 03 0600 3B37 01 0000 33 3000
WHISPER BEEF 03 0600 AB22 01 0000 33 0100
LONG LIFE 1 BEEF 03 0600 6B20 01 0000 00 3305 00
LONG LIFE 2 BEEF 03 0600 9B20 01 0000 00 3306 00
Get BE EF 0306 00 0823 0200 00 3300 00
LIGHT OUTPUT NORMAL POWERGet BE EF 0306 00 C423 0200 05 3300 00
IncrementBE EF03 0600 A2 2304 00 0533 00 00
DecrementBE EF03 0600 73 2205 00 0533 00 00
INSTALLATIONSetFRONT / DESKTOPBE EF03 0600 C7 D201 00 0130 00 00
REAR / DESKTOPBE EF03 0600 57 D301 00 0130 01 00
REAR / CEILINGBE EF03 0600 A7 D301 00 0130 02 00
FRONT / CEILINGBE EF03 0600 37 D201 00 0130 03 00
Get BE EF 0306 00 F4D2 0200 01 3300 00
STANDBY MODESetQUICK STARTBE EF03 0600 16 DF01 00 0160 10 00
NORMAL BEEF 03 0600 D6D2 01 0001 60 0000
NETWORK(WOL)BE EF03 0600 B6 D301 00 0160 02 00
SAVINGBE EF03 0600 46 D301 00 0160 01 00
Get BE EF 0306 00 E5D2 0200 01 6000 00
COLOR UNIFORMITY LEVELSet1BE EF03 0600 AF 6D01 00 3027 01 00
2BE EF03 0600 5F 6D01 00 3027 02 00
3BE EF03 0600 CF 6C01 00 3027 03 00
4BE EF03 0600 FF 6E01 00 3027 04 00
Get BE EF 0306 00 0C6C 0200 30 2700 00
COLOR UNIFORMITY AREASetTop LeftBE EF03 0600 C3 6D01 00 3127 00 00
TopBE EF03 0600 53 6C01 00 3127 01 00
Top RightBE EF03 0600 A3 6C01 00 3127 02 00
LeftBE EF03 0600 03 AC01 00 3127 00 01
AllBE EF03 0600 93 AD01 00 3127 01 01
RightBE EF03 0600 63 AD01 00 3127 02 01
Bottom LeftBE EF03 0600 02 EC01 00 3127 00 02
BottomBE EF03 0600 92 ED01 00 3127 01 02
Bottom RightBE EF03 0600 62 ED01 00 3127 02 02
Get BE EF 0306 00 F06D 0200 31 2700 00
COLOR UNIFORMITY RGet BE EF 0306 00 B46D 0200 32 2700 00
IncrementBE EF03 0600 D2 6D04 00 3227 00 00
DecrementBE EF03 0600 03 6C05 00 3227 00 00
COLOR UNIFORMITY R ResetExecute BE EF03 0600 58E0 06 00F0 70 0000
COLOR UNIFORMITY GGet BE EF 0306 00 486C 0200 33 2700 00
Increment BE EF03 06 002E 6C04 00 3327 00 00
Decrement BE EF03 06 00FF 6D05 00 3327 00 00
COLOR UNIFORMITY G ResetExecute BE EF 0306 00 A4 E1 06 00 F1 700 00
COLOR UNIFORMITY BGet BE EF 0306 00 3C6D 0200 3427 00 00
Increment BE EF03 06 005A 6D04 00 3427 00 00
Decrement BE EF03 06 008B 6C05 0034 2700 00
COLOR UNIFORMITY B ResetExecute BE EF 0306 00 E0 E1 06 00 F2 700 00
COLOR UNIFORMITY ALL ResetExecute BE EF 0306 00 1C E006 00 F3 700 00
COLOR UNIFORMITY PATTERNSetOFFBE EF0306 00B7 6C01 0036 2700 00
ONBE EF0306 0027 6D01 0036 2701 00
Get BE EF 0306 00 846C 0200 3627 00 00
VOLUME - COMPUTER INGetBE EF0306 00CD CC02 0060 2000 00
IncrementBE EF0306 00AB CC04 0060 2000 00
DecrementBE EF0306 007A CD05 0060 2000 00
VOLUME - LANGetBE EF0306 00E9 CE02 006B 2000 00
IncrementBE EF0306 008F CE04 006B 2000 00
DecrementBE EF0306 005E CF05 006B 2000 00
VOLUME - HDMI 1GetBE EF0306 0089 CC02 0063 2000 00
IncrementBE EF0306 00EF CC04 0063 2000 00
DecrementBE EF0306 003E CD05 0063 2000 00
VOLUME - HDMI 2GetBE EF0306 0061 CE02 006D 2000 00
IncrementBE EF0306 0007 CE04 006D 2000 00
DecrementBE EF0306 00D6 CF05 006D 2000 00
VOLUME - HDBaseTGetBE EF0306 00C1 EA02 00D5 2000 00
IncrementBE EF0306 00A7 EA04 00D5 2000 00
DecrementBE EF0306 0076 EB05 00D5 2000 00
VOLUME - VIDEOGetBE EF0306 0031 CD02 0061 2000 00
IncrementBE EF0306 0057 CD04 0061 2000 00
DecrementBE EF0306 0086 CC05 0061 2000 00
VOLUME - 3G-SDI*Get BE EF 0306 00 C1E5 0200 E5 2000 00
Increment BE EF03 06 00A7 E504 00 E520 00 00
Decrement BE EF03 06 0076 E405 00 E520 00 00
VOLUME - DisplayPortGet BE EF 0306 00 01E1 0200 F5 2000 00
Increment BE EF03 06 0067 E104 00 F520 00 00
Decrement BE EF03 06 00B6 E005 00 F520 00 00
VOLUME - STANDBYGetBE EF0306 00D9 CF02 006F 2000 00
IncrementBE EF0306 00BF CF04 006F 2000 00
DecrementBE EF0306 006E CE05 006F 2000 00
VOLUME - ALLGetBE EF0306 00CD C302 0050 2000 00
IncrementBE EF0306 00AB C304 0050 2000 00
DecrementBE EF0306 007A C205 0050 2000 00
MUTESetOFF BE EF03 06 0046 D01 00 0220 00 00
ON BE EF03 06 00D6 D201 00 0220 01 00
Get BE EF 0306 00 75D3 0200 02 200 00
AVMUTESetOFF BE EF03 06 00FE F01 00 A0 20 00 00
ON BE EF03 06 006E F101 00 A0 20 01 00
Get BE EF 0306 00 CDF0 0200 A020 00 00
AUDIO SOURCE - COMPUTER INSetAUDIO IN1BE EF03 0600 6E DC01 0030 20 0100
AUDIO IN2BE EF03 0600 9EDC 01 0030 20 0200
OFF BE EF03 06 00FEDD 0100 30 2000 00
Get BE EF 0306 00CD DD02 0030 20 0000
AUDIO SOURCE - LANSetAUDIO IN1BE EF03 0600 4A DE01 00 3B20 01 00
AUDIO IN2BE EF0306 00BA DE01 003B 2002 00
AUDIO LAN BEEF 03 0600 8AD3 01 0000 3B 2011 00
OFF BE EF03 06 00DADF 0100 3B 2000 00
Get BE EF 0306 00 E9DF 0200 3B 2000 00
AUDIO SOURCE - HDMI 1SetAUDIO IN1BE EF03 0600 2A DC01 00 3320 01 00
AUDIO IN2BE EF0306 00DA DC01 0033 2002 00
AUDIO HDMI 1BE EF03 0600 7A C401 00 3320 20 00
OFF BE EF03 06 00BADD 0100 33 2000 00
Get BE EF 0306 00 89DD 0200 33 2000 00
AUDIO SOURCE - HDMI 2SetAUDIO IN1BE EF0306 00C2 DE01 003D 2001 00
AUDIO IN2BE EF03 0600 32 DE01 00 3D2002 00
AUDIO HDMI 2BE EF03 0600 02 C701 00 3D2021 00
OFF BE EF03 06 0052 DF01 00 3D2000 00
Get BE EF 0306 00 61DF 0200 3D 2000 00
AUDIO SOURCE - HDBaseTSetAUDIO IN1BE EF03 0600 9E EA01 00 D42001 00
AUDIO IN2BE EF03 0600 6E EA01 00 D42002 00
AUDIO HDBaseTBE EF03 0600 0E F001 00 D42024 00
OFF BE EF03 06 00OE EB01 00 D42000 00
Get BE EF 0306 00 3DEB 0200 D420 0000
AUDIO SOURCE - 3G-SDI*SetAUDIO IN1BE EF0306 009E E501 00E4 2001 00
AUDIO IN2BE EF0306 006E E501 00E4 2002 00
OFFBE EF0306 000E E401 00E4 2000 00
GetBE EF0306 003D E402 00E4 2000 00
AUDIO SOURCE - DisplayPortSetAUDIO IN1BE EF0306 005E E101 00F4 2001 00
AUDIO IN2BE EF0306 00AE E101 00F4 2002 00
AUDIO DisplayPortBE EF0306 00AE FA01 00F4 2026 00
OFFBE EF0306 00CE E001 00F4 2000 00
GetBE EF0306 00FD E002 00F4 2000 00
AUDIO SOURCE - VIDEOSetAUDIO IN1 BEEF 03 0600 92DD 01 000 31 20 001 00
AUDIO IN2 BEEF 03 0600 62DD 01 000 31 20 002 00
OFF BE EF03 06 0002 DC01 00 311 20 00 000
Get BE EF 0306 00 31DC 0200 31 2000 00
LAN SOUND ENABLESetDisable BE EF03 06 00BAF0 01 00A3 2000 00
EnableBE EF 03 0600 2A F101 00 A320 01 00
Get BE EF 0306 00 89F0 0200 A3 2000 00
LANGUAGESetENGLISHBE EF 03 0600 F7 D301 00 0530 00 00
FRANÇAISBE EF 03 0600 67 D201 00 0530 01 00
DEUTSCHBE EF 03 0600 97 D201 00 0530 02 00
ESPAÑOLBE EF 03 0600 07 D301 00 0530 03 00
ITALIANOBE EF 03 0600 37 D101 00 0530 04 00
NORSKBE EF 03 0600 A7 D001 00 0530 05 00
NEDERLANDSBE EF 03 0600 57 D001 00 0530 06 00
PORTUGUÊSBE EF 03 0600 C7 D101 00 0530 07 00
日本語BE EF 03 0600 37 D401 00 0530 08 00
简体中文BE EF 03 0600 A7 D501 00 0530 09 00
繁體中文BE EF 03 0600 37 DE01 00 0530 10 00
한글BE EF 03 0600 57 D501 00 0530 0A 00
SVENSKABE EF 03 0600 C7 D401 00 0530 0B 00
PYCCKIЙBE EF 0306 00F7 D601 0005 300C 00
SUOMI BE EF03 06 0067 D701 00 05 300D 00
POLSKIBE EF 0306 0097 D701 0005 300E 00
TÜRKÇEBE EF 0306 0007 D601 0005 300F 00
DANSKBE EF 03 0600 A7 DF01 00 053011 00
ČESKYBE EF 0306 0057 DF01 0005 3012 00
MAGYARBE EF 03 0600 C7 DE01 0005 30 1300
ROMÁNÁBE EF 03 0600 F7 DC01 00 0530 14 00
SLOVENSKIBE EF 03 0600 67 DD01 00 0530 15 00
HRVATSKIBE EF 03 0600 97 DD01 00 0530 16 00
ΕΛΛΗΝΙΚΑBE EF 03 0600 07 DC01 00 0530 17 00
LIETUVIUBE EF 0306 00F7 D901 0005 3018 00
EESTIBE EF 0306 0067 D801 0005 3019 00
LATVIEŠUBE EF 0306 0097 D801 0005 301A 00
İntuBE EF 0306 0007 D901 0005 301B 00
هیپرکلا ؞غللاBE EF 03 0600 37 DB01 00 0530 1C 00
کسراکBE EF 03 0600 A7 DA01 00 0530 1D 00
PORTUGUÊS BRABE EF 03 0600 57 DA01 00 0530 1E 00
BAHASA INDBE EF 0306 00C7 DB01 0005 301F 00
TIENG VIETBE EF 03 0600 37 CA01 00 0530 20 00
نف NASABE EF 03 0600 A7 CB01 00 0530 21 00
GetBE EF 0306 00C4 D302 0005 3000 00

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
MENU POSITION VGet BE EF 0306 00 40D7 0200 16300 00
Increment BE EF03 06 0026 D704 00 16630 00 00
Decrement BE EF03 06 00F7 D605 00 1630 00 00
MENU POSITION V ResetExecute BE EF03 06 00A8 C706 00 4470 00 00
MENU POSITION HGet BE EF 0306 00 04D7 0200 15300 00
Increment BE EF03 06 0062 D704 00 1530 00 00
Decrement BE EF03 06 00B3 D605 00 1530 00 00
MENU POSITION H ResetExecute BE EF03 06 00DC C606 00 4370 00 00
BLANKSetMyScreenBE EF03 0600 FB CA01 00 0030 20 00
ORIGINALBE EF03 0600 FB E201 00 0030 40 00
BLUE BE EF03 06 00CB D301 00 0030 03 00
WHITEBE EF03 0600 6B D001 00 0030 05 00
BLACKBE EF03 0600 9B D001 00 0030 06 00
Get BE EF 0306 00 08D3 0200 00 3000 00
BLANK On/OffSetOFFBE EF03 0600 FB D801 00 2030 00 00
ONBE EF03 0600 6B D901 00 2030 01 00
Get BE EF 0306 00 C8D8 0200 2030 00 00
AUTO BLANKSetBLUE BE EF03 06 0067 D101 00 003003 00
WHITEBE EF03 0600 C7 D201 00 0D3005 00
BLACKBE EF03 0600 37 D201 00 0D3006 00
Get BE EF 0306 00 A4D1 0200 0D30 0000
START UPSetMyScreenBE EF03 0600 CB CB01 0004 30 2000
ORIGINALBE EF03 0600 0B D201 00 0430 00 00
OFFBE EF03 0600 9B D301 00 0430 01 00
Get BE EF 0306 00 38D2 0200 0430 00 00

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCRCCommand Data
Action Type Setting code
MyScreen LockSetOFF BE EF03 06 003B EF01 00 C0 30 0000
ON BE EF03 06 00AB EE01 00 C0 30 0100
Get BE EF 0306 00 08EF 0200 C030 00 00
OSDMESSAGESetSILENT BEEF 03 0600 8FD6 0100 173000 00
NORMALBE EF 03 0600 1FD7 0100 173001 00
INHIBIT BEEF 03 0600 EFD7 0100 173002 00
Get BEEF 03 0600 BCD6 0200 173000 00
TEMPLATESetTEST PATTERN BE EF 030600 43 D901 0022 30 0000
DOT-LINE 1BE EF 0306 00 D3D8 01 0022 30 0100
DOT-LINE 2BE EF0306 0023 D801 0022 3002 00
DOT-LINE 3BE EF0306 00B3 D901 0022 3003 00
DOT-LINE 4BE EF0306 0083 DB01 0022 3004 00
STACKBE EF0306 0083 C001 0022 3020 00
GetBE EF0306 0070 D902 0022 3000 00
TEMPLATE On/OffSetOFFBE EF 0306 00 BFD8 01 0023 30 0000
ONBE EF0306 002F D901 0023 3001 00
GetBE EF 0306 00 8CD8 02 0023 30 0000
C. C. - DISPLAYSetOFFBE EF 0306 00 FA62 01 0000 37 0000
ONBE EF 0306 00 6A63 01 0000 37 0100
AUTOBE EF 0306 00 9A63 01 0000 37 0200
GetBE EF0306 00C9 6202 0000 3700 00
C. C. - MODESetCAPTIONSBE EF0306 0006 6301 0001 3700 00
TEXTBE EF0306 0096 6201 0001 3701 00
GetBE EF0306 0035 6302 0001 3700 00
C. C. - CHANNELSet1BE EF0306 00D2 6201 0002 3701 00
2BE EF0306 0022 6201 0002 3702 00
3BE EF0306 00B2 6301 0002 3703 00
4BE EF0306 0082 6101 0002 3704 00
GetBE EF0306 0071 6302 0002 3700 00
SEARCH SKIP - COMPUTER INSetNORMALBE EF0306 00FE 7801 0020 2200 00
SKIPBE EF0306 006E 7901 0020 2201 00
GetBE EF 0306 00 CD78 02 0020 22 0000
SEARCH SKIP - LANSetNORMALBE EF0306 00DA 7A01 002B 2200 00
SKIPBE EF0306 004A 7B01 002B 2201 00
GetBE EF0306 00E9 7A02 002B 2200 00
SEARCH SKIP - HDMI 1SetNORMALBE EF0306 00BA 7801 0023 2200 00
SKIPBE EF 0306 00 2A79 01 0023 22 0100
GetBE EF0306 0089 7802 0023 2200 00
SEARCH SKIP - HDMI 2SetNORMALBE EF0306 0052 7A01 002D 2200 00
SKIPBE EF0306 00C2 7B01 002D 2201 00
GetBE EF0306 00 617A 0200 2D 2200 00
SEARCH SKIP - HDBaseTSetNORMALBE EF0306 00B6 EA01 00D6 2000 00
SKIPBE EF0306 0026 EB01 00D6 2001 00
GetBE EF0306 0085 EA02 00D6 2000 00
SEARCH SKIP -VIDEOSetNORMAL BEEF 03 0600 0279 01 0021 22 0000
SKIP BE EF03 06 0092 7801 00 2122 01 00
Get BE EF 0306 00 3179 0200 21 2220 00 00
SEARCH SKIP3G-SDI*SetNORMAL BEEF 03 0600 B6E5 0100 E620 0000
SKIP BEEF 03 0600 26E4 0100 E620 0100
Get BEEF 03 0600 85E5 0200 E620 0000
SEARCH SKIPDisplayPortSetNORMAL BEEF 03 0600 76E1 0100 F620 0000
SKIP BEEF 03 0600 E6E0 0100 F620 0100
Get BEEF 03 0600 45E1 0200 F620 0000
AUTO SEARCHSetOFFBE EF 03 0600 B6 D601 00 1620 00 00
ONBE EF 03 0600 26 D701 00 1620 01 00
Get BE EF 0306 00 85D6 0200 16 2000 00
DIRECTPOWER ONSetOFFBE EF 03 0600 3B 8901 00 2031 00 00
ONBE EF 03 0600 AB 8801 00 2031 01 00
Get BE EF 0306 00 0889 0200 20 3100 00
AUTOPOWER ON -COMPUTER INGet BE EF 0306 00 08A4 0200 B0 3100 00
AUTO POWERON -VIDEOGet BE EF 0306 00 F4A5 0200 B1 3100 00
AUTO POWERON - HDMI 2Get BE EF 0306 00 A4A6 0200 BD 3100 0000
AUTO POWEROFFGet BE EF 0306 00 0886 0200 10 3100 00
IncrementBE EF 03 0600 6E 8604 00 1031 00 00
DecrementBE EF 03 0600 BF 8705 00 1031 00 00
SHUTTERTIMERSet1hBE EF 03 0600 27 9201 00 0624 01 00
3hBE EF 03 0600 47 9301 00 0624 03 00
6hBE EF 03 0600 17 9001 00 0624 06 00
Get BE EF 0306 00 8493 0200 06 2400 00
LIGHT SOURCE TIME Lower BytesGet BE EF 0306 00 C2FF 0200 9010 00 00
LIGHT SOURCE TIME Higher BytesGet BE EF 0306 00 2AFD 0200 9E10 00 00
LIGHT SOURCE TIME ResetExecuteBE EF0306 0058 DC06 0030 7000 00
FILTER TIMELower BytesGet BE EF 0306 00 C2F0 0200 A010 00 00
FILTER TIMEHigher BytesGet BE EF 0306 00 D6FC 0200 9F10 00 00
FILTER TIMEResetExecute BE EF03 0600 98C6 06 0040 70 0000
MY BUTTON 1SetMY IMAGE BEEF 03 0600 5A3D 01 000 00 36 1600
MESSENGER BEEF 03 0600 A29 0100 00 3625 00
SHUTTER BEEF 03 0600 5A26 01 0000 36 3200
INFORMATION BEEF 03 0600 FA3E 0100 00 3610 00
MY MEMORY BEEF 03 0600 9A3F 0100 00 3612 00
PICTURE MODEBE EF03 0600 0A 3E01 00 0036 13 00
FILTER RESET BEEF 03 0600 3A3C 0100 00 3614 00
TEMPLATEBE EF03 0600 CA 3901 00 0036 1B 00
MUTEBE EF03 0600 FA 2001 00 0036 38 00
PbyP/PinP SWAPBE EF03 0600 5A 3801 00 0036 1A 00
PinP POSITION BEEF 0306 003A 22 0100 00 363C 00
BLANKBE EF03 0600 FA 0201 00 0036 40 00
RESOLUTION BEEF 03 0600 9A3A 0100 00 361E 00
LIGHT OUTPUTBE EF03 0600 0A 2501 00 0036 37 00
ACCENTUALIZERBE EF03 0600 9A 2101 00 0036 3A 00
HDCRBE EF03 0600 5A 2301 00 0036 3E 00
MY BUTTONBE EF03 0600 CA 7201 00 0036 FF 00
GetBE EF03 0600 09 3302 00 0036 00 00
MY BUTTON 2SetMY IMAGE BEEF 03 0600A6 3C01 00 0136 16 00
MESSENGER BEEF 0306 0056 28 0100 01 3625 00
SHUTTER BEEF 03 0600 A627 01 0001 36 3200
INFORMATION BEEF 0306 0006 3F01 00 0136 10 00
MY MEMORY BEEF 03 0600 663E 0100 01 3612 00
PICTURE MODEBE EF03 0600 F6 3F01 00 0136 13 00
FILTER RESET BEEF 0306 00C6 3D01 00 0136 14 00
TEMPLATEBE EF03 0600 36 3801 00 0136 1B 00
MUTEBE EF03 0600 06 2101 00 0136 38 00
PbyP/PinP SWAPBE EF03 0600 A6 3901 00 0136 1A 00
PinP POSITION BEEF 0306 00C6 23 0100 01 363C 00
BLANKBE EF03 0600 06 0301 00 0136 40 00
RESOLUTION BEEF 0306 0066 3B 0100 01 361E 00
LIGHT OUTPUTBE EF03 0600 F6 2401 00 0136 37 00
ACCENTUALIZERBE EF03 0600 66 2001 00 0136 3A 00
HDCRBE EF03 0600 A6 2201 00 0136 3E 00
MY BUTTONBE EF03 0600 36 7301 00 0136 FF 00
GetBE EF03 0600 F5 3202 00 0136 00 00
MY BUTTON 3SetMY IMAGE BEEF 03 0600 E23C 01 0000 02 36 1600
MESSENGER BEEF 03 0600 12 28 0100 02 3625 00
SHUTTER BEEF 03 0600 E227 01 0002 36 3200
INFORMATION BEEF 03 0600 0042 3F 0100 02 3610 00
MY MEMORY BEEF 03 0600 22 3E 0100 02 3612 00
PICTURE MODE BEEF 0306 00B2 3F 0100 02 3613 00
FILTER RESET BEEF 0306 0082 3D 0100 02 3614 00
TEMPLATEBE EF03 0600 72 3801 00 02361B 00
MUTEBE EF03 0600 42 2101 00 0236 38 00
PbyP/PinP SWAPBE EF03 0600 E2 3901 00 02361A 00
PinP POSITIONBE EF0306 0082 2301 0002 363C 00
BLANKBE EF0306 0042 0301 0002 3640 00
RESOLUTIONBE EF03 0600 22 3B01 00 02361E 00
LIGHT OUTPUT BEEF 0306 00B2 24 0100 02 3637 00
ACCENTUALIZERBE EF03 0600 22 2001 00 02363A 00
HDCRBE EF03 0600 E2 2201 00 02363E 00
MY BUTTONBE EF0306 0072 7301 0002 36FF 00
GetBE EF03 0600 B1 3202 00 0236 00 00
MY BUTTON 4SetMY IMAGE BEEF 03 0600 1E3D 01 0000 03 36 1600
MESSENGER BEEF 03 0600 E229 0100 03 3625 00
SHUTTER BEEF 03 0600 1E26 01 0003 36 3200
INFORMATION BEEF 0306 00BE 3E 0100 03 3610 00
MY MEMORY BEEF 03 0600 DDE 3F 0100 03 3612 00
PICTURE MODE BEEF 0306 004E 3E 0100 03 3613 00
FILTER RESET BEEF 0306 007E 3C 0100 03 3614 00
TEMPLATEBE EF03 0600 8E 3901 00 03361B 00
MUTEBE EF03 0600 BE 2001 00 0336 38 00
PbyP/PinP SWAPBE EF03 0600 1E 3801 00 03361A 00
PinP POSITIONBE EF0306 007E 2201 0003 363C 00
BLANKBE EF0306 00BE 0201 0003 3640 00
RESOLUTIONBE EF03 0600 DE 3A01 00 03361E 00
LIGHT OUTPUT BEEF 0306 004E 25 0100 03 3637 00
ACCENTUALIZERBE EF03 0600 DE 2101 00 03363A 00
HDCRBE EF03 0600 1E 2301 00 03363E 00
MY BUTTONBE EF03 0600 8E 7201 00 0336FF 00
GetBE EF03 0600 4D 3302 00 0336 00 00
REMOTE RECEIV. FRONTSetOff BE EF03 06 00FF 3201 00 0026 00 00
On BE EF03 06 006F 3301 00 0026 01 00
Get BE EF 0306 00 CC32 0200 00 2600 00
REMOTE RECEIV. REARSetOff BE EF03 06 0003 3301 00 0126 00 00
On BE EF03 06 0093 3201 00 0126 01 00
Get BE EF 0306 00 3033 0200 01 2600 00
REMOTE RECEIV.HDBaseTSetOff BE EF03 06 00BB 3201 00 0326 00 00
On BE EF03 06 002B 3301 00 0326 01 00
Get BE EF 0306 00 8832 0200 03 2600 00
REMOTE FREQ. NORMALSetOFF BE EF03 06 00FF 3D01 00 3026 00 00
ON BE EF03 06 006F 3C01 00 3026 01 00
Get BE EF 0306 00CC 3D02 0030 26 00 00
REMOTE FREQ. HIGHSetOFF BE EF03 06 0003 3C01 00 3126 00 00
ON BE EF03 06 0093 3D01 00 3126 01 00
Get BE EF 0306 00 303C 0200 31 2600 00
REMOTE IDSetALLBE EF03 0600 9F 3001 00 0826 00 00
1BE EF03 0600 0F 3101 00 0826 01 00
2BE EF03 0600 FF 3101 00 0826 02 00
3BE EF03 0600 6F 3001 00 0826 03 00
4BE EF03 0600 5F 3201 00 0826 04 00
Get BE EF 0306 00 AC30 0200 08 2600 00
MY IMAGESetOFF BE EF03 06 003A C301 00 0035 00 00
IMAGE-1BE EF03 0600 AA C201 00 0035 01 00
IMAGE-2BE EF03 0600 5A C201 00 0035 02 00
IMAGE-3BE EF03 0600 CA C301 00 0035 03 00
IMAGE-4BE EF03 0600 FA C101 00 0035 04 00
Get BE EF 0306 00 09C3 0200 00 3500 00
MY IMAGE IMAGE-1 DeleteExecute BE EF03 06 0071 C306 0001 35 0000
MY IMAGE IMAGE-2 DeleteExecute BE EF03 06 0035C3 06 0002 35 0000
MY IMAGE IMAGE-3 DeleteExecute BE EF03 06 00C9 C206 00 0335 00 00
MY IMAGE IMAGE-4 DeleteExecute BE EF03 06 00BD C306 0004 35 0000
REMOTE OUT - REMOTE CONTROLSetOFF BE EF03 06 00473C 0100 32 2600 00
ON BE EF03 06 00D7 3D01 00 3226 01 00
Get BE EF 0306 0074 3C02 0032 26 0000
REMOTE OUT - HDBaseTSetOFF BE EF03 06 00BB 3D01 00 3326 00 00
ON BE EF03 06 002B 3C01 00 3326 01 00
Get BE EF 0306 0088 3D02 0033 26 0000
AMX for LANSetOffBE EF0306 0033 AC01 0030 1B00 00
OnBE EF0306 00A3 AD01 0030 1B01 00
GetBE EF0306 0000 AC02 0030 1B00 00
CRESTRONSetOffBE EF0306 0033 B201 0050 1B00 00
OnBE EF0306 00A3 B301 0050 1B01 00
GetBE EF0306 0000 B202 0050 1B00 00
EXTRON for HDBaseTSetOff BE EF03 06 003 BD01 00 601B 00 00
On BE EF03 06 00A 3 BC01 00 601B 01 00
Get BE EF 0306 00 00BD 0200 60 1B00 00
HDMI OUT RESOLUTIONSetEXTERNAL DEVICEBE EF03 06 00046 EF01 00 C2 2000 00
PROJECTOR BEEF 03 0600 D6EE01 00 C2 2001 00
Get BE EF 0306 00 75EF 0200 C2 2000 00
STANDBY OUTPUT - AUDIO OUTSetOFFBE EF03 06 00EADE 01 003F 20 00 00
AUDIO IN1BE EF03 06 0007A DF01 00 3F 2001 00
AUDIO IN2BE EF03 06 0008A DF01 00 3F 2002 00
HDMI 1BE EF03 06 0002A C701 00 3F 2020 00
HDMI 2BE EF03 06 000BA C601 003F 20 21 00
HDBaseTBE EF03 06 000EA C501 003F 20 24 00
DisplayPort BEEF 03 0600 8AC4 01 003F 2026 00
GetBE EF0306 00D9 DE02 003F 2000 00
STANDBY OUTPUT - MONITOR OUTSetCOMPUTER IN BEEF 03 0600 2AF7 01 00BF 20 0000
OFFBE EF03 06 000DA B601 00 BF 20FF 00
Get BE EF 0306 00 19F702 00 BF20 00 00
STANDBY OUTPUT - HDMI OUTSetHDMI 1BE EF03 06 000F2 EF01 00 C1 2003 00
HDBaseTBE EF03 06 00052 E301 00 C1 2011 00
OFFBE EF03 06 000F2 AE01 00 C1 20FF 00
Get BE EF 0306 00 31EF 0200 C1 2000 00
HDMI OUTPUT EnableSetOFFBE EF0306 0002 2C01 0031 2300 00
ONBE EF0306 0092 2D01 0031 2301 00
Get BE EF 0306 00 312C 0200 3123 0000
HDMI OUTPUT - COMPUTER INSetHDMI 1BE EF0306 00CE 3701 0040 2303 00
HDBaseTBE EF0306 006E 3B01 0040 2311 00
Get BE EF 0306 00 0D37 0200 4023 0000
HDMI OUTPUT - VIDEOSetHDMIBE EF0306 0032 3601 0041 2303 00
HDBaseTBE EF0306 0092 3A01 0041 2311 00
GetBE EF0306 00F1 3602 0041 2300 00
HDMI OUTPUT - HDMI 1GetBE EF0306 0049 3702 0043 2300 00
HDMI OUTPUT - LANSetHDMI 1BE EF03 06 00EA 3501 00 4B 2303 00
HDBaseTBE EF03 06 004A 3901 00 4B 2311 00
Get BE EF 0306 0029 3502 004B 23 0000
HDMI OUTPUT - HDMI 2SetHDMI 1BE EF0306 0062 3501 004D 2303 00
HDBaseTBE EF03 06 00C2 3901 00 4D 2311 00
Get BE EF 0306 00 A135 0200 4D 2300 00
HDMI OUTPUT - HDBaseTGetBE EF0306 0031 3202 0051 2300 00
HDMI OUTPUT - 3G-SDI *SetHDMI 1BE EF0306 00B6 3201 0052 2303 00
HDBaseTBE EF0306 0016 3E01 0052 2311 00
GetBE EF0306 0075 3202 0052 2300 00

* Supported only for MP-WU8801W/MP-WU8801B

PJLink command

CommandsControl Description Parameteror Response
POWR Power Control0 = Standby1 = Power On
POWR ? Power Status inquiry0 = Standby1 = Power On2 = Cool Down
INPT(MP-WU8701W/MP-WU8701B)Input Source selection11 = COMPUTER IN23 = VIDEO31 = HDMI 133 = HDMI 236 = HDBaseT38 = DisplayPort51 = LAN
INPT ?(MP-WU8701W/MP-WU8701B)Input Source inquiry11 = COMPUTER IN23 = VIDEO31 = HDMI 133 = HDMI 236 = HDBaseT38 = DisplayPort51 = LAN
INPT(MP-WU8801W/MP-WU8801B)Input Source selection11 = COMPUTER IN23 = VIDEO31 = HDMI 133 = HDMI 236 = HDBaseT37 = 3G-SDI38 = DisplayPort51 = LAN
INPT ?(MP-WU8801W/MP-WU8801B)Input Source inquiry11 = COMPUTER IN23 = VIDEO31 = HDMI 133 = HDMI 236 = HDBaseT37 = 3G-SDI38 = DisplayPort51 = LAN

(continued on next page)

CommandsControl Description Parameter or Response
AVMT AVMute10 = BLANK off11 = BLANK on20 = Mute off21 = Mute on30 = AV Mute off31 = AV Mute on
AVMT ? AVMute inquiry10 = BLANK off11 = BLANK on20 = Mute off21 = Mute on30 = AV Mute off31 = AV Mute on
ERST ? Error Status inquiry1st byte: Refers to Fan error; one of 0 to 22nd byte: Refers to Lamp error; one of 0 to 23rd byte: Refers to Temperature error; one of 0 to 24th byte: Refers to Cover error; one of 0 to 25th byte: Refers to Filter error; one of 0 to 26th byte: Refers to Other error; one of 0 to 2The meaning of 0 to 2 is as given below0 = Error is not detected1 = Warning 2 = Error
LAMP ?Light Source Status inquiry1st number (digits 1 to 5): Light Source Time2nd number : 0 = Light Source off1 = Light Source on
INST ? Input Source List inquiry11 23 31 33 3637(MP-WU8801W/MP-WU8801B) 38 51
NAME ? Projector Name inquiryResponds with the name set in the itemPROJECTOR NAME of the NETWORK menu
INF1 ?Manufacturer's Name inquiryMaxell
INF2 ? Model Name inquiryMP-WU8801WMP-WU8801BMP-WU8701WMP-WU8701B
INFO ? Other Information inquiryReturns an empty string.
CLSS ? Class Information inquiry 2

(continued on next page)

CommandsControl Description Parameter or Response
SNUM ? Serial number query Responds with the serial number information
SVER ? Software version queryReturns an empty string.
INNM ? Input terminal name query Responds with the Input terminal name
IRES ? Input resolution queryResponds with the resolution information of input signal
RRES ?Recommended resolution queryResponds with the recommended resolution information of input signal
FILT ? Filter usage hour query Responds with the Filter Time (digits 1 to 5)
RLMP ?Lamp replacement model number queryReturns an empty string.
RFIL ?Filter replacement model number queryReturns an empty string.
SVOLSpeaker volume adjustment instruction0 = decrease volume1 = increase volume
MVOLMicrophone volume adjustment instructionNot available
FREZ Freeze instruction0 = Freeze off1 = Freeze on
FREZ ? Freeze status query0 = Freeze off1 = Freeze on

NOTE • The password used in PJLink™ is the same as the password set in the Web Control. To use PJLink™ without authentication, do not set any password in Web Browser Control.

- For specifications of PJLink™, see the web site of the Japan Business Machine and Information System Industries Association.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : MAXELL

Model : MP-WU8701W

Category : Video projector
