Product Type	Video Processor
Model	VTQ-B04
Brand	Vitek
Dimensions (W x H x D)	220 x 45 x 150 mm
Weight	1.2 kg
Power Supply	DC 12V, 2A
Power Consumption	15W max
Video Inputs	4x BNC (CVBS), 1x VGA, 1x HDMI
Video Outputs	1x HDMI, 1x VGA
Max Resolution	1920x1080p @ 60Hz
Supported Video Modes	PAL, NTSC, SECAM
Main Functions	Video switching, scaling, de-interlacing, picture-in-picture
Control	Front panel buttons, IR remote, RS-232
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	20% to 80% (non-condensing)
Maintenance	Clean with dry cloth; avoid liquids; ensure ventilation
Safety Instructions	Use only supplied power adapter; do not open casing; keep away from moisture
Spare Parts Availability	Contact Vitek support for replacement power adapter and remote control
Repairability	Limited; refer to qualified technician for internal repairs

Frequently Asked Questions - VTQ-B04 Vitek

What is the Vitek VTQ-B04 video processor used for?

The VTQ-B04 is a video processor designed for video signal conversion, switching, and scaling. It is commonly used in surveillance systems, video walls, and presentations.

What video inputs does the VTQ-B04 have?

It has 4 BNC (CVBS) inputs, plus a VGA and an HDMI input.

What is the maximum output resolution?

The maximum output resolution is 1920x1080p @ 60Hz.

How do I connect the VTQ-B04 to my monitor?

Connect the monitor to the HDMI or VGA output using a suitable cable. Ensure the monitor supports the output resolution.

Can I convert analog CVBS to HDMI?

Yes, the VTQ-B04 can convert analog CVBS signals to digital HDMI output with scaling.

How do I clean the device?

Use a dry, soft cloth to wipe the exterior. Do not use liquids or cleaning agents. Keep ventilation slots clear of dust.

What power supply does it need?

It requires a 12V DC 2A power adapter. Use only the adapter supplied with the unit.

Is the VTQ-B04 compatible with PAL and NTSC?

Yes, it supports PAL, NTSC, and SECAM video standards.

How do I adjust the picture settings?

Use the front panel buttons or the IR remote to access the on-screen menu where you can adjust brightness, contrast, and resolution.

Where can I find the user manual?

The manual is available for free download on notice-facile.com in PDF format. You can also request a translated version.

USER MANUAL VTQ-B04 Vitek

High Resolution B/W & Color Quad Processors

Front view of a black electronic device with ports and connectors (no visible text or symbols)

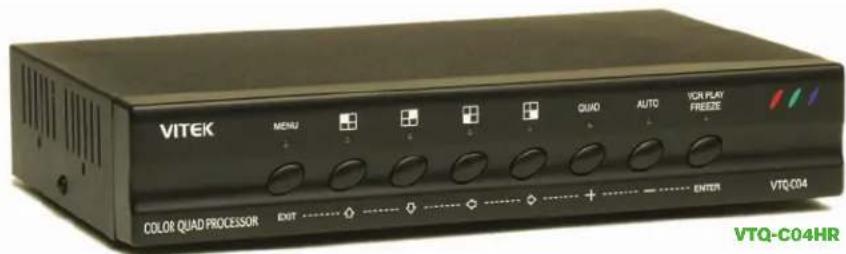

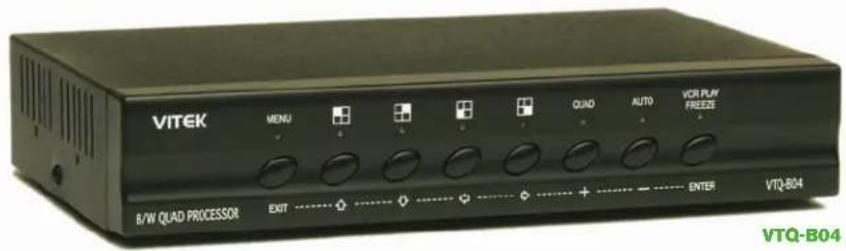

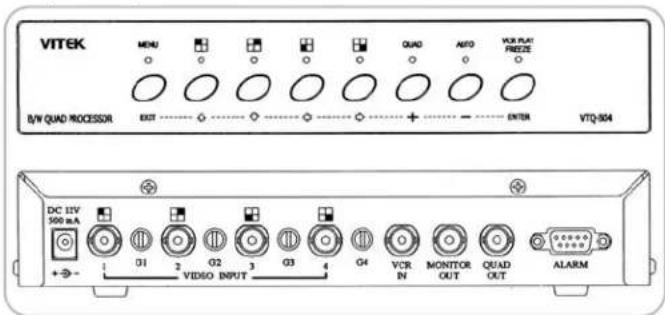

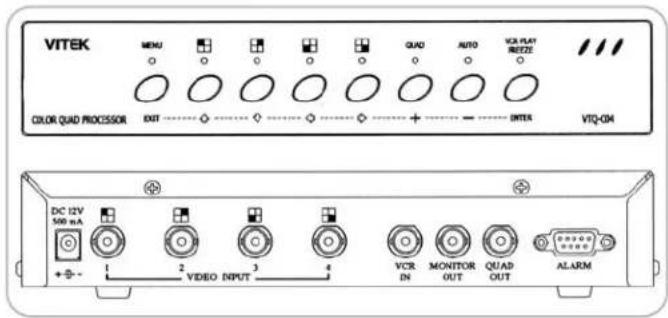

Rear Of VTQ-B04 Rear Of VTQ-C04HR

These Economical Yet Full Featured Quad Compressors Enable Monitoring Of Up To Four Cameras On One Monitor. Digital Playback Zoom Function Allows For Ease Of Review. Other Features Include Alarm Inputs / Outputs, Time & Date Titler And Small Attractive Styling.

FEATURES

• Real Time Refresh Rate W/ 256 Gray Shades (VTQ-B04) 16m Colors (VTQ-C04HR)
• Full Screen Digital Zoom On Playback
- Simultaneous Monitoring Of Up To 4 Cameras On A Single Screen
• Monitor Full, Quadrant Or Sequential Images
• Auto Sequencing w/Adjustable Dwell Of 1-15 Seconds
• Audible Video Loss & Alarm Detection
- Alarm Input/Output
• Security Lock

Detailed Specifications VTQ-B04 VTQ-C04HR

Video Inputs	4 Cameras + 1 VCR
Video Outputs	(2) 1 Switching + 1 Quad (VCR)
Alarm Input	4
Alarm Output	1
Alarm Duration	1 - 99 Sec.
Camera Title	10 Characters
Time / Date Set	Built-In Real Time Clock
Video Gain Adjustment	Individual Video Gain Adjustment N/A
Dwell Time	1 - 30 Sec.
RS-232 Port	Yes
Load Impedance	75Ω
Operation Temperature	10% ~ 80% RH; 0° ~ 50°C (32° ~ 122°F)
Power Source	12VDC 500mA (+/- 10%)
Power Consumption	6W Max.
Weight	1,300 g. / 2.87 lbs. / 45.86 oz.
Dimensions (W x H x D)	9.45" x 1.77" x 5.91"

VTQ-B04 VTQ-C04HR
