Product Type	Ultrasonic Humidifier
Brand	Innoliving
Model	INN-069
Color	White/Blue
Dimensions (approx.)	20 x 20 x 30 cm
Weight (approx.)	1.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	25 W
Water Tank Capacity	3.5 L
Humidification Capacity	Up to 30 m² room
Mist Output	Adjustable, max 300 ml/h
Functions	Ultrasonic humidification, adjustable mist level, auto shut-off when empty, quiet operation
Noise Level	< 35 dB
Maintenance	Regular cleaning of tank and transducer with soft cloth and vinegar solution
Filter	None (filterless design)
Safety Features	Automatic shut-off when water runs out, BPA-free plastic
Spare Parts	Transducer, power adapter, water tank (available from manufacturer)
Repairability	Modular design; replaceable components
Warranty	2 years

Frequently Asked Questions - INN-069 Innoliving

How do I clean the Innoliving INN-069 humidifier?

Unplug the device, empty the water tank, and wipe the inside with a soft cloth dampened with diluted vinegar (1:1 ratio). Rinse thoroughly and let dry. Clean the ultrasonic transducer gently with a brush every few weeks.

What type of water should I use in the humidifier?

Use distilled or demineralized water to prevent mineral buildup. Tap water may cause white dust. If using filtered water, ensure it is purified.

How often should I refill the water tank?

Refill when the water level is low. The tank holds 3.5 L and can run up to 12 hours on low setting. The device shuts off automatically when empty.

Can I add essential oils to the humidifier?

No, this model is not designed for essential oils. Adding oils can damage the transducer and void the warranty. Use a separate diffuser for oils.

What is the recommended placement for the humidifier?

Place it on a flat, waterproof surface at least 1 meter off the floor, away from walls and furniture. Avoid direct sunlight or heat sources. Keep out of reach of children.

Why is there white dust around the humidifier?

White dust is caused by minerals in tap water. Switch to distilled water. If dust persists, clean the device more frequently and check the transducer.

The humidifier is not producing mist. What should I do?

Check if the water tank is filled properly. Ensure the device is on a level surface. Clean the transducer and check the water level sensor. If still not working, contact support.

How loud is the INN-069 humidifier?

It operates quietly at less than 35 dB, similar to a soft whisper. It's suitable for bedrooms and nurseries.

Can I leave the humidifier on overnight?

Yes, it's safe for overnight use. The auto shut-off feature turns it off when water runs out. Ensure the room has adequate ventilation.

Where can I find spare parts for the INN-069?

Spare parts like the transducer and water tank are available from Innoliving customer service or authorized retailers. Check the manual for part numbers.

USER MANUAL INN-069 Innoliving

innoliving easy tech, easy life

UMIDIFICATORE AD ULTRASUONI

INN-069

MANUALE D'USO

USER MANUAL

Line drawing of a tall, conical-shaped electronic device with a side panel and base (no text or symbols)

↑

Line drawing of a hand holding a cylindrical object above a base, with no text or symbols present.

Diagram showing a device with a lid and a side panel, both without any text or symbols

Two technical line drawings of a battery casing with internal components, shown from top and side views (no text or symbols)

Line drawings of a square sink and a hand holding a cylindrical container (no text or symbols)

Technical line drawing of two cylindrical containers with internal components and a curved arrow indicating rotation (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel, shown from front and side views (no text or symbols)

Line drawing of a hand inserting a plug into an electrical outlet (no text or symbols)

Simple line drawing of a human eye with arrows indicating motion (no text or symbols)

Simple line drawing of a circular object with internal structures and two curved arrows above it (no text or symbols)

Simple line drawing of a celestial body with an arc and small droplets (no text or symbols)

Simple line drawing of a cell with nucleus and cytoplasm, no text or symbols present

Technical line drawing showing a device with a top view and a close-up of its front panel mounted on a table (no text or symbols present)

Simple line drawing of a mechanical component with a base and pivot point (no text or symbols)

Simple line drawing of a device with a cross symbol and vertical lines, no text or labels present.

Simple line drawing of a sun with a cross symbol and a speaker tower (no text or labels)

Simple line drawing of a spray bottle with a handle and central mark (no text or symbols)

Thanks for purchasing INNOLIVING ultrasonic humidifier. Using a humidifier helps you to keep indoor humidity at a comfortable level, a humidity level between 40 and 60% is recommended. A humidity level below 30% can be dry and uncomfortable. A correct humidity level helps to protect from irritation of the mucous membranes, dry and itchy skin, chapped lips and a dry, sore throat. When the mucous membranes do not function optimally, they cannot give full protection from all kinds of germs. This increases the chance of catching a cold or the flu and reduces the resistance to infection by mould and bacteria. Before use, read carefully this instruction manual and keep it as reference for future use. This product is not a medical device.

GENERAL SAFETY NORMS

- Do not immerse the base of the humidifier in water and do not let water run into the base.

- Never open the base to prevent electric shock.

- Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance. The appliance is suitable for mains voltages ranging from 220 to 240V.

- If the mains cord is damaged, you must have it replaced by an authorized servic centre, the manufacturer or similarly qualified persons in order to avoid a hazard.

- Keep the mains cord away from hot surfaces.

- Do not use adapters, multiple sockets and/or extension leads

- This appliance must only be used for the purpose for which it has been designed, that is, as a humidifier.

- Any other use is to be considered improper and therefore hazardous The manufacturer cannot be held responsible for any damage due to improper or incorrect use.

- This appliance can be used by children form 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

- Cleaning and maintenance by the user must not be performed by children, unless they are supervised.

- Never touch the appliance with hands or feet that are wet or damp.

- Do not pull the power cord or the appliance to remove the plug from the socket.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not touch the steam generator when the appliance is plugged in.

- Switch off the appliance and disconnect it from the mains immediately if it produces a strange smell or an abnormal noise. See chapter 'Troubleshooting'. If the problem persists, contact an authorized service centre.

- Switch off the humidifier and unplug it before you move, clean or fill it.

- CAUTION–Unplug the appliance before filling it up with water. Do not add any additives (salt, scents, perfumes etc.)

- Do not switch on the humidifier when there is no water in the water tank.

- Do not direct the mist output at furniture or electrical appliances.

- Keep the humidifier at normal room temperature and do not use it at very low temperatures (below 0^ C).

- Make sure the humidifier and the mains cord are always out of reach of the baby (at

least one meter away).

• Do not use the humidifier in damp places or close to water.
• Do not use the humidifier in places where the humidity level exceeds 50%.
• Do not expose the humidifier to extreme heat or cold or to direct sunlight.

- Do not use the humidifier outdoors.

- The humidifier is only intended for household use.

- Never put anything on the humidifier, never cover it, do not seat on it

- Never tilt, move or attempt to empty the humidifier while it is operating.

- Unplug the humidifier after use.

- Never cover the humidifier with a towel or blanket

- Before use, check the plug is properly connected, in order to avoid any overheating.

- Always put the humidifier on a dry, stable and flat surface.

- Do not pierce the product and not insert any objet into outles. (expecially air ad fog outlet)

- Don't stretch your finger or any other things into fog outlet or air inlet.

- Humidifier can't be used in a room which had already sprayed bug repellent or is full of greasy dirt, inflammable gas or chemical fumes.

- Not use humidifier near gas appliance, heating equipments and stove. Unplug battery socket after using and before cleaning

- Bacteria will grow if humidifier is not used for a long time. So clean it up before using.

- Water tank is advised to be cleaned constantly and ensure humidifier dry if you had already used it for a long time.

- Before moving humidifier, turn off switch, unplug battery socket, move smoothly to avoid water spilling out

- Do not use humidifier if plug, supply cord or humidifier itself is damaged

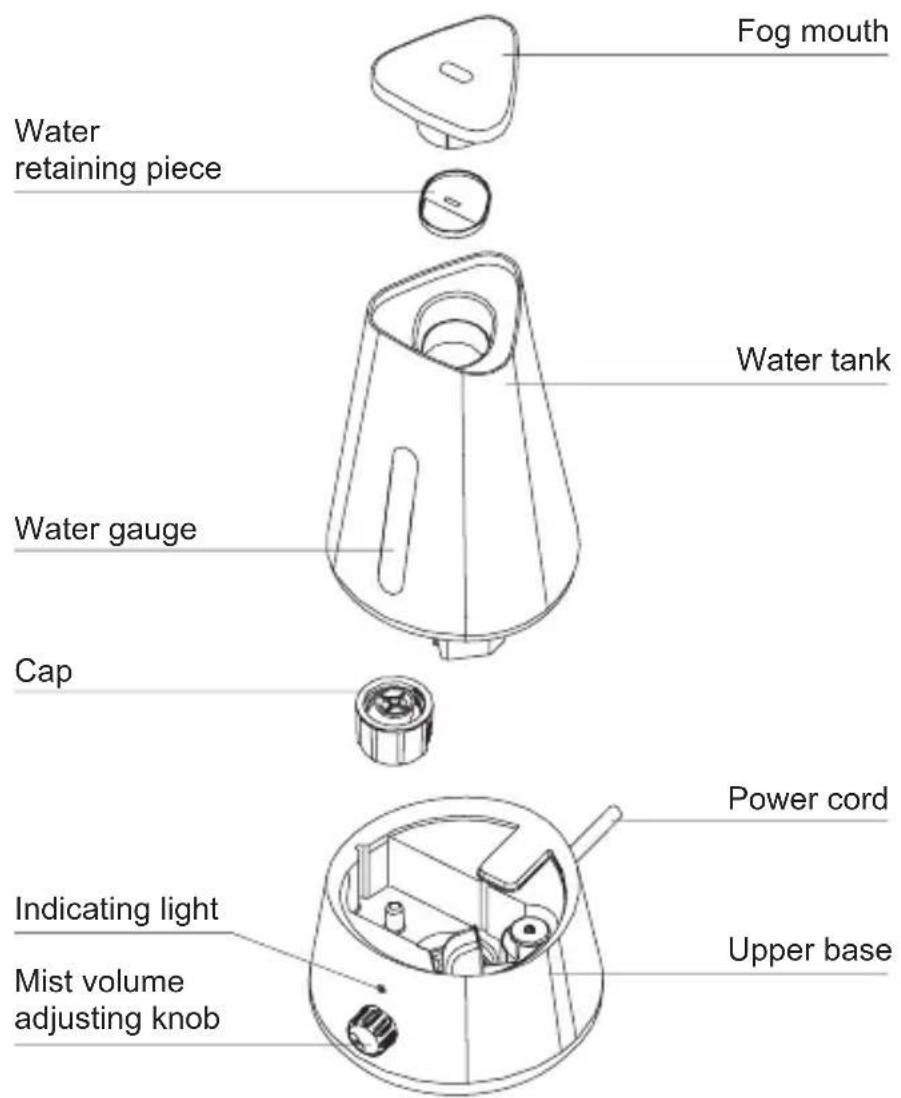

PRODUCT DESCRIPTION

HOW TO USE

1. Hold water tank tightly and carry it up

Line drawing of a tall, conical-shaped device with a side panel and control knob (no text or symbols)

↑

Line drawing of a device with hands holding a cylindrical component (no text or symbols)

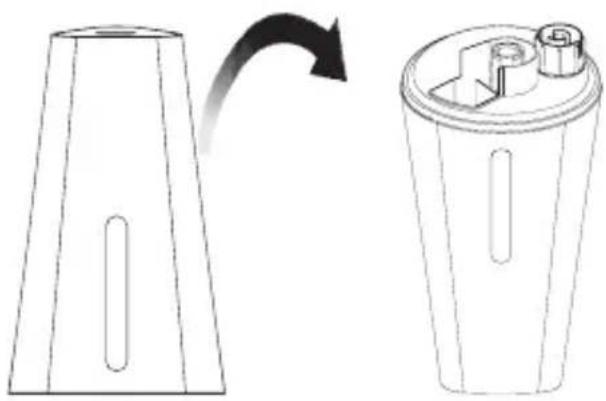

1. Turn the water tank 180 degree, upward the water injecting hole

Diagram showing a device being converted into a cylindrical container with internal components (no text or symbols)

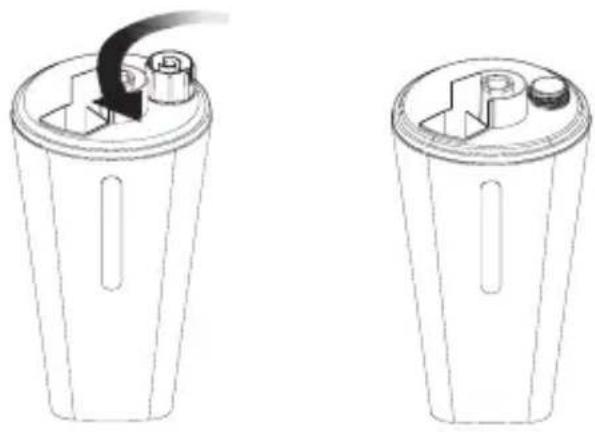

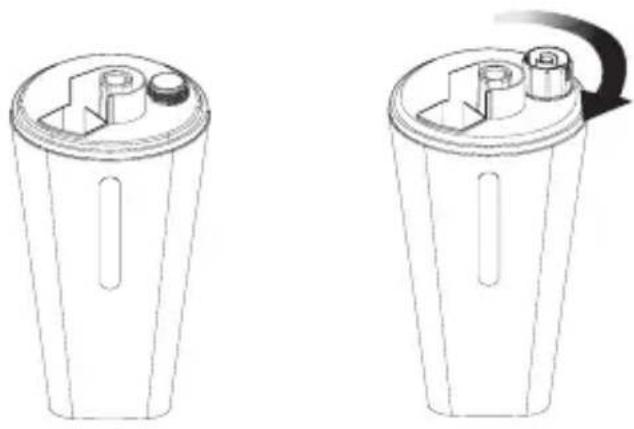

1. Turn the cap counterclockwise

Two technical line drawings of a battery casing with internal components, shown from top and side views (no text or symbols)

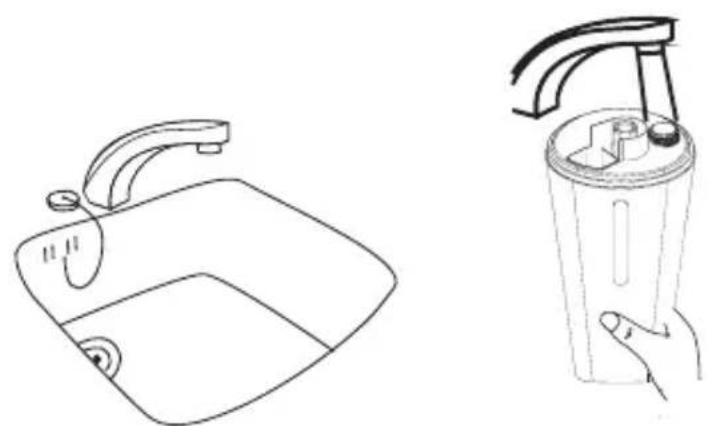

1. Fill up the water tank

Line drawings of a square sink and a hand holding a cylindrical container (no text or symbols)

1. Turn the cap clockwise, make sure it doesn't leak

Technical line drawing of two cylindrical containers with internal components and a curved arrow indicating rotation (no text or symbols)

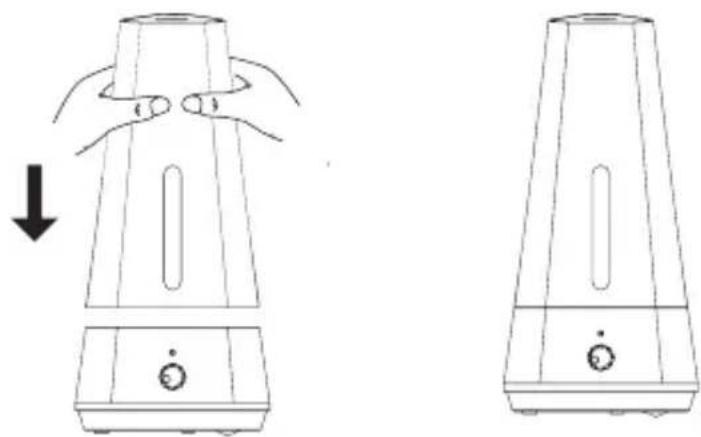

1. Put water tank back to the bottom base

Line drawing of a portable electronic device with a handle and control panel, shown from front and side views (no text or symbols)

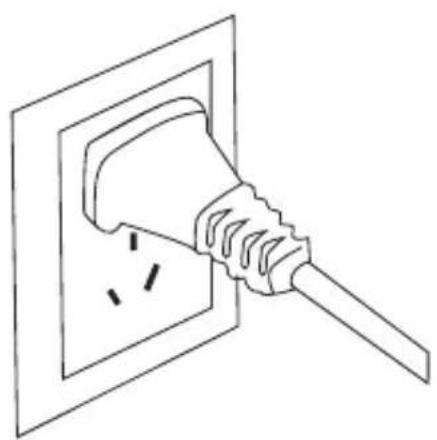

1. Check the voltage, then inserted the plug fully

Line drawing of a hand inserting a plug into an electrical outlet (no text or symbols)

1. Turn on the switch

Mist volume knob

Plug on, the unit is standby.

Turn the knob clockwise, the indicating green light on, it works and there will be mist comes out from the fog mouth.

Continue to turn the knob to the 180^ , the mist volume will reach max. The red indicator will light on when the water tank lack of water.

Simple line drawing of a human eye with arrows indicating motion or perception (no text or symbols)

Pls turn off the unit when add water to the water tank or move the unit.

Simple line drawing of a cell with nucleus and cytoplasm, no text or symbols present

Simple line drawing of a human eye with an arc and droplets (no text or symbols)

Simple line drawing of a circular object with internal features and two droplets above it (no text or symbols)

A. Closed B. Minimum mist volume C. Maximum mist volume

1. Please put the humidifier 2 meters away from TV set, speaker and etc..

1. To avoid falling down and damage, please put the humidifier on stable desktop.

Simple line drawing of a mechanical component or bracket with no text or symbols

1. Please keep the humidifier away from the curtain.

Simple line drawing of a device with a cross mark and vertical lines, no text or symbols present.

1. Please keep the humidifier away from the sunlight and stove

Simple line drawing of a sun with a cross symbol and a device outline (no text or labels)

1. Please do not pour water into the fog mouth

Simple line drawing of a spray bottle with a handle and central mark (no text or symbols)

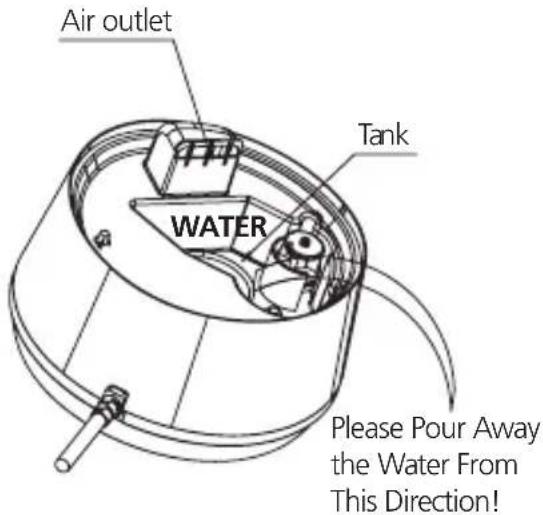

NOTE: after use, disconnect the unit from the main source, pour away the water from the base, as shown in the picture below, in order to prevent any damage to the inner parts.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, turn off the humidifier and disconnect it from the main source.

1. Do not use cleaning or scouring agents.
2. Do not immerse the base, mains cord or mains plug in water or any other liquid.
3. Do not use any metal or hard objects to clean the steam generator.
4. Clean the inside of the water tank by filling it with water, firmly tightening the tank cap and shaking the water tank repeatedly. NOTE: Make sure that you do not leave any washing-up liquid in the water tank or tank cover.
5. Clean the base with a damp cloth.
   Tip: Regular cleaning reduces scale build-up

DESCALING - TIPS TO AVOID SCALE

• Use cold boiled, filtered or distilled water. Make sure that the water temperature does not exceed 40^ C.
• Clean the tank cover, the water tank, the steam generator and the water basin every week.
• Fill the water tank with fresh water every time you use the humidifier.
• Clean all parts of the humidifier, empty the water tank and the water basin and dry all parts with a soft, dry cloth when you are not going to use your humidifier for a long time.

DESCALING THE HUMIDIFIER

1. Disconnect the humidifier from the mains and set the on/off knob to 'off'.
2. Fill the water basin with 20ml of vinegar per 50ml of water.
   Leave the water and vinegar in the water basin for at least 4 hours (preferably overnight)
3. Empty the water basin and remove the scale with a soft cloth.
4. Put some white vinegar on the steam generator and then wipe away the vinegar with a moist cloth.
5. Rinse all parts with clean water.

TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The power-on light does not go on and the humidifier does not work.	The humidifier is not properly connected to the mains	Make sure the plug is properly inserted into the wall socket and make sure the socket is live.
	The humidifier is not ON	Rotate the knob in clockwise direction
The humidifier produces an unpleasant smell	The humidifier is new Remove the cap of the water tank and leave the tank open in a cold place for at least 12 hours
	The water in the water tank is not clean or has been left in the water tank too long	Clean the water tank and fill it with fresh water.
The humidifier produces no mist or not enough mist	The water tank is empty Pour water into the tank
	The humidifier is not ON Rotate the knob in clockwise direction
	The surface is not flat Put the humidifier on a flat, hard and stable surface.
	Transducer scaling Cleaning the transducer according to the paragraph “Cleaning and Maintenanze”
	Use cleaner cleaning the water tank	Using fresh water to clean the water tank completely, and dry it.
	The water level is too low.	Add water into the water tank.
	The water in the water tank is dirty or has been left in the water tank too long.	Clean the water tank and fill it with fresh water.
	The transducer or the fan does not work	Send to after-sales service for maintenance.
Humidifier or windows get wet	The room is small or the room high humidity	Turning down the mist volume or shut down the knob.
Transducer scaling H	High hardness water Adapt distilled water or low hardness water.

If problems arise with the appliance and you are unable to solve them with the information above, please contact an authorized service centre.

RATING LABEL:

Innoliving Spa

Via Merloni, 9 - 60131 Ancona - Italy

INN-069 UMIDIFICATORE AD ULTRASUONI - ULTRASONIC HUMIDIFIER

220-240V \~ 50/60Hz 20W

LOT n.

MADE IN CHINA

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14,

2014 " 2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) "The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

Line drawing of a tall, conical-shaped electronic device with a side panel and control knob (no text or symbols)

↑

Line drawing of a hand holding a cylindrical object above a base, with no text or symbols present.

Diagram showing a device being converted into a cylindrical container with a handle (no text or symbols present)

Two technical line drawings of a cylindrical device with internal components, shown from top and side views (no text or symbols)

Line drawings of a square sink and a hand holding a portable water dispenser (no text or symbols)

Technical line drawing of two cylindrical containers with internal components and a curved arrow indicating rotation (no text or symbols)

Line drawing of a two-step device with a handle, showing front and side views (no text or symbols)

Line drawing of a plug inserted into an electrical outlet (no text or symbols)

1. Ανάψτε το προϊόν.

Simple diagram showing a cell with internal structures and arrows indicating flow or interaction (no text or symbols)

Simple line drawing of a human eye with eyelashes and a curved line above it (no text or symbols)

A. κλειστό

Simple line drawing of a human eye with eyelashes and a curved arrow, no text or symbols present.

B. ελάχιστη ροή

Simple line drawing of a circular object with internal patterns and two droplets above it (no text or symbols)

C. μέγιστη ροή

Technical line drawing showing a device with a top view and a close-up of its front view, both without any text or symbols.

Simple line drawing of a mechanical component with a base and pivot point (no text or symbols)

Simple line drawing of a device with a cross mark and vertical lines, no text or symbols present.

Simple line drawing of a sun with a cross symbol and a speaker tower (no text or labels)

Simple line drawing of a spray bottle with a nozzle and cross mark (no text or symbols)
