Product Type	Stand Fan
Model	IZ-9005+
Rated Voltage	AC 220-240V
Rated Frequency	50/60Hz
Rated Power Input	70W
Number of Speeds	3 (Low, Medium, High)
Timer Setting	10-60 minutes
Oscillation	Yes (push button)
Height Adjustment	Yes (via tube and knob)
Estimated Weight	4.5 kg
Estimated Height (max)	140 cm
Base Diameter	40 cm
Power Cord Length	1.5 m (approx.)
Material	Plastic and metal
Warranty	2 years
Safety Features	Overheat protection (via thermal fuse), child lock (no)
Cleaning Instructions	Wipe with soft cloth; do not immerse in water
Storage	Store in dry place, out of reach of children
Suitable for	Indoor domestic use
Certification	CE, RoHS

Frequently Asked Questions - IZ-9005+ Izzy

How do I assemble the fan?

Refer to the manual: attach rear grille to motor shaft, secure with nut. Mount blades and front grille, then attach to support tube and base. Tighten all screws securely.

How many speeds does the fan have?

The fan has 3 speeds: Low (1), Medium (2), and High (3). Use the buttons on the control panel to select.

How do I set the timer?

While the fan is on, turn the timer knob (labeled ON/OFF/Timer) to the desired time between 10 and 60 minutes. The fan will automatically turn off after the set time.

Can I clean the fan with water?

No. Always unplug the fan before cleaning. Use a soft, dry cloth to wipe the body. Do not immerse any part in water or use abrasive cleaners.

How do I activate oscillation?

Press the oscillation button (located on the motor) downward to start oscillation. Pull it upward to lock the fan in a fixed position.

What should I do if the fan doesn't turn on?

Check that the power cord is plugged in and the outlet is working. Ensure the ON/OFF button is set to 'ON'. If still not working, contact an authorized service center.

Is the fan safe to use around children?

Supervision is required. Do not let children insert objects through the grilles. Ensure the fan is placed on a stable surface and out of reach of small hands.

Can I use the fan outdoors?

No, this fan is for indoor domestic use only. Do not expose it to rain or moisture.

How do I adjust the height?

Loosen the height adjustment knob on the support tube, slide the upper tube to the desired height, then tighten the knob securely.

What is the warranty period?

The fan is covered by a 2-year warranty from the date of purchase against manufacturing defects. Keep your purchase receipt. Contact an authorized BENRUBI service center for claims.

USER MANUAL IZ-9005+ Izzy

Black outdoor fan with visible blades and a black body, standing on a stand (no text or symbols)

We thank you for having chosen an appliance from the IZZY range.

Safety Interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (please see below “Guarantee and Customer Service”). IZZY is not responsible for non-compliance of the instructions.

When using electrical appliances, basic safety precautions should always be followed:

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
• Never leave the appliance unattended when operating.
• Close supervision is necessary when your appliance is being used near children or infirm persons. Ensure that they do not play with the appliance.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING: Do not expose babies and the elderly many hours in front of the fan's air.

• Switch off and unplug:
• When not in use.
• When you move it.
• Before cleaning.
• Never use the appliance for any other use than indicated.
  • The device is intended for indoor use. Do not use the device outdoors.

• The device is intended only for domestic use. Any other use will cancel the warranty.
  • Always use the mixer on a secure, dry level surface.

• Do not operate or place the device or parts in places of high humidity or where it may get wet.

• Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool or in places where it may get wet.
• Never let the power unit, cord or plug get wet. If the appliance does ge wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centers.

CAUTION: To prevent injury, do not place foreign objects, pencils, etc. through the grills when the appliance is plugged in or when it is in operation.

CAUTION: To avoid injury, do not put your fingers through the grilles when the appliance is plugged in or when it is in operation.

• Leave plenty of free space around the appliance so that you do not block the grilles and the fan movement.
• Do not let the power cord of the appliance hang over the edge of a table or bench edge or where a child can grab it. Do not allow the power cord to touch any warm surface.
• Ensure that the power cord is not clamped from any object, e.g. furniture. Do not press the power cord and never place it under carpets or mats where there is a risk of stepping on it. Keep the power cord in a place where there is no danger of stumbling.
• Do not place the appliance next to fabrics, e.g. hanging curtains, etc. Do not place clothes on the appliance to dry or for any other reason.
• Before inserting or removing the socket, make sure the appliance is turned OFF.
• Never use the cord to pull the plug out of the socket. Disconnect alway by pulling on the plug.
• Ensure that the power cord does not come into contact with moving parts of the appliance.
• Do not use the appliance if it has been dropped or damaged in any way and contact an authorized BENRUBI Service Center.
• In case that you notice some strange noise, smell, smoke or anything unusual, do not use the appliance. Disconnect it from electricity and contact an authorized BENRUBI Service Center.
• Failure to use properly may cause injury.
• Never leave the power cable wrapped during use. Unwind it completely.

• Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.

• Do not move the appliance when it is in operation.

• Do not touch the appliance with wet or damp hands.
• Do not use an extension power cord.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
• Check the power cord periodically for possible damages.
• If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI servic centers.
• Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.
• Any misuse of the device cancels the warranty.
• Only use original spare parts
• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/ EU Low Voltage Directive, the2011/65/EU RoHS Directive and the directive 2009/125/EC for eco-design.

SAVE THESE INSTRUCTIONS

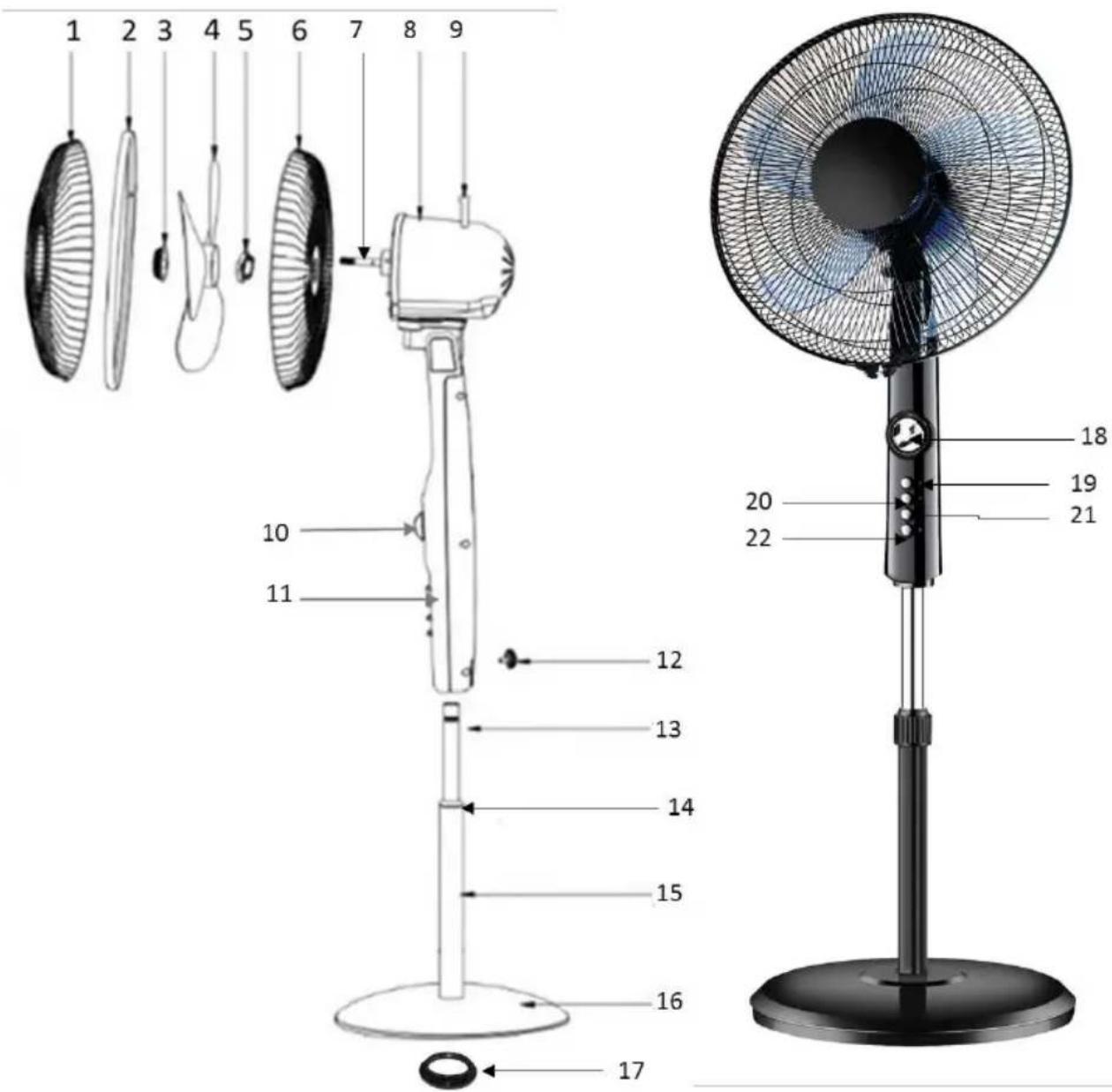

Parts of the Appliance

1. Front fan grill
2. Grilles' wreath
3. Blades support nut
4. Blades
5. Rear grille support nut
6. Rear fan grille
7. Motor shaft
8. Motor
9. Oscillation button
10. Control panel

11. Motor base

12. Support screw

13. Upper support tube
14. Height adjustment
15. Lower support tube
16. Base
17. Base nut
18. ON/OFF button / Timer
19. High speed - 3
20. Mid speed - 2
21. Low speed - 1
22. Turn off - 0

Fan Assembly

Remove the packaging.

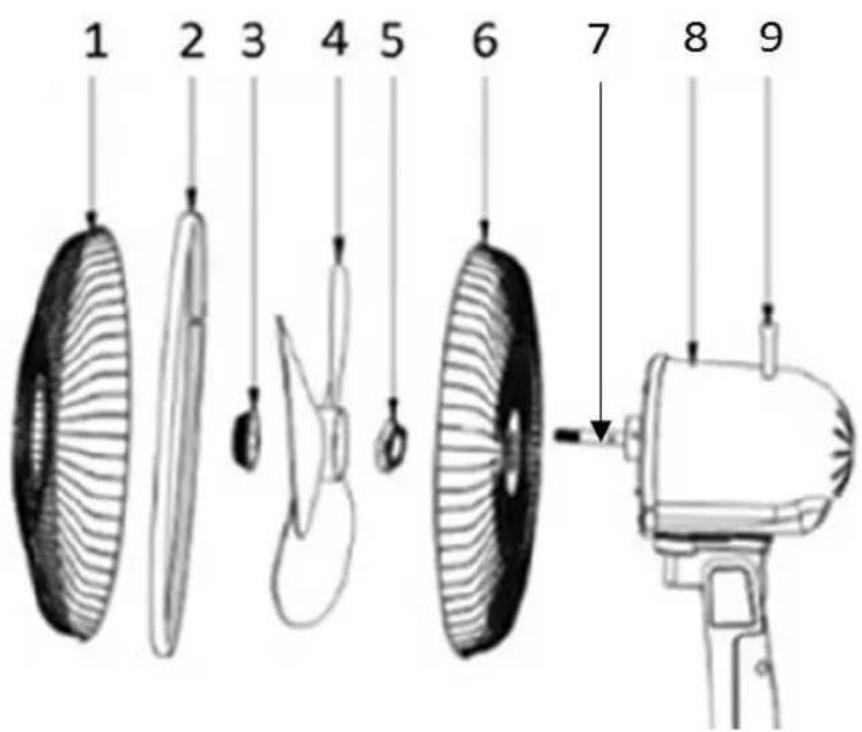

Motor assembly

1. Install the rear fan grille (6) on the motor shaft (7) and securely fasten the rear grille support nut (5).
2. Fit the blades (4) and fasten the blades support nut (3).
   CAUTION: The blade support nut bolts counterclockwise.
3. Place the grilles' wreath (2) without screwing in. Make sure the screw is at the bottom.
4. Install the front fan grille (1) and tighten the wreath's screw.

1. Place the support tube (15) at the reception of the base (16) and tighten securely the nut at the bottom of the base.
2. Place the height adjustment (14) and tighten at the desired height.
3. Insert the upper part of the fan at the support tube (15) and screw tightly the support screw (12).

Using the Fan

CAUTION:

• Before using, make sure that all parts of the device are properly assembled and that there are no parts that have been damaged.

• Always place the device on a flat, dry and stable surface. There is a risk of damage if it is not installed on a flat and level surface.

• Plug in the appliance.

• Turn the ON/OFF button (18) at the "ON" position.
• Select the desired speed by pressing the corresponding button. The fan has 3 speed options:
  0 - The fan is off
  1 - Low speed
  2 - Medium speed
  3 - High speed
• Set the mode (oscillating or static) by pressing down the oscillation button (9) for oscillation or by pulling it up for static.
• Adjust the desired angle by moving the head up or down respectively.
• Press the "0" button (22) on the control panel and turn the ON/OFF button (18) to "OFF" position to stop the operation.
• Disconnect from the power outlet when not in use.

Timer Setting

1. While the fan is on, turn the timer knob (18) to the desired time for the fan to operate (10-60 minutes).
2. When the time you set is complete, the fan will stop working automatically.
3. Turn the ON/OFF button (18) to "OFF" position to stop the operation.
4. Disconnect from the power outlet when not in use.

Note:

If you want to stop the timer earlier than the selected time, turn the timer button (18) to "OFF".

Care and Cleaning

• Switch off and unplug the appliance before cleaning.
• Do not disassemble the fan to clean it.
• At regular intervals, clean the main body of the appliance with a soft cloth and dry thoroughly.
• Never use highly corrosive or abstractive cleaning agents. Never use metal brushes or sponges for cleaning and do not immerse the appliance in water.
• To ensure that the air circulates properly on the motor, keep the air outlets at the rear of the motor clean.

Storage

• Switch off and unplug the appliance before storing it.
• Store the appliance in a dry place without humidity.
• Before using the appliance for a long time, make sure it is clean and dry.
• Store the appliance where it is not reachable by children.

Technical Specifications

Model: Stand fan IZ-9005+

Voltage: AC 220\~240V

Frequency: 50/60Hz

Rated input: 70W

Safe Appliance Disposal

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by present purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRUBI Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improve installation or maintenance of the product, mishandling, abnormal working conditions, failure to implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).
