Product Type	Smartphone
Brand	NUU Mobile
Model	G2
Dimensions	147 x 72 x 8.5 mm
Weight	150 g
Display	5.5 inches IPS LCD, 720 x 1280 pixels
Processor	Quad-core 1.3 GHz Cortex-A53
RAM Memory	2 GB
Internal Storage	16 GB (expandable via microSD up to 64 GB)
Main Camera	8 MP with LED flash
Front Camera	5 MP
Battery	2500 mAh removable Li-ion
Power Supply	5V/1A wall charger, microUSB port
Operating System	Android 8.1 Oreo (Go Edition)
Connectivity	4G LTE, Wi-Fi 802.11 b/g/n, Bluetooth 4.2, GPS
Care and Cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Security	Unlock by pattern, PIN code, or password
Spare Parts and Repairability	Removable battery, other parts not available separately
General Information	1-year manufacturer warranty, online support

Frequently Asked Questions - G2 NUU Mobile

How to turn on the screen?

Briefly press the power button located on the right side of the device.

How to insert the SIM card?

Use the provided ejection tool to open the SIM tray located on the left side. Place the Nano-SIM card (4G format), then close.

How to charge the battery?

Connect the microUSB cable to the wall charger and the device. The battery fully charges in about 2 hours.

How to transfer files to a computer?

Connect the G2 to a PC via the microUSB cable. Select 'File Transfer' mode on the device to access internal storage.

The device won't turn on, what to do?

Press and hold the power button for 10 seconds. If nothing happens, charge the battery for at least 30 minutes and try again.

How to perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Confirm the operation. All data will be erased.

The touchscreen is not responding properly

Clean the screen with a soft cloth. Remove the protective film if present. If the problem persists, restart the device.

How to expand storage?

Insert a microSD card (up to 64 GB) into the secondary SIM tray. Go to Settings > Storage to format and use the card.

GPS is not working well

Make sure location is enabled in settings. Use the device outdoors with a clear view of the sky to improve accuracy.

How to update the system?

Go to Settings > About phone > System updates. Download and install any available updates via Wi-Fi.

USER MANUAL G2 NUU Mobile

Getting Started With Your

4G LTE mobile phone

Model: S6001L, G2

SUN CUPID declares that this device complies with the essential requirements and relevant provisions of the 2014/53/EU, 2014/30/EU and 2014/35/EU directives. Visit www.nuumobile.com to view the Declaration of Conformity.

SUN CUPID declares that the device complies with the International guidelines on exposure of radio waves. To check the values visit www.nuumobile.com.

Index

G2 Overview 3

Setting up Your Phone 4

Getting Started 16

Safety information 24

Certificate

28

Warranty information & Registration 34

Customer Support 35

G2 Overview

Top

Bottom

Setting Up Your Phone

Follow these step-by-step instructions to set up your G2.

Power off the phone before inserting any cards!

EN

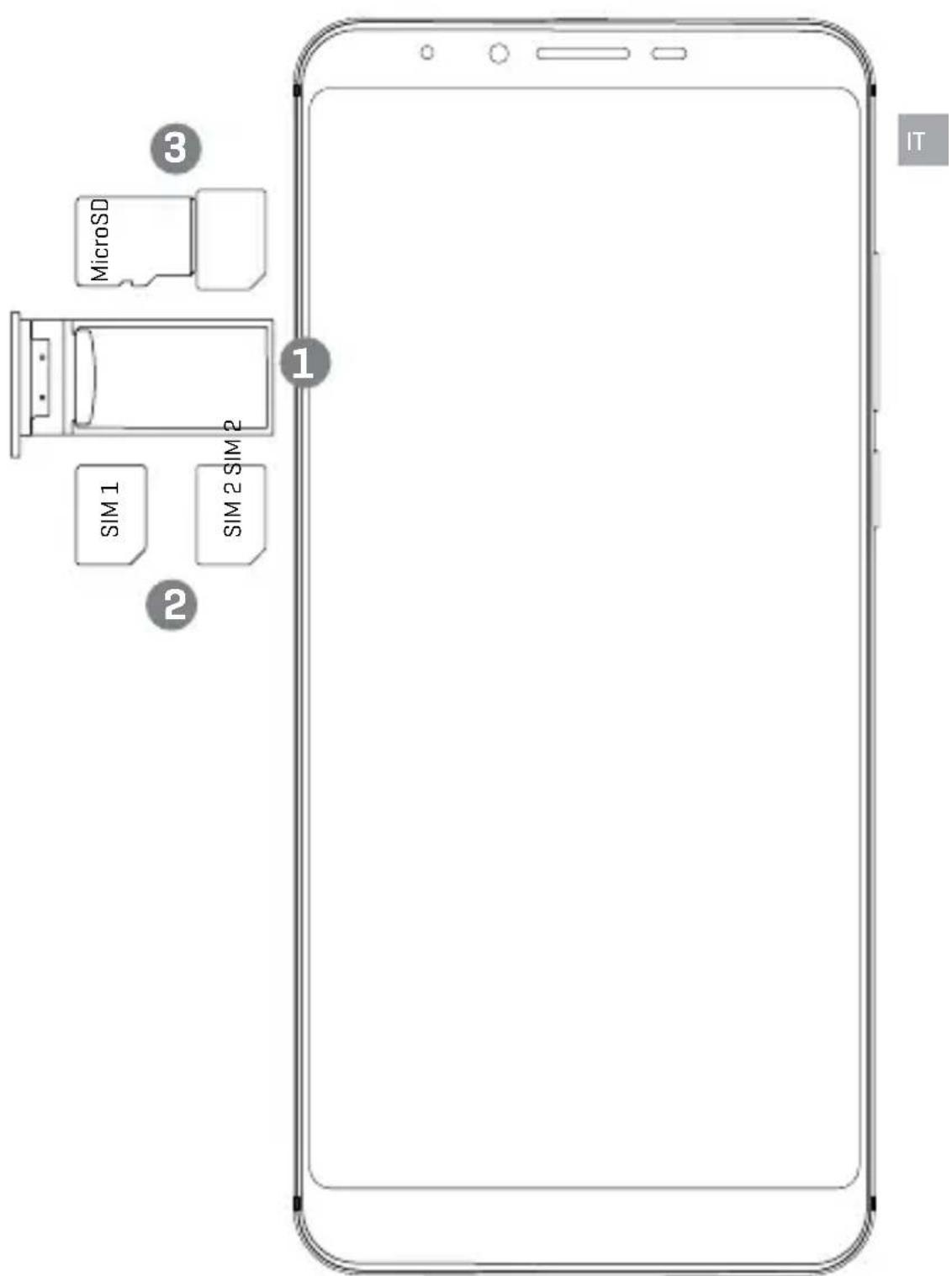

1 Remove SIM Tray

- Remove the SIM tray by inserting a pin eject key/paper clip in the small circular hole at the bottom of the tray. The tray will then eject from the phone.

2 Configuration 1: Dual SIM Standby

• Orient SIM card to match layout on tray.
  • SIM 1 [Nano] supports 4GLTE connections.
  • SIM 2 [Nano] supports 4GLTE connections.

3 Configuration 2: microSD™ Card/SIM

• Orient microSD/SIM card to match layout on tray.
• microSD card supports up to 64GB
  • SIM 2 [Nano] supports 4GLTE connections.

4 Replace SIM Tray

- After placing the SIMs and/or memory card in the tray, slide it back into its slot. It will click and hold in place.

5 Charge/Sync

- Plug in the type C connector to charge the phone or transfer data.

Warning:

SIM cards are small enough to become a choking hazard, so please keep them away from Children & Pets. SIM cards are also quite delicate. Please be careful when handling your card.

EN

Solid gray image with no visible content, text, or symbols.

SP

Solid gray image with no visible content, text, or symbols.

Solid gray image with no visible content, text, or symbols.

Solid gray image with no visible content, text, or symbols.

Je mobiel instellen

Solid gray image with no visible content, text, or symbols.

Getting Started

How to use the phone keys

EN

In any screen, tap the back key “☐” to return to previous screen or exit the application. Tap the home key “☐” to return to the home screen. Tap the recent key “☐” to display all the programs that are currently in use. Tap the “on/off” button, to turn on or off the screen and lock the screen. Long press “on/off” to shut down or to restart your mobile device. Press and hold the “on/off” button and the volume down key at the same time to take a screen capture.

Language

Tap the settings icon. Scroll down under "Personal" and tap "Language & input", then select your preferred language by tapping "Language".

Calls

Tap the "Phone" icon, then tap on "to select the contact you would like to call. Or, simply make a call by entering the number after selecting the "icon."

Android™ Messages

Tap the Android Messages icon, then tap “ → to create a new message. Input a name or number into the “To” field or choose someone from your contact list, then tap “ √ and input your message. Press the paperclip icon if you want to attach a picture, video or other media. When done, tap “Send”.

Writing and copying a text

The phone will make recommendations as you type. If you want to copy or cut text, long press the text for a few seconds and use the selecting arrows to select, or use the "select all" option, then copy or paste your text.

Camera

Tap the “camera” icon to open the camera. The phone supports a variety of picture modes such as HDR, flash, Face beauty etc. To access these modes, select the “options” icon.

Google™ Photos

Tap the Google Photos icon in the Google folder to open the gallery to browse your photos, tap on a photo to open it. Tap “/” to enter edit mode. You can add color filter effects, rotate, crop and so on. Click “save”.

Video camera

Tap the "camera" icon to open the camera and switch to "video" mode by tapping "☐" to record.

Gmail

Tap the Gmail icon in the Google folder. Then select the “icon in the lower right corner to compose a new message. Use the paperclip to attach files or images. Tap on “” when done. Note: You must set up an email account first.

Google Play Music

Tap the Google Play Music icon in the Google Folder. Select the playlist or song you would like to play. Playlists can be categorized by Artist, Albums, Genre or what you have created.

FM Radio

Connect earphones to the audio jack, tap the "FM Radio" icon in All Apps "and select frequency.

Primeros pasos

- This section contains important information about the operation of your device, it also contains information about how to use the device safely. Read this information carefully before using your device.

Electronic device

Do not use your device if using the device is prohibited.

Do not use the device if doing so causes danger or interference with other electronic devices.

Interference with medical equipment

• Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.
• Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.
• Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.

Protecting your hearing when using a headset

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level.
• Exposure to high volumes while driving may cause distraction and increase your risk of an accident.

Areas with flammables and explosives

• Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.
• Do not store or transport the device in containers with flammable liquids, gases, or explosives.

Traffic security

• Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.
• Concentrate on driving. Your first responsibility is to drive safely.
• Do not hold the device while driving. Use hands-free accessories.
• When you must make or answer a call, pull off the road safely and park the vehicle first.
• RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.
• Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.
• Wireless devices may interfere with the airplane's flight system. Do not use your device where wireless devices are not allowed according to the airplane company's regulations.

Operating environment

- Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. Do not use your device during thunderstorms

to protect your device against any danger caused by lightning.

• Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to 45 °C. Extreme heat or cold may damage your device or accessories.
• Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.
• To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.
• Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.
• Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury.
• Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature burn symptoms, such as red spots and darker pigmentation, may occur.
• Do not use your device's camera flash directly in the eyes of people or pets. Otherwise temporary loss of vision or damage to the eyes may occur.
• Do not touch the device's antenna. Otherwise, communication quality may be reduced.
• Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion.
• Observe local laws and regulations, and respect the privacy and legal rights of others.

Child's safety

• Comply with all precautions with regard to child's safety. Letting children play with the device or its accessories may be dangerous. The device includes detachable parts that may present a choking hazard. Keep away from children.
• The device and its accessories are not intended for use by children. Children should only use the device with adult supervision.

Accessories

• Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards.
• Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous.
• If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop using it at once. Continued use may lead to electric shocks, short circuits, or fire.
• Do not touch the power cord with wet hands or pull the power cord to disconnect the charger.
• Do not touch the device or the charger with wet hands. Doing so may lead to short circuits, malfunctions, or electric shocks.
• If your charger has been exposed to water, other liquids, or excessive moisture, only an authorized service center has the right to inspect.

Battery safety

- Do not connect battery poles with conductors, such as keys, jewelry, or other metal materials. Doing so may short-circuit the battery and cause injuries or burns.

• Keep the battery away from excessive heat and direct sunlight. Do not place it on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode if overheated.
• Do not attempt to modify or remanufacture the battery, insert foreign objects into it, or immerse or expose it to water or other liquids. Doing so may lead to fire, explosion, or other hazards.
• If the battery leaks, ensure that the electrolyte does not make direct contact with your skins or eyes. If the electrolyte touches your skins or splashes into your eyes, immediately flush with clean water and consult a doctor.
• In case of battery deformation, color change, or overheating while charging or storing, immediately stop using the device and remove the battery. Continued use may lead to battery leakage, fire, or explosion.
• Do not put batteries in fire as they may explode. Damaged batteries may also explode.
• Dispose of used batteries in accordance with local regulations. Improper battery use may lead to fire, explosion, or other hazards.
• Do not allow children or pets to bite or suck the battery. Doing so may result in damage or explosion.
• Do not smash or pierce the battery, or expose it to high external pressure. Doing so may lead to a short circuit or overheating.
• Do not drop the device or battery. If the device or battery is dropped, especially on a hard surface, it may be damaged.
• If the device standby time shortens significantly, replace the battery.

Cleaning and maintenance

• Keep the device and accessories dry. Do not attempt to dry it with an external heat source, such as a microwave oven or hair dryer.
• Do not expose your device or accessories to extreme heat or cold. These environments may interfere with proper function and may lead to fire or explosion.
• Avoid collision, which may lead to device malfunctions, overheating, fire, or explosion.
• Before you clean or maintain the device, stop using it, stop all applications, and disconnect all cables connected to it.
• Do not use any chemical detergent, powder, or other chemical agents (such as alcohol and benzene) to clean the device or accessories. These substances may cause damage to parts or present a fire hazard. Use a clean, soft, and dry cloth to clean the device and accessories.
• Do not place magnetic stripe cards, such as credit cards and phone cards, near the device for extended periods of time. Otherwise the magnetic stripe cards may be damaged.
• Do not dismantle or remanufacture the device and its accessories. This voids the warranty and releases the manufacturer from liability for damage. In case of damage, contact an authorized service center for assistance or repair.
• If the device screen is broken in a collision, immediately stop using the device. Do not touch or attempt to remove the broken parts. Promptly contact an authorized service center.

Emergency calls

- The availability of emergency calls is subject to your cellular network quality, service provider policy, and local laws and regulations. Never rely solely on your device for critical communications like medical emergencies.

Environmental protection

• The device and its accessories (if included), such as the power adapter, headset, and battery should not be disposed of with household garbage.
• Disposal of the device and its accessories is subject to local regulations. Support proper collection and recycling.

Safety precautions

• Use of wireless hands-free system (headphone, headset) with a low power Bluetooth emitter.
  • Make sure the cell phone has a low SAR.
• Keep your calls short or send a text message (SMS) instead. This advice applies especially to children, adolescents and pregnant women.
• Use cell phone when the signal quality is good.
• People having active medical implants should preferably keep the cell phone at least 15 cm away from the implant.

Disposal and recycling information

This symbol on the device or on its packaging indicates that the device (including its electrical accessories) should not be disposed of as normal household garbage. Do not dispose of your device as unsorted municipal waste. The device should be handed over to an authorized collection center for recycling or proper disposal at the end of its life.

Battery Caution

1. Use only NUU approved batteries, chargers, and cables to charge your phone. Unapproved chargers or cables can cause the battery to explode or damage the device.
2. Use only NUU approved batteries, chargers and cables. Use unapproved batteries, chargers and cables may cause safety issue and the warranty will be lost.
3. You can recharge your battery many times, but all batteries have a limited lifespan. If you notice a significant deterioration in your phone's battery life, you will need to purchase a replacement battery for replacement. If the battery is built-in in the phone, do not attempt to remove built-in batteries and contact an authorized NUU service center for a replacement.
4. Your phone may become warm after prolonged use or when exposed to high ambient temperatures. If your phone becomes hot to the touch, unplug the USB cable, disable non-essential features, and avoid prolonged skin contact. Place your phone in a cool location and allow it to cool down to room temperature.
5. Charging times may vary depending on the ambient temperature and the remaining battery level.
6. Avoid using your phone when it is charging. Do not cover your phone or the charger when it is charging.

CAUTION

1. Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss

1. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

2. The product shall only be connected to a USB interface of version USB2.0

3. Adapter shall be installed near the equipment and shall be easily accessible

4. Operation temperature: -20\~35°C

5. The plug considered as disconnect device of adapter

6. The device complies with RF specifications when the device used at 0.5cm from your body

7. AC adapter:

Model No.: HJ-0502000V5

Input: AC 100-240V 50/60Hz 0.3A

Output: DC 5V, 2000mA

SUN CUPID TECHNOLOGY (HK) LIMITED hereby declares that this LTE mobile phone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU

This information has to be presented in such a way that the user can readily understand it. Typically, this will necessitate translation into every local language (required by national consumer laws) of the markets where the equipment is intended to be sold. Illustrations, pictograms and using international abbreviations for country names may help reduce the need for translation.

Max power:

GSM900: 32.79dBm

DCS1800: 29.73dBm

WCDMA 2100 (Band I): 24.26 dBm

WCDMA 900 (Band VIII): 23.84 dBm

LTE Band 1: 23.71 dBm

LTE Band 3: 23.49 dBm

LTE Band 7: 23.26 dBm

LTE Band 8: 23.48 dBm

LTE Band 20: 23.45 dBm

GSM 900: 880MHz\~915MHz,

DCS 1800: 1710MHz\~1785MHz

WCDMA 900 (Band VIII): 880MHz\~915MHz,

GSM /WCDMA/LTE/WIFI and BT can be used in Europe without restriction.

everyday genius

Made in China

Warranty information

Please visit our website for details on warranty information.

www.nuumobile.com

Warranty Registration

Register Your Device

Thank you for choosing NUU mobile. To receive helpful tips and faster tech support, register your device online at

Hong Kong:

intl.nuumobile.com/product-registration/

US:

us.nuumobile.com/my-account/product-registration

UK and Europe:

uk.nuumobile.com/product-registration/

Indonesia:

Please fill up the warranty card in the package, and call for the warranty to begin.

India:

[e-mail]

Customer Support

Questions? Let us help. We're here to support you.

Hong Kong:

Service Center: 16F, CEO Tower, 77 Wing Hong St. Kowloon, Hong Kong.

Phone: [phone]

HK hours: M-F 9:00am-5:30pm CT

Email: [e-mail]

US:

Service Center: 5050 75th AVE NW

Byron, MN 55920

Phone: Toll Free: 844-NUU-3365

U.S. hours: M-F 8:00am-4:30pm CT

Email: [e-mail]

UK:

Phone: [phone]

UK hours: Mon-Sat 8:00am - 7:00pm

Sun 10:00am - 4:00pm

Email: [e-mail]

Service Center: 119 King Henry's Road, London, NW3 3RB

Europe:

Support: nuumobile.com/europe

Italy:

Phone: [phone]

Mon-Fri 9:00am - 1:00pm

Mon-Fri 2:00pm - 6:00pm

Indonesia:

Service Center: JAKARTA

Ruko Roxy Mas Blok C4 No. 4

Simple gray circular arc symbol with no text or labels

Learn more about NUU Mobile products, features and accessories at

www.nuumobile.com
