Product Type	Miniature Circuit Breaker (MCB)
Model	JN212B
Brand	Hager
Rated Current	12 A
Rated Voltage	230/400 V AC
Breaking Capacity	6 kA
Number of Poles	2
Curve	B
Dimensions (H x W x D)	80 x 36 x 70 mm
Weight	0.15 kg
Mounting Type	DIN rail
Enclosure Rating	IP20
Material	Thermoplastic
Power Supply	Line voltage (230/400 V)
Main Functions	Overload protection, short-circuit protection, isolation
Maintenance & Cleaning	Wipe with dry cloth; no cleaning agents
Safety	Complies with IEC 60898-1
Spare Parts & Repairability	Non-repairable; replace entire unit
Certification	CE, UKCA
Operating Temperature	-25°C to +55°C

Frequently Asked Questions - JN212B HAGER

What type of device is the Hager JN212B?

The Hager JN212B is a miniature circuit breaker (MCB) used for overcurrent protection in electrical installations.

What are the dimensions of the JN212B?

The dimensions are approximately 80 x 36 x 70 mm (height x width x depth), suitable for standard DIN rail mounting.

What is the rated current of the JN212B?

The rated current is 12 A, making it suitable for circuits with a maximum load of 12 amps.

What voltage can the JN212B handle?

It is rated for 230/400 V AC, typically used in single-phase or three-phase systems.

What is the breaking capacity of the JN212B?

The breaking capacity is 6 kA (6,000 amps) under standard conditions.

How do I install the JN212B?

It clips onto a DIN rail. Ensure the circuit is de-energized before installation. Connect the line and load wires to the appropriate terminals.

Is the JN212B repairable?

No, it is a sealed unit and should be replaced if faulty. There are no user-serviceable parts.

What certification does the JN212B have?

It carries CE and UKCA markings, complying with relevant European and UK safety standards.

Can the JN212B be used in outdoor installations?

It has an IP20 rating, meaning it is not protected against water. Use it indoors or in a weatherproof enclosure.

What is the difference between the JN212B and other MCBs?

The JN212B is a B-curve MCB with a rated current of 12 A. B-curve trips at 3-5 times the rated current, ideal for resistive or lighting loads.

USER MANUAL JN212B HAGER

Invicta 3 Panelboard

Installation instructions

All product(s) must be installed by a suitably competent electrician giving consideration to their intended use and in accordance with the current edition of BS 7671 (IET Wiring Regulations).

The Electricity at Work regulations and the Health and Safety at Work Act shall be complied with.

Only equipment and arrangements specified in Hager's technical documentation / catalogue shall be used

Install in the vertical plane only.

Notice:

To prevent potential overheating from loose connections the installer shall check connections are tightened to the torque levels stated in these instructions prior to energising this board.

This check should include factory made connections which may have loosened in transit or as a result of.

Illustration of an open cabinet with internal compartments and doorways (no text or symbols)

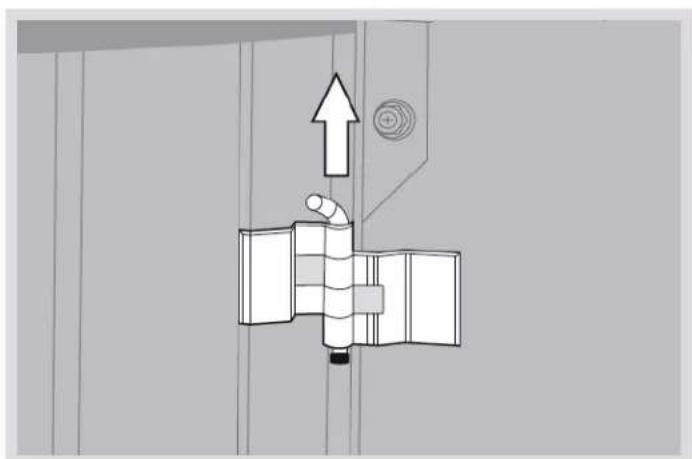

Diagram of a mechanical assembly with an upward arrow and circular component (no text or symbols)

ZD0695 issue 4a

JN2 3 Pole MCCB/MCS incomer kit

250A 3 pole incomer kit contains:

• 1 x 3 pole MCCB/MCS
- 3 x line extension links
- 6 phase link Allen key bolts and washers
• 2 x long MCCB fixing screws
- 3 x M8 120mm lugs

Ensure terminal shrouds are removed before fitting

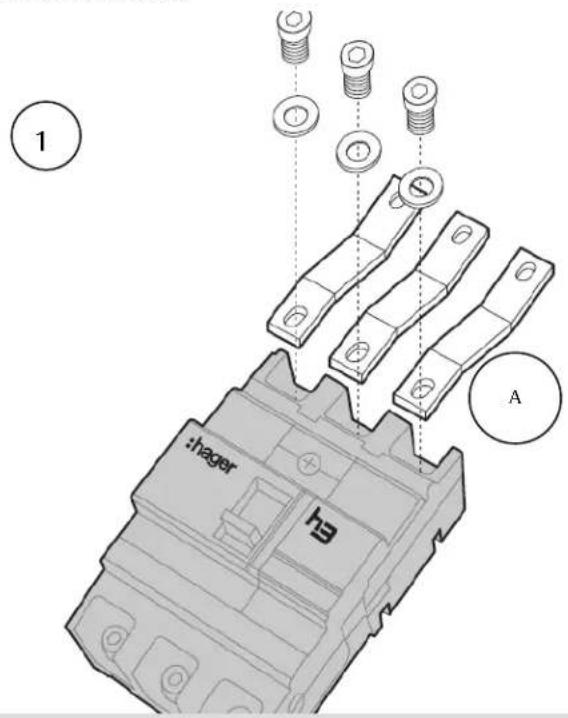

Fit the MCCB to the pan assembly with the fixings provided (do not tighten at this stage). Remove the 3 x M8 coach bolts from the L1, L2 and L3 busbar. Fit the extension links (note the orientation of the links (A). Fit the 3 x M8 Allen bolts (6mm Allen key). Do not tighten at this stage.

Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

Connect the extension links to the busbar with the 3 x M8 coach bolts. Hand tighten at this stage.

Now tighten the MCCB fixing screws to secure the MCCB to the pan assembly.

Once the MCCB is in place tighten all electrical M8 connections to 13Nm

Fit the terminal shroud

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

ZD0695 issue 4a

JN2 4 Pole MCCB/MCS incomer kit

250A 4 pole incomer kit contains:

• 3 x line extension links
• 1 x neutral link
  • 8 phase link Allen key bolts and washers
• 2 x long MCCB fixing screws
• 4 x M8 120mm lugs

Ensure terminal shrouds are removed before fitting

Pure mechanical part diagram without any text, numbers, or symbols

13mm A/F
6mm HEX

Architectural cross-section diagram of a multi-story building facade with visible windows and doorways (no text or symbols)

Fit the MCCB to the pan assembly with the fixings provided (do not tighten at this stage). Remove the 3 x M8 coach bolts from the L1, L2 and L3 busbar. Fit the extension links (note the orientation of the links (A). Fit the 3 x M8 Allen bolts (6mm Allen key). Do not tighten at this stage. Remove the neutral swing link from the board and fit the neutral connection between the MCCB and the neutral connection point (B).

Technical line drawing of a mechanical assembly with numbered components (U1–U3) and two mounting holes (no text or symbols)

Connect the extension links to the busbar with the 3 x M8 coach bolts and the neutral connect using 1 x M8 coach bolt. Hand tighten at this stage.

Now tighten the MCCB fixing screws to secure the MCCB to the pan assembly.

Once the MCCB is in place tighten all M8 electrical connections to 13Nm

Fit the terminal shroud

Isometric technical drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

ZD0695 issue 4a

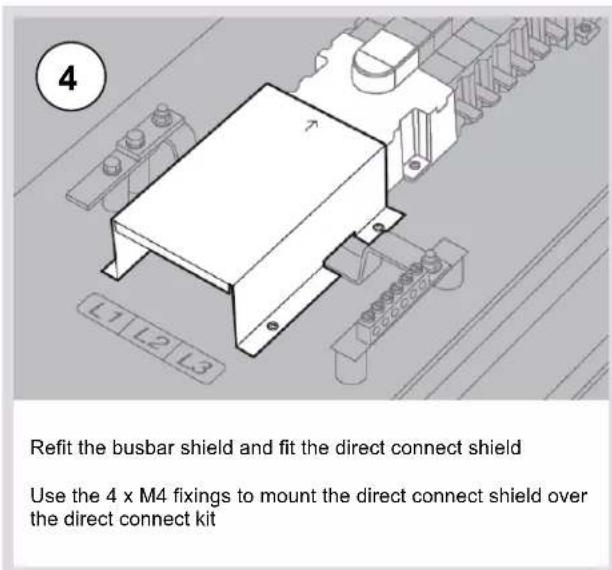

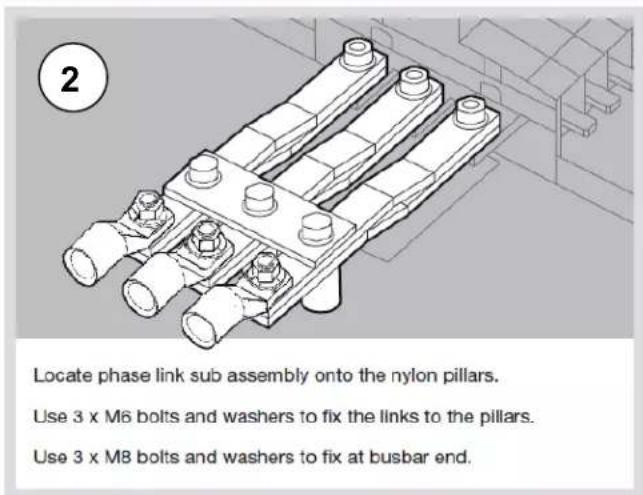

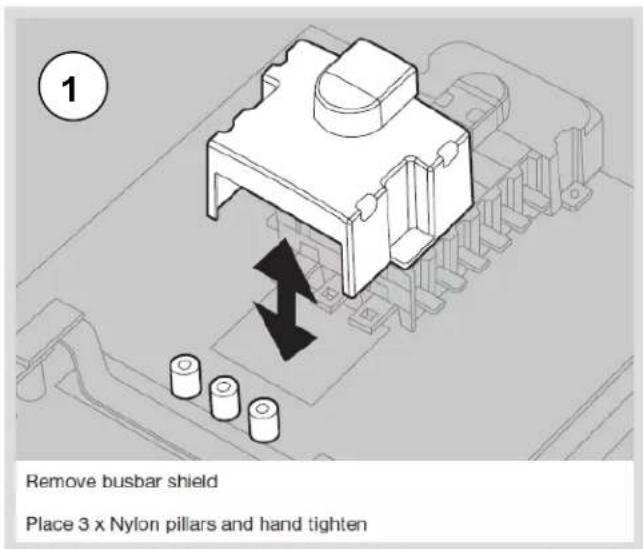

JN2 3 Pole Direct Connection incomer kit

Only equipment and arrangements specified in Hager's technical documentation / catalogue shall be used.

3D diagram showing a connector pin layout with an arrow pointing to a final connector (no text or symbols present)

Fitting Single Pole MCCBs

Single pole MCCB contains:

• 2 x Fixing bolts
• 2 x Spring washers
• 2 x Single fixing plates
• 2 x Double fixing plates

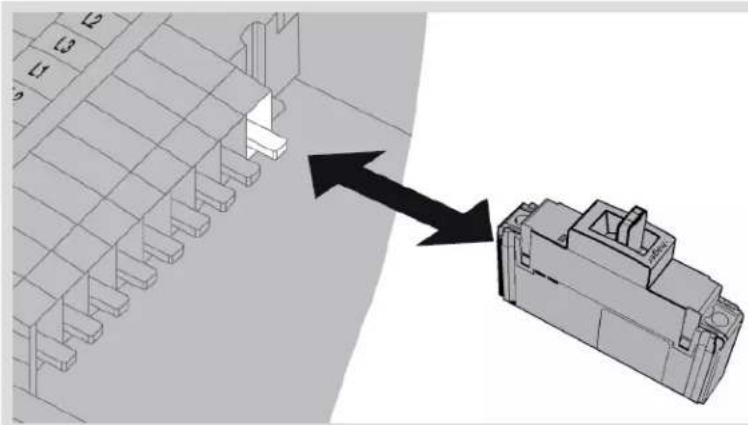

Mount the MCCB on to the busbar finger with the red trip button facing inwards. Fix the device to the pan assembly using the fixings provided

See single pole instructions for more information

Tighten electrical connections to 6.6Nm

Achieving Form 3b type 2 on x160 frame MCCB outgoing

Using HYA021H Terminal cover: Outgoing Devices x160 Frame only (125A) Cut Out Dimensions are shown below to achieve IPXXB (Form 3b type 2)

Interface characteristics

Rated & operational voltage (U n / U e )

415V a.c. 50Hz

Rated insulation voltage (U)

690V a.c. 50Hz

Rated impulse withstand voltage ( U_imp ) 6kV

Rated current of the Assembly ( I_nA )

JN2xxx 250A ^1

^1 or rating of incoming circuit / incomer kit whichever is lower

Rated current of an Outgoing circuit ( I_nc )

MCCB 16A - 125A (marked rated current on device)

Rated short-time withstand current of the main busbars ( I_cw )

25kA/1 sec ^1 with equipment and arrangements specified in

Hager's technical documentation / catalogue

^1 Current limitation characteristics specified in Hager's technical documentation / catalogue

Rated conditional short-circuit current of the PSC-ASSEMBLY ( I_cc )

25kA ^1 with equipment and arrangements specified in Hager's technical documentation / catalogue

^1 Current limitation characteristics specified in Hager's technical documentation / catalogue

Protection against electric shock

PSC-ASSEMBLY shall be installed in an electrical system conforming to IEC 60364 / BS 7671

Rated diversity factor (RDF) / Values of assumed loading

4 way = 0.8

6 way - 8 way = 0.7

10 way - 16 way = 0.6

Note: RDF only applies to continuously and simultaneously loaded circuits.

Rated frequency (fn)

50 Hz

Pollution degree

3

Types of system earthing for which the PSC-ASSEMBLY is designed

TNC-S, TN-S and TT when installed in an electrical system conforming to BS 7671

Indoor use only

Stationary PSC-ASSEMBLY

Degree of protection

IP30 with Door Closed

IP2XC with Door Open and compliment of outgoing devices and or blanks fitted.

Intended use

Not intended to be operated by ordinary persons.

Electromagnetic compatibility (EMC) classification

EMC Environment B

External design

Wall-mounted, surface type, enclosed assembly

Mechanical impact protection

IK05

The type of construction

Fixed parts

The type of Electrical connections of functional units

FF = Fixed connections

Forms of separation

Form 3b when outgoing shrouds are fitted. A competent person must always complete a risk assessment and appropriate test to confirm that, the un-shrouded neutral within the Panelboard is not a hazardous live part. In particular, The Electricity at Work Regulations 1989 including any amendments must be complied with.

Designation H W D Weight (Kg)

JN204B(G) 950 710 178 40

JN206B(G) 1100 710 178 45

JN208B(G) 1100 710 178 47

JN212B(G) 1250 710 178 55

JN216B(G) 1550 710 178 60

Warranty

This distribution board is offered with a 24 month warranty against defective material or manufacture. If a warranty claim is necessary, please call the technical support number given at the bottom of the page and we will be pleased to help.

JN2 Incomer Kits

Cat Ref.	No of Poles	Description + Rated Current of Incoming Circuit
JN213BM	3	MCCB Incomer Kit 125A
JN214BM	4	MCCB Incomer Kit 125A
JN223BM	3	MCCB Incomer Kit 250A
JN224BM	4	MCCB Incomer Kit 250A
JN223BS	3	Isolator Incomer Kit 250A
JN224BS	4	Isolator Incomer Kit 250A
JN224BD	4	Direct Connection Kit 250A

JN2 Accessories

Cat Ref.	Description + Rated Current of Incoming Circuit
JN001BP	1P BLANKING PLATE 125A FRAME
JN2PLATE	JN ENDPLATE
JN201BA	MF Digital Meter Pack (Pulsed)
JN201MJ	MF Digital Meter Pack (Modbus)
JN201BE	SMALL DIN RAIL BOX, PLAIN DOOR
JN201BEG	SMALL DIN RAIL BOX, GLAZED DOOR
JN203BE	LARGE DIN RAIL BOX, PLAIN DOOR
JN203BEG	LARGE DIN RAIL BOX, GLAZED DOOR
JN205BE	SMALL SPREADER BOX (NO DOOR)
JN205DK	DOOR KIT FOR SMALL SPREADER BOX
JN206BE	LARGE SPREADER BOX (NO DOOR)
JN206DK	DOOR KIT FOR LARGE SPREADER BOX

Panel board circuit designation chart

D.B No:

Voltage:

Supplied From:

Supply cable mm:

Incoming Isolator:

Ze:

P.S.C.

CIR	AMPS	TYPE	CABLE MM	C.P.C MM	LOCATION DESCRIPTION
