Product Type	Network Switch
Brand	Edimax
Model	ES-1008PHE V2
Ports	8 x RJ-45 Fast Ethernet (10/100 Mbps)
PoE+ Ports	4 (Ports 1 to 4), supports IEEE 802.3at/af
Switching Capacity	1.6 Gbps
MAC Address Table	2K entries
DIP Switch Functions	Extend (up to 200m for ports 1-2 and 3-4), VLAN isolation, QoS (802.1p)
LED Indicators	Power (Green), LNK/ACT (Amber/Green for GS version), PoE (Green), PoE Alert (Red)
Power Supply	External power adapter (DC)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (non-condensing)
Certifications	FCC Class B, CE, R&TTE
Package Contents	PoE+ Switch, Quick Installation Guide, Power Adapter, Power Cord
Ethernet Standards	IEEE 802.3, 802.3u, 802.3x, 802.3af/at
Auto-MDI/MDI-X	Yes, on all ports
Management	Unmanaged with DIP switch configuration
Mounting	Desktop

Frequently Asked Questions - ES-1008PHE V2 Edimax

What is the difference between the ES-1008PHE V2 and the GS-1008PHE V2?

The ES-1008PHE V2 is a Fast Ethernet switch (10/100 Mbps), while the GS-1008PHE V2 is a Gigabit switch (10/100/1000 Mbps). Both have 4 PoE+ ports and identical features, except for the port speed.

How do I enable the Extend mode for PoE ports?

To enable Extend mode, set DIP switch 1 to ON for ports 1-2, and DIP switch 2 to ON for ports 3-4. This forces the ports to operate at 10 Mbps and extends PoE power and data transmission distance up to 200 meters. After changing the DIP switch, you must reboot the switch.

How far can I run PoE devices using Extend mode?

With Extend mode enabled, the maximum distance for PoE power and data is 200 meters (656 feet), compared to the standard 100 meters. Note that the speed is limited to 10 Mbps in this mode.

What does the VLAN DIP switch do?

When DIP switch 3 (VLAN) is set to ON, the switch operates in VLAN isolation mode. Ports 1 to 4 are isolated from each other and can only communicate with port 5 (uplink). This is useful for separating traffic from different devices.

How do I enable QoS on this switch?

Set DIP switch 4 (QoS) to ON to enable Quality of Service based on IEEE 802.1p. This prioritizes video and voice traffic, giving them high priority over other data.

What does the red PoE Alert LED mean?

The PoE Alert LED (red) illuminates when the total power consumption of connected PoE devices exceeds the PoE budget of the switch. It indicates that the switch cannot supply enough power to all devices.

Can this switch power all four PoE ports at the same time?

Yes, it can, but the total power consumption must stay within the PoE budget (likely 60W or similar, though not specified). If the total power exceeds the budget, the PoE Alert LED will light up and some ports may stop supplying power to protect the switch.

What type of network cables should I use?

Use UTP cables that comply with EIA/TIA 568 and Category 5 (or higher) standards. For best performance, especially in Extend mode, use Cat5e or Cat6 cables.

How do I reset the ES-1008PHE V2?

This switch does not have a reset button. To reset the switch, you can power cycle it: disconnect the power adapter, wait a few seconds, and reconnect. Changing DIP switch settings also requires a reboot to take effect.

Is the ES-1008PHE V2 a managed or unmanaged switch?

The ES-1008PHE V2 is an unmanaged switch with DIP switch configuration. It offers basic features like Extend, VLAN, and QoS through physical switches, but it does not have a web interface or command line for advanced management.

USER MANUAL ES-1008PHE V2 Edimax

ES-1008PHE V2 /GS-1008PHE V2

Quick Installation Guide

11-2016 / v1.0

Edimax Technology Co., Ltd.

No. 278, Xinhu 1st Rd., Neihu Dist., Taipei City, Taiwan

Email: [e-mail]

Edimax Technology Europe B.V.

Fijenhof 2, 5652 AE Eindhoven, The Netherlands

Email: [e-mail]

Edimax Computer Company

3350 Scott Blvd., Bldg.15 Santa Clara, CA 95054, USA

Live Tech Support: 1(800) 652-6776

Email: [e-mail]

Model No.

ES-1008PHE V2: 8-Port Fast Ethernet Switch with 4 PoE+ Ports

GS-1008PHE V2: 8-Port Gigabit Switch with 4 PoE+ Ports

Package Contents

Before you start using this product, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s):

Line drawing of a rectangular electronic device with two ports and a ventilation grille (no text or symbols)

PoE+ Switch

QIG

Power Cord

Simple line drawing of a rectangular device connected to a coiled cable and plug (no text or symbols)

Power Adapter

I-2. Hardware Overview

Front Panel:

Please refer to the following descripon for the front panel:

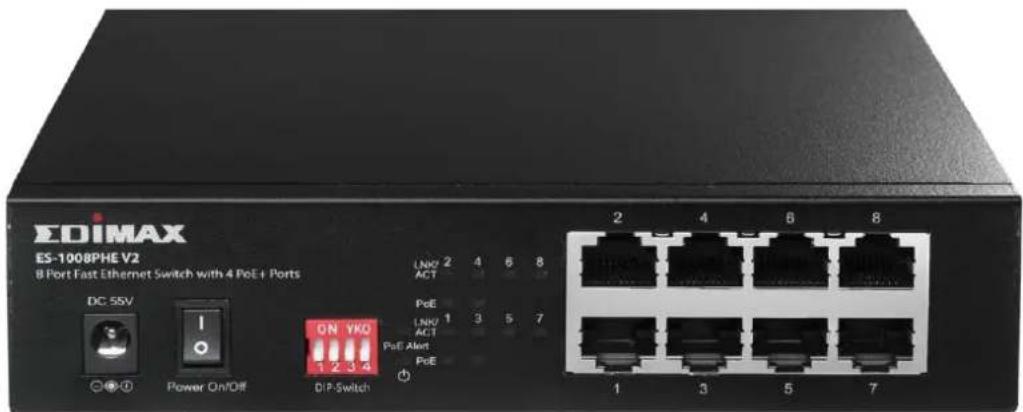

ES-1008PHE V2

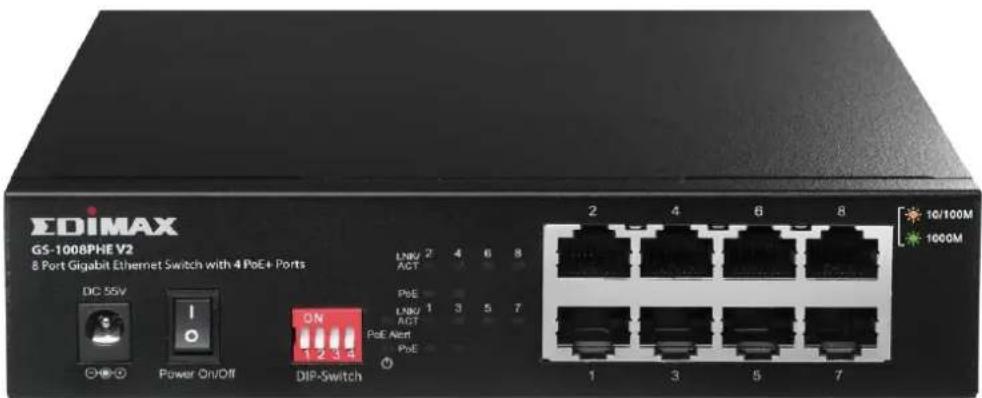

GS-1008PHE V2

DIP Switch Denion:

The front pnael of PoE+ switch provies four pins DIP Switch. The detailed descripons are shown nin the following table.

DIP Switch	Status	Descripon
1(Extend)	On	This mode makes the PoE Port 1~2 operate at auto-negoaon 10Mbps speed duplex mode only, but the delivery distance of PoE power and network data can reach 200m.
	O (default)	This mode makes the PoE Port 1~2 operate as a genral switch.
2(Extend)	On	This mode makes the PoE Port 3~4 operate at auto-negoaon 10Mbps speed duplex mode only, but the delivery distance of PoE power and network data can reach 200m.
	O (default)	This mode makes the PoE Port 3~4 operate as a genral switch.
3(VLAN)	On	This mode makes the PoE+ switch operate as a VLAN isolaon switch and port 1 to port 4 will isolate respectively., port 1 to port 4 can only communicate with port 5 (uplink port).
	O (default)	This mode makes the PoE+ switch operate as a genral switch.
4(QoS)	On	This mode makes the PoE+ switch operate as a QOS switch, it follows the 802.1p QoS, video and voice with high priority.
	O	This mode makes the PoE+ switch operate as a genral switch.

Please note, aer truning ON the DIP switch you will have to Reboot the switch.

Aer installing the switch, you can check its status from the LED inducators on the front panel shown below.

LED Denions:

LED	Color	LED Status	Descripon
Power ⏻	Green	On	Switch is on.
		O	Switch is o.
LNK/ACT	Amber	On	Connected to 10/100M network.
	Green	O	Connected to 1000M network.(Supports GS-1008PHE V2 only)
		Flashing	Transferring/receiving data.
		O	No device is connected.
PoE	Green	On	Feeding power to PoE devices.
		O	PoE funcon is not acve.
PoE Alert	Red	On	Total PoE power consumed is exceeding PoE budget.
		O	Total PoE power is within PoE budget.

Back Panel:

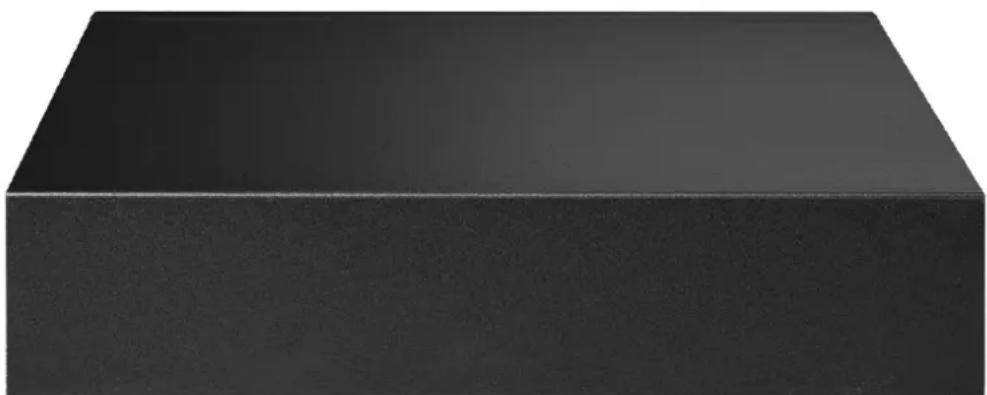

Solid black rectangular object with flat top surface, no visible text or symbols

Operang Environment

This switch must be installed and operated within the limits of the specied operang temperature 0 - 40°C (32 - 104°F) and humidity (10 - 90% non-condensing).

• Do not place objects on top of the unit.
• Do not obstruct any vents at the sides of the unit.
• Do not posion the unit close to any heang source such as a heater, radiator or in direct exposure to sun.
• Take care to ensure the unit does not come into contact with water. Consider using a dehumidier to reduce humidity and prevent moisture entering the unit.

Connecng to Network Devices

The RJ-45 ports on the switch support Auto-MDI/MDI-X which allows either straight-through or cross-over type cables to connect this switch to a workstaon or switch.

Connect one end of the network cable to the RJ-45 port on the side panel, and connect the other end of the network cable to the RJ-45 port on the network device. Follow the same procedure to connect all RJ-45 ports of the switch.

The UTP network cables must comply with EIA/TIA 568 specicaons and Category 5 standard for data transmission. The maximum length for a UTP cable segment between the switch and connected devices is 100 meters (300).

Once the network cable is connected to both ends and the aached network device is powered on, the green LNK/ACT LED should be lit.

Connecng The Power

Connect the power adapter to the power connector of the unit; the green power LED on the front panel should be lit.

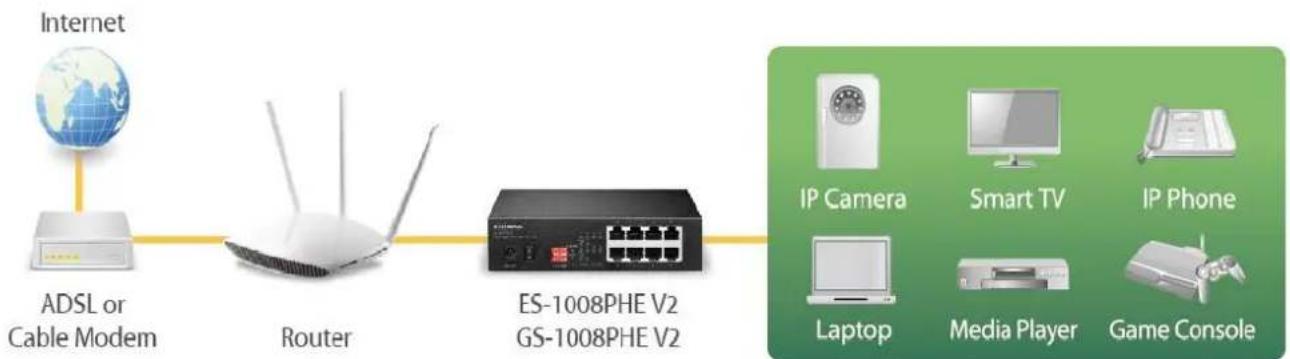


PoE Devices

TROUBLESHOOTING

1. Power LED is not lit.

Check if the power cord is properly connected to the external power adapter and the power source. Make sure the DC power jack is rmly plugged into the power socket of the switch.

2. Link/Acvity (LNK/ACT) LED is not lit when connected to devices.

• Ensure that the network device aached to the switch is switched on.
• Check the network cable; ensure it is properly connected to the switch and the network device.
• Check the network cable; ensure the UTP cable complied with EIA/TIA 568 and Category 5 speciaons.

[!] Contact your dealer if problems persist.

Federal Communicaon Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residential installaon. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separaon between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.

FCC Cauon

This device and its antenna must not be co-located or operang in conjuncon with any other antenna or transmier. This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operaon. Any changes or modicaons not expressly approved by the party responsible for compliance could void the authority to operate equipment.

Federal Communicaons Commission (FCC) Radiaon Exposure Statement

This equipment complies with FCC radiaon exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 2.5cm (1 inch) during normal operaon.

Federal Communicaons Commission (FCC) RF Exposure Requirements

SAR compliance has been established in the laptop computer(s) conguraons with PCMCIA slot on the side near the center, as tested in the applicaon for cercaon, and can be used in laptop computer(s) with substanally similar physical dimensions, construcon, and electrical and RF characteriscs. Use in other devices such as PDAs or lap pads is not authorized. This transmier is restricted for use with the specic antenna tested in the applicaon for cercaon. The antenna(s) used for this transmier must not be co-located or operang in conjuncon with any other antenna or transmier.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunicaon terminal equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Direcve repeals and replaces in the direcve 98/13/EEC (Telecommunicaons Terminal Equipment and Satellite Earth Staon Equipment) As of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special aenon must be paid to the dangers of electric shock and stac electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all mes to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and oce use in Austria, Belgium, Bulgaria, Cyprus, Czech, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Turkey, and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland.

EU Countries Not Intended for Use

None

EU Declaraon of Conformity

English: This equipment is in compliance with the essenal requirements and other relevant provisions of Directive 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.
Français: Cet équipement est conforme aux exigences essenelles et autres dispositions de la direcve 1995/5/CE, 2009/125/CE, 2006/95/CE, 2011/65/CE.
Češna: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 1995/5/ES, 2009/125/ES, 2006/95/ES, 2011/65/ES.
Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami określonymi Dyrektywą UE 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC..
Română: Acest echipament este în conformitate cu cerințele esențiale și alte prevederi relevante ale Direcvei 1995/5/CE, 2009/125/CE, 2006/95/CE, 2011/65/CE.
Русский: Это оборудование соответствует основным требованиям и положениям Директивы 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.
Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek (1995/5/EK, 2009/125/EK, 2006/95/EK, 2011/65/EK).
Türkçe: Bu cihaz 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC direkeri zorunlu istekler ve diğer hükümlerle ile uyumludur.
Українська: Обладнання відповідає вимогам і умовам директиви 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.
Slovenčina: Toto zariadenie spíňa základné požiadavky a d'alšie príslušné ustanovenia smerníc 1995/5/ES, 2009/125/ES, 2006/95/ES, 2011/65/ES.
Deutsch: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.
Español: El presente equipo cumple los requisitos esenciales de la Direcva 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.
Italiano: Questo apparecchio è conforme ai requisi essenziali e alle altre disposizioni applicabili della Direva 1995/5/CE, 2009/125/CE, 2006/95/CE, 2011/65/CE.
Nederlands: Dit apparaat voldoet aan de essenële eisen en andere van toepassing zijnde bepalingen van richtlijn 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC..
Português: Este equipamento cumpre os requesitos essências da Direcva 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.
Norsk: Dee utstyret er i samsvar med de viktigste kravene og andre relevante regler i Direkv 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.
Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och övriga relevanta bestämmelser i direkv 1995/5/EG, 2009/125/EG, 2006/95/EG, 2011/65/EG.
Dansk: Dee udstyr er i overensstemmelse med de væ sentligste krav og andre relevante forordninger i direkv 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.
suomen kieli: Tämä laite täyää direkivien 1995/5/EY, 2009/125/EY, 2006/95/EY, 2011/65/EY oleelliset vaamukset ja muut asiaankuuluvat määräykset.

WEEE Directive & Product Disposal

At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collecon point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal.

Declaraon of Conformity

We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives.

Equipment: ES-1008PHE V2 8-Port Fast Ethernet Switch with 4 PoE+ Ports

GS-1008PHE V2 8-Port Gigabit Switch with 4 PoE+ Ports

Model No.: ES-1008PHE V2 / GS-1008PHE V2

The following European standards for essenal requirements have been followed:

Direcves 2014/30/EC

EMC

: EN55022:2010+AC:2011 Class A

EN55024:2010

EN61000-3-2:2014 Class A

EN61000-3-3:2013

Safety (LVD)

: EN 60950-1:2006 + A11:2009 + A1:2010 +

A12:2011+A2:2013

IEC60950-1:2005(Second Edion)+Am

1:2009+Am2:2013

Edimax Technology Co., Ltd.

No. 3, Wu Chuan 3 ^rd Road,

Wu-Ku Industrial Park,

New Taipei City, Taiwan

CE

Date of Signature: Nov., 2016

Signature:

Printed Name:

Albert Chang

Title:

Director

Edimax Technology Co., Ltd.

ΣDIMAX

NETWORKING PEOPLE TOGETHER
