USER MANUAL JF403MID HAGER
Three Phase easywire® Multifunction DIN Rail Energy Meter (MID Certified)
● Four module DIN rail mounted
● Energy pulse LED
- Input from easywire® Current Transformers
● Three phase network compatible
● Programmable voltage and current transformer ratio
● True RMS measurement
- MID B+D Certified
● High definition white backlit LCD display
● Simple programming and operation
● Pulse output and Modbus communication or Mbus
● Voltage OUT connector for daisy-chaining up to 32 meters from one supply
MID
Product Description
The HGR41EW series are part of the easywire ^® family of meters. The easywire ^® system has been designed to save up to 90% installation time compared to a standard meter and current transformer installation.
This MID approved DIN rail mounted multifunction energy meters is suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications. These meters may be used in three phase applications and have been certified for billing purposes.
A high efficiency white backlit LCD display provides clear indication of measured values in all light conditions.
Push-buttons on the front of the meter allow the user access to the display page required.
The meter is available in two versions:-
- With single pulse output and RS485 Modbus communication
- With single pulse output and Mbus communication
The unit is housed in a compact four module width housing suitable for DIN rail mounting.
Displayed Parameters
Voltage - L-L, L-N and average
Current - per phase and average
Power Factor - per phase and average
Frequency
Power - Active, Reactive and Apparent (per phase and total)
Power Max. demand - Active and apparent power
Energy - Active, reactive and apparent (total)
Communications Part Number
RS485 Modbus and Single Pulse kWh Output HGR41EWC
Mbus and Single Pulse kWh Output HGR41EWMB
MID
MID APPROVED FOR BILLING APPLICATIONS Measuring Instruments Directive
Display
| Display Type LCD, high definition with white back-light | |
| Digit height 6.35mm (displayed parameter) | |
| Page scrolling Manual by front key / or auto scroll mode | |
| Displayed parameters and accuracies Voltage 0.5% | of full scaleCurrent 0.5% of full scaleFrequency 0.1% of full scale (L-N >20V)Power factor 1% of unityActive power 1%Reactive power 1%Apparent power 1%Active Energy Class 1, Class B (IEC/EN62053-21, IEC/EN50470)Reactive Energy Class 2 (IEC/EN62053-23) |
| Energy maximum display | 9999999 |
| Resolution | 0.01K, 0.1K, 1K, 0.01M, 0.1M (depending on CT ratio & VT ratio) |
Programming
| Parameters that can be changed using programming menuNOTE: Once Programming Mode Is enteredThe values in red will be locked out after 15 Mins. No further adjustment is possible without return to factory. | CT Primary currentVT primary voltageVT secondary voltageCommunication addressCommunication speed (Baud)Communication ParityCommunication number of stop bitsBack-light time-out periodDemand period (for integration)Pulse durationPulse output (kWh)Reset to Factory DefaultReset Energy and Maximum DemandReset Active EnergyReset Reactive EnergyReset Apparent EnergyReset Maximum CurrentReset Maximum Active PowerReset Minimum Active PowerReset Maximum Reactive PowerReset Minimum Reactive PowerReset Maximum Apparent Power |
| Programming access | Password protected (user selectable) |
| Memory retention | Non volatile memory |
Input
| Connection Three phase four wire | |
| Input voltage range 3 x 100...240V (L - N), | 3 x 173...415V (L - L) |
| Voltage Rated Burden <8VA | |
| Nominal current inputeasywire | ^ - 1A (330mV) |
| Max current (Imax)easywire | ^ - 1.2A (396mV) |
| Current Rated Burden N/A -easywire | ^ input |
| Starting current 2mA (0.66mV) | |
| Short time overcurrent 30 x Imax to IEC/EN62053-21 - 23 | |
| Impulse voltage withstand 6kV 1.2/50μS 0.5J | |
| AC voltage withstand 4kV 50Hz for 1 min | |
| CT primary current 5...6000A | |
| VT primary voltage 100...600V | |
| Frequency 50Hz | |
| Current distortion factor According to IEC/EN50470 | |
Auxiliary Supply
| Voltage range | Self supplied from measuring input |
| Operating frequency See input section | |
| Power consumption | See input section |
Outputs
| Energy pulses | |
| Number of pulse outputs | 1 |
| Pulse output function | kWh |
| Pulse output type | 1 |
| Pulse output Max. current | 100mA |
| Pulse output voltage range | 5...27VDC |
| Pulse duration | 100ms...2s |
| Pulse resolution | 0.01K, 0.1K, 1K, 0.01M, 0.1M (depending on CT ratio & VT ratio) |
| Communication - Modbus Version | |
| Communication type RS485 | |
| Communication protocol | Modbus |
| Address | 1...255 |
| Number of bits | 8bits |
| Parity | None, odd, even |
| Baud rate | 300, 600, 1200, 2400, 4800, 9600, 19200 |
| Required response time to request | ≤100ms |
| Number of meters connected on the bus | 32 (up to 255 with RS485 repeater) |
| Max distance from Master device | 500M |
Insulation
| Installation category III | |
| Pollution degree 2 | |
| Insulation voltage rating 300V (L-N) |
Environmental Conditions
| Reference temperature 23°C ±2°C | |
| Specified temperature operating range -10°C...+55°C | |
| Storage temperature -20°C...+75°C | |
| Relative humidity 0...85%, non condensing | |
| Mechanical environment M1 | |
| Electromagnetic environment E2 | |
Mechanical
| Housing | |
| Housing 4 module DIN 43880 | |
| Mounting Snap-on 35mm rail | |
| Tamper sealing | Meter housing (by means of a tamper evident seal). Sealable terminal covers. |
| Housing material | Self-extinguishing polycarbonate (UL94 V-0) |
| Protection degree (IEC/EN60529) | IP20 (terminals), IP54 (front of housing) |
| Weight | <210g |
| Termination | |
| Current input terminal type | RJ45 |
| Max. wire size | N/A |
| Voltage input terminal type | Pluggable terminal block - Screw clamp type |
| Max. wire size | 2.5mm^2 |
| Voltage output terminal type | Pluggable terminal block - Screw clamp type |
| Max. wire size | 2.5mm^2 |
| Communication output (RS485 and Pulse) | Pluggable terminal block - Screw clamp type |
| Max. wire size | 1.5mm^2 |
Conformity
| Electromagnetic compatibility | IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2, -3, -4, -5, -6, -8, -11IEC/EN50470-1/3 |
| Accuracy and functionality | IEC/EN50470-1/3, IEC/EN62053-21, IEC/EN62053-23, DIRECTIVE 2014/32/EU |
| Safety | IEC/EN61010, IEC/EN62053-31 |

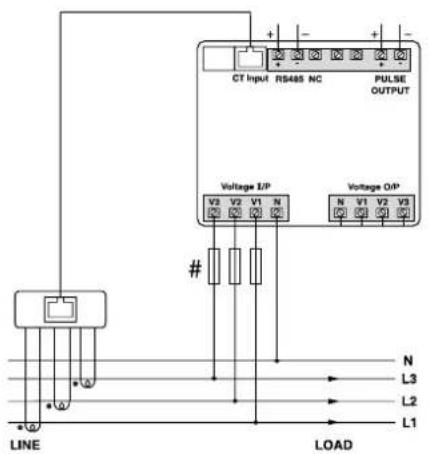

Wiring Diagrams
Note: # All fuse types : Class CC UL type fast acting 600V
Max. 3A (Actual rating is dependent on the number of meters connected to the voltage supply and must be determined during system design).
3 Phase 4 Wire - 1 CT

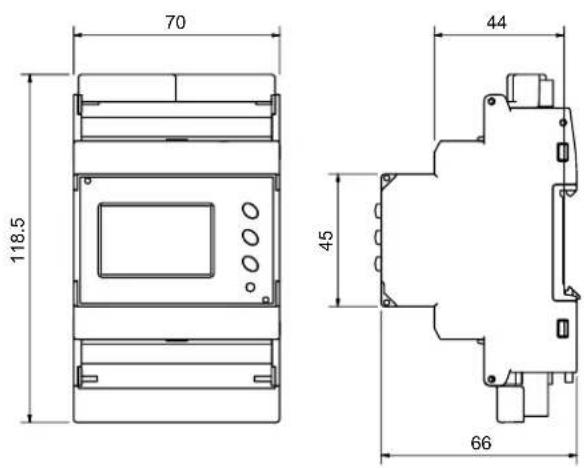

Dimensions
Model Selection Table
Communications Part Number
RS485 Modbus and Single Pulse kWh Output HGR41EWC
Mbus and Single Pulse kWh Output HGR41EWMB
