JF803MID - Energy consumption meter HAGER - Free user manual and instructions

Product Type	Multifunction DIN Rail Energy Meter (MID Certified)
Model Number	JF803MID (HGR41EWC or HGR41EWMB)
Brand	Hager
Certification	MID B+D Certified for billing applications
Measurement Type	True RMS for voltage, current, and power
Display	High definition white backlit LCD with auto-scroll or manual page scrolling
Input Voltage	3 x 100…240V (L-N) / 3 x 173…415V (L-L)
Current Input	Via easywire® current transformers (1A nominal, 1.2A max)
Frequency	50Hz
Active Energy Accuracy	Class 1 / Class B (IEC/EN62053-21, IEC/EN50470)
Reactive Energy Accuracy	Class 2 (IEC/EN62053-23)
Pulse Output	1 x kWh pulse output, 100mA max, 5…27VDC, programmable duration (100ms…2s)
Communication	RS485 Modbus (HGR41EWC) or Mbus (HGR41EWMB) with single pulse output
Memory	Non-volatile memory for settings and data
Programming	Password protected, programmable CT/VT ratio, communication parameters, demand period, and more
Mounting	Snap-on 35mm DIN rail, 4 module width (DIN 43880)
Weight	<210g
Protection Degree	IP20 (terminals), IP54 (front panel)
Operating Temperature	-10°C to +55°C
Storage Temperature	-20°C to +75°C
Safety Standards	IEC/EN61010, overvoltage category III, pollution degree 2
EMC Compliance	IEC/EN61326-1, EN55011 Class A
CT Primary Range	5…6000A
VT Primary Range	100…600V
Wiring	Three-phase four-wire, with voltage output for daisy-chaining up to 32 meters

Frequently Asked Questions - JF803MID HAGER

How do I install the Hager JF803MID meter?

Mount the meter on a 35mm DIN rail using the snap-on mechanism. Connect the voltage inputs (3-phase 4-wire) to the pluggable terminals and the current inputs via RJ45 connectors from easywire® current transformers. Ensure all connections are tightened to the specified torque and use fuses on the voltage supply as recommended.

What is the difference between the HGR41EWC and HGR41EWMB models?

The HGR41EWC model features RS485 Modbus communication plus a single pulse output, while the HGR41EWMB model features Mbus communication plus a single pulse output. Both are MID certified and have the same measurement functions.

How do I program the CT ratio and VT ratio?

Press the front push-buttons to enter the programming menu (password protected). Navigate to the CT Primary and VT Primary/Secondary settings and input the appropriate values. Note that after 15 minutes in programming mode, certain locked values cannot be changed without returning to factory.

What communication protocols are supported?

The meter supports either RS485 Modbus (RTU) or Mbus, depending on the model. The Modbus version allows configurable baud rate (300-19200), parity, and address (1-255). Up to 32 meters can be connected on a single bus without a repeater, and up to 255 with a repeater.

How to reset energy and demand readings?

Enter the programming menu and select the reset options: Reset Active Energy, Reset Reactive Energy, Reset Apparent Energy, Reset Maximum Demand, etc. Individual resets are available. The reset is only possible if programming mode has not timed out (15 minutes).

Is the meter suitable for billing purposes?

Yes, the JF803MID is MID B+D certified according to the Measuring Instruments Directive (2014/32/EU), making it legal for billing applications in the EU. It meets Class B accuracy for active energy.

What is the accuracy class of the meter?

Active energy accuracy is Class 1 (IEC/EN62053-21) or Class B (IEC/EN50470). Reactive energy accuracy is Class 2 (IEC/EN62053-23). Voltage and current accuracy is 0.5% of full scale, and power factor accuracy is 1% of unity.

How to connect the pulse output to a remote monitoring system?

The pulse output is a solid-state relay with a maximum current of 100mA and voltage range of 5…27VDC. Connect it to a pulse counter or PLC input. The pulse duration can be programmed from 100ms to 2s. The pulse output corresponds to kWh consumption.

Can I daisy-chain multiple meters?

Yes, the meter has a voltage OUT connector that allows daisy-chaining up to 32 meters from a single voltage supply. This simplifies wiring in multi-meter installations. Ensure the total current does not exceed the fuse rating (max 3A).

What maintenance does the meter require?

No regular maintenance is required. Keep the front panel clean using a dry or slightly damp cloth. Do not use solvents or abrasive cleaners. Ensure the ventilation slots are not obstructed. Periodically check that all terminal connections are tight.

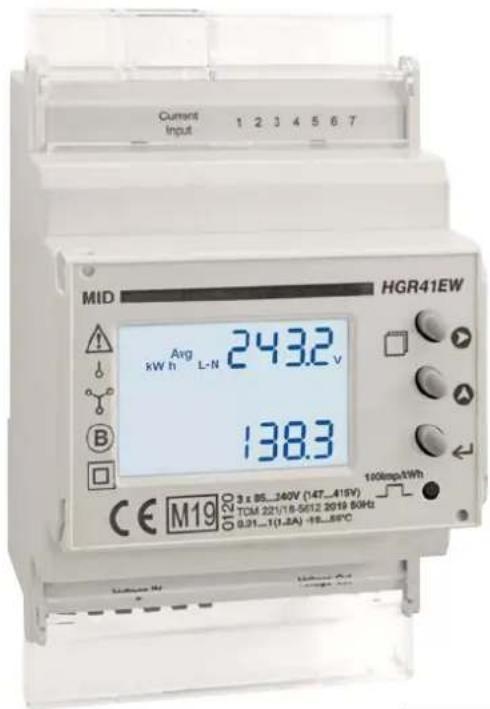

USER MANUAL JF803MID HAGER

Three Phase easywire® Multifunction DIN Rail Energy Meter (MID Certified)

● Four module DIN rail mounted
● Energy pulse LED
- Input from easywire® Current Transformers
● Three phase network compatible
● Programmable voltage and current transformer ratio
● True RMS measurement
- MID B+D Certified
● High definition white backlit LCD display
● Simple programming and operation
● Pulse output and Modbus communication or Mbus
● Voltage OUT connector for daisy-chaining up to 32 meters from one supply

MID

Product Description

The HGR41EW series are part of the easywire ^® family of meters. The easywire ^® system has been designed to save up to 90% installation time compared to a standard meter and current transformer installation.

This MID approved DIN rail mounted multifunction energy meters is suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications. These meters may be used in three phase applications and have been certified for billing purposes.

A high efficiency white backlit LCD display provides clear indication of measured values in all light conditions.

Push-buttons on the front of the meter allow the user access to the display page required.

The meter is available in two versions:-

- With single pulse output and RS485 Modbus communication

- With single pulse output and Mbus communication

The unit is housed in a compact four module width housing suitable for DIN rail mounting.

Displayed Parameters

Voltage - L-L, L-N and average

Current - per phase and average

Power Factor - per phase and average

Frequency

Power - Active, Reactive and Apparent (per phase and total)

Power Max. demand - Active and apparent power

Energy - Active, reactive and apparent (total)

Communications Part Number

RS485 Modbus and Single Pulse kWh Output HGR41EWC

Mbus and Single Pulse kWh Output HGR41EWMB

MID

MID APPROVED FOR BILLING APPLICATIONS Measuring Instruments Directive

Display

Display Type LCD, high definition with white back-light
Digit height 6.35mm (displayed parameter)
Page scrolling Manual by front key / or auto scroll mode
Displayed parameters and accuracies Voltage 0.5%	of full scaleCurrent 0.5% of full scaleFrequency 0.1% of full scale (L-N >20V)Power factor 1% of unityActive power 1%Reactive power 1%Apparent power 1%Active Energy Class 1, Class B (IEC/EN62053-21, IEC/EN50470)Reactive Energy Class 2 (IEC/EN62053-23)
Energy maximum display	9999999
Resolution	0.01K, 0.1K, 1K, 0.01M, 0.1M (depending on CT ratio & VT ratio)

Programming

Parameters that can be changed using programming menuNOTE: Once Programming Mode Is enteredThe values in red will be locked out after 15 Mins. No further adjustment is possible without return to factory.	CT Primary currentVT primary voltageVT secondary voltageCommunication addressCommunication speed (Baud)Communication ParityCommunication number of stop bitsBack-light time-out periodDemand period (for integration)Pulse durationPulse output (kWh)Reset to Factory DefaultReset Energy and Maximum DemandReset Active EnergyReset Reactive EnergyReset Apparent EnergyReset Maximum CurrentReset Maximum Active PowerReset Minimum Active PowerReset Maximum Reactive PowerReset Minimum Reactive PowerReset Maximum Apparent Power
Programming access	Password protected (user selectable)
Memory retention	Non volatile memory

Input

Connection Three phase four wire
Input voltage range 3 x 100...240V (L - N),	3 x 173...415V (L - L)
Voltage Rated Burden <8VA
Nominal current inputeasywire	^ - 1A (330mV)
Max current (Imax)easywire	^ - 1.2A (396mV)
Current Rated Burden N/A -easywire	^ input
Starting current 2mA (0.66mV)
Short time overcurrent 30 x Imax to IEC/EN62053-21 - 23
Impulse voltage withstand 6kV 1.2/50μS 0.5J
AC voltage withstand 4kV 50Hz for 1 min
CT primary current 5...6000A
VT primary voltage 100...600V
Frequency 50Hz
Current distortion factor According to IEC/EN50470

Auxiliary Supply

Voltage range	Self supplied from measuring input
Operating frequency See input section
Power consumption	See input section

Outputs

Energy pulses
Number of pulse outputs	1
Pulse output function	kWh
Pulse output type	1
Pulse output Max. current	100mA
Pulse output voltage range	5...27VDC
Pulse duration	100ms...2s
Pulse resolution	0.01K, 0.1K, 1K, 0.01M, 0.1M (depending on CT ratio & VT ratio)
Communication - Modbus Version
Communication type RS485
Communication protocol	Modbus
Address	1...255
Number of bits	8bits
Parity	None, odd, even
Baud rate	300, 600, 1200, 2400, 4800, 9600, 19200
Required response time to request	≤100ms
Number of meters connected on the bus	32 (up to 255 with RS485 repeater)
Max distance from Master device	500M

Insulation

Installation category III
Pollution degree 2
Insulation voltage rating 300V (L-N)

Environmental Conditions

Reference temperature 23°C ±2°C
Specified temperature operating range -10°C...+55°C
Storage temperature -20°C...+75°C
Relative humidity 0...85%, non condensing
Mechanical environment M1
Electromagnetic environment E2

Mechanical

Housing
Housing 4 module DIN 43880
Mounting Snap-on 35mm rail
Tamper sealing	Meter housing (by means of a tamper evident seal). Sealable terminal covers.
Housing material	Self-extinguishing polycarbonate (UL94 V-0)
Protection degree (IEC/EN60529)	IP20 (terminals), IP54 (front of housing)
Weight	<210g
Termination
Current input terminal type	RJ45
Max. wire size	N/A
Voltage input terminal type	Pluggable terminal block - Screw clamp type
Max. wire size	2.5mm^2
Voltage output terminal type	Pluggable terminal block - Screw clamp type
Max. wire size	2.5mm^2
Communication output (RS485 and Pulse)	Pluggable terminal block - Screw clamp type
Max. wire size	1.5mm^2

Conformity

Electromagnetic compatibility	IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2, -3, -4, -5, -6, -8, -11IEC/EN50470-1/3
Accuracy and functionality	IEC/EN50470-1/3, IEC/EN62053-21, IEC/EN62053-23, DIRECTIVE 2014/32/EU
Safety	IEC/EN61010, IEC/EN62053-31

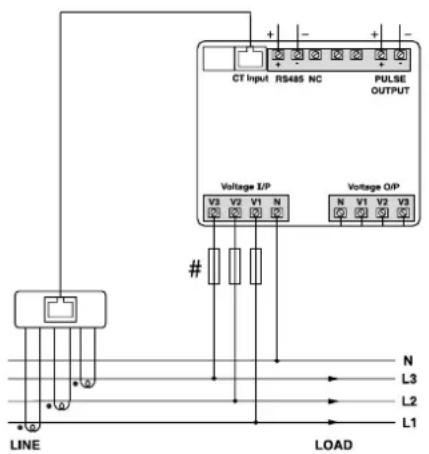

Wiring Diagrams

Note: # All fuse types : Class CC UL type fast acting 600V

Max. 3A (Actual rating is dependent on the number of meters connected to the voltage supply and must be determined during system design).

3 Phase 4 Wire - 1 CT

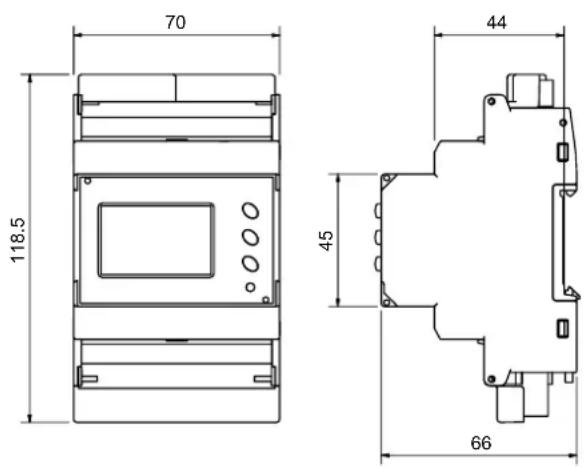

Dimensions

Model Selection Table

Communications Part Number

RS485 Modbus and Single Pulse kWh Output HGR41EWC

Mbus and Single Pulse kWh Output HGR41EWMB
