Product Type	Energy consumption meter (MID certified)
Model	JKD250TMID
Brand	Hager
Dimensions	72 x 90 x 65 mm (width x height x depth)
Weight	0.2 kg
Mounting	DIN rail (35 mm) or panel mount
Rated Current	5(65) A
Rated Voltage	230 V AC, 50 Hz
Accuracy Class	Class B (MID approved)
Measured Energy	Active energy (kWh)
Display	LCD, 6+2 digits with backlight
Pulse Output	SO (4000 imp/kWh) for remote reading
Power Consumption	< 2 W (internal)
Insulation Class	II
Degree of Protection	IP20 (indoor use)
Overvoltage Category	III
Operating Temperature	-25°C to +55°C
Maintenance	No maintenance required; clean with dry cloth
Safety	Meets EN 50470-3, IEC 62053-21
General Information	MID certified for billing purposes; long-term stability

Frequently Asked Questions - JKD250TMID HAGER

How do I install the Hager JKD250TMID meter?

Mount the meter on a 35 mm DIN rail in a suitable enclosure. Connect the phase and neutral wires as per the wiring diagram on the meter. Ensure the main power is off before installation.

What does the LCD display show?

The LCD shows total active energy consumption in kWh with 6+2 digits. A backlight is activated by pressing the button.

Is the JKD250TMID suitable for billing?

Yes, it is MID certified (Class B) and approved for use in sub-billing and allocation applications.

What is the accuracy of this meter?

It has accuracy Class B according to EN 50470-3, with a typical error of less than 1% at rated conditions.

How do I connect the pulse output?

The pulse output is an open-collector (SO) output, 4000 imp/kWh. Connect to a pulse counting device with a suitable pull-up resistor.

Can the meter be used for reactive energy?

No, the JKD250TMID measures only active energy (kWh). For reactive energy, a different model is required.

What is the maximum current rating?

The meter is rated for 5(65) A, meaning it operates on 5 A basis and can handle up to 65 A continuously.

How do I read the cumulative consumption?

The display automatically shows the total kWh consumption. Press the button briefly to toggle between displays if multiple registers are available.

Is the meter compatible with solar installations?

Yes, it can measure consumption from the grid. For net metering with generation, use two meters or a bidirectional model.

What maintenance does the meter require?

The meter is maintenance-free. If dust accumulates, clean the enclosure with a dry cloth. Do not use water or solvents.

USER MANUAL JKD250TMID HAGER

Split Load Three Phase easywire® Multifunction DIN Rail Energy Meter (MID Certified)

● Four module DIN rail mounted
● Energy pulse LED / High definition white backlit LCD display
- 2 x Inputs from easywire® Current Transformers
● Three phase network compatible
● Independently programmable CT ratios (Load 1 and Load 2)
● Programmable voltage transformer ratio
● True RMS measurement
- MID B+D Certified
● Simple programming & operation / auto or manual page scrolling
- 2 x Pulse outputs and Modbus communication or Mbus
● Voltage OUT connector for daisy-chaining up to 32 meters from one supply

MID

Product Description

The HGR42EW series is part of the easywire ^® family of meters, designed to save up to 90% installation time compared to a standard meter and current transformer installation.

The meters contain two 3 Phase metering circuits in one case, and accept inputs from two separate easywire ^® 3 Phase current transformers while still utilizing the same voltage reference.

This MID approved, 4 module DIN rail mounted multifunction energy meter, is suitable for monitoring energy consumption and other electrical parameters in industrial and commercial applications. This series is particularly suited for use in split-load lighting and power boards, in three phase applications, and have been certified for billing purposes.

A high efficiency white backlit LCD display provides a clear indication of measured values in all light conditions. Front push-buttons allow user access to the display page required. The meter is available in two versions:-

• With two pulse outputs and RS485 Modbus communication.
• With two pulse outputs and Mbus communication

MID APPROVED FOR BILLING APPLICATIONS Measuring Instruments Directive

Displayed Parameters

Voltage - L-L, L-N and average

Current - Per phase and average (LOAD 1 and LOAD 2)

Power Factor - per phase and average

Frequency

Power - Active, Reactive and Apparent (per phase and total)

Power Max. demand - Active and apparent power.

Energy - Active, reactive and apparent (per load and total)

Communications Part Number
Split Load Input with RS485 Modbus Output and Two Pulse Outputs kWh (1 per circuit)	HGR42EWC
Split Load Input with Mbus Output and Two Pulse Outputs kWh (1 per circuit)	HGR42EWMB

Display

Display Type LCD, high definition with white back-light
Digit height 6.35mm (displayed parameter)
Page scrolling Manual by front key / or auto scroll mode
Displayed parameters and accuracies Voltage 0.5%	of full scaleCurrent 0.5% of full scaleFrequency 0.1% of full scale (L-N >20V)Power factor 1% of unityActive power 1%Reactive power 1%Apparent power 1%Active Energy Class 1, Class B (IEC/EN62053-21, IEC/EN50470)Reactive Energy Class 2 (IEC/EN62053-23)
Energy maximum display	9999999
Resolution	0.01K, 0.1K, 1K, 0.01M, 0.1M (depending on CT ratio & VT ratio)

Programming

Parameters that can be changed using programming menuNOTE: Once Programming Mode Is entered The values in red will be locked out after 15 Mins. No further adjustment is possible without return to factory.	CT Primary currentVT primary voltageVT secondary voltageCommunication addressCommunication speed (Baud)Communication ParityCommunication number of stop bitsBack-light time-out periodDemand period (for integration)Pulse durationPulse output (kWh)Reset to Factory DefaultReset Energy and Maximum DemandReset Active EnergyReset Reactive EnergyReset Apparent EnergyReset Maximum CurrentReset Maximum Active PowerReset Minimum Active PowerReset Maximum Reactive PowerReset Minimum Reactive PowerReset Maximum Apparent Power
Programming access	Password protected (user selectable)
Memory retention	Non volatile memory

Input

Connection Three phase four wire
Input voltage range 3 x 100...240V (L - N),	3 x 173...415V (L - L)
Voltage Rated Burden <8VA
Nominal current input 2 x easywire	^ - 1A (330mV)
Max current (Imax) easywire	^ - 1.2A (396mV)
Current Rated Burden N/A - easywire	^ input
Starting current 2mA (0.66mV)
Short time overcurrent 30 x Imax to IEC/EN62053-21 + 23
Impulse voltage withstand 6kV 1.2/50μS 0.5J
AC voltage withstand 4kV 50Hz for 1 min
CT primary current 5...6000A
VT primary voltage 100...600V
Frequency 50Hz
Current distortion factor According to IEC/EN50470

Auxiliary Supply

Voltage range	Self supplied from measuring input
Operating frequency See input section
Power consumption	See input section

Outputs

Energy pulses
Number of pulse outputs	2
Pulse output function	kWh
Pulse output type	1
Pulse output Max. current	100mA
Pulse output voltage range	5...27VDC
Pulse duration	100ms...2s
Pulse resolution	0.01K, 0.1K, 1K, 0.01M, 0.1M (depending on CT ratio & VT ratio)
Communication - Modbus Version
Communication type RS485
Communication protocol	Modbus
Address	1...255
Number of bits	8bits
Parity	None, odd, even
Baud rate	300, 600, 1200, 2400, 4800, 9600, 19200
Required response time to request	≤100ms
Number of meters connected on the bus	32 (up to 255 with RS485 repeater)
Max distance from Master device	500M

Insulation

Installation category III
Pollution degree 2
Insulation voltage rating 300V (L-N)

Environmental Conditions

Reference temperature 23°C ±2°C
Specified temperature operating range -10°C...+55°C
Storage temperature -20°C...+75°C
Relative humidity 0...85%, non condensing
Mechanical environment M1
Electromagnetic environment E2

Mechanical

Housing
Housing 4 module DIN 43880
Mounting Snap-on 35mm rail
Tamper sealing	Meter housing (by means of a tamper evident seal). Sealable terminal covers.
Housing material	Self-extinguishing polycarbonate (UL94 V-0)
Protection degree (IEC/EN60529)	IP20 (terminals), IP54 (front of housing)
Weight	<210g
Termination
Current input terminal type	2 x RJ45
Max. wire size	N/A
Voltage input terminal type	Pluggable terminal block - Screw clamp type
Max. wire size	2.5mm^2
Voltage output terminal type	Pluggable terminal block - Screw clamp type
Max. wire size	2.5mm^2
Communication output (RS485 and Pulse)	Pluggable terminal block - Screw clamp type
Max. wire size	1.5mm^2

Conformity

Electromagnetic compatibility	IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2, -3, -4, -5, -6, -8, -11IEC/EN50470-1/3
Accuracy and functionality	IEC/EN50470-1/3, IEC/EN62053-21, IEC/EN62053-23, DIRECTIVE 2014/32/EU
Safety	IEC/EN61010, IEC/EN62053-31

Wiring Diagrams

Note: # All fuse types : Class CC UL type fast acting 600V

Max. 3A (Actual rating is dependent on the number of meters connected to the voltage supply and must be determined during system design).

3 Phase 4 Wire - 2 CT


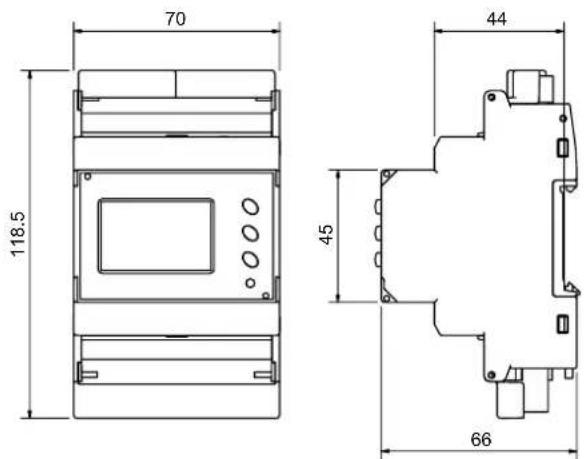

Dimensions

Model Selection Table

Communications Part Number
Split Load Input with RS485 Modbus Output and Two Pulse Outputs kWh (1 per circuit)	HGR42EWC
Split Load Input with Mbus Output and Two Pulse Outputs kWh (1 per circuit)	HGR42EWMB
