Product Type	Wireless Intercom
Brand	Mercury
Model	2WID001
Dimensions (approx.)	120 x 60 x 25 mm
Weight (approx.)	150 g
Power Supply	Rechargeable Lithium-Ion battery, 3.7V 500 mAh
Charging Time	2 hours
Battery Life	Up to 8 hours talk time
Wireless Range	Up to 500 meters (open field)
Frequency	2.4 GHz
Main Functions	Two-way full duplex communication, group call, VOX, noise cancellation
Number of Users	Up to 2 units paired
Audio	Built-in microphone and speaker, 3.5mm headset jack
Controls	Power button, volume buttons, PTT button
Indicators	LED power/battery, charging indicator
Maintenance	Clean with a soft dry cloth; avoid water and solvents
Safety	Do not disassemble; keep away from heat sources; use only supplied charger
Spare Parts / Reparability	Contact Mercury customer service for replacement batteries or accessories
General Information	Ideal for outdoor activities, construction sites, or family use

Frequently Asked Questions - 2WID001 Mercury

How do I pair two Mercury 2WID001 intercoms?

Turn on both units. Press and hold the PTT button on one unit for 5 seconds until the LED flashes rapidly. Then press the PTT button on the other unit briefly. The LEDs will stop flashing when paired successfully.

Can I use the intercom while charging?

Yes, you can use the intercom while it is charging, but charging time may increase.

What is the maximum operating range?

The maximum range is up to 500 meters in open field. Walls and obstacles may reduce range.

How do I know when the battery is low?

The LED will flash red when the battery is low. You should recharge the unit as soon as possible.

Can I connect a headset to the intercom?

Yes, you can connect a headset with a 3.5mm plug to the audio jack on the side of the intercom.

How do I reset the intercom to factory settings?

With the unit off, press and hold the Power and PTT buttons simultaneously for 10 seconds. Release when the LED flashes red and green.

Is the intercom waterproof?

No, it is not waterproof. Avoid exposing it to rain or submersion in water. It is splash-resistant but not rated for heavy moisture.

Why is there static noise during use?

Static can occur if you are out of range or if there is interference. Reduce distance between units or check for obstacles. Also ensure both units have sufficient battery.

Can I use more than two intercoms together?

The 2WID001 is designed for one-to-one communication between two units. For group communication with more users, consider a different model.

How do I clean the intercom?

Use a soft, dry cloth to wipe the exterior. Do not use water, alcohol, or other cleaning agents.

USER MANUAL 2WID001 Mercury

Two white electronic devices with circular buttons and perforated bases, no visible text or symbols

2.4Ghz Wireless Digital Intercom

Order ref: 350.005UK

User Manual

A stylish and attractive wireless digital intercom that allows you to talk to your visitors before opening the door. No wires are required between the outdoor and indoor units making this system very simple to install. Both units are powered by a rechargeable battery with the indoor unit doubling as a battery charger when connected to a suitable USB power source using the charging lead provided. Its also possible to connect the outdoor unit to an electronic door lock, utilising the door release button on the indoor unit. Ideal for use in domestic and business applications and helpful for the elderly or less mobile.

Features:

• Simple wire free installation and setup
• Up to 500m transmission range
  • 8 Ringtones and adjustable ring volume
  • Recharge the batteries using the indoor unit and USB charging lead (supplied)
• Weatherproof outdoor unit can be connected to an electronic lock (not supplied) when connected to mains power
  • Outdoor unit can also be mains powered using additional 12V PSU 350.006UK (not supplied)
  • LED indicators for low battery warning and battery charging status

In the box:

• Outdoor unit (IP44)
• Indoor unit
• Rain shade for outdoor unit
  • 2pcs DC3.7V Rechargeable battery

• USB charging lead (1m)
• Electronic lock connecting wire
- Fixing kit
- User guide

Installation:

Outdoor unit

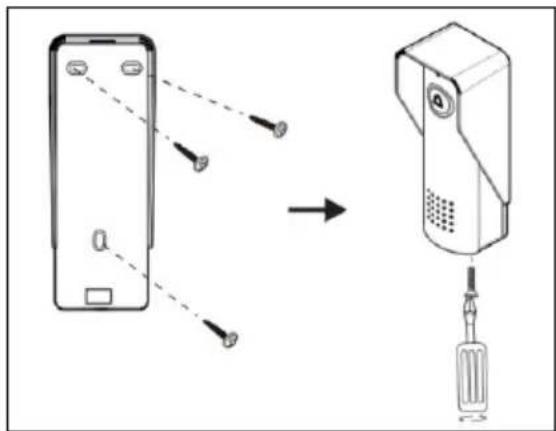

1. Fasten the rain shade on the wall around 1.4\~1.7m above the ground using the screws and plugs provided in the fixing kit.
2. Open the battery cover using a small Philips screwdriver and insert one of the DC3.7V rechargeable batteries ensuring the correct polarity.
3. Replace the cover and screw then slot the unit into the rain shade.
4. Secure the unit from underneath using the fixing screw provided in the fixing kit.
5. Its also possible to power the outdoor unit using an additional DC12V mains power supply (350.006UK not

supplied). If mains installation is required, please use a qualified electrician and ensure the rechargeable battery is removed before installation.

Indoor unit

1. The indoor unit can simply be stood on a suitable flat surface or hung on a wall using the fixing screws provided and keyhole slots in the back of the unit.

2. Please ensure the unit is kept in a dry environment away from direct sunlight and any wireless items that may interfere with the signal such as cordless phones, indoor aerials or WiFi hubs and routers.

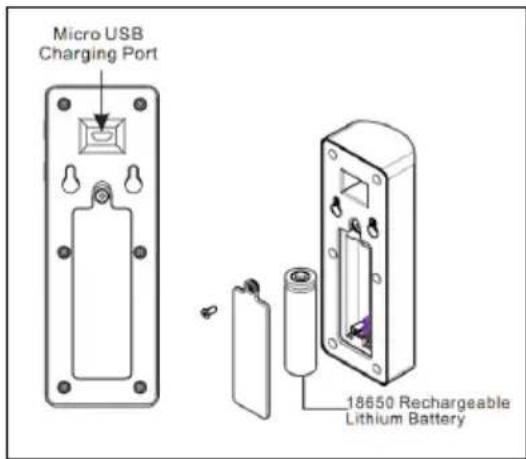

3. Open the battery cover using a small Philips screwdriver and insert one of the DC3.7V rechargeable batteries ensuring the correct polarity.

4. Replace the cover and screw to secure the unit.

5. There is also a USB charging port on the top of the indoor unit which can be used to charge up the batteries used in both units.

6. Simply insert the USB charging cable provided into the charging port and connect the cable to a suitable USB power source.

7. During charging the unlock button will flash, then go out once the battery is fully charged.

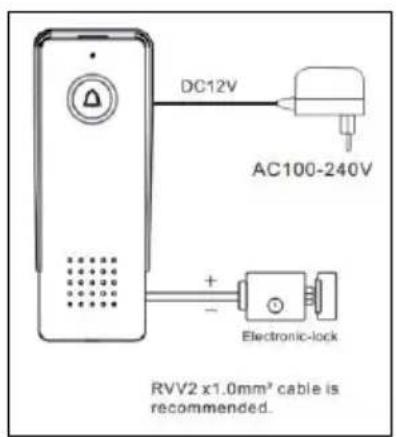

Electronic door lock

1. Its possible to connect the outdoor unit to an additional electronic door lock (not supplied) using the connecting wire provided.

2. This is only possible if the outdoor unit is connected to mains power using the additional 12V power supply mentioned above.

3. It is recommended to use RVV2 x 1.0mm ^4 cable to connect to the electronic door lock.

4. Once the door lock is connected correctly the unlock button will also be activated on the indoor unit.

NOTE: it is recommended that all wiring connections for both the electronic door lock and 12V DC power supply are undertaken by a qualified electrician.

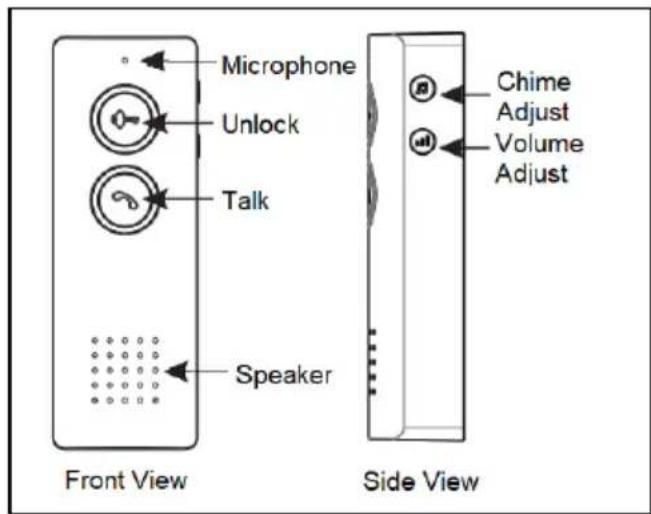

Operation:

1. When the call button is pressed on the outdoor unit, the indoor unit chime will sound and the LED on the talk button will illuminate.

2. Press the talk button to acknowledge and talk with your visitor and press again to end the conversation.

3. If an electronic door lock is connected you can also press the unlock button to admit your visitor entry to your property.

4. It is possible to select a different chime on the indoor unit. Simply scroll through the 8 available melodies by pressing the chime selection button repeatedly.

1. To adjust the chime volume, press the volume adjustment button repeatedly to select either high, medium or low volume setting accordingly.

System alerts:

1. The LED on the outdoor unit call button flashing slowly indicates the battery level is low and it should be recharged as soon as possible.

2. The LED on the indoor unit unlock button flashing slowly indicates the battery level is low and it should be recharged as soon as possible.

Specification:

Frequency	426~440 MHz
Range	Up to 500m (open area)
IP Rating	IP44 (External unit only)
Power supply: indoor unit	18650 Lithium rechargeable battery (DC3.7V)
Power supply: outdoor unit	18650 Lithium rechargeable battery (DC3.7V) or DC12V 1~2A Mains adaptor (not supplied)
Dimensions: indoor unit	154 x 54 x 36mm
Dimensions: outdoor unit	158 x 62 x 50.5mm
Weight: indoor unit	165g (including battery)
Weight: outdoor unit	220g (including rain shade & battery)

Warning:

- For reasons of electrical safety, this device must never be immersed in water, exposed to damp conditions or excessive force.

- Do not use this device if you find that it is damaged in any way.

- Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Hereby, AVSL Group Ltd. declares that the radio equipment type: 350.005UK complies with Directive 2014/53/EU The full text of the EU declaration of conformity for 350.005UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/3/5/350005UK%20CE.pdf

Errors and omissions excepted.
