Product Type	4G Ready VHF/UHF Distribution Amplifier
Brand	Mercury
Model	AMD02
Number of Inputs	2 (VHF and UHF)
Number of Outputs	2+Full (2 individual outputs plus 1 full gain output)
Frequency Response	47-230 MHz (VHF), 470-694 MHz (UHF)
Maximum Output Level	94 dBμV
Gain per Split	12 dB
Gain on Full	20 dB
Noise Figure	< 4 dB
Isolation Loss	22 dB
Integrated LTE Filter	Yes, avoids interference from 4G/5G mobile signals
Surge Protection	Yes, with LED indicator
Short Circuit Protection	Yes, with LED indicator
Maximum Output Limiter	Prevents overload
DC Pass	Allows satellite control via Magic Eye remote extender (124.157)
Connector Type	Coaxial socket with included F-type adaptors
Mounting	Wall mountable with side terminals
Power Supply	230 V AC, 50 Hz via mains
Dimensions (H x W x D)	44.4 x 134.5 x 70 mm
Weight	270 g
Operating Environment	Indoor use only, dry and cool
Cleaning	Use a damp cloth only; do not clean while plugged in or hot
Disposal	Do not dispose with household waste; follow local council guidelines for electronic waste

Frequently Asked Questions - AMD02 Mercury

What is the purpose of the Mercury AMD02 distribution amplifier?

The Mercury AMD02 is a 4G/5G ready VHF/UHF distribution amplifier designed to amplify weak TV and radio signals and distribute them to multiple outputs. It includes an integrated LTE filter to prevent interference from mobile signals, ensuring clear reception for digital terrestrial, satellite, cable TV, and DAB/FM radio.

How do I connect the AMD02 amplifier to my aerials?

Connect your VHF aerial (e.g., FM/DAB) to the VHF input and your UHF aerial (TV) to the UHF input. Use coaxial cables or the included F-type adaptors. The unit can be wall-mounted using the two holes on the back. Ensure all devices are switched off before connecting.

What does the surge protection LED indicate?

The surge protection LED lights up when a power surge is detected on the amplifier. This feature helps protect the device and connected equipment from damage due to voltage spikes.

What does the short circuit protection LED indicate?

The short circuit protection LED illuminates when a short circuit is detected on one of the output ports. This indicates a problem with the cable or connected device and helps prevent damage to the amplifier.

Can I control a satellite receiver from another room using this amplifier?

Yes, the AMD02 features DC pass that allows you to use a Magic Eye remote extender (model 124.157) to control a satellite receiver from another room. Connect the RF2 output of the satellite receiver to the UHF input of the amplifier for this function. Note that only one satellite channel can be viewed at a time.

What should I do if I get a frozen or blocked picture?

If the installation is too close to a TV transmitter or other high-power source, the signal may be too strong. In this case, use an attenuator to reduce the signal level to suitable levels for clear TV viewing.

Is the AMD02 suitable for outdoor use?

No, the AMD02 is strictly designed for indoor use only. It must be kept in a dry and cool environment away from moisture and water. Do not use it outdoors.

How should I clean the amplifier?

Clean the surface with a damp cloth only. Never attempt to clean the amplifier while it is plugged in or still hot. Do not use any solvents or abrasive cleaners.

What should I do if the amplifier is damaged?

Do not use the amplifier if it is damaged in any way. Do not attempt to repair or disassemble it, as this will void the warranty. Contact the manufacturer or a qualified technician for assistance.

How do I properly dispose of the AMD02 amplifier?

This product is classified as electrical or electronic equipment. At the end of its useful life, do not dispose of it with other household or commercial waste. Follow your local council guidelines for recycling or proper disposal of electronic waste.

USER MANUAL AMD02 Mercury

4G Ready VHF/UHF Distribution Amplifiers

AMD02/04/06/08

Item ref:

130.030/031/032/033UK

User Manual

CAUTION

Please read through this manual carefully before use. This product is strictly for indoor use only and must be kept in a dry and cool environment and out of reach from children and pets.

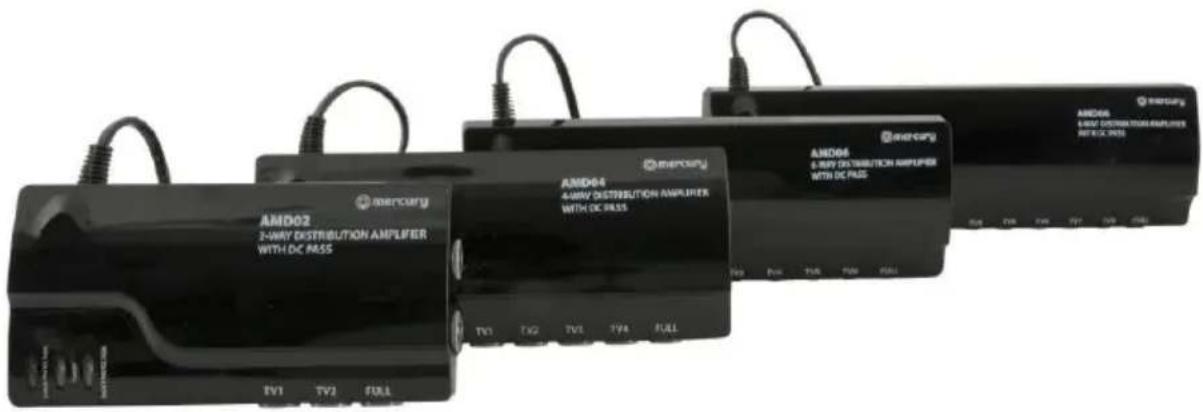

A range of Distribution amplifiers with built in 4G/5G LTE filter, designed to improve the quality of audio and video by amplifying weak VHF/UHF signals and distributing them across a designated area. Suitable for both professional and domestic installations and fully compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals.

Features:

• Fully screened amplifier compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals
  • Integrated LTE signal filter avoids interference and channel loss from 4G/5G mobile signals
  • Coaxial socket connection, F socket adaptors included to allow F-Type connection
  • Built in low noise amplifier with wideband output
  • Built in surge protection – LED lights when a power surge is detected
• Short circuit protection – LED illuminates when a short circuit is detected on an output
  • Maximum output limiter prevents overload
  • High gain output for additional distribution connection
• Separate inputs for VHF and UHF
  • DC pass allows the control of satellite via Magic Eye remote extender (124.157)
• Side mounted terminals allow easy cable management

Specifications:

	AMD02	AMD04	AMD06	AMD08
No of inputs	2	2	2	2
No of outputs	2+Full	4+Full	6+Full	8+Full
Frequency response	47-230MHz, 470-694MHz	47-230MHz, 470-694MHz	47-230MHz, 470-694MHz	47-230MHz, 470-694MHz
Max output level	94dBμV	90dBμV	87dBμV	87dBμV
Gain per split	12dB	8dB	8dB	8dB
Gain on Full	20dB	20dB	20dB	20dB
Noise	<4dB	<4dB	<4dB	<4dB
Isolation loss	22dB	22dB	22dB	22dB
Dimension	134.5 x 70 x 44.4mm	179.5 x 70 x 44.4mm	224.5 x 70 x 44.4mm	269.5 x 70 x 44.4mm
Weight	270g	350g	420g	500g

Installation:

Before installation please ensure all devices to be connected to the amplifier are switched off and disconnected from the mains. The unit is designed to be connected via coaxial connectors, although f-type adaptors are also supplied for additional compatibility. On the back of the casing there are also two mounting holes which allow the unit to be fixed to the wall.

AV:Link distribution amplifiers are designed to amplify weak, poor quality signals and distribute them to different destinations. For installations that are close to a TV transmitter or any other form of radio transmitter or high-power source, you may experience blocking or a frozen picture. In this instance an attenuator is required for turning down the signal to suitable levels for TV viewing.


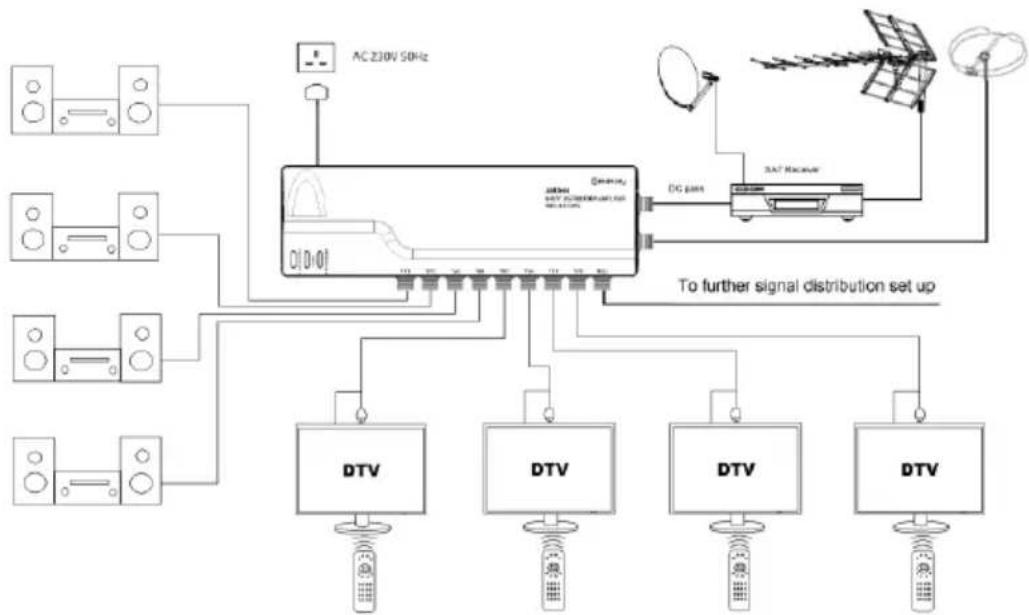

The above diagram shows AMD08 receiving TV signals from the Satellite receiver and FM/DAB aerial and distribute the signals to 4 individual hi-fi and 4 TV units. The AMD series amplifier is designed with DC pass function. All 4 TV's can also be set up with a "Magic eye" (remote extension unit) to allow remote control of the satellite receiver when the TV is not the same room. This can only be done when you connect the RF2 output to the UHF input of the amplifier. Note: only one satellite channel can be viewed at any time from the Satellite receiver.

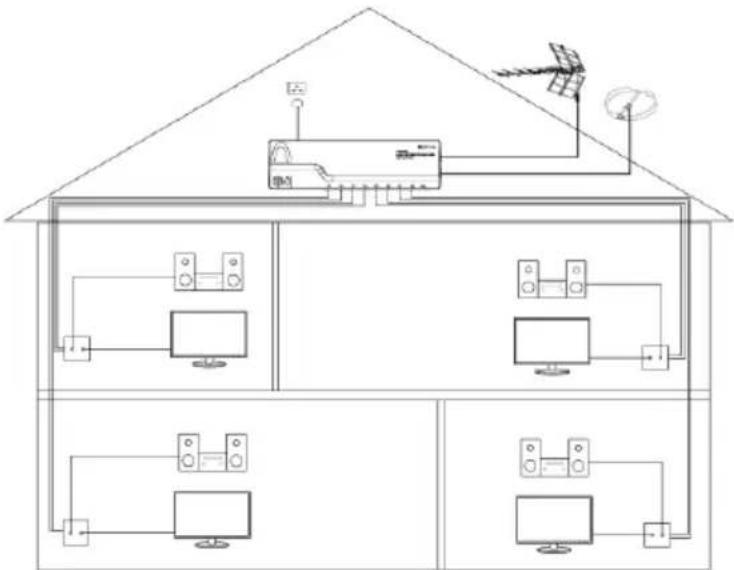

It is also suitable for upgrading or replacing existing UHF/VHF signal distribution units, simply reconnect the existing connector from the previous unit to the AMD amplifier. Ensure the UHF aerial is connected to the UHF input of the amplifier and FM/DAB aerials are connected to the VHF input of the amplifier. For loft distribution installation please ensure the unit is kept away from moisture and water.

Safety warnings:

• Do not use this appliance if it is damaged in any way.
• Do not attempt to repair this appliance or take apart under any circumstances, as this will invalidate your warranty.
  • Do not use this appliance for anything other than its intended purpose, and do not use outdoors.
• Use only a damp cloth to clean the surface of the appliance and never attempt to clean while it is on or still hot.
• Please ensure you have read these instructions thoroughly before first use and keep them for future reference.

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.
