Product Type	5x7 Coaxial Car Speaker
Brand	Focal
Model	ACX 570
Speaker Size	5 x 7 inches (130 x 180 mm)
Power Handling (RMS)	60 Watts
Power Handling (Peak)	120 Watts
Impedance	4 ohms
Sensitivity	91 dB/W/m
Frequency Response	60 Hz - 20 kHz
Mounting Depth	2.5 inches (65 mm)
Woofer Cone Material	Polyglass
Tweeter Type	Mylar dome
Magnet Material	Ferrite

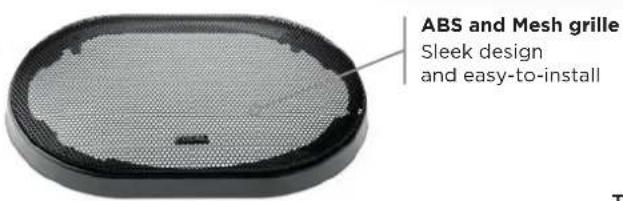

Grille Included	Yes
Installation	Standard 5x7 cutout required
Recommended Amplifier Power	30-90 Watts RMS per channel
Cleaning	Wipe with a dry soft cloth
Safety	Ensure proper polarity and secure mounting
Spare Parts	Contact Focal authorized dealers

Frequently Asked Questions - ACX 570 FOCAL

What are the dimensions of the Focal ACX 570 speaker?

The speaker is 5x7 inches (130x180 mm) with a mounting depth of 2.5 inches (65 mm). Confirm fitment with your vehicle's speaker opening.

What is the power handling of the ACX 570?

RMS power handling is 60 Watts, peak power is 120 Watts. It is recommended to use an amplifier delivering 30-90 Watts RMS per channel.

What is the impedance of the Focal ACX 570?

The speaker has a nominal impedance of 4 ohms, compatible with most car stereo systems and amplifiers.

Does the ACX 570 come with a grille?

Yes, a matching grille is included with the speaker for protection and aesthetics.

What is the frequency response of the ACX 570?

The frequency response ranges from 60 Hz to 20 kHz, providing balanced sound across lows, mids, and highs.

How do I clean the Focal ACX 570 speakers?

Use a dry, soft cloth to gently wipe the speaker surface. Avoid using any liquids or harsh chemicals.

Can I use the ACX 570 without an external amplifier?

Yes, they can work with a head unit's built-in amplifier, but an external amplifier is recommended for optimal performance.

What type of tweeter does the ACX 570 use?

It features a mylar dome tweeter for clear and detailed high-frequency reproduction.

Is the Focal ACX 570 compatible with my vehicle?

Compatibility depends on the factory speaker size and mounting depth. Measure your vehicle's speaker opening (5x7) and clearance before purchase.

Where can I find spare parts for the ACX 570?

Contact an authorized Focal dealer or visit the official Focal website for spare parts and service.

USER MANUAL ACX 570 FOCAL

With a dimension of 5x7", the ACX 570 elliptical coaxial kit will satisfy anyone who wants to improve the audio system of his vehicle. For nearly 20 years this product line has benefited from many upgrades and has built its reputation around its reliability and its acoustic qualities which are unique to Focal and offered at a very attractive price. Combined with electronics or directly connected to the vehicle's original amplifier, this kit will considerably improve the audio experience in any type of cabin.

Key points

• Developed in France by Focal
- Easy to amplify loudspeakers
- Black lacquered finish on the tweeter
• Exclusive Focal technologies
- Can be surface mounted or fully integrated

Type 2-way elliptic coaxial kit

Woofer	130x180mm
Depth	59.50mm
Cone	Polypropylene
Maximum power	120W
Nominal power	60W RMS
Sensitivity (2.83V/1m)	91.6dB
Frequency response	60Hz - 21kHz
Impedance	4 Ω
Voice-coil diameter	25mm
Magnet	Ferrite
Suspension	Butyl
Tweeter	Inverted dome tweeter
Crossover	Integrated

AUDITOR

ACX 570

Technical Sheet

5x7" Woofer

Close-up of a black speaker with exposed copper and white foam base (no text or symbols visible)

SPECIFICATIONS

Nominal power 60W

Maximum power 120W

Sensitivity 91.6dB

Nom. impedance 4 Ω

Frequency response 60Hz-21kHz

Cone Polypropylene

Surround Butyl

VC diameter 25mm 1"

Net weight 1000g

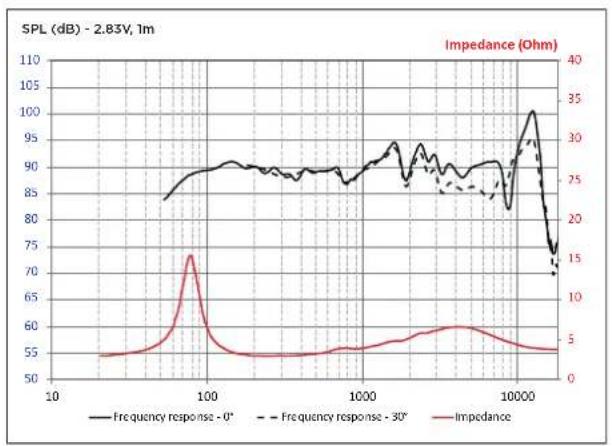

FREQUENCY RESPONSE/IMPEDANCE

PARAMETERS

Rdc 2.8 Ω

Fs 80Hz

Mms 16g

Cms 0.25 mm/N

Vas 91

Qts 0.83

Qes 1

Qms 5

Bxl 4.8N/A

Sd 150cm

MECHANICAL DRAWING

Technical line drawing of a speaker component with dimension label 128 (no text or symbols beyond the number)
