ACX 165 S - Car Speaker FOCAL - Free user manual and instructions

Product Type	Car Speaker
Brand	Focal
Model	ACX 165 S
Speaker Type	2-Way Coaxial (6.5 inch)
Woofer Cone Material	Polyglass
Tweeter Type	1-inch Aluminum/Magnesium Inverted Dome
Power Handling (RMS)	80 Watts
Power Handling (Peak)	160 Watts
Sensitivity	92 dB
Impedance	4 Ohms
Frequency Response	60 Hz - 20 kHz
Mounting Depth	65 mm (2.56 inches)
Mounting Diameter	165 mm (6.5 inches)
Weight (each)	1.5 kg (3.3 lbs)
Dust Cap	Fixed
Grille Included	Yes
Recommended Amplifier Power	40-120 W RMS per channel
Installation	Mount in standard 6.5 inch opening using included hardware
Cleaning	Wipe with a dry, soft cloth. Do not use liquids.
Safety	Ensure proper polarity and secure mounting. Disconnect battery during installation.
Spare Parts Availability	Contact Focal authorized dealers for replacement grilles and hardware

Frequently Asked Questions - ACX 165 S FOCAL

What is the power handling of the Focal ACX 165 S?

The Focal ACX 165 S handles 80 watts RMS and 160 watts peak. It is recommended to use an amplifier delivering 40-120 watts RMS per channel.

What is the impedance of this speaker?

The impedance is 4 ohms, which is standard for most car audio systems.

Is the Focal ACX 165 S a coaxial or component speaker?

It is a 2-way coaxial speaker with a built-in tweeter, making it easy to install in factory locations.

What are the mounting dimensions?

The speaker fits a standard 6.5-inch (165 mm) cutout with a mounting depth of 65 mm (2.56 inches).

Does the ACX 165 S come with a grille?

Yes, it includes a protective grille for installation in exposed locations.

What is the frequency response?

The frequency response is 60 Hz to 20 kHz, providing a balanced sound with decent bass and clear highs.

Can I install the ACX 165 S in my car?

It fits most vehicles with 6.5-inch speaker openings. Ensure the mounting depth is sufficient and use the included adapters if needed.

How do I clean the speakers?

Wipe the speaker cone and grille with a dry, soft cloth. Do not use water or cleaning solvents.

Are spare parts available?

Yes, spare parts such as grilles and mounting hardware can be ordered from authorized Focal dealers.

Is a subwoofer needed with these speakers?

While the ACX 165 S provides decent bass for a coaxial, adding a subwoofer will significantly enhance low-frequency performance for a fuller sound.

USER MANUAL ACX 165 S FOCAL

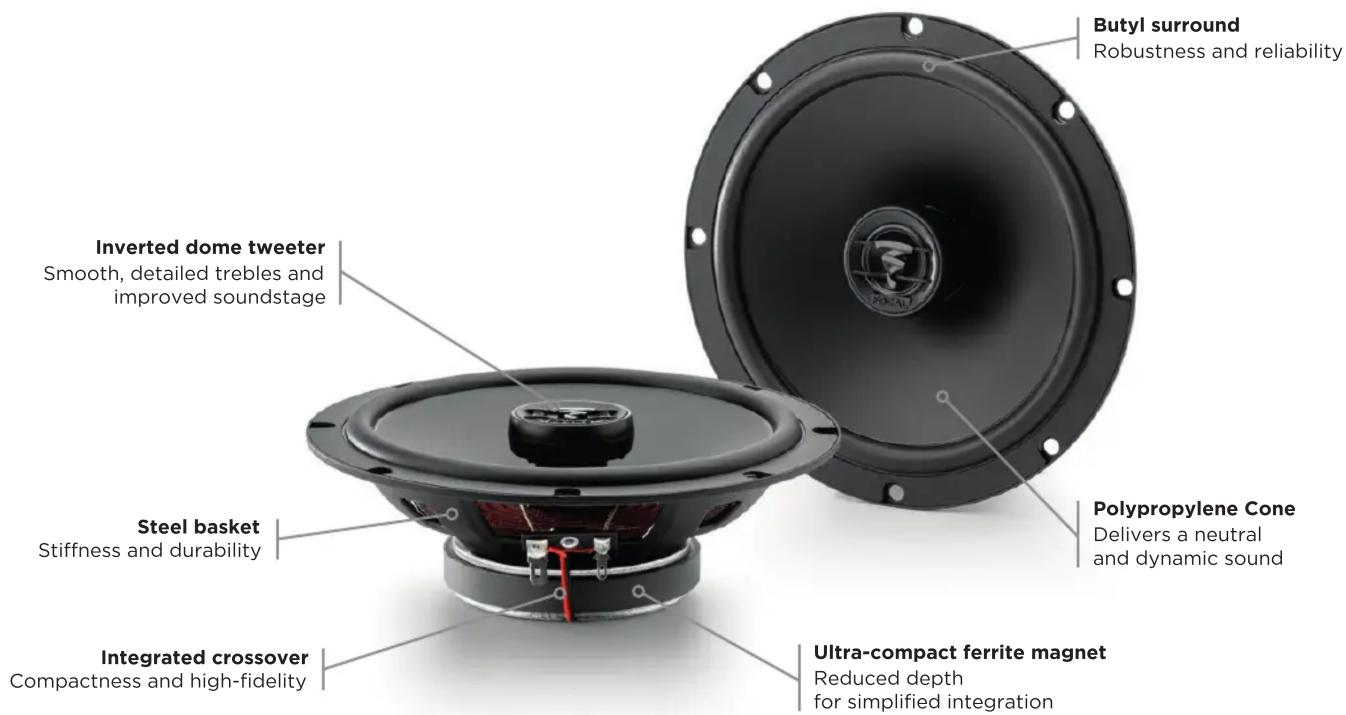

With a mounting depth of only 4.8cm, the ACX 165 S 2-way coaxial kit is dedicated to invisible installations in vehicles with little available depth in the doors. For nearly 20 years this product line has benefited from many upgrades and has built its reputation around its reliability and its acoustic qualities which are unique to Focal and offered at a very attractive price. Combined with electronics or directly connected to the vehicle's original amplifier, this kit will considerably improve the audio experience in any type of cabin.

Key points

• Developed in France by Focal
- Ultra-shallow design
- Easy to amplify loudspeakers
- Black lacquered finish on the tweeter
• Exclusive Focal technologies
- Can be surface mounted or fully integrated

Type 2-way shallow coaxial kit

Woofer	165mm
Depth	48.5mm
Cone	Polypropylene
Maximum power	110W
Nominal power	55W RMS
Sensitivity (2.83V/1m)	91dB
Frequency response	60Hz - 21kHz
Impedance	4 Ω
Voice-coil diameter	25mm
Magnet	Ferrite
Suspension	Butyl
Tweeter	Inverted dome tweeter
Crossover	Integrated
