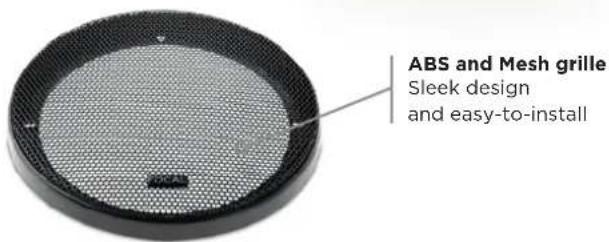

| Product Type | Car Speaker |
| Brand | Focal |
| Model | ACX 100 |
| Speaker Type | Coaxial two-way |
| Diameter | 100 mm (4") |
| Peak Power | 120 W |
| RMS Power | 40 W |
| Impedance | 4 ohms |
| Sensitivity | 90 dB (2.83V/1m) |
| Frequency Response | 60 Hz - 20 kHz |
| Cone Material | Polyglass |
| Tweeter | 25 mm aluminum inverted dome |
| Mounting Depth | 45 mm |
| Mounting Cutout | 85 mm |
| Weight | 0.5 kg |
| Recommended Amplifier Power | 20-60 W RMS |
| Installation | In-door car speaker |
| Protection | Rubber surround |
| Magnet | Ferrite |
| Voice Coil | 25 mm |
| Parts Included | Speaker, grille, mounting hardware, user manual |
| Maintenance | Clean with dry cloth; avoid liquids. |
| Safety | Ensure proper polarity and secure mounting. |
Frequently Asked Questions - ACX 100 FOCAL
User questions about ACX 100 FOCAL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car Speaker in PDF format for free! Find your manual ACX 100 - FOCAL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ACX 100 by FOCAL.
USER MANUAL ACX 100 FOCAL
With a dimension of 100mm, the ACX 100 coaxial kit will satisfy anyone who wants to improve the audio system of his vehicle. For nearly 20 years this product line has benefited from many upgrades and has built its reputation around its reliability and its acoustic qualities which are unique to Focal and offered at a very attractive price. Combined with electronics or directly connected to the vehicle's original amplifier, this kit will considerably improve the audio experience in any type of cabin.

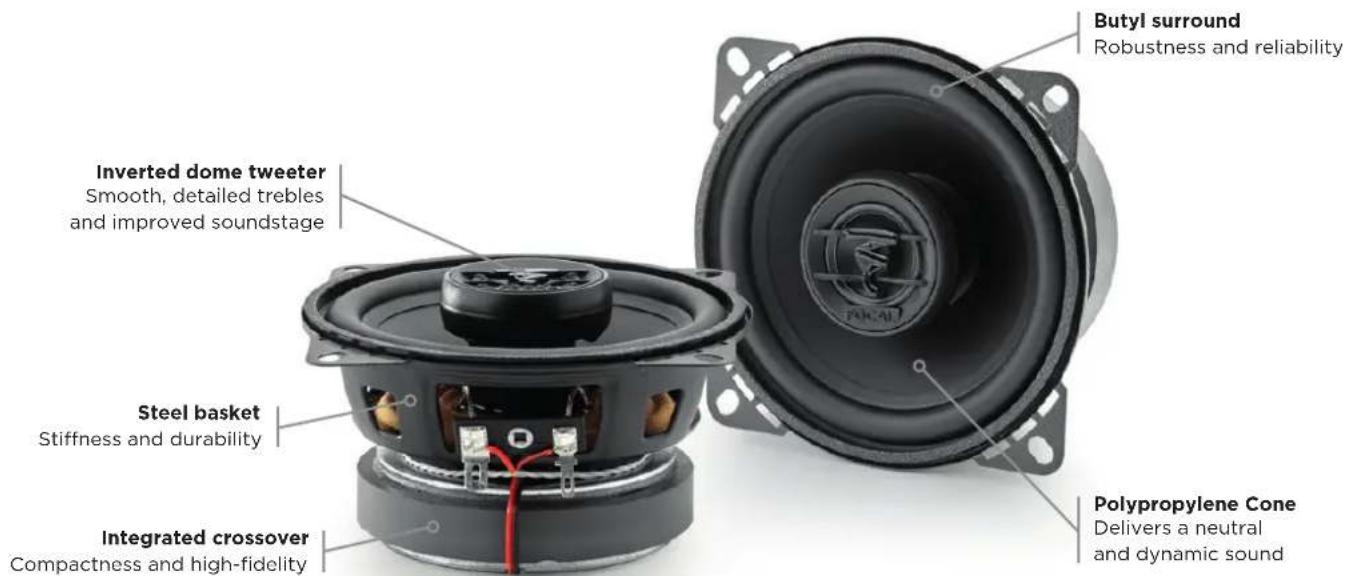

Key points
• Developed in France by Focal
- Easy to amplify loudspeakers
- Black lacquered finish on the tweeter
• Exclusive Focal technologies
- Can be surface mounted or fully integrated
Type 2-way coaxial kit
| Woofer | 100mm |
| Depth | 48.2mm |
| Cone | Polypropylene |
| Maximum power | 60W |
| Nominal power | 30W RMS |
| Sensitivity (2.83V/1m) | 88dB |
| Frequency response | 80Hz - 21kHz |
| Impedance | 4 Ω |
| Voice-coil diameter | 25mm |
| Magnet | Ferrite |
| Suspension | Butyl |
| Tweeter | Inverted dome tweeter |
| Crossover | Integrated |
AUDITOR
ACX 100
Technical Sheet
4" Woofer
line
| Frequency Response | Impedance (Ohm) | | ------------------ | --------------- | | 0° | 55 | | 30° | 35 | | 100 | 98 | | 1000 | 85 | | 10000 | 95 |MECHANICAL DRAWING
SPECIFICATIONS
| Nominal power 30W |
| Maximum power 60W |
| Sensitivity 88dB |
| Nom. impedance 4 Ω |
| Frequency response 80Hz-21kHz |
| Cone Polypropylene |
| Surround Butyl |
| VC diameter 25mm 1" |
| Net weight 450g |
PARAMETERS
| Rdc 3.3 Ω | |
| Fs 95Hz | |
| Mms 6.2g | |
| Cms 0.5mm/N | |
| Vas | 2 l |
| Qts | 0.7 |
| Qes 0.75 | |
| Qms 7.5 | |
| Bxl | 3.8N/A |
| Sd | 50cm |
