Product Type	Centrifugal Juicer
Brand	T-FAL
Model	ZE3708MX
Dimensions (H x W x D)	30 cm x 20 cm x 25 cm
Weight	3 kg
Power Consumption	700 W
Voltage	220-240 V
Frequency	50/60 Hz
Power Cord Length	1.2 m
Juice Capacity	1.5 L
Pulp Container Capacity	1 L
Feed Chute Diameter	4.5 cm
Speed Settings	2 speeds (low/high)
Pulp Separation	Automatic
Material	Stainless steel filter, BPA-free plastic
Dishwasher Safe Parts	Yes (except motor base)
Overload Protection	Yes (auto shut-off)
Safety Lock	Yes (lid interlock)
Non-Slip Feet	Yes
Spare Parts Available	Filter, lid, pusher, juice jug, pulp container
Warranty	2 years

Frequently Asked Questions - ZE3708MX T-FAL

How do I clean the juicer?

Most removable parts are dishwasher safe. Rinse immediately after use and clean the filter with the provided brush.

Can I juice whole fruits?

The feed chute accommodates small fruits whole. For larger fruits, cut into pieces that fit the chute (max 4.5 cm).

What is the best speed for soft fruits?

Use low speed for soft fruits like berries and oranges, and high speed for hard fruits like apples and carrots.

How do I adjust the pulp amount?

The T-FAL ZE3708MX has a preset pulp control. Adjust by rotating the pulp selector knob for more or less pulp in your juice.

Is the motor base noisy?

The juicer operates at a typical noise level for centrifugal juicers, around 75-80 dB. Use on a flat surface to minimize vibration.

What fruits can I juice?

You can juice most fruits and vegetables, including apples, carrots, celery, oranges, and leafy greens. Remove pits and hard seeds.

Why does the juicer stop suddenly?

The juicer has overload protection. If it shuts off, unplug and let it cool down for 15 minutes. Check for jams and reduce quantity.

Can I buy replacement parts?

Yes, spare parts like the filter, lid, and jug are available through T-FAL customer service or authorized retailers.

How do I store the juicer?

Disassemble and clean all parts. Dry thoroughly and store in a cool, dry place. Keep the power cord wrapped around the base.

What is the warranty period?

The T-FAL ZE3708MX juicer comes with a 2-year warranty covering manufacturing defects. Register online to activate.

USER MANUAL ZE3708MX T-FAL

Line drawing of a small manual shaver with handle and control knob (no text or symbols)

Frutelia Plus

www.t-fal.com

Line drawing of a cylindrical container with an inset showing a cylindrical component being inserted (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols present)

Line drawing of a hand operating a water heater with directional arrows indicating rotation (no text or symbols)

Line drawing of a juiceizer with a glass of juice, no text or symbols present

SAFETY INSTRUCTIONS

• Children should be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used by children.
• Keep the appliance and its cord out of reach of children.
• Do not use the appliance if the rotating sieve or the protecting cover is damaged or has visible cracks.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in household only. It is not intended to be used in the following applications, and the guarantee will not apply for:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- The product will shut OFF automatically if it becomes too hot. It will turn ON again once the temperature has cooled down to room temperature (about 1 hour later).

In such case, it is suggested that the user unplugs the appliance and turns the speed selector to “0”

position. To restart, wait until the product has completely cooled down, plug in the product again and turn speed selector to 1 or 2.

EN

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

- Make sure you wash with warm soapy water using a sponge, all the attachments which have come into contact with food, immediately after use. The filter can be cleaned using the brush.

- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

- Improper use of the appliance and its accessories may damage the appliance and cause injury.

- The sieve have sharp blades, take care when handling and during cleaning.

- To avoid all accidents and damage the appliance, follow operating times and speed settings for accessories specified in the manual.

- This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

• Always check the sieve before use.
- Please read these instructions carefully before first use. The appliance is designed for domestic use only. The manufacturer shall not accept any liability and reserves the right to cancel the guarantee in the event of commercial or inappropriate use or failure to follow the instructions.
- If there is any evident damage to the sieve, contact an Approved Service Centre. The sieve has sharp edges: handle it with care.
- Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.
- Do not place or use this appliance on a hotplate or close to an open flame (gas cooker).
- Do not immerse the motor unit or put it under running water.
- Use this appliance on a solid, stable worktop, away from water splashes. Do not turn it over.
- Any intervention other than normal cleaning and maintenance by the customer must be carried out by an approved service centre.
- Never unplug the appliance by pulling on the cord.
- Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.
- A domestic appliance must not be used:

-if it has fallen on the floor

-if it is damaged or incomplete.

- Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

- In such cases, or for any other repair, you must contact an Approved Service Centre.

- This product has been designed for domestic use only. The manufacturer accepts no responsibility, and the guarantee will not apply, for any commercial use, inappropriate use or failure to comply with the instructions.

- Only use original accessories and components. We cannot accept any responsibility if this is not the case.

- Never put your fingers or any other object in the feeding tube (B) while the appliance is in operation. Always use the pusher provided for this purpose.

- Never open the cover before the sieve has come to a complete stop.

• Do not remove the pulp container (G) while the appliance is in use.
  • Always unplug the appliance from the mains after use.
• Do not leave the power cord close to or in contact with sources of heat or sharp edges.

- Do not allow long hair, scarves, ties etc. to hang over the appliance or attachments when in use.

- Wait for all moving parts to stop before opening the appliance.

- Do not exceed the maximum quantities or operating periods indicated.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

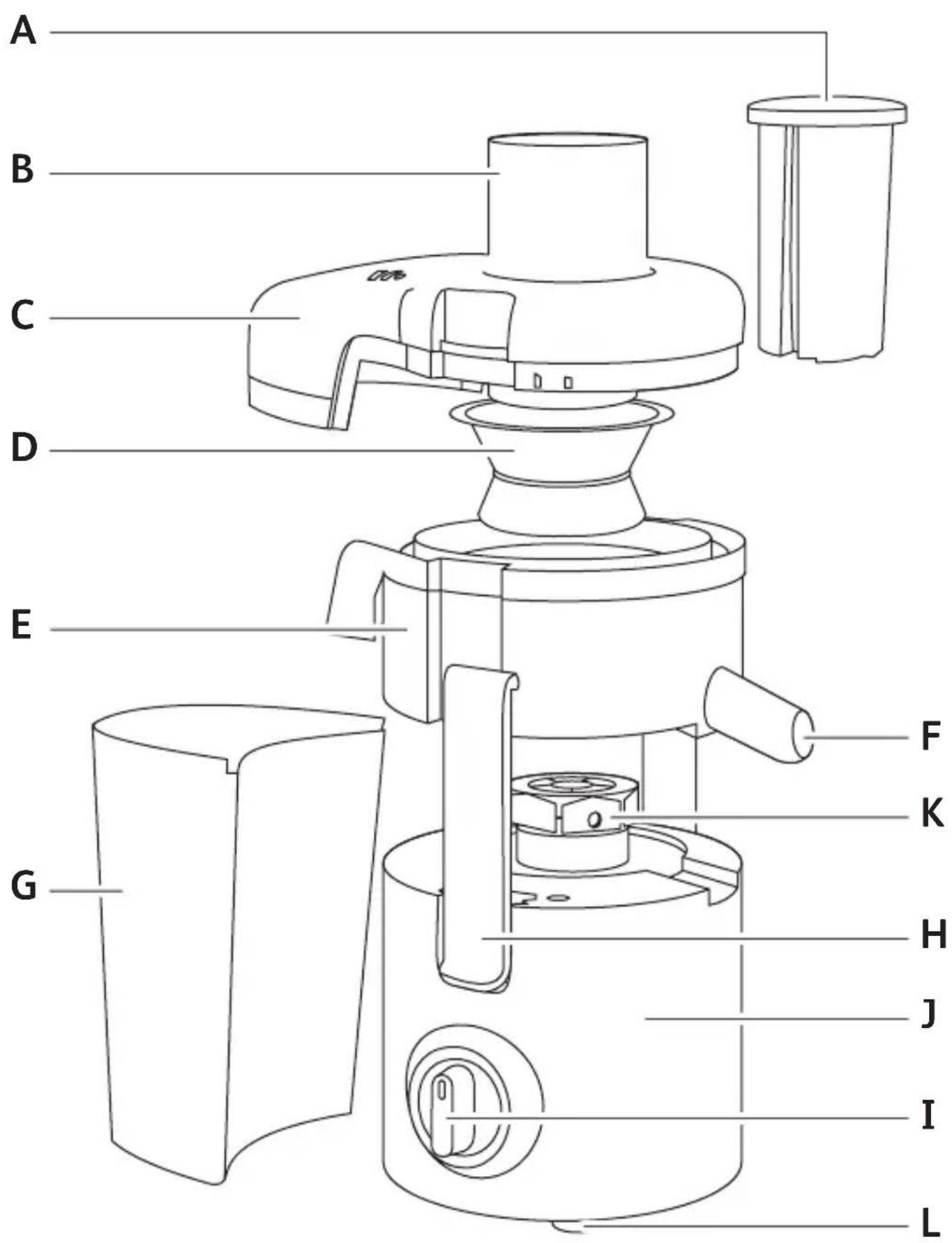

DESCRIPTION

A Pusher

B Feeding tube

C Cover

D Sieve

E Juice collector

F Pouring spout

G Pulp container

H Locking Handles

I Control button

J Motor unit

K Drive shaft

L Anti-slip feet

SAFETY SYSTEM

To start the juicer, the cover (C) must be fitted correctly (Fig. 2) and the clamps properly locked (Fig. 4).

At the end of a cycle, turn the control button to “0” and wait until the sieve (D) stops completely before removing the cover (C).

BEFORE FIRST USE

We recommend that you wash the removable parts (A, B, C, D, E, F, G) before the first use (see section “Cleaning and care”).

Unpack the appliance and then place it on a solid, stable worktop, remove the cover (C) and take out the protective card on the sieve (D).

USING THE APPLIANCE

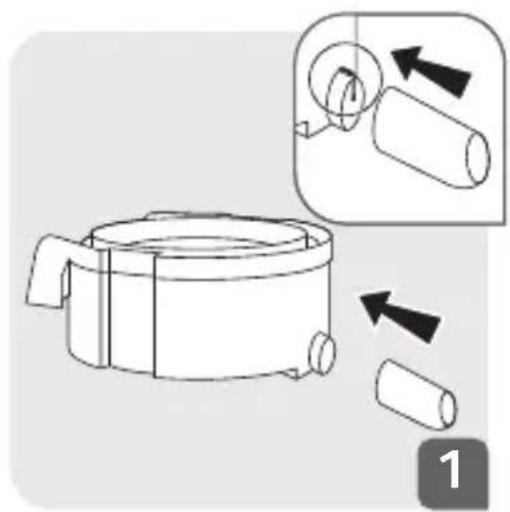

• Place the juice collector (E) on the body of the appliance (see Fig. 2).

• Place the sieve (D) in the juice collector (E). Ensure that the sieve is properly clipped onto the drive shaft (K) (see Fig. 2).

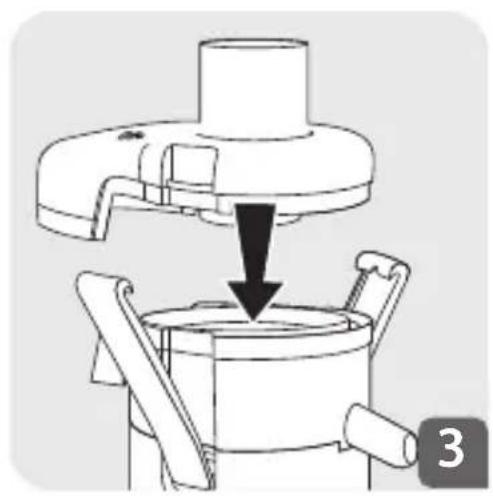

• Fit the cover (C) on the appliance in order to have the pulp evacuation exit to the rear (see Fig. 4).

• Lock the two handles (H) on the cover (C). You will hear an audible “click” (see Fig. 5).
• Slide the pusher (A) into the feeding tube (B) aligning the groove on the pusher with the small ridge in the feeding tube.
• Place a glass under the pouring spout (F) in front of the appliance (see Fig. 6).
• Plug in the appliance.
• To start the appliance, use the control button (I).
• Cut the fruits or vegetables into pieces if necessary after removing the stones.
• Insert the fruits or vegetables through the feeding tube (B).
• The fruits and vegetables must be inserted only while the motor is running.
• Do not press too hard on the pusher (A). Do not use any other utensil. NEVER push food with your fingers.
• When you have finished, stop the appliance by turning the control button (I) to 0 and wait until the sieve (D) stops completely.
• When the pulp container (G) is full, or the juice flow slows down, empty the pulp container (G) and clean the sieve (D) and the cover (C).

Ingredients Approximate weight (kg)	Quantity of juice (ml)
Apples 1 650
Pears 1 650
Carrots 1 550
Cucumbers 1 (about 2 cucumber) 600
Pineapple 1 500
Tomatoes 1 600
Celery 1 700

Do not use the appliance for more than 1 minute continuously.

(*) The quality and quantity of juice varies widely depending on the freshness of the fruit or vegetables and variety of each vegetable or fruit. The quantities of juice indicated above are therefore approximate.

PRACTICAL TIPS

• Wash the fruit carefully before stoning.
• You do not need to remove the skin or peel. You only need to peel fruit with thick (and bitter) skin: citrus fruit, pineapple (remove the centre core).
• It is difficult to extract juice from melon, bananas, avocados, blackberries, figs, aubergines and strawberries, etc.
• The juicer should not be used for sugarcane, ice cubes, and excessively hard or fibrous fruit.
• Choose fresh, ripe fruit and vegetables, they will yield more juice. This appliance is suitable for fruits such as apples, pears, oranges, pomegranates, pineapple, etc. and vegetables such as carrots, cucumbers, tomatoes, beetroot and celery, etc.

- If you use over-ripe fruit, the sieve (D) will tend to get clogged up more quickly. IMPORTANT:

All juice should be consumed immediately. On contact with air, it is very quickly oxidised, which can change its taste, colour and, above all, nutritional value. Apple and pear juices quickly turn brown. Add a few drops of lemon juice to slow this discolouration.

CLEANING AND CARE

• All removable parts may be cleaned in the dishwasher (A, B, C, D, F, G). Alternatively wash the parts in warm water and washing up liquid. Don’t use an abrasive sponge to do this. The appliance is easier to clean if rinsed with water immediately after use and then cleaned fully later. Do not use scouring pads, acetone, alcohol, etc. to clean your appliance.
• The sieve (D) must be handled with care. Avoid any mishandling that may damage it. Change your sieve at the first sign of wear or damage.
• Clean the motor unit with a damp cloth.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

Problems Causes Solutions
The appliance does not work.	The plug is not connected, the switch is not at “1” or “2”.	Connect the appliance to a socket with the correct voltage. Operate the appliance.
	The cover (C) is not properly clamped.	Check that the cover (C) is properly fitted and clamped.
	The appliance is overheated and protected	Turn the control button (I) to 0, unplug the appliance, let it cool down, and then start again.
The appliance is giving off a smell or is very hot to the touch or is smoking or making an abnormal noise.	The sieve (D) is not properly fitted.	Check that the sieve (D) is fitted properly.
	The quantity of food being processed is too great.	Leave the appliance to cool and reduce the quantity to be processed.
The juice does not flow correctly.	The juice collector (E) is not fitted properly.	Check that the juice collector (E) is fitted correctly.
	The sieve (D) is blocked.	Clean the sieve (D) and the cover (C). Then empty the pulp container (G)
If you have any other problem or query please contact the Helpline at the end of this leaflet.

END-OF-LIFE ELECTRIC OR ELECTRONIC PRODUCTS

Think of the environment!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

TEFAL/T-FAL \* INTERNATIONAL LIMITED GUARANTEE

: www.tefal.com

This product is repairable by TEFAL/T-FAL*, during and after the guarantee period.

Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the TEFAL/T-FAL internet site www.tefal.com

The Guarantee\*\*

TEFAL/T-FAL guarantees this product against any manufacturing defect in materials or workmanship during the guarantee period within those countries*** as stated in the attached country list, starting from the initial date of purchase or delivery date. The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At TEFAL/T-FAL's choice, a replacement product may be provided instead of repairing a defective product. TEFAL/T-FAL's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

TEFAL/T-FAL shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The product can be taken directly in person or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a TEFAL/T-FAL authorised service centre. Full address details for each country's authorised service centres are listed on TEFAL/T-FAL website (www.tefal.com) or by calling the appropriate consumer Service centre set out in the attached country list. In order to offer the best possible after-sales service and constantly improve customer satisfaction, TEFAL/T-FAL may send a satisfaction survey to all customers who have had their product repaired or exchanged in a TEFAL/T-FAL authorised service centre. This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow TEFAL/T-FAL instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
  -ingress of water, dust or insects into the product (excluding appliances with features specifically designed for insects)
  -scaling (any de-scaling must be carried out according to the instructions for use)
  -damage to any glass or porcelain ware in the product
  -damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
  -mechanical damages, overloading
  -damage as a result of lightning or power surges
  -accidents including fire, flood, etc
  -professional or commercial use

Consumer Statutory Rights

This international TEFAL/T-FAL guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

***Where a product purchased in a listed country and then used in another listed country, the international TEFAL/T-FAL guarantee duration is the one in the country of usage, even if the product was purchased in a listed country with different guarantee duration. The repair process may require a longer time if the product is not locally sold by TEFAL/T-FAL. If the product is not repairable in the new country, the international TEFAL/T-FAL guarantee is limited to a replacement by a similar or alternative product at similar cost, where possible.

*TEFAL household appliances appear under the T-FAL brand in some territories like America and Japan. TEFAL/T-FAL are registered trademarks of Groupe SEB.

Please keep this document for your reference should you wish to make a claim under the guarantee.

\*\*For Australia only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

\*\*For India only:

Your Tefal product is guaranteed for 2 years. The guarantee covers exclusively the repair of a defective product, but at TEFAL's choice, a replacement product may be provided instead of repairing a defective product. It is mandatory that the consumer, to have his product repaired, has to log a service request on the dedicated Smartphone application TEFAL SERVICE APP or by calling TEFAL Consumer Care Center at 1860-200-1232, Opening hours Mon-Sat 09 AM to 06 PM. Products returned by Post will not be covered by the guarantee. As a proof of purchase consumer needs to provide both this stamped guarantee card and cash memo.
