Product Type	Range Hood
Brand	Haier
Model	I-Link HADG9DS2XWIFI
Width	90 cm (35.4 inches)
Height	60-110 cm adjustable
Depth	50 cm (19.7 inches)
Net Weight	18 kg (39.7 lbs)
Power Supply	220-240 V, 50/60 Hz, 16 A
Motor Power	250 W
Lighting Power	2 x 1.5 W LED
Maximum Airflow	780 m³/h
Noise Level (max speed)	65 dB(A)
Number of Speeds	4 + Boost
Type of Control	Touch control with LED display
Wi-Fi Connectivity	Yes, via Haier I-Link app
Grease Filter Material	Aluminum, dishwasher safe
Charcoal Filter	Optional, replaceable
Ducting / Recirculation	Both possible
Height of Chimney	Adjustable 60-110 cm
Safety Features	Auto shut-off, thermal overload protection
Filter Cleaning Indicator	Yes
Remote Control	Via smartphone app
Mounting Type	Wall-mounted or island
Material	Stainless steel and tempered glass
Spare Parts Available	Grease filters, charcoal filter, LED bulbs, motor

Frequently Asked Questions - I-Link HADG9DS2XWIFI HAIER

How do I connect the range hood to Wi-Fi?

Download the Haier I-Link app, create an account, and follow the in-app instructions. Ensure the hood is powered on and your phone is on the same 2.4 GHz network. Press and hold the Wi-Fi button on the hood for 5 seconds until the indicator flashes, then proceed in the app.

Can I use the hood in recirculation mode without ducting?

Yes, but you must install a charcoal filter (sold separately). The hood comes with only aluminum grease filters for ducted mode. For recirculation, insert the charcoal filter before use.

How often should I clean the grease filters?

Clean the aluminum grease filters every 2–3 months, or more frequently with heavy use. They are dishwasher safe (low temperature cycle). The hood has a filter cleaning indicator that will alert you when needed.

What is the maximum noise level?

The maximum noise level is 65 dB(A) at the highest speed (Boost). Lower speeds are significantly quieter, typically around 45–55 dB(A).

How do I replace the LED bulbs?

The hood uses integrated LED modules. To replace, first disconnect power, then gently remove the lamp cover (if applicable) and unclip the LED module. Insert a compatible replacement (1.5 W, 220-240 V) and reassemble.

What are the dimensions of the cutout for installation?

For ducted installation, the cutout in the ceiling or wall should match the chimney width. The chimney is adjustable from 60 to 110 cm in height. For exact dimensions, refer to the manual's installation template.

Can I control the hood remotely?

Yes, via the Haier I-Link app you can turn the hood on/off, adjust speed, set timers, and monitor filter status from anywhere with Wi-Fi.

What is the power consumption?

The motor consumes 250 W maximum. LED lighting uses 3 W total. Standby power is less than 1 W. Typical usage is energy-efficient.

How do I reset the filter cleaning indicator?

After cleaning or replacing filters, press and hold the filter reset button (usually the speed control button) for 3 seconds until the indicator turns off. Refer to the manual for exact button location.

Is the hood suitable for island installation?

Yes, the HADG9DS2XWIFI can be installed as an island hood. An optional island mounting kit is required, which is not included. Ensure proper ceiling support for the weight (18 kg).

USER MANUAL I-Link HADG9DS2XWIFI HAIER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 03

SAFETY PRECAUTION 03

ELECTRICAL INSTALLATION 05

SPECIFICATION 06

INSTALLATION (VENT OUTSIDE) 07

INSTALLATION (VENT INSIDE) 16

DESCRIPTION OF COMPONENTS 17

OPERATION 17

MAINTENANCE 20

TROBULESHOOTING 21

CONFORMITY WITH DIRECTIVES 22

ENVIRONMENTAL PROTECTION 22

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

SAFETY PRECAUTION

☐ Never let the children operate the machine.
☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition.
☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
☐ Forbid the direct baking from the gas cooker. Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
☐ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
☐ Regulations concerning the discharge of air have to be fulfilled.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not flambé under the range hood.
• he range hood is not intended to be installed over a hob having more than four hob elements
• These shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);
• the details concerning the method and frequency of cleaning.
• there is a fire risk if cleaning is not carried out in accordance with the instructions;
• do not flame under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

☐ Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

☐ Failure to follow these instructions can result in death, fire, or electrical shock.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

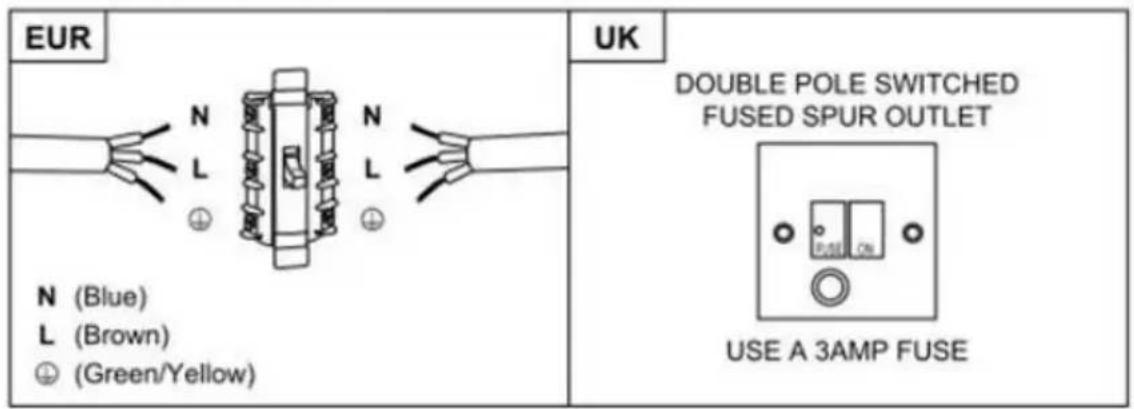

WARNING: This is a Class I appliance and MUST be earthed. This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Hood body 1
Lower chimney (500mm)		1
Upper chimney (500mm)		1
Upper chimney bracket		1
Lower chimney bracket		1
Cooker hood bracket		1
φ8 rawl plugs φ8×φ6 white color		9
Screw (ST4 * 30 mm)		9
Screw (ST4 * 8 mm)		6
Air outlet		1
Carbon filter		2

INSTALLATION (wall mounting)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe non flammabe with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

INSTALLING THE HOOD

Position the hood at the desired height respecting the minimum height above the hob.

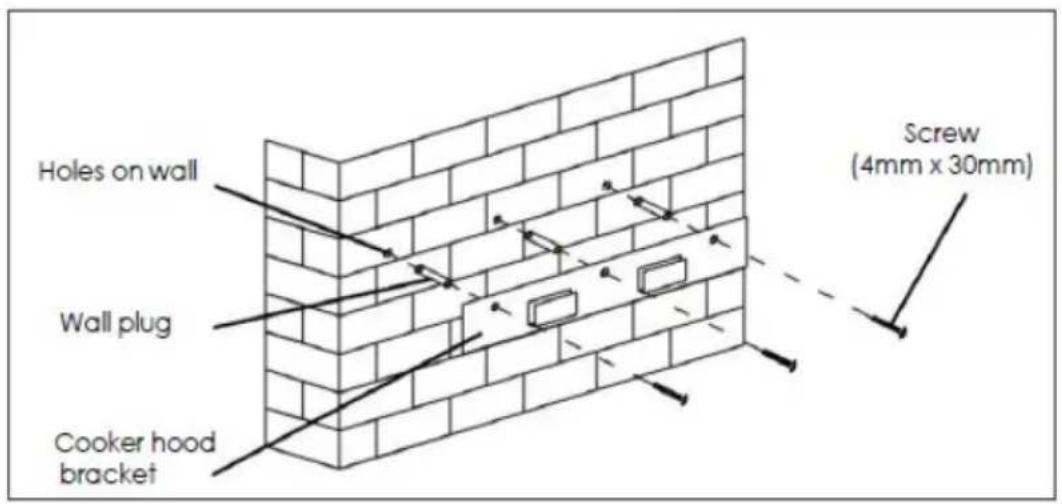

Mark the location of the wall bracket.(Placed the holes between 700 and 800 mm above the worktop) Remove the hood and position the wall bracket to mark the locations of the holes on the wall.

Drill the 3 holes in the wall to insert the appropriate fastening system (screw ST4x30mm)..

Hang the hood in the notches of the wall bracket.

INSTALLING THE HOOD

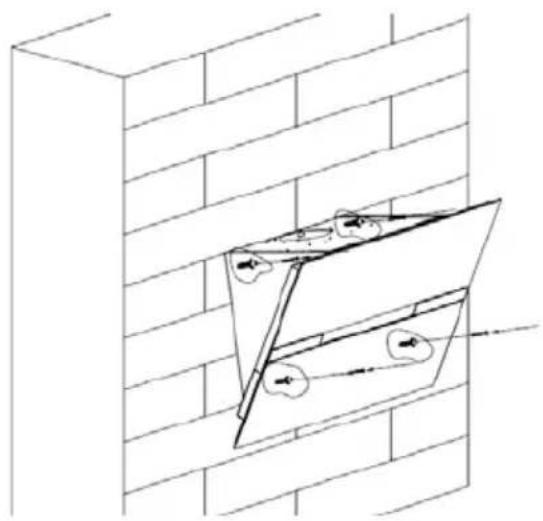

Once the hood is in place, locate the location of the 4 additional wall mount screws as shown in the following diagram.

Remove the hood to puncture the wall and install wall plugs.

Secure the body of the hood with 4 screws of 4 mm in diameter using dowels adapted to your wall.

If the extraction mode is selected, place the exhaust air duct on the air outlet as shown.

INSTALLING THE HOOD

Attach the lower chimney support to the lower chimney as shown.

Use 2 screws ST4x8mm.

(Do not over tighten the screws, make sure the upper chimney can slide easily into the lower chimney)

Insert the upper chimney into the lower chimney.

Position the bottom chimney in the appliance, then mark the holes on the wall.

Remove the lower chimney, then drill holes in the wall: hole for screw diameter 8 mm

Use the dowels adapted to your wall

INSTALLING THE HOOD

Install the lower chimney, then screw it to the wall with 2 screws of diameter 8 mm

Then pull the upper chimney upwards to the desired height. Mark the locations of the mounting holes of the upper chimney support.

Lower the upper chimney and then drill holes in the wall.

Insert the dowels adapted to your wall

INSTALLING THE HOOD

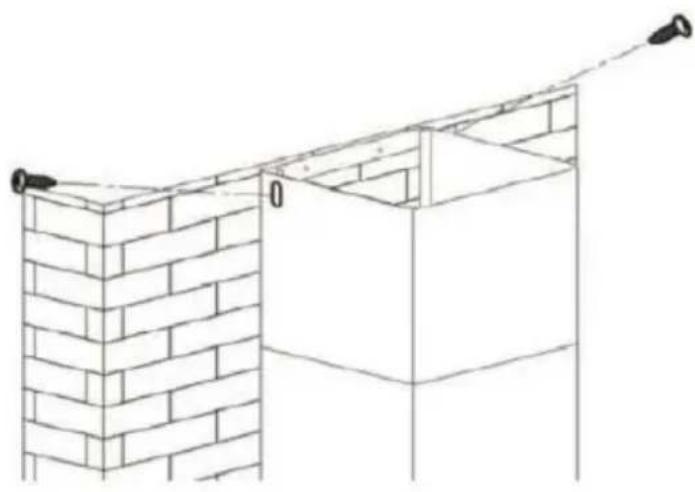

Secure the wall bracket of the upper chimney to the wall using the selected dowels (8 mm screws recommended).

Reassemble the upper chimney and fix it to the wall bracket with 2 screws ST4x8mm

Fasten the lower chimney to the lugs of the kitchen hood using 2 screws ST4x8mm.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Air Deflector		1
Bracket		1
φ8 rawl plugs φ8×φ6 white color		2
Screws ST4.0×30		2
Screws ST3.5×12		2

INSTALLATION(AIR DEFLECTOR FOR T-SHAPE,CURVED GLASS,FLAT GLASS MODELS):

Air deflector is mentioned as included and not optional.

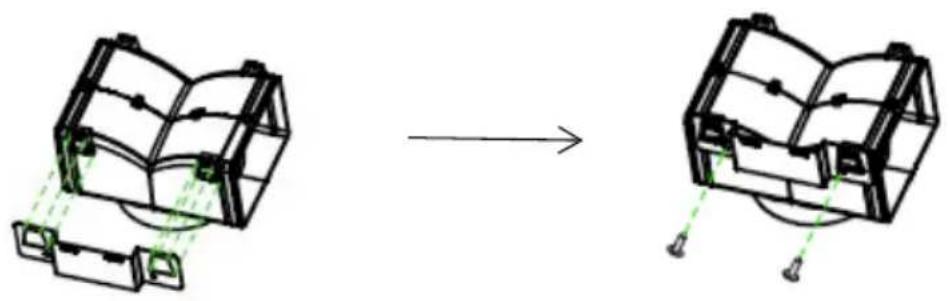

1. Fix the bracket to the T-shaped plastic outlet with 2pcs ST3.5x12mm screws provided as shown below:

1. Drill 2 holes on the wall to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2pcs ST4x30mm screws provided.

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

1. Install the chimney to the unit and fix it.

o “Please kindly be noted: T-shaped plastic outlet and v-flaps can not be used at the same time. You can use them in two ways: 1) Add v-flap on existing outlet; 2) Use T-shaped plastic outlet, no add v-flap.”

o “Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product.”

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lowered

DESCRIPTION OF COMPONENTS

CONFIGURATION 1

1 2 3 B B ⁺ 🔊

OPERATION

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

B Boost 1(speed 4)

Press speed b button 1 , the backlit of speed B button is on, and the cooker hood is working at boost mode ;

B⁺ Boost 2(speed 5)

Press speed b button 2, the backlit of speed B+ button is on, and the cooker hood is working at boost mode;

Light

Short press for lighting on & off

Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5 minutes count down, aft er 5 minutes motor & light will turn off automatic with three Buzzer sound.

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

CONFIGURATION 2

1

2

3

B

#

#

STANDBY MODE.

After plug in, all lighting, system in STANDBY MODE.

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

B Booster function

This hood has a booster function. To activate the booster, Press B to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

Light

Short press for lighting on & off

Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

Download hOn App

First of all, you should download hOn APP and install to your portable device. Then enroll your hood.

NOTE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

The image of the hood has the only purpose of presenting it. May not be perfectly representative.

1- Press the WiFi button until the icon starts blinking When the pairing is completed the WiFi icon will be on.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Technology Wi-Fi
Standard 802.11 b/g/n
Frequency Band(s)[MHz]	2400 MHz - 2483.5 MHz
Maximum Power[mW]	100 mW

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2 W
How to activate wireless network port:	If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:	If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn’t been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused).

It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- the WEEE should not be treated as domestic waste; - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

INSTRUKCJA MONTAŻU I OBSŁUGI

SPIS TREŚCI

WSTEP 03

ŚRODKI OSTROŻNOŚCI 03

MONTAŻ OKAPU

MONTAŻ OKAPU

MONTAŻ OKAPU

ZAMKNIJ

UWAGA;

UWAGA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REJESTRACJA OKAPU HAIER

NOTA:

The image contains a graphical symbol of a light bulb, not text. There is no OCR-able content to extract.

FUNCIONAMIENTO

NOTA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRO DE LA CAMPANA
