D30-15FA3 - Water heater MIDEA - Free user manual and instructions
Find the device manual for free D30-15FA3 MIDEA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Electric Water Heater |
| Brand | Midea |
| Model | D30-15FA3 |
| Capacity | 30 Liters |
| Power | 1500 W |
| Power Supply | 220-240 V, 50 Hz |
| Dimensions (W x D x H) | 360 x 360 x 520 mm |
| Weight | 18 kg |
| Temperature Range | 30 °C to 75 °C |
| Heating Element | Immersion heating element |
| Thermostat | Adjustable with cut-off |
| Safety Features | Temperature and pressure relief valve, thermal cut-out, overheat protection |
| Pressure Rating | 8 bar |
| Energy Class | C |
| Internal Coating | Ceramic-enameled steel |
| Anode | Sacrificial magnesium anode |
| Installation | Wall-mounted, vertical |
| Water Connection | G 1/2" inlet and outlet |
| Maintenance | Drain every 6 months; check anode annually |
| Spare Parts Available | Heating element, thermostat, anode rod, safety valve |
Frequently Asked Questions - D30-15FA3 MIDEA
How do I set the water temperature on the Midea D30-15FA3?
Turn the thermostat dial on the front panel. A typical range is 30 °C to 75 °C. Wait for the heater to reach the set temperature.

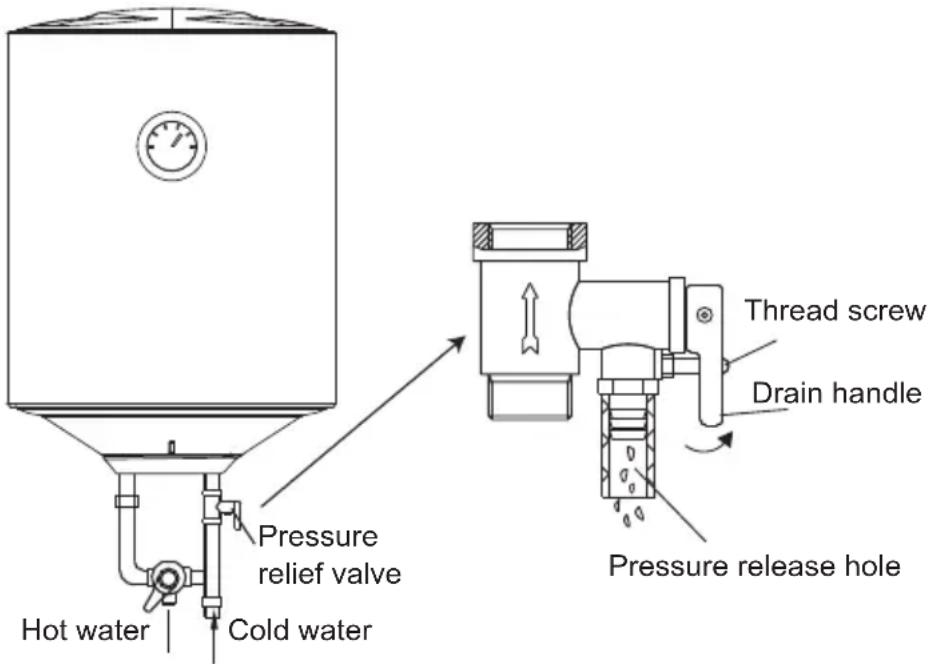

What does the pressure relief valve do?
It releases excess pressure to prevent explosion. If water drips from the valve, it may indicate high pressure; contact a technician.
How often should I drain the water heater?
Every 6 months to remove sediment and maintain efficiency. Follow the manual instructions for draining.
What should I do if there is no hot water?
Check power supply, thermostat setting, and the reset button on the thermal cut-out. If still no hot water, the heating element may need replacement.
Can I install the water heater myself?
It is recommended to hire a qualified plumber/electrician. The heater must be securely mounted and connected to the water and power supply as per local codes.
How do I replace the heating element?
Turn off power and water. Drain the tank. Remove the element cover, disconnect wires, unscrew the element, and install a new one. Ensure proper sealing.

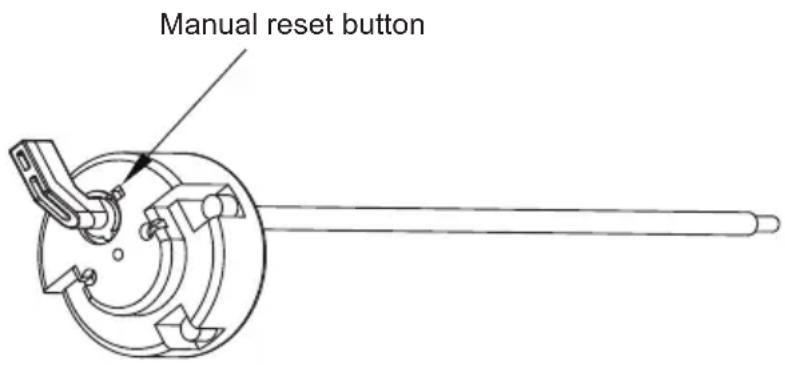

What does the thermal cut-out button do?
It shuts off power if the water temperature exceeds a safe limit. If tripped, press the button to reset; if it trips again, call a professional.
Is the Midea D30-15FA3 energy efficient?
It has energy class C. To save energy, set the thermostat to 60 °C and insulate the hot water pipes.
How do I clean the interior of the water heater?
Drain the tank and flush with fresh water. For heavy scale, use a descaling solution. Do not use abrasive chemicals.
What spare parts are available for this model?
Common parts include the heating element, thermostat, magnesium anode rod, and pressure relief valve. Order from authorized Midea dealers.
