Product Type	Keyboard
Brand	Sven
Model	KB-G9400
Connection Type	Wired USB
Dimensions (approx.)	44 x 15 x 3 cm
Weight (approx.)	650 g
Cable Length	1.5 m
Key Layout	104-key standard
Compatibility	Windows, macOS, Linux
Power Supply	USB bus-powered
Main Functions	Standard typing, multimedia keys (if applicable)
Wrist Rest	Not included
Backlight	No
Material	Plastic
Cleaning Instructions	Wipe with a soft, dry cloth. Avoid liquids.
Safety Precautions	Do not expose to water or excessive heat.
Spare Parts Availability	Not available; non-repairable parts
Repairability	Not user-serviceable
Package Contents	Keyboard, user manual

Frequently Asked Questions - KB-G9400 Sven

How do I connect the Sven KB-G9400 keyboard?

Simply plug the USB cable into a free USB port on your computer. The keyboard should be automatically recognized and ready to use.

Is the KB-G9400 compatible with Mac?

Yes, the keyboard is compatible with Windows, macOS, and Linux. No additional drivers are needed.

How do I clean the keyboard?

Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution. Avoid using abrasive cleaners or soaking the keyboard.

What should I do if a key stops working?

First, check the USB connection and try a different port. If the issue persists, the keyboard may need to be replaced as individual keys are not user-repairable.

Does the keyboard have multimedia keys?

The KB-G9400 includes standard function keys. Some models may have multimedia shortcuts via the Fn key; refer to your user manual for specific functions.

Can I use the keyboard with a gaming console?

The keyboard may work with consoles that support USB keyboards, such as PS4 or Xbox One, but full functionality is not guaranteed.

Is the keyboard spill-resistant?

No, the keyboard is not spill-resistant. Avoid liquids near the keyboard to prevent damage.

How long is the USB cable?

The cable length is approximately 1.5 meters, providing flexibility for placement.

Does the keyboard require batteries?

No, the keyboard is powered directly via the USB connection. No batteries are needed.

Where can I download the user manual?

The user manual is available for free download on the official Sven website or via the product page at notice-facile.com.

USER MANUAL KB-G9400 Sven

Black desktop computer keyboard with standard keys and a mouse, no visible text or symbols on the keys themselves.

Рис. 4.

Рис. 5.

Рис. 6.

Рис. 7.

SVEN®

Игровая клавиатура

Рис. 8.

Рис. 9.

Рис. 10.

Рис. 11.

Рис. 14.

Рис. 15.

Мал. 1.

Мал. 4.

Мал. 5.

Мал. 6.

Мал. 7.

Мал. 8.

SVEN®

Ігрова клавіатура

Мал. 9.

Мал. 10.

Мал. 11.

Редагування макросу

Мал. 12.

Мал. 15.

Congratulations on the purchase of Sven keyboard!

Please read this User's Manual before using the unit and retain this User's Manual in safe place for future reference.

COPYRIGHT

© SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information of this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damages which have arisen from the information contained in the given Manual.

UNPACKING

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.

APPLICATION

KB-G9400 keyboard is an input device. It is designed to enter information into the computer, as well as controll the operation of the computer.

PACKAGE CONTENTS

• Keyboard – 1 pc
• Stand — 1 pc
• User Manual – 1 pc
• Warranty card – 1 pc

SPECIAL FEATURES

• Software for keys programming and backlighting management
• 12 media (FN) keys
• Keyboard brightness backlighting adjustment
• Durable braided cable

SYSTEM REQUIREMENTS

• OC Windows.
• Free USB port.

INSTALLATION

• Connect the keyboard to an available USB port of your PC.
  • Installation of keyboard is automatic after its connection to USB port of PC.

DESCRIPTION OF FUNCTIONAL KEY

Fn + F1 - Start media player

Fn + F2 - Volume down

Fn + F3 - Volume up

Fn + F4 - Mute/Unmute

Fn + F5 - Stop playing

Fn + F6 - Play previous track

Fn + F7 - Play/Pause

Fn + F8 - Play next track

Fn + F9 - Start e-mail app

Fn + F10 - Open homepage

Fn + F11 - Lock keyboard

Fn + F12 - Start calculator

Fn + WIN - Win key block

Fn + Page Up - Brightness up

Fn + Page Down - Brightness down

Note. Press the shortcut keys while holding the Fn key.

INSTALLATION OF THE SOFTWARE

Keyboard software is available on the ocial SVEN website. After downloading and installation, the software provides setting of backlight operation modes, assignment of function keys and macro programming.

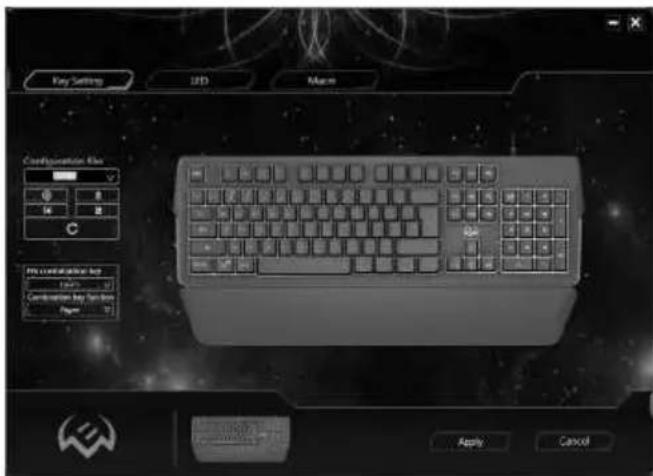

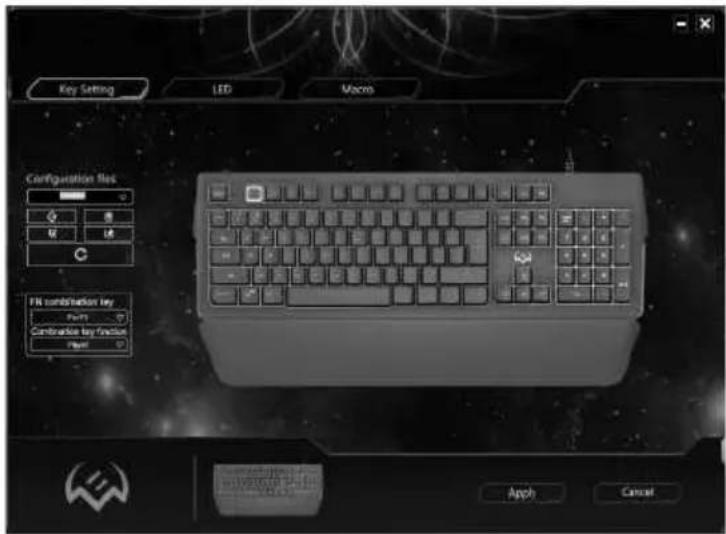

Key Setting

Fig. 1.

SVEN®

Gaming Keyboard

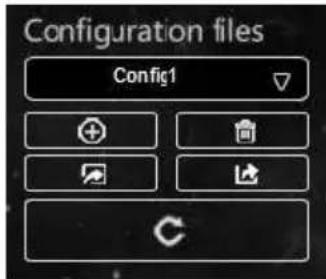

Configuration files

In window Configuration files you name the configuration file or select it from the list of previously saved files, save the edit file in the specified folder, extract the file from the folder and delete unnecessary files.

Fig. 2.

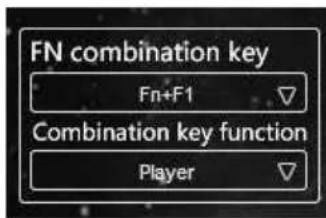

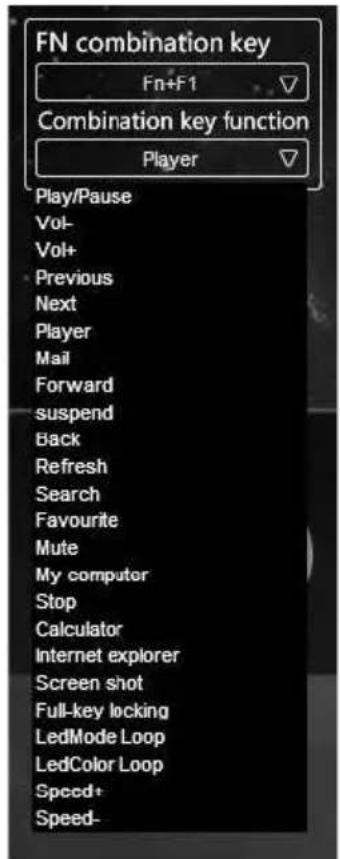

FN combination key

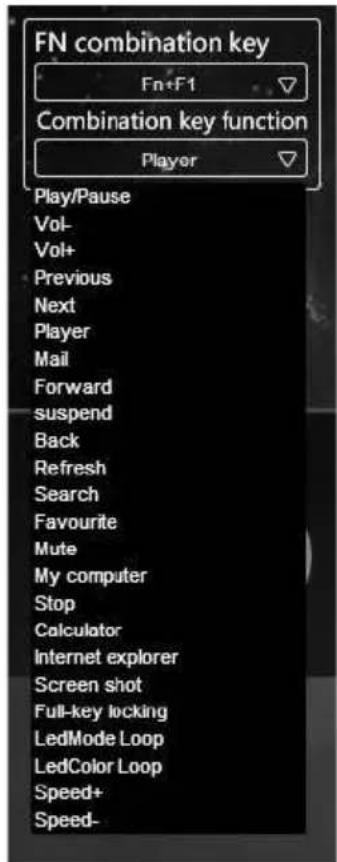

In window FN Combination key the keys F1-F12 are assigned a functional value from the number of functions presented in the list. Features allow you to control the media player, control the sound, keyboard, and open various system programs.

Fig. 3.

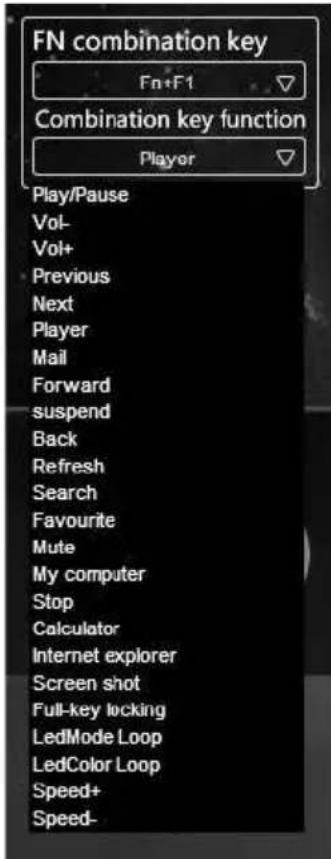

List of commands supported for programming function buttons.

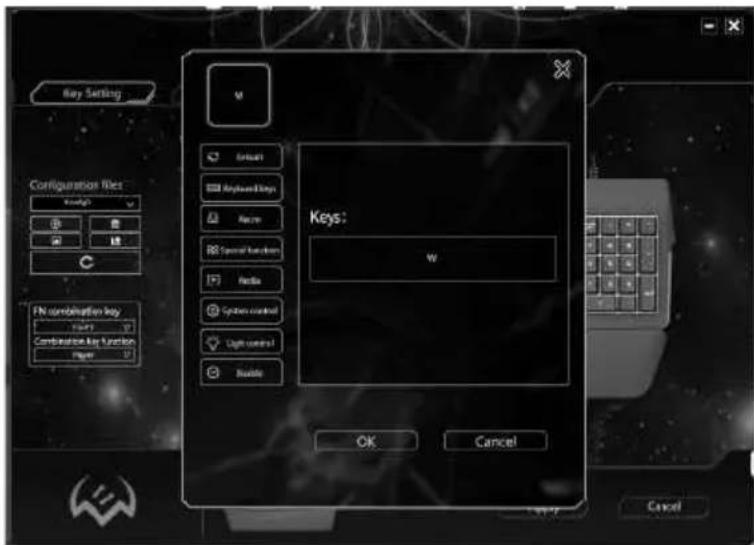

Assigning individual keys

The keypad can be used to assign functions and macros to individual keys.

Fig. 4.

Fig. 5.

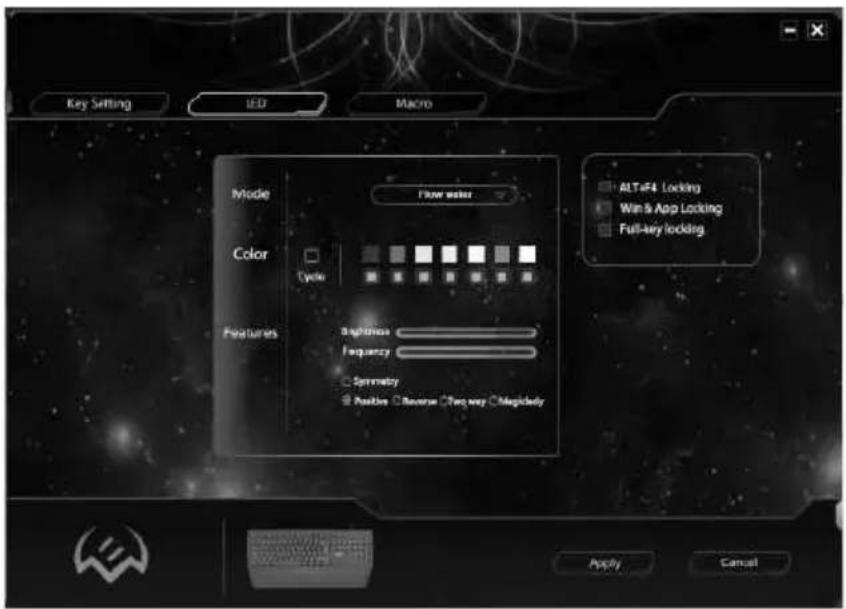

Working with the Advancing menu item

Fig. 6.

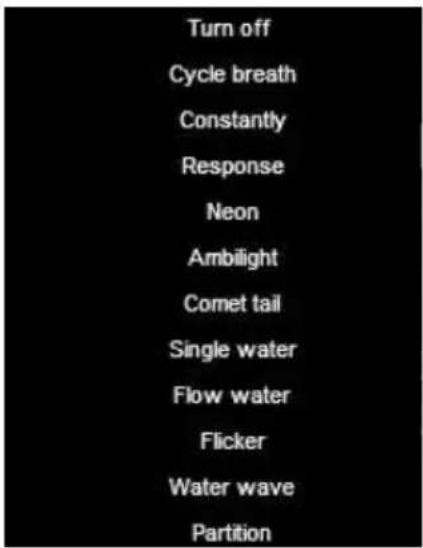

Advancing menu item adjusts the keyboard backlight and includes the following modes:

- In Turn off mode, the backlight is switched off. You can force the backlight on and off with the key ☐.

- In Cycle breath mode, the selected colors are switched on alternately. The number of display colors can be set by the user. The order of colors included does not change. The flicker frequency is set by the user by adjusting the Frequency.

- In Constantly mode, the keyboard is highlighted in one color, there is no flicker. The backlight brightness is set by the user by adjusting Brightness.

- In Response mode, the backlight turns on after you press the keyboard keys.

- The order of inclusion and the number of colors are determined by the user. The backlight duration and brightness are set by the Frequency and Brightness controls. It is possible to set different visual effects of the backlight and change its settings.

Fig. 7.

SVEN®

Gaming Keyboard

• In Neon mode the keyboard is illuminated alternately by all 7 colors. The flicker frequency is set by the user by adjusting the Frequency.
• In Ambilight mode, the vertical highlighting of 7 possible colors. The frequency of color change is set by the user by adjusting the Frequency. It is possible to customize visual effect.
• In Comet tail mode, a visual effect is displayed «comet's tail» with alternation of up to seven set backlight colors. The brightness and color frequency are set by the user in the settings.
• In Single water mode, the backlight is moved vertically with the specified color gradation, or one color. The duration and brightness of the effect are set by the Frequency and Brightness controls. It is possible to change their display settings for this effect.
• In Flow water mode, all keypad backlighting indicators are switched on alternately and then switched off horizontally with the specified color gradation, or one color. The duration and brightness of the effect are set by the Frequency and Brightness controls. It is possible to change their settings for this effect.
• In Flicker mode, there is an alternation with a given frequency of two backlight colors. The color of the pairs varies according to the color gradation scale specified in the settings of this mode.
• In Water wave mode, the effect of shadow movement is superimposed alternately on the background color of the backlight, according to the colors specified in the settings.
• In Partition mode, all keypad keys are highlighted in different colors, there are no lighting effects.

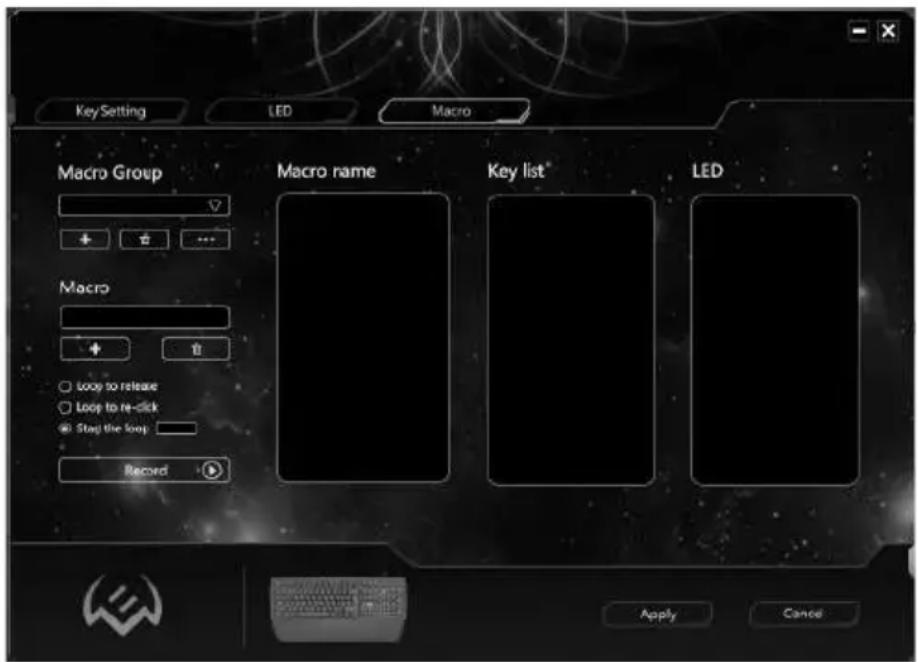

Working with the Macro menu item

This menu adjusts the macro.

Fig. 8.

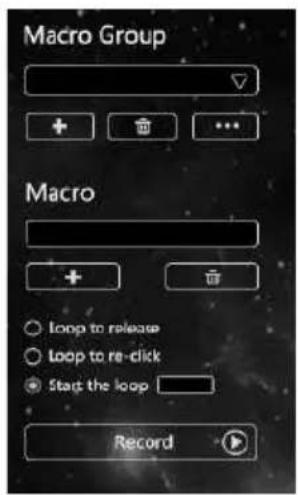

In Macro Group i Macro windows you can create or delete macros, macro group, and you can also select a previously created macro (macro group).

Cyclicity is set by the following settings:

• Loop to release – macro input is determined by the length of time the key is pressed;
• Loop to re-click – macro input is programmed with the key: first press – start typing, second press – end macro input;
• Start the loop – entering the macro is done by pressing a programmed key. The number of cycles (reps) can be specified by the user.

Fig. 9.

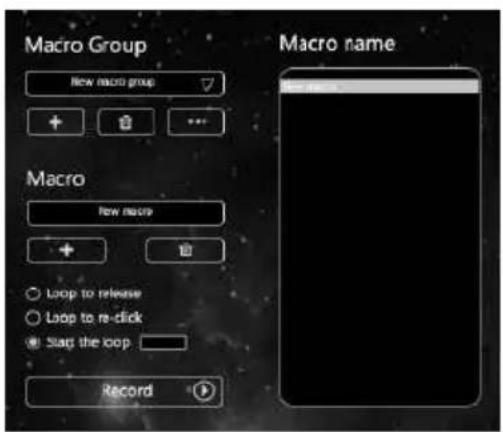

Creating new macro

To create new macro, you must press [+] key in the Macro window. The macro name is edited in the Macro name box.

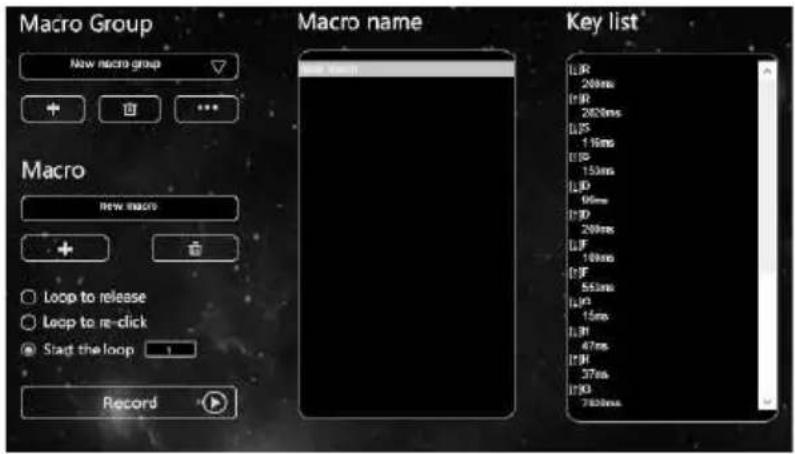

Macro recording

The macro is recorded by the Record command. There is an alternate sequence of keystrokes.

The macro is stopped by the Stop command.

Fig. 10.

Fig. 11.

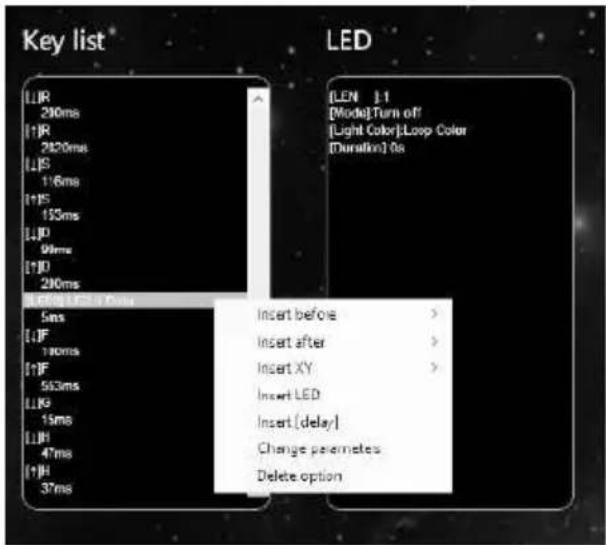

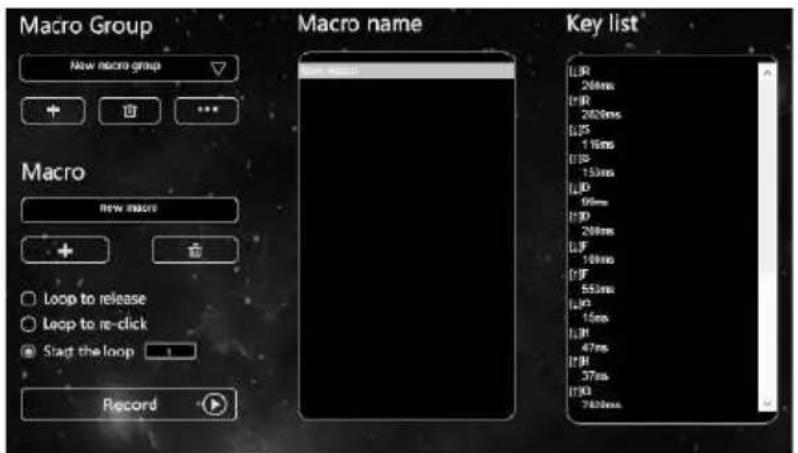

Macro editing

To edit the macro, right-click on the settings window. Changing the keyboard backlight settings is provided in the LED window.

Fig. 12.

The settings are saved by the Apply command.

Fig. 13.

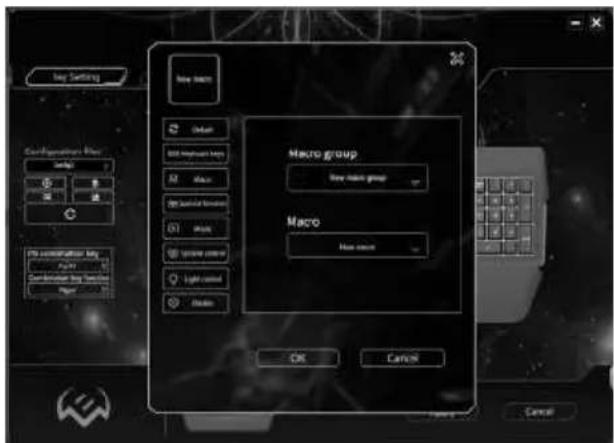

Purpose of the macro

Fig. 14.

At the point Key Setting macro key is defined from the number of special keys to handle macros. The settings window is called by rightclicking.

The desired macro is selected in the menu from the appropriate macro group. After the macro name is resolved, press button OK.

The settings are saved by the Apply command. Macro is ready.

Fig. 16.

Fig. 15.

TROUBLESHOOTING

Problem Solution
Keyboard is not working. 1.	Disconnect keyboard from PC and check connector pins for possible damage. If there is no external damage found and connector pins are OK, connect keyboard to PC again.2. We recommend to address the nearest authorized service center.

TECHNICAL SPECIFICATIONS

Parameter, measurement unit Value
Q-ty of keyboard keys, pcs 104
Q-ty of keyboard shortcut keys, pcs 12 (Fn)
Keyboard layout Eng/Rus/Ukr
OS compatibility Windows
Interface USB
Length of cable, m 1.8
Durability over 20 000 000 clicks
Keyboard dimensions, mm 468 x 150 x 35 (50)
Wrist rest dimensions, mm 450 x 64 x 19
Weight, g 893

Notes:

• Technical specifications given in this table are supplemental information and can not give occasion to claims.
• Technical specifications are subject to change without notice due to improvement of SVEN production.

Black desktop computer keyboard with standard keys and a cable (no visible text or labels)

Модель: KB-G9400

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.

EACCE

KB-G9400
