MCH-90J52 - Autres appareils de cuisine MIDEA - Free user manual and instructions

Product Type	Built-in Microwave Oven
Brand	Midea
Model	MCH-90J52
Dimensions (H x W x D)	390 x 595 x 420 mm
Weight	25 kg
Power Supply	230 V / 50 Hz
Microwave Power	900 W
Grill Power	1000 W
Convection Power	1500 W
Capacity	40 L
Control Type	Touch + Rotary
Number of Auto Menus	12
Defrost Function	Yes (by weight or time)
Child Lock	Yes
Interior Light	LED
Door Type	Drop-down
Energy Consumption	0.8 kWh per use (typical)
Noise Level	58 dB(A)
Material	Stainless steel body, ceramic interior
Functions	Microwave, Grill, Convection, Combination, Defrost, Keep Warm
Maintenance	Clean with damp cloth; avoid abrasive cleaners
Safety Features	Automatic shut-off, overheat protection
Spare Parts Available	Turntable, glass tray, grill rack, charcoal filter
Repairability	Secure screws; replaceable parts via Midea service

Frequently Asked Questions - MCH-90J52 MIDEA

How do I install the MCH-90J52 microwave?

Ensure the cabinet cutout matches the dimensions (390x595x420 mm). Leave at least 10 cm clearance around the unit for ventilation. Use the provided mounting screws and brackets. Connect to a grounded 230V outlet.

Can I use metal containers in this microwave?

No, metal can cause sparks. Use microwave-safe glass or ceramic dishes. The included glass tray and roller ring must always be used.

What does the 'E-1' error code mean?

Error E-1 indicates a door latch problem. Check if the door is fully closed and the latch is clean. If persists, contact Midea service.

How do I clean the microwave interior?

Wipe with a damp soft cloth after each use. For stubborn stains, use a mild soap solution. Avoid abrasive cleaners. The turntable and glass tray are dishwasher safe.

Can I defrost frozen food with this model?

Yes, use the Defrost function. Enter the food weight or choose defrost by time. The microwave will automatically set power and time.

What is the recommended wattage for reheating?

For most foods, use medium power (60-70%) to avoid overheating. High power (100%) is best for liquids and quick heating.

Does the MCH-90J52 have a child lock?

Yes. To activate, press and hold the 'Stop' button for 3 seconds until the lock icon appears. Repeat to unlock.

How do I replace the charcoal filter?

Remove the top grille by unscrewing the two screws. Slide out the old filter and insert a new one (model MCH-FILTER1). Reattach the grille. Replace every 6 months.

Can I use the convection function without the turntable?

Yes, for some baking recipes you can remove the turntable to fit larger dishes. Ensure the glass tray is still in place to catch spills.

What should I do if the microwave stops working mid-cycle?

First, check if the door is properly closed. Press 'Stop' to cancel, then restart. If the issue persists, unplug for 1 minute and try again. Contact support if needed.

USER MANUAL MCH-90J52 MIDEA

Line drawing of a kitchen chimney with ventilation duct and ventilation grilles (no text or symbols)

MCH-90J52

01 Kandungan....2
02 Amaran....3
03 Amaran Keselamatan....5
04 Arahan Pemasangan....6
05 Penggunaan Pertama....10
06 Penyelenggaraan....11
07 Parameter Utama....12
08 Penyelesaian Masalah....13
09 Khidmat Selepas Jualan....13
10 Notis Jaminan....14
11 Pelupusan....14

Technical line drawing of a kitchen chimney with labeled components (no text or symbols present)

1 Badan hud dapur 1
2 Paip ekzos 1
3 Injap sehala 1
4 Gasket pengedap injap sehala1
5 Plat pemasangan 1
6 Bolt pengembangan (8x60) 4
7 Skru (ST2.9x9.5) 2
8 Skru (ST4.2x16) 8
9 Skru (M5x50) 4
10 Skru (M5x16) 1
11 Cawan minyak 1

2

Simple line drawing of a rectangular block with horizontal lines inside, no text or symbols present.

3

Technical line drawing of a mechanical component with a circular top and rectangular base (no text or symbols)

4

5

6

7

8

9

10

Kawalan gerak isyarat kiri
Kawalan gerak isyarat kanan

Line drawing of hands holding a flatboard with a blue arrow indicating rotation (no text or symbols)

Illustration of hands holding a rectangular object with a blue arrow indicating direction (no text or symbols)

Illustration of hands holding a blank sheet with a ruler partially visible (no text or symbols)

Voltan 220-240V~/50Hz
Kuasa Kadaran	223W
Kuasa Lampu	3W
Kuasa Motor	220W
Diameter tiub udara	190mm
Tahap kebisingan	≤68dB(A)

Parameter aliran udara diuji di bawah keadaan 230V\~/50Hz dengan voltan 220-240V\~/50Hz.

Maklumat lampu LED

	Kuasa maksimum	Voltan	Gambarajah Penutup	lampu	Kod ILCOS D
Segiempat / diameter 25mm x 138 mm	1.5W DC	12 V		— —	/

01 Contents....2
02 Warnings.... 3
03 Safety Warning....5
04 Installation instruction 6
05 First using....10
06 Maintenance.... 11
07 Main Parameters.... 12
08 Trouble shooting.... 13
09 After service.... 13
10 Warranty 14
11 Disposal.... 14

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

- Please do not use corrosive detergent for cleaning. The proper function of the unit is conditioned by the regularity of the maintenance.

- To protect the main body from corrosive of the long time accumulation of dirt, the cooker hood should be cleaned with hot water with non-corrosive detergent every two months.

- There is a fire risk if cleaning is not carried out in accordance with the instructions.

- Do not flame under the range hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for:

non-combustible parts of range hoods, and

parts operating at safety extra low voltage,

Provided these parts do not give access to live parts if deformed;)

● Regulations concerning the discharge of air have to be fulfilled.
● The appliance uses 4 hob elements at most.
- CAUTION: Accessible parts may become hot when used with cooking appliances.
- The first time connecting the supply power or re-up electricity, the hood have self-inspection function, the top glass plate will open and close one time, so minds your hand to be pinched, not to handle your hand near the panel!"

• The appliance is not intended for use by young children or infirm persons without supervisions.
• Young children should be supervised to ensure they do not play with the appliance.
• Plug the power cord to socket outlet with earthing continuity terminal.
• The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes.
• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Do not use open flame, or allow oil to go beneath the appliance.
• If there is any fault occurred with the appliance, please call after-sale service department.
• Please keep the kitchen room ventilated.
• Prior to any maintenance, cleaning operation, ensure the power is cut off.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller.
• If the plug or cord is damaged, please call after-sale service center.
• There is a fire risk if cleaning is not carried out in accordance with the instruction.
• In case of damaged connecting wire, please refer to the manufacturer, after-sale service personnel or other qualified technicians.
• Use the unit according to the instructions to avoid any fire hazard.
• The exhaust air must not be introduced into a smoke flue or chimney that is used for exhausting fumes from appliances burning gas.
• Follow the local laws applicable for external air evacuation.
• As the upper panel is closing, don't put your hands between the upper panel and the body in case of clamp your hand.
• As steam generator is working, be careful of hot steam out of the body.

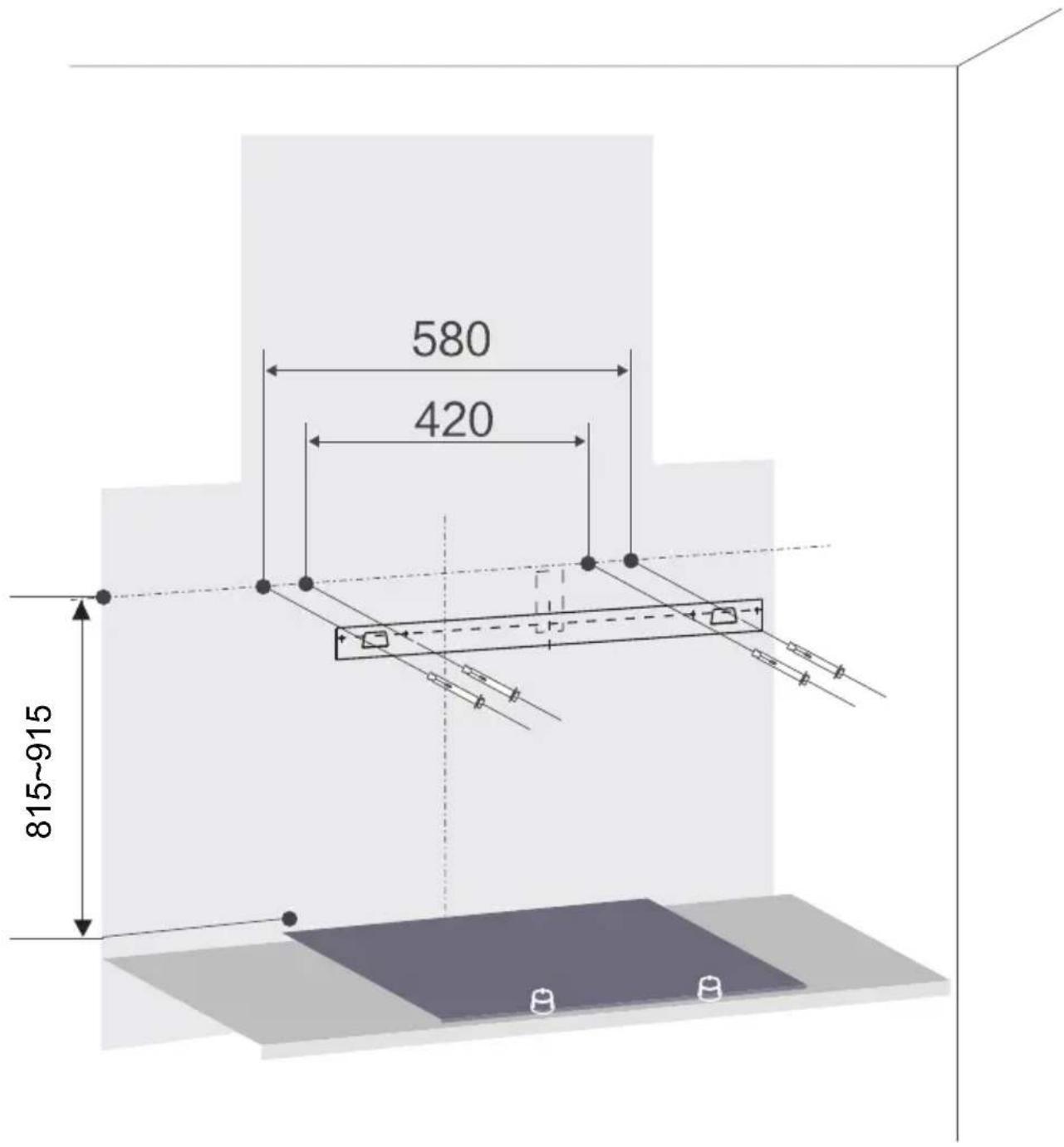

Determine location

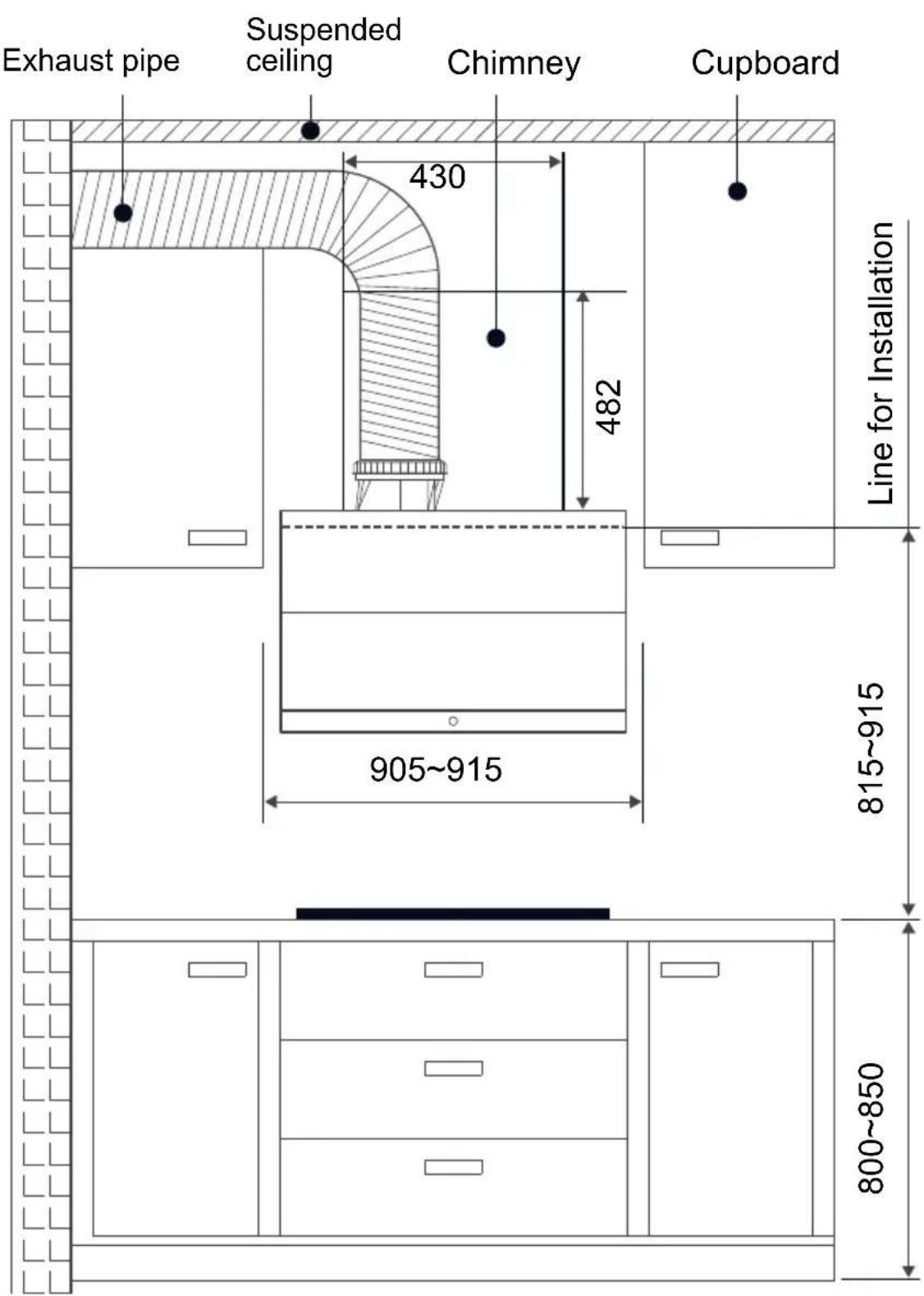

Range hood should be installed horizontally on the top of the stove, the installation diagram is as follows:

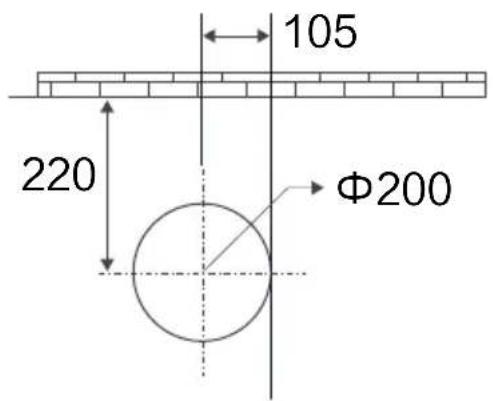

Schematic diagram of the hole size of the exhaust pipe at the ceiling

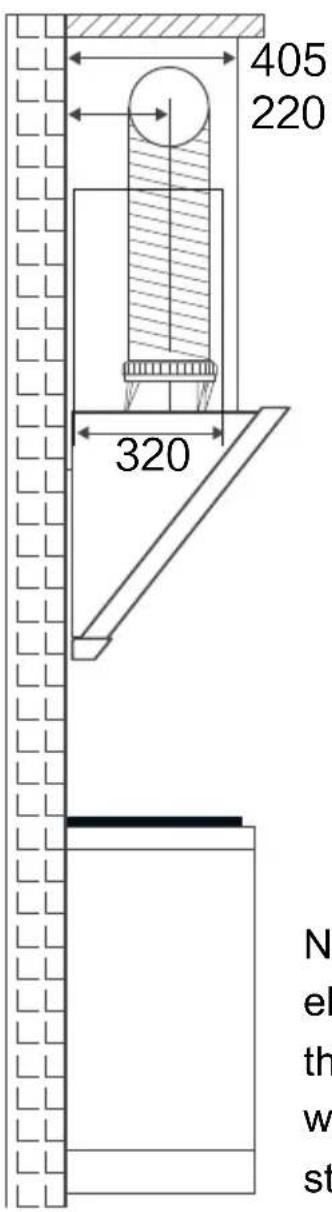

Note: This installation height is only applicable to electric stove, if installed above the gas stove, the installation height should be in accordance with the installation height requirements of gas stove.

Installation plate

After hang the hood on the installation plate, fasten two screws M5X16, avoid the hood slide off accidentally.

Accessories

Note: If you need to install the decorative cover, please buy it in advance.

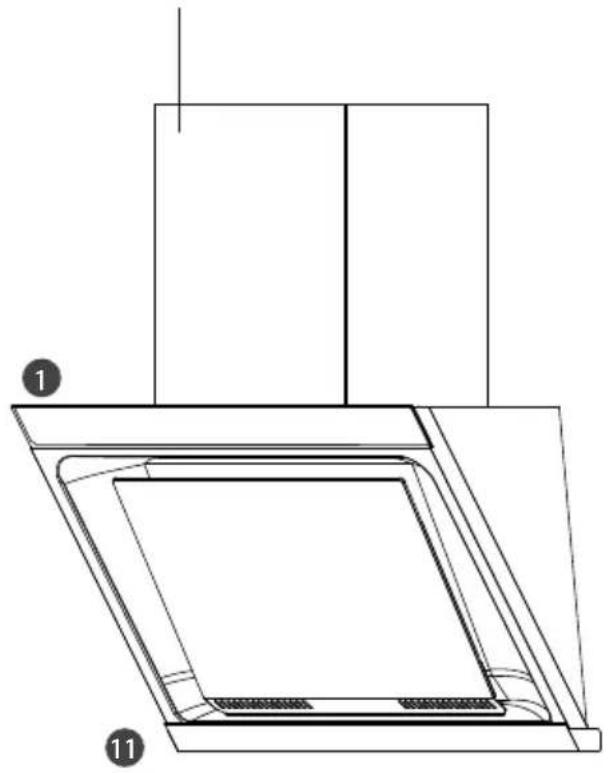

Technical line drawing of a kitchen chimney with labeled components (no text or symbols present)

1 Range hood body 1
2 Exhaust pipe 1
3 Check valve 1
4 Check valve Sealing gasket 1
5 Installation plate 1
6 Expansion bolt (8 x 60) 4
7 Screws (ST2.9x9.5) 2
8 Screws (ST4.2x16) 8
9 Screws (M5x50) 4
10 Screws (M5x16) 1
11 Oil cup 1

2

Simple line drawing of a rectangular block with horizontal lines inside, no text or symbols present.

3

Technical line drawing of a mechanical component with a circular top and rectangular base (no text or symbols)

4

5

6

7

8

9

10

Range hood can be used after power.

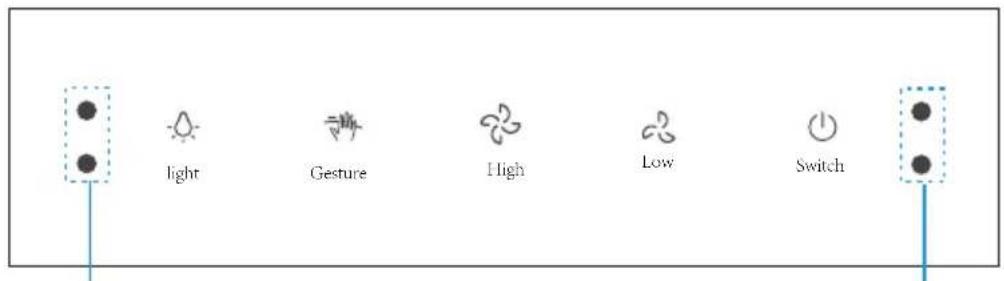

Gesture control left
Gesture control right

	Light	Short press: Turn on/off the light;
	Gesture	Short press: Open the gesture;Short press: Close the gesture.
	High	Turn on the power;Press High speed : Turn on high speed ;Press Low speed : Turn on low speed.(Two patterns can't run at the same time)
	Low
	Switch	1^st Short press: Start up ; 2^nd Short press: Delay 3 min; 3^rd Short press: OFF immediately.

Cleaning on the surface

1. The surface of the range hood and filter should be clean regularly, do not use clean balls, brushes, coarse cloth, so as not to scratch the surface of the machine.
2. please dumping in time, avoid the oil dripping to the stove

Cleaning mode (Cleaning the surface manually)

Draw out the oil cup with both bands horizontally and pour away the oil

Clean the oil cup and wipe it clean

Return your hands horizontally to the oil cup

Fiter cleaning

1. unplug

2. Remove the oil cup, apply both hands outward and open the lower end of the condenser plate

3. Raise the condensing plate and clean the surface of the filter screen (misremove)

Illustration of hands holding a flatboard inside a rectangular frame (no text or symbols)

Illustration of hands holding a flatboard inside a cabinet (no text or symbols visible)

1. Retract the condensing plate and install the oil cup

2. After cleaning, insert the power plug

Illustration of hands holding a blank sheet with a ruler, no text or symbols present

Voltage	220-240V~/50Hz
Rated Power	223W
Lighting Power	3W
Motor Power	220W
Diameter of air tube	190mm
Noise	≤68dB(A)

The air flow parameter is tested under conditions of 230V\~/50Hz when the voltage is 220-240V\~/50Hz.

LED light information

	Max Power	Voltage	Picture Lamp Cap ILCOS D code
Square / Diameter:25mm x 138mm	1.5W DC	12 V		— —	/

Fault	Solution
Both light and motor do not work	Unplug power plug and reconnect the power supply.
Oil leakage	Oil cup tilt, please reinstall.
	Oil cup full filled with oil, please dump the oil.
	Oil-way blockage caused by long time uncleaned internal oil-way, needs professionals to wash the hood.
Insufficient suction	Avoid opening window or door frequently.
	Adjust to max. speed.
Loud noise	Reinstall the exhaust pipe properly
	Ensure firm installation

After service

Product non-artificial breakdown within warranty period from purchase date will be offered free repair service based on invoice. Damage due to improper use, out of warranty and poor maintenance will be repaired by our company but charging certain maintenance cost. Please don't tear off the product bar code so that the repairman can verify the record. Please read the warranty notice concerning other matters.

First, to safeguard your interests, please fill out the installation service card carefully and retain the receipt for warranty.

Second, the product purchased in our company that has breakdown due to quality problem can be repaired at designated special service department based on valid purchase proof. Free repair is offered within warranty period (from the date of purchase proof issued).

Third, the following situations, we are not responsible for product "Three Guarantees" repair service but still provide charging service:

1) The product damaged due to improper use or poor safekeeping.
2) The product damaged not caused by installation or maintenance of special service department staff.
3) The product without valid purchase proof.
4) The product's purchase proof has been altered.
5) The product model and body code registered on installation service card is inconsistent with the model and body code of the product to be repaired.
6) The product damaged due to the instability of power voltage or exceeding normal voltage scope (198-242) V.a.c, or power circuit installation not meeting the national electrical installation requirement.
7) The product sold at discounted price or with "OFF-Grade" and "Substandard Goods" printed on installation service card or the body.
8) Product damaged due to irresistible natural disaster.
9) Product warranty period is expired.
10) The product damaged by the unsuitable and improper method specified in instruction book.

Fourth, if your reasonable service demand can't be solved by special service department or dissatisfaction with their service, please make an immediate call or write a letter to our customer service center, we will provide you with our service.

Disposal

Please dispose of it at your local community waste collection / recycling center and ensure it presents no danger to children while being stored for disposal. The plug must be rendered useless and the cable cut off to prevent misuse.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.
