Product Type	Microwave Oven
Brand	Midea
Model	AM820 C2RA
Capacity	20 Liters
Power Output	800 Watts
Control Type	Electronic with LED Display
Dimensions (W x D x H)	440 x 365 x 258 mm
Weight	11.5 kg
Power Supply	220-240 V ~ 50 Hz
Functions	Microwave cooking, Defrost, Reheat, Auto cook menus
Timer	Up to 95 minutes
Child Lock	Yes
Interior Light	Yes
Turntable	Glass turntable, 255 mm diameter
Door Type	Side-opening with safety lock system
Material	Stainless steel exterior, enamel interior
Cleaning	Wipe with damp cloth; avoid abrasive cleaners
Safety Features	Door interlock, overheating protection, child lock
Spare Parts	Turntable, fuse, bulb available from authorized service
Repair	Do not attempt internal repairs; contact qualified technician

Frequently Asked Questions - AM820 C2RA MIDEA

How do I set the cooking time on the Midea AM820 C2RA?

Turn the timer knob clockwise to the desired number of minutes. For precise setting, refer to the control panel instructions in the manual.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage the microwave. Use microwave-safe glass or plastic containers instead.

How to clean the interior of the AM820 C2RA?

Wipe the interior with a damp cloth and mild soap after each use. Avoid abrasive cleaners. For odors, heat a bowl of water with lemon juice for a few minutes.

What does the 'Child Lock' feature do?

The child lock prevents accidental operation by locking the control panel. To activate, press and hold the 'Stop' button for 3 seconds.

Why is my microwave not heating?

Check that the door is fully closed. If the problem persists, the magnetron or high-voltage fuse may be faulty. Contact a qualified technician.

Can I reheat food in this microwave?

Yes, the AM820 C2RA has a reheat function. Select 'Reheat' and adjust time as needed. Cover food to prevent splatters.

How to defrost frozen food?

Use the defrost function. Enter the weight of the food and the microwave will automatically set the time. Turn food occasionally for even thawing.

What is the power consumption of this microwave?

The power consumption is approximately 1200 Watts while cooking. The microwave output is 800 Watts.

Can I bake or grill in this microwave?

The AM820 C2RA is a solo microwave only. It does not have grill or convection functions. For baking, use a separate oven.

How to replace the turntable glass plate?

If the glass turntable is broken, order a replacement from Midea service. To remove, lift it out and place the new one on the roller ring.

USER MANUAL AM820 C2RA MIDEA

Microwave Oven AM820 C2RA

Oven Capacity: 21Liter 230V\~50Hz, 1QW

INSTRUCTION MANUAL

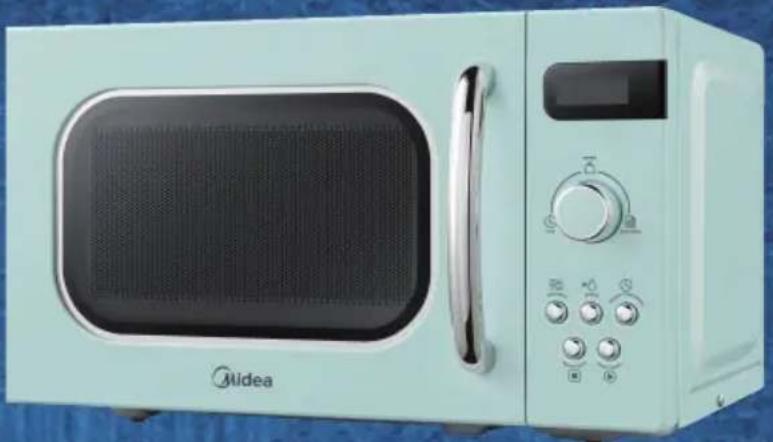

Exterior view of a light green Midea microwave oven with control panel and door (no visible text or symbols on main body)

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

01

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

Model:	AM820C2RA
Rated Voltage:	230V~ 50Hz
Rated Input Power(Microwave):	1270W
Rated Output Power(Microwave):	800 W
Oven Capacity:	21 L
Turntable Diameter:	255 mm
External Dimensions:	439.5x358.5x258.2mm
Net Weight:	Approx. 10.5kg

▲ WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Children should be supervised to ensure that they do not play with the appliance.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave ovens.

10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and any food deposits removed.

15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
20. This appliance is intended to be used in household and similar applications such as:
    -staff kitchen areas in shops, offices and other working environments;
    -by clients in hotels, motels and other residential type environments;
    -farm houses;
    -bed and breakfast type environments.
21. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
22. Metallic containers for food and beverages are not allowed during microwave cooking.
23. The appliance shall not be cleaned with a steam cleaner.
24. The appliance is intended to be used freestanding.
25. The rear surface of appliances shall be placed against a wall.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

03

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

▲ DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

▲ WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded.

In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely

understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

04

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

▲ CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie.Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

06

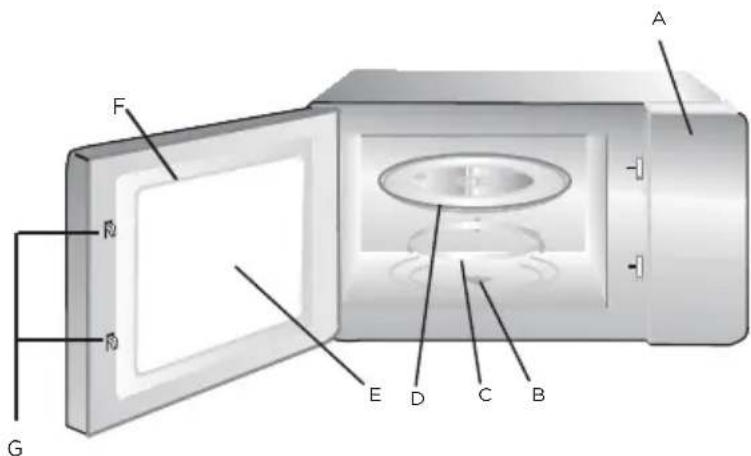

▲ Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

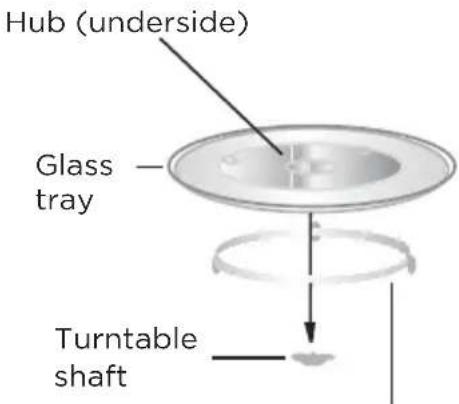

▲ Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door.

Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

07

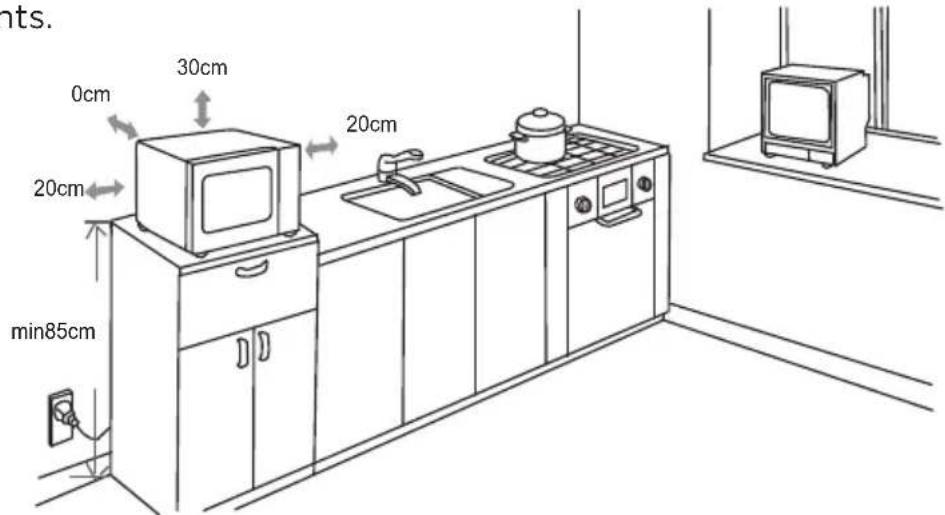

INSTALLATION

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30 ~cm above the oven, a minimum clearance of 20 ~cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and / or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet.

Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

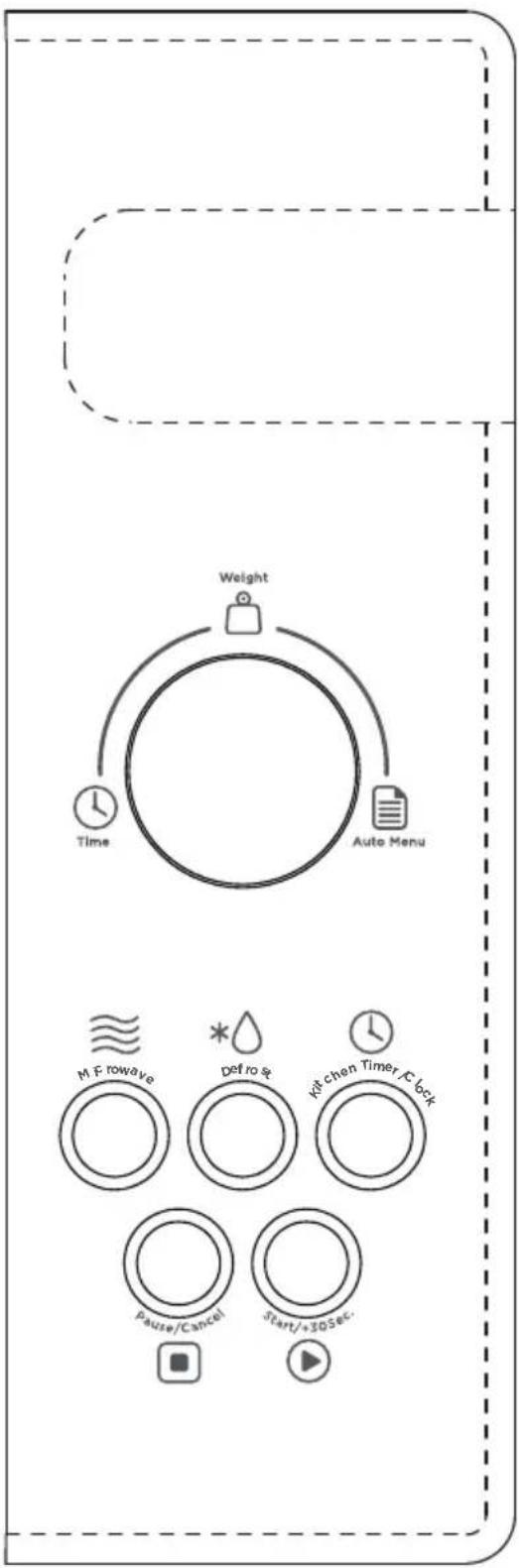

Control Panel

Weight
Auto Menu
Kitchen Timer / Clock
≈ Microwave
* Defrost
Pause/Cancel
Start/+30Sec.

08

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

▲ Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press " KITCHEN TIMER / CLOCK " twice, the hour figures will flash.
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
3) Press " KITCHEN TIMER / CLOCK ", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press " KITCHEN TIMER / CLOCK " to finish clock setting. ":" will flash.

Note:

1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press "PAUSE/CANCEL" or no operation in one minute, the oven will exit the setting.

▲ Kitchen Timer

1) Press " KITCHEN TIMER / CLOCK " once, the screen will display "00:00".
2) Turn " 🔍 " to enter the correct timer.(The maximum cooking time is 95 minutes,)
3) Press " START/+30SEC." to confirm setting.
4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times.

If the clock has been set (24-hour system), screen will display the current time.

Note:

The kitchen Timer is different from 24-hour system. Kitchen Timer is a timer.

▲ Microwave Cooking

1) Press the "MICROWAVE" key once, and "P100" display.
2) Press " MICROWAVE " repeatedly or turn " 🔍 " to select the microwave power "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press " START/+30SEC. " to confirm.
4)Turn " 🔍 " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC. " to start cooking.

NOTE :the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Press Once Twice Thrice 4 times 5 times
Microwave Power	100%	80%	50%	30%	10%
Display	P100	P80	P50	P30	P10

▲ Speedy Cooking

1) In waiting state, press " START/+30SEC." key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave cooking and time defrost process, press "START/+30SEC." to increase the cooking time.
3) In waiting state, turn " 🔍 " left to choose the cooking time directly. After choosing the time, press " START/+30SEC." to start cooking. The microwave power is 100%.

Note:

Under the state of auto menu or weight defrost, cooking time cannot be increased by pressing " START/+30SEC." .

▲ Defrost by weight

1) Press "DEFROST" once, the screen will display "dEF1".
2) Turn " 🔍 " to select the food weight. The range of weight is 100-2000g.
3) Press " START/+30SEC." key to start defrosting.

▲ Defrost By Time

1) Press "DEFROST" twice, the screen will display "dEF2".
2) Turn " 🔍 " to select the cooking time.
3) Press " START/+30SEC. " key to start defrosting.

Note: The defrost power is P30. And it cannot be changed.

▲ Multi-Stage Cooking

Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "DEFROST" twice, the screen will display "dEF2".
2) Turn " 🔍 " to adjust the defrost time of 5 minutes;
3) Press" MICROWAVE " once;
4) Turn " 🔍" to choose 80% microwave power till "P80" display;
5) Press " START/+30SEC. " to confirm;
6) Turn " 🔍" to adjust the cooking time of 7 minutes;
7) Press " START/+30SEC." to start cooking.

▲ Auto Menu

1) In waiting states, turn " 🔍" right to choose the menu from "A-1" to "A-8";
2) Press " START/+30SEC." to confirm the menu you choose;
3) Turn " 🔍 " to choose the food weight;
4) Press " START/+30SEC." to start cooking;
5) After cooking finish, the buzzer sounds five times.

▲ Inquiring Function

1) In cooking state of microwave press "MICROWAVE", the current power will be displayed for 3 seconds.
2) During cooking state, press " KITCHEN TIMER / CLOCK " to check the current time. It will be displayed for 3 seconds.

▲ Lock-out Function for Children

Lock: In waiting state, press "PAUSE/CANCEL" for 3 seconds, there will be a long "beep" denoting entering the children-lock state.

Lock quitting: In locked state, press "PAUSE/CANCEL" for 3 seconds, there will be a long "beep" denoting that the lock is released.

▲ Specification

1) The buzzer will sound once when turning the knob at the beginning;
2) " START/+30SEC. " must be pressed to continue cooking if the door is opened during cooking;
3) Once the cooking programme has been set, "START/+30SEC." is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
4) The buzzer sounds once by efficient press, inefficient press will be no response.
5) The buzzer will sound five times to remind you when cooking is finished.

▲ The menu chart:

Menu	Weight Display
A-1AUTO REHEAT	200 g	200
	400 g	400
	600g	600
A-2VEGETABLE	200g	200
	300g	300
	400g	400
A-3FISH	250g	250
	350g	350
	450g	450
A-4MEAT	250g	250
	350g	350
	450g	450
A-5PASTA	50g(with water 450 g)	50
	100g(with water 800 g)	100
A-6POTATO	200g	200
	400g	400
	600g	600
A-7PIZZA	200g	200
	400g	400
A-8SOUP	200 ml	200
	400 ml	400

TROUBLE SHOOTING

09

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances.like mixer. vacuum cleanser. and electric fan. It is normal.
Dim oven light	In low power microwave cooking. oven light may become dim. It is normal.
Steam accumulating on door. hot air out of vents	In cooking. steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven can not be started	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
	(4) Door not closed well. Close door well.Oven does not hea

PN:16170000A85902

make yourself at home
