Derwent Cot Bed - Baby bed Silver Cross - Free user manual and instructions

Product Type	Cot bed convertible to toddler bed
Brand	Silver Cross
Model	Derwent Cot Bed
Category	Baby bed
Material	Wood
Mattress Size	1400 x 700 mm
Maximum Mattress Thickness	10 cm
Mattress Base Positions	3 adjustable heights
Safety Standards	BS EN 716-1:2008 + A1:2013 (cot), BS 8509:2008 + A1:2011 (toddler bed)
Age Range	From birth up to approximately 4 years
Cleaning Instructions	Wipe with damp cloth and dry immediately. Do not use abrasives, bleach, alcohol or ammonia.
Assembly Required	Yes, requires two people
Safety Features	Dropside; lowest mattress base position is safest; gap from wall at least 300 mm
Replacement Parts	Available from Silver Cross
Converts To	Toddler bed

Frequently Asked Questions - Derwent Cot Bed Silver Cross

How many people are required to assemble the Derwent Cot Bed?

The assembly requires two people as stated in the manual.

What is the recommended mattress size for this cot bed?

The mattress should be 1400 x 700 mm with a maximum thickness of 10 cm.

Can the cot be converted into a toddler bed?

Yes, the Derwent Cot Bed is designed to convert into a toddler bed for use up to approximately 4 years.

How many mattress base positions are there?

There are three adjustable heights. The lowest position is the safest and should be used once the baby can sit up.

When should I stop using the cot?

Stop using the cot when the child can climb out. The product is intended from birth up to approximately 4 years.

How should I clean the cot bed?

Clean by wiping with a damp cloth and drying immediately. Do not use abrasives, bleach, alcohol, or ammonia-based cleaners.

What safety standards does the cot bed comply with?

It conforms to BS EN 716-1:2008 + A1:2013 for cots and BS 8509:2008 + A1:2011 for toddler beds.

Can I place the cot near a window or radiator?

No, keep the cot away from heat sources, windows, and other furniture. If placed near a wall, maintain a gap of at least 300 mm.

Where can I get replacement parts?

Replacement parts can be obtained directly from Silver Cross.

Is the dropside safe to leave up when the child is unattended?

Yes, always ensure the dropside is in the highest position when leaving the child unattended.

USER MANUAL Derwent Cot Bed Silver Cross

THE BEST START IN LIFE

Derwent Cot bed

Assembly Instructions

Line drawing of a baby crib with vertical slats and wooden frame (no text or symbols)

Decorative border pattern with repeating star and circle motifs (no text or symbols)

IMPORTANT: THE ASSEMBLY OF THIS

PRODUCT REQUIRES TWO PEOPLE

IMPORTANT: KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Parts list:

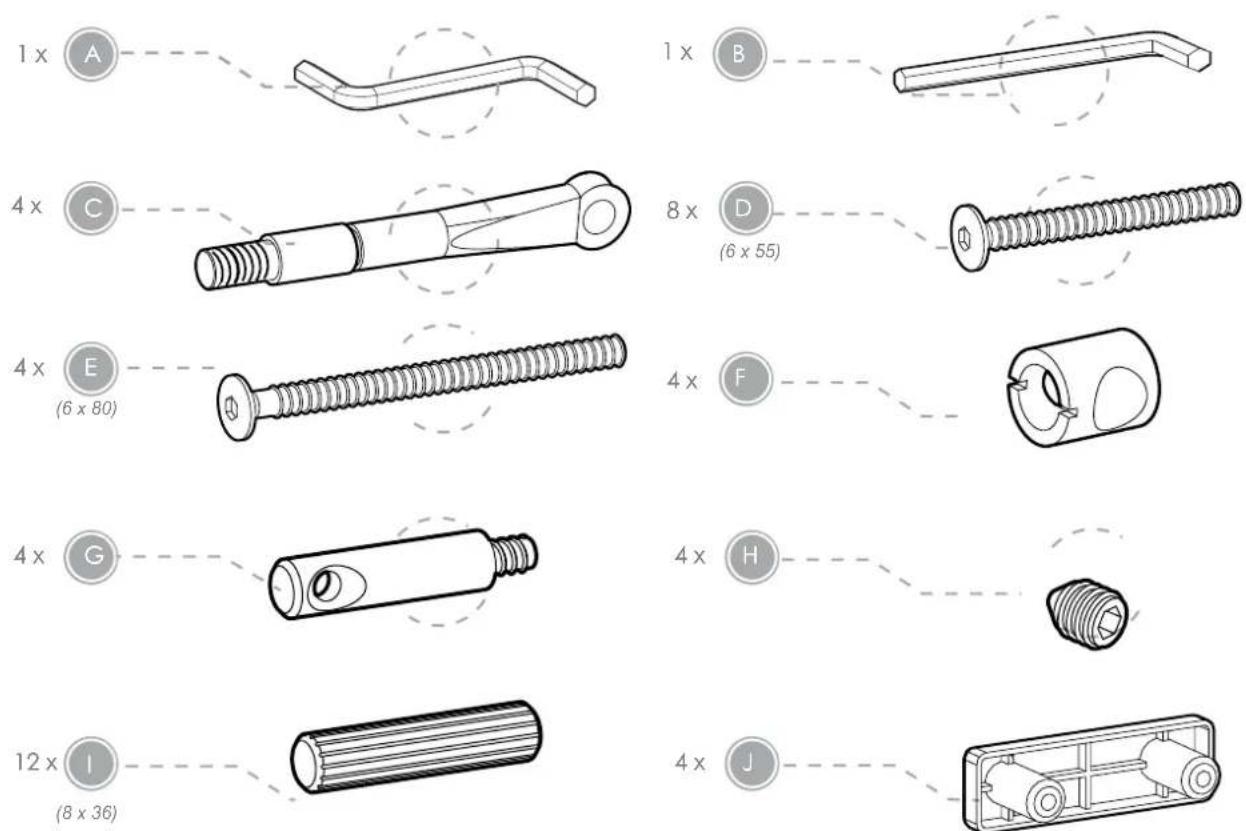

Fittings list:

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Line drawing of two baby cates: one with slatted backrest and one with vertical bars (no text or symbols)

Step 6:

The cot bed base can be fitted at three different heights.

The lowest is the safest.

Step 7:

Line drawing of two baby crib arrangements: one open and one closed, both with wooden frames and vertical slats (no text or symbols)

Step 8:

Step 9:

Line drawing of a baby crib with vertical bars and a close-up inset showing a cable being inserted (no text or symbols)

Line drawing of two wooden baby crib arrangements, one open and one closed, with an arrow indicating a transformation (no text or symbols present)

Step 10:

Step 11:

Step 12:

Step 13:

Step 14:

Step 15:

Line drawings of two different wooden furniture units: a vertical slatted shelf and a single slatted bed, both with no text or symbols.

Step 16:

Warnings & Instructions For Safe Use & Maintenance

WARNING: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc, in the vicinity of the cot/bed.

WARNING: Do not use the product if any part is broken, damaged, torn or missing. Approved replacement parts can be obtained from Silver Cross.

WARNING: Do not leave anything in the cot/bed, or place it close to another product which provides a foothold or presents a danger of suffocation or strangulation. For example strings, blind/curtain cords etc.

WARNING: Children are likely to play, bounce, jump and climb on beds, therefore the child's bed should not be placed too close to other furniture or windows, and should be placed either tight to any wall or have a gap of 300mm between the wall and the side of the bed.

WARNING: Do not place this child's bed near heat sources, windows and other furniture.

The lowest position of the mattress base is the safest, and should be used as soon as the baby is old enough to sit up. To prevent injury from falls, when the child is able to climb out of the cot, the cot shall no longer be used for that child.

Thickness of the mattress chosen must not reduce the internal depth (from mattress surface to top of the side) to less than 500mm with the base in its lower position or 200mm with the base in its higher position.

Maximum 10cm thick mattress to be used with this cot bed.

If you leave the child unattended in the cot, always make sure that the dropside is in the highest position.

All assembly fittings should be tightened properly, checked regularly and re-tightened as necessary.

Screws and bolts should not be loose because a child can squeeze parts of the body, or clothing e.g string, necklaces, ribbons for babies dummies etc. could get caught. There would be a danger of strangulation.

The cot/bed must be used on a level and stable surface, away from electric sockets. Once assembled do not dismantle. Never move the cot/ bed with a child in it.

Excessive chewing may damage the wood and cause splintering. If any part is damaged stop using until the correct replacement part has been obtained from Silver Cross.

Your cot/bed can be cleaned by wiping with a damp cloth and drying immediately with a soft clean cloth.

Do not use abrasives, bleach, alcohol or ammonia based household polishes.

Take care when handling or moving furniture, careless handling can damage wooden furniture.

Wood is a natural material, the colour will darken with age.

The size of the mattress to be used with the child's bed is 1400x700mm.

Cot conforms to BS EN 716-1:2008 + A1: 2013 and toddler bed to BS 8509:2008+A1:2011.

Cots which convert to toddler beds are intended from birth up to approximately 4 years.

The mattress length and width shall be such that the gap between the mattress and the sides and ends does not exceed 30mm.

THE BEST START IN LIFE

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA

silvercrossbaby.com

IND.1122923
