Notice Silver Cross Greenwich Wardrobe - page 14
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Wardrobe
Brand Silver Cross
Model Greenwich Wardrobe
Recommended Age 0+ (nursery use)
Material Engineered wood (MDF) and solid wood
Finish Non-toxic, water-based paint
Dimensions (H x W x D) 180 cm x 80 cm x 50 cm
Weight 35 kg
Assembly Required Yes, includes instructions and tools
Number of Drawers 3
Number of Shelves 2 adjustable shelves
Hanging Rod Yes, metal rod
Maximum Load per Shelf 10 kg
Maximum Load on Hanging Rod 15 kg
Safety Features Anti-tip kit included; meets safety standards
Cleaning and Care Wipe with damp cloth; avoid harsh chemicals
Warranty 2 years from date of purchase
Country of Origin China
Available Colors White, Grey
Spare Parts Availability Yes, contact customer service
Additional Features Soft-close hinges and drawer slides

Frequently Asked Questions - Greenwich Wardrobe Silver Cross

How do I assemble the Greenwich Wardrobe?
Follow the step-by-step manual provided. Use the included Allen key and screws. Two people are recommended for assembly.
What tools are required for assembly?
The package includes an Allen key and screws. You will need a Phillips screwdriver and a hammer for dowels.
Is the wardrobe safe for toddlers?
Yes, it meets safety standards. Always use the included anti-tip kit to secure it to the wall.
How should I clean the wardrobe?
Clean with a soft, damp cloth. Use mild soap if needed. Avoid abrasive cleaners or solvents.
Can I paint or customize the wardrobe?
We recommend not painting it to maintain the non-toxic finish. Customization may void the warranty.
What is the weight capacity of the shelves and hanging rod?
Each shelf supports up to 10 kg evenly distributed. The hanging rod holds up to 15 kg.
Does the wardrobe come pre-assembled?
No, it requires assembly. The box contains all parts and clear instructions. Allow 1-2 hours for assembly.
How do I anchor the wardrobe to the wall?
Use the included anti-tip bracket. Drill into a wall stud or use drywall anchors. Follow the safety instructions in the manual.
What materials is the wardrobe made of?
It is made of engineered wood (MDF) with solid wood legs and a non-toxic paint finish.
What is the warranty period?
Silver Cross offers a 2-year warranty against manufacturing defects. Keep your receipt for proof of purchase.

User questions about Greenwich Wardrobe Silver Cross

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Wardrobe in PDF format for free! Find your manual Greenwich Wardrobe - Silver Cross and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Greenwich Wardrobe by Silver Cross.

USER MANUAL Greenwich Wardrobe Silver Cross

IMPORTANT RETAIN FOR FUTURE REFERENCE READ CAREFULLY

Silver Cross®

Greenwich Wardrobe

IMPORTANT: THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO PEOPLE

Silver Cross Greenwich Wardrobe - Greenwich Wardrobe - 1

Silver Cross Greenwich Wardrobe - Greenwich Wardrobe - 2

Silver Cross Greenwich Wardrobe - Greenwich Wardrobe - 3

Silver Cross Greenwich Wardrobe - Greenwich Wardrobe - 4

Silver Cross Greenwich Wardrobe - Greenwich Wardrobe - 5

Silver Cross Greenwich Wardrobe - Greenwich Wardrobe - 6

Parts list:
1 2 3 4 5 6 7 8 9x4 10 5 6 5 6 7 8

Fittings list:

Silver Cross Greenwich Wardrobe - Fittings list: - 1


Silver Cross Greenwich Wardrobe - Fittings list: - 2

Silver Cross Greenwich Wardrobe - Fittings list: - 3

6x
Silver Cross Greenwich Wardrobe - Fittings list: - 4

Silver Cross Greenwich Wardrobe - Fittings list: - 5

8x
Silver Cross Greenwich Wardrobe - Fittings list: - 6

Silver Cross Greenwich Wardrobe - Fittings list: - 7

8x
Silver Cross Greenwich Wardrobe - Fittings list: - 8

Silver Cross Greenwich Wardrobe - Fittings list: - 9

natural_image Line drawing of a screw with hexagonal head and threaded shaft (no text or symbols)


Silver Cross Greenwich Wardrobe - Fittings list: - 10

Silver Cross Greenwich Wardrobe - Fittings list: - 11

28×
Silver Cross Greenwich Wardrobe - Fittings list: - 12

Silver Cross Greenwich Wardrobe - Fittings list: - 13


Silver Cross Greenwich Wardrobe - Fittings list: - 14

Silver Cross Greenwich Wardrobe - Fittings list: - 15

6x
Silver Cross Greenwich Wardrobe - Fittings list: - 16

Silver Cross Greenwich Wardrobe - Fittings list: - 17

natural_image Technical line drawing of a mechanical hinge or latch mechanism (no text or symbols)


Silver Cross Greenwich Wardrobe - Fittings list: - 18

Silver Cross Greenwich Wardrobe - Fittings list: - 19

Step 1:
Technical diagram illustrating the assembly of a mechanical component with labeled parts and directional arrows indicating motion or assembly.

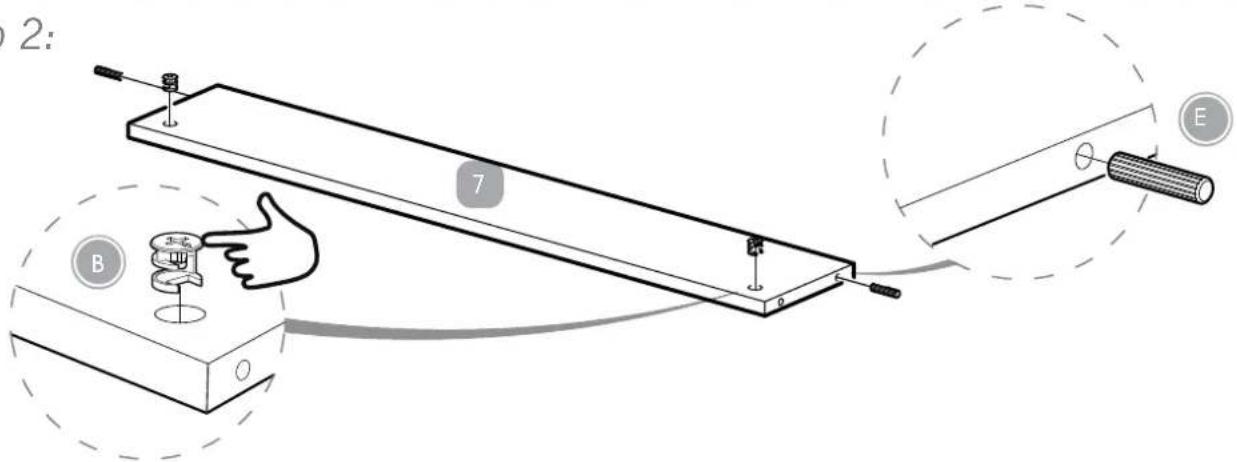

Step 2:
2: 7 B E

Step 3:
ep 3: 4 7 3 x 2

Step 4:
Technical diagram showing a 3D plate with screw fasteners and a mechanical component, including a magnified view of the assembly.

Step 5:
ep 5: 1 2 3 4 5 6 7

Step 6:
Step 6. →

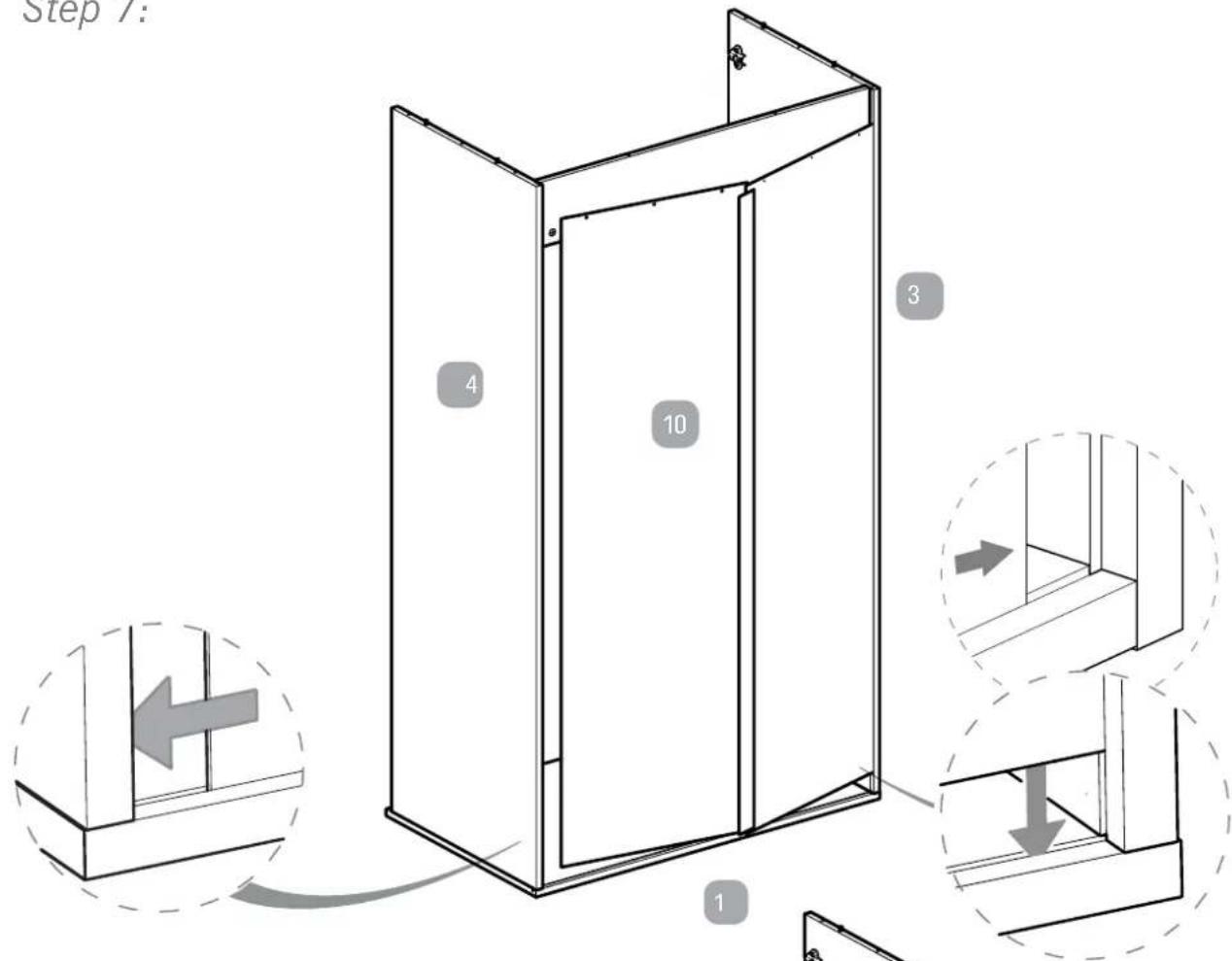

Step 7:
Step 7: 4 10 3 1

Step 8:
tep 8: D 4 10 I

Step 9:
Silver Cross Greenwich Wardrobe - Fittings list: - 28

natural_image Diagram showing a 3D box assembly before and after, with warning symbols indicating hazard (no text or labels present)

Step 10:

Technical diagram showing a component with screw fasteners and a magnified view of a circular component with labeled parts L and K.

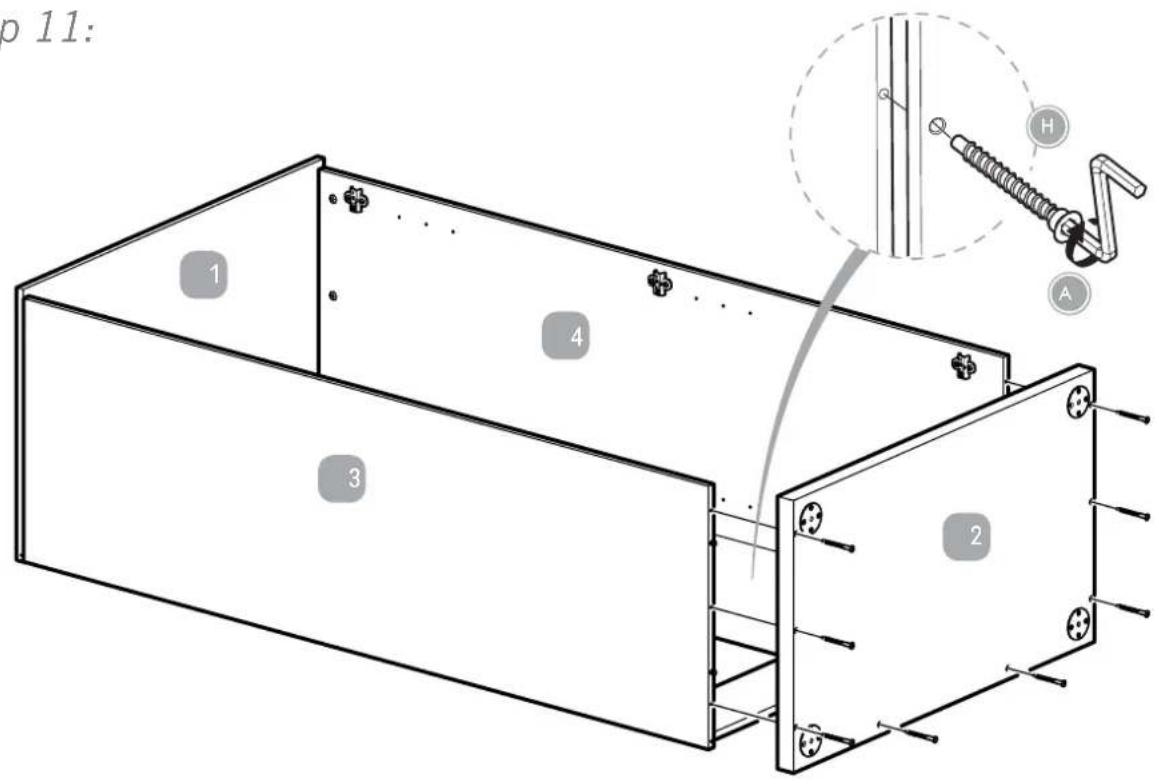

Step 11:
b 11: 1 4 3 2 H A

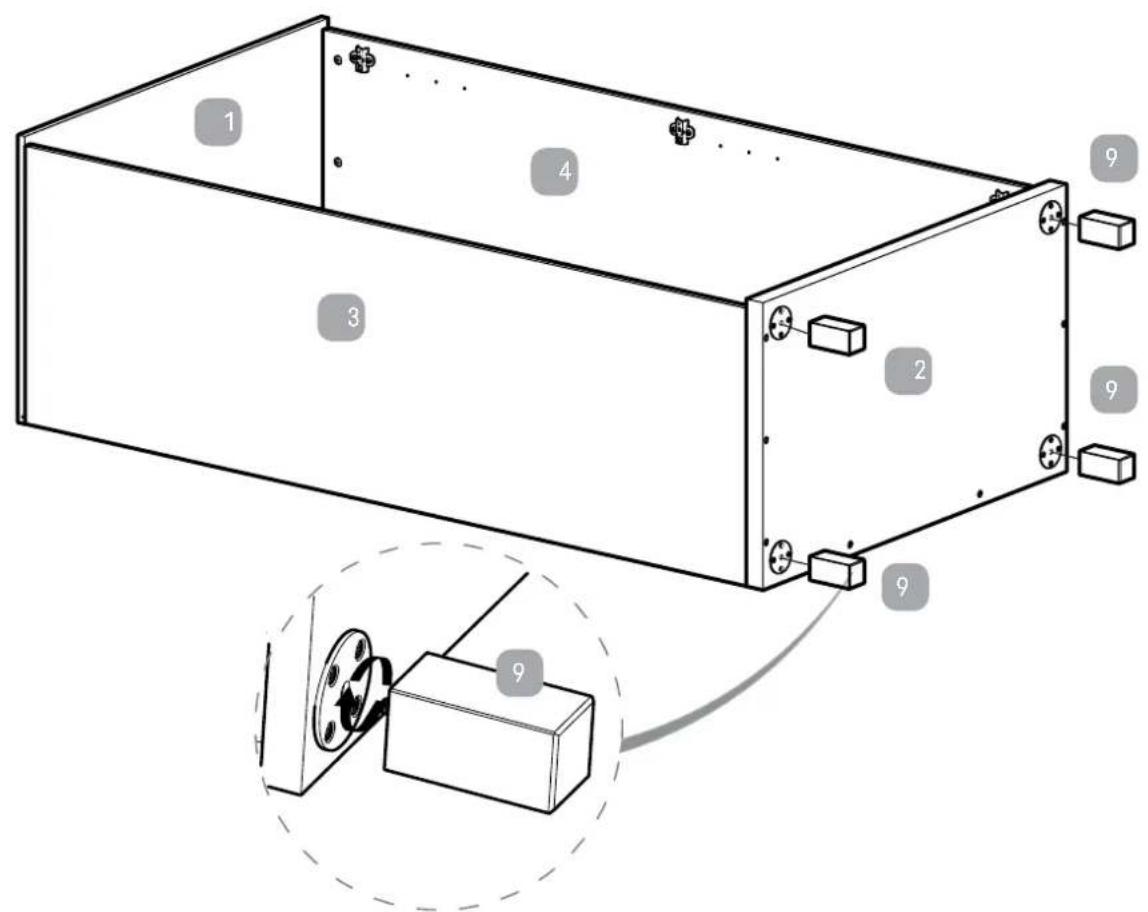

Step 12:
Technical diagram of a rectangular electronic device with numbered components and a magnified inset showing a mechanical assembly.

Step 13:
Step 10. → →

Step 14:
Technical diagram of a cabinet with labeled parts and directional arrows indicating movement or force, including a magnified inset showing a mechanical component.

Step 15:
15: F 3 4 5 5

Step 16:
Technical diagram of a multi-level cabinet with labeled parts and an instructional arrow indicating assembly or repair.

Step 17:
Technical diagram of a multi-level cabinet with numbered parts and mechanical components, including a close-up view of the internal structure.

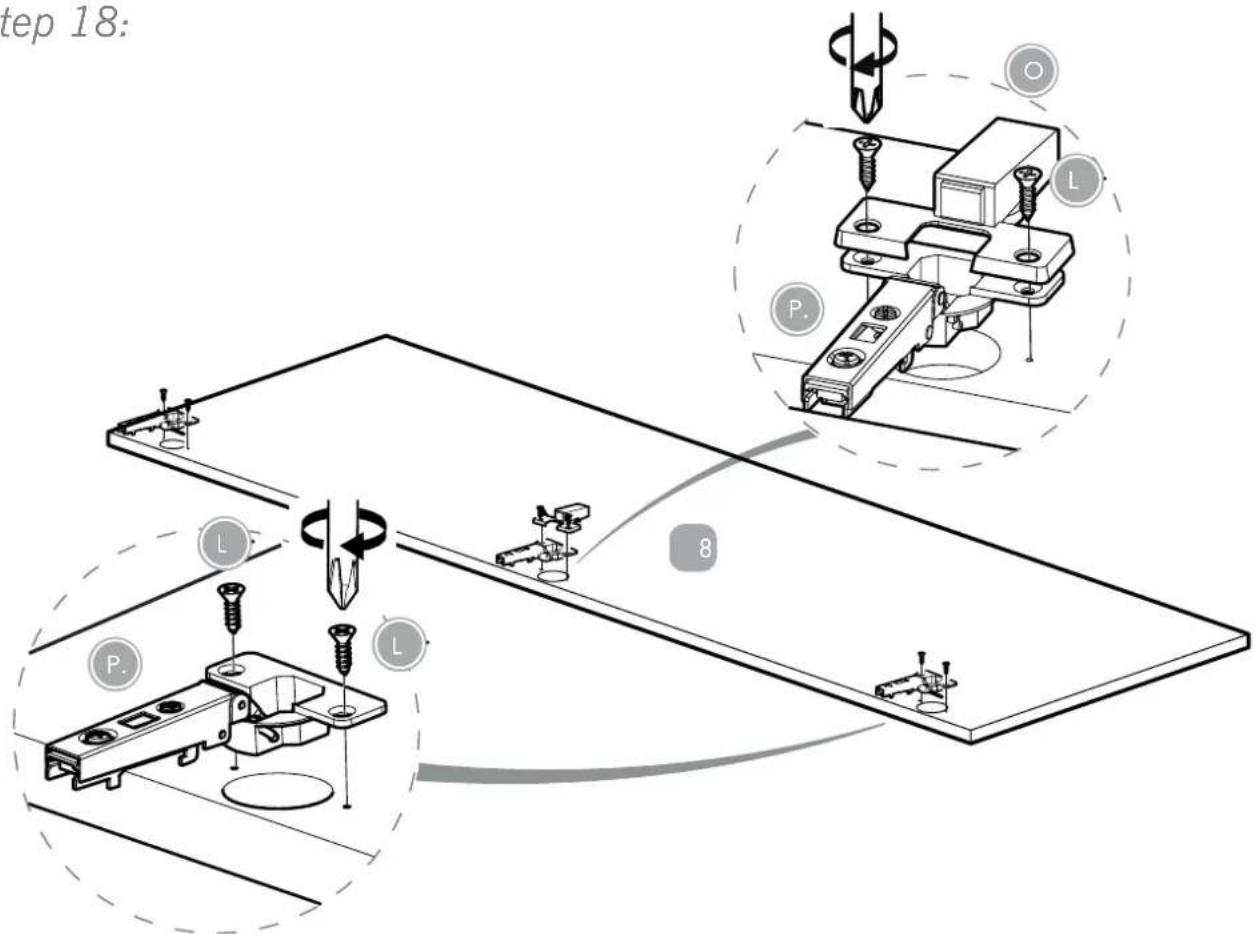

Step 18:
step 18: L P. 8 P. L

Step 19: 8 8 Soft Close Soft Close

Step 20:
Technical diagram illustrating the assembly of a cabinet with labeled parts and directional arrows, including a magnified view of the internal structure.

Step 21:
Silver Cross Greenwich Wardrobe - Fittings list: - 40

natural_image Line drawing of a simple cabinet with doors and shelves, no text or symbols present

It is advised for safety reasons that the wardrobe is connected to the wall using the wall strap provided. All walls are different composition and it is important the correct fittings are used. Wall fittings are not supplied with this furniture and it is advised to consult a professional before fitting.

Step 22:
Silver Cross Greenwich Wardrobe - Fittings list: - 41

natural_image Line drawing of a cabinet with two doors, one with handles, and an inset showing a pencil sketching the line (no text or symbols)

Step 23:
2 cm Fix furni fittings these f wall. before

Warning symbol image showing a rolled document with warning sign and electrical circuitry, next to a circular icon labeled 'J'

Fix the wall strap to the furniture as shown with the fittings provided – do not use these fittings to connect to the wall. Consult a professional before fitting the strap to the wall.

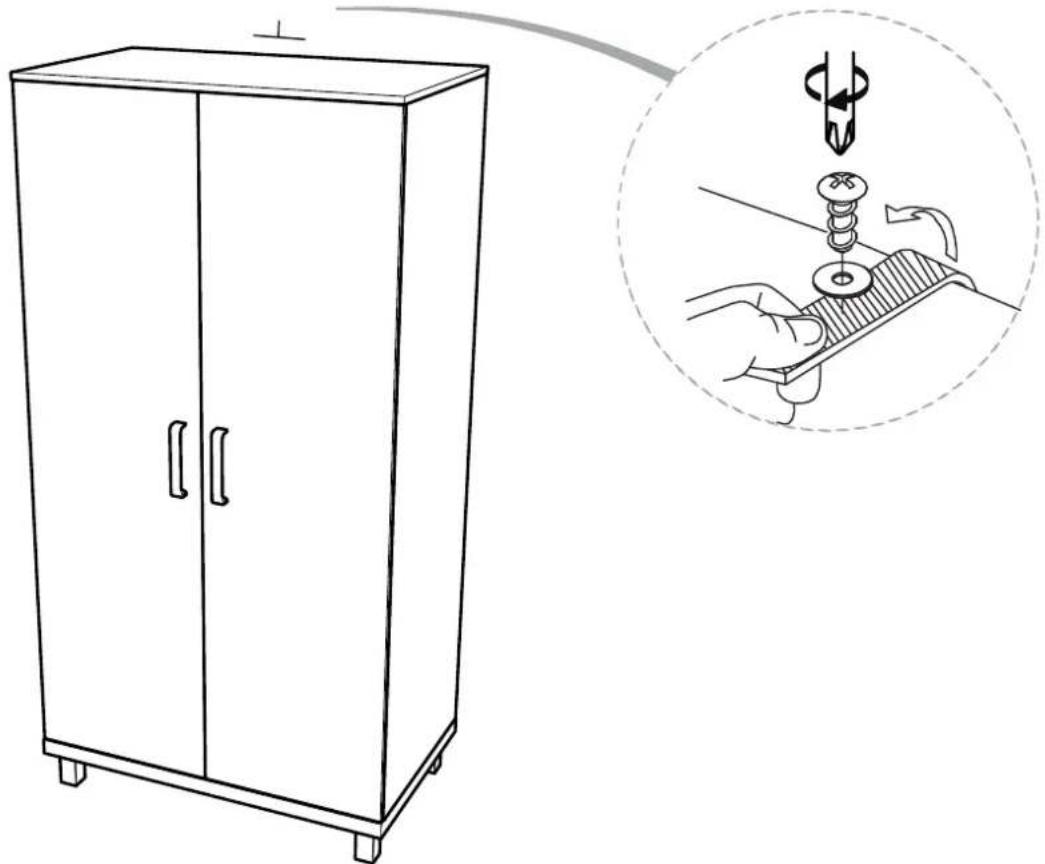

Step 24:
Silver Cross Greenwich Wardrobe - Fittings list: - 44

natural_image Line drawing of a cabinet with two doors, showing a close-up of a hand using a screwdriver to adjust the interior (no text or symbols present)

Warnings & Instructions For Safe Use & Maintenance

Safety notes

This item is a high quality Silver Cross product. With correct use and maintenance it will give you good service. If however you should have any problems with your product, please contact your Silver Cross retailer who will take appropriate action.

WARNING: DO NOT LEAVE THE CHILD UNATTENDED

The safety of your child is your responsibility.

WARNING:

Regularly check all fittings and components of the changer are fully tightened and in good working order. If any parts have become worn or damaged then do not use the product and seek advice from your retailer or Silver Cross. Only use spare parts supplied by Silver Cross.

WARNING:

Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc. in the near vicinity of the wardrobe.

WARNING:

Never use the wardrobe if any parts are broken or missing.

WARNING:

Never drag or pivot the wardrobe. If must be lifted and moved by ay least two people.

WARNING:

Before ensure the wardrobe is on a level, stable surface.

WARNING:

Do not allow children to climb on the wardrobe. The wardrobe can be cleaned with a damp cloth. Never use bleach, abrasive or strong detergents.

Thoroughly dry immediately after cleaning.

WALL STRAP INFORMATION

Never modify or change the wall strap in any way. Never use any other fittings other than those supplied to attach the wall strap to the dresser.

The wall strap provided is to be used with this product only.

Never use the screw provided to attach the strap to the wall. All walls are of different composition and it is important that the correct wall fittings are used. Consult a professional before attempting to attach the strap to the wall. No wall fittings are supplied with this product.

The wall strap must not be used to replace any other fittings supplied with this piece of furniture

We recommend the wall strap is used in all cases. To improve the stability of the furniture an even wood or tiled floor is best. A carpeted or warped floor can enable the furniture to rock, increasing the potential of the furniture to fall over.

IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Silver Cross®

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA

silvercrossbaby.com

IND.1127555
