Product Type	Wardrobe / Armoire
Brand	Silver Cross
Model	Ascot Wardrobe
Color	White
Material	Engineered wood (MDF) with melamine finish
Overall Dimensions	80 cm (W) x 50 cm (D) x 180 cm (H)
Weight	35 kg
Number of Doors	2
Shelves	4 adjustable shelves
Hanging Rod	1 full-length hanging rod
Assembly Required	Yes, includes assembly instructions
Safety Features	Anti-tip kit included, soft-close hinges
Cleaning Instructions	Wipe with a damp cloth; avoid abrasive cleaners
Warranty	2 years against manufacturing defects
Recommended Age	From birth (nursery use)
Country of Origin	China

Frequently Asked Questions - Ascot Wardrobe Silver Cross

What are the dimensions of the Silver Cross Ascot Wardrobe?

The wardrobe measures approximately 80 cm (width) x 50 cm (depth) x 180 cm (height). Always check your space before assembly.

Is assembly required?

Yes, the wardrobe comes flat-packed and requires assembly. Detailed instructions and all necessary hardware are included.

Does it come with an anti-tip safety kit?

Yes, an anti-tip kit is included to secure the wardrobe to the wall, ensuring stability and safety in a nursery.Always use the anti-tip device.

What materials is the wardrobe made from?

It is constructed from high-quality engineered wood (MDF) with a durable melamine finish that is easy to clean.

How many shelves does it have?

The wardrobe features four adjustable shelves, allowing you to customize storage space for clothes, toys, or linens.

Is there a hanging rail?

Yes, there is one full-length hanging rod suitable for baby clothes and coats.

How do I clean the wardrobe?

Wipe the surface with a soft, damp cloth. Do not use abrasive cleaners or solvents that may damage the finish.

What is the weight capacity of the shelves?

Each shelf can support up to 5 kg when evenly distributed. Avoid overloading to prevent sagging.

Does the wardrobe come in other colors?

The Silver Cross Ascot Wardrobe is primarily available in white to match most nursery decors. Contact retailer for color options.

What tools are needed for assembly?

You will need a Phillips head screwdriver and a hammer. All other hardware is provided. Assembly time is approximately 1 hour.

USER MANUAL Ascot Wardrobe Silver Cross

IMPORTANT RETAIN FOR FUTURE REFERENCE READ CAREFULLY

Silver Cross®

Ascot Wardrobe

IMPORTANT: THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO PEOPLE

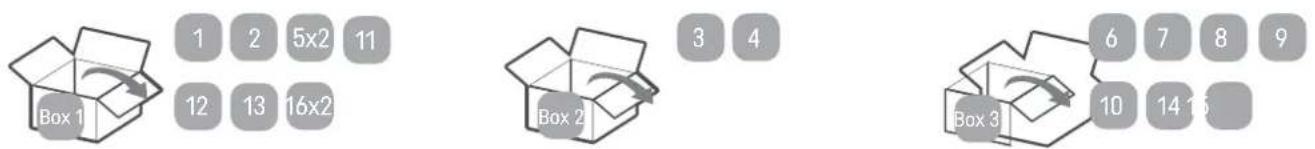

Parts list:

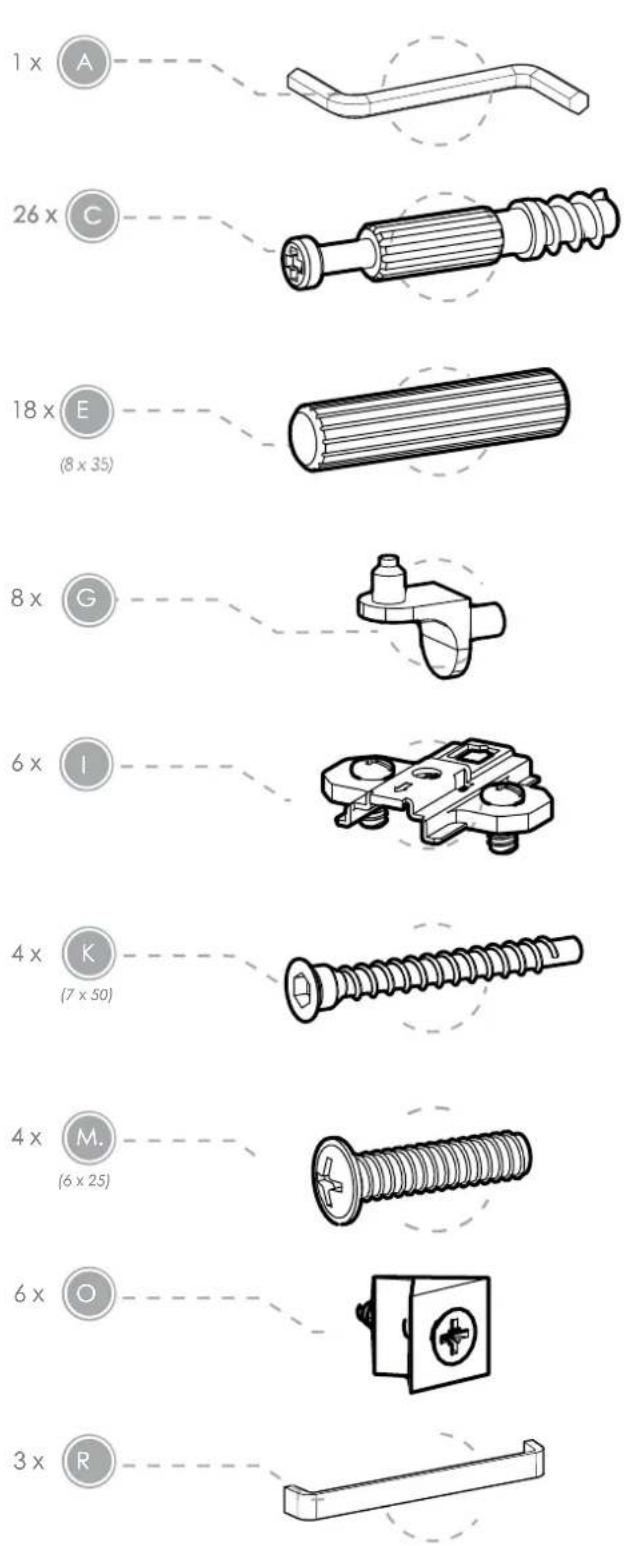

Fittings list:

Simple line drawing of a beam with a circular end labeled 'L' and dashed circular outline (no text or symbols)

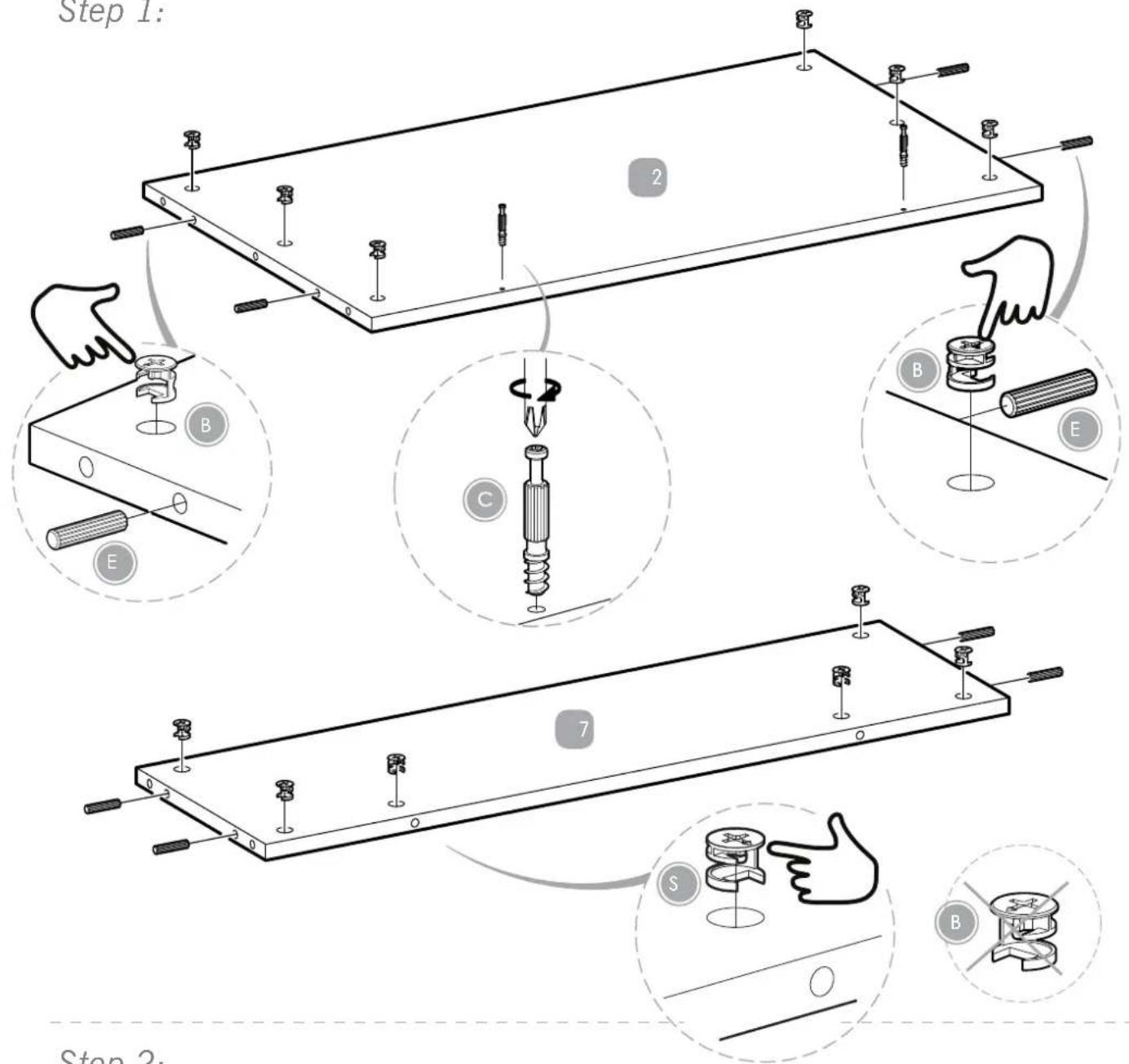

Step 1:

Step 2:

Step 3:

Step 6:

Step 7:

Step 8:

Step 9:

Technical line drawing of a metal frame structure with screwdriver and magnified detail view (no text or symbols)

Step 10:

Technical line drawing of a mechanical assembly with a numbered component (8), showing internal components and a dashed circular inset view.

Step 12:

Technical line drawing of a structural frame with two labeled components (1 and 2), showing internal supports and mounting holes (no text or symbols beyond labels)

3

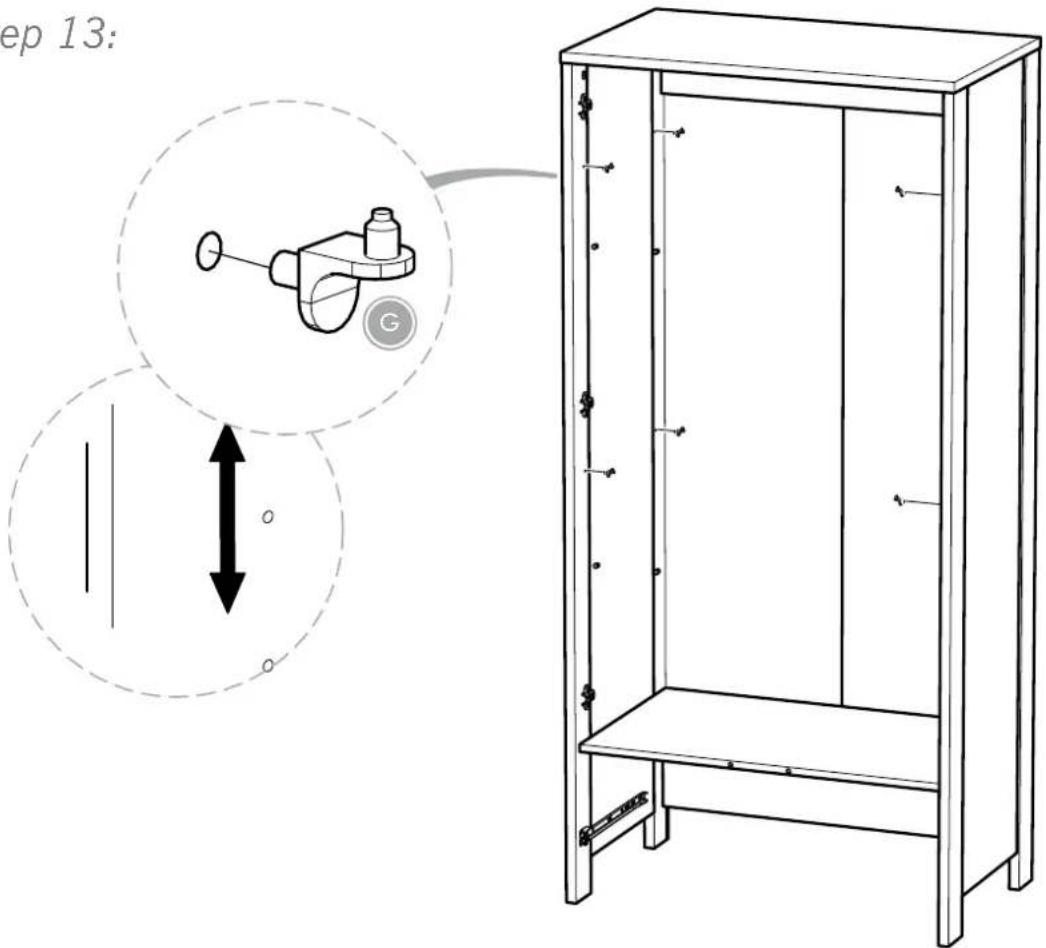

Step 13:

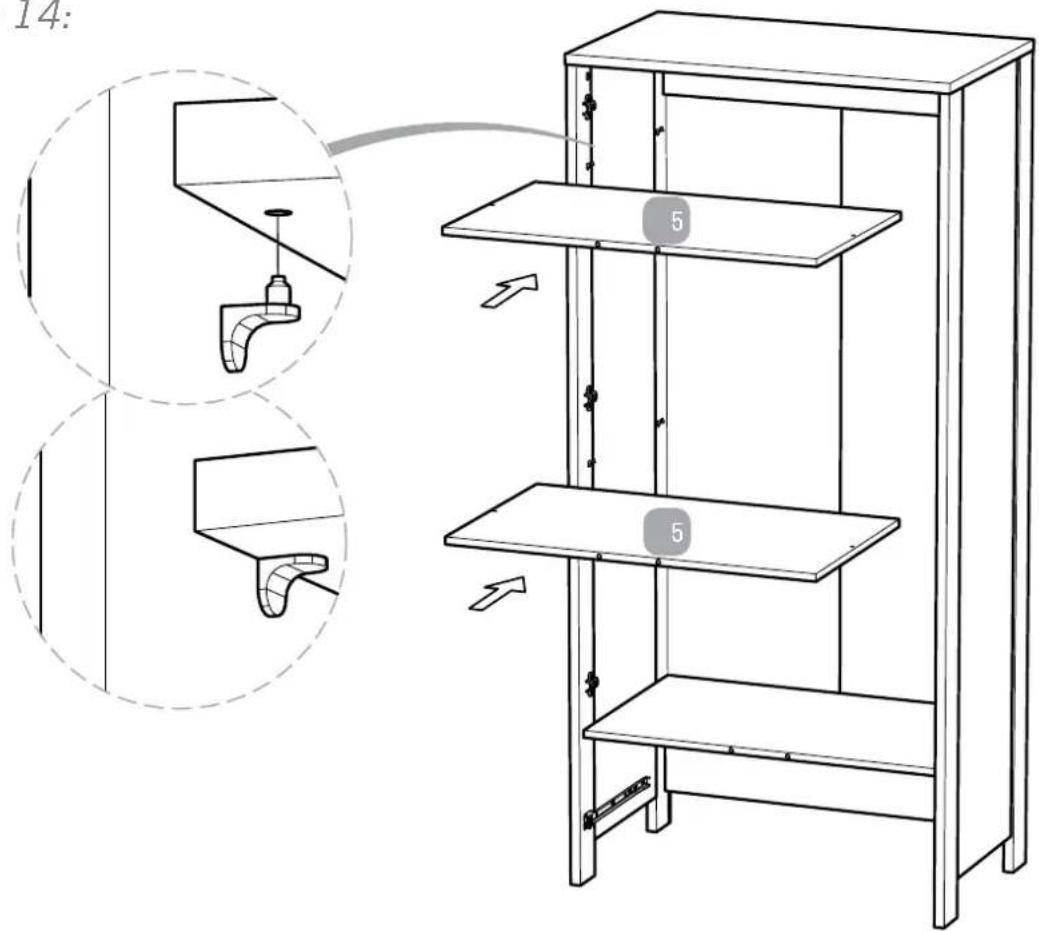

Step 14:

Step 15:

Step 16:

Step 17:

Step 18:

Step 19:

Step 20:

Step 21:

Step 22:

Diagram showing a rectangular frame with screw and nut components connected to a wire, with a magnified inset illustrating the electrical setup (no text or symbols)

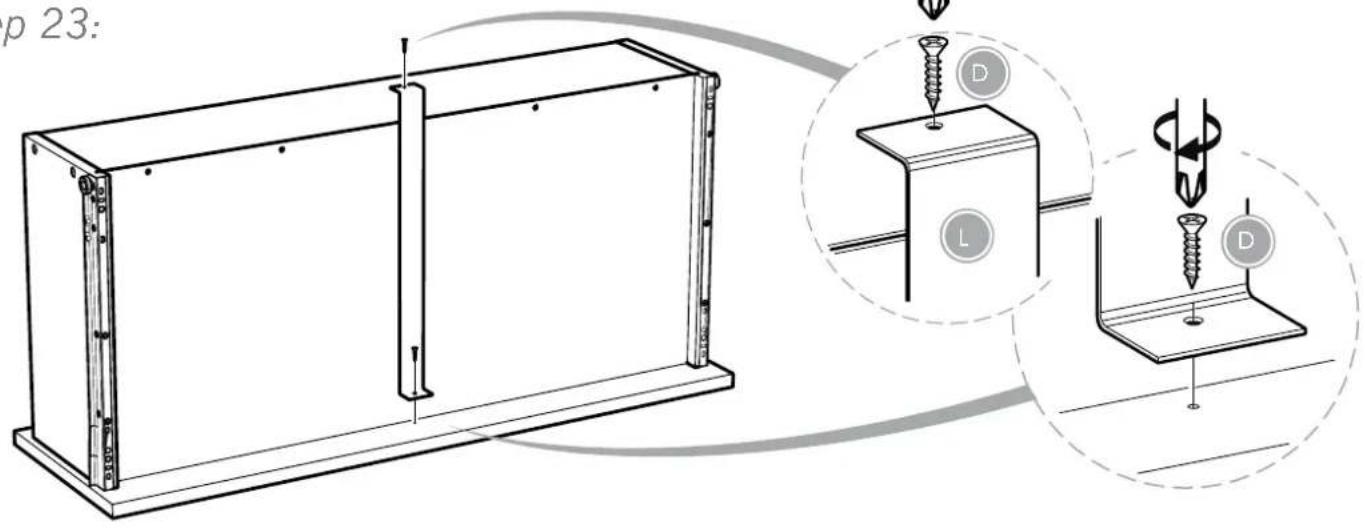

Step 23:

Step 24:

Technical line drawing of a rectangular metal enclosure with mounting brackets and internal slots, accompanied by a magnified inset showing tool positioning (no text or symbols)

Step 25:

Line drawing of a multi-level cabinet with one drawer and two shelves, no text or symbols present

Technical line drawings of mechanical components, showing three sequential views with no text or symbols

Step 26:

Step 27:

Step 28:

Line drawing of a two-door cabinet with open doors and internal compartments, showing structural details and a close-up inset of the door (no text or symbols)

Line drawing of a simple cabinet with two doors and a drawer, shown with dashed lines indicating vertical alignment (no text or symbols)

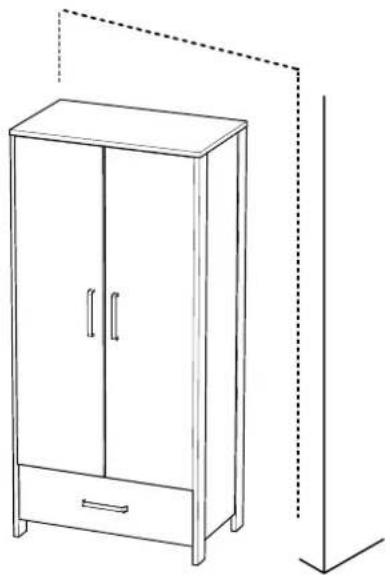

It is advised for safety reasons that the wardrobe is connected to the wall using the wall strap provided. All walls are different composition and it is important the correct fittings are used. Wall fittings are not supplied with this furniture and it is advised to consult a professional before fitting.

Step 29:

Line drawing of a cabinet with two doors and a drawer, accompanied by an instructional sketch showing a pencil drawing on a line (no text or symbols present)

Step 30:

Fix the wall strap to the furniture as shown with the fittings provided – do not use these fittings to connect to the wall. Consult a professional before fitting the strap to the wall.

Step 31:

Line drawing of a cabinet with drawers and handle, alongside an inset showing a hand using a screwdriver to adjust a screw (no text or symbols present)

Warnings & Instructions For Safe Use & Maintenance

Safety notes

This item is a high quality Silver Cross product. With correct use and maintenance it will give you good service. If however you should have any problems with your product, please contact your Silver Cross retailer who will take appropriate action.

WARNING: DO NOT LEAVE THE CHILD UNATTENDED

The safety of your child is your responsibility. WARNING:

Regularly check all fittings and components of the changer are fully tightened and in good working order. If any parts have become worn or damaged then do not use the product and seek advice from your retailer or Silver Cross. Only use spare parts supplied by Silver Cross.

WARNING:

Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc. in the near vicinity of the wardrobe.

WARNING:

Never use the wardrobe if any parts are broken or missing.

WARNING:

Never drag or pivot the wardrobe. If must be lifted and moved by ay least two people.

WARNING:

Before ensure the wardrobe is on a level, stable surface.

WARNING:

Do not allow children to climb on the wardrobe. The wardrobe can be cleaned with a damp cloth. Never use bleach, abrasive or strong detergents.

Thoroughly dry immediately after cleaning.

WALL STRAP INFORMATION

Never modify or change the wall strap in any way. Never use any other fittings other than those supplied to attach the wall strap to the dresser.

The wall strap provided is to be used with this product only.

Never use the screw provided to attach the strap to the wall. All walls are of different composition and it is important that the correct wall fittings are used. Consult a professional before attempting to attach the strap to the wall. No wall fittings are supplied with this product.

The wall strap must not be used to replace any other fittings supplied with this piece of furniture

We recommend the wall strap is used in all cases. To improve the stability of the furniture an even wood or tiled floor is best. A carpeted or warped floor can enable the furniture to rock, increasing the potential of the furniture to fall over.

IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA
