Product Type	Convertible Cot Bed
Brand	Silver Cross
Model	Brighton Cot Bed
Overall Dimensions	144 x 77 x 85 cm (approx.)
Mattress Size Required	140 x 70 cm
Weight	25 kg (approx.)
Material	Solid wood (beech) with non-toxic paint finish
Age Range	From birth up to 4 years
Maximum User Weight	15 kg (cot mode)
Safety Standards	EN 716, EN 1930
Mattress Base Positions	3 adjustable heights
Conversion	Converts to toddler bed with guard rail (included)
Drop-Side	No, fixed side for safety
Teething Rails	Yes, protective plastic rails on top edges
Assembly Required	Yes, instructions and tools included
Cleaning & Maintenance	Wipe with damp cloth; do not use harsh chemicals
Warranty	2 years
Country of Origin	Designed in the UK, manufactured in China

Frequently Asked Questions - Brighton Cot Bed Silver Cross

How long does assembly take for the Brighton Cot Bed?

Assembly typically takes 1-2 hours with two adults. The instruction manual includes step-by-step diagrams and all necessary tools are provided.

Does the cot bed convert into a toddler bed?

Yes, it converts into a toddler bed using the included conversion kit, which includes a guard rail. The conversion is simple and extends the bed's use up to approximately 4 years.

What size mattress does the Brighton Cot Bed require?

It requires a standard cot bed mattress of 140 cm x 70 cm. Ensure the mattress is firm and fits snugly with no gaps.

Is the mattress included with the cot bed?

No, the mattress is sold separately. We recommend using a Silver Cross mattress or any compatible 140x70 cm cot bed mattress.

What is the maximum weight limit for the cot mode?

The cot mode is suitable for children up to 15 kg (approx. 3 years old). The toddler bed mode does not have a specific weight limit but is designed for children up to about 4 years.

Is the drop-side feature available on this cot bed?

No, the Brighton Cot Bed has a fixed side for maximum safety. This design complies with current safety regulations that discourage drop-side mechanisms.

How do I clean and maintain the cot bed?

Wipe clean with a damp cloth and mild soap. Avoid abrasive cleaners or soaking the wood. Regularly check all screws and bolts for tightness.

Does the cot bed meet safety standards?

Yes, it complies with European safety standards EN 716 for cots and EN 1930 for toddler beds. It is also tested for stability and harmful substances.

Are spare parts available for the Brighton Cot Bed?

Spare parts such as teething rails, screws, and conversion kit components can be ordered from Silver Cross customer service or authorized retailers.

Can the mattress base height be adjusted?

Yes, the base has three adjustable positions: highest for newborns (easier access), middle for older babies, and lowest for active toddlers who can sit or stand.

USER MANUAL Brighton Cot Bed Silver Cross

THE BEST START IN LIFE

Brighton Cot bed

Assembly Instructions

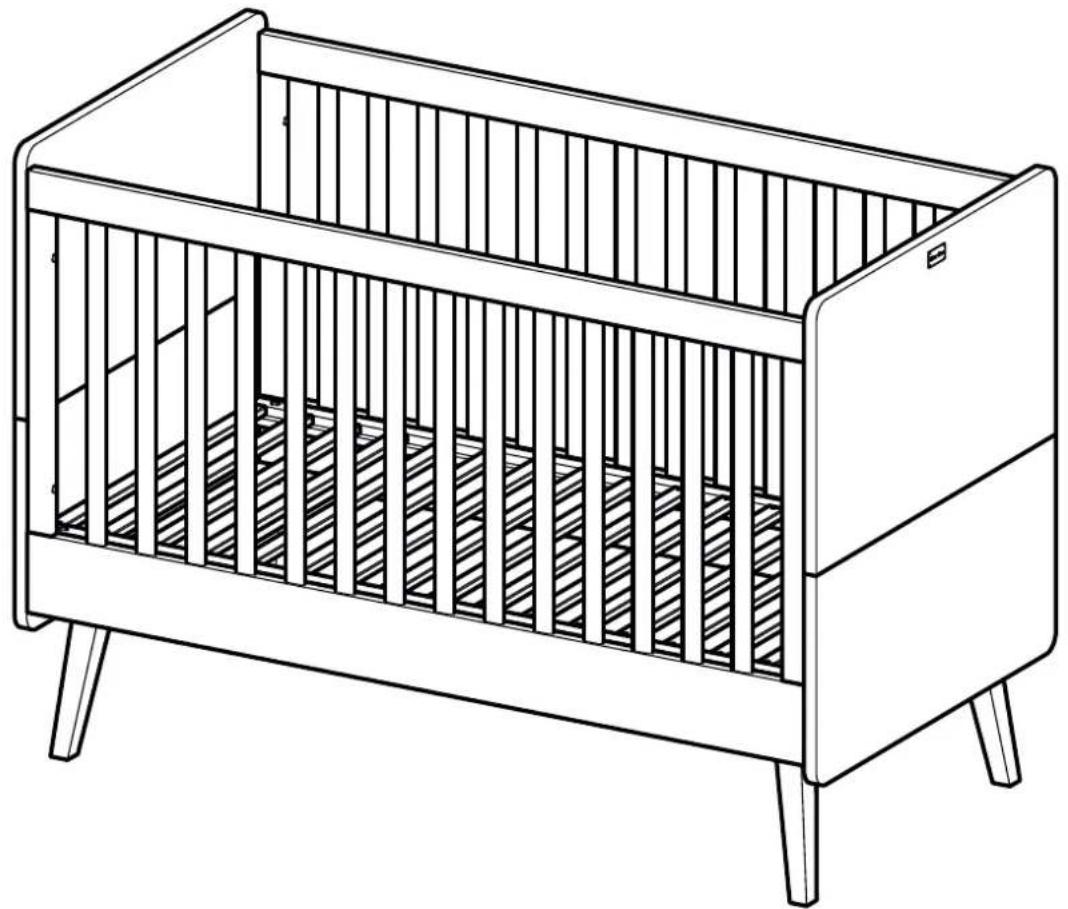

Line drawing of a baby crib with vertical slats and four legs (no text or symbols)

Decorative border pattern with repeating star and circle motifs (no text or symbols)

IMPORTANT: THE ASSEMBLY OF THIS

PRODUCT REQUIRES TWO PEOPLE

IMPORTANT: KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Fittings list:

Technical line drawing of a mechanical component with a 4x magnified view (no text or symbols)

Step 1:

Step 2:

Step 3:

Step 5:

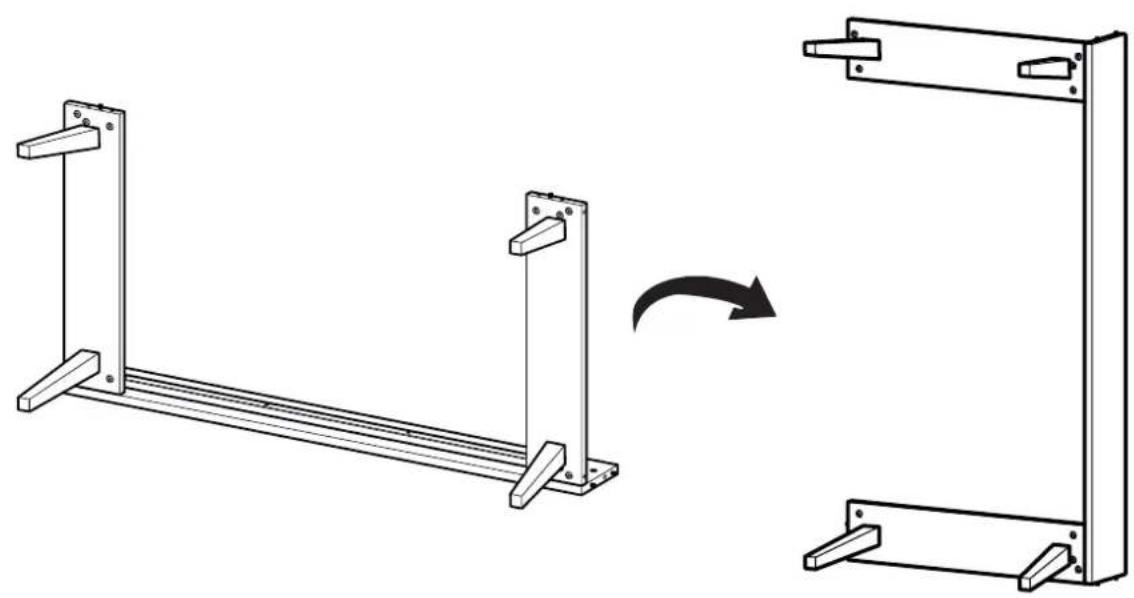

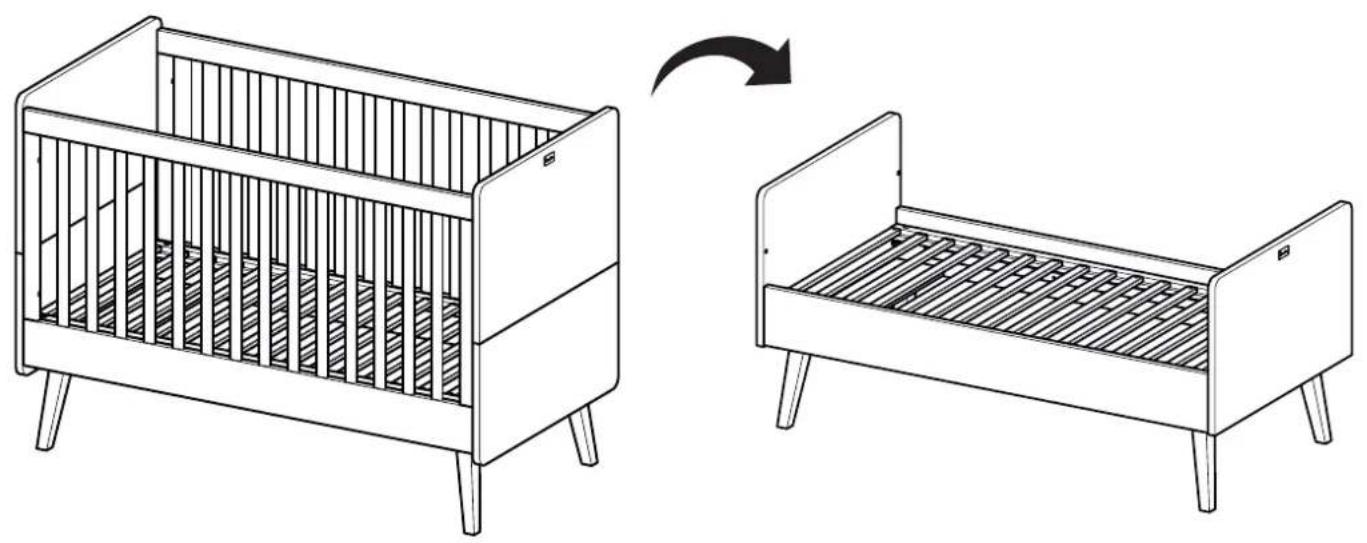

Diagram showing a structural change between two metal frame structures, one with slatted base and one with slatted top, indicated by an arrow (no text or symbols present)

Step 6:

Step 7:

Step 8:


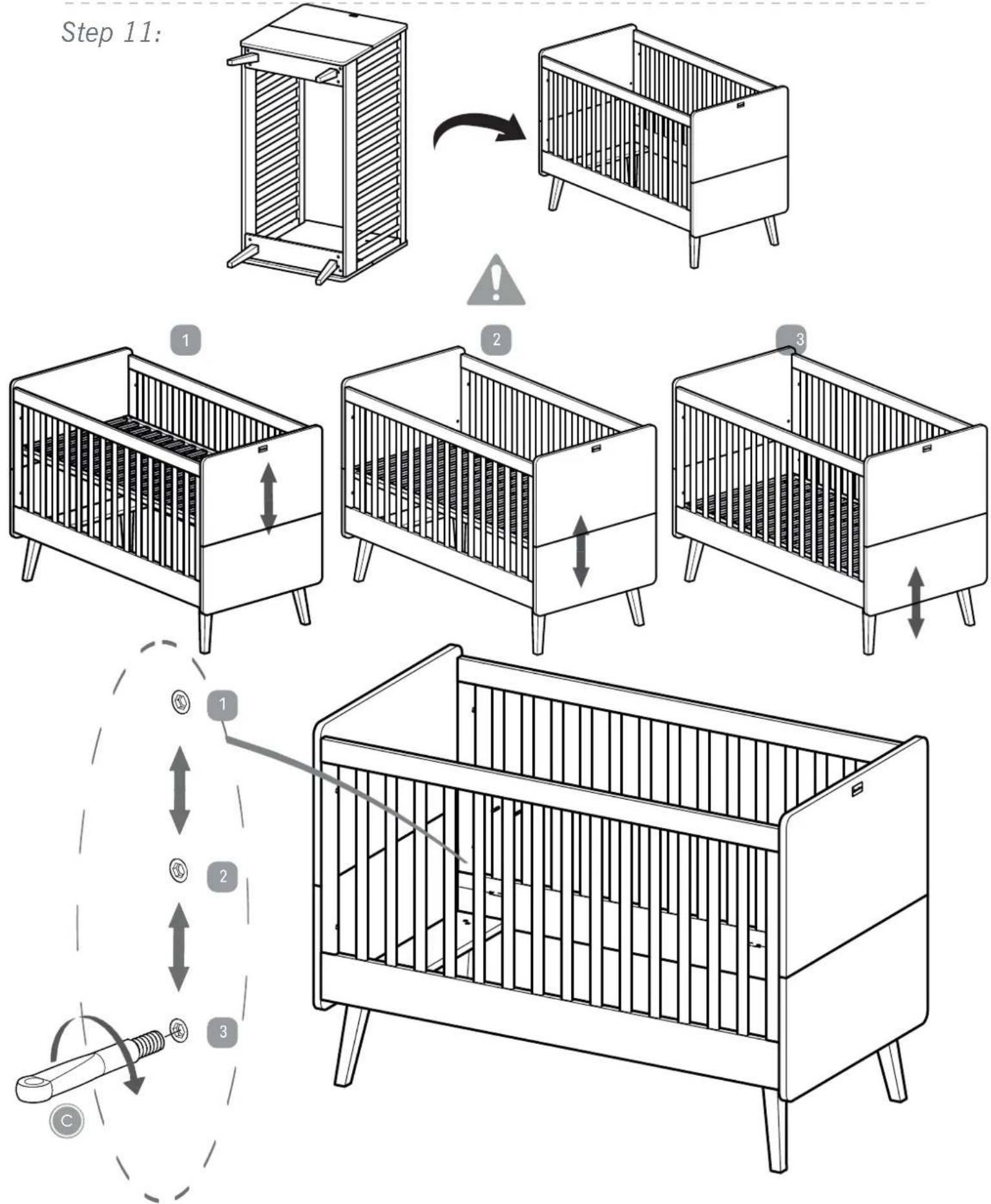

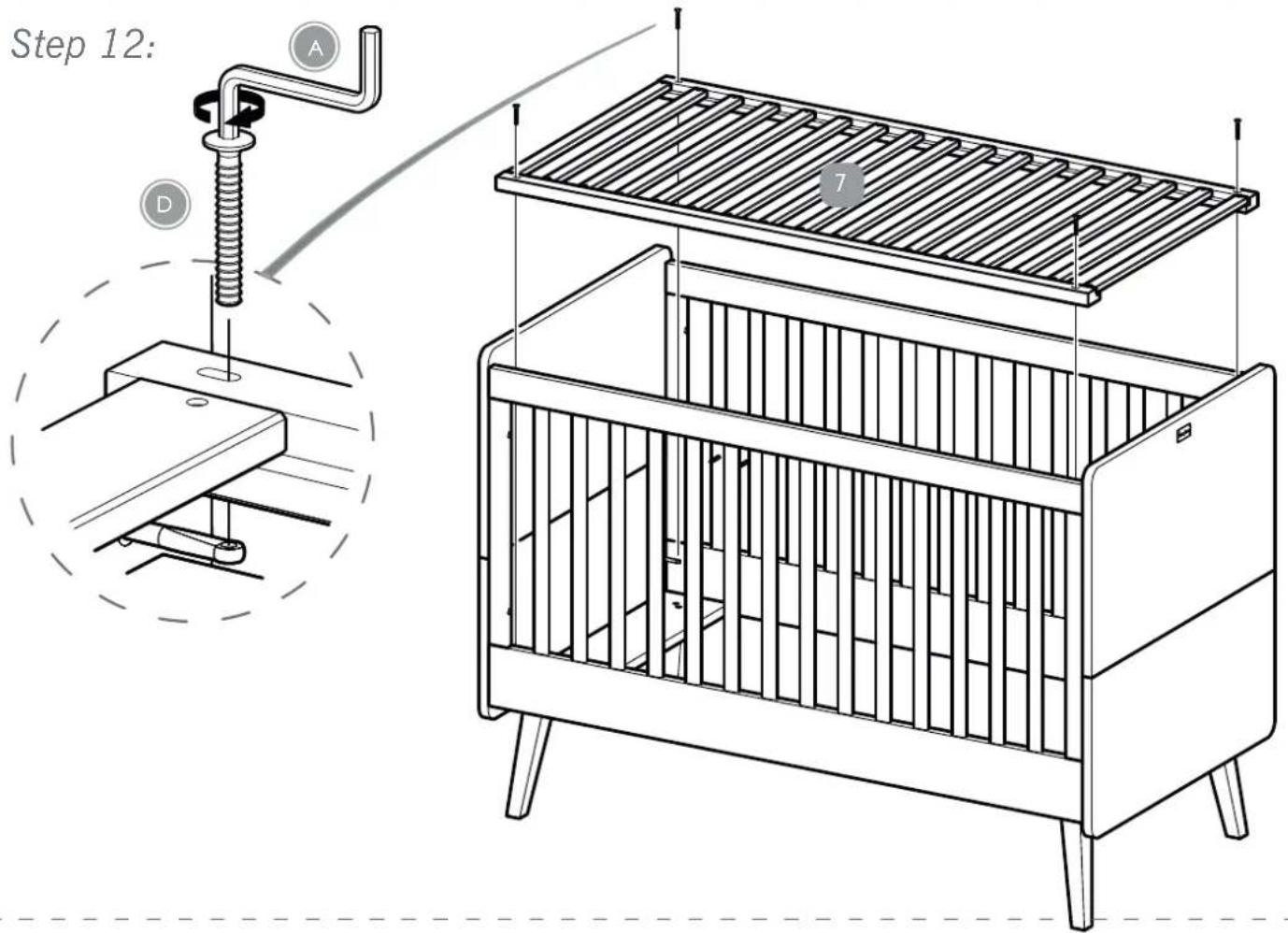

The cot bed base can be fitted at three different heights.
The lowest is the safest.

Line drawing of a baby crib with vertical slats and patterned backrest (no text or symbols)

Line drawing of two baby cribbenches with side supports, one showing a change from front to back (no text or symbols)

Step 13:

Step 14:

Line drawing of a baby crib with a circular inset showing a baby's cord and a magnified view of the cabin (no text or symbols)

Line drawing of a baby crib with side panel and side cabinet, showing structural change (no text or symbols)

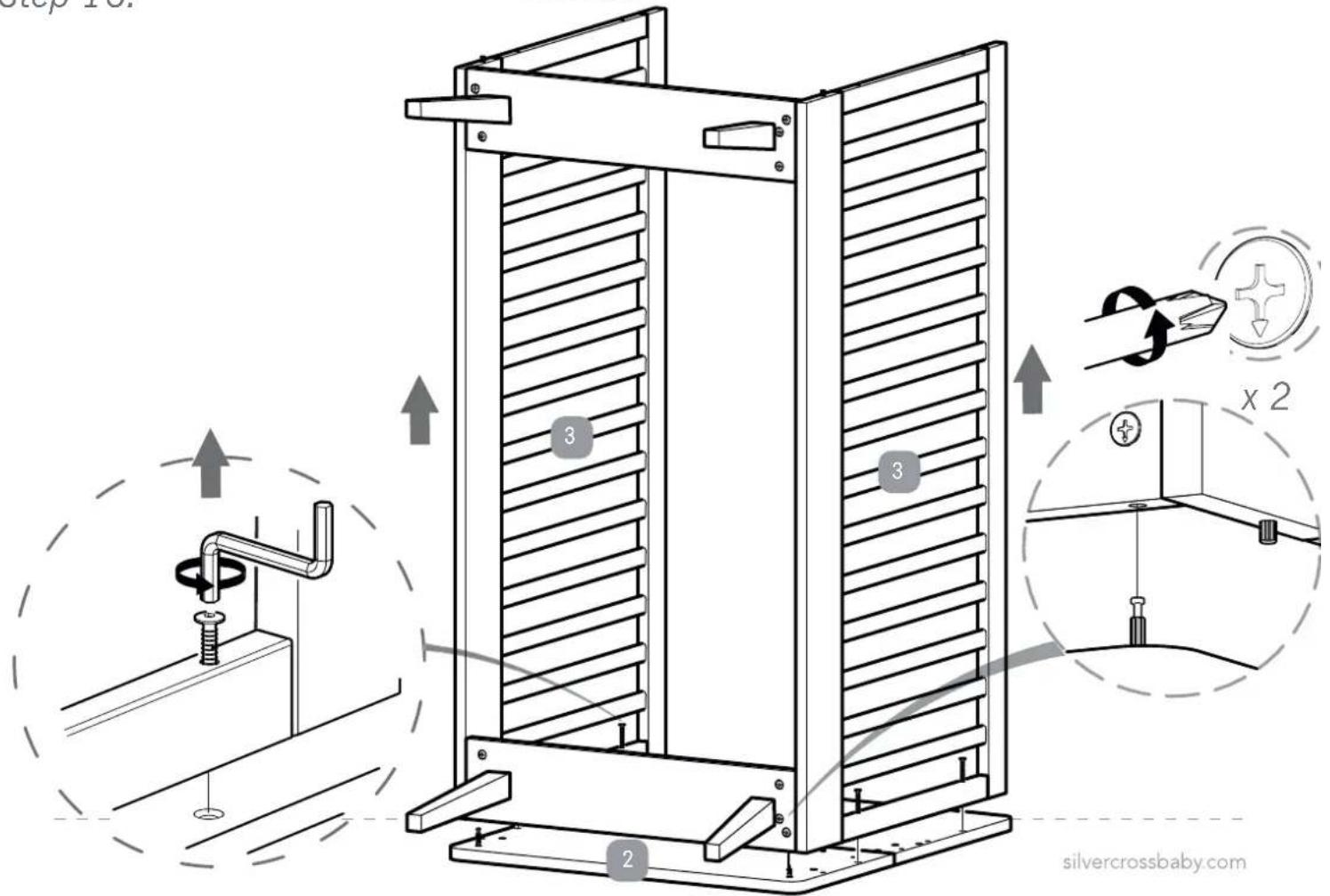

Step 16:

Step 17:

Step 18:

Diagram showing a structural change of a vertical panel with horizontal bars, before and after assembly (no text or symbols)

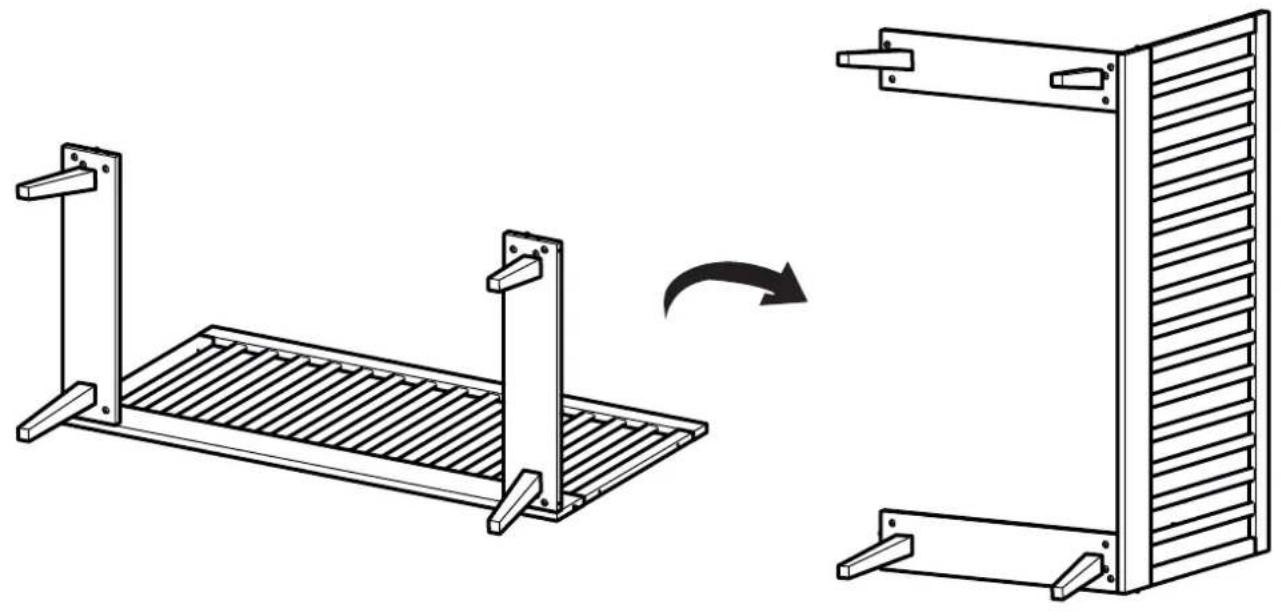

Diagram showing a structural change between two metal frame structures, one with a curved arrow indicating rotation (no text or symbols present)

Step 24:

Step 25:

Step 26:

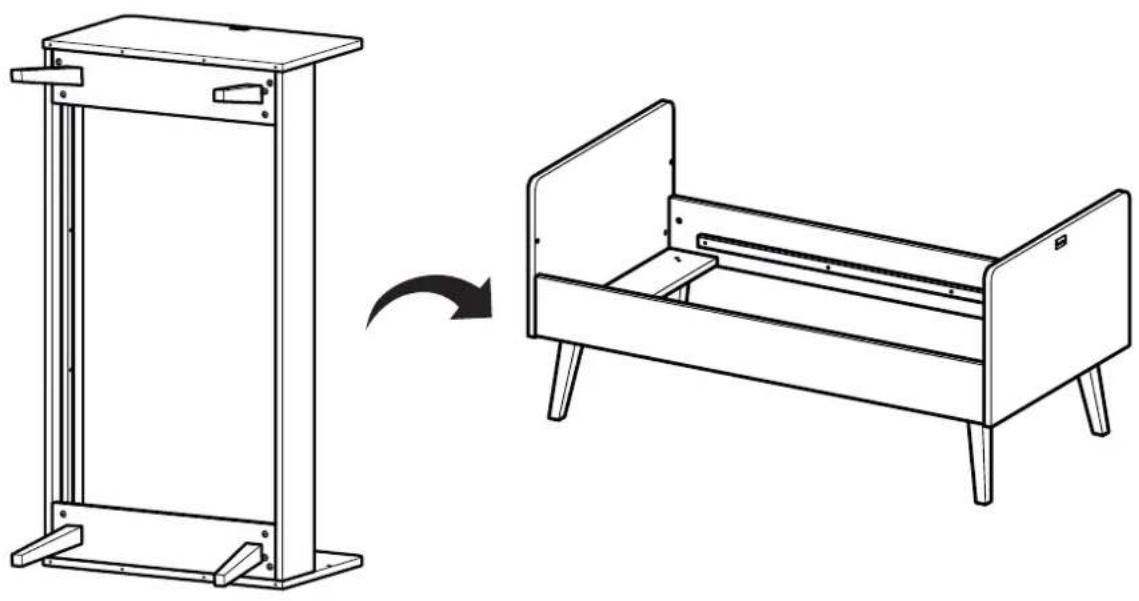

Line drawing of a two-step furniture setup: one side view of a vertical frame with supports, and another showing a side view of a single wooden bed (no text or symbols)

Step 27:

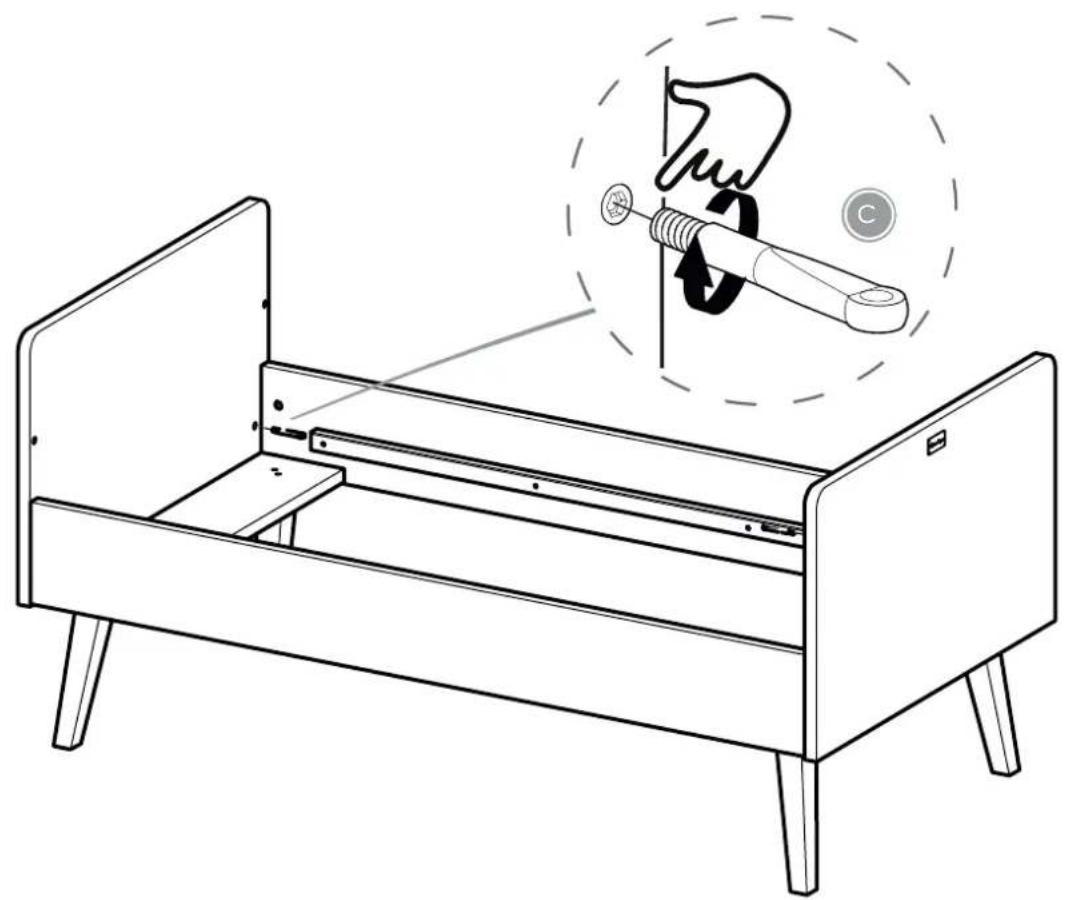

Line drawing of a baby crib with a hand tool and circular diagram overlay (no text or symbols)

Step 28:

Technical line drawing of a portable bed with metal grating and a mechanical clamp, showing assembly details (no text or symbols)

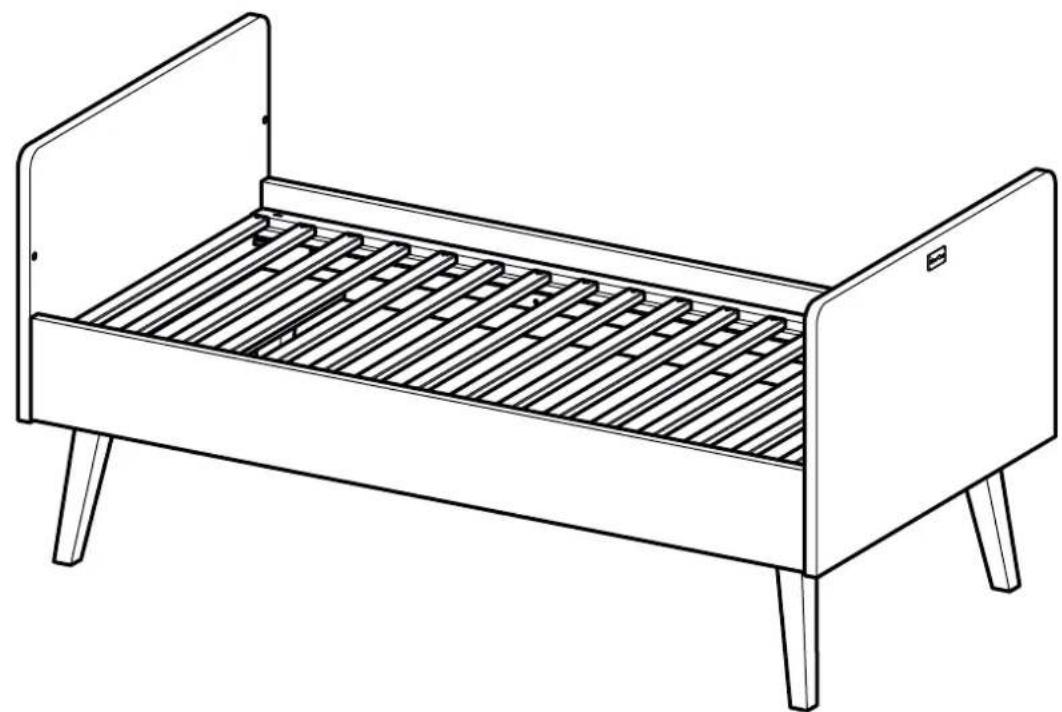

Line drawing of a simple bed with slatted backrest and two legs, no text or symbols present

Warnings & Instructions For Safe Use & Maintenance

WARNING: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc, in the vicinity of the cot/bed.

WARNING: Do not use the product if any part is broken, damaged, torn or missing. Approved replacement parts can be obtained from Silver Cross.

WARNING: Do not leave anything in the cot/bed, or place it close to another product which provides a foothold or presents a danger of suffocation or strangulation. For example strings, blind/curtain cords etc.

WARNING: Children are likely to play, bounce, jump and climb on beds, therefore the child's bed should not be placed too close to other furniture or windows, and should be placed either tight to any wall or have a gap of 300mm between the wall and the side of the bed.

WARNING: Do not place this child's bed near heat sources, windows and other furniture.

The lowest position of the mattress base is the safest, and should be used as soon as the baby is old enough to sit up. To prevent injury from falls, when the child is able to climb out of the cot, the cot shall no longer be used for that child.

Thickness of the mattress chosen must not reduce the internal depth (from mattress surface to top of the side) to less than 500mm with the base in its lower position or 200mm with the base in its higher position.

Maximum 10cm thick mattress to be used with this cot bed.

All assembly fittings should be tightened properly, checked regularly and re-tightened as necessary.

Screws and bolts should not be loose because a child can squeeze parts of the body, or clothing e.g string, necklaces, ribbons for babies dummies etc. could get caught. There would be a danger of strangulation.

The cot/bed must be used on a level and stable surface, away from electric sockets. Once assembled do not dismantle. Never move the cot/ bed with a child in it.

Excessive chewing may damage the wood and cause splintering. If any part is damaged stop using until the correct replacement part has been obtained from Silver Cross.

Your cot/bed can be cleaned by wiping with a damp cloth and drying immediately with a soft clean cloth.

Do not use abrasives, bleach, alcohol or ammonia based household polishes.

Take care when handling or moving furniture, careless handling can damage wooden furniture.

Wood is a natural material, the colour will darken with age.

The size of the mattress to be used with the child's bed is 1400x700mm.

Cot conforms to BS EN 716-1:2008 + A1: 2013 and toddler bed to BS 8509:2008+A1:2011.

Cots which convert to toddler beds are intended from birth up to approximately 4 years.

The mattress length and width shall be such that the gap between the mattress and the sides and ends does not exceed 30mm.
