KPR30 - Radio EKO - Free user manual and instructions

Product Type	Portable Radio
Brand	EKO
Model	KPR30
Radio Bands	AM / FM
Tuning Type	Analog Dial
Speaker	Built-in 3-inch
Headphone Jack	3.5mm
Antenna	Telescopic Rod
Power Source	4 x AA Batteries or AC Adapter (not included)
Dimensions (HxWxD)	180 x 120 x 60 mm
Weight	400 g (without batteries)
Color	Black
Volume Control	Rotary Knob
Power On/Off	Via Volume Knob
Frequency Range FM	87.5 - 108 MHz
Frequency Range AM	530 - 1600 kHz
Cleaning Instructions	Wipe with dry soft cloth
Safety Precautions	Do not expose to water or moisture
Spare Parts Availability	Contact manufacturer or authorized dealer
Warranty	1 Year Limited

Frequently Asked Questions - KPR30 EKO

How do I turn on the radio?

Rotate the Volume knob clockwise until you hear a click. The radio will power on.

How do I tune to a station?

Use the Tuning knob to select your desired frequency. For FM, extend the telescopic antenna fully.

What batteries does the KPR30 require?

It uses 4 x AA batteries (not included). You can also use an AC adapter (5V, 500mA) if available.

Why is there no sound?

Check if the radio is powered on and volume is turned up. Ensure headphones are not plugged in as they mute the speaker.

Can I use headphones?

Yes, plug any standard 3.5mm headphones into the headphone jack. The speaker will mute automatically.

How do I improve FM reception?

Fully extend the telescopic antenna and adjust its position. For best results, place the radio near a window.

How do I clean the radio?

Wipe the exterior with a dry, soft cloth. Do not use water or cleaning chemicals.

Is the radio safe to use in the bathroom?

No, the radio is not waterproof. Keep away from water to avoid damage or electric shock.

What is the warranty period?

The EKO KPR30 comes with a 1-year limited warranty. Keep your receipt for proof of purchase.

Where can I find spare parts?

Contact EKO customer service or an authorized dealer. Use only original parts for repairs.

USER MANUAL KPR30 EKO

Please read this manual carefully before using, and keep it for future reference.

CONTENTS

General

Safety

Product

Overview

Basic Operation
8

Mains	Supply
Batteries		8
Antenna		8
Tuning	Radio Stations
Volume		9
Troubleshooting		10
Specification		11
Customer Support		Last Page

GENERAL SAFETY

Read this manual thoroughly before you start using the radio.

Store this manual, the completed warranty card, your receipt and the product packaging.

The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

IMPORTANT INFORMATION

• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the product or its controls and to call for an adult to assist.

GENERAL SAFETY (CONT.)

IMPORTANT INFORMATION

• Do not expose this product to rain or moisture as it may result in fire.
• Do not temper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product

This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling when mounted and can cause injury, particularly to children if it positioned incorrectly.

• The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product. Dry location use only.
• No naked flame source, such as candles, should be placed on the product.
• Do not cover the ventilation openings of the product with items such as news papers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire.

This symbol indicates that the appliance has double insulation between the dangerous mains voltage and the parts accessible to the user. In the event of repairs use only identical spare parts.

GENERAL SAFETY (CONT.)

• If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock.
• When not using the unit for long periods of time or when you are moving the unit.
• Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
• The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
• Batteries from the product must be only removed by an adult, the adult must ensure to keep them out of reach of infants and children. Seek medical attention immediately if a child has swallowed a battery.
• To maintain the product do not use any chemical or cleaning agent or wet cloth, please only ensure to utilize a dry cloth to wipe it down from marks or dust and only after unplugging the product from the power socket.
• Please ensure to contact our call center for any repair or service required for the products.

Please make sure upon positioning this product, the place is:

• Not wet or damp and Well ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not place this equipment in a confined space such as a bookcase or similar unit. Allow 20cm above and 5cm spacing on both sides for proper ventilation.
• Do not place the Product near heat sources such as radiators, stoves or other audio visual equipment that produce heat.
• Do not place small metallic objects on top of the unit.
• Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes or incense sticks on top of the product.

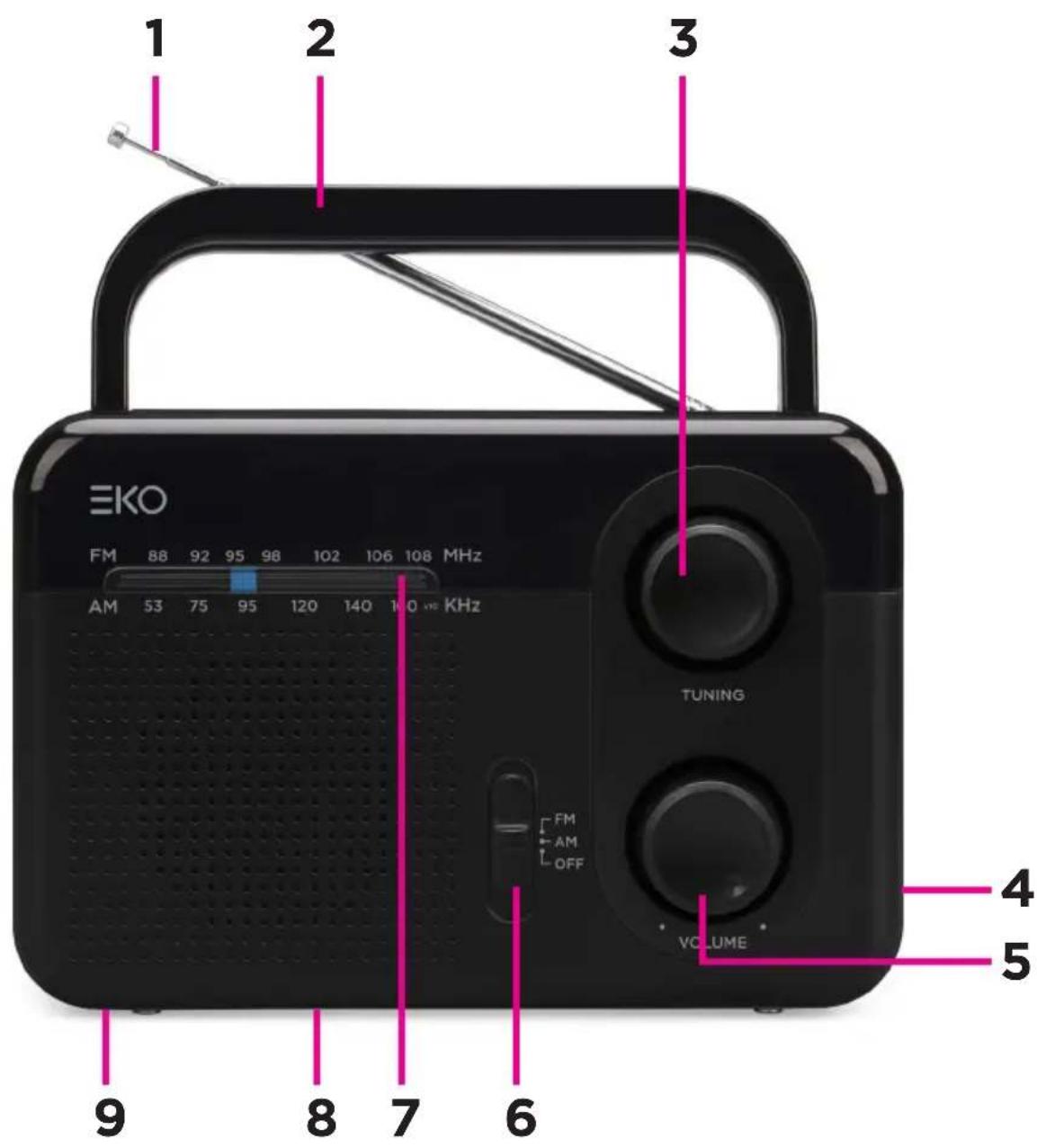

PRODUCT OVERVIEW

1. Antenna
2. Carry Handle
3. Radio Tuning Control
4. Headphone Jack
5. Volume Control
6. Radio Band Selector
7. Frequency Scale
8. Battery Compartment (back of radio)
9. AC Inlet (back of radio)

BASIC OPERATION

MAINS SUPPLY

• Plug in the main power lead into the wall power socket and switch the power on.
• When using power supply from mains lead, battery operation will be turned off (if batteries are inside).

BATTERIES (OPTIONAL)

- If you want to bring your portable radio around with you and still listen to music, make sure that 3x C-Batteries are inserted into battery compartment located at the back of the radio.

3x

(C-Batteries not included)

ANTENNA

• Unwind and extend FM/AM wire antenna to its full length for FM/AM reception and place it in the position. Which permits best reception.
• If FM/AM reception is weak, slightly rotate or re-position the unit to get the best possible reception.

TUNING RADIO STATIONS

1 Select the correct Radio mode you want on the selector located next to Volume Dial.
2 Turn the tuning dial and look at the frequency window to find your radio station you want to listen to.
3 Once you have found a radio station to listen to, adjust the Volume dial to the level of radio volume you want to hear.

To adjust the volume, turn the VOLUME dial clockwise to increase the volume, counter-clockwise to decrease the volume.

TROUBLESHOOTING

In the unlikely event of difficulties with your appliance please follow the trouble shooting guide below.

Problem	Reason(s)	Solution(s)
No Power	Power cable not connected to wall socket.Power socket is not switched	Make sure the plug is connected.Make sure that there is power at the AC outlet.
Radio reception weak	Extend or re-position the FM pig-tail antenna.Re-position the main unit for FM reception.Keep the clock radio away from other electronic devices to avoid radio interference.

SPECIFICATIONS

Power Supply	AC - 230V ~ 50HzDC - 4.5V Battery (3 x 1.5V “R14 / UM-2 / C”)
Power Input 3.5W
Speaker 3”, 8 ohm dynamic speaker
Batteries	3 x 1.5V R14 / UM-2 / C(Not included)
Frequency
FM 87.5 - 108MHz
AM 522 KHz - 1629 KHz

EKO

CUSTOMER HELPLINE:

[e-mail]

DISTRIBUTED BY:

Ayonz Pty Ltd
