Product Type	Vacuum Cleaner
Brand	G-Technology
Model	ATF307
Dimensions (L x W x H)	18 x 12 x 14 inches (45.7 x 30.5 x 35.6 cm)
Weight	12.5 lbs (5.7 kg)
Power Supply	120V AC, 60Hz, 12A
Suction Power	250 AW (Air Watts)
Dust Capacity	3.5 liters (bagless or bagged? assume bagless)
Cord Length	30 feet (9.1 m)
Cleaning Path Width	11 inches (28 cm)
Filtration	HEPA filter, washable
Noise Level	72 dB
Attachments Included	Crevice tool, dusting brush, upholstery tool, extension wand
Features	Cyclonic suction, swivel steering, adjustable height, handle carry
Maintenance	Empty dust bin after each use, wash filter monthly, check brush roll for hair
Safety	UL certified, thermal overload protection
Spare Parts	Replacement HEPA filter, brush roll, belt, dust bin
Warranty	2 years limited
Manual Language	English (PDF provided)

Frequently Asked Questions - ATF307 G-TECHNOLOGY

How do I empty the dust bin on the G-Technology ATF307?

Press the release button on the top of the dust bin, lift it off, and empty the contents into a trash can. Rinse the bin with water and let it dry completely before reattaching.

How often should I clean or replace the HEPA filter?

Wash the HEPA filter every 3-6 months with water and let it air dry for 24 hours. Replace it every 12-18 months or if damaged.

What does the check filter light indicate?

The light indicates that the filter needs cleaning or replacement. Follow the maintenance instructions in your manual.

My vacuum has lost suction. What can I check?

First, empty the dust bin and clean the filter. Then check for blockages in the hose, wand, or brush roll. Also ensure the brush roll can spin freely.

How do I clear a blockage in the hose?

Detach the hose from the vacuum and wand. Use a broom handle or similar object to gently push the blockage out from one end. Reattach and test.

Can I use the vacuum to clean pet hair?

Yes, the ATF307 is suitable for pet hair. Use the upholstery tool for furniture and the crevice tool for corners. Clean the brush roll regularly to prevent hair wrap.

How do I adjust the height for different floor types?

Turn the height adjustment dial on the foot to the desired setting. Use lower settings for carpets and higher for hard floors.

What attachments come with the vacuum?

The vacuum includes a crevice tool, dusting brush, upholstery tool, and extension wand. They can be stored on board.

Is the vacuum bagless or does it use bags?

The ATF307 is bagless. It uses a transparent dust bin with cyclonic technology for easy emptying.

Where can I find replacement parts?

Replacement filters, brush rolls, belts, and other parts are available on the G-Technology website or authorized retailers. Use genuine parts for best performance.

USER MANUAL ATF307 G-TECHNOLOGY

Do not use in rain or leave outdoors whilst raining.

WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal safety:

• Store indoors in a dry place out of the reach of children.
• Always use responsibly. This appliance can only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended may present a risk of personal injury.
  • Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliance's openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers and all parts of the body.
  • Particularly keep hair away from the brush bar and other moving parts, but also loose clothing, fingers and other body parts.
• The product does not stay upright without constant support. Between uses, lay on the floor in a suitable location so that it does not become a trip hazard or can be stepped on.

Electrical safety:

• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.
• A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.
• Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.
• Do not wrap the cord around the charger when storing.
• Keep the charger cord away from hot surfaces and sharp edges.
• The supply cord cannot be replaced. If the cord is damaged, the charger should be discarded and replaced.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
• Ensure the appliance is off before connecting or disconnecting the accessories and motorised brush bar.

Battery safety:

• This appliance includes Li-ion batteries; do not incinerate batteries or expose to high temperatures as they may explode.
• Liquid ejected from the battery may cause irritation or burns.
  • In an emergency situation, contact professional help immediately!
• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin, wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Shorting the battery terminals may cause burns or fire.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• When you dispose of the appliance, remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

• CAUTION – to reduce the risk of injury from moving parts, remove battery before servicing.
• Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.

• The product can be used for above floor cleaning and hard to reach places. Extra care should be taken when using the Product for above floor cleaning.

• Never modify the appliance in any way as this may increase the risk of personal injury.

• Only use replacement parts or accessories provided or recommended by Gtech.
• If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service centre.

Intended use:

• This appliance has been designed for domestic dry vacuum cleaning only.
- Do not pick up liquids or use on wet surfaces.
- Do not pick up anything that is flammable, burning or smoking.
- Use only as described in this manual.
- Do not use on concrete, tarmacadam or other rough surfaces.
- The brush bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.
- May damage delicate fabrics or upholstery. Care should be taken on loose-weave fabrics or where there are loose threads. If in doubt, please test on an inconspicuous area first.
- The product has a constantly rotating brush bar. Never leave the cleaning head in one spot for an extended period of time as this may damage the floor surface.

WARNING:

• Do not use water, solvents or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dish washer.
• Only use authentic Gtech bags, batteries, charger etc.
• Do not use without bag fitted.
• For household use only.

Portrait of a smiling man in a striped shirt (no text or symbols visible)

Thank you for choosing Gtech

"I started Gtech to create sensible, easy to use products that do a great job. Your opinion is important to us and we'll use your feedback to improve our products and services, and to let other people know what it's like to be part of the Gtech family."

Nick Grey – Inventor, owner of Gtech

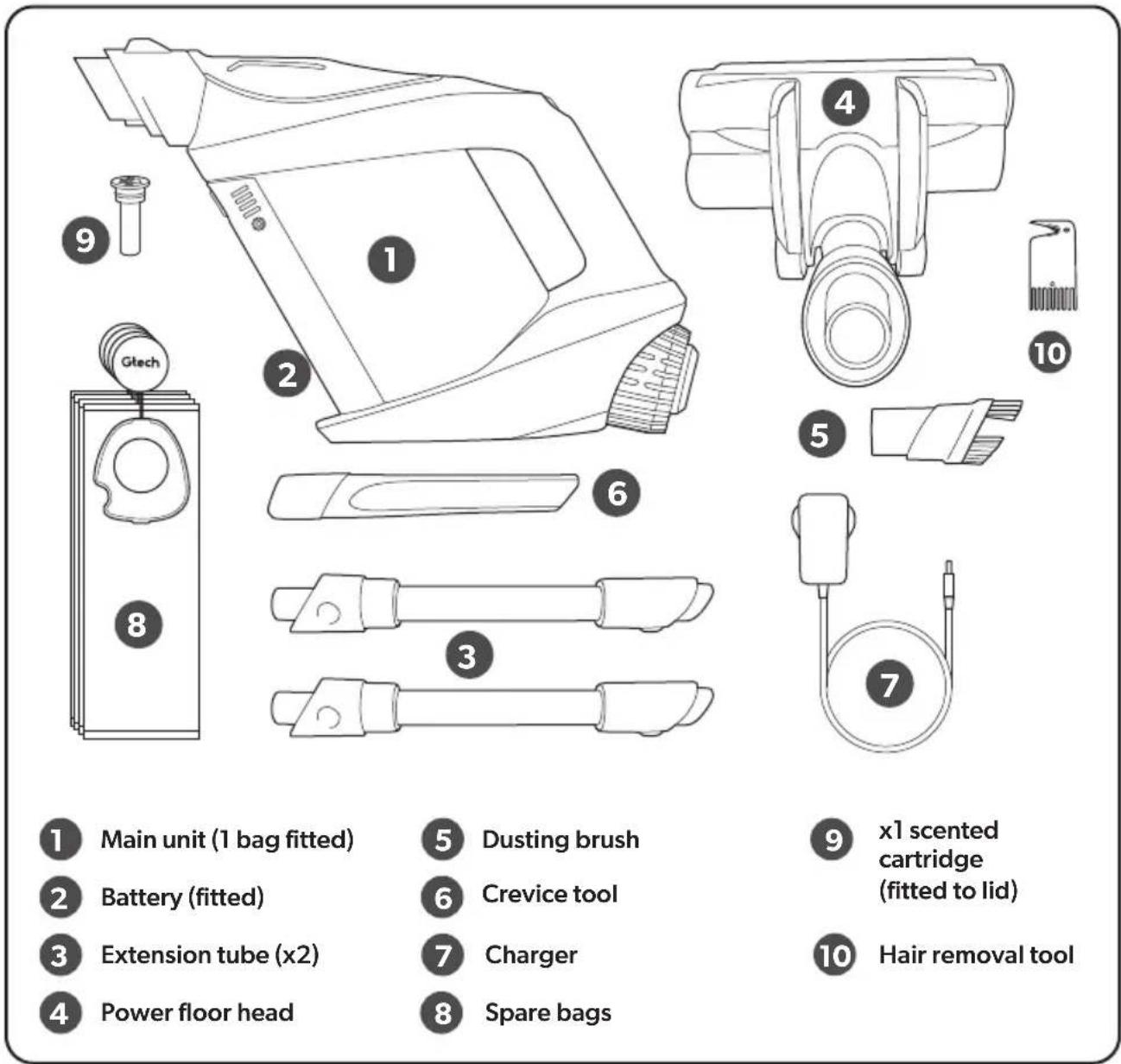

What's in the box

Tool configurations

Operation

Line drawing of a mechanical device with no visible text or symbols

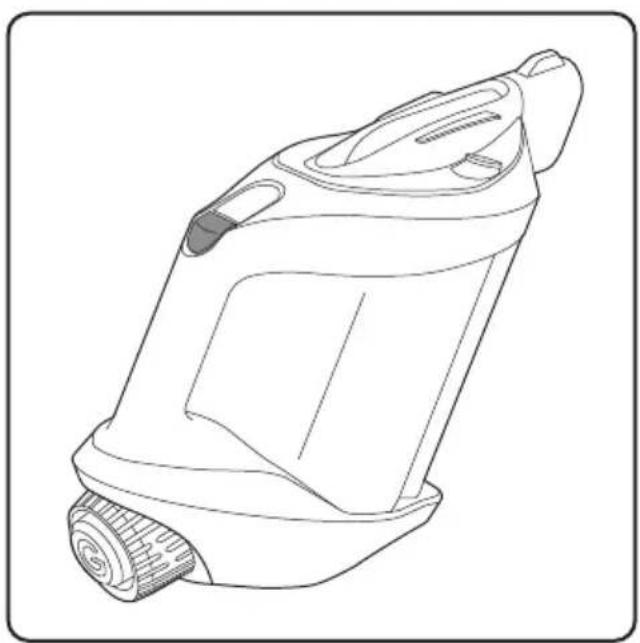

Press the large button above the handle to turn the product on and off.

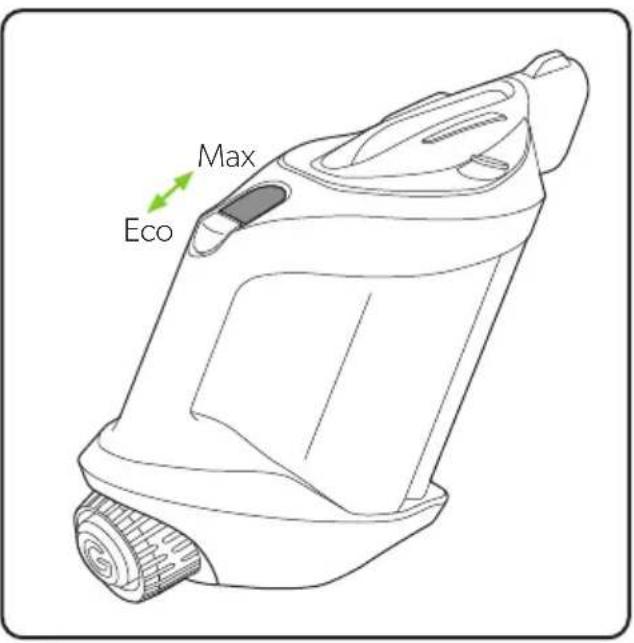

The product has 2 power settings: Max mode (higher suction power and shorter runtime) and Eco mode (lower suction power and longer runtime). Change modes by sliding the switch located in front of the On/Off button. The product will turn on in the mode it was last used.

Power floor head assembly

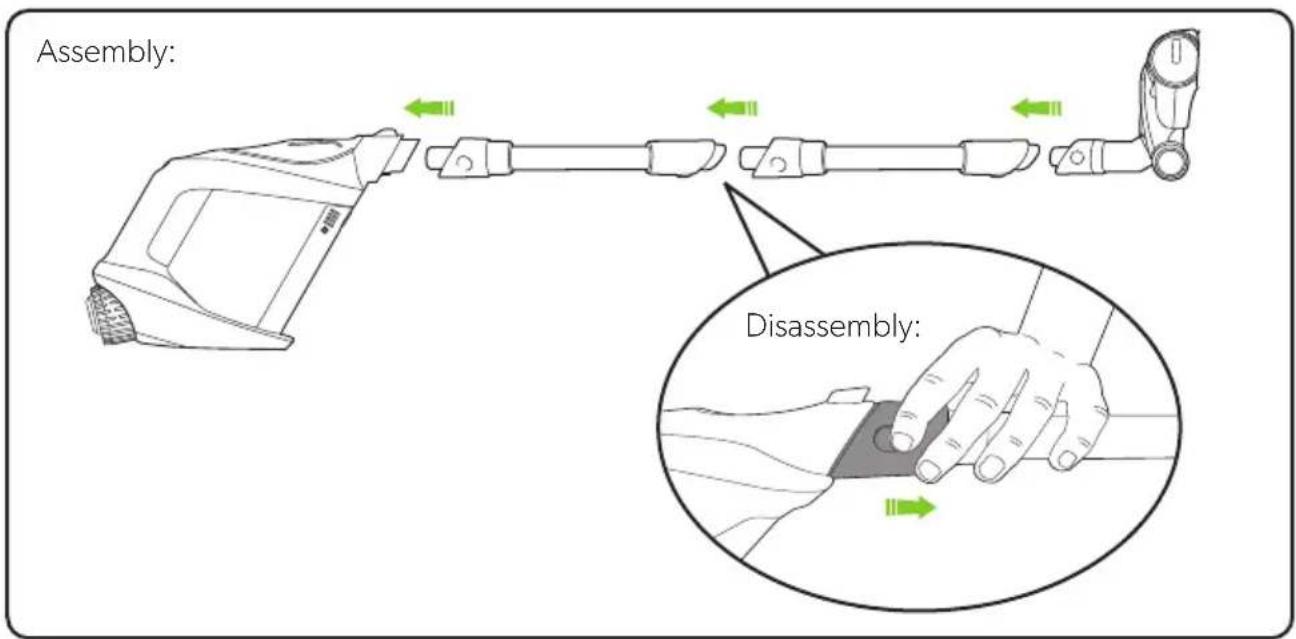

To use the product in floor cleaning mode, join the 2 sections of the extension tube and fit the power floor head at the end. Ensure all parts are correctly lined up and push them into place.

Ensure the product is switched off before removing or fitting attachments.

To disassemble, place your fingers in the indents of the tube, grip and pull the sections apart.

Illustration of a person using a handheld vacuum cleaner with a green arrow indicating motion (no text or symbols)

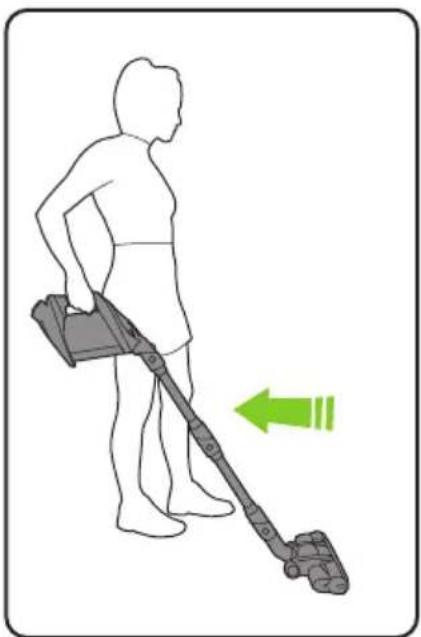

Place your foot gently on the head of the vacuum and pull the body back towards you. You will hear a click.

Illustration of a person using a handheld vacuum cleaner with a green directional arrow indicating motion (no text or symbols)

A forward motion will pick up larger pieces of debris.

Illustration of a person using a handheld vacuum cleaner with a green directional arrow indicating left motion (no text or symbols)

Pulling the vacuum back towards you activates the AirLOC and picks up finer particles.

Removing and cleaning the brush bar

Diagram of a mechanical device with a close-up inset showing a component being turned, no text or symbols present.

Before you remove the brush bar, you will need to remove the power floor head from the extension tube. Rotate the latch on the side of the powered floor head to the 'unlock' position and pull out the brush bar.

Illustration of hands holding a tool with a green arrow indicating motion (no text or symbols)

To remove hair from the brush bar, use the hair removal tool to cut the hair before pulling it out. Never operate the power floor head without the brush bar in place.

Above the floor cleaning

Two human figures demonstrating a precision tool, one holding a tool and the other extending a tool (no text or symbols present)

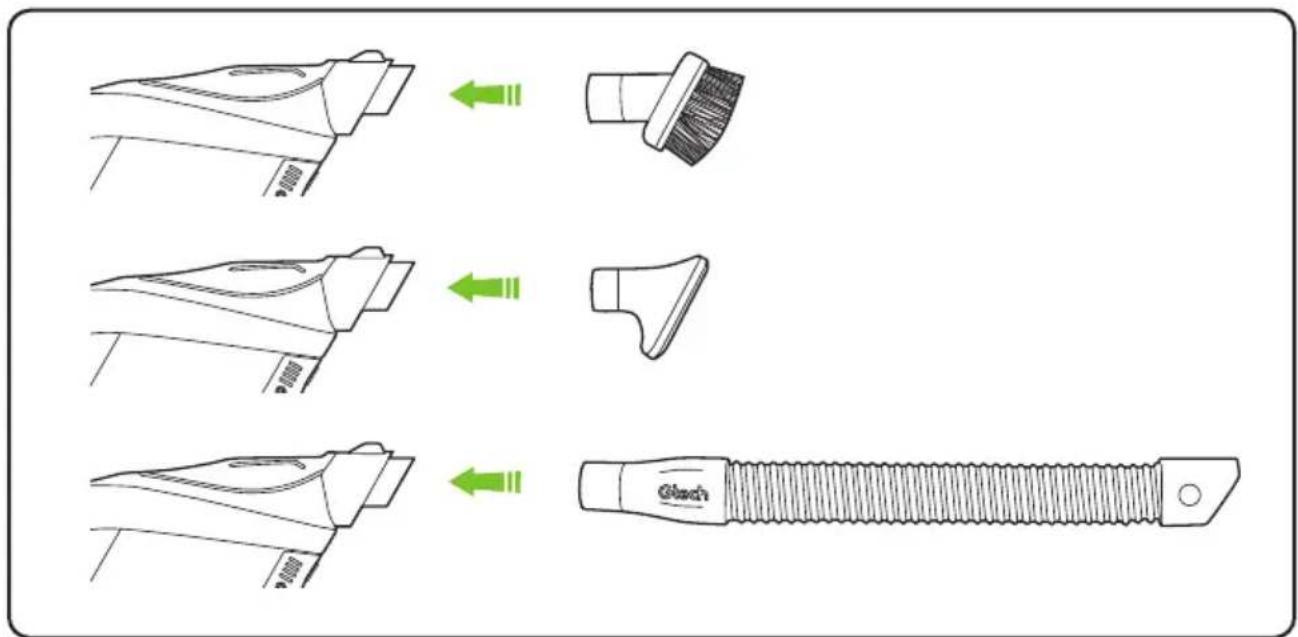

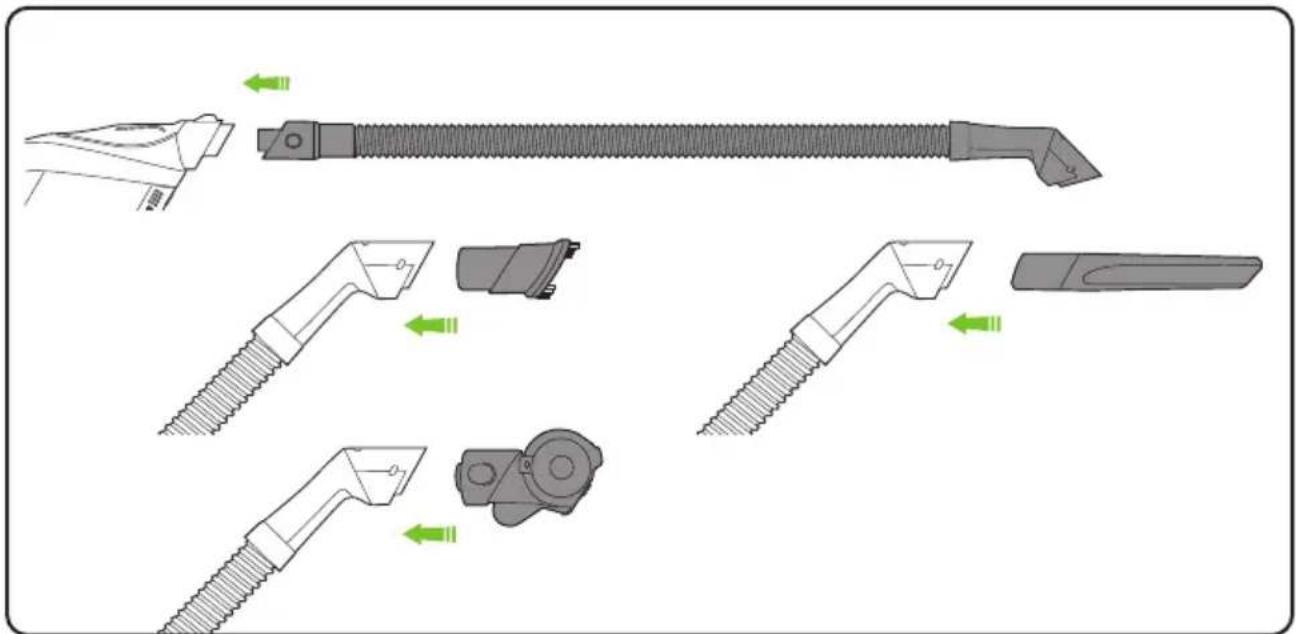

For above the floor cleaning, you can fit the crevice tool or dusting brush for reachable areas or fit the extension tube with an accessory for high up cleaning

LED headlight

Line drawing of a handheld device with a yellow highlight and handle (no text or symbols)

There is a headlight on top of the product to illuminate the area being cleaned.

State of charge

The battery state of charge indicator shows how much charge the product has. As you use the product, the green lights will turn off in a downwards direction.

Line drawing of a mechanical device with a green indicator button (no text or symbols)

While the battery is on charge, the LEDs will pulsate and illuminate in turn. When the battery is fully charged, all of the LEDs will be solid green.

Battery charging

Simple diagram with three horizontal bars and green gradient bars, no text or symbols present

When a single green light flashes, recharge the battery.

Line drawing of a portable air conditioner connected to a Gtech plug (no text or symbols on the device itself)

Plug the charger in and connect it to the charging port on the side of the battery.

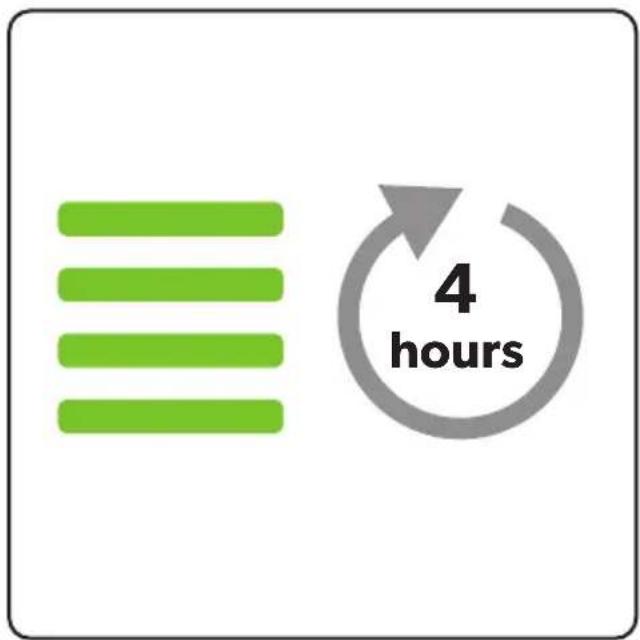

After 4 hours, all 4 LEDs will show solid green and charging is complete.

You can also charge the product for 1 hour for a burst of cleaning.

Removing the battery

Line drawing of a handheld device with a green circular badge highlighting a specific part (no text or symbols present)

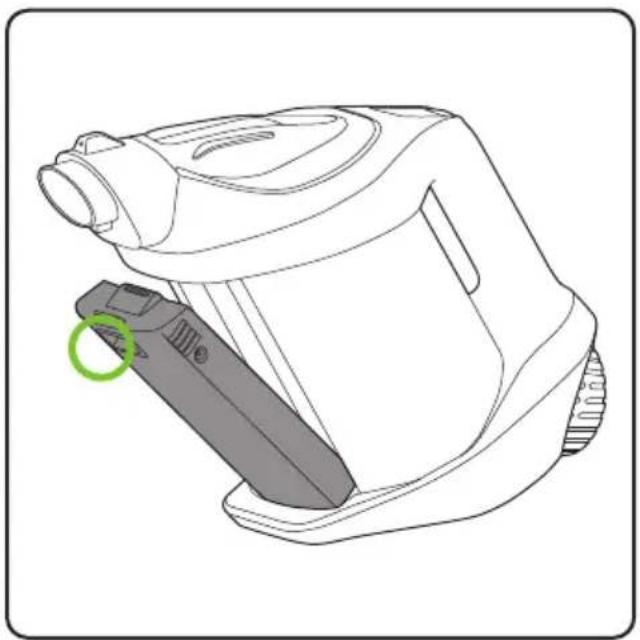

Pull the latch at the top of the battery to remove.

Line drawing of a remote control device connected to a Gtech power outlet (no text or symbols on the device itself)

The battery can be charged on or off the main unit.

Refitting the battery

Line drawing of a vacuum cleaner with a green arrow indicating the component (no text or symbols present)

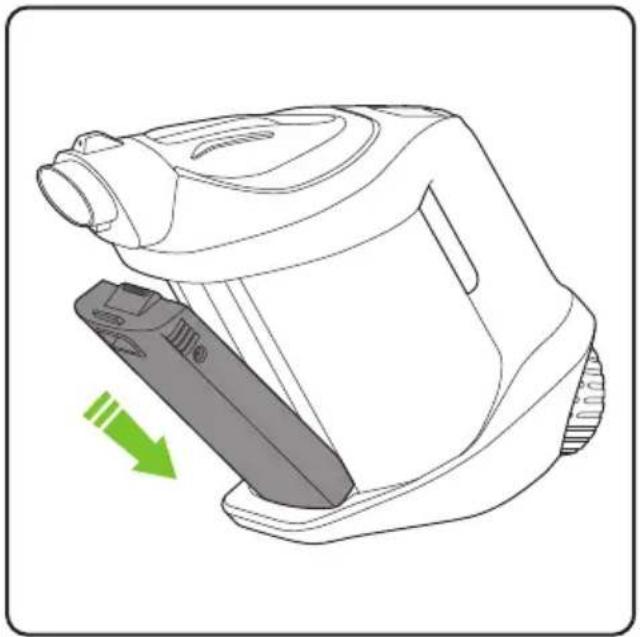

To replace the battery, slot it into the front of the product from the bottom first, with the latch facing outwards.

Line drawing of a handheld vacuum cleaner with a green arrow indicating direction (no text or symbols)

Push the battery into the slot until it clicks into place. If you want to buy a spare battery, go to www.gtech.co.uk or call 08081 685 028.

Bag installation

Line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

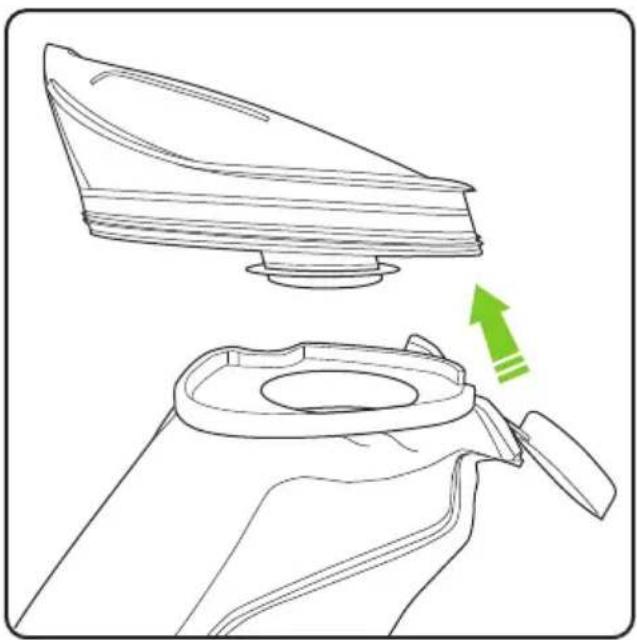

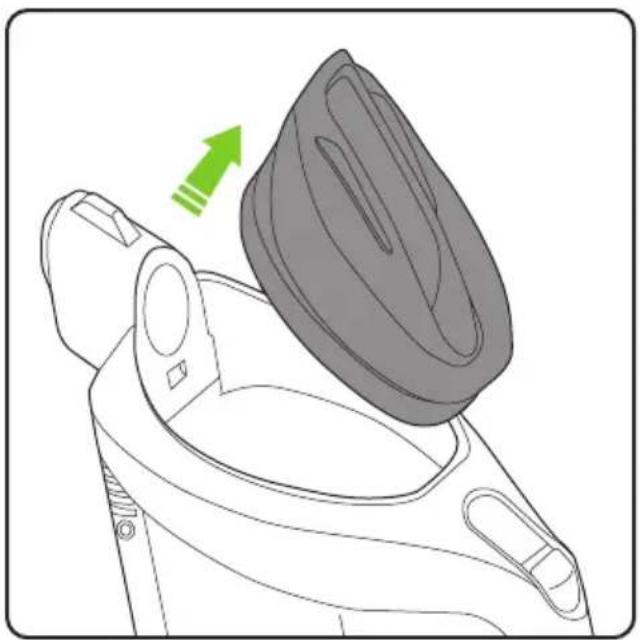

Remove the lid by pulling gently upwards. Fit the bag collar onto the tube underneath the lid and push it up firmly.

Line drawing of a hand holding a knife with a green arrow indicating direction (no text or symbols)

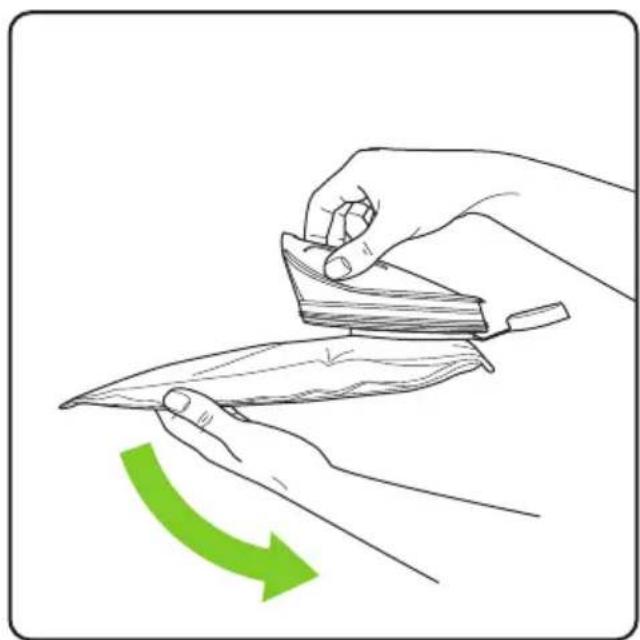

New bags have a tendency to sit flat when first attached. Pull the bag down to sit vertically.

Line drawing of a mechanical component with layered structure and handle (no text or symbols)

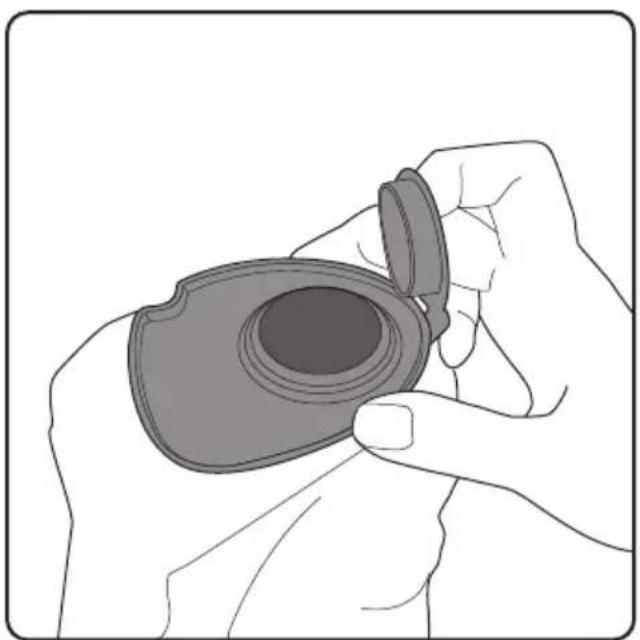

To get maximum efficiency from the bag, it is important to expand the bag before insertion. Do not use the vacuum without a bag: it may damage the motor and will invalidate your warranty.

Bag removal

Diagram of a device interior showing a cylindrical component with a green arrow indicating direction (no text or symbols)

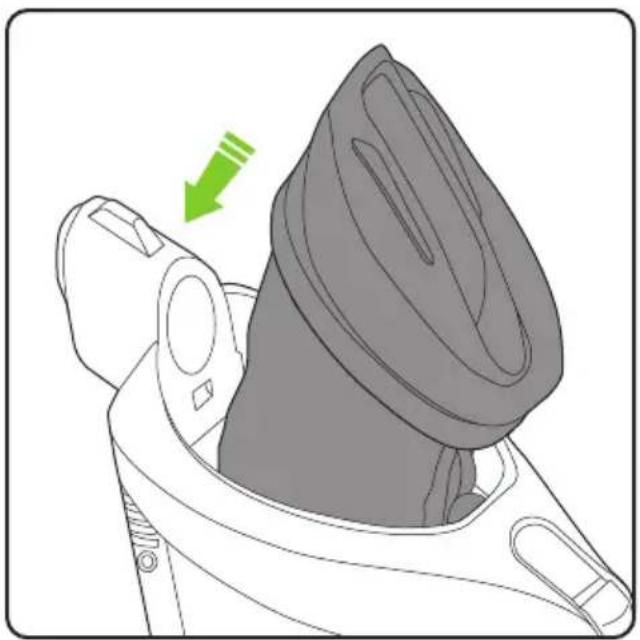

Once the bag is attached and straightened, place the lid back onto the main body, making sure the bag cap is also inserted.

Diagram of a device handle with a green arrow indicating direction (no text or symbols)

When the bag is full, lift the lid and remove it from the product with bag attached.

Illustration of hands holding a small object, possibly a container or lens, with no visible text or symbols.

Carefully remove the bag from the product lid to avoid squashing contents. Insert the bag cap to secure contents.

Illustration of a hand pressing down on a circular object with concentric rings (no text or symbols)

Dispose of the bag and replace with a new one. (You can get more bags at www.gtech.co.uk or by calling 08081 685 028).
Do not reuse bags as this could damage and reduce the performance of the product.

If the suction is low when the bag is empty and a new bag is fitted you may have a blockage

Line drawing of a portable device with green arrows pointing to ports (no text or symbols)

Remove the battery and lid and look through the nozzle. Remove any blockages.

Technical line drawing of a mechanical component with green directional arrows indicating movement or force (no text or symbols)

Remove the bag from the lid. Check for any blockages in the lid. Remove any blockages.

Technical line drawing of a mechanical connector assembly with green arrows indicating parts (no text or symbols)

The tools can block sometimes, too.

Line drawing of a washing machine interior with a foot inset and green arrows indicating direction (no text or symbols)

A light above the window on the top of the lid allows visibility into the bag to indicate when the bag is full or if there is a blockage.

Optional extras

Power brush

Line drawing of a hand interacting with a mechanical device, showing a green directional arrow (no text or symbols)

To attach the power brush, slot it over the standard nozzle. The power must be off while changing nozzles. The power button will now power the brush as well as the suction.

Line drawing of a hand holding a device with an arrow indicating motion (no text or symbols)

To remove the power brush, press the buttons on the sides of the attachment and pull it away from the main unit.

Diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

To clean the brush bar, first remove the power brush. Rotate the latch from the 'lock' to the 'unlock' position and pull out the brush bar.

Technical line drawing of a mechanical assembly with a component inserted into a housing (no text or symbols)

To remove hair from the brush bar, run the hair removal tool down the groove to cut the hair, then pull it out. Never operate the power head without the brush bar in.

Optional extras

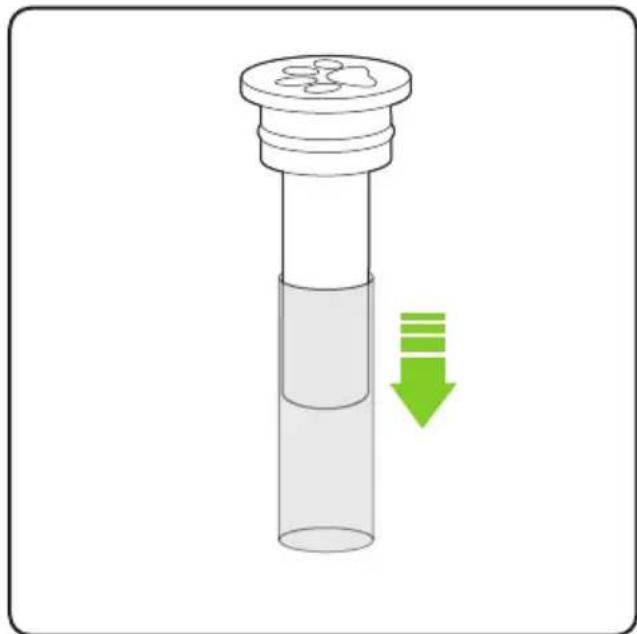

Scented cartridge

Diagram of a test tube with liquid and a green downward arrow indicating a drop or reduction (no text or symbols present)

Remove the scented cartridge from its box, celophane wrapper and slide the plastic sleeve off.

Illustration of a hand holding a small mechanical component with a green arrow indicating direction (no text or symbols)

Slide the scented cartridge into the opening on the right side of the lid.
If the cartridge is missing the product will not seal and the performance will be much lower.
If your original cartridge no longer smells, it can still be used. If you'd like new scented cartridges, go to www.gtech.co.uk or call 08081 685 028.

Flexible power hose

Technical illustration of mechanical components with green directional arrows indicating motion (no text or symbols)

The flexible power hose attaches in the same way as the other accessories and can be used as it is or with the addition of other tools. Powered units can fit directly to the flexible power hose.

Optional extras

Car Accessory Kit

The three tools from the Car Accessory Kit fit directly into the nozzle of the product.

Optional extras

Wall mount

Install your wall mount at least 1072mm from the floor. Universal fixings have been included - please use the correct fixings for the wall type you're mounting this item to. Please use a stud finder to ensure no water pipes or electrical cables are hit.

If you are unsure, please seek professional advice.

Diagram showing a vacuum cleaner being adjusted to a mounted device, with no visible text or symbols.

The tools can be stored like this on the wall mount. Your wall mount will look like the picture on the right when fully assembled with the product.

Illustration of a hand holding a small object with a green downward arrow indicating motion or force (no text or symbols)

Pull the detachable tool kit out from the fixed section of the wall mount.

Line drawing of a person walking with a handheld vacuum cleaner (no text or symbols)

You can also carry the detachable part of your wall mount with you while you clean - attach it to your belt. Extra precautions must be taken to ensure you do not damage the product or injure yourself.

Notes

Notes

Product care

Your product doesn't need much maintenance: keep it clean, check for blockages, remove hair from the brush bar and charge the battery. Wipe it with a dry cloth if it gets dirty. Never wash it with liquid, run it under a tap or use it without the bag. Regularly check if the bag is full.

Troubleshooting

Product is notcleaning well	1. Change the bag2. Check for blockages - refer to above instructions.3. Remove hair from brush bar4. Check to see if scented cartridge is fitted
Product has stopped or won’t work	1. Charge the battery (check the socket works and is turned on)2. It might be blocked – refer to above instructions
4 red lights displayed on battery	1. Brush bar jammed2. Turn off the product, remove the battery and clear the blockage

Product support

If these initial tips do not solve your problem, we have various other ways to help.

Visit: www.gtech.co.uk/support

Icon of a computer monitor inside a black circle (no text or symbols)

Black circular icon with two white speech bubbles, no text or symbols present.

Black circular icon with a white envelope containing an '@' symbol (no text or numbers)

Circular play button icon with white triangle inside, no text or symbols

[e-mail] chat supportOnline How to vic

GTECH PRO 2 TECHNICAL SPECIFICATION

Battery model 109A0015
Battery 22V 2000mAh Li-Ion
Charging period 4 hours
Battery charger output 27V DC 500mA
Weight (with standard nozzle) 2.4kg

Visit www.gtech.co.uk/warrantyregistration to register your product and ensure that we have all the information required to provide you with quick and efficient support.

You will need your product's serial code. You can find this on the main unit by removing your battery.

Line drawing of a trash bin with a green circular highlight on the side (no text or symbols)

If you purchased directly from Gtech, your details are already registered and your 2-year warranty will start automatically.

If you purchased from an authorised Gtech retailer, please register your warranty within 3 months. You will need to provide proof of purchase to support any claim against your warranty.

WARRANTY – TERMS AND CONDITIONS

If your product breaks, do not worry, we're here to help.

Go to www.gtech.co.uk or call 01905 345 891 for assistance.

The warranty on your product is 2 years from date of purchase, or delivery if this is later.

WHAT ISN'T COVERED SUMMARY

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear and tear
- Consumables (bags and cartridges)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with product operating manual.
- Blockages - please refer to the product operating manual for details of how to unblock your vacuum cleaner.
- Use of the vacuum cleaner for anything other than the normal domestic household purposes.
- Use of parts and accessories which are not Gtech genuine components.
- Faulty installation (except where installed by Gtech)
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.
- If you are in doubt as to what is covered by your guarantee, please call 01905 345 891.

• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the period of guarantee.
• The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)

When the vacuum has reached the end of its life, it and the Li-ion battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.

Call your local council, civic amenity site or recycling centre for information on the disposal and recycling of electrical products. Alternatively, visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

Gtech

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone: [phone]

www.gtech.co.uk
