Product Type	Cordless Stick Vacuum
Model	AirRam AR20
Brand	G-Technology
Dimensions (LxWxH)	44 x 10.5 x 8.5 inches
Weight	5.5 lbs
Battery Voltage	22 V
Battery Type	Lithium-ion
Run Time (Standard Mode)	Up to 40 minutes
Charging Time	4 hours
Dirt Capacity	0.9 L
Filtration System	Washable foam filter
Suction Power	28 AW
Cleaning Modes	Hard floor, Carpet, Upholstery
Brush Roll Control	On/Off foot pedal
Transforms to Handheld	Yes (detachable handheld unit)
Included Accessories	Crevice tool, Dusting brush, Upholstery tool
Wall Mount	Yes (with included dock)
Noise Level	75 dB
Warranty	2 years limited
Recommended Maintenance	Clean filter every 3 months, empty dirt cup after each use
Replacement Parts Available	Battery, filter, brush roller
Repairability	User-replaceable battery and filter; professional repair for motor

Frequently Asked Questions - AirRam AR20 G-TECHNOLOGY

How do I clean the filter on my G-Technology AirRam AR20?

The filter is washable. Remove it from the dirt cup, rinse under cold water, and let it air dry completely for 24 hours before reinstalling. Do not use detergent.

How long does the battery last on a full charge?

In standard mode, the battery provides up to 40 minutes of runtime. High-power mode reduces runtime to about 20 minutes.

Can I use the AirRam AR20 on carpets?

Yes, it has a carpet mode that increases suction. The brush roll is adjustable for different floor types.

How do I empty the dirt cup?

Press the release button on the dirt cup and pull it off. Dispose of debris over a trash bin. Rinse the cup if needed and let it dry before reattaching.

The vacuum won't start. What should I check?

Ensure the battery is charged and properly inserted. Check the power switch and that the dirt cup is correctly locked in place. If still not working, contact support.

How do I change the brush roller?

Turn off and unplug the vacuum. Remove the base plate screws, take out the old roller, and insert a new one. Reattach the plate. Brush roller replacement is recommended every 6-12 months.

Is the battery replaceable?

Yes, the battery is user-replaceable. Order a replacement battery from G-Technology or authorized retailers. Remove the old battery by pressing the release tabs.

What does the 'AirRam' technology do?

AirRam technology uses a motorized brush roll that agitates dirt while the cyclonic suction separates debris from the air for consistent performance.

How often should I charge the battery?

Charge after each use or when the battery indicator shows low. Avoid leaving the battery fully discharged for extended periods. For storage, keep it partially charged.

Can I use the vacuum as a handheld?

Yes, press the button on the main body to detach the handheld unit. Attach the crevice tool or dusting brush for above-floor cleaning.

USER MANUAL AirRam AR20 G-TECHNOLOGY

IMPORTANT SAFEGUARDS:

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use in rain or leave outdoors whilst raining.

WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal Safety:

• Store indoors in a dry place out of the reach of children.
• Always use responsibly. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Don’t let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
  • Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliances openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body).
  • Particularly keep hair away from openings and moving parts.

Electrical safety:

• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specific voltage. Always check that

the mains voltage is the same as that stated on the rating plate.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.

• Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.
• Don't wrap the cord around the charger when storing.
• Keep the charger cord away from hot surfaces and sharp edges.
• The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

Battery safety:

- This appliance includes Li-Ion batteries; do not incinerate batteries or expose to high temperatures, as they may explode.

- Liquid ejected from the battery may cause irritation or burns.

• In an emergency situation contact professional help immediately!

- Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.

- Shorting the battery terminals may cause burns or fire.

- When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.

- When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

- Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.

- Do not use the appliance if any part is damaged or defective.

- Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.

- Never modify the appliance in any way as this may increase the risk of personal injury.

- Only use replacement parts or accessories provided or recommended by Gtech.

Intended use:

- This appliance has been designed for domestic dry vacuum cleaning only.

- Do not pick up liquids or use on wet surfaces.

- Do not pick up anything that is flammable, burning or smoking.

- Use only as described in this manual.

- Don't use on concrete, tarmacadam or other rough surfaces.

- The brush bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.

- May damage delicate fabrics or upholstery. Care should be taken on loose-weave carpets and coverings or where there are loose threads. If in doubt please test on an inconspicuous area first.

- The Gtech AirRam has been designed to clean a wide variety of floor surfaces without the need to change settings. However some surfaces such as delicate loose-pile rugs or carpets, tasselled rug edges or damaged carpets with exposed threads are not suitable for cleaning with a rotary brush. The AirRam can still be used to clean such surfaces by removing the brush bar as shown on page 11 and using the supplied plug in the brush bar hole. This setting should also be used to give the best performance on hard floors with deep crevices

WARNING:

- Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.

- Never immerse the unit in water and do not clean in a dish washer.

- Never use the appliance without the filter fitted.

Thank you for choosing a Gtech AirRam

"I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us. Please take the time to write a review of the AirRam at Trustpilot.co.uk. We will use your feedback to improve our products and services and let other people know what it's like to be part of the Gtech family."

Nick Grey – Inventor, Owner of Gtech

What's in the box

1 Head
2 Upper Handle
3 Lower Handle

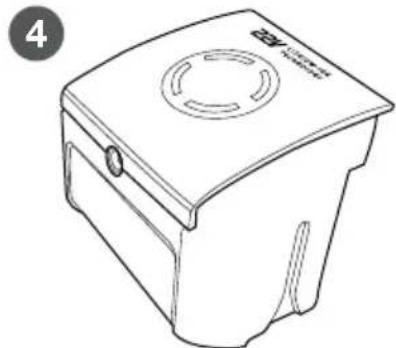

4 Battery
5 Charger
6 Bin
7 Filter
8 Brush bar hole plug

(Filter and bin are already in place)

Line drawing of a portable electronic device with a cylindrical top and two circular vented chambers (no text or symbols)

Line drawing of a vertical cylindrical device with a handle and base (no text or symbols)

Line drawing of a vertical mechanical component with a curved handle and base (no text or symbols)

Line drawing of a mechanical device with a circular vent and handle (no text or symbols)

7

5

Line drawing of a cable and plug with two connectors (no text or symbols)

6

Technical line drawing of a cylindrical mechanical component with internal cavities and mounting brackets (no text or symbols)

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

PRODUCT SERIAL NUMBER:

You can find this on the underside of your product

Assembly

Diagram showing a hand holding a cylindrical device next to a smaller mechanical device with a green arrow indicating downward motion (no text or symbols)

Attach the lower handle onto the head of the AirRam.

Press the button at the top of the upper handle and slot it into the lower handle until it clicks.

Illustration of hands using a tool to adjust a mechanical component, with a green arrow indicating the process (no text or symbols present)

Insert the battery by sliding it down. It will click into place.

Line drawing of a hand holding a tool with green directional arrows indicating movement or force (no text or symbols)

To extend the upper handle, hold down the button on the left hand side and pull it up. It will click into place.

Operation

Line drawing of a hand inserting a device into a device with green arrows indicating rotation (no text or symbols)

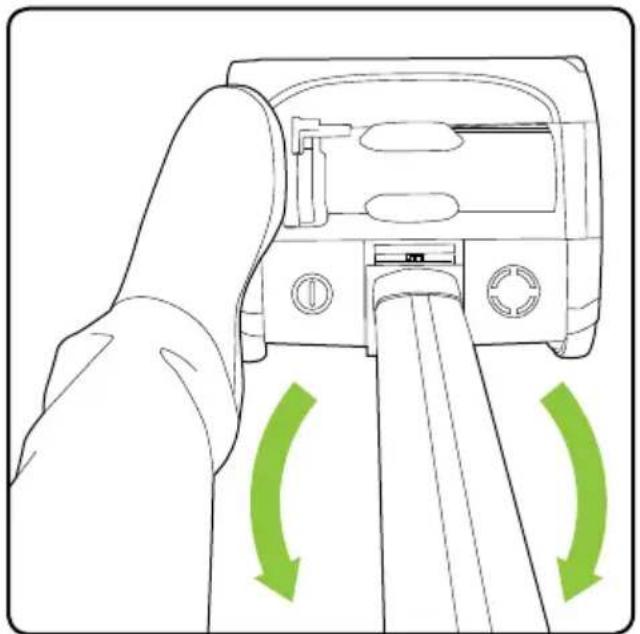

Without pressing the power button, place your foot on the left side of the AirRam head and pull the handle back.

Diagram of a device with a highlighted circular symbol (no text or labels)

The power button is located on the left hand side of the AirRam head.

Line drawing of a hand using a tool to lift a small object (no text or symbols)

Press the button with your foot to turn the AirRam on.

Storing your AirRam

Line drawing of a hand holding a handheld device with green arrows indicating movement or change (no text or symbols)

To stow the upper handle, simply press the button on the left hand side and push the handle down.

Line drawing of a handheld vacuum cleaner with handle and base (no text or symbols)

The handle will now be fully retracted and the AirRam can be conveniently stored.

Battery charging

Circular icon with a green arc and three crosshairs, no text or symbols present.

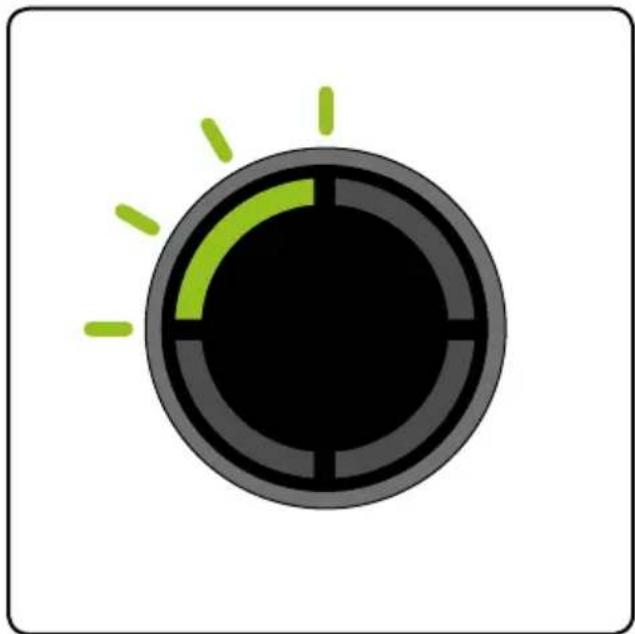

When the state of charge indicator starts to flash one green LED, recharge the battery.

Illustration of hands using a tool to press a small mechanical component, with a green upward arrow indicating motion (no text or symbols present)

The battery can be charged whilst it's in the AirRam, or when it's off the product. To remove the battery, squeeze the latch underneath and pull upwards.

Line drawing of a power outlet connected to a device with a cable (no text or symbols)

Plug the charger in and connect it to the battery.

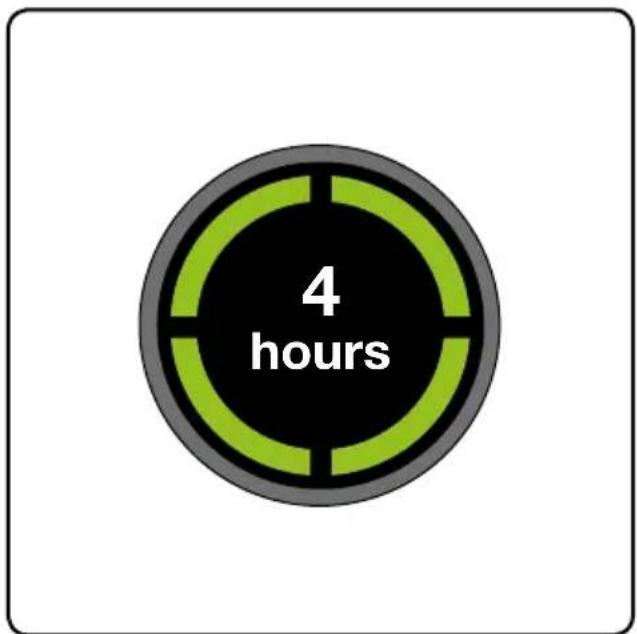

The battery can be charged from flat in 4 hours. The state of charge indicator will show 4 green lights when it is charged. It is OK to charge for 1 hour for a burst of cleaning.

Emptying the bin

Illustration of hands using a tool to adjust or install a mechanical component, with a green arrow indicating the motion (no text or symbols present)

Holding onto the AirRam with one hand, pull the bin handle and lift the bin out of the AirRam.

Line drawing of a hand holding a device with a green directional arrow indicating left motion (no text or symbols)

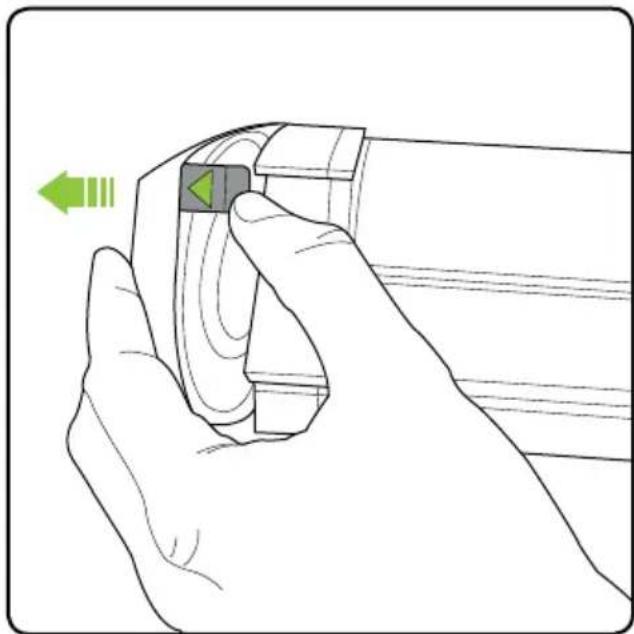

Release the latch with the green arrow, to pull open the bin lid.

Illustration of a hand using a tool to clean or repair a cylindrical object, with no visible text or symbols.

Hold the AirRam's bin over a rubbish bin and push the green lever towards the lid to empty the dirt.

Illustration of hands using a green tool to adjust or install a mechanical component (no text or symbols visible)

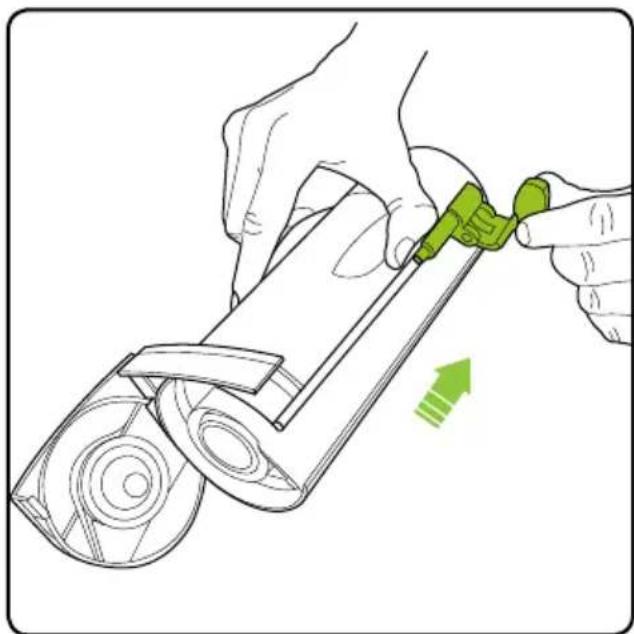

Pull the green lever back towards the bottom of the bin. Close the bin lid and reinsert the bin into the AirRam.

Cleaning the filters - do this once a month

Illustration of hands using a device to adjust or install a component, with a green upward arrow indicating the process (no text or symbols present)

Holding onto the AirRam with one hand, pull the bin handle and lift the bin out of the AirRam.

Illustration of hands using a tool to adjust a green cylindrical component (no text or symbols)

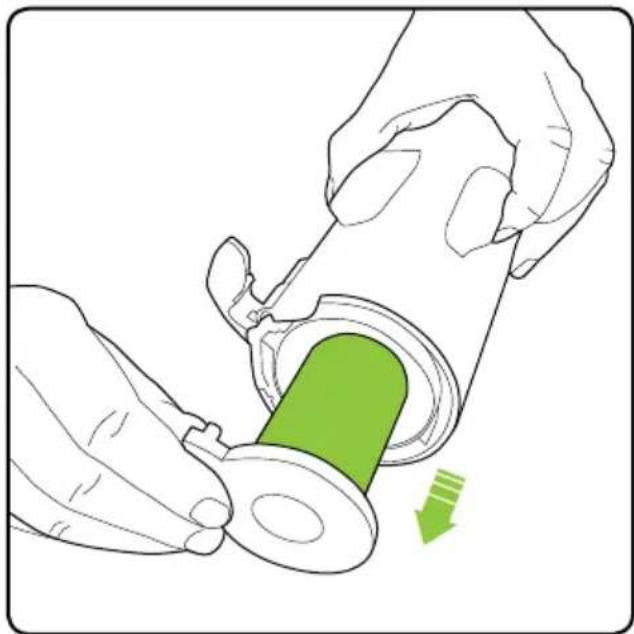

Pull the filter out of the filter housing. Tap the dirt from the filter and tip any dirt from the filter housing. Wash the filter if necessary.

Illustration of hands using a green tool to press or adjust a textured object, with a green arrow indicating the process (no text or symbols present)

Remove the filter from the inner shroud, by twisting and pulling.

Illustration showing two hands holding green gloves, one with a blue spray and the other with a green bandage (no text or symbols)

Wash the filter under a tap. Squeeze out any excess water then let it dry completely before reinserting into the AirRam.

Replacing the filters

Illustration of hands using a green tool to press or adjust a textured object, with a green arrow indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a green cylindrical component (no text or symbols)

Slide the filter onto the inner shroud. Slide the filter and inner shroud into the filter housing.

Removing and cleaning the brush bar

Illustration of hands holding a 3D-printed object with a green upward arrow, no text or symbols present

Line drawing of a hand inserting a button into a device component (no text or symbols)

If the brush bar jams during use, the AirRam will stop and the LEDs will appear red. Before checking for a blockage, remove the battery.

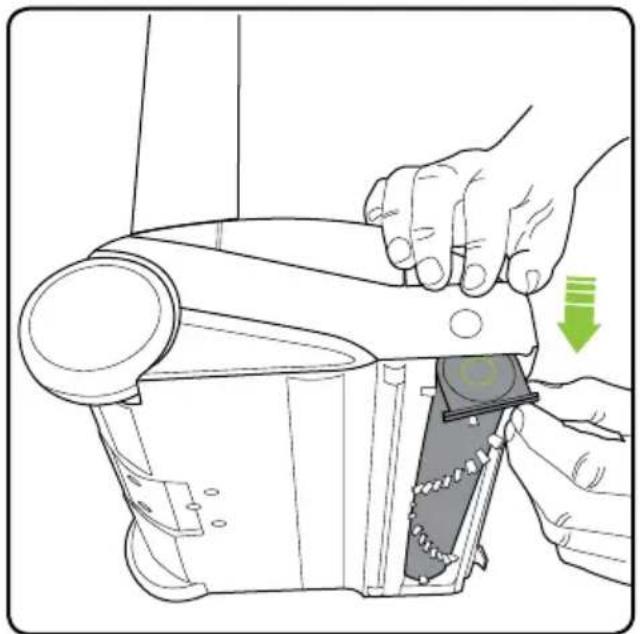

Rest the AirRam on its side and locate the brush bar button on the right hand side. Press the button inwards and then pull the brush bar towards the bottom of the AirRam.

Illustration of hands using a mechanical device to adjust a component, with a green arrow indicating the process (no text or symbols present)

The brush bar can now be removed, starting at the button end.

Illustration of a syringe with scissors and a green ring, no text or symbols present

To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out.

Illustration of a hand using a mechanical device to adjust a component, with a green upward arrow indicating motion (no text or symbols present)

Re-insert the brush bar, starting by locating the end furthest away from the button. Then push the brush bar into the AirRam until it clicks into place.

Illustration of hands holding a 3D object with a circular feature, no text or symbols present

Replace the battery by sliding it down. It will click into place.

Clearing a jam / fault

Circular diagram with red and black segments, no text or symbols present

If the brush bar jams during use, the AirRam will stop and the LEDs will appear red. You will need to remove and clean the brush bar (see page 11).

The AirRam will not re-start until the red lights go out. This will take ten seconds.

If the problem persists, follow the troubleshooting instructions below.

Troubleshooting

AirRam is not cleaning well 1. Empty the bin2. Check bin is correctly fitted3. Check filter is correctly fitted4. Clean and/or replace filter5. Check brush bar fitment

AirRam has stopped or won’t work 1. Charge battery2. Clear debris from brush bar

Battery will not charge 1. Check connections2. Check wall socket

If this doesn’t solve your problem don’t worry, we will help.Go to www.gtech.co.uk/support or call 01905 345 891

Product Care

Your Gtech AirRam doesn't need much maintenance: keep the filters clean, keep the brush bar tangle-free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin. Never wash it with liquid, run it under a tap or use it without the filter.

AIRRAM TECHNICAL SPECIFICATION

Battery model 103A022
Battery 22V 2000mAh Li-Ion
Charging period 4 hours
Battery charger output 27V DC 500mA
Weight 3.5kg

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)

When the vacuum has reached the end of its life, it and the Li-Ion battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.

Call your local council, via amenity site, or recycling centre for information on the disposal and recycling of electrical products.

Alternatively visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

If your Gtech AirRam breaks, don't worry, we're here to help. Go to www.gtech.co.uk or call 01905 345 891 for assistance.

The warranty on your AirRam is 2 years from date of purchase.

WHAT ISN'T COVERED SUMMARY

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear and tear (e.g. belt, brush bar)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with Gtech AirRam operating manual.
- Blockages - please refer to the Gtech AirRam operating manual for details of how to unblock your vacuum cleaner.
- Use of the vacuum cleaner for anything other than the normal domestic household purposes.
- Use of parts and accessories which are not Gtech genuine components.
- Faulty installation (except where installed by Gtech)
- Repairs or alterations carried out by parties other than Gtech or its authorised agents.
- If you are in doubt as to what is covered by your guarantee, please call the Gtech Customer Care Helpline on 01905 345 891.

• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the period of guarantee.
• The guarantee provides benefits which are additional to and do not affect your statutory right as a consumer.

Gtech

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone: [phone]

www.gtech.co.uk
