USER MANUAL 3060FR02 KENMORE

MICROWAVE OVEN SAFETY 1
INSTALLATION INSTRUCTIONS 2.
Tools and Parts 2
Location Requirements 2
Required Cutout Dimensions 2
Trim Kit Frame Dimensions 2
Electrical Requirements.... 3
Prepare Microwave Oven....3
Prepare Cutout/Cabinet Opening 4
Install the Microwave Oven 5
Install Trim Kit Frame 5

SEGURIDAD DEL HORNO MICROONDAS....1

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Specifications:

KIT SIZE KIT MODEL NUMBERS/COLOR

30"(76.2cm) 204.23069610/Black 204.23063610/Stainless Steel

■ The Built-in Kits can be installed on Kenmore Elite microwave oven models: 204.77603610, 204.76989610, 204.76982610 and 204.76983610
■ The Built-in Kits can be installed over any (electric or gas) built-in wall oven, up to 30" (76.2cm) wide.

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

■ Measuring tape

Drill

Pencil

7/64" drill bit

Phillips screwdriver

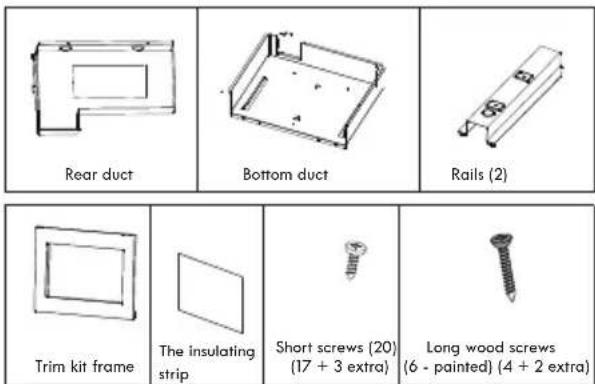

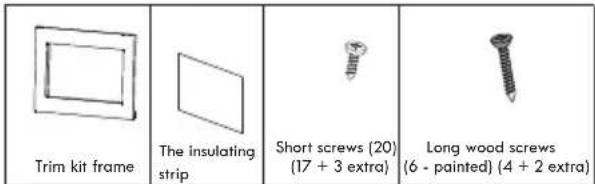

Parts Supplied (not shown to scale)

Note: The Rear duct is only to be used with microwave model: 204.77603610

Location Requirements

The microwave oven may be installed over a built-in wall oven. If installing over a built-in oven, make sure there is a minimum of 3" (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). For best usability, we recommend a minimum distance of 36" (91.4 cm) from the floor to the microwave oven cutout floor.

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 16/16" (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

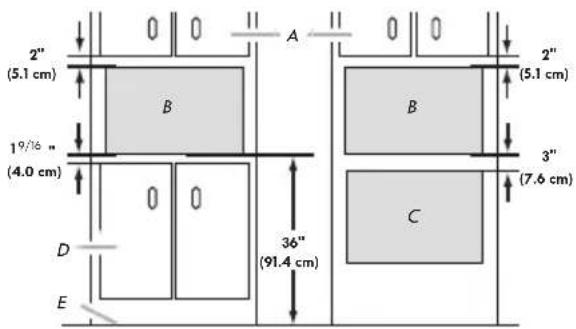

A. Upper cabinet
B. Microwave oven cutout
C. Lower oven cutout
D. Lower cabinets
E. Floor

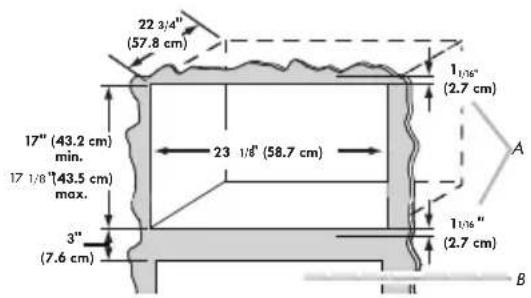

Required Cutout Dimensions

A Tim kit fame overhang
B. Cutout for lower o ven

NOTES:

■ Height dimension is critical: 17" (43.2 cm) minimum, 17 1/8" (43.5 cm) maximum.
■ Width and depth measurements have ±1/16" (2 mm) tolerance.
■ 3" (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
- Trim kit frame extends 11/16" (2.7cm) above and below the cutout opening.

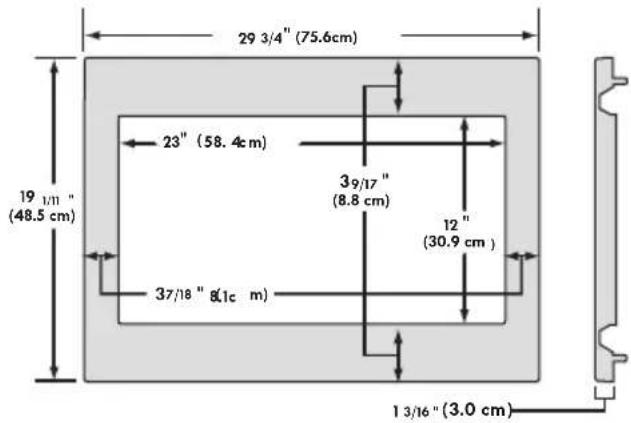

Trim Kit Frame Dimensions

*30" (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Install according to all local governing codes and ordinances.

Required:

A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker.

Recommended:

■ A time-delay fuse or time-delay circuit breaker.
■ A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

■ For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

Attach Rails

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.

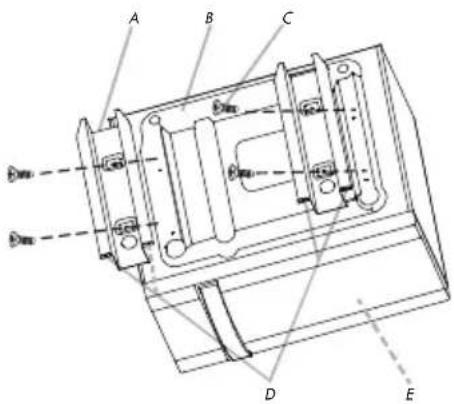

3. carefully turn microwave oven onto its top, with the door facing forward (toward installer).

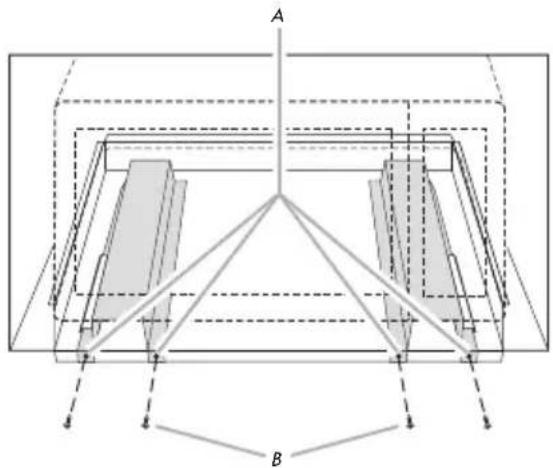

4. Align the two rails on the microwave oven bottom, as shown, making sure the flanges are forward and pointing up.

A. Rails (2)

B. Microwave oven bottom

C. Short screws (4)

D. Flanges

E. Door

1. Secure the rails to the microwave oven bottom using four short screws.

Attach Rear Duct

Note: This step only applies to microwave model: 204.77603610.

For other microwave models, skip this step and proceed to "Stick Insulating Strip Over Vents" step.

1. Carefully return microwave oven to its upright position.

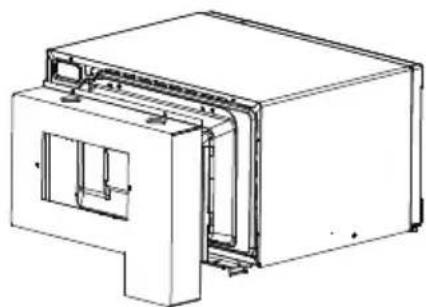

   2 Align the rear duct with the back of microwave oven, as shown.

Technical line drawing of a mechanical housing or enclosure with internal components and mounting brackets (no text or symbols)

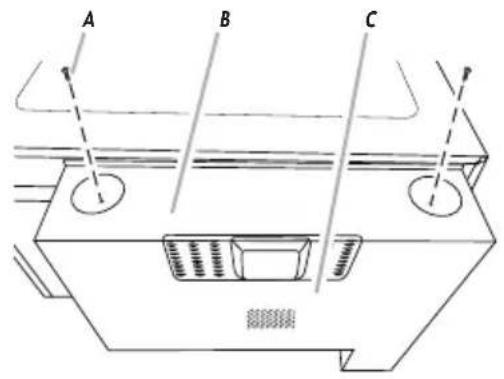

1. Use two short screws to secure top of rear duct to the back of microwave oven, as shown.

A. Short screws (2)
B. Rear duct
C. back of microwave oven

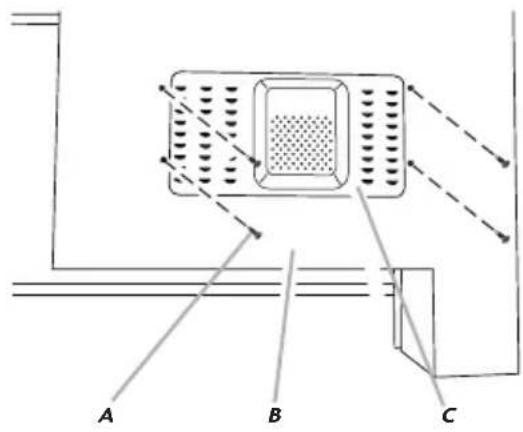

1. Use four short screws to secure back of rear duct to the back of microwave oven, as shown.

A. Short screws (4)
B. Rear duct
C. back of microwave oven

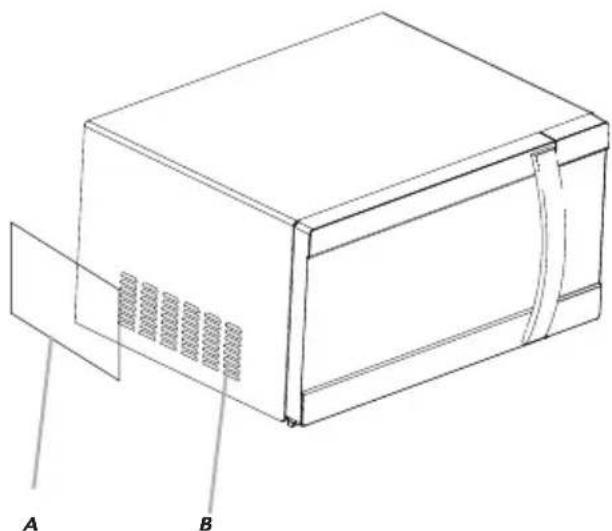

Stick Insulating Strip Over Vents

1. Stick the insulating strip over the vents in the side of the microwave to prevent heat from exhausting through the vents. Heat will be exhausted through the bottom duct once the microwave is mounted in the cabinet.

Line drawing of a microwave oven with labeled components A and B (no text or symbols on the device itself)

A. The insulating strip
B. Side Vents

Prepare Cutout/Cabinet Opening

1. On the cutout floor, find and mark the centerline.

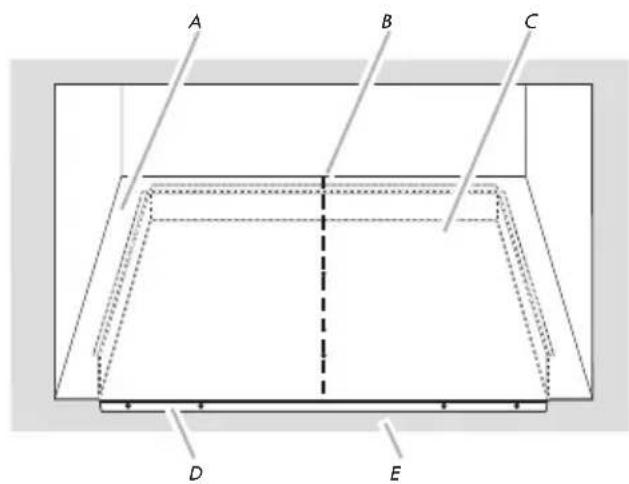

2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

A. Cutout floor
B. Centerline
C. Bottom duct

D. Bottom duct flange
E. Front facing

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

Technical line drawing of a mechanical component with two circular features labeled A and B, no text or symbols present.

A. Bottom duct
B. Center arrows, aligned with centerline

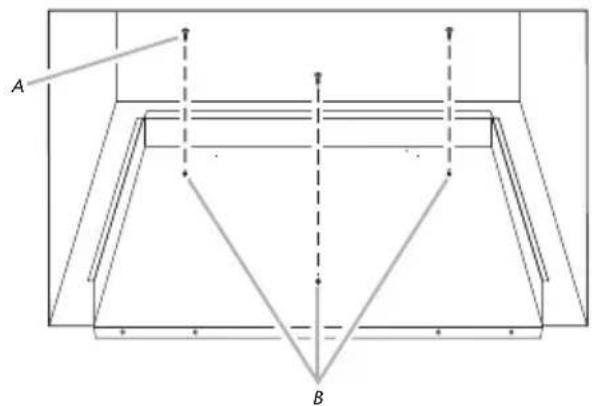

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

A. Short screws (3)
B. Bottom duct mounting holes

1. Using a 7/64" drill bit, drill pilot holes into the three hole marks shown in the figure above.
2. Realign and install the bottom duct with three short screws.
3. Using 7/64" drill bit, drill pilot holes through the four bottom duct flange mounting holes into the bottom front facing of the cutout/cabinet opening.

Pure geometric diagram showing two triangles labeled A and B connected by lines, with no text or symbols present.

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. return fullyrowave oven to its upright position.
2. Position microwave oven near cutout opening.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug in microwave oven.

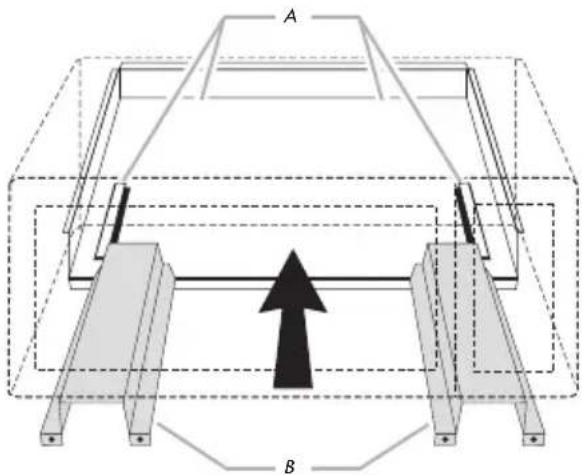

2. Align the rails with the rail guides on the bottom duct.

A. Rail guides
B. Rails

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.
2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the lower tabs rest on the cutout floor, as shown.

A. Front of trim kit frame
B. Tabs (upper and lower)
C. Cutout/cabinet floor

1. Holding the trim kit frame in place, use a 7/64" drill bit to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

■ The holes will be drilled downward from the top, and upward from the bottom at an angle of about 45^ .

■ To avoid damage to the trim kit frame, do not overtighten screws.

A. Trim kit frame

C. Long wood screw (4 - painted)

B. Mounting hole guide

D. Cutout ceiling

1. Secure trim kit frame to cutout/ cabinet by installing four long wood screws (painted) into the pilot holes drilles in Step 2 above.

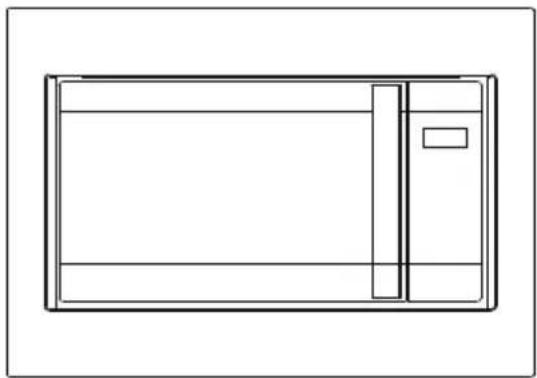

Simple line drawing of a rectangular device with a vertical panel and horizontal lines (no text or symbols)

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these installation instructions for future reference.

Technical line drawing of a mechanical housing or enclosure with internal components and an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with two circular features labeled A and B, no text or symbols present.

Pure geometric diagram of a truss structure with labeled points A and B, no text or symbols present

Simple line drawing of a rectangular room with a vertical divider and horizontal lines (no text or symbols)
