BWE 101484X WSSS GCC - Washing machine INDESIT - Free user manual and instructions

Product Type	Freestanding Washing Machine
Model	BWE 101484X WSSS GCC
Brand	Indesit
Capacity	10 kg
Maximum Spin Speed	1400 rpm
Energy Class	A+++
Annual Energy Consumption	175 kWh
Annual Water Consumption	9900 L
Noise Level (Wash/Spin)	56 dB / 78 dB
Number of Programs	16
Special Programs	Eco, Cotton, Synthetics, Delicates, Wool, Quick 30', Rinse & Spin, Drum Clean
Dimensions (H x W x D)	85 x 59.5 x 60.5 cm
Depth with Door Open	100 cm
Net Weight	72 kg
Power Supply	220-240 V, 50 Hz, 10 A
Maximum Power Input	2200 W
Water Pressure	0.1 - 1 MPa (1 - 10 bar)
Drum Volume	65 L
Door Diameter	35 cm
Child Lock	Yes
Delay Start	Up to 24 hours
Safety Features	Overfill protection, unbalanced load detection, anti-leak system
Maintenance	Clean filter regularly, check drain hose, clean dispenser drawer
Spare Parts Availability	7 years (as per EU regulation)

Frequently Asked Questions - BWE 101484X WSSS GCC INDESIT

How do I properly load the washing machine?

Distribute laundry evenly inside the drum, mixing large and small items. Do not exceed the 10 kg maximum capacity. Ensure no items are caught in the door seal.

What detergent should I use?

Use high-efficiency (HE) detergent suitable for front-loaders. For best results, follow the manufacturer's dosage instructions and adjust based on water hardness.

How do I clean the filter?

Turn off and unplug the machine. Open the filter cover (usually bottom right), place a container to catch water, unscrew the filter, clean it under running water, and reinstall. Perform every 2-3 months.

What does the 'Drum Clean' program do?

The Drum Clean program removes detergent residue and bacteria. Run it monthly with an empty drum, adding a special cleaner or a cup of white vinegar.

Why is the machine not draining?

Check if the drain hose is kinked or blocked. Clean the filter. Ensure the standpipe or sink connection is not clogged. If problem persists, contact service.

How do I activate the Child Lock?

Press and hold the Child Lock button (if available) for 3-5 seconds until the lock symbol appears. To deactivate, repeat the same process.

What do error codes mean?

Common codes: F01 (electronics fault), F05 (drain issue), F08 (heating problem). Refer to the manual's error table or reset by unplugging for 1 minute.

Can I wash delicate items like wool?

Yes, use the Wool program, which uses gentle action and lower temperatures. Always check garment labels and use a laundry bag for very delicate items.

How do I reduce noise during spin?

Ensure the machine is level by adjusting the feet. Avoid overloading. If the noise persists, check for loose objects in the drum or foreign items in the filter.

What is the maximum spin speed?

The maximum spin speed is 1400 rpm. You can adjust it for each program; lower speeds are recommended for delicate fabrics to reduce wear.

USER MANUAL BWE 101484X WSSS GCC INDESIT

1.

1.

1.

1.

1.

1.

1.

Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

⚠️ Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. Never open the door forcibly or use it as a step.

PERMITTED USE

⚠️ CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.

Do not load the machine above the maximum capacity (kg of dry cloth) indicated in the programme table.

This appliance is not for professional use. Do not use the appliance outdoors.

⚠ Do not use any solvents (e.g. turpentine, benzene), detergents containing solvents, scouring powder, glass or general purpose cleaners, or flammable fluids; do not machine wash fabrics that have been treated with solvents or flammable liquids.

INSTALLATION

The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

If you want to stack a dryer on top of your washing machine, first contact our After-Sales Service or your specialist dealer to verify whether this is possible. This is only possible if the dryer is attached to the washing machine by means of appropriate stacking kit available through our After- Sales Service or your specialist dealer.

⚠ Move the appliance without lifting it by the

worktop or top lid.

⚠️ Installation, including water supply (if any) and electrical connections and repairs, must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts, etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

Do not install your appliance where it may be exposed to extreme conditions, such as: poor ventilation, temperatures below 5 °C or above 35 °C.

When installing the appliance, make sure that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level.

If the appliance is being installed on wood or "floating" floors (certain parquet and laminate materials), secure a 60 x 60 x 3 cm (at least) sheet of plywood to the floor, then place the appliance on top of this.

⚠️ Connect the water inlet hose(s) to the water supply in accordance with the regulations of your local water company.

⚠️ For cold fill only models: do not connect to the hot water supply.

⚠️ For models with hot fill: the hot water inlet temperature must not exceed 60 °C.

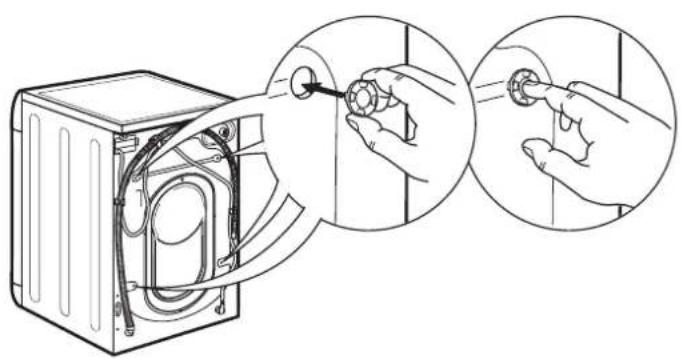

The washing machine is fitted with transport bolts to prevent any possible damage to the interior during transport. Before using the machine, it is imperative that the transport bolts are removed. After their removal, cover the openings with the 4 enclosed plastic caps.

⚠️ After installation of the device, wait a few hours before starting it so that it acclimates to the environmental conditions of the room.

⚠️ Make sure that the ventilation openings in the base of your washing machine (if available on your model) are not obstructed by a carpet or other material.

⚠️ Use only new hoses to connect the appliance to the water supply. The old hose-sets should not be reused.

⚠️ The supply water pressure must be in the 0.1-1 Mpa range.

ELECTRICAL WARNINGS

⚠️ It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules, and the appliance must be earthed in conformity with national electrical safety standards.

⚠️ Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.

⚠️ If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.

CLEANING AND MAINTENANCE

⚠ WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol 🌐

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol 📄 on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.
