Product Type	Rough-in Bracket for In-wall/In-ceiling Speakers
Brand	Revel
Model	RIB 6C
Application	Pre-installation bracket for fixing speaker location before wallboard installation
Compatible Speaker Size	6-inch (standard)
Material	High-strength steel
Dimensions	Approx. 7.5 x 7.5 inches (typical for 6-inch rough-in)
Weight	Approx. 0.5 lb (0.23 kg)
Installation Type	Wall and ceiling mount
Adjustable Features	Repositionable wings for framing support
Included Accessories	Bracket, wings, wire loop, screws/nails (recommended flush)
Special Features	Wire loop for fastening to framing support
Installation Guidance	Step-by-step instructions for wall and ceiling
Mounting Hardware	Screws or nails; must be flush with surface to avoid bowing
Manufacturer	Harman Lifestyle Group, Inc. (Harman International)
Part Number	TBD (as per manual)
Maintenance	None required; ensure secure fastening during installation
Safety Notes	Fasten screws/nails flush to prevent wallboard damage
Documentation	Includes Rough In Wall/Ceiling Bracket Installation Guide

Frequently Asked Questions - RIB 6C Revel

What is the purpose of the Revel RIB 6C rough-in bracket?

The RIB 6C bracket is used to fix the speaker location prior to wallboard or ceiling board installation. It ensures accurate placement of in-wall or in-ceiling speakers.

Can the RIB 6C bracket be used for both wall and ceiling installations?

Yes, the manual provides separate installation guides for wall and ceiling brackets. The ceiling version uses a ring instead of a bracket, but both follow similar steps.

What tools are needed for installation?

Typically, you will need screws or nails, a screwdriver or drill, and possibly a wire loop for framing support. Ensure fasteners are flush with the surface.

How do I determine the correct location for the bracket?

First, decide where the speaker will be placed. Then attach the wings to the bracket or ring accordingly. See Figure 1 in the manual for guidance.

What should I do if I need to reposition the wings?

If repositioning is necessary, refer to Figure 3 in the manual. It shows how to adjust the wings on the bracket or ring before final fastening.

Why must screws/nails be flush with the surface?

Flush fastening prevents the wallboard from bowing, ensuring a flat surface for the speaker installation. Protruding fasteners can cause uneven finish or damage.

What is the wire loop used for?

The wire loop can be used to fasten the bracket or ring to framing support in applications where additional security is needed, as shown in Figure 2.

What size speaker is the RIB 6C compatible with?

The model number suggests compatibility with 6-inch speakers, but always verify with your specific speaker dimensions. The bracket is designed for standard in-wall/in-ceiling speakers.

Is the bracket reusable if I move the speaker?

Yes, the bracket can be left in place even if the speaker is removed. However, if you need to reposition, you may need to remove and reinstall the bracket in a new location.

Where can I find the full installation manual?

The manual is available for free download on notice-facile.com in PDF format. It includes detailed diagrams and instructions for both wall and ceiling brackets.

USER MANUAL RIB 6C Revel

ROUGH IN WALL BRACKET INSTALLATION GUIDE

The function of this bracket is to fix the speaker location prior to the wallboard being installed. To best utilize this bracket follow simple steps below.

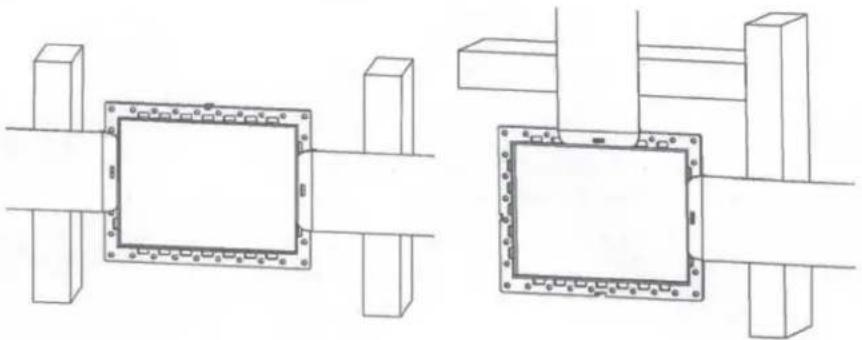

Step I: Determine location of speaker. That location will dictate where the wings attach to the bracket, see Figure 1.

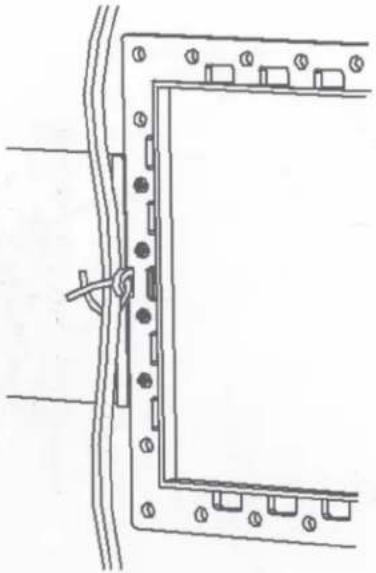

In some applications you may need to use the wire loop to fasten the bracket to framing support, see Figure 2.

Technical line drawing of two mechanical components with mounting brackets and fasteners (no text or symbols)

Figure I

Technical line drawing of a mechanical bracket with mounting holes and a central fastener (no text or symbols)

Pure technical line drawing of a mechanical bracket or frame with mounting holes and a handle (no text or symbols)

Figure 2
NOTE: If you need reposition the wings on the bracket, see Figure 3.

Step 2. When fastening the wings to the framing supports, be sure the screws/nails are flush with the surface so as not to bow the wallboard.

Technical line drawing of a mechanical clamp or bracket assembly with mounting holes and a screwdriver (no text or symbols)

Harman Lifestyle Group, Inc.

1. Harman International industries, Incorporated. All right reserved. Part NO. TBD

Harman International

Figure 3

ROUGH IN CEILING BRACKET INSTALLATION GUIDE

The function of this bracket is to fix the speaker location prior to the wallboard being installed. To best utilize this bracket follow simple steps below.

Step 1: Determine location of speaker. That location will dictate where the wings attach to the ring, see Figure 1.

In some applications you may need to use the wire loop to fasten the ring to framing support, see Figure 2.

Technical line drawings of two mechanical joint assemblies with no visible text or symbols

Figure I

Technical line drawing of a mechanical assembly with a rectangular block and a curved bracket (no text or symbols)

Pure mechanical diagram showing a curved pipe or channel with embedded circular components and alignment lines (no text or symbols)

Figure 2

NOTE: If you need reposition the wings on the ring, see Figure 3.

Step 2. When fastening the wings to the framing supports, be sure the screws/nails are flush with the surface so as not to bow the wallboard.

Technical line drawing of a screwdriver operating on a curved mechanical component (no text or symbols)

Harman Lifestyle Group, Inc.

1. Harman International industries, Incorporated. All right reserved.

Part NO. TBD

Harman International
