Product Type	Cordless Pressure Washer
Model	EasiClean Plus Li
Brand	Flymo
Power Source	Lithium-ion battery (18V, 2.0 Ah)
Water Pressure (max)	20 bar (290 psi)
Flow Rate (max)	5 l/min (1.32 gal/min)
Water Supply	Hose connection (standard garden hose)
Water Filter	Integrated mesh filter
Nozzle Types	Adjustable nozzle (fan/jet); foam nozzle included
On-board Storage	Storage for nozzle, battery, and water connector
Battery Runtime	Approx. 20 minutes (continuous use)
Battery Charging Time	Approx. 3 hours
Dimensions (L x W x H)	30 x 25 x 70 cm (11.8 x 9.8 x 27.6 inches)
Weight	3.2 kg (7.0 lbs)
Material	Plastic casing with rubberized grip
IP Rating	IPX5 (water-resistant)
Safety Features	Automatic shut-off when trigger released; safety lock
Maintenance	Rinse filter after use; store in frost-free area
Spare Parts	Battery, charger, nozzles, and seals available

Frequently Asked Questions - EasiClean Plus Li FLYMO

What battery is used in the Flymo EasiClean Plus Li?

The Flymo EasiClean Plus Li uses an 18V lithium-ion battery (typically 2.0 Ah). It is compatible with other Flymo 18V tools.

How long does the battery last on a full charge?

Under normal use, the battery provides approximately 20 minutes of continuous cleaning. The trigger controls water flow, so intermittent use extends runtime.

Can I use any garden hose to supply water?

Yes, the pressure washer connects to a standard garden hose using a quick-connect adapter. Make sure the hose is not kinked and water flow is adequate.

What cleaning agents can I use?

Only use water or mild detergent designed for pressure washers. Do not use bleach, solvents, or flammable liquids. The included foam nozzle allows for soap application.

How do I maintain the pressure washer?

After each use, rinse the filter and nozzle with clean water. Store the unit indoors to prevent frost damage. Check seals regularly for wear.

Is the pressure washer safe to use on car paint?

Yes, but use the wide fan spray at a distance of at least 30 cm to avoid damage. Hold the nozzle at a 45-degree angle and avoid direct jet on sensitive areas.

What should I do if the pressure drops?

Check for kinks in the hose, a clogged filter, or a low battery. Clean the filter and ensure the battery is fully charged. If the problem persists, inspect the nozzle for blockages.

Can I use it with a bucket instead of a hose?

No, the EasiClean Plus Li requires a continuous water supply from a hose under pressure. It cannot draw water from a container.

How do I store the pressure washer for winter?

Drain all water from the hose and unit. Store the battery separately in a warm, dry place. Keep the pressure washer in a frost-free shed or garage.

Where can I find replacement parts?

Spare parts such as batteries, chargers, nozzles, and seals are available from Flymo dealers or the official website. Use only genuine parts for safety.

USER MANUAL EasiClean Plus Li FLYMO

Line drawing of a handheld water spray gun with attached hose and connector (no text or symbols)

EasiClean 20V Li Art. 967 982 801

EasiClean 20V Li Plus Art. 967 982 901

EN Operator's manual

Battery Medium Pressure Washer

A1	A2	A3
A4	A5	A6
A7	O1
O2	O3	O4
O5	O6	M1

EN Battery Medium Pressure Washer

1. SAFETY 4
2. ASSEMBLY 5
3. OPERATION....6
4. MAINTENANCE 6
   5.STORAGE 7
5. TROUBLESHOOTING 7
6. TECHNICAL DATA....7
7. ACCESSORIES 8
8. SERVICE/WARRANTY....8

Original instructions.

This product must not be used by children. Children must be supervised to ensure that they do not play with the product. This product may be used by persons with reduced physical,

sensory or mental abilities or lack of experience and knowledge if they have been supervised or instructed in the safe use of the product and understand the hazards involved.

Intended use:

The FLYMO Battery Medium Pressure Washer is intended to clean floor tiles, garden furniture / tools, bicycles, vehicles, boats and to clean softly in private domestic gardens and allotments.

The product is not intended for continuous operation.

DANGER! Risk of physical injury!

→ Do not use the product for cleaning people, animals or electricalwiring.

Scope of delivery of the sets:
Art. 967 982 801 Plus
Art. 967 982 901

Washer	X	X
Battery	X	X
Charger	X	X
3 Nozzles	X	X
Hose	X	X
Water bag	-	X
Detergent tank	-	X

1. SAFETY

IMPORTANT!

Read the operator's manual carefully before use and keep for future reference.

Symbols on the product:

oduct is not suitable for connection to the drinking water supply system.

For the charger: Remove plug from the mains immediately if the cable is damaged or cut.

General safety warnings

Electrical safety

DANGER! Electric shock!

Risk of injury due to electric shock.

→ The product must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

It must be observed that no liquid may be directed directly at electrical devices and equipment containing electrical components, e. g. the interior of ovens.

Safe operating practices

Due to physical hazards, only the liquid agents specified by the manufacturer may be applied with the product. No acids, disinfectants and impregnating agents, aggressive cleaning agents containing solvents, petrol or spray oil may be applied.

The water temperature must not exceed 45 °C.

When connecting the medium pressure washer to the water supply system, the country-specific sanitary regulations must be observed to prevent water not of drinking water quality being drawn back in.

→ Please consult a specialist for sanitary installations.

Always wear approved eye and ear protection.

Wear suitable personal protective equipment (safety gloves).

The maximum permissible pressure when connected to the water pipe is 6 bar. Take care when opening the spray gun! When using the flat or rotary nozzle, recoil forces can occur when the spray gun is opened, causing a torque on the lance.

The spray gun can be secured against accidental opening by a lock.

WARNING! Do not use the product within reach of persons unless they are wearing protective clothing.

WARNING! Risk of explosion! Do not spray flammable liquids.

WARNING! Fittings and couplings are important for product safety. Only use accessories recommended by FLYMO (fittings and couplings).

WARNING! To ensure product safety, use only original spare parts approved by FLYMO.

WARNING! Water that has flowed through non-return valves is deemed to be non-drinkable.

WARNING! Do not use the product if a connecting cable or important parts are damaged, e. g. safely devices, spray gun, etc.

WARNING! Remove the battery before cleaning, maintenance, when replacing parts or when the product is converted to another function.

Additional safety warnings

Battery safety

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Store these instructions in a safe place. Only use the charger if you can fully evaluate all functions and carry them out without restrictions, or if you have received corresponding instructions.

→ Supervise children during use, cleaning and maintenance.
This will ensure that children do not play with the charger.
→ Charge only lithium-ion batteries of the POWER FOR ALL system type PBA 18V with a capacity of 1.5 Ah or more (5 battery cells or more). The battery voltage must match the battery charging voltage of the charger. Do not charge any nonrechargeable batteries. Otherwise there is a risk of fire and explosion.
Do not expose the charger to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
→ Keep the charger clean. Dirt poses a risk of electric shock.
→ Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by a qualified specialist using only original replacement parts. Damaged chargers, cables and plugs increase the risk of electric shock.
→ Do not operate the charger on an easily ignited surface (e. g. paper, textiles, etc.) or in a flammable environment. There is a risk of fire due to the charger heating up during operation.
→ In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by FLYMO or by a customer service centre that is authorised to repair FLYMO power tools.
→ Do not operate the product while it is charging.

Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

→ These safety warnings apply only for lithium-ion batteries of the POWER FOR ALL system PBA 18V.
→ Only use the battery with products of the POWER FOR ALL system manufacturers.

This is the only way in which you can protect the battery against dangerous overload.

→ Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
→ The battery is supplied partially charged.
To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time.
→ Keep battery packs out of the reach of children.
→ Do not open the battery. There is a risk of short-circuiting.

→ In case of damage and Improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
→ If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.
→ If the battery is damaged liquid can be ejected and cover nearby surfaces. Check affected parts. Clean these parts or change them if necessary.
→ Do not short-circuit the battery pack. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
→ The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
→ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
→ Protect the battery against heat, e. g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.
→ Only operate and store the battery at an ambient temperature between -20 °C and +50 °C. Do not leave the battery in your car in the summer, for example. At temperatures of < 0 °C some devices may experience a loss of power.
→ Only charge the battery at an ambient temperature which is between 0 °C and +45 °C. Charging outside of this temperature range can increase the risk of damage to the battery and pose a fire hazard.

Electrical safety

DANGER! Cardiac arrest!

This product makes an electromagnetic field while it operates. This field may under some conditions interfere with active or passive medical implants. To decrease the risk of conditions that can possibly injure or kill, we recommend persons with medical implants to speak with their physician and the medical implant manufacturer before you operate the product.

Disconnect the battery in case of emergency. The washer cannot be used with older batteries (product name PBA 18V..V.) Protect the battery contacts from moisture.

Personal safety

DANGER! Risk of suffocation!

Small parts can be easily swallowed. There is also a risk that the poly-bag can suffocate toddlers. Keep toddlers away when you assemble the product.

Check the product before usage.

Do not use a damaged product especially if there are cracks on the housing. Do not immerse the product.

Operate the machine only in daylight or in good artificial light

DANGER! Personal injury and damage to the product!

→ Let the pressure out of the system before disconnecting the water hose.

Always wear eye protection.

No using in wet condition. Not using in rain.

Keep all nuts, bolts and screws tight to be sure the product is in a safe working condition.

Do not disassemble the product further than the delivery status.

Warning! When wearing hearing protection, and due to the noise produced by the product, the operator may not notice persons approaching.

While operation and transport pay special attention to the hazard for other people.

Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

Only use the product with clear water. Do not add any additives to the water. Impurities in the water can damage the pump and accessories.

Do not use or store the product in frost.

Aim the cleaner away from yourself and others.

2. ASSEMBLY

DANGER! Risk of injury!

Eye injury and personal injury caused by the water jet.

→ Remove the battery before you assemble the product.

To assemble the attachments and the suction hose [Fig. A1/A2/A3]:

→ The product may only be used when the suction hose and the spray lance are completely assembled.

The following spray lances are in the scope of delivery:

• Short spray lance (ca. 6 cm)
• Long spray lance (ca. 35 cm)

The following attachments are in the scope of delivery:

• 0° nozzle
• 15° nozzle
• 40° nozzle

• Detergent tank (Plus)

• Push the desired spray lance ① into the lance holder ② and turn it clockwise until the connection engages noticeably (bayonet lock).

• Pull the ring ③ of the quick coupling backwards, push the desired attachment ④ on the spray lance ① and release the ring ③ again. The coupling is fully engaged when the ring is again at the front (the silver retaining spring and the silver balls are no longer visible).
• Turn the attachment④ for the desired spraying angle.
  The two unused nozzles ④ can be placed on the holders ⑤.

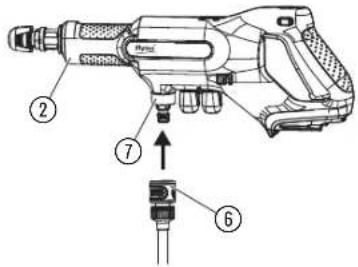

• Connect the suction hose ⑥ to the connection ⑦.

To assemble the detergent tank (Plus) [Fig. A4]:

For cleaning with detergent, the detergent tank can be attached to the front of the short lance ①.

1. Fill the detergent container⑧ with detergent.
2. Pull the ring ③ of the quick coupling backwards, place the detergent tank ⑧ on the short spray lance ① and release the ring ③ again. The coupling is fully engaged when the ring is again at the front (the silver retaining spring and the silver balls are no longer visible).
3. Dose the amount of detergent with the dosing wheel ⑨.

To provide the water supply:

You can enable the water supply via the water bag (Plus), via a water tank (pond, rain barrel, etc.) or via a water tap.

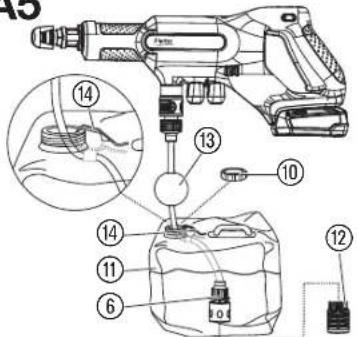

Water supply via the water bag (Plus) [Fig. A5]:

1. Carry the full water bag by the handle and place it on a firm surface when in use.
2. Unscrew the cap ⑩.
3. Fill the water bag⑪ with clear tap water.
4. Remove the suction filter⑫.
5. Move the float ball ⑬ upwards.
6. Immerse the suction hose⑥ in the water bag ⑪.
7. Attach the hose⑥ to the water bag⑪.with the plastic clip⑭.

The hose Ⓔ must be completely immersed in the water.

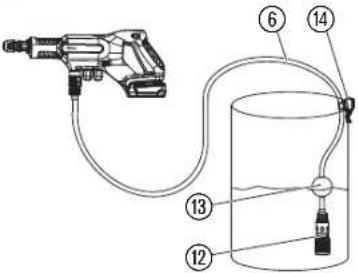

Water supply via a water tank [Fig. A6]:

1. Immerse the suction filter ^⑫ of the suction hose ⑥ in the water tank. The suction filter ⑫ must be completely immersed in the water.
2. Move the float ball ⑬ in such a way that the suction filter ⑫ does not touch the ground. This prevents the suction filter from clogging.
3. Attach the hose⑥ to the water tank with the plastic clip⑭.

Note:

When water is supplied via a water tank, the suction filter ⑫ must be used.

Only clear fresh water may be used.

Water supply via a water tap [Fig. A7]:

The washer is leak-proof up to 1.0 MPa (10.0 bar) water inlet pressure. For an optimal cleaning result 0.6 MPa (6.0 bar) water inlet pressure must not be exceeded.

1. Connect the enclosed suction hose⑥ to a water tap⑮.
2. Open the water tap.

Alternatively, a garden hose can also be connected.

TION!

→ Close the water tap and disconnect the washer from the tap after cleaning.

3. OPERATION

DANGER! Risk of injury!

injury and personal injury caused by the water jet.

→ Remove the battery before you adjust or transport the product.

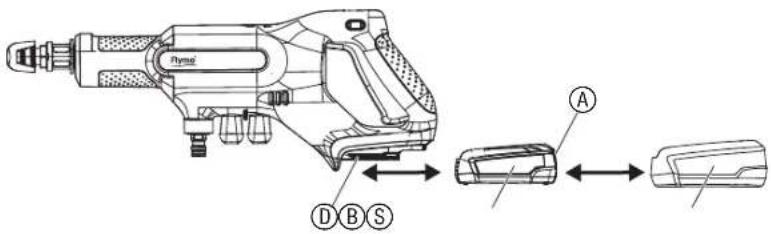

To charge the battery [Fig. 01/02/03]:

TION!

→ Note the mains voltage! The voltage of the power source must match the voltage specified on the rating plate of the charger.

Thanks to the intelligent charging process, the charge condition of the battery is automatically detected and then charged up with the optimal charge current depending on battery temperature and voltage.

In this way, the battery is treated with care and remains permanently fully charged when it is stored in the charger.

1. Push the locking buttonⒶ and remove the battery Ⓑ from the battery holder Ⓓ.
2. Remove the battery® from its protective cover S.
3. Connect the battery charger© into a mains socket.
4. Slide the battery charger© onto the battery ®

When the battery charge indicator at the charger flashes green the battery is being charged.

When the battery charge indicator 1c at the charger illuminates permanently green the battery is completely charged

(Charging time, see 7. TECHNICAL DATA).

1. Examine the charge status regularly while you charge.
2. When the battery Ⓑ is completely charged, you can disconnect the battery Ⓑ from the charger Ⓒ.

Meaning of the indication elements:

Indication on the charger [Fig. O3]:

Flashing of the battery charge Indicator

The charging procedure is indicated by flashing of the battery charge indicator .

Note: The charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see 7. TECHNICAL DATA.

Continuous lighting of the battery charge indicator

Continuous lighting of the battery charge indicator (1) indicates that the battery is fully charged or that the temperature of the battery is not within the allowable charging temperature range and can therefore not be charged.

When the battery is not inserted, continuous lighting of the battery charge indicator ① indicates that the mains plug is inserted in the socket outlet and that the battery charger is ready for operation.

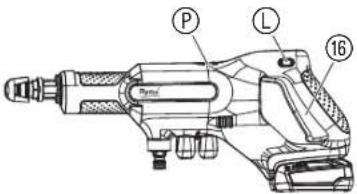

Battery charge status indication Ⓟ on the product [ Fig. O4 / O6 ]: After starting the product, the battery charge status indication Ⓟ is displayed for 5 seconds.

Battery charge status Battery charge status indication

67 - 100 % charged	1, 2 and 3 illuminate green
34 - 66 % charged	1 and 2 illuminate green
11 - 33 % charged	1 illuminates green
0 - 10 % charged	1 flashes green

If the LED Ⓛ flashes green, the battery must be charged.

If the error LED Ⓜ is illuminated or flashing, see 6. TROUBLESHOOTING.

Control panel [Fig. 05]:

Soft Clean Mode:

The soft-clean mode reduces the spray pressure for cleaning sensitive surfaces. It also extends the battery life.

There are 3 different operating modes:

Soft Clean-Mode high (24 bar)	© does not illuminate
Soft-Clean-Mode soft (14 bar)	© is flashing
Soft-Clean-Mode ultra soft (9 bar)	© illuminates

The specified pressure values may vary depending on the inlet pressure.

→ Push the Soft Clean button Ⓗ on the control panel repeatedly until the desired mode is displayed.

To start the washer [Fig. 01/06]:

DANGER! Risk of injury!

of injury if the product does not stop when you release the start lever.

→ Do not bypass the safety devices or switches. For example do not attach the start lever to the handle.

To start:

The product is provided with a safety device (start lever with starting lockout) to prevent the product from being turned on by accident.

The washer may only be used with a battery when the protective cover ⑤ has been slid onto the battery.

1. Pull the protective cover ⑤ over the battery ⑧ .
2. Put the battery® into the battery holder ® until it audibly engages.
3. Push the starting lockout ① on the left side and pull the start lever ⑯. The washer starts and the battery charge status indication ⑪ is displayed for 5 seconds.
4. Release the starting lockout ① again. The washer continues to run without having to push the starting lock-out.

To stop:

1. Release the start lever ^⑯ . The washer stops.
2. Close the water supply (e.g. water tap).
3. Pull the start lever ^16 to depressurize the system.
4. Disconnect the suction hose from the washer.
5. Push the locking buttonⒶ and remove the battery Ⓑ from the battery holder Ⓓ.

Use in suction mode:

1. Push the starting lockout ① on the left side and pull the start lever ⑯ .
2. Switch off the Soft-Clean mode during priming (LED is not illuminated).
3. Prime at a low height (approx. 0 to 1 m).
4. Wait until water is pumped and full pressure is reached.
5. Then move to your working position.

It can take up to 30 seconds (at higher suction heights) until the water is delivered in suction mode. The maximum suction height is 2 m.

4. MAINTENANCE

DANGER! Risk of injury!

injury and personal injury caused by the water jet.

→ Remove the battery before you maintain the product.

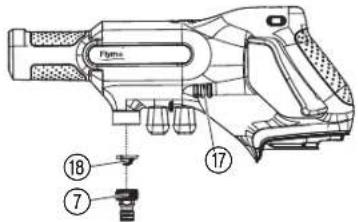

To clean the washer [Fig. M1]:

DANGER! Risk of injury!

k of injury and risk of damage to the product.

→ Do not clean the product with water or with a water jet (in particular high-pressure water jet).
→ Do not clean with chemicals including petrol or solvents. Some can destroy critical plastic parts.

The airflow slots must always be clean.

1. Clean the airflow slots ⑰ with a soft brush (do not use a screwdriver).
2. Clean all movable parts after each operation. Especially remove any dirt from the connections.
3. Unscrew the connection⑦ (if necessary using a spanner with spanner size 17).
4. Remove the device filter ⑯ from the connection ⑰ and clean the filter under running water.
5. Remove the spray lance① and rinse the spray lance ① with clear water.
6. Remove the suction filter ^12 and clean the suction filter ^12 .
7. Screw the connection ⑦ hand-tight into the washer.

To clean the battery and the battery charger:

Make sure that the surface and the contacts of the battery and the battery charger always are clean and dry before you connect the battery charger.

Do not use running water.

→ Battery charger: Clean the contacts and the plastic parts with a soft and dry cloth.
→ Battery: Occasionally clean the ventilation slots and the terminals on the battery using a soft brush that is clean and dry.

5. STORAGE

To put into storage:

The product must be stored away from children.

1. Remove the battery.
2. Charge the battery.
3. Clean the washer, the battery and the battery charger (see 4. MAINTENANCE).
4. Store the washer, the battery and the battery charger in a dry, enclosed and frost-free place.

Disposal:

(in accordance with RL2012/19/EC)

The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations.

IMPORTANT!

→ Dispose of the product through or via your municipal recycling collectioncentre.

Disposal of the battery:

The FLYMO battery contains lithium-ion cells that should not be disposed of with normal household waste at the end of its life.

Li-ion

IMPORTANT!

→ Dispose of the batteries through or via your municipal recycling collectioncentre.
1. Discharge the lithium-ion cells completely (contact the FLYMO Service).
2. Protect the contacts on the lithium-ion cells against short circuits.
3. Dispose of the lithium-ion cells properly.

6. TROUBLESHOOTING

DANGER! Risk of injury!

Eve injury and personal injury caused by high pressure water jet.

→ Remove the battery before you troubleshoot the product.

Problem Possible Cause Remedy

Washer conveys no or almost no water	Water container is empty. Fill the water container.
	Air is in the system. Remove the lance and push the start lever for about 30 seconds until water is visiblypumped. Reassemble the lance.

Problem Possible Cause Remedy

Washer conveys no or almost no water	Air is in the system. Ventilate the system at low altitude. Then move to the working position.
	Device filter (see 4. MAINTENANCE), suction filter or nozzle is clogged.	Clean the device filter and suction filter. Clean the nozzles e. g. with a needle.
Pressure drop during operation	Device filter or suction filter is dirty.	Clean the device filter and suction filter (see 4. MAINTENANCE).
	Battery charge level is too low. Charge the battery.
Water is badly sucked In from the water tank	Suction height too high. Reduce the suction height.
	Air is in the system. Remove the lance and push the start lever for about 30 seconds until water is visiblypumped. Reassemble the lance.
	Device filter or suction filter is dirty.	Clean the device filter and suction filter (see 4. MAINTENANCE).
Washer does not stop	Start lever is stuck.	Remove the battery and loosen the start lever.
Washer does not start or stops. LED Ⓐ Is flashing green [Fig. 04]	Battery is empty.	Charge the battery.
Washer does not start or stops. Error-LED ⚙Is Illuminated red [Fig. 04]	Battery temperature is outside the permissible temperature range.	Wait until the battery temperaturesbetween 0^ C - + 45^ C again.
	Washer is overheated (e. g. by direct sunlight).	Let the washer cool down in a cool, shady place.
Washer does not start or stops. Error-LED ⚙is illuminated red [Fig. 04]	Water has entered the battery.	Allow the battery to dry in a protected place.
	There are drops of water or moisture between the battery contacts on the washer.	Remove the water drops/ moisture with a dry cloth.
	Engine is blocked.	Contact the FLYMO Service.
Washer does not start or stops. Error-LED ⚙is flashing red [Fig. 04]	Product is defective.	Contact the FLYMO Service.
Washer does not start or stops. Error-LED ⚙Is not Illuminated [Fig. 04]	Battery is not put completely into the battery holder.	Put the battery completely into the battery holder until it audibly engages.
	Battery is defective. Replace the battery.
	Product is defective.	Contact the FLYMO Service.
Charging Is not possible. Battery charge indicator ⚙ is continuously illuminated [Fig. 03]	The battery is not connected (correctly).	Connect the battery to chargercorrectly.
	Battery contacts are dirty.	Clean the battery contacts (e. g. by connecting and disconnecting the battery several times. Replace the battery if necessary.
	Battery temperature is out- side the permissible charging temperaturerange.	Wait until the battery temperaturesbetween 0^ C - + 45^ C again.
	Battery is defective. Replace the battery.
Battery charge indicator ⚙ is not illuminated [ Fig. 03 ]	Mains plug of the charger is not (correctly) plugged in.	Insert the mains plug into the mains socket (completely).
	Socket outlet, mains cable or charger is defective.	Check the mains voltage. Let the charger be checked if necessary by an author-ised specialist dealer or the FLYMOService.

NOTE: For any other malfunctions please contact the FLYMO service department. Repairs must only be done by FLYMO service departments or specialist dealers approved by FLYMO.

7. TECHNICAL DATA

Battery Medium Pressure Washer	Unit	Value (Art. 967982801 / Art. 967982901)
Rated pressure/Max. pressure	MPa	2.4
Max. supply pressure	MPa	0.6
Battery Medium Pressure Washer	Unit Value (Art. 967982801 / Art. 967982901)
Suction hose length m 5
Max. suction head m 2
Max. Running times(2.0Ah battery):
Soft-Clean-Mode high	min.	15
Soft-Clean-Mode soft	min.	19
Soft-Clean-Mode ultra soft	min.	38
Max. Flow rate:
Soft-Clean-Mode high	l/h	250
Soft-Clean-Mode soft	l/h	200
Soft-Clean-Mode ultra soft	l/h	100
Max. Pressure:
Soft-Clean-Mode high	bar	24
Soft-Clean-Mode soft	bar	14
Soft-Clean-Mode ultra soft	bar	9
Weight with short lance(without Battery)	kg 1.5
Sound pressure level L_pA^1) Uncertainty k_pA	dB (A)	683
Sound power level L_wA^2) :measuredUncertainty k_wA	dB (A)	833
Hand/arm vibration a_vWw^1) Uncertainty k_vWw	m/s ^2	2.81.5

Measuring process complying with: ^1) EN 60335-2-54 ^2) EN 60335-2-79

NOTE: The stated vibration emission value has been measured according to a standardised test procedure and can be used for comparison of one electric power tool with another. It can also be used for preliminary evaluation of expo

sure. The vibration emission value can vary during actual use of the electric power tool.

System BatteryPBA 18V 2.0Ah W-B	Unit Value
Battery voltage V (DC) 18
Battery capacity Ah 2.0
Number of cells (LI-Ion) 5

Appropriate POWER FOR ALL system Battery Chargers: AL 18..CV.

Battery ChargerAL 1810 CV P4A	Unit Value
Mains voltage V (AC) 220 – 240
Mains frequency Hz 50 – 60
Rated power W 26
Battery charging voltage V (DC) 18
Max. battery charging current	mA	1000
Battery charging time80%/97 – 100% (approx.)
PBA 18V 2.0Ah W-B	min.	96 / 124
PBA 18V 2.5Ah W-B	min.	120 / 154
PBA 18V 4.0Ah W-C	min.	192 / 244
Permitted charging temperature range	°C 0 – 45
Weight according to EPTA-Procedure 01:2014	kg 0.17
Protection class		☐ / II

Appropriate POWER FOR ALL system Batteries: PBA 18V.

1. ACCESSORIES

GARDENA System BatteryPBA 18V/45 P4APBA 18V/72 P4A	Battery for additional duration or for replacement.	Art. 14903Art. 14905
GARDENA Battery QuickCharger AL 1830 CV P4A	Charger for fast charging the POWER FOR ALL system Batteries PBA 18V..W--..	Art. 14901

9. SERVICE/WARRANTY

Service:

Please contact the address on the back page.

Warranty statement:

In the event of a warranty claim, no charge is levied to you for the services provided.

Husqvarna UK Ltd. grants a warranty for all original FLYMO new products for two years from the date of original purchase from the retailer, provided that the devices have been for private use only. This manufacturer's warranty does not apply to products acquired second hand. This warranty includes all significant defects of the product that can be proved to be material or manufacturing faults. This warranty is fulfilled by supplying a fully functional replacement product or by repairing the faulty product sent to us free of charge; we reserve the right to choose between these options. This service is subject to the following provisions:

• The product has been used for its intended purpose as per the recommendations in the operating instructions.
• Neither the purchaser nor a third party has attempted to open or repair the product.
• Only Original FLYMO replacement parts and wear parts have been used for operation.
• Presentation of the receipt.

Normal wear and tear of parts and components (such as blades, blade fixing parts, turbines, light bulbs, V-belts/toothed belts, impellers, air filters, spark plugs), visual changes, wear parts and consumables are excluded from the warranty.

This manufacturer's warranty is limited to replacement and repair of products in accordance with the abovementioned conditions. The manufacturer's warranty does not constitute an entitlement to lodge other claims against us as a manufacturer, such as for damages. This manufacturer's warranty does not, of course, affect statutory and contractual warranty claims against the dealer/retailer.

The manufacturer's warranty is governed by the law of the Federal Republic of Germany.

In case of a warranty claim, please return the faulty product, together with a copy of the receipt and a description of the fault, with postage paid to the service address.

Consumables:

The filters and accessories (e.g. water bag) are consumables and are not included in the warranty.

PRODUCT LIABILITY

In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a FLYMO-approved service partner or where original FLYMO parts or parts authorised by FLYMO were not used.

EC DECLARATION OF CONFORMITY

The undersigned hereby certifies as the authorized representative of the manufacturer, Husqvarna AB, 561 82 Huskvarna, Sweden, that, when leaving our factory, the unit(s) indicated below is/are in accordance with the harmonised EU guidelines, EU standards of safety and product specific standards. This certificate becomes void if the unit(s) is / are modified without our approval.

Description of the product: Battery Medium Pressure Washer

Product type EasiClean 20V Li	EasiClean 20V Li Plus
Article-Number 967982801	967982901
CE-Directives 2006/42/EG	2014/30/EU2011/65/EUCharger:2014/35/EC
Harmonised EN EN ISO 12100	EN 60335-1EN 60335-2-54Charger:EN 60335-2-29
Deposited Documentation GARDENA Technical Documentation,M. Kugler, 89079 Ulm
Year of CE marking: 2020
Ulm, 30.10.2020
Authorised representative:	Reinhard PompeReinhard PompeVice President

(C1428ARP) Buenos Aires

Phone: [phone]

[e-mail]

Armenia

Garden Land Ltd.

61 Tigran Met

0005 Yerevan

Australia

Husqvarna Australia Pty. Ltd.

Locked Bag 5

Central Coast BC

NSW 2252

Phone: (+ 61) (0) 2 4352 7400

customer.service@

husqvarna.com.au

Brampton, Ontario L6T 4X3

Phone: [phone]

[e-mail]

Chile

Maquinarias Agroforestales

Ltda. (Maga Ltda.)

Santiago, Chile

Avda. Chesterton

# 8355 comuna Las Condes

Phone: [phone]

[e-mail]

Zipcode: 7560330

China

Husqvarna (China) Machinery

Manufacturing Co., Ltd

No. 1355, Jia Xin Rd.,

Ma Lu Zhen, Jia Ding Dist.,

Shanghai

201801

Phone: [phone]

Domestic Sales

www.gardena.com.cn

Colombia

Husqvarna Colombia S.A.

Calle 18 No. 68 D-31, zona

Industrial de Montevideo

Bogotá, Cundinamarca

Tel. [phone] ext. 105

[e-mail]

Costa Rica

Compania Exim

Euroiberoamericana S.A.

Los Colegios, Moravia,

Saint Francis – San J

Phone: [phone]

[e-mail]

Croatia

SILK ADRIA d.o.o.

Josipa Lončara 3

10090 Zagreb

Phone: [phone]

[e-mail]

Cyprus

Med Marketing

17 Digeni Akrita Ave

P.O. Box 27017

1641 Nicosia

Czech Republic

Aycliffe Industrial Park

Newton Aycliffe

County Durham

DL5 6UP

Phone:[phone]

customer.services@

husqvarna.co.uk

Greece

Π.ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ

Λεωφ. Αθηνών 92

Αθήνα

TK.10 4 42

Ελλάδο

Tηλ. ([phone]

[e-mail]

Hungary

Aycliffe Industrial Park

Newton Aycliffe

County Durham

DL5 6ÚP

[e-mail]

Italy

Husqvarna Italia S.p.A.

Via Santa Vecchia

23868 VALMADRERA (LC)

Phone: [phone]

assistenza.italia@

it.husqvarna.com

Japan

KAKUICHI Co. Ltd.

Sumitomo Realty &

Development Kojimachi

BLDG., 8F

5 -1 Nibanncyo

Chiyoda-ku

Tokyo 102-0084

Phone: [phone]

[e-mail]

Kazakhstan

LAMED Ltd.

155/1, Tazhibayevoi Str.

050060 Almaty

IP Schmidt

Abayavenue 3B

110 005 Kostanay

Korea

Kyung Jin Trading CO.,LTD.

107-4, SunDuk Bld.,

YangJae-dong,

Seocho-gu,

Seoul, (zipcode: 137-891)

Phone: (+82) (0)2 574-6300

Kyrgyzstan

Alye Maki

av. Moladaya Guardir J 3

720014

Bishkek

Latvia

Husqvarna Latvija SIA

Gardena Division

Ulbrokas 19A

LV-1021 Riga

[e-mail]

Lithuania

UAB Husqvarna Lietuva

Gardena Division

Ateities pl. 77C

LT-52104 Kaunas

[e-mail]

Luxembourg

Magasins Jules Neuberg

1. rue Jacques Stas

Luxembourg-Gasperich 2549

Case Postale No. 12

Luxembourg 2010

Phone: [phone]

[e-mail]

Mexico

AFOSA

Zapopan, Jalisco, Mexico

Phone: [phone]

Husqvarna New Zealand Ltd.

PO Box 76-437

Manukau City 2241

Phone: (+64) (0) 9 9202410

[e-mail]

Norway

Husqvarna Norge AS

Gardena Division

Trøskenveien 36

1708 Sarpsborg

Tel: [phone]
