INN-773G - Aroma diffuser Innoliving - Free user manual and instructions

Product Type	Aroma diffuser
Brand	Innoliving
Model	INN-773G
Dimensions (L x W x H)	16 x 16 x 12 cm
Weight	0.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	12 W
Water Tank Capacity	100 ml
Mist Modes	Continuous, intermittent
LED Lighting	7 colors, cycling or fixed
Operating Time (continuous)	Up to 6 hours
Automatic Shut-Off	Yes, when water empty
Timer Settings	1, 2, 4 hours
Coverage Area	Up to 30 m²
Noise Level	< 30 dB
Material	PP plastic
Essential Oil Compatibility	Yes, water-based oils
Cleaning Method	Wipe with damp cloth, vinegar solution for descaling
Safety Features	Overheat protection, automatic shut-off
Included Accessories	AC adapter, user manual
Certifications	CE, RoHS

Frequently Asked Questions - INN-773G Innoliving

How do I operate the INN-773G aroma diffuser?

Fill the water tank with clean water up to the MAX line, add 3-5 drops of your favorite essential oil, then press the power button. The diffuser will start emitting a fine mist.

How should I clean the diffuser?

Unplug the diffuser and empty any remaining water. Wipe the tank and outer surfaces with a soft damp cloth. For descaling, use a solution of 1 part white vinegar to 3 parts water, run for 5 minutes, then rinse thoroughly.

What essential oils can I use?

You can use any water-soluble essential oils. Avoid oils that are viscous or contain suspended particles, as they may clog the ultrasonic transducer.

Why is the diffuser not producing mist?

Check that the water tank is filled above the minimum level. If the ultrasonic transducer is dirty, clean it gently with a soft brush. Also ensure the diffuser is placed on a flat, stable surface.

Can I leave the diffuser on overnight?

Yes, the diffuser has an automatic shut-off feature that turns it off when the water runs out, making it safe for overnight use in a well-ventilated room.

Is the INN-773G safe to use around children and pets?

Yes, it is made from BPA-free materials and includes safety features like overheat protection. However, always place it out of reach and avoid spilling water.

How often do I need to refill the water tank?

With a 100 ml tank, continuous operation lasts about 6 hours. Refill frequency depends on usage, but always check water level before starting.

Can I use tap water?

While tap water is fine, distilled water is recommended to minimize mineral buildup and prolong the life of the ultrasonic transducer.

How do I change the LED light color?

Press the LED button to cycle through 7 colors. Press and hold to turn off the light. The light operates independently of the mist function.

What is the warranty period and how to claim?

The Innoliving INN-773G comes with a 2-year warranty. To claim, contact your place of purchase with proof of purchase and a description of the issue.

USER MANUAL INN-773G Innoliving

innoliving easy tech, easy life

DIFFUSORE DI AROMA

INN-773G/W

MANUALE D'USO

USER MANUAL

Innoliving Spa

Via Merloni 9

60131 Ancona - Italy

INN-773W DIFFUSORE AROMA AROMA DIFFUSER

5V --- 1A 5W

Thank you for purchasing the aroma diffuser INNOLIVING INN-773.

- Read carefully the instruction manual and keep this manual safe for future references.

SAFETY INSTRUCTIONS AND WARNINGS

• Before using the product make sure that it is intact without visible damages. If any doubt, please contact the authorized after sales service.
• Do not use the product for different purposes from those described in this instruction manual. Any other use is considered improper and therefore dangerous.
• ATTENTION: This is not a toy, please keep out of reach of children in order to avoid any accident to them.
• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or instructed about the use of the appliance by a person responsible for their safety. Children should be supervised to make sure they don't play with the device.

- Keep away of reach of children or pets.

- Cleaning and maintenance operations should not be carried out by children without the supervision of an adult.

- Do not use the product in the bathroom or humid environment. Do not immerse the product in water or other liquid.

- Do not place the product behind furniture and curtain, do not cover it.

- Keep the product away from heat sources, sunlight, humidity sharp object or similar.

- In case of malfunctions or damages, always contact the supplier or the authorized after sales service and do not tamper with the product to repair or replace damage parts; this would invalidate the warranty. Only use the product indoor.

- Only use the supplied USB cable.

- Packing materials (plastic bags, cardboard, polystyrene etc.) should be not left in the reach of children as potential sources of danger and must be disposed of in accordance with the current law.

- Avoid filling tank by exceeding the indicated MAX level.

- Do not operate the product if the water tank is empty.

• Essential oil could stain the main unit. In case of spills, wipe with a soft cloth.

- Do not let mist flow blow directly sunshine heat source and air conditioners or fans.

- Place the product on a flat and stable surface.

- Keep the product away from electronic products such as TVs or audio devices.

- Do not tilt the product. This could cause water to escape from the tank, compromising the internal mechanisms and damaging surfaces or objects.

- Do not move the device while it is in use.

- Do not touch the product and its parts with wet hands.

- The quantity and intensity of the mist emitted by the product may vary because of the type of water used, the humidity and the air temperature. This is quite normal and does not constitute a defect in production.

- Only use 100% natural essential oils.

- If the product overturns accidentally, follow these steps to prevent damages to the product:

• Disconnect the device from the USB port and remove the lid.
• Remove any water residue from the tank
  • Gently shake the main unit to remove any other water residue inside and leave to dry for at least 24 hours.
  • Always disconnect the product from the USB port, when not in use and whenever you proceed with any maintenance or cleaning operation.
• The device is for household use only and it's not suitable with commercial applications.
• Use and store the device after se in a clean and dry place.
• Turn the unit off before the disconnecting it from the USB port.
• Do not use the device in rooms containing explosive or inflammable substances.
  • To prevent overheating, do not cover the device with a blanket or any other object.
• Protect the device from impacts, fire, heat, direct snlight, subzero temperatures.
• Some items of furniture have delicate coatings, it is recommended then to place mat under the

diffuser.

• Individual LEDs cannot be replaced.
• Do not insert anything into the openings of the device and make sure that these are not blocked. The device must not be used with blocked openings.

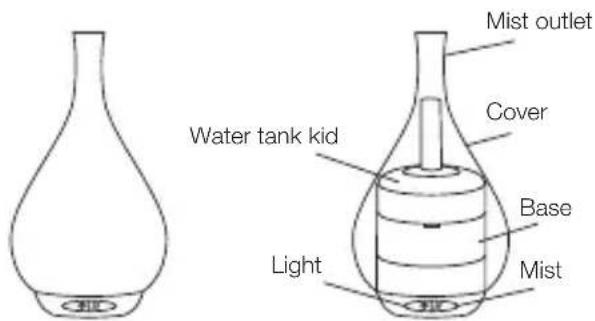

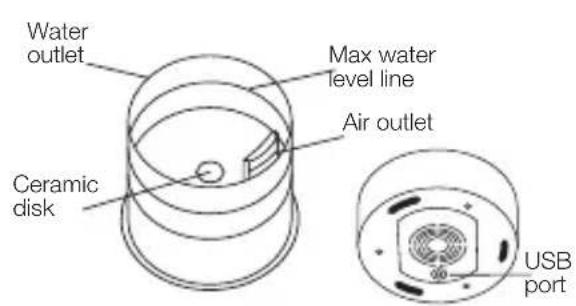

PRODUCT DESCRIPTION

FEATURES

Ultrasonic vibrations transform water and essential oil into steady stream of aroma-infused mist.

1. Water Capacity: 150 ml (MAX Level 85ml)
2. Coverage area: Up to 35 sqm with mist intensity

HOW TO USE

1. Place diffuser on a flat, water-resistant surface before operations.
2. Remove glass cover. Remove Water tank lid from the Base.
3. Insert the USB cable into the outlet of the diffuser

and the plug into the USB port. Insert the adapter into an electrical outlet.

1. Fill the tank with tap water up to the Max Water Level Line. Add 2-3 drops of essential oil (not included) directly into the Water Tank.

2. Replace the Water Tank Lid. Replace Cover on top of Base, aligning Mist Outlet with nozzle on Water Tank Lid.

SETTINGS

MIST

Hold down MIST switch for approx. 3 seconds. The operating lamp lights p yellow. The device starts to evaporate water. By pressing MIST switch multiple times, the following modes can be selected:

• 30 seconds ON/ 30 seconds OFF- yellow operating lamp.
• Constantly ON-red operating lamp.
  • 3 hours ON- orange operating lamp.
  • OFF

The device switches off automatically, if there is not water in the water reservoir.

LIGHT

Press the LIGHT switch. The LEDs turn on (colour change).

To set a colour permanently, press the LIGHT switch again, when this colour appears. The colour change stops.

To switch off the light, press down the LIGHT switch again.

The diffuser and light function can be used independently of one another.

When the unit is not in use, disconnect it from the USB port.

NOTES

Only use pure essential oils. Other liquid types, such as fragrance or synthetic oils, may cause corrosion that can damage your diffuser and void our warranty. In pouring essential oils, avoid contact of these substances with the cover of the product, it could get damaged.

The unit will stop misting when water level becomes too low.

The light must be manually turned off.

CLEANING AND MAINTENANCE

Turn the product off, disconnect the product from the USB port, before proceeding with cleaning or any maintenance operation.

Remove cover. Empty the water for the Water tank away from the mist Outlet.

The Ceramic disc should not come in contact with any hard or sharp objects.

To remove possible buildup, gentle use a cotton swab dipped in white vinegar to wipe out the inside.

Do not use strong cleaning agents.

Dry with a soft cloth to avoid mineral buildup.

Do not use strong cleaning agents.

Clean the cover only and exclusively with a damp and soft cloth and dry with a clean soft cloth.

When not in use the the device should be stored in a dry place, which is not accessible to children and animals.

RATING LABEL

Innoliving Spa

Via Merloni 9

60131 Ancona - Italy

INN-773G DIFFUSORE AROMA AROMA DIFFUSER

5V --- 1A 5W

Rev.00_02.2020

Innoliving Spa

Via Merloni 9

60131 Ancona - Italy

INN-773W DIFFUSORE AROMA AROMA DIFFUSER

5V --- 1A 5W

This product complies with all applicable European directives.

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 cm. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving - easy tech, easy life

Innoliving Spa Via Merloni, 9 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE
