Type	Aroma diffuser
Brand	Innoliving
Model	INN-775
Dimensions (approx.)	150 x 150 x 100 mm
Weight (approx.)	300 g
Power supply	100-240V AC via adapter (DC output)
Water tank capacity	100 ml
Mist output	30-50 ml/h
Coverage area	Up to 30 m²
Operation time (full tank)	Up to 8 hours
Ultrasonic frequency	2.4 MHz
LED lighting	Multicolor or single color
Auto shut-off	Yes, when water runs out
Noise level	< 25 dB
Materials	PP plastic, ceramic oscillator
Cleaning	Clean tank with mild detergent weekly
Safety features	Overheat protection, auto shut-off
Spare parts / accessories	AC adapter, cleaning brush
Repairability	Contact service center for repairs

Frequently Asked Questions - INN-775 Innoliving

How do I clean the Innoliving INN-775 aroma diffuser?

Unplug the device, remove the water tank, and clean it with a soft cloth and mild detergent. Rinse thoroughly. Use a cotton swab to gently clean the ultrasonic oscillator. Avoid submerging the base.

What type of essential oils can I use?

Any 100% pure essential oil is suitable. Do not use synthetic oils or perfumes as they may damage the diffuser. Add 3-5 drops per 100 ml of water.

How long does the diffuser run on a full tank?

Approximately 6-8 hours, depending on the mist output setting. The diffuser automatically shuts off when the water level is low.

Why is there no mist coming out?

Check if the water level is sufficient. Ensure the ultrasonic oscillator is clean. Also verify that the device is properly plugged in and the power adapter is functional.

Can I leave the diffuser on overnight?

Yes, it is safe to use overnight thanks to the auto shut-off feature. The low noise level ensures a peaceful sleep.

How do I change the LED light color?

The diffuser usually cycles through colors automatically. Some models allow manual color selection via a button. Refer to the manual for specific instructions.

What should I do if the diffuser makes a strange noise?

Turn off and unplug. Check if the water tank is properly seated. Clean the oscillator to remove any mineral buildup. If noise persists, contact customer support.

Can I use tap water in the diffuser?

It is recommended to use distilled or purified water to prevent mineral deposits. Tap water may cause white dust buildup and reduce performance.

The diffuser does not turn on. What should I check?

Ensure the power adapter is securely connected. Check the outlet. If using with water, verify that the water tank is properly placed and the device is not in low water auto shut-off.

Is the diffuser safe for pets?

Yes, the ultrasonic diffuser is generally safe. However, avoid placing it directly near pets and always use pet-safe essential oils. Essential oils should not be ingested.

USER MANUAL INN-775 Innoliving

White ceramic water dispenser with food items inside, no visible text or symbols

INN-775

MANUALE D'USO

USER MANUAL

Simple line drawing of a container with a handle and a cross symbol (no text or labels)

NON VERSARE L'ACQUA DIRETTAMENTE DALLA BOCCHETTA DI USCITA DEL VAPORE PROFUMATO.

PRIMO UTILIZZO

Diagram of a kitchen appliance with an upward arrow indicating growth (no text or symbols present)

Simple line drawing of a syringe and a circular base with a downward arrow (no text or symbols)

Line drawing of a hand pouring liquid into a bowl filled with food items (no text or symbols)

Diagram showing a device with internal components and a magnified view of internal structures (no text or symbols)

Operazione:

Simple line drawing of a glass jar with contents inside, accompanied by an upward arrow (no text or symbols)

Simple line drawing of a glass jar with internal compartments and an upward arrow, no text or symbols present.

Simple line drawing of a fishbowl containing a container with food items, no text or symbols present

Line drawing of a hand pouring liquid into a fishbowl containing ice cubes (no text or symbols)

Simple line drawing of a glass jar with internal geometric shapes and a downward arrow (no text or symbols)

Simple line drawing of a coffee maker with a lid and side bowl, accompanied by a downward arrow (no text or symbols)

Line drawing of a hand inserting food into a steamer (no text or symbols)

Line drawing of a hand holding a container with internal compartments (no text or symbols)

IMPOSTAZIONI

Diagram of a device with a lid and internal compartments, accompanied by an upward arrow (no text or symbols)

Line drawing of a mechanical component with internal flow lines (no text or symbols)

NON VERSARE ACQUA CALDA NEL DIFFUSORE IN QUANTO POTREBBE CAUSARE UNA PERDITA. QUANDO IL DIFFUSORE NON È IN USO, SVUOTARE L'ACQUA DAL SERBATOIO. CONFEZIONARE IL SALE SEPARATAMENTE IN UN SACCHETTO ERMETICO QUANDO LA LAMPADA NON VIENE UTILIZZATA PER MOLTO TEMPO.

Thank you for purchasing the aroma diffuser INNOLIVING INN-775.

- Read carefully the instruction manual and keep this manual safe for future references.

SAFETY INSTRUCTIONS AND WARNINGS

• Before using the product make sure that it is intact without visible damages. If any doubt, please contact the authorized after sales service.
• Do not use the product for different purposes from those described in this instruction manual. Any other use is considered improper and therefore dangerous.
• ATTENTION: This is not a toy, please keep out of reach of children in order to avoid any accident to them.

• This device can be used by children 8 years old and over, from people with reduced physical, sensory abilitied or mental or lacking in experience and knowledge, only under supervision or if they have been instructed about the use of the device by a responsible person for their safety who understand the associated dangers. The children should be supervised for make sure they don’t play with the appliance.

• Keep away of reach of children or pets.

• Cleaning and maintenance operations should not be carried out by children without the supervision of an adult.
• Do not use the product in the bathroom or humid environment. Do not immerse the product in water or other liquid.
• Do not place the product behind furniture and curtain, do not cover it.
• Keep the product away from heat sources, sunlight, humidity sharp object or similar.
• In case of malfunctions or damages, always contact the supplier or the authorized after sales service and do not tamper with the product to repair or replace damage parts; this would invalidate the warranty. Only use the product indoor.
• 'Use only and exclusively the supplied power supply.
• Packing materials (plastic bags, cardboard, polystyrene etc.) should be not left in the reach of children as potential sources of danger and must be disposed of in accordance with the current law.
• Avoid filling tank by exceeding the indicated

MAX level.

• Do not operate the product if the water tank is empty.
  • Essential oil could stain the main unit. In case of spills, wipe with a soft cloth.
• Do not let mist flow blow directly sunshine heat source and air conditioners or fans.
• Place the product on a flat and stable surface.
• Keep the product away from electronic products such as TVs or audio devices.
• Do not tilt the product. This could cause water to escape from the tank, compromising the internal mechanisms and damaging surfaces or objects.
• Do not move the device while it is in use.
• Do not touch the product and its parts with wet hands.
• The quantity and intensity of the mist emitted by the product may vary because of the type of water used, the humidity and the air temperature. This is quite normal and does not constitute a defect in production.
• Only use 100% natural essential oils.

• If the product overturns accidentally, follow these steps to prevent damages to the product:

• Disconnect the device from the electric power and remove the lid.

• Remove any water residue from the tank.

• Gently shake the main unit to remove any other water residue inside and leave to dry for at least 24 hours.

• Always disconnect the product from the electric power, when not in use and whenever you proceed with any maintenance or cleaning operation.

• The device is for household use only and it's not suitable with commercial applications.
• Use and store the device after se in a clean and dry place.
• Turn the unit off before the disconnecting it from the electric power.
• Do not use the device in rooms containing explosive or inflammable substances.
• To prevent overheating, do not cover the device with a blanket or any other object.
• Protect the device from impacts, fire, heat, direct sunlight, subzero temperatures.
• Some items of furniture have delicate coatings, it is recommended then to place mat under the diffuser.

- Do not insert anything into the openings of the device and make sure that these are not blocked. The device must not be used with blocked openings.

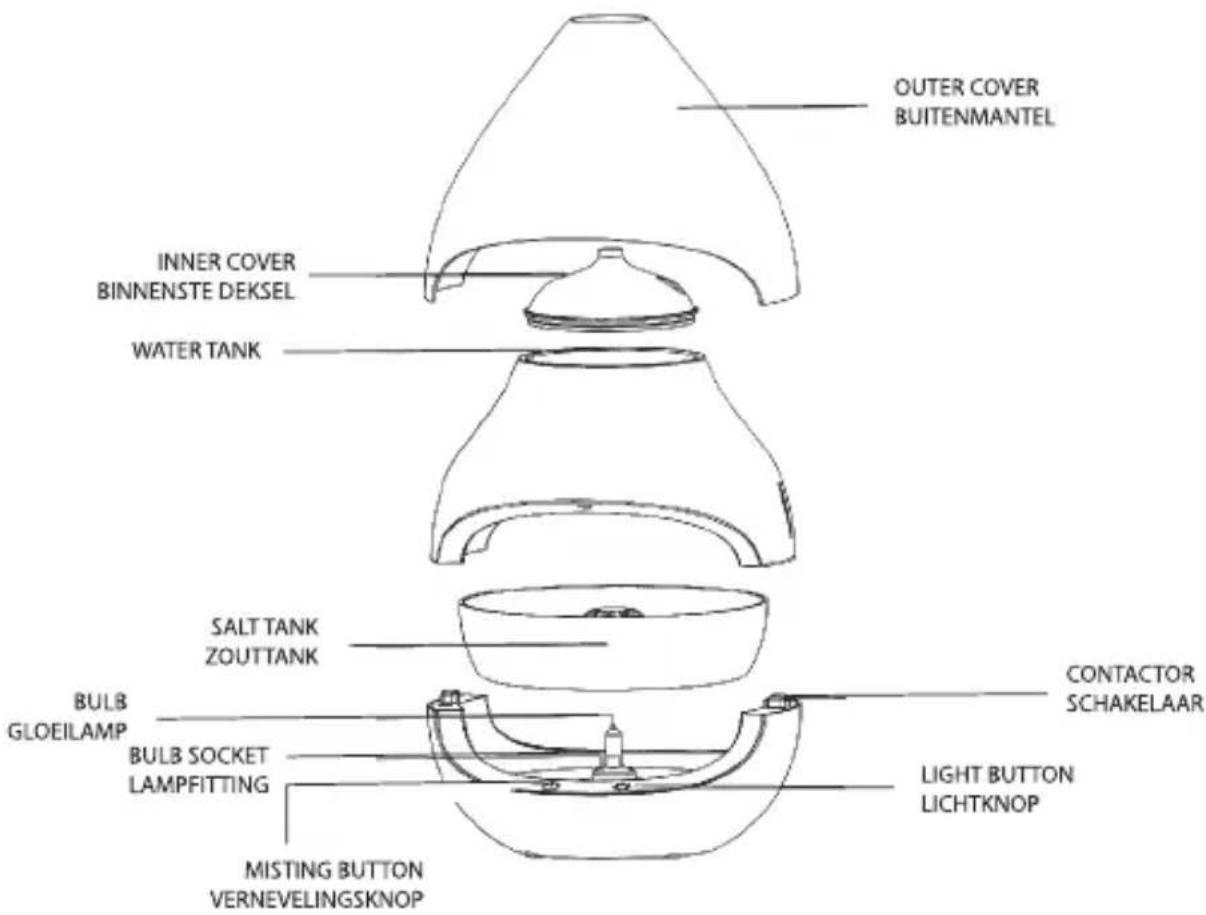

PRODUCT DESCRIPTION

INFORMATION ON THE USE OF ESSENTIAL OILS

Please follow closely the recommendations listed below for the correct use of the essential oil to avoid causing malfunctions/damage to the product or causing injury.

- Use a 100 % natural essential oil.

- Add 4 to 6 drops of essential oil in 160 ml of water. Do not exceed the recommended quantity. Wash the water tank thoroughly after each use to remove residues.

- Do not apply undiluted oil directly to your skin and do not ingest it.

- Do not let oil come into contact with your skin, wash it off with water. If swallowed, consult a doctor immediately.

- The water tank and tank cover are made of oil resistant materials. Other parts of the diffuser may be dissolved by certain oil components. Take care not to spill out outside the water tank. Some types of aromatic oils are not very soluble in water and tend to remain in the water tank. Therefore, clean the water tank regularly.

- Clean the water tank every time you change the oil. If the previously used oils is not completely removed, the mixture of aromas may give off an unpleasant odor from residues.

• Make sure that the oil does not get into your eyes. If this happens, wash your eyes immediately with water. Consult a doctor if irritation persists.

- If you don't feel well while using the product, turn it off immediately. Pregnant women, the elderly, young children, or people with chronic illnesses may be more sensitive to the smell. If these people do not feel well, stop using the diffuser immediately.

- Store the essential oil in a cook, dark place with the cap tightly closed and out of the reach of children and pets.

- Respect the expiry date of essential oil, within one year after the first opening (within six months for citrus fruits).

IMPORTANT NOTES BEFORE USE

1. Place the aroma diffuser on a flat surface, about 60 cm above the floor and at least 10 cm away from the walls. Do NOT place the diffuser directly on wooden furniture that may be damaged by water.

2. Keep water away from salt. The lamp should not be removed from the product in order to keep the salt dry and warm.

3. Using the measuring cup, fill the reservoir with a sufficient amount of water. DO NOT pour water above the MAX level mark on the water tank. The diffuser will not operate if filled above the MAX level mark.

4. The diffuser must be kept out of the reach of children and pets.

5. Place the diffuser in an open space to allow the mist to spread freely and away from the appliances, especially those sensitive to water, to avoid the risk of accidents.

6. Remove the water and wipe the water tank when the diffuser is not in use – very important!

7. Avoid dangling the power cable to avoid tripping over it accidentally.

8. Do not open the appliance under any circumstances. Danger of electric shock!

9. Avoid adding to many drops of essential oil.

10. This diffuser requires regular refilling with water during use.

11. DO NOT touch the bulb or the central part of the appliance when the appliance is switched on or when the lamp is still hot.

12. Disconnect the adapter before replacing the bulb. Keep your hands clean and dry when replacing the bulb. Make sure the bulb remains clean after use.

13. Keep water away from the switch. Remove water from the switch if necessary.

14. Pack the salt in an airtight bag to prevent the salt form melting when the diffuser is not used for a long period of time.

Simple line drawing of a container with a handle and a cross mark, no text or symbols present.

DO NOT TRY TO POUR WATRE INTO THE DIFFUSER THROUGH THE MIST OUTLET

FIRTS USE

1. Remove the upper part, the salt container and install the bulb. Use a G4, 24V, 10W attachment bulb.

Diagram of a device with internal components and an upward arrow, no text or symbols present

1. Connect the bulb pins into the small holes in the base of the bulb (NO +/- difference). Then put the salt container back in place.

Simple line drawing of a syringe and a circular base with a downward arrow (no text or symbols)

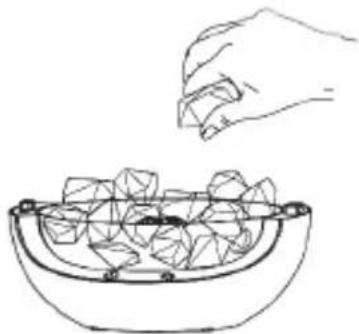

1. Put salt stones in the salt container and then put the top back in place.

Line drawing of a hand pouring liquid into a bowl filled with food items (no text or symbols)

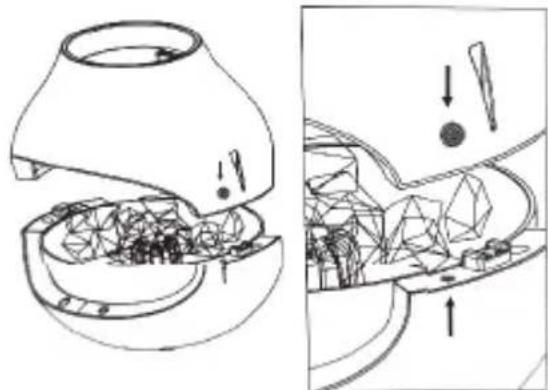

When installing the upper part, please follow the correct direction by matching the grey and round parts of the upper part and the base part as shown in the diagram on the left.

Technical line drawing of a mechanical component with internal cavities and external force arrows (no text or symbols)

Operation:

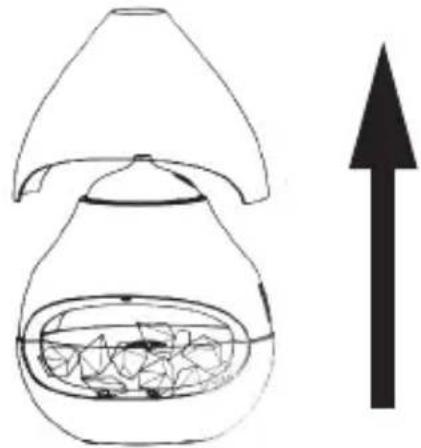

1. Remove the upper cover

Simple line drawing of a glass jar with contents inside, accompanied by an upward arrow (no text or symbols)

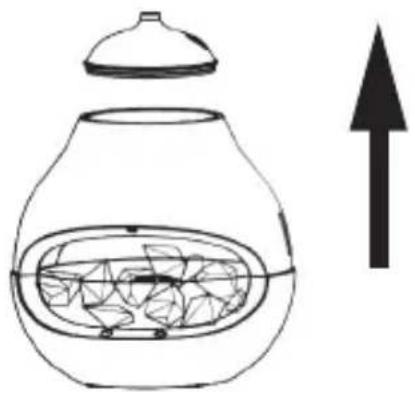

1. Remove the lower cover

Simple line drawing of a glass jar with internal compartments and an upward arrow, no text or symbols present.

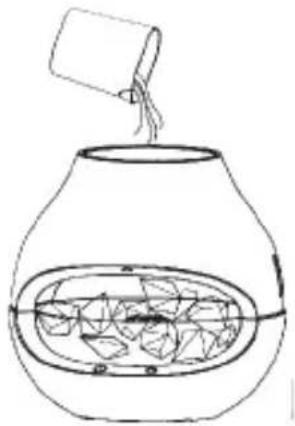

1. Use the measuring cup to pour a sufficient amount of water into the tank. DO NOT pour water above the MAX level mark on the water tank. The diffuser will not operate if it filled above the MAX level mark.

Simple line drawing of a fishbowl containing a container with food items, no text or symbols present

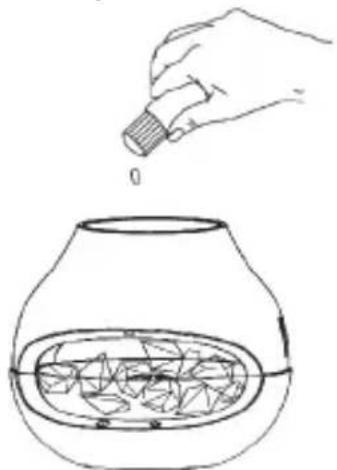

1. Add 4 to 6 drops of essential oil.

Line drawing of a hand pouring liquid into a fishbowl containing petri dishes (no text or symbols)

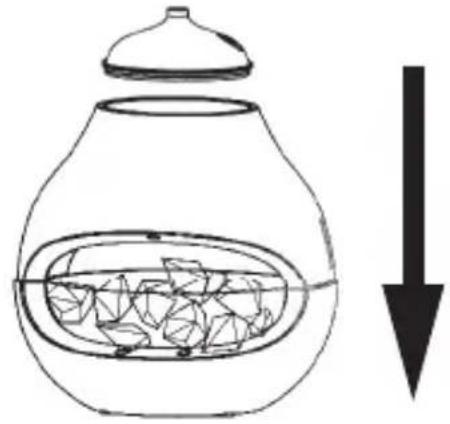

1. Replace the lower cover.

Simple line drawing of a glass jar with internal granular material and a downward arrow (no text or symbols)

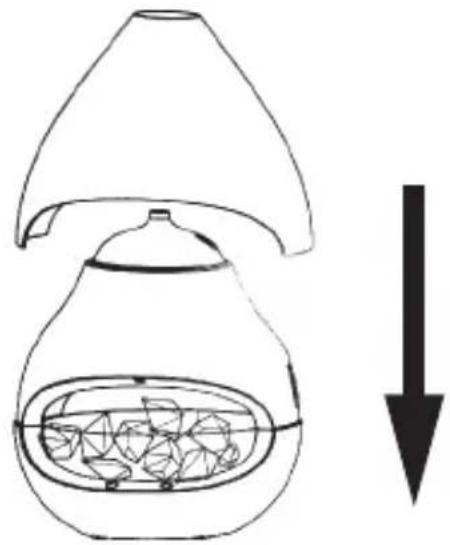

1. Replace the upper cover.

Simple line drawing of a portable heater with a lid and internal compartments, accompanied by a downward arrow (no text or symbols)

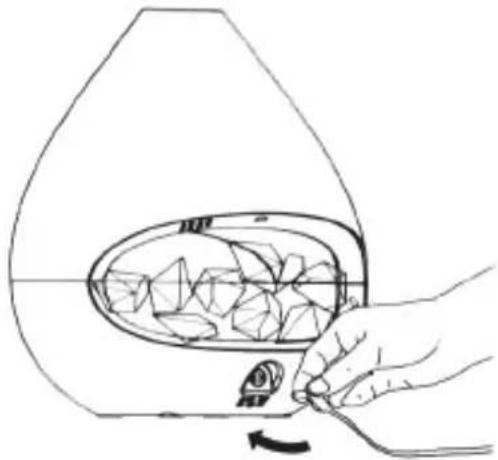

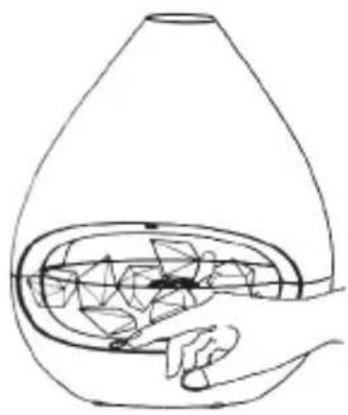

1. Connect the power cable.

Line drawing of a hand inserting food into a steamer (no text or symbols)

Line drawing of a hand holding a container with internal geometric shapes (no text or symbols)

ADJUSTMENTS

Power ⏻ : press once to turn on the diffuser. Press again to turn off the diffuser.

Lamp ⚙: press the light button repeatedly to control the salt lamp. 5 brightness levels are available; on the sixth press the light goes off.

AFTER EACH USE

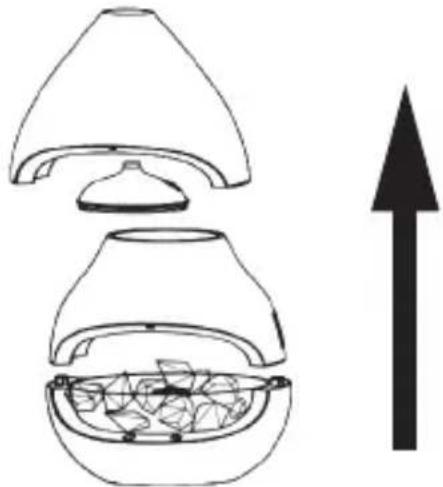

1. Switch off the appliance and unplug the cable from the electrical outlet. Lift the outer cover and remove the tank from the aroma diffuser.

Diagram showing a device with a lid and internal compartments, accompanied by an upward arrow (no text or symbols)

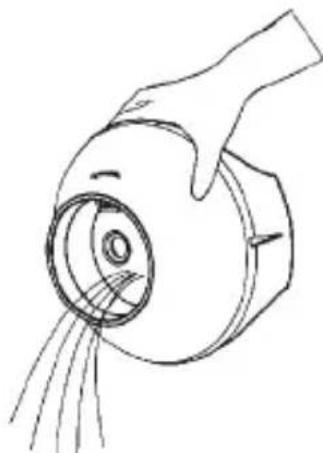

1. Empty the water tank and rinse the tank thoroughly to remove any sediment or dirt. Wipe it dry with a clean cloth or paper towel.

Line drawing of a hand holding a cylindrical object with internal flow lines (no text or symbols)

DO NOT POUR HOT WTAER INTO THE DIFFUSR AS THIS COULD CAUSE A LEAK. WHEN THE DIFFUSER IS NOT IN USE, EMPTY THE WATER FROM THE TANK. PACK THE SALT SEPARATELY IN AN AIRTIGHT BAG WHEN THE LAMP IS NOT USED FOR A LONG TIME.

CLEANING AND MAINTENANCE

Turn off the product, disconnect the product from the electric power, before proceeding with cleaning or with any maintenance operation. Remove the outer cover, and eliminate the water from the tank, avoiding the hole for the air outlet.

To remove any accumulations of product inside, gently rub a cotton swab dipped in wine vinegar. Dry with a soft cloth to avoid build-up of product.

Do not use harsh chemicals.

Clean the external covering only and exclusively with a damp and soft cloth and dry with a clean soft cloth.

After use, store the product in a clean and dry place, not accessible to children and animal.

ERP TECHNICAL DATA OF THE EXTERNAL POWER SUPPLY

Manufacturer's name: SHENZHEN XINCHENJIA ELECTRONIC TECHNOLOGY

Model: XCJ-W63240050BE

Input voltage: 100-240V \~

Input frequency: 50/60 Hz

Input current: 0.3A

Output voltage: 24.0V

Output current: 0.5A

Output power: 12.0W

Average active return: 83,61%

Power consumption in unladen condition: 0,09W

RATING LABEL

PRODUCT

POWER SUPPLY

This product complies with all applicable European directives.

Read carefully the instruction manual

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 cm. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE
