SuperSwivel - Speaker Stand GoldenEar - Free user manual and instructions

Product Type	Universal Mounting Bracket / Speaker Stand
Brand	GoldenEar Technology
Model	SuperSwivel
Compatibility	Speakers with 1/4-20 threaded receptacles (SuperSat, 3D Array Soundbars)
Maximum Load Capacity	11 lbs (5.0 kg) per bracket
Number of Brackets Required	1 for SuperSat 3, 3C, 50, 60 (vertical); 2 for SuperSat 50C, 60C, 3D Array Soundbars
Mounting Type	Wall mount with two #10 screws (not included)
Adjustment Type	Ball joint with clamping screw
Vertical Tilt	Yes, fully adjustable via ball pivot
Horizontal Swivel	Yes, fully adjustable via ball pivot
Material	Metal construction
Finish	Black (typical, not explicitly stated)
Installation Tools Required	Allen (hex) wrench (supplied), 7/16" (11mm) wrench
Orientation	Vertical for most speakers; horizontal possible with two brackets
Safety Features	Use appropriate wall hardware; professional installation recommended
Maintenance	Wipe clean with dry or damp cloth; do not use harsh chemicals
Included Accessories	Allen wrench, ball pivot, wall plate bracket, clamping screw
Warranty	Manufacturer warranty (details not provided)

Frequently Asked Questions - SuperSwivel GoldenEar

What is the maximum weight the SuperSwivel bracket can hold?

Each SuperSwivel bracket can support up to 11 lbs (5.0 kg). Do not use a single bracket with a speaker heavier than this limit.

Which speakers are compatible with the SuperSwivel?

The SuperSwivel is compatible with speakers that have a 1/4-20 threaded receptacle, such as GoldenEar SuperSat and 3D Array Soundbars.

How many brackets do I need for my speaker?

Use one bracket for vertical mounting of SuperSat 3, 3C, 50, or 60. Use two brackets for SuperSat 50C, 60C, or 3D Array Soundbars.

What tools are required for installation?

You need the supplied Allen (hex) wrench and a 7/16" (11mm) wrench for tightening the ball pivot nut.

Are mounting screws included with the bracket?

No, mounting screws are not included. You must use appropriate #10 screws for your wall type.

Can I adjust the angle of the speaker after installation?

Yes, you can loosen the clamping screw, adjust the speaker to the desired angle, and then re-tighten the screw.

How tight should the clamping screw be?

Tighten until you feel friction between the ball pivot and clamp, then adjust angle and tighten firmly. Do not over-tighten to avoid stripping the threads.

Is professional installation recommended?

If you are not comfortable with the mounting procedure, we strongly suggest having a professional installer mount your speakers.

Can I use the SuperSwivel with non-GoldenEar speakers?

Yes, as long as the speaker has a 1/4-20 threaded insert and weighs less than 11 lbs. Ensure the mounting plate is securely attached.

How do I clean the SuperSwivel bracket?

Wipe the bracket with a dry or slightly damp cloth. Avoid using abrasive cleaners or solvents.

USER MANUAL SuperSwivel GoldenEar

GoldenEar Technology® A Passion for Sonic Perfection\*

SuperSwivel™

Universal Mounting Bracket

User's Guide

The SuperSwivel™ is intended for use with GoldenEar Technology SuperSat® Speakers, 3D Array® Soundbars, or similar loudspeakers with 1/4 - 20 threaded receptacles. Each bracket can support up to 11 lbs (5.0 kg). Do not use a single bracket with any speaker weighing more than 11 lbs (5.0 kg). Use one (1) SuperSwivel™ brackets with the SuperSat 3, 3C, 50 and 60 (for vertical mounting). Use two (2) SuperSwivel™ brackets with the SuperSat 50C, 60C and the 3D Array Soundbars.

Installation

STEP 1

Loosen the clamping screw with supplied Allen (hex) wrench until the ball pivot slides out. Be careful not to fully remove the clamping hex screw.

ball pivot

Pure mechanical diagram showing a lever and pivot point without any text or symbols

clamping screw

STEP 2

Fasten the ball pivot to the 14 -20 threaded receptacle on the back of the loudspeaker. Tighten the ball pivot nut using a 716 "(11mm) wrench. (NOTE: For Mounting SuperSat 50 and 60 in vertical orientation with one SuperSwivel, use the upper insert.)

STEP 3

1. Using the wall plate as a template, mark the two screw-hole positions on the wall where you wish to mount the bracket.

2. Mounting holes in the bracket will fit #10 screws (not included). Secure the bracket to the wall using a minimum of two screws.

3. Make sure to use appropriate mounting hardware that is suitable for your wall construction and the weight of the speaker you intend to install on the SuperSwivel. PLEASE NOTE: We do not provide mounting screws or other hardware because we do not know what kind of wall material is present in your particular installation.

4. CAUTION: If you are not comfortable performing these mounting procedures we strongly suggest having a professional mount your speakers (see your Dealer).

STEP 4

Diagram showing two identical mechanical components connected by a rod, with no text or symbols present.

1. Connect the speaker wires to the loudspeaker.
2. Place the ball pivot into the wall bracket clamp as shown.

3. Hold the loudspeaker securely with one hand and tighten the clamping screw until you feel friction between the ball pivot and the clamp, but not so tight as to prevent easy aiming of the speaker.

4. Adjust the speaker to the desired angle and tighten the clamping screw firmly.

5. Do not over-tighten as that may strip the screw threads.

6. Do not attempt to adjust the speaker angle while the clamping screw is tight.

7. To adjust the loudspeaker angle, loosen the clamping screw, adjust the position and re-tighten the clamping screw.

Simple line drawing of a horizontal beam with two circular end points and a central vertical bar (no text or symbols)

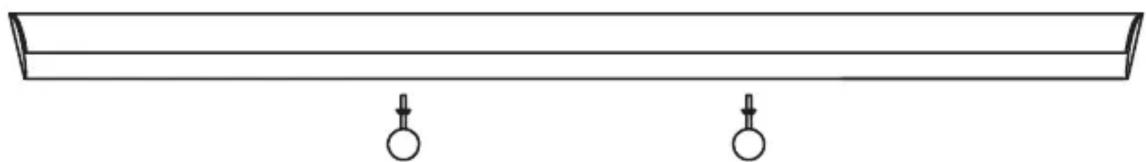

Use two (2) SuperSwivel™ brackets, as shown, for SuperSat 50C, 60C and 3D Array Sounbars.
