Product Type	Cordless Water Flosser
Brand	Philips
Model	Sonicare AirFloss HX8322
Dimensions (L x W x H)	3.2 x 3.2 x 12.5 inches
Weight	0.7 lbs (320 g)
Power Source	Rechargeable Lithium-ion Battery
Charging Time	24 hours
Battery Life	2 weeks (approx. 14 uses per charge)
Reservoir Capacity	50 ml (1.7 fl oz)
Pressure Settings	Low and High
Water Pressure Range	3.5 – 4.9 bar (50 – 70 psi)
Nozzle Type	Standard AirFloss nozzle
Noise Level	< 65 dB
Color	White (with blue accents)
Materials	ABS plastic and silicone
Cleaning Technology	Air and water microbursts
Waterproof Rating	IPX7 (waterproof up to 1m)
Warranty	2 years limited
What's Included	1 AirFloss handle, 1 nozzle, 1 charging base, 1 USB cable

Frequently Asked Questions - Sonicare AirFloss HX8322 PHILIPS

How do I use the Philips Sonicare AirFloss HX8322?

Fill the reservoir with water or mouthwash. Place the nozzle in your mouth, press the power button, and guide the tip along your gumline. The device will release a microburst of air and water to clean between teeth.

How do I clean the AirFloss?

Rinse the nozzle and reservoir with warm water after each use. For deeper cleaning, soak the nozzle in white vinegar or mouthwash for 10 minutes. Wipe the handle with a damp cloth. Do not use bleach.

How do I charge the device?

Place the handle into the charging base and plug the base into a USB port or wall adapter. The indicator light will flash while charging and turn solid when fully charged. A full charge takes 24 hours.

The AirFloss is not working. What should I do?

Ensure the device is charged. Check that the nozzle is securely attached and the reservoir is filled. If water is not coming out, try cleaning the nozzle and reservoir. If issues persist, contact Philips support.

How often should I replace the nozzle?

Replace the nozzle every 6 months or sooner if bristles are frayed. Philips recommends using only genuine Sonicare AirFloss nozzles for optimal performance.

Can I use mouthwash in the AirFloss?

Yes, you can use mouthwash diluted with water (1:1 ratio) or undiluted. Avoid using thick or sticky mouthwashes that may clog the nozzle.

Is the AirFloss waterproof?

The handle has an IPX7 rating, meaning it can be submerged in water up to 1 meter for 30 minutes. However, the charging base is not waterproof and should be kept dry.

How do I adjust the pressure on my AirFloss?

Press the power button once for low pressure, and again for high pressure. The indicator light will show the selected setting: blue for low, white for high.

Can I travel with the AirFloss?

Yes, it is cordless and portable. The USB charging cable allows you to charge from a laptop or power bank. Note that the reservoir holds 50 ml, which may not be sufficient for a full flossing session; refill as needed.

Where can I find replacement parts or accessories?

Replacement nozzles and other accessories are available on the Philips website or authorized retailers. Use the model number HX8322 to find compatible parts.

USER MANUAL Sonicare AirFloss HX8322 PHILIPS

Simple line drawing of a 3D cube with a downward arrow pointing to its top surface (no text or symbols)

Guidance in English 16\~26

●保 証

保証とアフターサービス 28

仕様 29

無料修理規定 30

保証書 ...... 最終ページ

必ずお守り ください

Close-up of a metallic tool emitting bubbles from a glass rod (no text or symbols visible)

連続噴射機能

Diagram showing two electrical components: a wall-mounted power outlet and a plug with wires, both without any text or symbols.

Line drawing of a blender with a power button and base, no text or symbols present

充電表示

充電催促表示

Simple diagram of a pen tip with a star-shaped button labeled 'Power' (no text or symbols beyond the icon)

充電中

No plug adapter required.

Line drawing of a three-pin electrical plug (no text or symbols)

Plug adapter required.

Illustration showing a hand holding a small object with motion arrows, and another hand inserting a plug into a socket (no text or symbols)

エアーフロス ウルトラの使用

1. 電源を入れます。

選べる噴射回数モード設定

Simple line drawing of a curved container with an internal circular symbol (no text or labels)

Simple line drawing of a container with a power button and starburst background (no text or symbols)

Simple line drawing of a curved container with a central circular symbol and starburst pattern (no text or labels)

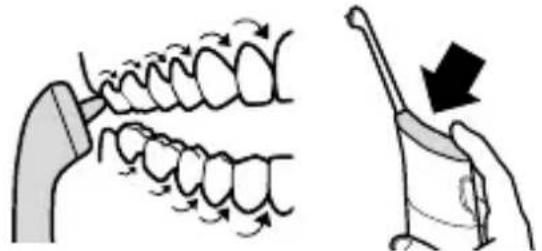

2.ガイドチップを歯間に当てます

Simple graphic of a pen inside a circle with a black X mark (no text or symbols)

Illustration showing tooth brushing technique with magnified view of teeth and tooth removal (no text or symbols)

Illustration of a hand holding a pen with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a curved object, possibly a tool or device, with no visible text or symbols.

2. 水タンク内を清掃します。

Simple line drawing of a hand holding a small object with a circular arrow and radiating lines (no text or symbols)

4. 充電器を拭きます。

Illustration showing a plug being inserted into a socket connected to a cable, with no text or symbols present.

注意

Diagram showing a device connected to a wall-mounted panel with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a curved object, possibly a tool or device, with no visible text or symbols.

2. 水タンク内の水を捨てます。

4. 保管します。

Diagram of a vacuum cleaner inside a cabinet with an arrow indicating direction (no text or symbols)

リチウムイオン電池のリサイクルについて

1. ハンドルの上 部と下 部をそれぞれしっ

Illustration of two hand gestures: one showing a device being turned, the other showing a device with a blade (no text or symbols)

Illustration showing two hands performing a cable installation or repair operation (no text or symbols present)

Illustration of two hands holding a rectangular object, one with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical component with a numbered label (9) pointing to its base, no text or symbols present.

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your appliance at www.

philips.com/welcome.

Use AirFloss Ultra with your favorite mouthwash as part of your oral care routine. In addition to brushing, AirFloss Ultra helps reduce the plaque in between teeth in order to improve your gum health.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the charger away from water. Do not place or store it over or near water contained in a bathtub, washbasin, etc. Do not immerse the charger in water or any other liquid. After cleaning, make sure the charger is completely dry before you connect it to the mains.

Warning

• The mains cord cannot be replaced. If the mains cord is damaged, discard the charger. Always have the charger replaced with one of the original type in order to avoid a hazard.
• Use only charger type HX6100 provided with the AirFloss Ultra to recharge the battery.
• If the appliance is damaged in any way (AirFloss Ultra nozzle, handle and/or charger), stop using it.
• This appliance contains no serviceable parts. If the appliance is damaged, contact the Consumer Care Centre in your country (see chapter ‘Guarantee and support’).
• Do not use the charger outdoors or near heated surfaces.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

Caution

• Consult your dentist before you use this appliance if you have had recent oral or gum surgery, suffer from an ongoing dental condition, had extensive dental work in the previous 2 months, or have suspected issues with your dental work (filings, crowns, etc.).
• Consult your dentist if excessive bleeding occurs after using this appliance or if bleeding continues to occur after 1 week of use.
• If you have medical concerns, consult your doctor before you use this appliance.
• This Philips appliance complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device, contact your physician or the appliance manufacturer of the implanted appliance prior to use.
• Do not use attachments other than the ones recommended by the manufacturer.
• Do not exert excessive pressure on the nozzle tip of the nozzle.
• To avoid physical injury, do not fill the reservoir with hot water. Do not put foreign objects in the reservoir.
• Only use the AirFloss Ultra for its intended purpose as described in this user manual.
• To avoid physical injury, do not direct the spray under the tongue or into the ear, nose, eye or other sensitive area.
• Do not clean the AirFloss Ultra nozzle, the handle, the charger, the water reservoir and its cover in the dishwasher or a microwave.
• To avoid an ingestion hazard, do not put isopropyl alcohol or other cleaning fluids in the reservoir.
• The AirFloss Ultra is a personal care appliance and is not intended for use on multiple patients in a dental practice or institution.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General description (Fig. 1)

1 Nozzle tip
2 AirFloss Ultra nozzle
3 Activation button
4 Reservoir and reservoir cover
5 Handle
6 Charge & burst mode indicators
- Single burst: 1 LED
- Double burst: 2 LEDs
- Triple burst: 3 LEDs
7 Power/mode button

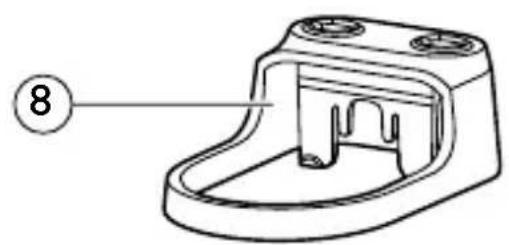

8 Removable nozzle holder (select models)
9 Charger

Note: The contents of the box may vary based on the model purchased.

Charging

Charge the AirFloss Ultra for 24 hours before first use.

1 Put the plug of the charger in the electrical outlet.

2 Place the handle on the charger (Fig. 2).

▶Charging process: (Fig. 3)

• 1 green LED: 33% charged.
• 2 green LEDs: 66% charged.
• 3 green LEDS: 100% charged.

Note: When it is fully charged, AirFloss Ultra has an operating time of up to 11 days when it is used in triple burst mode, and up to 33 days when it is used in single burst mode.

Note: When the charge indicators flash yellow, the battery is low and needs to be recharged (fewer than 3 uses left).

Preparing for use

1 Align the nozzle and press the nozzle down onto the handle ('click') (Fig. 4).

Note: We advise you to place the tip facing the front of the handle as the illustration shows, but the nozzle can be placed in the handle either way without affecting the function. You can try both options and use what works best for you in your oral care routine.

Note: Replace the nozzle (HX8032, HX8033) every 6 months for optimal results. Also replace the nozzle if it becomes loose or no longer ‘clicks’ onto the handle.

Note: The AirFloss Ultra only supports AirFloss Ultra nozzles. Do not attempt to use non-AirFloss Ultra nozzles on the AirFloss Ultra handle.

2 Open the cover of the reservoir ('click') (Fig. 5).
3 Fill the reservoir with mouthwash or water (Fig. 6).

Tip: For the best result and a fresher experience, we advise you to use mouthwash with your AirFloss Ultra.

Note: Do not use mouthwash that contains isopropyl myristate (e.g. Dentyl Active) or high concentrations of essential oils, as it may damage the appliance. This includes all mouthwash sold in glass and ceramic packaging.

4 Close the cover of the reservoir by pressing ('click') (Fig. 7).
5 Press the power/mode button to switch on the appliance. (Fig. 8) The LEDs illuminate.
6 Press and hold the activation button until spray comes out of the tip of the nozzle (Fig. 9).

Using the appliance

1 Make sure the AirFloss Ultra is switched on. If it is off, press and release the power/mode button to switch on the appliance. (Fig. 8)

▶You can change the modes to have the desired amounts of bursts each time you press the activation button. For optimal results, use the triple burst mode (the default setting) from both the outside and inside of your teeth.

ENGLISH

To change modes, press the power/mode button to cycle through the modes until you reach your desired mode. The LEDs show the selected mode:

• Single burst: 1 LED (Fig. 10)
• Double burst: 2 LEDs (Fig. 11)
• Triple burst: 3 LEDs (Fig. 12)

Note: The AirFloss Ultra remembers what mode was selected last and it is ready for the next use. If your AirFloss Ultra becomes fully drained of power, it will go back to the triple burst default mode once it has been recharged.

2 Place the nozzle tip between two teeth at your gum line. Slightly close your lips over the nozzle when it is in place, to avoid splashing (Fig. 13).
3 Press the activation button to deliver 1-3 bursts (depending on the selected mode) of air and micro-droplets of mouthwash or water between the teeth. (Fig. 14)
4 Slide the nozzle tip along the gum line until you feel it settle between the next two teeth.
5 Continue this procedure for all spaces between your teeth, including behind your back teeth (Fig. 15).

Note: Refill the reservoir as needed.

Auto-burst function

Hold the activation button to deliver bursts continuously, approximately one second between set of bursts.

1 To switch off the AirFloss Ultra, press and hold the power/mode button for one second.

Automatic shut-off function

The AirFloss Ultra automatically switches off if it has not been used for one minute.

Cleaning

To clean the inside of the AirFloss, fill the reservoir with warm water and press the activation button until the reservoir is empty.

Do not clean the nozzle, handle or charger in the dishwasher.

Do not use cleaning agents to clean the appliance. The formulation or strength of some agents may damage the appliance.

Handle and nozzle

1 Remove the AirFloss Ultra nozzle from the handle. Rinse the nozzle after each use to eliminate the residue left in it (Fig. 16).
2 Open the reservoir and rinse it under a faucet to eliminate residue (Fig. 17).

Tip: You can also use a cotton swab to wipe the reservoir and remove the remaining residue.

Note: Do not immerse the handle in water.

Note: Failure to remove residue from the nozzle or reservoir may result in an unhygienic condition.

3 Wipe the entire surface of the handle with a damp cloth (Fig. 18).

Charger

1 Unplug the charger before you clean it.
2 Wipe the surface of the charger with a damp cloth (Fig. 19).

Storage

If you are not going to use AirFloss Ultra for an extended period of time, follow the steps below.

1 Open the cover of the reservoir and empty it.
2 Press the activation button until no more spray comes out of the nozzle.
3 Unplug the charger.

ENGLISH

4 Clean AirFloss Ultra nozzle, handle and charger. Refer to chapter 'Cleaning'.
5 Store AirFloss Ultra in a cool, dry place away from direct sunlight.

Recycling

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Removing the rechargeable battery

Please note that this process is not reversible.

1 To deplete the battery, repeatedly press the activation button until the AirFloss Ultra no longer produces any bursts of air (Fig. 20).
2 Remove the nozzle from the handle. (Fig. 21)
3 Firmly grab the handle with one hand at the top and one hand on the bottom (Fig. 22).
4 Snap the handle into two parts. (Fig. 23)

Note: This step requires a good amount of physical force. The top and bottom half of the handle should be separated once you snap the handle.

5 Remove the bottom half of the handle (Fig. 24).

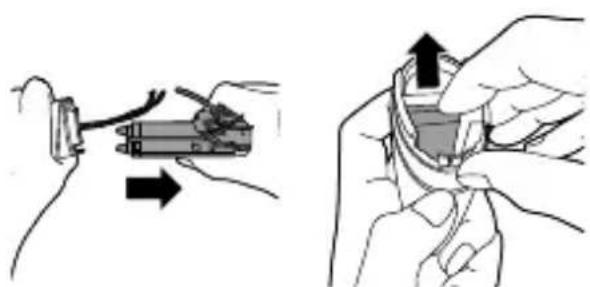

6 Cut all 6 wires on the internal component with scissors (Fig. 25).

7 Completely pull apart the internal component from the top part of the handle (Fig. 26).

8 The battery is located inside the top half of the handle. Remove the battery and dispose of it properly (not in household waste) (Fig. 27).

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The terms of the international guarantee do not cover the following:

• AirFloss Ultra nozzle.
• Damage caused by misuse, abuse, neglect, alterations or unauthorised repair.
• Normal wear and tear, including chips, scratches, abrasions, discolouration or fading.

Philips Oral Healthcare, Inc.

22100 Bothell Everett Hwy Bothell, WA 98021 U.S.A.

Phone:[phone]

Philips Oral Healthcare, Inc.

22100 Bothell Everett Hwy

Bothell, WA 98021 U.S.A.
