Product Type	Electric Kettle
Model Number	Architect 72905
Brand	Dualit
Capacity	1.7 liters
Material	Stainless steel body
Power Supply	220-240 V, 50/60 Hz
Power Consumption	2200-2400 W
Boiling Time	Approximately 3 minutes for full capacity
Dimensions (H x W x D)	24.5 cm x 22.5 cm x 17.5 cm
Weight	1.2 kg
Cordless	Yes, with 360° swivel base
Auto Shut-Off	Yes
Boil Dry Protection	Yes
Filter	Removable scale filter
Water Level Indicator	Yes, with clear window
Lid Opening	Press-button with wide opening
Spout	Precision pour spout
Handle	Cool-touch ergonomic handle
Maintenance	Wipe with damp cloth, descale regularly with vinegar or citric acid
Repairability	Spare parts available through Dualit service centers
Additional Features	Concealed heating element, soft opening lid, drip-free pouring

Frequently Asked Questions - Architect 72905 DUALIT

How do I descale my Dualit Architect 72905 kettle?

To descale, fill the kettle with equal parts water and white vinegar, or use a citric acid solution. Boil, let it sit for 30 minutes, then rinse thoroughly. Repeat if needed.

Can I boil less than the minimum capacity?

No, to prevent boil-dry damage, always fill at least the minimum water level indicated inside the kettle.

How do I clean the removable scale filter?

Remove the filter after the kettle has cooled. Rinse under running water and scrub gently with a soft brush. For stubborn scale, soak in vinegar.

Is the kettle cordless?

Yes, the Architect 72905 is cordless with a 360° swivel base for convenient handling.

What should I do if the kettle does not switch off?

Check if the lid is properly closed. The auto shut-off may fail if the lid is open. If the issue persists, contact Dualit support.

Can I use the kettle on a metal surface?

No, place the base on a stable, heat-resistant surface away from heat sources and water.

How long is the warranty?

Dualit offers a 2-year warranty against manufacturing defects. Register your product online for extended coverage.

Why does my kettle make a loud noise while boiling?

This is normal for high-power kettles. The sound is caused by rapid boiling. It may vary with water quality.

What is the maximum water level?

Do not fill above the MAX line indicated inside the kettle to avoid overflow during boiling.

How do I replace the scale filter?

To replace, purchase a genuine Dualit filter. Remove the old one by gently pulling it out, then snap the new one into place. Check compatibility with model 72905.

USER MANUAL Architect 72905 DUALIT

Change your panels at: www.ault.com.cn

Architect toaster You may also like the matching

TROUBLESHOOTING GUIDE
If none of the below points apply call customer services or 01293 652500.

POSSIBLE CAUSE(S) SOLUTION(S)
THE KETTLE DOES NOT TURN ON
1. The table may not be properly connected to the power supply or the face now have a look.	1. Check the plug is in the sides, and the switch is turned on. Replace the face necessary. Note in order to open the plug remove the letter to move the screen.
2. Skin dry feature may have been activated if the kettle is soonly switched on without water, the hold-day down will switch off the holding device to prevent damage to the feet.	2. Wait approximately 10 minutes for the kettle to cool down, it is not still as sure all. No kettle is now ready to use again. NOI if there encounter of the heating plate has occurred, this can be easily received by scrolling your kettle.
3. The devices may wait before if the power remains illuminated but the kettle does not hold.	3. The devices cannot be replaced. For further assistance to call on their services on 01/291-02/2000.
4. The kettle does not hold the power remain does not illustrate.	4. The power room may blow down, and must be replaced. For further assistance call up outside services on 01/291-02/2000.
THE KETTLE IS SPLITtering OUT OF THE SPOUT
1. You may have over Tled's keels: 1. Only fill it to the max mark (15L)
	12. Wait 10 seconds to allow the boiling water to settle before pouring
2. The kettle may have cessing soultims remaining inside the body.	2. Follow the instructions from the cleaning & care section and rinse thoroughly.
3. The filter may not be in problem 2. Ensure the filter is in provision. For spare filters call	Ductill on 01/293-05/2000.
MY KETTLE IS NOT SWITCHING OFF
1. Limestone may have built up once the kettle.	1. Decide your kettle regularly (see clearing & care).
2. The lid may not be fully closed on double may have ball up on the lid is.	2. Check the lid is fairly clear curing, see if necessary decrease to lip.
3. Water may have gone down the steam lines with a Flipp. You may have overflowed about the kettle when falling after through the spour	3. Leave the kettle for 24 hours to fall dry.
MARKS HAVE APPEARED IN THE KETTLE
1. Small brown spots can be sold in inside the kettle. This is not just small deposits of sole which meets on the bed to improve the bed.	1. Descalie regularly (see clearing & care).
WATER DROPLETS COLLECTS ON TOP THE POWER BASE
1. This is concatenation and perfect style. 1. Dry with non-aveable dots.

3

IMPORTANT SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following

READ ALL INSTRUCTIONS

BEFORE USING THE KETTLE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

• THIS IS AN ATTENDED APPLIANCE

Do not leave appliance unattended during use, unplug after each use (risk of fire if an unattender appliance is left, no using or plugging in).
• This appliance must not be used by children younger than 6 years old and persons with very expensive and complex disabilities. Children aged 8–14 years and persons with reduced physical sensory or mental capabilities or looks of experience and knowledge shall not use this appliance, unless they are approved and have been given instruction requiring the use of the appliance in a safe way and understand the hazards involved. Children shall not pay with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep this appliance and go out of each of children less than 8 years old.
- This appliance is imported for indoor houseple unit only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to these instructions the Guarantee becomes invalid and Duct refuses any liability for damage caused

Electrical safety

• Before plugging in check that the voltage or the rating label is the same as the main supply.
• A short power-supply cord is to be provided to reduce risks resulting from becoming enlarged in or spiring over a longer cord.
• Do not operate any appliance with a damaged each or plug, or after the appliance malfunctions or has been damaged, cracked or dropped in any manner.
  • In order to avoid a noise, if the power cord is damaged it must, for safety reasons, be replaced by Dualt or an authorised Dualt repair. Call Dualt's Customer Helbrine on [phone]
• Do not et cord hang over edge of table or counter, or touch hot surfaces
• To disconnect up any material to off the group put forward wall punct
• Unplug the power base from the wall socket when not in use, or before moving and ceaming.
• Ensure that the kettle is correctly positioned on the power base before switching on.
  • To be proved against electrical hazards, fire and injury to sensors, no not immerse the rains lead plug, power base or kettle in water or any other liquid
  • Use the lattice only with the power base supplied and vice versa.
• Do not expose the feeble where it is switched on.
• Extension cords are available and may be used if care is exercised in their use. If extension cards is used:
• The marked electrical rating of the card set or extension card should be at least as great as the electrical rating of the appliance and
• The cord should be arranged so that it will not drape over the counterlop or tabletop where it can be pulled on by children or tripped over unintentionally.
  • Avoid college on the connection.
  NOTE: when you lift the kettle from the base, you will see drops of moisture on the surface of the power base. This is the steam used to switch the kettle off automatically, which then condenses and escapes through roots in the underside of the kettle. This is perfectly normal and should not be cause for alarm or returning the kettle.
  • Do not exercise the kettle unless the water filter is correctly in position.
  • This appliance should only be operated in a cry well ventilated area.
  • Do not operate without closing the Io
  • Do not fill a the spout.
• When filing hold better upright (maximum 15" inclre)
  • Do not operate the kettle unless it contains at least 250 ml of water and

General safety

• The door of the kettle is covered
• Do not place the kettle, power case or mains lead on or near any hot surface, hot hob, gas burner or in a heated oven.
• Do not use the kettle for any purpose other than heating water. Otherwise, this may result in an injury caused by misuse
• Do not fill above the battery of the 'peak' mark on the water level indicator.
  • Do not operate the settle on an incl red slate.
• Remove the kettle from its power base before filling or pouring
• Do not remove or open the field while the water is boiling
• Use handles or seals - do not touch hot surfaces
  • If the kettle is overfiled, boiling water may be ejected

- When boiling, hot steam will be emitted from the ketde. Scalding may occur if you are within 400mm of the spout.

- Ensure that the kettle spot's pointing away from any electrical plug or socket.

Take care when pouring - pour slowly and do not over tilt the kettle. Water will remain hot for a considerable time after boiling and can present a scald hazard. Sows the kettled, power based and the rains, can away from the edge of workbors and out of the reach of children.

- Allow the kettle to cool down completely before cleaning and storing

- Do not store or use in an appliance garage or under cupboards

• Do not use in bathroom or outdoors.

- Ensure that the lid is fully closed before switching the kettle on, otherwise it may not properly switch off

- Do not use if dropped, marker or damaged

- The use of accessory attachments not recommended by Dault may result in fire, electric shock or injury to persons.

• Do not use scouring pad or abrasive cleaner on the kettle body.

- CALATION: to prevent damage to the appliance, do not use alkaline cleaning agents. When cleaning use a soft cloth and a mild detergent.

- Scalding may occur if the it is opened during the boiling cycle and the body of the better will get hot.

- Avoid the steam venting from the spout during and after operation.

Risk of scaling,

- Do not boil the kettle if filled with descaling solution.

- Never use the bottle without the panels correctly assembled.

SAVE THESE

INSTRUCTIONS

in the interest of improving products. Double Ltd receives the right to change the product specification without price range.

IMPORTANT: BEFORE

FIRST USE

- Read this instruction manual before you start using the kettle. It gives you important safety information and will ensure you go. The most out of your dual kettle.

- Keep this manual and your proof of purchase in a site plan.

- Unpack the box with care, keeping all the packaging materials until you are satisfied everything is present and in working order. Once satisfied, remove any tags from the appliance body and recycle the packaging appropriately. Do not remove tags from the cord. You may wish to keep the box to store your appliance.

- Before using the kettle for the first time, or if it has been out of use for a long time fill to the 'max' mark and boil, then discard the boiled water and rinse the kettle out with fresh cold water.

DON'T FORGETTO REGISTER YOUR KETTLERegister √ my appliance	WWW.DUALIT.COM/REGISTER
	OR BY POST

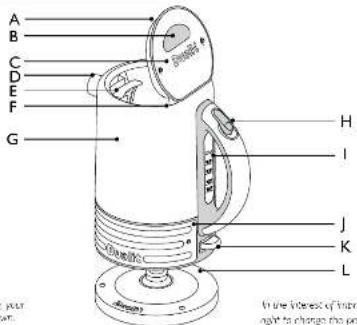

KNOW YOUR KETTLE

A. UD

B. TOUCH PAD
C. LID PANE
D. SPOLIT
E. WALLI ULLI
E. 51-APC URB
C. STAI LEES (FTE) 100%
G. STAINLESS STEEL BOLT
H. UD RELEASE
L VIEWING WINDOW
↓ BODY PANEL
K. ON/OFF SWITCH
L. POWERBASE

All illustrators are for representation only, your model may vary from the illustrations shown.

In the interest of improving products, Dubai Ltd reserves the right to change the product specification without prior extra

INSTRUCTIONS ON ENVIRONMENT PROTECTION

Do not dispose this product, in the usual household garbage at the end of its life cycle. Please hand it over to a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instruction of use or the packaging will inform you about the methods of disposal. No materials are recycled as mentioned on its marking. By recycling, material recycling or other forms of re-utilization of oil appliances you are making an important contribution to protect our environment. Please acquire the community administration on for the outsourced disposal location

SETTING UP

WARNING: IF THE KETTLE HAS JUST BOILED, IT WILL BE FULL OF STEAM, WHICH WILL ESCAPE AS SOON AS THE LID IS OPENED.

Place the kettle as close to the wall socket as possible. When in use ensure the kettle is not paced under kitchen cabinets. DO NOT STORE OR USE YOUR KETTLE IN AN APPLIANCE GARAGE OR UNDER CUPBOARDS.

Use the shortest cord possible. Wrap express cord round the cord lidy on the base of the kettle.

Do not operate on an inclined plane.

Do not operate in a tray, ensure water filter is in

DO NOT OPERATE KETTLE UNLESS THE WATER FILTER IS CORRECTLY IN POSITION.

FILLING YOUR KETTLE

WARNING: IF THE KETTLE HAS JUST BOILED, IT WILL BE FULL OF STEAM, WHICH WILL ESCAPE AS SOON AS THE LID IS OPENED.

ensure the kettle is unplugged. Remove the kettle from the power case. Pull the knob up and towards the hand to open the lid. The lid is hinged for easy opening and closing. WARNING: IF THE KETTLE HAS JUST BOILED, THE LID WILL BE HOT. USE THE KNOB TO CLOSE THE LID.

Hi the kettle through the Id opening. Use at least one out of water (350ml). The water level must stay below the 'max' mark. Save energy, only boil what you require. Keep kettle upright and lever at all times when filling (maximum 15" incline). Do not tie kettle backwards. DO NOT OVERFILL OR FILL THROUGH THE SPOUT.

CAUTION when filling to ensure water does not go down steam tube, preventing the kettle from correct operation.

Push the lid down using the inch to close. Check that it is fully in place, otherwise the kettle may not switch off when boiling

BOILING WATER

WARNING: IF THE KETTLE HAS JUST BOILED, IT WILL BE FULL OF STEAM, WHICH WILL ESCAPE AS SOON AS THE LID IS OPENED.

Plug the lette into the power socket. Press the 'On/Off' switch down. The power noon will illuminate and the keble will start to rise up. If the kettle is accidentally switched on with no water inside, the ball-dry device will switch off the heat or clean to prevent damage to the kettle.

The kettle will automatically turn off after the water has boiled and the neon light will go out. To turn off before the water has boiled in the 'On'Off switch up. Always unplug the kettle after each use.

Remove kettle from the power base. When filing or carrying the kettle, do not fill backwinds, as this may allow water to pass through the steam tube onto the control area. Should this happen, the kettle must be allowed to dry before re-using. To avoid the use of splashing, once the kettle has cooled wet 10 seconds then pour slowly. Do not over all the kettle.

CLEANING & CARE

Any other servicing should be performed by authorized service representative.

Unplug and let the kettle cool down completely before cleaning. Remove the kettle from the power base. Wipe the outside and inside surfaces of the kettle with a damp cloth ensure that all connections and soileds are kept dry. Do not immerse the kettle or power base in water or any other liquid. Do not use harsh or abrasive cleaners or sovents.

Unplug and let the kettle cool. Open the lid. Hold the top of the filter, pull up and out of the kettle. Rinse under a lap while carefully brushing it with a soft brush. Rinse the kettle out with fresh water. I do replace, align the filter with the grooves in the filter holder instead and push back into place. DO NOT OPERATE KETTLE UNLESS THE WATER FILTER IS CORRECTLY IN POSITION.

ULARLY

Use descing products suitable for kitchen appliances. These are ready available online or how most supermarkets or department stores use as per reunctions on the packet. Follow these few simple steps to minimize scale build up in your kettle. Empty the kettle after each use do not allow water to stand in the kettle overnight. Use firecrater water instead of air water. Descale the kettle eguary at least once a month. If you live in a hard water area you may need to descale more often. When cooking has finned empty the kettle and rinse it is a minimum of 3 times with fresh water, then reill in fresh water; boil, then scare boiled water. FAILURE TO DO SO CAN CAUSE INJURY. DO NOT BOIL KETTLE WITH DESCALING SOLUTION IN IT.
