| Type de produit | Freezer (congélateur) |
| Dimensions (H x W x D) | 1760 x 600 x 650 mm (estimation) |
| Poid | Approx. 70 kg |
| Alimentation | 220 V ~ 50 Hz, 10 A |
| Classe climatique | SN-T (subtempéré à tropical) |
| Consommation d'énergie | Classe énergétique A+ (estimation) |
| Capacité de congélation | Jusqu'à 1500 g / 24h (sans distributeur de glaçons) |
| Réfrigérant | R600a (écologique, inflammable) |
| Technologie de refroidissement | No Frost (congélation sans givre) |
| Commandes | Affichage LCD tactile, commandes tactiles |
| Fonctions principales | Super congélation, Super refroidissement, mode éco, mode vacances, verrouillage enfant |
| Nombre de compartiments | 3 : réfrigérateur, compartiment central hyperFresh, congélateur |
| Éclairage | LED |
| Alarmes | Alarme porte, alarme température |
| Bruit | Technologie silencieuse (niveau approx. 42 dB) |
| Entretien | Dégivrage automatique, nettoyage intérieur avec détergent doux |
| Pièces détachées et réparabilité | Ampoule LED remplaçable (service client), joint de porte amovible |
| Sécurité | Verrouillage enfants, coupe-circuit automatique, évacuation du réfrigérant |
Frequently Asked Questions - KG28US12EK SIEMENS
User questions about KG28US12EK SIEMENS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual KG28US12EK - SIEMENS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KG28US12EK by SIEMENS.
USER MANUAL KG28US12EK SIEMENS
siemens-home.bsh-group.com/welcome
en Instruction for Use
zh-hk 安裝說明與使用說明
Register your product online
en Table of Contents 2
| zh-hk | 目錄 | 24 |
Table of Contents
Product Introduction
Safety instructions 3
Product features 5
Information concerning disposal......6
Handling and placing....7
Electrical connection...... 8
General regulations 8
Installation dimensions 9
Getting to know your appliance ..... 10
Usage
Preparations before use 11
Control and display panel....11
Switching on the appliance......12
Setting the temperature....12
Refrigerator compartment...... 13
Middle compartment......14
Freezer compartment 14
Freezing capacity 15
Ice making 15
Storage period of frozen food...... 17
Cleaning and maintenance

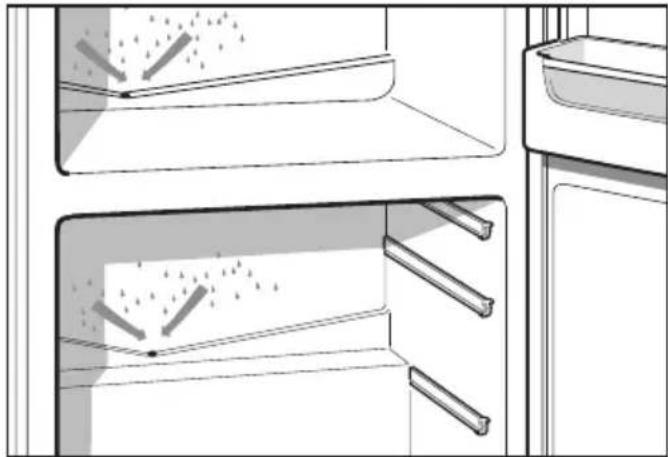

Defrosting 18
Cleaning the appliance....18
Tips for saving energy 19
Miscellaneous....19
Eliminating minor faults yourself
Symptoms which are not faults...... 20
Analysis and exclusion of special conditions 22
Product Introduction
⚠ Safety instructions
This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression.
The refrigeration circuit has been checked for leaks.
About these instructions
- Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance.
■ The manufacturer is not liable if you disregard the instructions and warnings in the operating and installation instructions.
■ Retain all documents for subsequent use or for the next owner.
Risk of explosion
■ Never use electric appliances inside the appliance (e.g. heaters or electric ice makers).
■ Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance.
■ Store high-percentage alcohol tightly sealed and in an upright position.
■ Do not use additional means to accelerate the defrosting process other than those recommended by the manufacturer.
Risk of electric shock
Improper installations and repairs may put the user at considerable risk.
■ When installing the appliance, ensure that the mains cable is not trapped or damaged.
■ If the mains cable is damaged: immediately disconnect the appliance
from the electricity supply.
■ Do not use multiple sockets, extension leads or adapters.
■ Have the appliance repaired by the manufacturer, Customer Service or a similarly qualified person only.
■ Use original parts supplied by the manufacturer only.
The manufacturer guarantees that these parts satisfy the safety requirements.
Risk of cold burns
■ Never put frozen food straight from the freezer compartment into your mouth.
■ Avoid prolonged contact of skin with frozen food, ice and the tubes in the freezer compartment.
Risk of injury
Containers which contain carbonated drinks may burst.
Do not store containers which contain carbonated drinks in the freezer compartment.
Fire hazard/Danger due to refrigerants
The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not contribute to the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
■ Do not damage the tubes.
If the tubes are damaged:
- Keep naked flames and ignition sources away from the appliance.
■ Ventilate the room.
■ Switch off the appliance and pull out the mains plug.
■ Please contact Customer Service.
Product Introduction
Fire hazard
Portable multiple outlets or power supplies may overheat, causing a fire.
Never leave portable multiple outlets or portable power supplies behind the appliance.
Avoiding placing children and vulnerable people at risk
At risk are:
■ Children,
■ People who have limited physical, mental or sensory abilities,
■ People who have inadequate knowledge concerning safe operation of the appliance.
Measures:
■ Ensure that children and vulnerable people have understood the hazards.
■ Children or vulnerable people must be supervised by a responsible person when using the appliance.
■ Only children from 8 years and above may use the appliance.
■ Supervise children while the appliance is being cleaned or maintained.
■ Never allow children to play with the appliance.
Risk of suffocation
■ If the appliance features a lock: keep the key out of the reach of children.
- Keep children away from the packaging and its parts.
Damage
To prevent damage:
■ Do not stand or support yourself on the base, runners or doors.
- Keep plastic parts and door seals free of oil and grease.
■ Pull the mains plug – not the power cord.
Weight
When installing and transporting the appliance, note that it may be very heavy.
Food hygiene regulations Dear Customer,
In accordance with the French regulation on the prevention of listeria in the refrigerator compartment, please observe the following instructions.
■ Clean the interior of the refrigerator frequently with a gentle detergent which does not oxidise the metal parts (e. g. tepid water with a little washing-up liquid).
Then disinfect the clean surfaces with diluted vinegar or lemon juice or a commercially available germicide which is suitable for refrigerators. (Test disinfectant beforehand on inconspicuous metal parts to ensure compatibility).
■ Remove packaging before placing food in the refrigerator compartment (e. g. cardboard box which holds yoghurt cartons).
■ To prevent contamination between different types of food, keep them separate from each other, well wrapped up or placed in containers.
■ Before preparing food, wash your hands. Before preparing other foods, wash your hands again. Before eating, also wash your hands.
■ Clean dirty kitchen utensils (cooking spoon, chopping board, kitchen knives, etc.) before re-using them.
Product Introduction
Product features
Separate cooling system with no frost technology
Forced convection refrigeration is used in refrigerator and middle compartment, air cooling technology is used in the freezer. The refrigerator, middle compartment and freezer are all equipped with automatic defrosting. The system also equips a dynamic cooling fan and a forced refrigerating cycle so that food can be cooled down quickly and maintains a uniform temperature.
LCD temperature display
LCD displays the set temperature and function status of each compartment respectively. The design is clear and can be understood at a glance, making operating of the appliance easy.
Efficient and energy-saving
With highly efficient and energy-saving compressor and thickened foam layer, more efficient and energy-saving refrigeration is achieved.
Three separate controls for three temperatures zones
The refrigerator, the middle compartment and the freezer are controlled and displayed by computer system to achieve more precise temperature control and more long-lasting preservation.
Smart super cooling, fast and convenient
The super cooling function set the temperature within the refrigerator compartment quickly to 2^ C. This enhances food freshness and makes the cooling of drinks easier.
Smart super freezing for intensive freshness
The super freezing function freeze food at a temperature below -18^ as quickly as possible. This makes the preservation of freshness technologically even more reliable.
hyperFresh cooling (middle compartment)
With independent refrigeration system, cold air circulation system and moisturizing device, the internal temperature can be control at about 0^ C. In this environment, the growth and reproduction of microorganisms (bacteria, yeast, mold) has been inhibited more effectively, Food can be stored up to two to three times longer than in the normal cooling zone without loss of freshness.
Quiet technology
A series of noise reduction technologies are adopted to minimize the noise.
Wide climatic zone design
Suitable for types of climate from sub-temperature and subtropical climate, with some products capable of adapting to tropical climate. See also technical parameters and packing list for specific climate types.
Product Introduction R600a refrigerant, a pioneer in environmental technology
The refrigerant R600a and the foaming agents are hydrocarbons which do not damage the ozone layer and do not contribute to the greenhouse effect.
Tempered glass shelf, safe and reliable
Safe and aesthetic shelves made of tempered glass, with high loading capacity and durability.
Removable door seal strip, easy to clean
Special removable door seal strip with long service life, strong adsorption, ease to clean.
Door alarm function
If the appliance is left open for a longer time, the door alarm switches on.
Temperature alarm
The temperature alarm switches on if the appliance is too warm.
Information concerning disposal
Disposal of packaging
The packaging protects your appliance from damage during transit. All utilized materials are environmentally safe and recyclable. Please dispose the packaging in an environmentally friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal.
Warning
Keep children away from packaging. Danger of suffocation from folding carton and plastic film.
Disposal of your old appliance
Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.
⚠ Warning
Redundant appliances should be handled as follows:
- Pull out the mains plug,
- Cut off the power cord and Discard with the mains plug,
- Dismantle the main body of the door and remove the door seal strip in order to prevent children from being trapped inside!
- Do not allow children to play with the old appliance; Danger of suffocation!
- Do not allow children to play with the old appliance; Danger of suffocation!
⚠ Warning
Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.
Product Introduction
Handling and placing
Handling
Do not hold the door or door handle to move the refrigerator, and the refrigerator should be lifted from the bottom.
⚠ The refrigerator should not be placed horizontally or upside down.
Placing

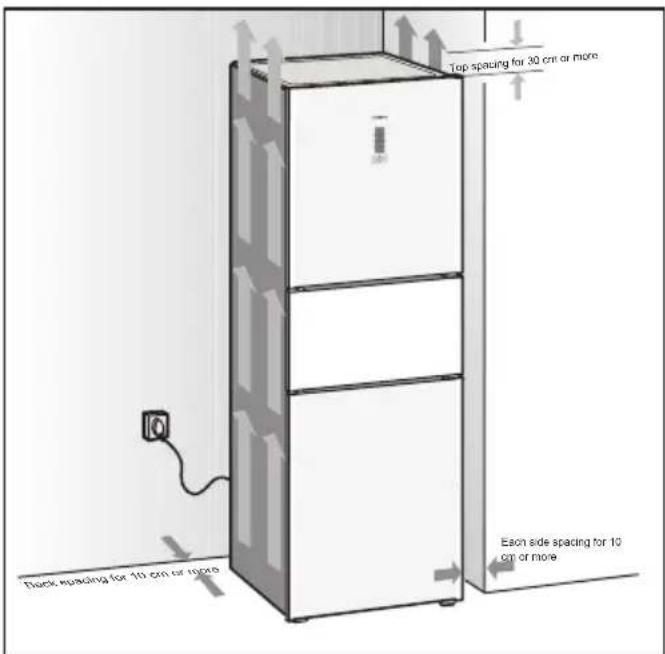

⚠️ Install the appliance in a dry, well ventilated room, ensure minimum lateral distance of 10cm at the both side and the back, and a gap of 30cm should be kept on the top.
⚠️ Never cover the ventilation openings on the rear of the appliance. The installation location should neither be exposed to direct sunlight nor near a heat source.
Aligning the appliance
When placing the refrigerator, be sure to adjust the two front foot screws to proper height.
Place the refrigerator to a firm level. Use a wrench to adjust two plastic front feet, to keep the refrigerator vertical and steady.
Be sure to keep the plastic screws in contact with the ground and firm (to reduce vibration and noise).
Electrical connection
The rated voltage of the appliance is 220V alternating current with a rated frequency of 50 Hz. The permitted voltage fluctuation ranges from 187V to 242V.
Note: refer to 15945-2008 GB/T, power quality, power system frequency deviation
The plug and the power cord must be able to withstand a current in excess of 10A.
Be sure to use a separate three-way socket outlet with reliable earth.
General regulations The appliance is suitable
• for refrigerating and freezing food,
- for making ice.
This appliance is intended for use in the home and the home environment.
The appliance is suppressed according to EU Directive 2004/108/EC.
The refrigeration circuit has been checked for leaks.
This product complies with the relevant safety regulations for electrical appliances (IEC 60335-2-24).
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
Installation dimensions
Getting to know your appliance
These operating instructions refer to several models.
Each model is available in multiple options. All the illustrations in the instructions are schematic views, hence, some features and devices may vary from the illustrations, please take the product as the standard for specific structure and configuration.
1 Control and display panel 7 Drawers of the refrigerator compartment
2 Lighting (LED)
8 Humidity filter
13 Refrigerator compartment door
3 Fan
9 Middle compartment drawer
14 Butter and Cheese compartment
4 Bottle shelf
10 Glass shelf in freezer
15 Shelf for small bottle
5 Glass shelf in refrigerator compartment
11 Ice maker*
16 Shelf for big bottle
6 Sensor
12 Freezer drawer
17 Middle compartment door
A Refrigerator compartment
B Middle compartment
C Freezer compartment
Usage
Preparations before use
Remove all packaging components, including foamed padding at the base of the appliance and the padding and securing tapes used for securing the fittings inside the appliance.
Check the supplied fittings, accessories and documentation according to the packaging list.
Place the refrigerator to the proper position according to the handling and placing.
Clean the interior of the appliance (see chapter "Cleaning the appliance").
After switching on the appliance, wait at least 30 minutes to start up.

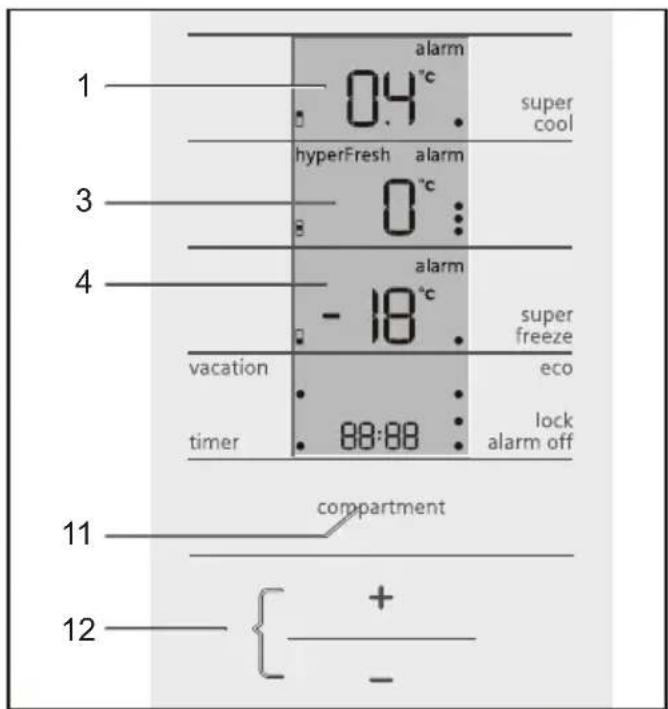

Control and display panel
The control panel is equipped with LCD, and all functions and temperatures are selected and adjusted by touching the buttons. The names and functions of each button are as follows.
1 Refrigerator compartment display Indicates the current temperature setting in the refrigerator compartment.
2 Super cooling button
Press button 2 to activate or deactivate the super cooling function.
Under super cooling mode, the temperature of the refrigerator is set at 2 °C and keep running for 6 hours.
3 Middle compartment display
Indicates the current temperature setting in the middle compartment.
4 Freezer compartment display
Indicates the current temperature setting in the freezer compartment.
5 Super freezing button
Press button 5 to activate or deactivate the super freezing function.
Under super freezing mode, the temperature of the freezer is set at -30 °C and keep running for 54 hours.
6 vacation button
When vacation mode is switched on, the appliance automatically sets at 14 °C in the refrigerator compartment, middle compartment and freezer keep the set temperatures.
7 eco button
When the eco mode is switched on, the appliance will run in energy-saving mode.
8 timer button
9 Timer display
10 lock/alarm off
Keep pressing the button for 3 seconds to lock and unlock; the button is also used to switch off the alarm.
11 Temperature setting button
12 Temperature adjusting button
Switching on the appliance
When first powered on
Plug in the power cord to connect the appliance to the mains.
If displays do not illuminate, please check the mains plug whether has been inserted properly.
When the appliance is switched on, the temperature setting of refrigerator and freezer are displayed respectively (The factory settings of refrigerator compartment, middle compartment and freezer compartment are 4^ C, 0^ C, and -18^ C respectively).
If the temperature inside the freezer exceeds the alarm temperature, "alarm" and the freezer compartment temperature will be indicated on the display and the buzzer (continuous sound) will be actuated. Press the alarm button 10 to switch the signal off again, the highest temperature reached in the freezer compartment will be displayed for 5 seconds, then the set temperature is displayed again. The "alarm" display goes out as soon as the set temperature has been reached again.
Several minutes after switching on, you may feel warm when touching both sides of the refrigerator, indicating that the refrigerating system is working.
Setting the temperature
Setting the temperature of the refrigerator compartment
Press the button 11 to activate the temperature display area 1 of the refrigerator compartment, then press the setting button "+" or "-" of the button 12 to adjust the desired temperature of refrigerator compartment (Adjustable from 2°C to 8°C).
When storing perishable food, we recommend setting the temperature below 4^ C.
Setting the temperature of the middle compartment
Press the button 11 to activate the temperature display area 3 of the middle compartment, then press the setting button "+" or "-" of the button 12 to adjust the desired temperature of middle compartment (Adjustable from -3°C to 6°C).
When storing the fresh vegetables and fruit, it is recommended to set the temperature of the middle compartment at 0^ C.
Usage
Setting the temperature of the freezer compartment
Press the button 11 to activate the temperature display area 4 of the refrigerator compartment, then press the setting button "+" or "-" of the touch button 12 to adjust the desired temperature of freezer compartment (Adjustable from -16°C to -24°C).
If a power failure occurs, the temperature settings do not need to reset again.
Refrigerator compartment
The refrigerator compartment is the ideal storage location for ready meals.

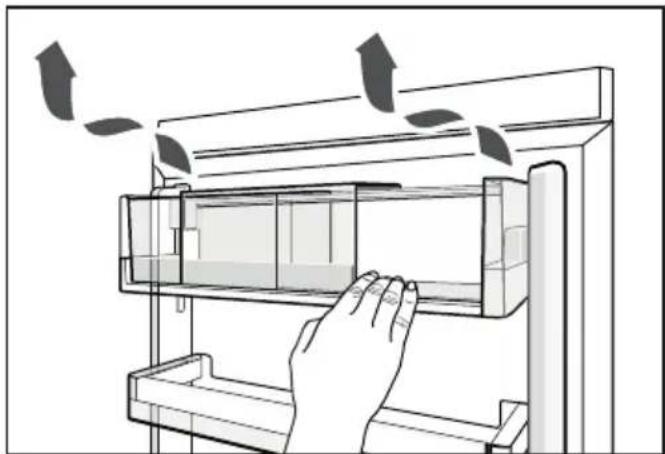

Glass shelf
The position of glass shelf of the refrigerator can be adjusted in order to store various kinds of food.
Pull out the glass shelf by half, and lift the front of the shelf to take out the shelf.


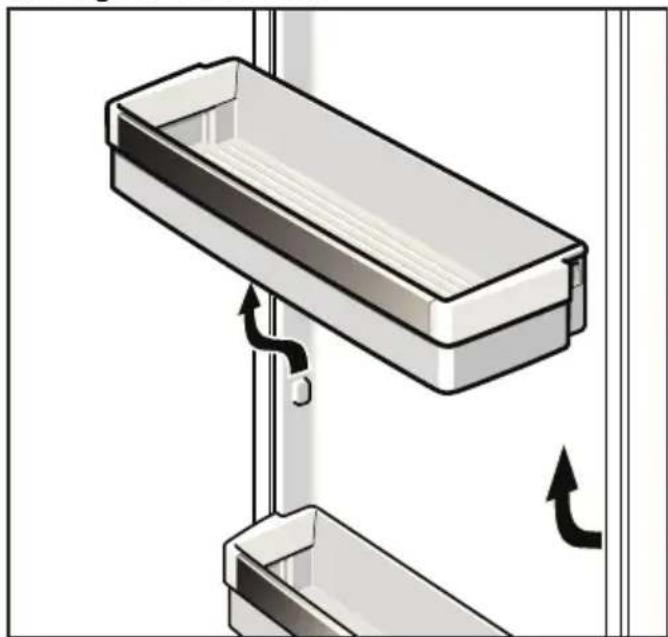

The bottle shelf on the door is used to store eggs, bottled drinks and all kinds of fragmented food.
The temperature of the middle compartment is between -3°C and 6°C. There are two kinds of temperature displays: when the temperature is set at 0°C, "hyperFresh" will appear; when the other temperature is displayed, no text is displayed.
Usually, the middle compartment is set as 0^ C hyperFresh by default, humidity can be preserved at maximum, and the preservation period is two to three times longer than conventional preservation. This is suitable for storing fresh food, such as fish, meats, eggs, milk, fruits and vegetables.
Drawer
The middle compartment is equipped with two drawers with rails for conveniently putting in and taking out articles.
Pull out the drawer rail and the drawer together, hold the handle and lift the back end of the drawer to disengage the drawer rail and the drawer to pull out the drawer.
When mounting the drawer, first pull out the rail, put the drawer on the rail, and push in the drawer while securing the rail with hand until the drawer and rail completely engage.
Freezer compartment
The freezer compartment is mainly used to store frozen food, freeze food and make ice cubes. It can preserve the food for a longer time.
The freezer compartment is equipped with drawer, pull out the drawer and gently lift upward to take out.
The lower drawer is mainly used for storing frozen food.
The freezer compartment drawers are a parts for user convenience, the drawers can be taken out and put the food on the glass shelf directly.
Usage
Note: the glass shelf may easily crack when heated, please do not store hot food on the glass shelf.
The middle drawer is used for freezing and storing food with large volume such as turkey, duck and goose. If larger space is needed, the ice maker can be removed. (not all models)
Freezing capacity
The freezing capacity marked on the rating plate. According to IEC 62552, the quantity of the resulting frozen food is tested and calculated under standard operating conditions.
Ice making
To facilitate the quick preparation of ice cubes, set the freezer compartment temperature to the lowest setting or activate the Super freezing function beforehand.
Only drinking water can be used for ice cubes making.
Fill drinking water into the ice cube tray until it is full, then place the ice cube tray horizontally into the second drawer of the freezer compartment.
Fill drinking water into the ice cube tray until it is full; excessive water may make the ice cube stick together which leads hard to loosen the ice cubes, and prolong the ice making time.
The maximum amount of ice cubes can be made is 1500 grams in 24 hours. Generally, the duration for making ice cubes at one time is approx. 3 hours.
When you want to take out the ice cubes, twist the ice cube tray slightly to release the ice cubes.
For some models equipped with ice maker, please make ice according to the followings.
To facilitate the quick preparation of ice cubes, set the freezer compartment temperature to the lowest setting or activate the Super freezing function beforehand.
Only drinking water can be used for ice cubes making.
The maximum amount of ice cubes can be made is 1000 grams in 24 hours. Generally, the duration for making ice cubes at one time is approx. 3 hours.
- Take out the water container and fill with drinking water to the mark line.
- Fill the drinking water into the ice maker.
- Reinsert the water container.
- When the ice cubes are made, push down the ice making handle, and the ice cubes will fall into the ice storing tray.
- Pull out the ice storing tray to take out the ice cubes.


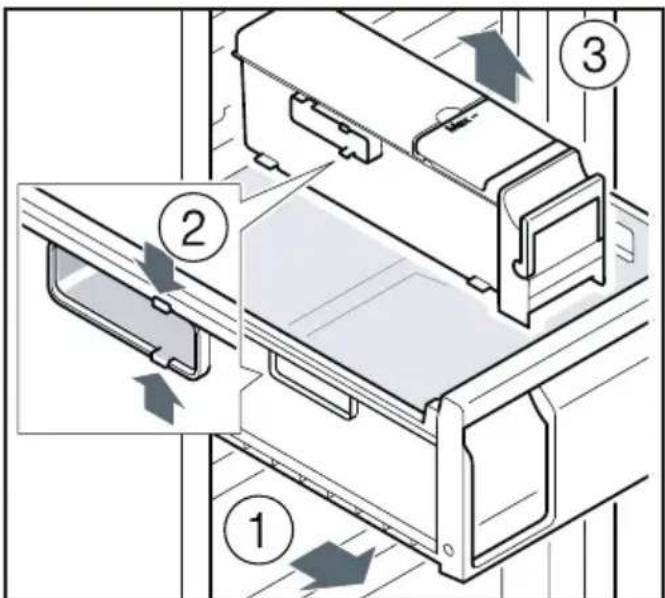

Cleaning the ice maker
Before the first use of ice maker or no use for a long time, The ice maker should be cleaned.
- Pull out the drawer, and take out the water container and the cover on the ice maker.
- Gently clean with running water, and the ice maker should not be wiped, otherwise the ice will stick on the ice maker, so it will be difficult to remove.
Usage
Storage period of frozen food
Symbols of different kinds of food are printed on the front of the freezer compartment drawers indicate the permitted storage period of the produce (the unit being "month").
When you want to freeze food, you must take these storage time limits into account. The storing period of the food bought from the shop should be reduced correspondingly according to the production date and shelf life.
Not all the models are printed with such patterns.
Packaging frozen food
The food better be packed before freezing in order to keep the food from losing water, taste and smell bad.
Place the food in a wrapping bag and squeeze it lightly to remove the air from inside the bag as much as possible to ensure that it is sealed tight.
Each package should be labeled the date of manufacture or use by date.
Thawing frozen food
Food can be thawed at room temperature or in the refrigerator. It can also be thawed in an electric oven or in the microwave.
If you want to refreeze thawing or thawed food, you must observe the followings:
■ The interval time should not be too long.
■ The food is cooked, fired, boiled and roasted completely before refreeze.
Cleaning and maintenance
Defrosting
Defrosting is actuated automatically, the condensation runs through the drainage hole into an evaporation pan on the rear of the appliance.
To make sure the condensation run into the evaporation pan, please do not block the drainage hole.
The drainage hole comes with a filter which can filter the dirt out. Remove the filter may result in blocking the drainage hole.
If the drainage hole is blocked, the water may accumulate at the bottom of the refrigerator compartment and the middle compartment. Remove the filter, and clean dirt inside the hole; and use soft towel to clean the collection tray at the back.
Precautions for internal and external cleaning of the refrigerator.
Switch off the mains plug before cleaning.
Be careful the rinsing water must not run into the light.
Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid.
Wipe the door seal with clear water only and then wipe dry thoroughly.
Clean the collection tray and drainage hole frequently to make sure the condensation runs out smoothly.
Do not use abrasive, chloride or acidic cleaning agents or solvents.
Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
Attention
The temperature rise of the frozen food may shorten the shelf life during maintenance or cleaning.
Tips for saving energy
Install the appliance in a dry, well ventilated room; The appliance should not be installed in direct sunlight or near a heat source.
Allow warm food and drinks to cool down before placing in the appliance.
Do not block the ventilation openings in the appliance.
Thaw frozen food in the refrigerator compartment.
Open the appliance as briefly as possible.
To achieve the lowest energy consumption, switch the appliance to eco mode.
Do not block the temperature sensors and avoid contact between food and sensor.
Miscellaneous
If a power failure occurs
Reduce the frequently open the door of appliance; avoid placing new fresh food inside (to prevent the temperature rising faster).
If the power suspension is noticed, select super cooling and super freezing functions to keep in a low temperatures.
Switching off the appliance
If disconnecting the appliance is necessary, switch off the appliance and pull out mains plug.
If you do not use the appliance for a prolonged period: switch off the appliance, clean the appliance and leave the appliance door open.
Do not shut down the appliance under normal conditions, this may affect the service life of the appliance.
Attention
If you decide to stop using the appliance, no food should be stored in the refrigerator.
Symptoms which are not faults
Condensation may form on the appliance
This may occur when air humidity is high. Simply wipe dry.
Frost and ice have built up at the back of the refrigerator compartment
As the refrigerant tubes are at the back of the refrigerator, the temperature will drop below 0^ C when the refrigerating unit is operating and frost may build up. When the refrigerating unit stops operating, the frost will reduce automatically.
The freezer compartment door is warm
That is normal behavior to prevent the condensation occurs on the door.
The side panels of the appliance are warm
That is normal behavior when pips run into the side panels which heat during the cooling process. When the temperature is high during summer, the temperature of the side plates may reach up to 50°C.
The compressor is hot
The compressor can reach a temperature of approx. 80^ C when the refrigerator is operating.
The refrigerator makes a gurgling noise
Refrigerant is flowing through the tubing.
The refrigerator makes a clicking noise.
Refrigerating units are operating, solenoid valves are switching on and off.
The voltage is too low, the compressor cannot run
Install a power regulator of more than 500W.
The refrigerator makes a humming noise
When the refrigerator is operating, the compressor makes a slight humming sound. If the appliance is not level, it will produce vibration and noise. Place the appliance in the designated location and align.
The appliance keeps working for longer
During summer, when the ambient temperature is higher, the compressor is switching on more frequently, it is a normal behavior.
Eliminating minor faults yourself
Operating noises Quite normal noises
Droning
Motors are running (e.g. refrigerating units, fan).
Bubbling, humming or gurgling noises Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are switching on/off.
Preventing noises
The appliance is not level
Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them.
The appliance is not free-standing
Please move the appliance away from adjacent units or appliances.
Containers or storage areas wobble or stick
Please check the removable parts and re-insert them correctly if required.
Bottles or receptacles are touching each other
Move the bottles or receptacles slightly away from each other.
Analysis and exclusion of special conditions
Before consulting the after-sale services:
Please check whether if the failure can be solved according to the following instructions.
| Fault Possible cause | Remedial action | |
| Displays do not illuminate. | 1. The mains plug has not inserted properly,2. The fuse has been switched off,3.Power failure. | 1.Connect mains plug,2.Replace the fuse,3.Check whether the power is on. |
| The warning signal sounds, the “alarm” is lit. | 1.Applianceis powered on or restart.2.Therefrigerator door is opened for long time,3. Too much food was placed in the freezer at once | 1. To switch off the warning signal, press the button 10,2. Close the refrigerator door completely,3. Do not place too much food in the freezer at once. |
| The refrigerating system is operating properly; the lighting in the refrigerator compartment does not work. | The light is defective. | Replace the lightPlease contact the customer service for replacement. |
| Condensation occurs in the bottom of the refrigerator compartment and the middle compartment. | The drainage hole is blocked. | According to the defrosting section, clean the drainage hole. |
| Frostbitten vegetables | The temperature of the middle compartment is set too low. | Adjust the temperature to 0°C biological preservation. |
If you cannot solve the problems described above or if other failures occur, please contact your customer service. Improper repairs may put the user at considerable risk. Repairs may be performed by the manufacturer, customer service or a similarly qualified person only. Please refer to the product warranty guide for further maintenance details.
Customer service warranty (Household use):
Within the warranty period, the whole machine warranty is free for two-year.
If you have any enquiry or maintenance service, please provide customer service with purchase receipt information.
Please provide customer service with the appliance product number (E-Nr.) and production number (FD-Nr.).
These specifications can be found on the rating plate. (on the right side of the refrigerator compartment).
目錄
產品介紹
安全須知....25
產品特點....27
處理舊電冰箱注意事項……28
搬運和放置....28
電器連接....29
一般規定....29
安裝尺寸....30
電冰箱詳細資料....31
使用
使用前準備....32
控制與顯示面板....32
開機....33
溫度調校....33
冷藏室....34
中間室....34
冷凍室....35
冷凍能力....35
製冰....35
冷凍食品的貯存期....36
清潔與維護
除霜....37
清潔電冰箱....37
節能貼士....37
其他事項....38
自行解決小故障
非故障現象....39
特殊現象的分析與排除……40
產品介紹
⚠️安全須知
Illustration of a hand pressing down a mechanical component with airflow arrows (no text or symbols)natural_image
Diagram of a mechanical assembly with two parts, one showing a curved arrow and the other a straight arrow, no text or symbols present.中間室
冷凍食品的貯存期
電冰箱內部及外部清潔應注意事項。
清潔前，必須拔下電源插頭。
清潔時，確保水不能進入照明燈裝置內。
siemens-home.bsh-group.com
Manufactured by BSH Home Appliances Co, Ltd. under Trademark License of Siemens AG
- Table of Contents
- Product Introduction
- Usage
- Cleaning and maintenance
- Eliminating minor faults yourself
- ⚠ Safety instructions
- About these instructions
- Risk of explosion
- Risk of electric shock
- Risk of cold burns
- Risk of injury
- Fire hazard/Danger due to refrigerants
- Fire hazard
- Avoiding placing children and vulnerable people at risk
- Measures:
- Risk of suffocation
- Damage
- Weight
- Food hygiene regulations Dear Customer,
- Product features
- Separate cooling system with no frost technology
- LCD temperature display
- Efficient and energy-saving
- Three separate controls for three temperatures zones
- Smart super cooling, fast and convenient
- Smart super freezing for intensive freshness
- hyperFresh cooling (middle compartment)
- Quiet technology
- Wide climatic zone design
- Product Introduction R600a refrigerant, a pioneer in environmental technology
- Tempered glass shelf, safe and reliable
- Removable door seal strip, easy to clean
- Door alarm function
- Temperature alarm
- Information concerning disposal
- Disposal of packaging
- Warning
- Disposal of your old appliance
- ⚠ Warning
- Redundant appliances should be handled as follows:
- Handling and placing
- Handling
- Placing
- Aligning the appliance
- Electrical connection
- General regulations The appliance is suitable
- Installation dimensions
- Getting to know your appliance
- Preparations before use
- Control and display panel
- Switching on the appliance
- When first powered on
- Setting the temperature
- Setting the temperature of the refrigerator compartment
- Setting the temperature of the middle compartment
- Setting the temperature of the freezer compartment
- Refrigerator compartment
- The refrigerator compartment is the ideal storage location for ready meals.
- Glass shelf
- Middle compartment
- Drawer
- Freezer compartment
- Freezing capacity
- Ice making
- For some models equipped with ice maker, please make ice according to the followings.
- Cleaning the ice maker
- Storage period of frozen food
- Packaging frozen food
- Thawing frozen food
- Defrosting
- Attention
- Cleaning the appliance
- Precautions for internal and external cleaning of the refrigerator.
- Tips for saving energy
- Miscellaneous
- If a power failure occurs
- Switching off the appliance
- Symptoms which are not faults
- Condensation may form on the appliance
- Frost and ice have built up at the back of the refrigerator compartment
- The freezer compartment door is warm
- The side panels of the appliance are warm
- The compressor is hot
- The refrigerator makes a gurgling noise
- The refrigerator makes a clicking noise.
- The voltage is too low, the compressor cannot run
- The refrigerator makes a humming noise
- The appliance keeps working for longer
- Operating noises Quite normal noises
- Preventing noises
- Analysis and exclusion of special conditions
- Before consulting the after-sale services:
- Customer service warranty (Household use):
- 目錄
- 產品介紹
- 使用
- 清潔與維護
- 自行解決小故障
- ⚠️安全須知
- 電器連接
- 中間室
- 冷凍能力
- 冷凍食品的貯存期
- 注意
- 清潔電冰箱
- 電冰箱內部及外部清潔應注意事項。
Brand : SIEMENS
Model : KG28US12EK
Category : Freezer
