Product Type	Phantom Power Supply
Brand	Behringer
Model	PSU7-UK
Output Voltage	48V DC
Input Voltage	100-240V AC, 50/60Hz
Number of Channels	1
Connector Type	XLR (Input and Output)
Dimensions (approx.)	100 x 65 x 40 mm
Weight (approx.)	0.3 kg
Power Indicator	LED (Red)
Noise Level	Ultra-low noise design
Housing Material	Metal case
Mounting Options	Desktop or rack-mountable (with optional kit)
Cleaning Instructions	Wipe with a dry, lint-free cloth
Safety Precautions	Use with grounded outlet; avoid moisture; do not open
Spare Parts Availability	Contact Behringer support; not user-serviceable
Compliance	CE, RoHS
Warranty	1 year (check local terms)
Intended Use	Providing phantom power for condenser microphones

Frequently Asked Questions - PSU7-UK BEHRINGER

What is the Behringer PSU7-UK used for?

The Behringer PSU7-UK is a phantom power supply that provides 48V DC power to condenser microphones that require external power.

How do I connect the PSU7-UK?

Connect your microphone to the XLR input and the output to your mixer or interface. Then plug the power adapter into a mains outlet.

Does the PSU7-UK work with dynamic microphones?

Yes, it will pass audio without applying phantom power, but it is designed for condenser microphones that need 48V.

What is the input voltage range of the PSU7-UK?

It accepts 100-240V AC, 50/60Hz, making it suitable for worldwide use.

Can I use the PSU7-UK with a balanced or unbalanced cable?

Use balanced XLR cables for best performance to minimize noise and interference.

Does the PSU7-UK have a ground lift switch?

No, the PSU7-UK does not have a ground lift switch. Ensure your entire audio system is properly grounded to avoid hum.

How do I clean and maintain the PSU7-UK?

Disconnect from power and wipe with a dry cloth. Do not use liquids or abrasives.

What should I do if the PSU7-UK is not powering my microphone?

Check the LED indicator: if it's off, verify the power adapter and mains connection. Also ensure the microphone requires 48V phantom power.

Can I mount the PSU7-UK in a rack?

Yes, it can be mounted in a standard 19-inch rack using an optional rackmount kit (not included).

Is the PSU7-UK repairable?

No user-serviceable parts inside. Contact Behringer support or an authorized service center for repairs.

USER MANUAL PSU7-UK BEHRINGER

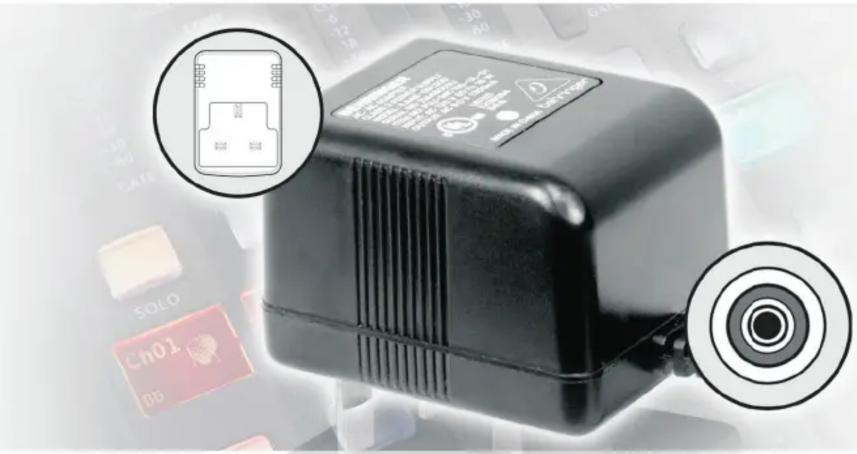

240 V UK Replacement Power Supply for MIC100 and MIC200

Replacement Power Supply for MIC100 and MIC200
3-Year Warranty Program*
Conceived and designed by BEHRINGER Germany

The PSU7-UK power supply is identical to the one that came with the products listed above, and is required for proper operation in your part of the world. We offer a wide range of region-specific Replacement Power Supplies designed specifically for your BEHRINGER device.

You Are Covered

We always strive to provide the best possible Customer Experience. Our products are made in our own MUSIC Group factory using state-of-the-art automation, enhanced production workflows and quality assurance labs with the most sophisticated test equipment available in the world. As a result, we have one of the lowest product failure rates in the industry, and we confidently back it up with a generous 3-Year Warranty program.

PSU7-UK

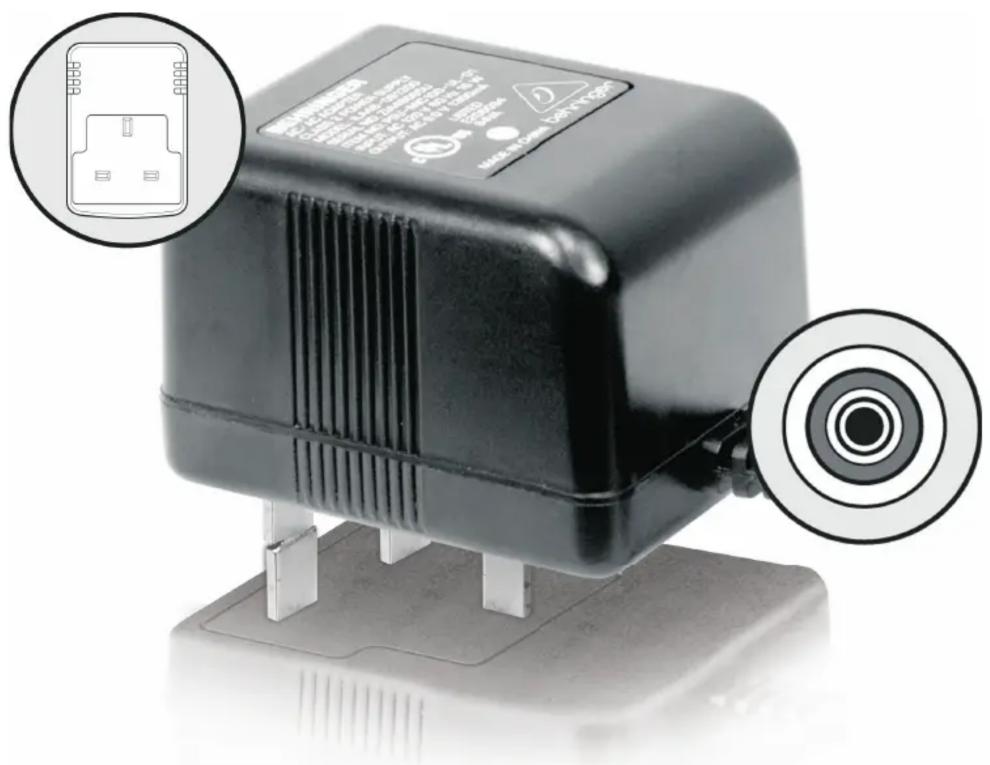

240 V UK Replacement Power Supply for MIC100 and MIC200

For service, support or more information contact the BEHRINGER location nearest you:

Europe

MUSIC Group Services UK

Tel: [phone]

Email: [e-mail]

USA/Canada

MUSIC Group Services NV Inc.

Tel: [phone]

Email: [e-mail]

Japan

MUSIC Group Services JP K.K

Tel.: [phone]

Email: [e-mail]
