DV-C6280 - DVD player YAMAHA - Free user manual and instructions
Find the device manual for free DV-C6280 YAMAHA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | DVD Player |
| Brand | Yamaha |
| Model | DV-C6280 |
| Playable Discs | DVD-Video, DVD-R/RW, CD, CD-R/RW, VCD, SVCD |
| Video Output | Composite, S-Video, Component (Y, Pb, Pr) |
| Audio Output | Analog Stereo (RCA), Digital Coaxial, Optical |
| Audio Formats | Dolby Digital, DTS, MP3, WMA |
| Video DAC | 12-bit/108MHz |
| Audio DAC | 192kHz/24-bit |
| Progressive Scan | Yes |
| Remote Control | Included (with batteries) |
| Power Supply | AC 110-240V, 50/60Hz |
| Power Consumption | 20 W |
| Standby Power | < 1 W |
| Dimensions (W x H x D) | 435 x 45 x 280 mm |
| Weight | 3.5 kg |

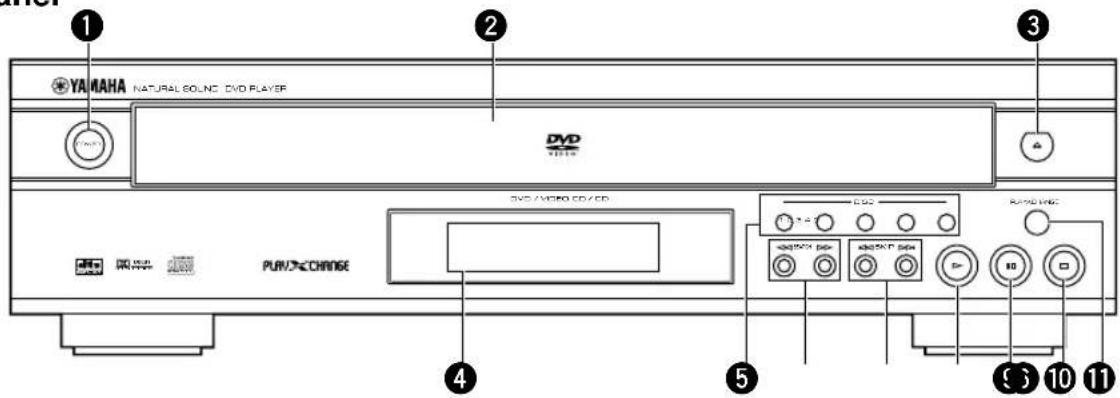

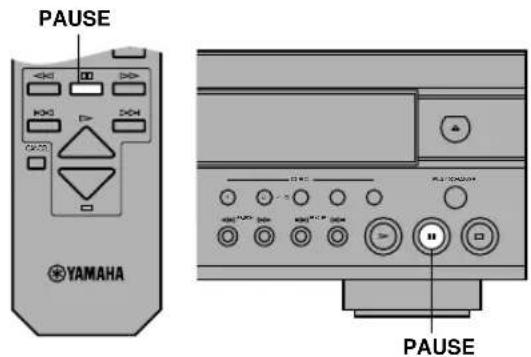

| Front Panel | Power, Open/Close, Play, Stop, Skip, Volume |

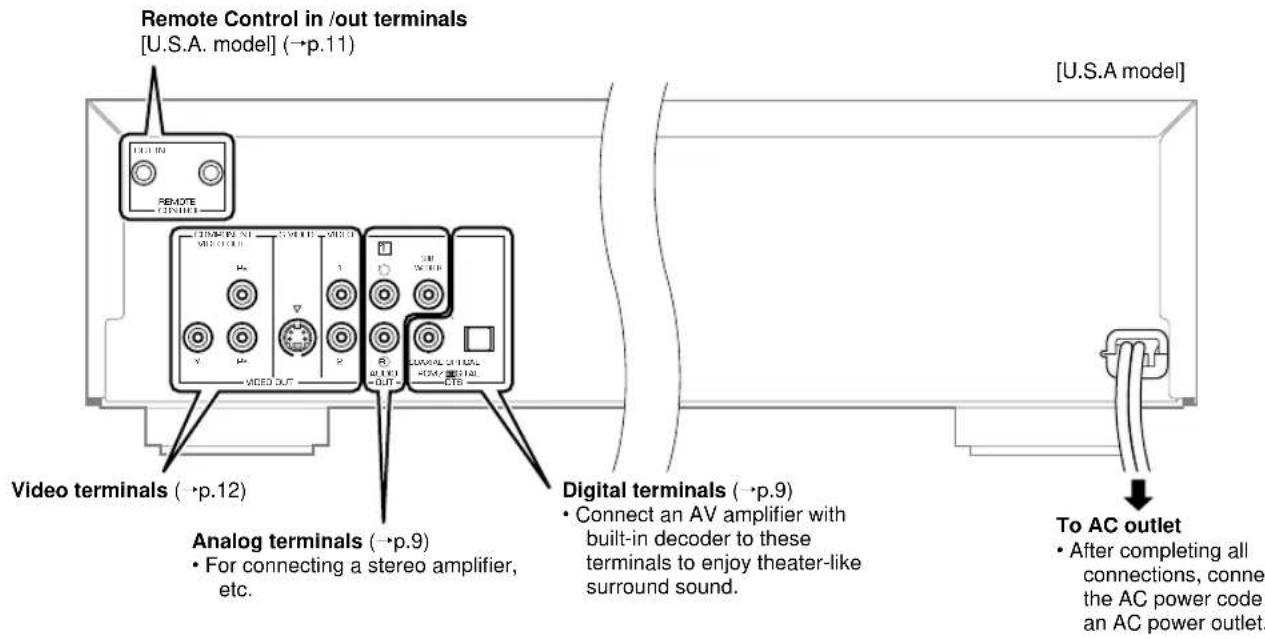

| Rear Panel | Audio out, Video out, Digital out, S-Video, Component |
| Disc Tray | Single disc, motorized |
| Compliance | CE, FCC |
| Operating Temperature | 5°C to 35°C |
| Accessories Included | Remote control, batteries, RCA cable, user manual |
Frequently Asked Questions - DV-C6280 YAMAHA
What disc formats does the Yamaha DV-C6280 support?
The DV-C6280 supports DVD-Video, DVD-R/RW, CD, CD-R/RW, VCD, and SVCD. It also plays MP3 and WMA audio files burned on CD-R/RW.
How do I clean the lens of my DVD player?
Use a commercially available DVD lens cleaning disc. Do not use alcohol or solvents. Insert the cleaning disc and follow the instructions on the disc. If problems persist, consult a professional.

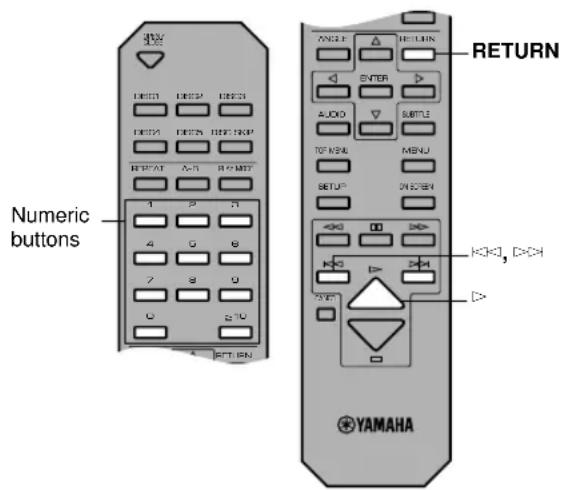

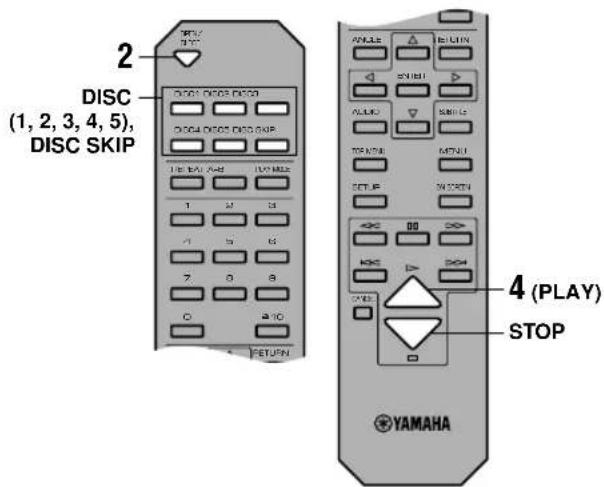

Why is my remote control not working?
First, replace the batteries (two AA). Ensure there are no obstacles between the remote and the player's sensor. Check that the remote is pointed directly at the player. If still not working, try resetting the player by unplugging it for 30 seconds.
How do I change the region code on the DV-C6280?
Region code changes are not user-adjustable and must be performed by an authorized service center. Attempting to modify the region code may void the warranty. The player is typically set to region 2 (Europe) but may vary.
Can I connect the player to a TV without HDMI?
Yes, the DV-C6280 has composite (yellow RCA), S-Video, and component (Y, Pb, Pr) outputs. Use the best available connection; component provides the highest standard-definition quality.
How do I enable progressive scan?
Connect the player to a compatible TV via component cables (not composite or S-Video). Go to the setup menu, select 'Video Output', and switch to 'Progressive' (if available). Confirm on-screen prompt.
What should I do if the disc tray won't open?
Ensure the player is plugged in and powered on. Press the Open/Close button firmly. If still stuck, unplug the player for 30 seconds and try again. If problem persists, manual eject may be possible via a small hole near the tray (use a paperclip).
Can I play audio CDs without a TV?
Yes, connect the analog audio outputs (RCA) to a stereo amplifier or speakers. The player will output CD audio directly even without a video connection.
How do I reset the player to factory settings?
Turn off the player. Press and hold the 'Stop' button on the front panel while turning the player on. Continue holding until the display shows 'RESET' or similar. This will restore all settings to defaults.
Why is there no sound when playing DVDs?

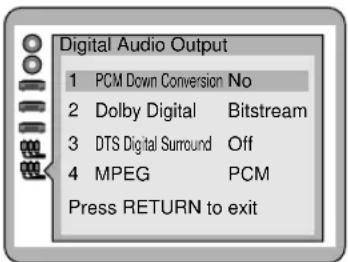

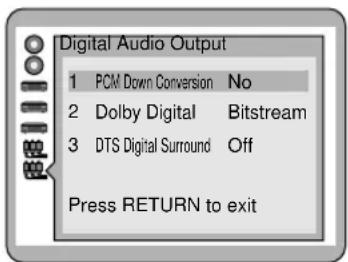

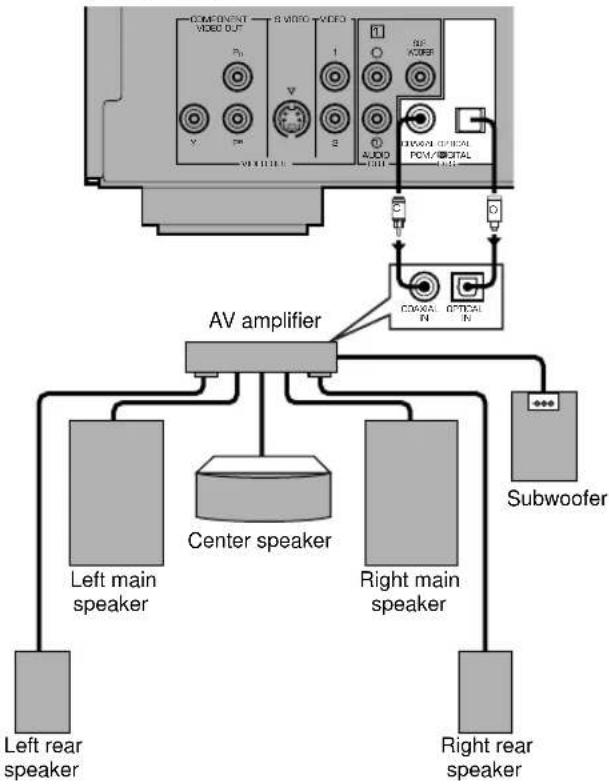

Check the audio output connections. Ensure the TV or receiver is set to the correct input. Verify the disc menu audio settings (e.g., Dolby Digital vs PCM). Try a different disc or cable. If using optical/coaxial digital, ensure the receiver is compatible with the bitstream format.
