Product Type	Smartphone
Brand	Pantech
Model	Slate
Dimensions	115 x 62 x 12 mm
Weight	130 g
Operating System	Android 2.3 Gingerbread
Display Size	3.5 inches
Display Resolution	480 x 800 pixels
Processor	1 GHz Single-core
RAM	512 MB
Storage	4 GB internal, expandable via microSD
Battery Capacity	1500 mAh Li-Ion
Rear Camera	5 MP with LED flash
Front Camera	VGA
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 3.0, GPS
Network	GSM/HSPA
SIM Card	Mini-SIM
USB Port	microUSB 2.0
Headphone Jack	3.5 mm
Main Functions	Calling, SMS, MMS, Email, Web browsing, Camera, Music player, GPS navigation
Care & Cleaning	Wipe with a soft, dry cloth. Avoid moisture and extreme temperatures.
Safety	Use only approved chargers. Keep away from water. Do not disassemble.
Spare Parts & Repair	Battery and charger available from authorized service centers. Screen repair recommended by professionals.
General Information	Released in 2011, suitable for basic smartphone tasks.

Frequently Asked Questions - Slate PANTECH

How do I perform a factory reset on my Pantech Slate?

Go to Settings > Privacy > Factory data reset. Confirm by tapping Reset phone. This will erase all data.

What is the screen size of the Pantech Slate?

The Pantech Slate has a 3.5-inch display with a resolution of 480 x 800 pixels.

How can I extend battery life?

Reduce screen brightness, turn off Wi-Fi and Bluetooth when not in use, close background apps, and disable automatic syncing.

Does the Pantech Slate support expandable storage?

Yes, it supports microSD cards up to 32 GB for additional storage.

How do I take a screenshot on the Pantech Slate?

Press and hold the Power button and Volume Down button simultaneously until the screen flashes.

What Android version does the Slate run?

The Pantech Slate runs Android 2.3 Gingerbread. It may not support newer apps.

How do I connect to Wi-Fi?

Go to Settings > Wireless & networks > Wi-Fi. Turn it on and select your network. Enter the password if required.

Can I use the Pantech Slate as a hotspot?

Yes, go to Settings > Wireless & networks > Portable hotspot to share your mobile data.

My phone is not charging. What should I do?

Try a different cable and charger. Check the charging port for debris. If the battery is removable, reseat it. If the issue persists, contact support.

How do I update the software on my Slate?

Go to Settings > About phone > System updates. If an update is available, follow the on-screen instructions. Note that updates may not be available for older devices.

USER MANUAL Slate PANTECH

PANTECH SLATE User Guide 5100CH4300A HEVOE

PANTECH_SLATE

C530

User Guide

at&t

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. © 2008 A&T Knowledge Ventures. All rights reserved, Subsidiaries and affiliates of AT&T Inc. provide products and services under the AT&T brand.

Your phone is designed to make it easy for you to access a wide variety of content. For your protection, we want you to be aware that some applications that you enable may involve the location of your phone being shared. For applications available through AT&T, we offer privacy controls that let you decide how an application may use the location of your phone and other phones on your account. However, the AT&T privacy tools do not apply to applications available outside of AT&T. Please review the terms and conditions and the associated privacy policy for each location-based service to learn how location information will be used and protected. In addition, your AT&T phone may be used to access the Internet and to download, and/or purchase goods, applications, and services from AT&T or elsewhere from third parties. AT&T provides tools for you to control access to the Internet and certain Internet content. These controls may not be available for certain devices which bypass AT&T controls.

PANTECH_SLATE™

User Manual

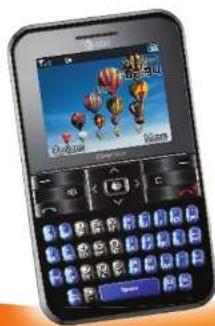

Thank you for choosing the Pantech Slate (C530), our latest EDGE mobile phone.

The Pantech Slate has many features designed to enhance your mobile experience. From its sleek, stylish design, we know you will enjoy the entire Slate experience.

This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech Slate has to offer.

Specifications

Design

Bar type phone with single display and QWERTY keypad

Displays

• 260k colors TFT LCD with 2.2 "internal display
• 176x220 resolution
• 7 lines for text in basic mode with 16-point font
• Two soft keys and four-way scroll and selection 🔊 keys

Melodies

MP3, AAC, AAC+, WMA, AMR-NB, MIDI, SP-MIDI

Camera

Integrated 1.3M CMOS Camera

• Resolution up to 1280 x 960 (1,228,800 pixels))
- Mpeg4 Video recording/playing up to 15f/s (QCIF size)
• Self-timer function (5 seconds or 10 seconds)
• Photo album and video album

Dimensions & Weight

• Weight: 132g (with standard battery)
- Dimensions: 107 mm x 64 mm x 9.9 mm

Power Management (Performance)

Battery Type	Capacity Standby Time Talk Time
Standard Lithium-Ion (Li-ion)	Up to 930 mAh	Up to 250 hours	Up to 3 hours

Operating Frequency

• GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS 1900Mhz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported.
• Automatic band switching.

Phone overview

Number pad view

Navigation key

Scroll through the menu options

Speaker key Send key

Prefix International call key Vibrate mode

Message

Earpiece

Display

Left/Right Soft key

Perform the functions shown at the bottom line of the display

OK key or access MEdia Net Press to enter menu system

Clear key

Returns to previous screen or deletes characters in text mode.

Power on&off/Menu exit key/End key

Turns phone on/off, ends calls, exits menus

Microphone

Charger slot/Ear mic

Internal antenna
Side key

note: Holding device at internal antenna area might affect call quality reception.

Menu features
Email & IM Messaging		YELLOWPAGES.COM
MEdia Net Media Mall Games & Apps
My Stuff Address Book Settings

QWERTY keyboard view

Left/Right Soft key

Perform the functions shown at the bottom line of the display.

Function key

To enter a number or a symbol, press the function key, and press the corresponding key.

CAPS/Shift key

To type a single uppercase letter, press this key then a letter

Space key

Press to enter a space.

Clear/Back key

Returns to previous screen or deletes characters in text mode.

Delete key

Press to delete a number or letter.

Enter key

Press to create new line while writing a message.

Using shortcuts Menu overview

Numbered menu items, such as menus, sub-menus, and options can be quickly accessed by using their shortcut numbers. In Menu mode, Main Menus can be accessed by pressing the number keys (1 to 9) corresponding to their location on the screen.

Example: Accessing the Language menu.

1. Press the Menu.
2. Press the 📋 for Settings.
3. Press the ☑ for Phone.
4. Press the Ⓞ for Language.
5. Press Select for Screen Text.
6. Press the ▲ or ▼ scroll key to display the list of available languages.

Email & IM

Mobile Email

IM

Messaging

Create Message

Inbox

Sent

Outbox

Drafts

Voice Mail

Templates

Settings

Memory Info

YELLOWPAGES.COM MEdia Net

MEdia Net Home

Bookmarks

Go to URL

Profiles

Options

Security

Version

MEdia Mall

Shop Tones

Shop Games

Shop Graphics

Shop Multimedia

Shop Applications

MEdia Net

Games & Apps

Games

Applications

My Stuff

Audio

Graphics

Video

Tools

Other Files

Memory Info

Address Book

Contacts

New Contact

Speed Dial

Groups

My Business Card

Memory in Use

Delete All

Copy All

My Phone Number

Memory Info

Service Numbers

Settings

Sounds & Alerts

Display

Call

Phone

Flight Mode

Connectivity

Security\$

Software Version

Reset

TTY

SIM dependent Network dependent

Quick & easy

Keys Functions
	Perform the functions shown at the bottom line of the display by using these soft keys.
	Scroll through the menu options in Menu mode. In standby mode,Left: Access Mobile Email menuRight: Access IM menuUp: Access Create Message menuDown: Access Contacts menu
	Select a menu function or store user-input information, such as names.Also use this key for confirmation as the [OK] key.Launch the MEdia Net directly if pressed in standby mode.
	Turn the speaker mode on.
	Delete characters from the display, or return to previous menu.
	Make or receive a call. Show the recent call list in standby mode.Re-dial the last call number if pressed and held in standby mode.
	Complete the current call. Turn on/off the phone if pressed and held.Cancel user input and return to main screen while in Menu mode.
	Access to message if pressed and held in standby mode.
	Enters numbers, letters or special characters. Go to the dial screen if pressed in standby mode.
	Enter or exit from vibrate mode if pressed and held in standby mode.
	Enter a prefix international dialling.
	Change various text input modes if pressed at the text-editing screen.Enter numbers or symbols if pressed and held at the text-editing screen.
	Adjust the earpiece volume while making a call.Control the Ringtone volume, vibrate mode and silent all mode in standby mode.Mute the ringtone of an incoming call.Reject the incoming call if pressed and held when you receive an incoming call.

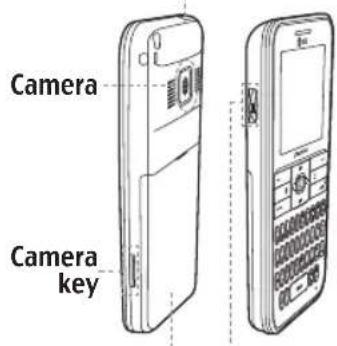

	Turn camera capture mode on.

Contents

Specifications....2

Phone overview 3

Using shortcuts 5

Menu overview ....5

Quick & easy 8

1. Getting Started

SIM card and battery 14

Turn on/off the phone 15

Keypad lock 15

Essential display indications .....15

Assigning the menu 16

Using the QWERTY key pad .....16

MEdia Mall 17

2. Calls and address book

Making, receiving and ending a call...20

Options during a call 21

Call Setting 22

Checking all calls 23

Speed dialing 24

Using address book 24

Caller identification....25

Using your headset 25

Service number and fixed dialing...26

3. Messaging

Entering text 30

Messaging 30

Receiving message 31

Creating and sending text

messages ....31

Creating a multimedia message ....32

Message template ....34

Message settings ....34

Setting voice message ....35

Email 35

Using instant messenger ....35

4. Multimedia

Camera 38

Photo album 40

Images album 41

Video album 41

Audio album 42

Other files....43

Managing the memory 43

Playing games 43

5. Useful Features

Alarm 46

Calendar 46

Notepad and voice memo .....47

Calculator, converter and stopwatch ...47

Business card 48

Memory information ....48

6. Connectivity

Bluetooth 52

Using the browser ....53

Profiles setting....54

7. Settings

Language 58

Time and date 58

Ringtones 58

Decorating the display .....58

Locks 59

To enable fixed dialing .....59

Reset 59

TTY 60

8. Appendix

Alert message 64

Troubleshooting checklist ......64

Safety information 65

Safety precautions 65

About the battery usage .....66

FCC Hearing-Aid Compatibility

(HAC) Regulations for Wireless

Devices 67

FCC Regulatory Compliance .....68

Warranty 69

Contents

C530 1

Blue line drawing of various mobile phones including a Dantech keypad and a smartphone with a control panel (no text or symbols)

Getting Started

01

Calls and address book

02

Messaging

03

Multimedia

04

Useful Features

05

Connectivity

06

Settings

07

Appendix

08

Getting Started

SIM card and battery

About your SIM card

When you subscribe to your network operator, you receive a SIM (Subscriber Identity Module) card containing your registration information, PIN code, etc.

Like a credit card, it should be kept secure and handled carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity.

To avoid corrupting your SIM card's memory, always switch off your phone before removing or inserting your SIM card

About your battery

Your phone uses a Li-lon battery. Make sure to use an authorized battery and charger only. For more details, please inquire at your nearest dealer.

note: Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone's autonomy due to the "battery memory effect" inherent in those technologies.

Installing/removing SIM card and battery

1. Remove the battery cover from the unit. To fit the battery cover, put it on the guide rail and push up.

2. Insert the SIM card first into the slot. The gold contacts of the SIM card should go against the metal contacts of the phone. After inserting the SIM card, put the contacts of the battery into the hole located at the right of the unit (1) and press the left side (2) of the battery until you hear the "click".

3. To remove the battery pull the left side of the battery to upwards (1) and remove (2) the battery. After removing the battery, remove the SIM card in the arrow direction as shown.

note: Data will be loose if the SIM card is removed while the phone is turned on.

To charge your battery

1. To charge, open the protective cover on the top left side and connect the charger adapter.

2. To remove the adapter connection press the adapter's side buttons (1) and pulling the adapter away (2).

Turn on/off the phone

To turn on

1. Press and hold 📞.

To turn off

1. Press and hold ☐°.

Keypad lock

Locking the keypad

1. Press and hold ⓐ to lock.

Unlocking the keypad

1. Press Unlock > Ⓞ within 3 seconds to unlock.

Essential display indications

Signal strength. The greater the number of bars, the stronger the signal. When network is in searching mode, _x is displayed.
A call is being made. When you are in no service area, is displayed.
Call forwarding ^n is active
Incoming calls set to ring only (Normal)
Incoming calls set to Vibration and Ring
Incoming calls set to Vibrate Only
Incoming calls set to Silent
Flight Mode is active
Received one or more text messages
Received one or more multimedia messages

Getting Started

Received one or more WAP push messages

Received one or more other messages

Received one or more voice messages

A message is being sent

A message is being received

An alarm is set

Bluetooth is active

Headset is connected

TTY is active

E An EDGE signal is available. It is displayed when there is an active EDGE session

G A GPRS signal is available. It is displayed when there is an active GPRS session

WAP is connected. When the security is set is displayed.

Battery strength. When the battery charge is low, is displayed and blink

Available, Away, Invisible Status of AIM

Online, Away, Busy, Offline Status of MSN

Available, Busy, Invisible Status of YAHOO

You have received one or more IM messages

^n Network dependent

Assigning the menu

You can set the most commonly used menu in Options in standby mode.

1. Press Options in standby mode > select Unassigned.
2. Press Options > Edit.
3. Select the menu and sub menu.

note: User can change Options menu except My Account.

Using the QWERTY key pad

Your phone has QWERTY keypad which provides a superior typing experience on a small handheld for easy and comfortable text writing. You can use all of the phone functions with the QWERTY keypad.

Key Function
	Perform the functions shown at the bottom line of the display by using these soft keys.
	Press to change ab Ab AB at the text editing screen.ab (all small caps / first letter caps / all caps)
	Press to type a special character or number, at the applicable key pad. To enter symbols and numbers continually, press untilFNdisplays.
[Space]	Enter the space character in text input mode.
	Insert a carriage return in text input mode.
	Delete a character to the left of the text cursor in text editing screen.
	Press to type a special character that is not placed on the keypad.

MEdia Mall

Shopping tones

1. Press Menu > MEdia Mall > Shop Tones.

Shopping Games

1. Press Menu > MEdia Mall > Shop Games.

Shopping Graphics

1. Press Menu > MEdia Mall > Shop Graphics.

Shopping Multimedia

1. Press Menu > MEdia Mall > Shop Multimedia.

Shopping Applications

1. Press Menu > MEdia Mall > Shop Applications.

MEida Net home

1. Press Menu > MEdia Mall > MEdia Net.

C530 2

Blue line drawing of various mobile phones including a Dantech keypad and a smartphone with a control panel (no text or symbols on the devices themselves)

Getting Started

01

Calls and address book

02

Messaging

03

Multimedia

04

Useful Features

05

Connectivity

06

Settings

07

Appendix

08

Calls and address book

Making, receiving and ending a call

Making a call

1. Enter the area code and phone number.
2. Press ☐ key.

Answering a call

1. Press ☐.

Ending a call

1. Press ☐

Once the call is completed, a call summary is displayed.

Rejecting a call

1. Press 📞 or Ignore.

Making a call using call list

Your phone logs up to 20 dialed, received and missed call numbers.

1. Press ☐ to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, or Dialed

Calls pressing the ◀/▶.

1. Select a number.
2. Press ☐ to dial the selected number.

note: To redial the last number in the Recent Calls list, press ☐.

Making a call during a call

1. Enter the phone number or look it up in Address Book.
2. Press ☐ to dial the second call. The first call is automatically put on hold.

Switching between two calls

1. Press Swap.

Making an international call

1. Press ⏻ key for the international.
2. Type the country code, area code and phone number.
3. Press

Making an emergency call

You can make emergency calls even if your phone does not have a SIM card.

1. Press Emergency Number, or press SOS if your phone does not have a SIM card.

2. Select 911 or 112.

3. Press ☐.

Replying to a missed call ^n

1. Press View to display the list of missed calls.
2. Select a number to call by pressing the▲/▼ key.
3. Press ☐.

Answering a second call ^®

1. Press ☐. The first call is automatically put on hold.
2. Press ☐ to end the second call.

The call on hold is automatically reconnected.

Options during a call

Microphone off and on

Switching your phone's microphone off

1. Press Options > Mute [ ]

Switching your phone's microphone back on

1. Press Unmute.

Talking on speaker

1. Press

Putting a call on hold and return ^n

Putting a call on hold

1. Press Options > Hold or press ↻.

Returning to a held call

1. Press Retrieve or press 📄 again.

Multi-party calls ^n

You can talk with more than one person or conference call.

Making a multi-party call

1. Call the first participant.
2. Call the second participant. The first call is automatically put on hold.
3. Press Options > Join All.

Having a private conversation with one participant

1. Press Options > Private.
2. Select the participant and press 🔒.

All of the multi-party call participants can now hear each other.

Calls & address book

Removing one participant from a multi-party call

1. Press Options > End Call.
2. Select the participant and press 🔒.

The call ends with that participant, but you can continue to talk with other participants.

Searching a number in address book during a call

1. Press ▼/▶ or press Options > Contact Search.
2. Select a number > ☐.

Searching for a name or group in address book

Enter the first letters of the name for Name Search. The entries are displayed starting with the first entry matching your input.

Finding a name manually in address book

1. Press the ▲/▼ key.

Viewing the details of highlighted entry in address book

1. Press

For details on address book, see page 24.

Reading a message during a call

1. Press Options > Messaging.
2. Press Inbox > select a message.

Writing a message during a call

1. Press Options > Messaging.
2. Press Create Message.

For details on creating a text message, see page 31.

note: During the call, you can only send text messages.

Multimedia messages cannot be sent, but can be saved.

Call Setting

Setting auto redial

1. Press Menu > Settings > Call > Auto Redial.
2. Select On or Off.

Answering with any key press

1. Press Menu > Settings > Call > Answer Type.
2. Select Any Key.

note: you can answer with any key except ☐ and Ignore.

Checking all calls

You can view information about all Recent Calls. For more options for all, missed, received and dialed calls press Options. You can also view the all Recent Calls simply by pressing ☐.

Viewing missed calls

1. Press Menu > My Stuff > Tools > Recent Calls > Missed Calls.

Viewing received calls

1. Press Menu > My Stuff > Tools > Recent Calls > Received Calls.

Viewing dialed calls

1. Press Menu > My Stuff > Tools > Recent Calls > Dialed Calls.

Deleting call logs

1. Press Menu > My Stuff > Tools > Recent Calls > Delete Call Logs.
2. Select All Calls > Yes.

note: If no logs exist, the message "List Empty" appears.

Viewing call time

1. Press Menu > My Stuff > Tools > Recent Calls > Call Time.
2. Press ▲/▼ to view Last Call, Received Calls, Dialed Calls, and Total Calls.

Resetting all call times

1. Press Menu > My Stuff > Tools > Recent Calls > Call Time > Reset Call Times.
2. Enter password > 📄. note: The default password is '1234'.

Viewing data transmitted information

1. Press Menu > My Stuff > Tools > Recent Calls > Packet Counter.
2. Current Info: You can view transmitted data in the current session in Kbytes. Sent, Received and Total information is also available.
3. Last Info: You can view Sent, Received, and Total transmitted in previous sessions in Kbytes.

• Total Info: You can view all Sent, Received, and Total transmitted data in Kbytes.
• Clear Logs: You can clear all logs.

Speed dialing

You can dial quickly using speed dialing. Up to 8 phone numbers can be programmed using numbers 2 to 9.

: Voice mail
: Prefix for international call
: Question mark

Setting speed dial

1. Press Menu > Address Book > Speed Dial.
2. Select an empty entry and press Add.
3. Select a person and press 🎨 or Options >Select.

Changing speed dialing person

1. Select a number > 📄 or Options > Edit.
2. Select a person > 🎯 or Options > Select.

Removing from speed dial

1. Select a number > Options > Remove.

Using address book

You can save names, phone numbers, and information on the SIM or phone. Entries can depend on the capacity of the SIM card.

Viewing contact list

1. Press ▼ or press Menu > Address Book > Contacts.

Searching for a phone number

1. Press ▼ or press Menu > Address Book > Contacts.
2. Input the first letter or two of the person's name and scroll with ▲/▼.
3. Press 🔒 to view detail information.
4. To update information press Options > Edit.

Calling from contact list

1. Press ▼ or press Menu > Address Book > Contacts.
2. Select a person to call.
3. Press

Forwarding contact details

1. Press ▼ or press Menu > Address Book > Contacts.

2. Select a contact > Options > Forward Contact Info.

3. You can send the information Send as Multimedia Message or Send via Bluetooth.

Deleting a contact

1. Press ▼ or press Menu > Address Book > Contacts.
2. Select a contact > Options > Delete.

Adding a contact

1. Press Menu > Address Book > New Contact.
2. Select SIM Card or Phone.
3. Input the fields.
4. Press 🎨 or Options > Save.

Making a groups

1. Press Menu > Address Book > Groups.
2. To add new group press Options > New.
3. To edit group press Options > Select. You can also set a specific ringtone by selecting Options > Group Ring tones > ☐ > select the ringtone.

Caller identification

Caller identification ^n

1. Press Menu > Settings > Call > Caller ID.

2. Select Send or Hide My No. >Select.

Using your headset

You can send or receive a call using your headset. When you connect your headset to the jack the button on the headset works as follows.

note: You need to use the headset designed for this device and it is optional item. Also not every headset has a button.

While in standby mode

1. Press the button once to list recent calls.
2. Press and hold the button to redial the last call.

Service number and fixed dialing

Calling your service numbers

You can see the service number to reach the service provider.

1. Press Menu > Address Book > Service Numbers.
2. Select a number > press ↗.

Viewing fixed dialing list

Fixed dialing is a service that limits your access to specific

Calls & address book

numbers in the address book list recorded on the SIM. Input the PIN2 to set up or cancel this service.

1. Press Menu > Settings > Security > Fixed Dialing > Fixed Dial List.
2. Select a number > press ☐.

note: PIN2 must be correctly entered within 3 attempts. If you input incorrect code three times in a row the PIN2 code will be blocked. If the PIN2 code is blocked please contact your service provider, PIN2 code supplied with SIM card.

Calls & address book

C530 3

Blue line drawing of various mobile phones including a Dantech keypad and a smartphone with a control panel (no text or symbols)

Getting Started	01
Calls and address book	02
Messaging	03
Multimedia	04
Useful Features	05
Connectivity	06
Settings	07
Appendix	08

Messaging

Entering text

You can enter text with multi-tap, numeric or symbol.

Useful keys

[Space]	Adding space
	Press to changeab, FN andFN.
	Press to change capital mode.Press to changeab AB andAB.Multi-tap ab AB and AB(all small caps / first letter caps / all caps)
	Press and hold to enter numbers
	Symbols Sym

Alphabet input mode

Press the key labeled with the target letter once.

1. Press Ⓜ to Ⓞ to input text.
2. To enter all characters with upper cases, press ≈ to change the mode to AB. Press ⚠ to ✕.

Numeric mode

You can input numbers in this mode.

1. Press ⏻ to change the mode FN.

2. Press ⏻ to Ⓢ and Ⓗ to input numbers.

3. To enter numbers continually, press and hold ☑ to change the mode to EN. Press ☐ to ☑ and ☑.

Symbol mode

You can input symbols.

1. Press ☐ and ☑ to view the symbols.
2. Using the ▲/▼/◄/► to select symbol and press Insert.

Messaging

You can send, receive and save the text message and multimedia message.

Managing memory

When the message box is full the messages full icon will appear.

When It means
	Text message is full
	Multimedia message is full

Moving a message to SIM

1. Press Menu > Messaging > Inbox.
2. Select a message > Options > Move to SIM.

Deleting a message in a mailbox

1. Select a message > Options > Delete > Yes.

Replying to a message

1. Select a message > Options > Reply.

Viewing memory space information

1. Press Menu > Messaging > Memory Info.

2. Press ◀/▶ to view SIM and Phone memory.

Receiving message

Viewing a new message

1. Press View or press 📄.

Reading a message from the inbox

1. Press Menu > Messaging > Inbox.

2. Select a received message > 📄.

Saving number or e-mail from received message

1. Select a received message > Options > View or 📄.

2. Press Options > Save Number & Email from received message.

3. Select Options > Save > New Contact or Update Existing.

Saving the object in the received multimedia message

1. Open the multimedia message.

2. Press Options > Save Objects.

3. Select an object > Save or 📄

4. Edit the filename > Options > Save or 🔒.

It will be saved in one of the categories in the My Stuff folder.

For details on photo album, see page 40.

Listening to voice message

1. Press and hold 📋 or press Menu > Messaging > Voice Mail.

It will automatically call the voice mail center.

Creating and sending text messages

Sending new text message

1. Press ▲ or press Menu > Messaging > Create Message > Text Message.

Messaging

01

02

03

04

05

06

07

08

1. Write the message.
2. Press Options > Send to.
3. Select a person or persons or Options > Enter Number, Enter Email, Call Log or Groups.
4. Select Send.
5. To view sent message press Menu > Messaging > Sent. note: All successfully sent messages will be saved in Sent while the messages that failed to be sent will be saved in the Outbox.

Finding all sent messages

1. Press Menu > Messaging > Sent.

Creating a multimedia message

You can create new multimedia message. Capacity is 600Kb and will alert you once that is exceeded via error message.

Adding saved picture to the message

1. Press Menu > Messaging > Create Message > Multimedia Message.

2. Write a message.

3. Press Options > Add Object > Add Image.

4. Press Photo, Video or Images >
5. Select the folder > 🎯 > choose a file.
6. To preview the whole message, press Options > Preview > 🔒.
7. To edit the text message, press Options > Edit Text.
8. Press Options > Send to.

Adding new picture to the message

1. Press Menu > Messaging > Create Message > Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Image > Take a Photo.
4. Focus on the object > 🎨 > Insert.
5. Press Options > Send to.

For the taking a picture, see page 39.

Adding recorded voice memo to the message

1. Press Menu > Messaging > Create Message > Multimedia Message.

2. Write a message.

3. Press Options > Add Object > Add Sound > Voice Memo.

4. Select the file.
5. To listen select the recorded memo, press Play.
6. To stop listening, press ▼.
7. To select other recorded memo press Back and select other memo.
8. Press Options > Send to.

Adding new voice memo to the message

1. Press Menu > Messaging > Create Message > Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Sound > New Voice Memo.
4. Record the sound.
5. To stop and save press
6. Press Options > Send to.

For the recording voice memo, see page 47.

Adding saved video to the message

1. Press Menu > Messaging > Create Message > Multimedia Message.

2. Write a message.

3. Press Options > Add Object > Add Image > Video.
4. Select a video > Options > Select.
5. To preview the whole message press Options >Preview.
6. To pause press Pause.
7. Press Options > Send to.

Adding new video to the message

1. Press Menu > Messaging > Create Message > Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Image > Take a Video.
4. Focus on the object > 🎨.
5. To stop recording and save press 📄.
6. Press Options > Send to.

For the recording video, see page 40.

Adding other file to the message

1. Press Menu > Messaging > Create Message > Multimedia Message.
2. Write a message.
3. Press Options > Add Object > Add Other Files.

Messaging

01

02

03

04

05

06

07

08

1. Select the file > Options > Select.
2. Press Options > Send to.

Message template

When you often use the same phrases, you can save the message under template messages.

Using the template

1. Press Menu > Messaging > Templates.
2. Select the template > Options > Text Message or Multimedia Message.
3. Write message and send message.

Creating a template

1. Press Menu > Messaging > Templates.
2. Press Options > Create Message.
3. Select Text Message or Multimedia Message.
4. Write often used message.
5. Press Options > Save.
6. To edit, press Options > View > Options > Edit.
7. To delete, press Options > Delete.

note: Delete All will only delete templates with

icon is displayed.

Message settings

Setting message center for text message

1. Press Menu > Messaging > Settings.
2. Press Text Message >Message Center.
3. Enter new center address.
4. To save press Select.

Setting profiles for multimedia message

1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > Profiles.
3. Select a profile > Select.

Setting message center for multimedia message

1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > Message Center.
3. Enter new center address.
4. Press Options > Save.

Setting sending multimedia message

1. Press Menu > Messaging > Settings.
2. Press Multimedia Message.
3. You can set for Delivery Reports, Read Reports and Message Life Time.

Setting e-mail gateway for text message

1. Press Menu > Messaging > Settings.
2. Press Text message > Email Gateway.
3. Enter new gateway for receiving e-mail.
4. To save press Select.

Setting receiving notice for push message

1. Press Menu > Messaging > Settings.
2. Press Push Message >Receive.
3. Select On, Prompt or Off modes.

Setting voice message

Setting receiving voice message

1. Press Menu > Messaging > Settings.
2. Press Voice Mail.
3. Enter the number of the voice mail center > Select.

note: This number may be pre-configured by the service provider upon activation.

Email

You can receive email from your service provider.

Receiving an email

1. Press Menu > Email &IM > Mobile Email.
2. Select an email > 📄.

Using instant messenger

Use Instant Messenger (IM) to send and receive short, simple messages that are delivered immediately.

Starting an instant messenger

1. Press Menu > Email &IM > IM.
2. Select the IM application > Select.
3. Enter logon and password > Sign On.

Viewing the conversation log

You can view the log of your conversations in the Instant Messenger Saved History.

C530 4

Blue line drawing of various mobile phones including a Dantech keypad and a smartphone with a control panel (no text or symbols)

Getting Started	01
Calls and address book	02
Messaging	03
Multimedia	04
Useful Features	05
Connectivity	06
Settings	07
Appendix	08

Multimedia

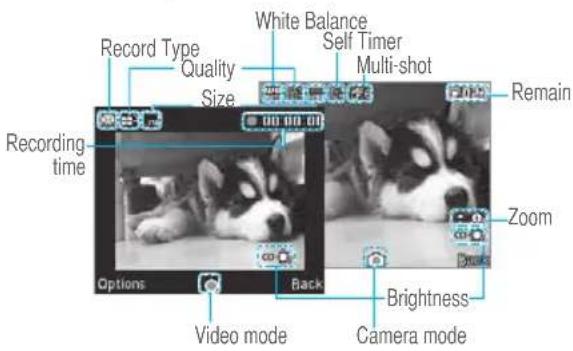

Camera

You can take pictures and record movies using the built-in camera. The photos and video clips can be saved and sent via multimedia message.

Setting camera settings

1. Press Menu > My Stuff > Tools.
2. Press Camera > Take a photo.
3. Press Options to change settings prior to taking a picture.

In options menu for camera

Icons Name Description
	Image Size	1280x960 ( ), 1024x768 (800x600 ( ), 640x480 (320x240 ( ), 220x176( )
	Image Quality	High ( ), Medium ( ) Low ( )
	Effects	Nomal, Sepia, Monochrome, Nagative, Embossing
	White Balance	Auto ( ), Sunlight ( ), Cloudy ( , Fluorescent ( ), Incandescent ( )
	Multi-Shot	Off, 4EA ( ) EEA ( ), Off ( )
	Self Timer	Off, 5 secs ( ), 10 secs ( )
	Display Icons	On, Off
	Shutter Sound	On, Off

In options menu for video camera

Icons Name Description
	Video Size	176x144 ( ), 128x96
	Video Quality	Low ( ), High (
	Record Type	For Msg (☒), Unlimited (☒)
	Effects	Nomal, Sepia, Monochrome, Nagative, Embossing
	Display Icons	On, Off

Zoom in and out

1. Press ▲/▼. It ranges from x1 to x4.

Increasing or decreasing the brightness

1. Press ◀/▶. It ranges from -3 to +3.

Taking a picture

1. Press Options > Camera in standby mode or press Menu > My Stuff > Tools > Camera > Take a Photo.
2. Focus on the object > 🎨 or press Options > Take a Picture.

note: Your photo will be saved automatically to My Stuff > Camera > Photo.

Changing to video camera mode

1. Press Options > Camera in standby mode or press Menu > My Stuff > Tools > Camera > Take a Photo.

2. Press Options while camera mode is activated.

3. Press Take a Video.

Viewing the taken picture

1. Press Options > Camera in standby mode or press Menu > My Stuff > Tools > Camera > Take a Photo.
2. Press Options > View Photos.
3. Select the picture > 🎨.

After taking pictures

To Press
Send a multimedia message	Options > Send as Multimedia Message
Send using Bluetooth	Options > Send via Bluetooth
Upload photos on the web	Options > S end to HP's Snapfish
Set as wallpaper	Options > S et as > Wallpaper
Set as address book	Options > S et as > Address Book
Delete	Options > D elete
Rename	Options > R ename

Recording a video

1. Press Menu > My Stuff > Tools > Camera > Take a Video.
2. Focus on the object > 🎨 or press Options > Take a Video.
3. Press 📄 to stop.
4. Press Play to play the video clip.
5. Press Back to go back to preview mode.
6. Press 🔒 to save the video clip.

note: Your video will be saved to My Stuff > Video.

Changing to camera mode

1. Press Menu > My Stuff > Tools > Camera > Take a Video.
2. Press Options while video camera mode is activated.
3. Press Take a Photo.

For details on taking a picture, see page 39.

Viewing the recorded video clip

1. Press Menu > My Stuff > Tools > Camera
2. Press Video.
3. Select the video clip >

After saving recorded video clips

To Press
Send a multimedia message	Options > Send as Multimedia Message
Send using Bluetooth	Options > S end via Bluetooth
Delete	Options > D elete
Rename	Options > R ename

During recording a video

To Press
Receive an incoming call
Stop recording

Photo album

You can view, send, save to your phone and also delete photos. JPEG format is supported, and other formats are saved in the Camera folder.

Viewing the saved pictures

1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture > 🎨 or press Options > View.

Setting as wallpaper in the display

1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture > Options > Set as > Wallpaper.

Sending pictures using multimedia message

1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture.
4. Press Options > Send as Multimedia Message

For details on creating a multimedia message, see page 32.

Uploading pictures on the web

1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture > Options > Send to HP's Snapfish.

Deleting multiple pictures

1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Press Options > Multi-Select.
4. Press 🔒 to select more than one picture.

5. Press 🔒 to unselect.

6. Press Delete.

Viewing file information

1. Press Menu > My Stuff.
2. Press Tools > Camera > Photo.
3. Select a picture.
4. Press Options > File Info.

Images album

You can play, send and delete the saved images. The supported formats are JPG, GIF, BMP, and PNG.

To view the saved image

1. Press Menu > My Stuff > Graphics > Images.
2. Select an image > Options > View.

To set as wallpaper in display

1. Press Menu > My Stuff > Graphics > Images.
2. Select an image > Options > Set as Wallpaper.

Video album

You can view, send, save and delete videos.

Playing the saved video clips

1. Press Menu > My Stuff.
2. Press Tools > Camera > Video.
3. Select a video clip > 🎨 or press Options > Play.

Using video player controls

To Press
Pause
Play
Rewind	Hold ▲
Fast forward	Hold ▲
Control volume	Side key up/down or ▲/▼
Mute Mute

Sending video clip using multimedia message

1. Press Menu > My Stuff.
2. Press Tools > Camera > Video.
3. Select a video.
4. Press Options > Send as Multimedia Message.

For details on creating a multimedia message, see page 32.

Deleting multiple video clips

1. Press Menu > My Stuff.
2. Press Tools > Camera > Video.
3. Press Options > Multi-Select.
4. Press 🔒 to select more than one video.
5. Press 📄 to unselect.
6. Press Delete.

Audio album

You can play, send, delete the saved sounds. The supported formats are MP3, AAC, AAC+, and WMA.

To listen the saved sound

1. Press Menu > My Stuff > Audio.
2. Select a sound > Options > Play.

To use sound controls

To Press
Play & Pause
Play previous clip
Play next clip
Control volume Side key/Navi key up or down

To set as a ringtone

1. Press Menu > My Stuff > Audio.
2. Select a sound > Options > Set as Ringtone.

To send sound file using multimedia message

1. Press Menu > My Stuff > Audio.
2. Select a sound file.
3. Press Options > Send as Multimedia Message.

Other files

You can manage files in unsupported formats saved on your phone. It also lists files received via Bluetooth from other devices.

Viewing the list of the files

1. Press Menu > My Stuff > Other Files.
2. Press Options > View.

Managing the memory

Viewing memory status

1. Press Menu > My Stuff.
2. Press Memory Info.
3. Use ▲/▼ to view the information.

Playing games

You can download games to play with. It is easy to download and you can preview them beforehand. You will only be able to view games that are available on your mobile.

Shop games

1. Press Menu > Games & Apps.
2. Select Games > Shop Games > Select.
3. Play the demo and press BUY to download the complete game.

C530 5

Blue line drawing of two smartphones with visible keypad and buttons, no text or symbols present

Getting Started

01

Calls and address book

02

Messaging

03

Multimedia

04

Useful Features

05

Connectivity

06

Settings

07

Appendix

08

Useful Features

Alarms

Setting an alarm

1. Press Menu > My Stuff > Tools > Alarms.
2. Press New for new alarm for the first time.
3. Set the Cycle, Time and Alarm Sound > Save.

note: The alarm will ring, even if you set the phone to Vibrate Only or Silent. The alarm will ring during the phone is turned off.

Viewing the saved alarms

1. Press Menu > My Stuff > Tools > Alarms.

Editing existing alarms

1. Press Menu > My Stuff > Tools > Alarms.
2. Select an alarms > Options > Select.
3. Select an alarms > Options > Delete to delete an alarm.

Calendar

Calendar helps you manage your schedule including your time for calls or special days. You can set a reminder on any given date with this function.

Viewing calendar

1. Press Menu > My Stuff > Tools > Calendar.

note: Monthly view is displayed as default.

In the monthly view

To Press
Move to another day	◀ for Previous▶ for Next
Move to another week	▲ for Previous▼ for Next
View other month	Side key up for PreviousSide key down for Next

Creating a new event and edit

1. Select a day > Options > New Event.
2. Set Event, Start Time, Stop Time, Reminder, Phone Number, Location and Memo.
3. Input the events > Save.

note: You can create up to 50 scheduled events.

note: You can create events for dates from 01/01/2000 to 12/31/2049.

Notepad and voice memo

Using notepad

1. Press Menu > My Stuff > Tools > Notepad.
2. Press New for the first time. To add new note press Options > Create New.
3. To edit memo press Options > Edit.
4. Press Options > Save to save.

Recording voice memo

1. Press Menu > My Stuff > Tools > Voice Memo.
2. Press New for the first time. To add new note press Options > Create New.
3. Press 📄 to stop recording.
4. Press Re-rec to re-record. Press Pause to pause recording.
5. Press Play to listen.
6. Press 📄 [图标] to save.

Listening the recorded sound

1. Press Menu > My Stuff > Tools > Voice Memo.

1. Select a memo> Options > Select.

Using sound controls

To Press
Pause
Play
Stop
Rewind
Fast Forward
Control volume Side key up/down

Calculator, converter and stopwatch

Using the calculator

1. Press Menu > My Stuff > Tools > Calculator.
2. Use ◀/▶/▲/▼/ 🔒 to calculate.
3. Press C to reset.
4. Press ☐ to delete one number at a time.

Useful Features

1. Press [ . ] to use the decimal point.

Using the converter

1. Press Menu > My Stuff > Tools > Converter.
2. Select the categories.
3. Select current unit and enter figure.
4. Select the unit to be changed.

Using stopwatch

1. Press Menu > My Stuff > Tools > Stopwatch.
2. Press 🔒 to start.
3. Press 🎨 to stop.
4. Press Reset to clear.
5. Press Lap to list lap time. It can only list 4 different lab times.

Business card

You can send your information by sending it as multimedia message.

Creating your own business card

1. Press Menu > Address Book > My Business Card.
2. Edit the fields > Options > Save or press 📄.

Forwarding

1. Press Menu > Address Book > My Business Card.
2. Press Options > Send via Bluetooth.
3. Press Options > Send as Multimedia Message.
4. Write a message for Multimedia Message.
5. Press Options > Send to.

Updating information

1. Press Menu > Address Book > My Business Card.
2. Press Options > Edit.
3. Update information.
4. Press Options > Save.

Memory information

You can view the information of your phone, for Free, Games, Audio, Graphics, Photo, Video, Message, Others, System.

Viewing the information

1. Press Menu > My Stuff > Memory Info.

Useful Features

C530 6

Blue line drawing of two smartphones with visible keypad and buttons, no text or symbols present

Getting Started	01
Calls and address book	02
Messaging	03
Multimedia	04
Useful Features	05
Connectivity	06
Settings	07
Appendix	08

Connectivity

Bluetooth

Bluetooth technology enables free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). Bluetooth connection can be used to send images, text, business cards, calendar notes or to connect to computers using Bluetooth technology.

Your mobile phone supports:

• Connect to PC to access internet.
• Connect to Hands-Free.
• Connect to electronic devices.

Icons for Bluetooth

	Bluetooth is active
	Transmitting file using Bluetooth
	Bluetooth is active and the headset is connected

Activating

1. Press Menu > Settings > Connectivity > Bluetooth > Bluetooth.
2. Select On or Off.

Adding a device

1. Press Menu > Settings > Connectivity > Bluetooth > Paired Devices.
2. Press Options > Search New Device > Search All.
3. The available device will display.
4. To select the device press Options > Select.
5. Enter password.

note: The other device must be in pairing mode.

Sending an object

1. Select the file from Menu > My Stuff > Graphics, Video, Audio, or Other Files.
2. Press Options > Send via Bluetooth.
3. Select the device > Options > Select.

note: If the other Bluetooth device requests pairing, the object is sent after pairing is completed. Locked object or ones containing original rights may not be forwarded.

Receiving an object

The receiving an object starts only when the receipt has been approved.

The received file will be saved in each place. For example, if you received contacts information from the sender, it will be saved in your phone's memory.

Setting the visibility

1. Press Menu > Settings > Connectivity > Bluetooth > Visibility.
2. Select Hidden or Show to All.

Naming the phone

1. Press Menu > Settings > Connectivity > Bluetooth > Name.
2. Edit the filed > Options > Save.

note: This is what others will see in their device's display for your phone when searching for your device.

Using the browser

Accessing browser

1. Press 📍 in standby mode or press Menu > MEdia Net > MEdia Net Home.

note: It will access provider's homepage.

Viewing bookmarks

1. Press Menu > MEdia Net > Bookmarks.
2. To open the site, press Options > Select.
3. To send via text message, press Options > Send Message.

Setting new bookmarks

1. Press Menu > MEdia Net > Bookmarks.
2. Press Options > Add.
3. Enter the fields > Options > Edit Name.
4. Enter the new name > Options > Save.

Entering address

1. Press Menu > MEdia Net > Go to URL > Enter New URL.
2. Enter the web address > Options > Go to URL.

Setting options

1. Press Menu > MEdia Net > Options.
2. Select the category > Select > select the option.

Profiles setting

You can set profile and view Profile Name, Home URL, Connection Type, Proxy Address, Proxy Port, Proxy Login ID, Proxy Password and Data Bearer.

Adding new profile

1. Press Menu > MEdia Net > Profiles.
2. Select Empty > Add.
3. Enter the fields > Options > Save.

Editing profile

1. Press Menu > MEdia Net > Profiles.
2. Select other profile > Options > Edit.

Viewing default profile

1. Press Menu > MEdia Net > Profiles.
2. Select MEdia Net > Options > View.

Deleting profile

1. Press Menu > MEdia Net > Profiles.
2. Select a profile > Options > Delete.

C530 7

Blue line drawing of various mobile phones including a Dantech keypad and a smartphone with a control panel (no text or symbols on the devices themselves)

Getting Started	01
Calls and address book	02
Messaging	03
Multimedia	04
Useful Features	05
Connectivity	06
Settings	07
Appendix	08

Settings

Language

Setting up

1. Press Menu > Settings > Phone > Language.
2. Select the language > Select.

Time and date

Setting up

1. Press Menu > Settings > Phone > Time & Date.
2. Set the categories using ◀/▶/▲/▼ > Save.

Ringtones

Setting ringtones

1. Press Menu > My Stuff > Audio.
2. Select a file > Options > Set as Ringtone.

Setting sound profile

1. Press Menu > Settings > Sounds & Alerts.
2. Select Normal, Vibrate and Ring, Vibrate Only or Silent.

Customizing the ringtone

You can set Ring Sound, Call Alert Type, Ringtone Volume, Message Sound, Message Alert Type, Message Reminder, Message Volume, Alarm Volume, Keytone Type, Key Volume and Power On/Off Sound for Normal and Vibrate and Ring profile.

1. Press Menu > Settings > Sound & Alerts.
2. Select Normal or Vibrate and Ring.
3. Press Options > Customize.
4. Select a category > set the options > Save.

Decorating the display

Setting the display

You can set the Wallpaper, Clock and Color Theme.

1. Press Menu > Settings > Display > Main Screen.

note: Your wallpaper images are in the Images and Photo folder. To access Images or Photo folder press Menu > My Stuff > Graphics > Images or Photo.

Setting the menu type

1. Press Menu > Settings > Display > Menu Type.

Setting the font

1. Press Menu > Settings > Display > Font Style.

Setting the brightness

1. Press Menu > Settings > Display > Brightness. note: Modifying brightness may affect battery life.

Setting time for backlight

1. Press Menu > Settings > Display > Backlight Timer. note: Modifying backlight time may affect battery life.

Locks

Locking the phone

1. Press Menu > Settings > Security > Phone Lock.
2. Select On.

note: The default password is '1234'. To change the password press Menu > Settings > Security > Change Password.

Locking the PIN

The Personal Identification Number is the security code that protects the phone or SIM against unauthorized use.

1. Press Menu > Settings > Security > PIN 1 Check.
2. Select On > Enter PIN code > 📄.
   note: To change the PIN code press Menu > Settings > Security > Change PIN1.

Changing PIN 2

1. Press Menu > Settings > Security > Change PIN2.

To enable fixed dialing

Enabling

1. Press Menu > Settings > Security > Fixed Dialing.
2. Select On or Off.
   For details on fixed dialing, see page 25.

Reset

Resetting the phone

1. Press Menu > Settings > Reset.
2. Master Reset > Yes > Enter Password.
   note: It will return configuration settings to default. The default password is '1234'.

Clearing the phone

1. Press Menu > Settings > Reset.
2. Master Clear > Yes > Enter Password.

note: It will change the setting as default and erase all personal data. The default password is '1234'.

TTY

The teletypewriter (TTY) is a telecommunications device that allows people who are deaf or hard of hearing, or who have speech or language disabilities, to communicate via a telephone.

Setting teletypewriter

1. Press Menu > Settings > TTY.
2. Select Disabled, TTY Full, TTY Talk or TTY Hear.
3. Disable: TTY mode is disabled.
4. TTY Full: User who cannot talk and hear, sends and receives a text message.
5. TTY Talk: User who can talk but cannot hear, receive a text message and send voice message.

- TTY Hear: User who can hear but cannot talk, sends a text message and receive voice message.

Settings

C530 8

Blue line drawing of two smartphones with keypad and buttons, no text or symbols present

Getting Started

01

Calls and address book

02

Messaging

03

Multimedia

04

Useful Features

05

Connectivity

06

Settings

07

Appendix

08

Appendix

Blue line drawing of a PANTech mobile phone with keypad and control buttons (no text or symbols)

Alert message

Troubleshooting checklist

Safety information

Safety precautions

About the battery usage

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices

FCC Regulatory Compliance

Warranty

Alert message

If you experience any problem while using your mobile phone, please refer to the following checklist. If the problem still persists, contact your dealer or nearest carrier.

When the "Insert SIM Card" message appears:

Make sure the SIM card is correctly installed. Check to see if the SIM card is working properly. If it does not work, try to clean the contact points of the card with a dry cloth. If it is out of order, take it to your service provider.

When the "Text Message Full" message appears:

The received or saved messages are full in your phone or SIM memory. You need to delete the message.

When the "Multimedia Message Full" message appears:

The saved messages are full in your phone memory. When you receive new message you will see "Multimedia Message Full. Move To Inbox?" You can move to inbox or delete the message.

When the "Password" message appears in Phone locked state:

Enter the phone password. The default password is "1234". If you cannot remember the password, contact the nearest carrier.

When the "Enter PINI" message appears:

Input PIN1. If you cannot remember it, contact your service provider. You can still receive calls even if your mobile phone becomes locked after entering the incorrect PIN1 on three consecutive attempts.

When the "No Service" or "Network Search" appears:

If you cannot make/receive a call when you are indoors or undergrounds where the signal strength is poor, move toward a window or go out to an open area. If you still cannot make a connection, contact your service provider.

Troubleshooting checklist

When audio quality is poor:

End a call and try again.

When the other party cannot hear you speaking:

Your phone may be set to MUTE. Disable the MUTE function. Or your hand may be covering the microphone located below the Ⓞ key.

When battery lifetime is shorter than usual:

This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted.

When your mobile phone does not turn on:

Make sure your battery is charged. Check to see if your phone works while recharging the battery.

When you are unable to send a message:

Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service.

When you are unable to make a call:

Your phone may be set to "Fixed Dialing" function. Cancel the "Fixed dial > Off".

When you are unable to charge the battery:

This may be the result of one of the following three cases.

1. Your charger may be out of order. Contact your nearest dealer.

2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment.

3. Your battery may have not been connected to the charger properly. Check the connector.

When you are unable to input data into your Address Book:

Your Address Book memory may be full. Try deleting some entries from your Address Book.

When you are unable to select a certain function:

You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider.

Safety information

The following list shows how to maintain your mobile phone, together with precautions to take.

- Keep your mobile phone and its accessories out of the reach of children.

- Maintain your mobile phone in dry conditions and keep it within normal

operating temperatures. Temperatures higher than 55°C (131°F) or lower than -20°C (-4°F) may damage your phone.

• Do not use or store your mobile phone in dusty, dirty areas.
• Do not attempt to disassemble your mobile phone.
• Do not drop or cause severe impact to your mobile phone.
• Do not use chemical products, cleaning solvents or detergents to clean your mobile phone.
• If your mobile phone does not work properly, contact your dealer immediately.
• Use only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty.
• Ensure that the battery and battery charger do not come in contact with conductive objects.

Safety precautions

Using a mobile phone while driving may be prohibited.

Please check local laws and regulations with regard to the prohibition of mobile phone use while driving, and comply with them.

Use of your phone while you are driving may disturb your concentration and so cause an accident. Always switch your phone off to drive safely. You should use your phone in an emergency, either use a hands free device built into your car or pull over in a safe place first.

Switch off in restricted areas

Always switch your phone off in areas where mobile phone use is restricted.

Appendix

Switch off in explosive or dangerous areas

Always switch your phone off in areas with explosive or dangerous materials (such as fuels, fuel stations or areas containing chemical goods) and obey any instructions or signals. Do not remove your mobile phone's battery in such areas.

Switch off in aircraft

Always switch your phone off or select Flight Mode On (press the Menu > Settings > Flight Mode) when you are in an aircraft. The electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft.

Switch off in hospitals and near medical equipment

Always switch your phone off in hospitals, and obey the regulations or rules of the hospital.

Switch your phone off when using medical equipment for private purposes, if possible. Always consult with the medical equipment's manufacturer or an expert regarding phone use near the medical equipment.

Installing a hands free device in your vehicle

Install vehicle hands free devices away from the steering wheel and airbag expansion area, otherwise injury may result.

Mobile phones and other electronic devices

Mobile phones emit electromagnetic waves that may affect nearby electronic devices. When it is switched on, do not place your phone close to delicate electronic equipment.

About the battery usage

Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone's autonomy due to the "battery memory effect" inherent in those technologies.

• Do not use a damaged battery or charger.
• Do not disassemble or open crush, bend or deform, puncture or shred
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard.
• Do not put your battery into contact with conductive objects.
• Dispose of and recycle used batteries in accordance with local
  regulations. Do not dispose of batteries by burning; they may explode.
• Do not use an unauthorized charger.
• Only use the battery for the device for which it is specified
• Only use the battery with a charging device that has been qualified with the device per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.
• Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.
• Replace the battery only with another battery that has been qualified with the device per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard.
  – Promptly dispose of used batteries in accordance with local regulations

• Battery usage by children should be supervised.

• Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.

• Use your battery for the specified purpose only.
• The closer you are to your network's base station, the longer your phone usage time because less battery power is consumed for the connection.
• The battery recharging time varies depending on the remaining battery capacity and the battery and charger type you use.
• Battery life inevitably shortens over time.
• Use an authorized battery and charger only.
• Since overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger, once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce the capacity and life of the battery. Always keep the battery within normal temperatures.
• To prevent injury or burns, ensure that no metal objects come into contact with the + and - terminals of the battery.

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices

On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-

aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.

While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

• M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.
• T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.

Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference

Appendix

noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.

In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This is synonymous for T ratings. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.

The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.

To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See Page 52 for instructions to disable these components.

FCC Regulatory Compliance

FCC Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements(NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable.

Statement according to FCC part 15.105

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Statement according to FCC part 15.21

Modifications not expressly approved by this company could void the user's authority to operate the equipment.

RF exposure FCC

For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

Health and Safety Information FCC

This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg*.

* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.
** This device contains 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.

Warranty

Protect Your Warranty

Read your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit.

"Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident".

Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction.

Appendix

If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by reason of a non-compatible accessory, the Warranty will be voided. To protect your Warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Pantech product.

12 Month Limited Warranty

Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company's option, without charge for parts or labor directly related to the defect(s).

The antenna, key pad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.

This Warranty does not apply to:

(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;

(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.

The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.

To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer's return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing.

To locate Pantech Authorized Service Center, call: [phone] or email [e-mail].

Please have the following information available when you send the phone in for repair:

- A valid original Proof of Purchase

- Return address

– Daytime phone number or fax number
- Model #
- IMEI # (Look for the 15 digit IMEI # behind the battery of the device.)
- Complete description of the problem
- Transportation prepaid

Other Warranty Program

You may have other warranty program with your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale.

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY

OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

For technical support in the U.S. & Canada, call [phone].

Or email: [e-mail].

Or visit the web site: www.pantechusa.com

For all other inquiry, write to:

PANTECH WIRELESS, INC.

5607 Glenridge Dr. Suite 500 Atlanta, GA 30342

Blue line drawing of various mobile phones including a Dantech keypad and a smartphone with a control panel (no text or symbols)

Inicio 01

Blue line drawing of a PANTech mobile phone with keypad and control buttons (no text or symbols)

Blue line drawing of various mobile phones including a Dantech keypad and a smartphone with a control panel (no text or symbols)

Inicio 01

Blue line drawing of a PANTech mobile phone with keypad and control buttons (no text or symbols)

Blue line drawing of two smartphones with visible keypad and buttons, no text or symbols present

Inicio

01

Blue line drawing of a PANTECH mobile phone keyboard and front panel (no text or symbols)

Ingreso de texto

Blue line drawing of two smartphones with visible keypad and buttons, no text or symbols present

Inicio

01

Blue line drawing of two smartphones with visible keypad and buttons, no text or symbols present

Inicio

01

Blue line drawing of two smartphones with visible keypad and buttons, no text or symbols present

Inicio

01

Blue line drawing of various mobile phones including a Dantech keypad and a smartphone with a control panel (no text or symbols)

Inicio 01

Blue line drawing of a PANTECH mobile phone keyboard and front panel (no text or symbols)

Idioma

Configuración

Blue line drawing of two smartphones with keypad and buttons, no text or symbols present

Inicio

01
