Product Type	Power Distribution Unit
Model	HIGHWIRE Powerstar DUO
Brand	Veracity
Input Voltage	100-240V AC, 50/60Hz
Output Voltage	12V DC, 24V DC
Maximum Output Current	10A per channel
Number of Outputs	2 (DUO)
Dimensions (W x D x H)	220 x 150 x 50 mm
Weight	1.2 kg
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Protection Features	Overload, short circuit, overvoltage
Indicators	LED power and status indicators
Mounting	Desktop or wall-mountable
Included Accessories	Power cord, mounting brackets, user manual
Certifications	CE, RoHS
Cleaning Instructions	Wipe with dry cloth; do not use liquids
Storage	Store in a cool, dry place
Warranty	2 years

Frequently Asked Questions - HIGHWIRE Powerstar DUO Veracity

What is the input voltage range for the HIGHWIRE Powerstar DUO?

The device accepts 100-240V AC at 50/60Hz.

How many outputs does the Powerstar DUO have?

It has two outputs (DUO) providing 12V or 24V DC.

Can I mount the Powerstar DUO on a wall?

Yes, it is designed for desktop or wall-mounting using the included brackets.

What protection features are included?

It includes overload, short circuit, and overvoltage protection.

How do I clean the device?

Use a dry cloth to wipe the surface. Do not use liquids or solvents.

What is the maximum current per output?

Each output can supply up to 10A.

What does the LED indicator show?

The LED indicates power status and any fault conditions.

Is the Powerstar DUU suitable for outdoor use?

No, it is intended for indoor use only in dry environments.

What is the warranty period?

Veracity provides a 2-year warranty against manufacturing defects.

Can I connect devices with different voltage requirements?

Each output can be set to either 12V or 24V independently, but check device compatibility.

USER MANUAL HIGHWIRE Powerstar DUO Veracity

2 PORT ETHERNET & POE OVER COAX

HIGHWIRE™

POWERSTAR

DUO

Interior hallway scene with medical staff and visitors, featuring a Highwire powertrain device (no visible text or symbols)

Connecttwo IP cameras with HIGHWIRE Powerstar Duo over an existing coaxcable

HIGHWIRE Powerstar Duo uses existing coax cabling as a reliable Ethernet network connection and is very easy to use and fast to install.

| Re-uses existing coax cable for 2 IP cameras or devices
| Integrated 2-port POE switch (POE Plus with local power option)
Eliminates separate power cabling with POE-over-Coax™
| Compatible with all HIGHWIRE Powerstar Base units (1, 4 & 8ch)
| Instantly check connection and power level with SafeView™
| Completely automatic connection, no configuration required
| 100BaseTX performance over 300m of RG59 (500m on RG11)

HIGHWIRE Powerstar Duo incorporates a two-port POE switch for IP cameras

HIGHWIRE Powerstar Duo makes the most of your legacy cabling and multiplies its capability by connecting two IP cameras or other network devices

Ethernet Over Coax

HIGHWIRE Powerstar Duo's unique ultra low-power design and efficient power delivery enables long range Ethernet over coax. It works even over the lowest grade cable, such as the high-resistance, copper-clad steel (CCS) types found in many legacy installations. This means that legacy coax upgrades can be planned with confidence, while a quick check of the SafeView™ power level display reaffirms that the device connections will continue to be reliable, whatever the cable used.

For predictable network operation with no restrictions, HIGHWIRE technology delivers a full 200Mbit/s of bandwidth at 300m (1000 ft) of RG-59 or 500m (1600 ft) of RG-11 coax. For full information on POE-over-Coax™ distances achievable, please refer to the Range Table in the HIGHWIRE Powerstar datasheet or on the Veracity website. For POE power budget and power supply options, see the POE Power Budget Table opposite.

HIGHWIRE Powerstar DUO

The DUO variant of HIGHWIRE is designed for the camera end of the coax and, with an integrated two-port POE switch, enables connection of two IP cameras over a single coax. With no need to configure IP addresses, set DIP switches, or make awkward measurements and calculations, installing HIGHWIRE Powerstar Duo is simple. The Base end of the coax is driven by single-channel, 4-channel or 8-channel HIGHWIRE Powerstar Base unit. The DUO unit can be powered either by POE over coax, delivering a maximum total POE power budget of 25 watts, or by one of the optional local PSUs, delivering 40 or 78 watts. HIGHWIRE Powerstar Duo features Veracity's unique SafeView™ display, to provide IP camera installers with an instant and very easy-to-understand confirmation of correct operation from either end of the cable.

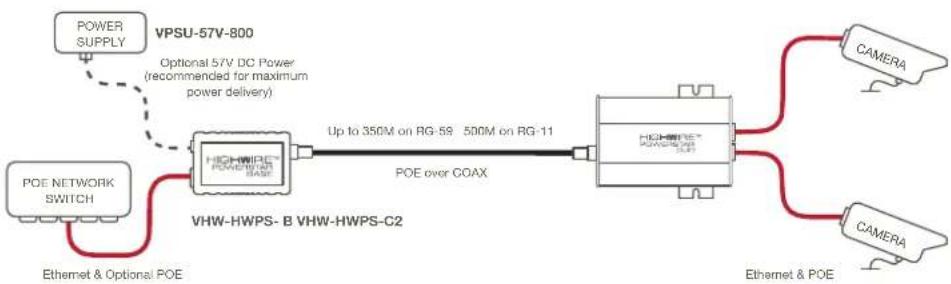

POE OVER COAX

Application Diagram

The diagram shows POE power delivery over coax from the Base end. The Powerstar Base unit may be powered by a POE or POE Plus switch, or for maximum power delivery

over coax, by Veracity's 57V DC PSU. See POE Power Budget Table for POE power outputs.

HIGHWIRE Powerstar Duo allows one analogue camera to be replaced with two IP cameras

POE over Coax or Local Power

In the simplest implementation (shown below left) the BASE unit receives power from a standard POE switch or Veracity's 57V DC PSU and transmits POE over the coax. The DUO unit receives this power and delivers up to 25 watts shared between two IP cameras. No external power cabling is required, and all detection and setup occurs automatically. For higher POE power budgets, an optional Veracity 57V DC PSU may be used to power the DUO locally at the camera end (shown below right) delivering 40 watts or 78 watts depending on PSU model. See POE budget table for details.

POE POWER BUDGET TABLE

POE AVAILABLE FROM HIGHWIRE POWERSTAR DUO

PSU LOCATION(To IP Cameras)	POWER SUPPLY	POE POWER BUDGET
Base End POE Switch	10W
Base End POE Plus Switch	20W
Base End VPSU-57V-800	25W
Camera End VPSU-57V-800	40W
Camera End VPSU-57V-1500	78W

The table shows the total POE power budget available from the two ports on the HIGHWIRE Powerstar Duo. Note that the maximum power available from any one port is 25W.

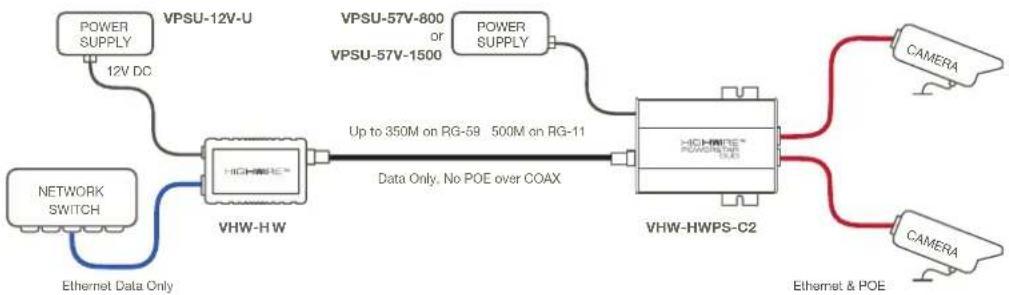

POWER SUPPLY TO DUO

Application Diagram

The diagram shows power injection at the Camera end, using a PSU for HIGHWIRE Powerstar Duo, with no power delivery over coax. This option allows the maximum POE power output.

TECHNICAL SPECIFICATION

HIGHWIRE™

POWERSTAR

DUO

POWER

Input connector Detachable screw terminal

Power input POE OR 57V DC

Power consumption 3W - 8W depending on POE load

POE STANDARDS

IEEE 802.3af and IEEE 802.3at compliant

POE POWER OUTPUT

Between 10W and 78W depending on power source (see table)

managed across 2 ports. Max 25 watts per port (POE Plus)

HIGHWIRE INTERFACE

Connector type BNC 75ohm

Cable type 75ohm coax cable (RG59, RG6, RG11 or similar)

Range Up to 300m on RG59, 350m on RG6, 500m on RG11, all at full rate

Bandwidth 200Mbps (total up + down)

ETHERNET INTERFACE

Connector type RJ45 x 2, unmanaged 10/100 switch

Rates 10BASE-T or 100BASE-TX and full duplex, auto configuring

Cable type Straight through or cross-over Cat 5, Cat 5e or Cat 6 patch

LED INDICATORS

RJ45 Yellow Network link and activity

RJ45 Green POE status (on/off)

Coax Status Coax link, Base network link, coax power (POE)

POE Power Power budget (in steps of 5W)

PHYSICAL/ENVIRONMENTAL

Dimensions L 132mm (inc. BNC) W 75mm H 22mm (W 94.6mm with wall mount lugs)

Mounting 4mm mounting holes on 86.1mm centres

Weight 179g [6.3oz] (183g with wall mount brackets) [6.4oz]

Operating temperature -10°C to 50°C [14°F to 122°F]

Relative humidity 85% non-condensing

Compliance CE, FCC, RoHS

PRODUCT CODES

VHW-HWPS-C2

VHW-HWPS-C4

VHW-HWPS-B

VHW-HWPS-B4

VHW-HWPS-B8

VPSU-57V-800

VPSU-57V-1500

VHW-HW

VPSU-12V-U

HIGHWIRE Powerstar Duo

integrated 2-port POE switch

HIGHWIRE Powerstar Quad

integrated 4-port POE switch

HIGHWIRE Powerstar Base

HIGHWIRE Powerstar Base 4

HIGHWIRE Powerstar Base 8

57V DC 800mA PSU Optional 40 watt PSU for Quad /Duo

57V DC 1500mA PSU

HIGHWIRE

12V DC Power Supply

Ethernet over coax camera unit with

Ethernet over coax camera unit with

Single-port Ethernet over coax base unit

Four-port Ethernet over coax base unit

Eight-port Ethernet over coax base unit

SU for Quad /Duo

Optional 78 watt PSU for Quad /Duo

Ethernet over coax cable adaptor

PSU for standard HIGHWIRE VHW-HW

HIGHWIRE POWERSTAR QUAD is also

available with 4-port POE switch
