Product Type	Audio Amplifier
Brand	Klipsch
Model	KVA-40
Power Supply	Low voltage DC adapter (included)
Bluetooth	Yes, Bluetooth® wireless technology
Speaker Outputs	2 pairs (stereo) - supports 4-8 ohm speakers
Mounting	Wall-mountable with included brackets (retrofit compatible)
Dimensions (approx)	4.0 x 4.0 x 1.5 inches (102 x 102 x 38 mm)
Weight (approx)	0.5 kg (1.1 lbs)
Output Power	40W per channel (estimated)
Frequency Response	20 Hz - 20 kHz
Input Sensitivity	Line level
Protection	Overload and short circuit protection
Operating Temperature	0°C to 40°C
Color	Black
Certifications	CE, FCC
Warranty	2 years limited

Frequently Asked Questions - KVA-40 KLIPSCH

How do I connect speakers to the KVA-40?

Connect speaker wires to the binding posts on the back panel. Ensure correct polarity (+ to +, - to -). Use 16-18 AWG speaker wire. Refer to the owner's manual for detailed wiring instructions.

Can I use the KVA-40 with high voltage power?

No, NEVER connect the KVA-40 directly to high voltage AC power. Only use the included low voltage DC adapter. Connecting to high voltage will damage the unit and create a safety hazard.

How do I pair my smartphone via Bluetooth?

Turn on the KVA-40. On your smartphone, enable Bluetooth and search for devices. Select "Klipsch KVA-40" from the list. If prompted, enter PIN 0000. The amplifier will confirm pairing with an LED indicator.

Where should I place the amplifier?

Place the amplifier on a flat, stable surface away from moisture and heat sources. For best audio performance, position it centrally in the room. It can also be wall-mounted using the included brackets.

How do I clean the device?

Disconnect power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids or cleaning agents. Avoid getting moisture into the ventilation openings.

What should I do if there is no sound?

Check that the amplifier is powered on and the volume is turned up. Verify speaker connections and make sure the source device is playing. Also check if the Bluetooth connection is active. If using wired input, ensure the correct input is selected.

Is the amplifier compatible with 70V systems?

The KVA-40 is a low-impedance amplifier designed for 4-8 ohm speakers. It is not compatible with 70V constant voltage systems unless a matching transformer is used.

Can I mount the amplifier on the wall?

Yes, the KVA-40 includes wall-mounting brackets. Use appropriate screws for your wall type. Ensure the mounting surface can support the weight. Refer to the installation section of the manual for details.

What is the maximum speaker wire gauge?

The binding posts accept up to 14 AWG speaker wire. For long runs, use 16 AWG or thicker wire to minimize signal loss.

How can I reset the amplifier?

To reset the KVA-40, disconnect the power adapter for 10 seconds and reconnect. This will clear any temporary faults. If problems persist, contact Klipsch support.

USER MANUAL KVA-40 KLIPSCH

INSIDE

CONTENU CONTENIDO INHALT CONTENUTO CONTEÚDO 目录

Simple line drawing of a rectangular device with a hexagonal button and two mounting holes (no text or symbols)

Line drawing of a cable and electrical component (no text or symbols)

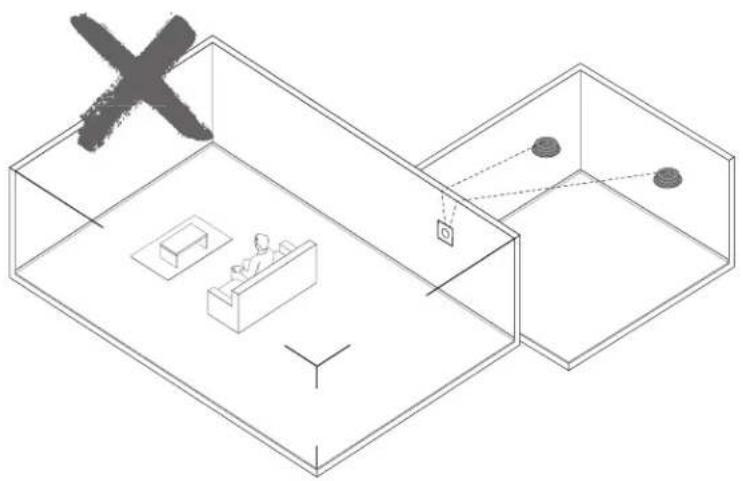

PLACEMENT

Isometric line drawing of a room with a person at a desk, a coffee table, and a checkmark symbol (no text or labels)

Isometric line drawing of two room layouts with furniture and a central desk, no text or symbols present

PLACEMENT

Isometric line drawing of a room interior with furniture and a checkmark symbol (no text or labels)

PLACEMENT

Isometric line drawing of a room layout with furniture, devices, and a checkmark symbol (no text or labels)

INSTALLATION - RETROFIT

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

CONNECTIONS

BRANCHEMENTS CONEXIONES ANSCHLÜSSE CONNESSIONI CONEXÕES 连接

ATTENTION: KVA-40 should NEVER be connected directly to high voltage power. Only use the included low voltage power system as shown.

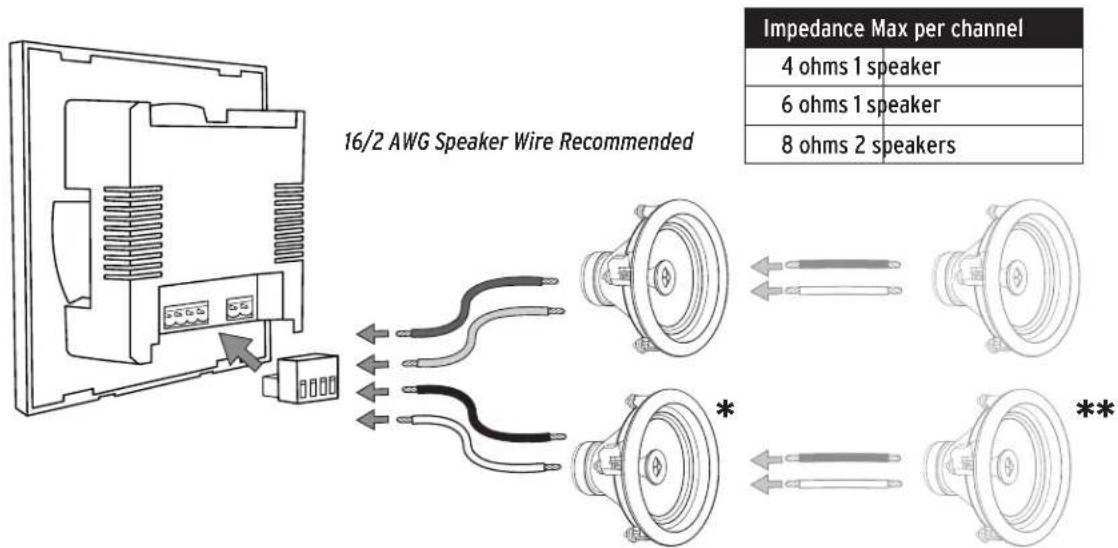

CONNECTIONS

BRANCHEMENTS CONEXIONES ANSCHLÜSSE CONNESSIONI CONEXÕES 连接

*Follow speaker owner's manual for correct instructions on wiring speakers
**Additional speaker pair optional

Klipsch®

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

©2019, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly-owned subsidiary of Voxx International Corporation.

Klipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries. The Bluetooth ^® word mark is a registered trademark owned by Bluetooth SIG, Inc. and any use of such mark by Klipsch Group, Inc. is under license.

V01-190729
