Brand	James
Model	EMB1200
Product Type	Powered Subwoofer
Enclosure Type	Bass-reflex (ported)
Driver Size	12 inches (300 mm)
Amplifier Power (RMS)	300 watts
Amplifier Power (Peak)	600 watts
Frequency Response	25 Hz - 200 Hz
Impedance	4 ohms
Inputs	Line-level RCA (L/R), LFE input
Outputs	Line-level RCA (L/R pass-through)
Controls	Volume, Crossover (50-200 Hz), Phase (0/180°), Auto On/Off
Dimensions (W x D x H)	17.5 x 17.5 x 19.5 inches (445 x 445 x 495 mm)
Weight	45 lbs (20.4 kg)
Power Supply	AC 120V / 60Hz (US), AC 230V / 50Hz (EU) via IEC cord
Standby Power Consumption	< 0.5 W
Maximum SPL	115 dB
Protection Features	Overcurrent, short circuit, thermal, and DC offset protection
Placement	Front or side corner of room, avoid direct contact with walls
Maintenance	Wipe with dry soft cloth; do not use solvents; vacuum grille periodically
Spare Parts / Repairability	Amplifier module and driver available as spare parts; repair by qualified technician only
Certifications	CE, RoHS, UL (US version)

Frequently Asked Questions - EMB1200 James

How do I connect the EMB1200 subwoofer to my receiver?

Use an RCA cable from your receiver's subwoofer pre-out to the LFE input on the subwoofer. For stereo connections, connect left/right pre-outs to the L/R inputs.

What is the best placement for the subwoofer?

Place the subwoofer in a corner or along a wall for maximum bass. Avoid blocking the port. Experiment with positions to reduce standing waves.

How do I set the crossover frequency?

Set the crossover knob to match your main speakers' low-frequency limit (typically 80 Hz for THX). The subwoofer will play frequencies below that.

What does the phase switch do?

The phase switch (0/180°) adjusts the timing of the subwoofer's output relative to the main speakers. Use the setting that produces the strongest, most coherent bass at your listening position.

Why is there no sound from the subwoofer?

Check that the subwoofer is powered on, the volume is turned up, and the input cable is securely connected. Verify that the receiver's subwoofer output is enabled in the speaker setup menu.

The subwoofer hums when not playing. How to fix?

A ground loop may cause hum. Ensure all audio components share the same power outlet. Use a ground loop isolator on the RCA cable if needed.

Does the subwoofer have auto on/off?

Yes, the EMB1200 features an auto on/off mode. It powers on when it detects an audio signal and turns off after a few minutes of inactivity to save energy.

How do I clean the subwoofer?

Unplug the subwoofer. Wipe the cabinet with a dry, soft cloth. For the grille, use a vacuum with a brush attachment. Do not use liquids or abrasives.

What is the warranty coverage?

The James EMB1200 comes with a 2-year limited warranty covering defects in materials and workmanship. Proof of purchase is required.

Can I use the subwoofer with a computer?

Yes, if your computer has a subwoofer output or if you use a 3.5mm to RCA adapter, you can connect it to the subwoofer's LFE input.

USER MANUAL EMB1200 James

Hidden Woofer Options

Since its inception, James Loudspeaker has been an application driven brand providing solutions to integrators, designers, and architects. But an integrator said it best – “James Loudspeaker isn’t just a speaker brand - it is a toolbox for the custom installers.”

Since over 95% of our enclosures are hand fabricated from aircraft/marine grade aluminum, we can custom fabricate any shape or size system to match your indoor/outdoor needs.

Red wall with a decorative black lattice pattern and dark border (no text or symbols)

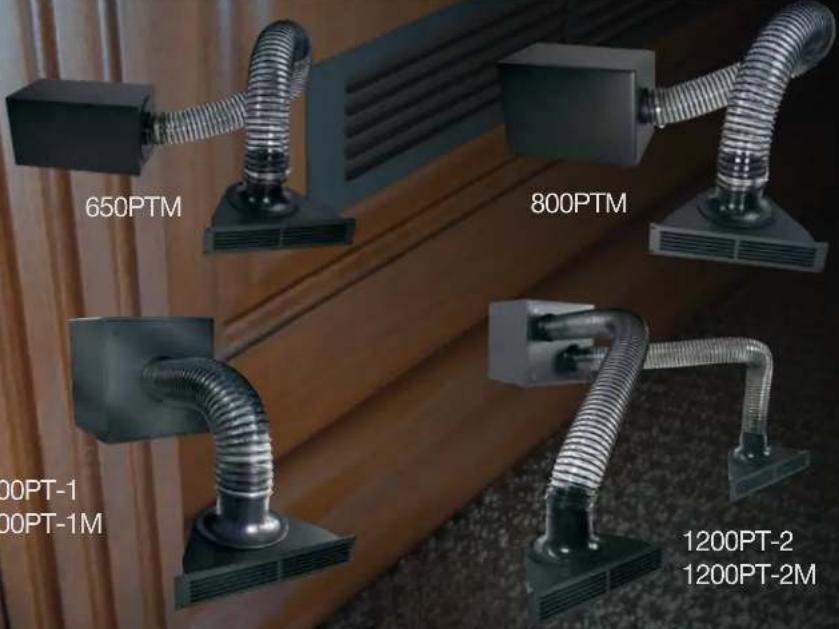

Nine PowerPipe SubWoofer Options

By taking input from our dealer base, we've assembled an impressive number of options when the need for a hidden subwoofer solution comes up in a job. We have over 26 models, plus the option for "one-off" custom designs based upon a dealer request for something completely unique.

Close-up of a circular mechanical component with concentric rings (no visible text or symbols)

QXC10S-R/S

QXC8S-R/S

Two Ceiling Woofers

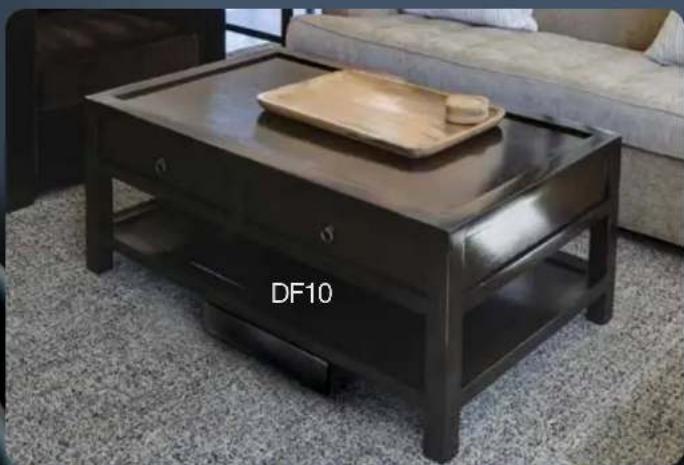

Interior scene with a wooden coffee table and a tray on top, placed on carpet (no visible text or symbols)

One Down Firing Under Bed/Under Couch Woofer

Vertical cylindrical object with a small square cutout at the bottom (no text or symbols visible)

101SA-6

Exterior view of a plain white panel with rounded corners and a small rectangular cutout on the side (no text or symbols)

540SAS-4

Close-up of a metallic mechanical component with a coiled spring attached to a base plate (no text or symbols visible)

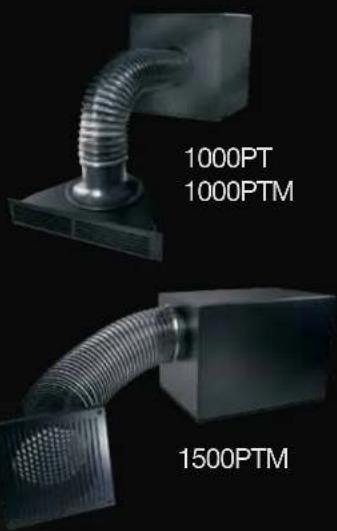

1000PT/M

Three views of a circular object with textured surfaces, placed on wooden and metal square blocks (no text or symbols visible)

Two black rectangular electronic components with metallic contacts, labeled EMB12BP (no other text or symbols visible)

EMB10BP

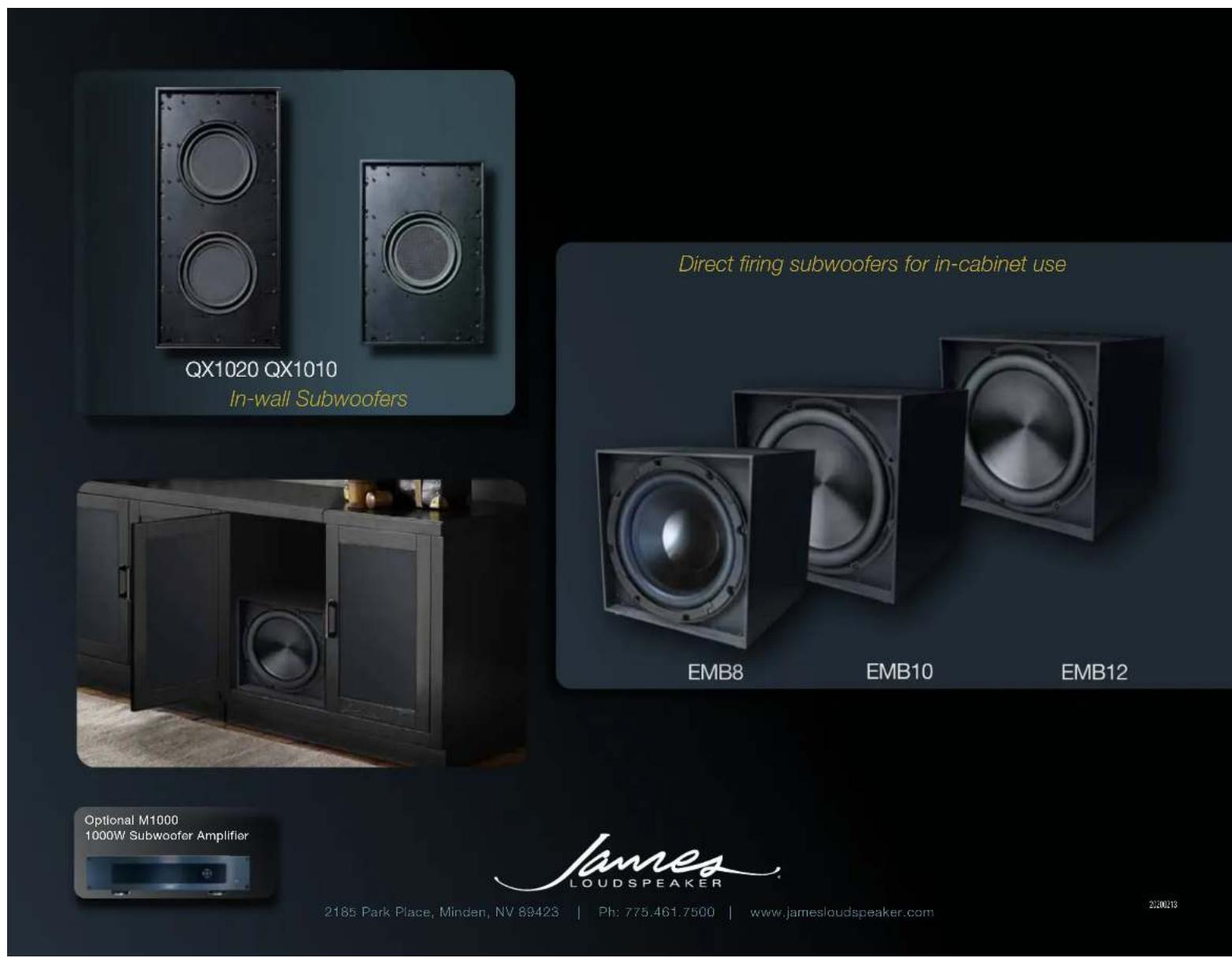

Bandpass EMB woofers with front "Acoustic Energy Directors" which allows for stealthy in-cabinet installations by venting out a toekick or cabinet side.

Two Small Aperture® In-wall Woofers and Trim Kit Adapter for PowerPipe Woofers

2185 Park Place, Minden, NV 89423 | Ph: 775.461.7500 | www.jamesloudspeaker.com
