Product Type	Active Subwoofer
Brand	James
Model	EMB1000
Speaker Size	15 inch (381 mm)
Frequency Response	18 Hz - 200 Hz
Power Output (RMS)	1000 W
Peak Power	2000 W
Amplifier Type	Class D
Enclosure Type	Sealed
Dimensions (H x W x D)	20 x 18 x 18 in (508 x 457 x 457 mm)
Weight	55 lbs (25 kg)
Impedance	4 ohms
Inputs	RCA, XLR
Phase Control	0° - 180°
Volume Control	Yes, rotary knob
Auto Power On/Off	Yes
Crossover Frequency	40 Hz - 150 Hz adjustable
Cabinet Material	MDF with high-gloss finish
Color	Black
Safety	Keep away from moisture; do not block ventilation.
Cleaning	Wipe with a dry cloth; do not use solvents.
Spare Parts & Repairability	Contact authorized dealer for spare parts; repair by qualified technician only.
General Use	Home theater, music, studio monitoring

Frequently Asked Questions - EMB1000 James

How do I connect the EMB1000 subwoofer to my receiver?

Use an RCA cable from the subwoofer output on your receiver to the RCA input on the subwoofer. For professional setups, use an XLR cable.

What is the optimal placement for the subwoofer?

Place the subwoofer in a corner or along a wall for maximum bass response. Avoid placing it behind furniture or in the center of the room.

Does the subwoofer have an auto-on feature?

Yes, the EMB1000 features auto power on/off. It will turn on when it detects an audio signal and turn off after several minutes of inactivity.

What type of power cable does the subwoofer use?

It uses a standard IEC power cord (C13). Ensure the voltage matches your region (110-240V).

My subwoofer isn't producing any sound. What should I check?

First, ensure the subwoofer is powered on and the volume is turned up. Check the RCA connection and the subwoofer output on your receiver. Also verify the crossover and phase settings.

Can I use this subwoofer outdoors?

No, the EMB1000 is designed for indoor use only. Exposure to moisture or extreme temperatures can damage the subwoofer.

What is the warranty period for the James EMB1000?

James typically offers a 5-year limited warranty on subwoofers. Contact your dealer for specific terms.

How do I clean the subwoofer?

Wipe the cabinet with a soft, dry cloth. Do not use any liquids or cleaning solvents.

Is the subwoofer magnetically shielded?

No, the EMB1000 is not magnetically shielded. Keep it at least 12 inches away from CRT TVs or sensitive electronic equipment.

What room size is suitable for the EMB1000?

This subwoofer is ideal for medium to large rooms (up to 500 sq ft). For smaller rooms, reduce the volume and crossover settings.

USER MANUAL EMB1000 James

Hidden Woofer Options

Since its inception, James Loudspeaker has been an application driven brand providing solutions to integrators, designers, and architects. But an integrator said it best – “James Loudspeaker isn’t just a speaker brand - it is a toolbox for the custom installers.”

Since over 95% of our enclosures are hand fabricated from aircraft/marine grade aluminum, we can custom fabricate any shape or size system to match your indoor/outdoor needs.

Red wall with a decorative black lattice pattern and dark border (no text or symbols)

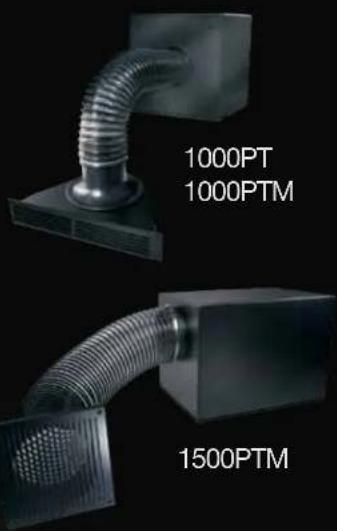

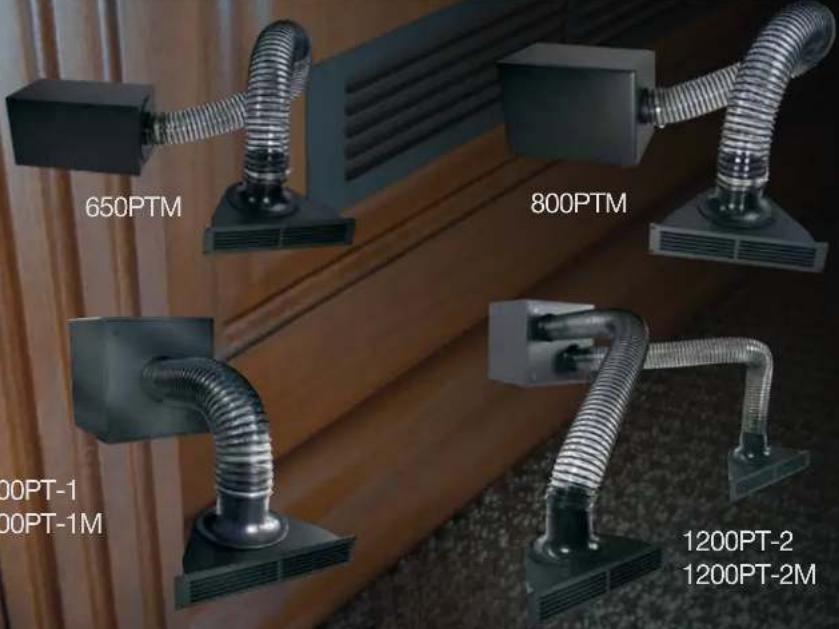

Nine PowerPipe SubWoofer Options

By taking input from our dealer base, we've assembled an impressive number of options when the need for a hidden subwoofer solution comes up in a job. We have over 26 models, plus the option for "one-off" custom designs based upon a dealer request for something completely unique.

Close-up of a circular mechanical component with concentric rings (no visible text or symbols)

QXC10S-R/S

QXC8S-R/S

Two Ceiling Woofers

Interior view of a modern coffee table with a wooden tray and matching cup, placed on carpet (no visible text or symbols)

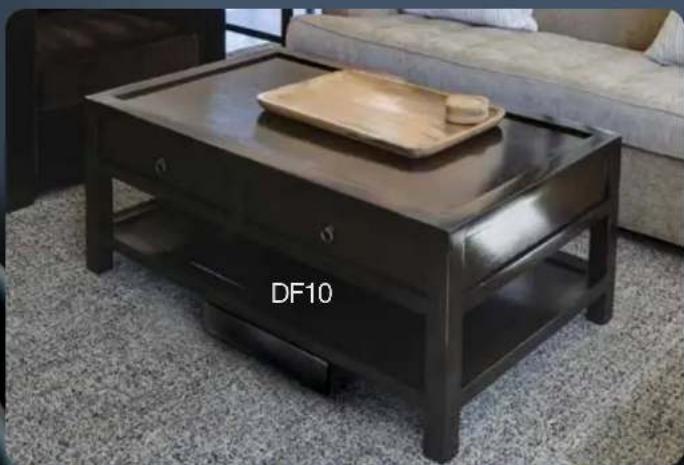

One Down Firing Under Bed/Under Couch Woofer

Vertical cylindrical object with a small square cutout on the side (no text or symbols visible)

101SA-6

Exterior view of a plain white panel with rounded corners and a small rectangular cutout on the side (no text or symbols)

540SAS-4

Close-up of a metallic mechanical component with a coiled spring attached to a base plate (no text or symbols visible)

1000PT/M

Three views of a circular object with textured surfaces, placed on wooden and metal square blocks (no text or symbols visible)

Two black rectangular electronic components with metallic contacts, labeled EMB12BP (no other text or symbols visible)

EMB10BP

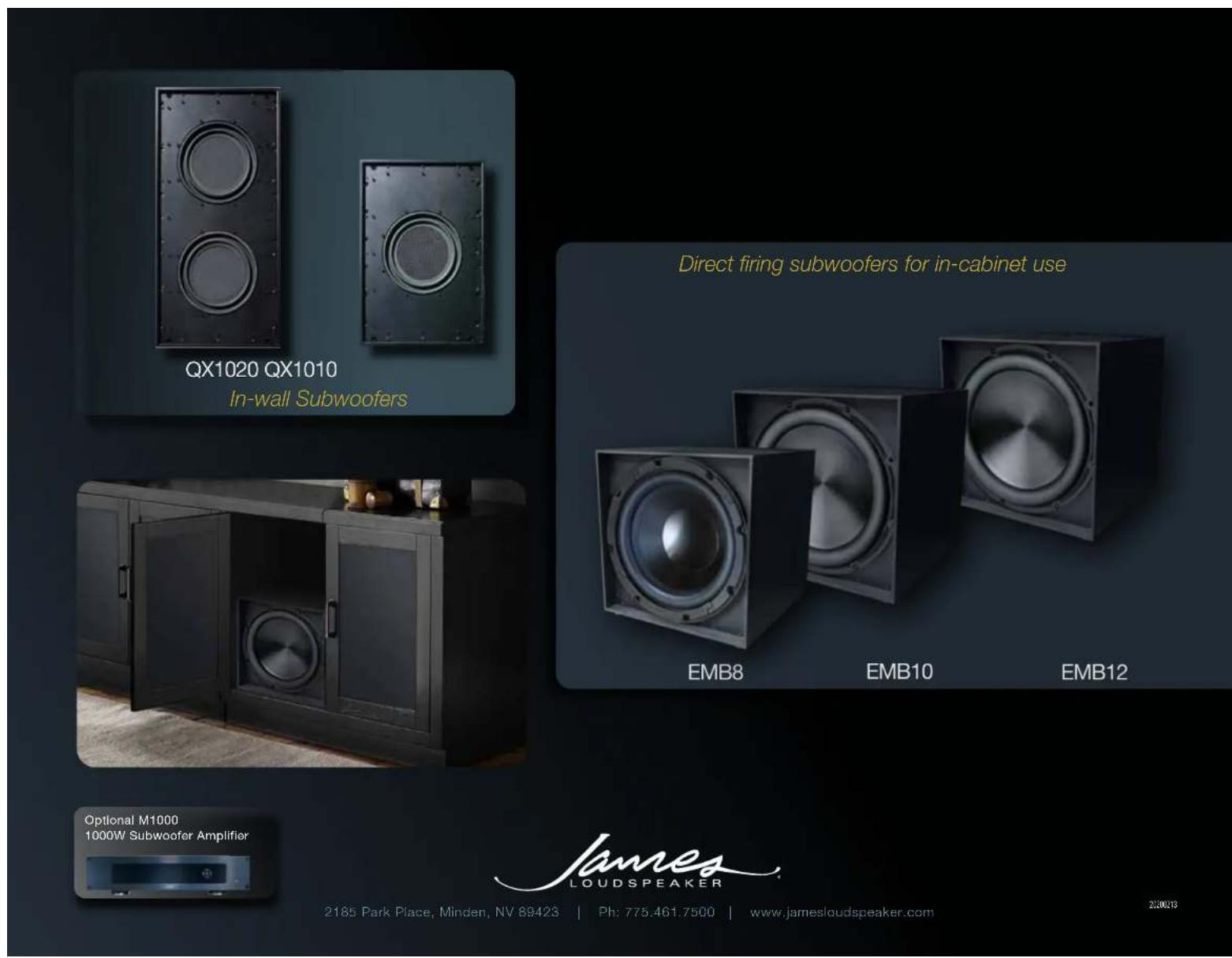

Bandpass EMB woofers with front "Acoustic Energy Directors" which allows for stealthy in-cabinet installations by venting out a toekick or cabinet side.

Two Small Aperture® In-wall Woofers and Trim Kit Adapter for PowerPipe Woofers

2185 Park Place, Minden, NV 89423 | Ph: 775.461.7500 | www.jamesloudspeaker.com

20200213
