L4HUBG11 - USB Hub Logik - Free user manual and instructions

Product Type	USB Hub
Brand	Logik
Model	L4HUBG11
Number of Ports	4
USB Version	USB 3.0 (compatible with USB 2.0/1.1)
Data Transfer Speed	Up to 5 Gbps
Power Supply	Bus-powered via USB port
Dimensions (approx.)	10 x 3 x 1.5 cm
Weight (approx.)	45 g
Cable Length	15 cm
Material	ABS plastic
Compatible Systems	Windows, Mac OS, Linux, Chrome OS
Plug and Play	Yes, no driver required
LED Indicator	Blue LED for power/activity
Overcurrent Protection	Yes
Maintenance	Wipe with a soft, dry cloth
Cleaning	Do not use liquids or harsh chemicals
Safety Warning	Do not expose to water or excessive heat
Spare Parts	Not available; device is not user-serviceable
Repairability	Not repairable; replace if defective

Frequently Asked Questions - L4HUBG11 Logik

How many ports does the Logik L4HUBG11 have?

It has 4 USB 3.0 ports for connecting multiple devices.

Is this USB hub compatible with USB 2.0 devices?

Yes, it is backward compatible with USB 2.0 and USB 1.1 devices.

Does the hub need an external power supply?

No, it is bus-powered directly from your computer's USB port. However, high-power devices may require a powered hub.

What operating systems are supported?

It works with Windows, macOS, Linux, and Chrome OS without additional drivers.

How fast is the data transfer speed?

USB 3.0 supports speeds up to 5 Gbps, though actual speed depends on the devices and host.

Can I use this hub with a USB-C port?

If your computer has only USB-C, you will need a USB-A to USB-C adapter as the hub has a USB-A connector.

Does it have an LED indicator?

Yes, there is a blue LED that lights up when the hub is powered and blinks during data activity.

How do I clean the hub?

Wipe it gently with a soft, dry cloth. Do not use liquids or abrasive cleaners.

What should I do if the hub is not recognized?

Try a different USB port on your computer, or restart your computer. Ensure the hub is firmly connected.

Is the hub covered by a warranty?

Logik typically offers a 1-year limited warranty. Check your purchase documentation for details.

USER MANUAL L4HUBG11 Logik

Thank you for purchasing your new Logik 4 Port Hub.

Before connecting to your computer please familiarise yourself with this Quick Start Guide.

1 Unpacking

4 Port Hub

USB Cable
P.N.: L4HUB11-USBC

Quick Start Guide
P.N.: L4HUB11-001

If items are missing, or damaged please contact

Partmaster (UK only). Tel: [phone] for assistance.

2 Connecting the Mains Adapter

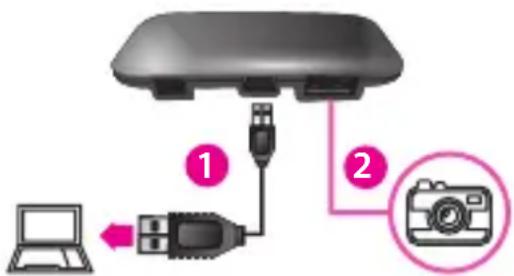

Step Connect the USB cable to the USB port on your computer.

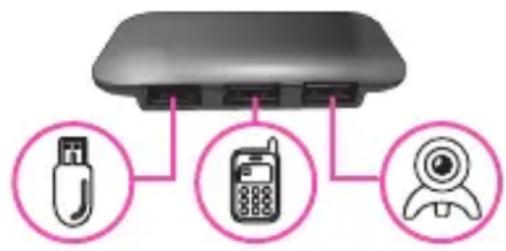

Step 2 Connect your USB device to one of the 4 USB ports on the hub.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

Replacement Part Part Number

USB Cable L4HUB11-USBC

To prevent any damage or data loss, always follow the correct device removal procedure for your computer's operating system.

Partmaster .co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical

spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England

P.N.: L4HUB11-001
