L4HUBS11 - USB Hub Logik - Free user manual and instructions

Product Type	USB Hub
Brand	Logik
Model	L4HUBS11
Number of USB Ports	4
USB Standard	USB 2.0
Data Transfer Rate	480 Mbps (USB 2.0)
Power Source	Bus-powered via USB
Dimensions (approx.)	10 x 5 x 2 cm
Weight (approx.)	100 g
Cable Length	15 cm
Compatible Operating Systems	Windows, macOS, Linux
Plug and Play	Yes
Housing Material	ABS plastic
LED Indicator	Power LED
Overcurrent Protection	Yes
Maintenance	Clean with a dry, soft cloth
Safety	Low voltage, CE certified
Repairability	Non-user serviceable; no spare parts
Warranty	1 year

Frequently Asked Questions - L4HUBS11 Logik

Is the Logik L4HUBS11 compatible with USB 3.0 devices?

Yes, it is backward compatible with USB 3.0 devices, but data transfer will be limited to USB 2.0 speeds (480 Mbps).

Does this hub require an external power adapter?

No, it is bus-powered directly from your computer's USB port. Some high-power devices may require a powered hub.

How many devices can I connect simultaneously?

You can connect up to 4 USB devices at the same time. Performance may vary based on total power draw.

Is the hub compatible with Windows 10?

Yes, it supports Windows 10, Windows 8, Windows 7, macOS, and Linux without additional drivers.

Does the hub support charging of smartphones or tablets?

It can charge low-power devices like smartphones, but at standard USB 2.0 charging rates (up to 500 mA per port). Tablets may charge slowly.

What is the cable length?

The built-in USB cable is approximately 15 cm long, ideal for desktop use.

Is there an LED indicator for power?

Yes, a blue LED lights up when the hub is connected to a power source.

Can I use this hub with a PlayStation or Xbox?

It may work with some consoles, but compatibility is not guaranteed. It is primarily designed for computers.

How do I clean the USB hub?

Disconnect it from the computer and wipe gently with a dry, soft cloth. Avoid using liquids or abrasive cleaners.

What should I do if the hub is not recognized?

Try connecting to a different USB port, restart your computer, or check for driver updates. If the issue persists, the hub may be defective.

USER MANUAL L4HUBS11 Logik

Thank you for purchasing your new Logik 4 Port Hub.

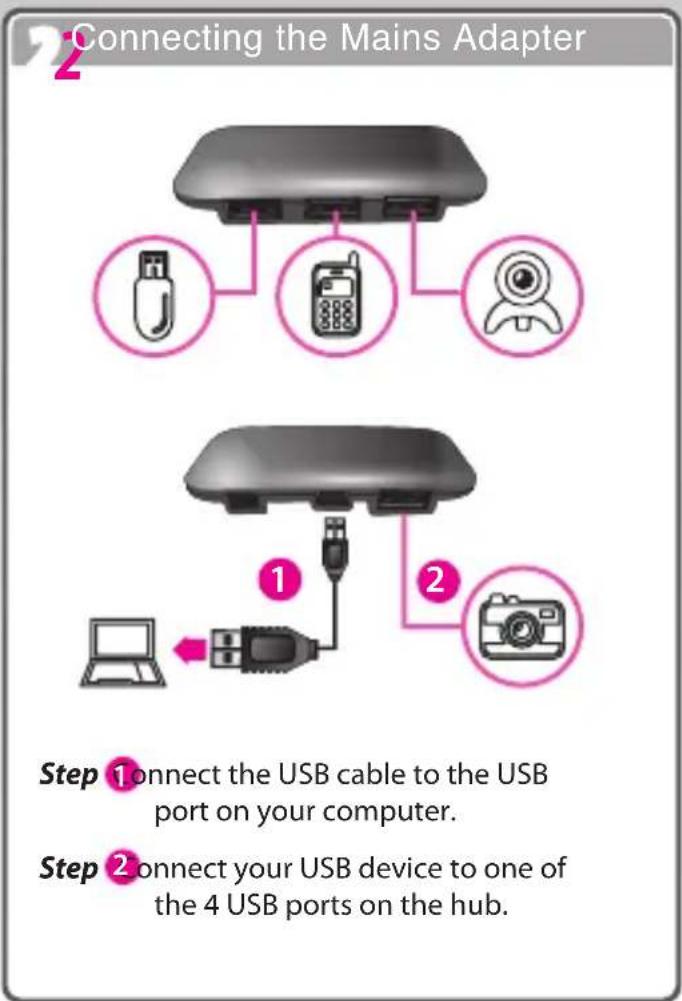

Before connecting to your computer please familiarise yourself with this Quick Start Guide.

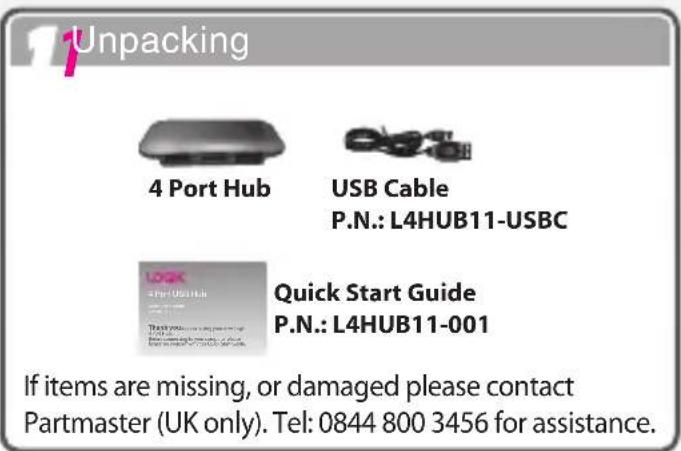

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

Replacement Part Part Number

USB Cable L4HUB11-USBC

To prevent any damage or data loss, always follow the correct device removal procedure for your computer's operating system.

Partmaster .co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical

spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England

P.N.: L4HUB11-001
