Product type	Battery charger
Brand	Hitachi
Model	UC 3SML
Input voltage	12 V DC (vehicle) or 120 V AC (mains adapter)
Charging voltage	3.6 V DC
Charging current	1.5 A DC
Weight	0.2 kg (0.4 lb)
Compatible battery	Hitachi EBM315
Charging time	Approximately 60 minutes (for EBM315)
Charge indicator	Indicator light (on during charging, off when finished)
Protection	Overheating protection, short circuit protection
Usage	Indoor charging only, avoid rain/snow
Extension cord	Possible use with appropriate gauge (see table)
Maintenance	Cleaning with a soft cloth, checking screws
Fuse	250 V, 6 A (for cigarette lighter socket)
Charging temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage	Temperature below 40 °C, out of reach of children
Repairs	Only by Hitachi authorized service center
Supplied accessories	Power cable, fastening strap

Frequently Asked Questions - UC 3SML HITACHI

Which battery can I charge with the UC 3SML charger?

Only the rechargeable battery Hitachi model EBM315. Using other batteries may cause explosion or injury.

How do I know if the battery is fully charged?

The indicator light goes out when charging is complete. If it remains on for more than 4 hours, stop charging and contact customer service.

Can I use the charger in my car?

Yes, via the cigarette lighter socket. Ensure the vehicle has a negative ground. Secure the charger with the supplied strap to prevent movement while driving.

What should I do if the indicator light does not come on?

Check that the battery is properly inserted and that the power is connected. If the battery is hot, let it cool before attempting to charge.

Is it safe to leave the charger plugged in after charging?

It is recommended to unplug the charger from the mains outlet when not in use to avoid any electrical risk.

Can I use an extension cord?

Yes, but only if necessary and in compliance with the minimum gauge specified in the manual table to avoid fire risk.

How do I maintain the charger?

Unplug it before any cleaning. Use a dry or slightly damp soft cloth. Do not use solvents. Regularly check the mounting screws.

What to do if the fuse blows on the cigarette lighter socket?

Replace it with a fuse of the same rating: 250 V, 6 A, DC. Do not use a fuse of a different value.

Can I charge the battery in cold weather?

Yes, if the temperature is between 0 °C and 50 °C. Below 10 °C, the charging time may be longer.

Where can I get my charger repaired?

Entrust any repairs to a Hitachi authorized service center. Check the spare parts list to facilitate the repair.

USER MANUAL UC 3SML HITACHI

Model Battery Charger

Line drawing of a mechanical device with multiple slots and a handle (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this battery charger can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the battery charger. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

PRECAUTIONS WHEN USING THE BATTERY CHARGER WITH A DC 12V IN-CAR POWER SOURCE ....6

Page

DISPOSAL OF THE EXHAUSTED BATTERY .... 6

CHARGING METHOD....9

BEFORE USE 12

MAINTENANCE AND INSPECTION 12

STORAGE 13

SERVICE AND REPAIRS 13

PARTS LIST 36

TABLE DES MATIERES

Français

Page

INFORMATIONS IMPORTANTES DE SÉCURITÉ .... 14

SIGNIFICATION DES MOTS D'AVERTISSEMENT .... 14

SECURITE

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR LE CHARGEUR DE BATTERIE ..... 15

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DE LA BATTERIE ET DU CHARGEUR DE BATTERIE .... 16

PRÉCAUTIONS À RESPECTER LORS DE L'UTILISATION DU CHARGEUR DE BATTERIE AVEC UNE SOURCE D'ALIMENTATION 12 V CC EMBARQUÉE ... 17

Page

MISE AU REBUT D'UNE BATTERIE USÉE ..... 18

UTILISATION ET ENTRETIEN

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this battery charger.

Most accidents that result from battery charger operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the battery charger and in this Instruction Manual.

NEVER use this battery charger in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING: Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC3SML.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. To reduce risk of injury, charge HITACHI rechargeable battery type EBM315. Other type of batteries may burst causing personal injury and damage.
4. Do not expose battery charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
6. To reduce risk of damage to AC adapter or cigarette lighter and cord, pull by AC adapter or cigarette lighter when disconnecting battery charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.
   If extension cord must be used make sure:
   a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
   b. That extension cord is properly wired and in good electrical condition; and
   c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1 RECOMMENDED MINIMUM AWG SIZE FOR EXTENTION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or but less Length of Cord, Feet (Meter) greater than than 25 (7.5) 50 (15) 100 (30) 150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or AC adapter, cigarette lighter connector replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.
5. This battery charger might be attached to HITACHI battery operated tools as a standard accessory. In this case, please confirm Instruction Manual of the HITACHI battery operated tools before using the battery charger.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC3SML battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

REMEMBER: USE ONLY HITACHI BATTERY TYPE EBM315. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING: Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 50^ F ( 10^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use an engine generator or DC power to charge.

11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C).

12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

PRECAUTIONS WHEN USING THE BATTERY CHARGER WITH A DC 12V IN-CAR POWER SOURCE

1. Use the battery charger correctly.

Do not use the battery charger other than with a DC 12V in-car power source. The battery charger is solely for use on minus-grounded vehicles. Make sure that the minus pole of the car battery is connected to the car body.

1. Keep your attention focused on driving the car.

If you use the battery charger while driving, fasten the battery charger in place so that it does not move inadvertently and distract your attention from driving. Do not place the battery charger or battery under the driver's seat, irrespective of whether it is charging or not, as it may get under the brake pedal or the cable may get wrapped around the driver's feet and cause an accident.

1. Do not manipulate the battery charger or battery while driving as this may cause an accident.

2. Do not leave the battery charger or battery within reach of children as this may result in an accident.

3. Be use to use the cable provided.

Using a different cable could result in a fire or accident due to overheating.

1. Do not place the battery charger on a blanket-type car seat cover or car mat during charging as this may result in a fire or accident due to overheating.

2. Do no expose the battery charger to direct sunlight during charging as this may result in a fire.

3. Do not leave the vehicle unattended during charging.

DISPOSAL OF THE EXHAUSTED BATTERY

WARNING:

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

SAVE THESE INSTRUCTIONS AND

MAKE THEM AVAILABLE TO OTHER USERS

AND

OWNERS OF THIS TOOL!

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the battery charger.

NEVER operate, or attempt any maintenance on the battery charger unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own battery charger.

NAME OF PARTS

Fig. 1

SPECIFICATIONS

Input power source DC 12V
Charging time Approx. 60 minutes ...... EBM315
Charger	Charging voltage ...... DC 3.6 VCharging current ...... DC 1.5 A
Weight 0.4 lbs (0.2kg)

APPLICATIONS

For charging the HITACHI batteries type EBM315.

CHARGING METHOD

NOTE: Before plugging into the receptacle, make sure the following points.

○The power source voltage is stated on the nameplate.
○The cord is not damaged.

WARNING: Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Insert the charger connecting plug into the connecting socket of the charger. (Fig. 1)
2. Connect to the power source.

When using the AC adapter

Insert the AC adapter into the receptacle.

Black and white icon of a hand with a lightning bolt symbol, no text or numbers present

WARNING:

Do not use the electrical cord if damaged. Have it repaired immediately.

When using the cigarette lighter connecting plug

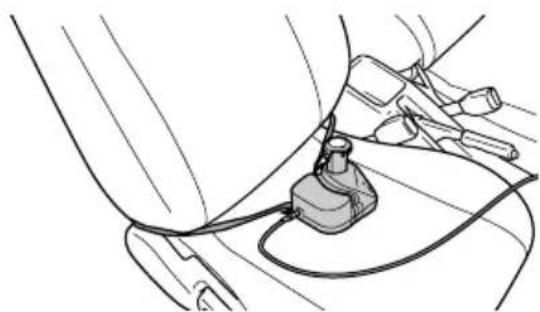

○Secure the battery charger in place in the car.

Use the strap supplied with the battery charger to fasten the battery charger in place and prevent it from moving inadvertently. (See Fig. 2)

WARNING: Do not place the battery charger or battery under the driver's seat.

Secure the battery charger in place to prevent it from moving inadvertently as this may lead to an accident.

Technical line drawing of a mechanical assembly or component (no visible text or symbols)

Line drawing of a car's seatbelt and wheel assembly (no text or symbols)

Fig. 2

Insert the cigarette lighter connecting plug into the cigarette lighter socket. If the plug is loose and falls out of the cigarette lighter socket, repair the socket. As the socket may be faulty, you are recommended to contact your local car dealer. Continued use of the socket may result in an accident due to overheating.

1. Insert the battery to the battery charger. Insert the battery into the battery charger as shown in Fig. 3.

4. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light on.

NOTE: If the pilot lamp does not light, pull out the plug from the receptacle and check if the battery is properly mounted.

○When the battery is fully charged, the pilot lamp will go out.

NOTE: The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low.

When the pilot lamp does not go off even if more than four hour has passed after start of the charging, stop the charging and contact your HITACHI AUTHORIZED SERVICE CENTER.

Fig. 3

○Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 2

Rechargeable batteries	Temperature at which the battery can be recharged
EBM315	32°F — 122°F (0°C — 50°C)

○Regarding recharging time

Table 3 shows the recharging time required according to the type of battery.

Table 3 Recharging time (approx. min.) at 20°C

Battery voltage (V)	Battery capacity (Ah)
	1.5 Ah
3.6 EBM	315 60 min.

NOTE: The recharging time may vary according to the ambient temperature and the power supply voltage.

1. Disconnect battery charger from the receptacle or cigarette lighter socket.

CAUTION:

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

Do not leave the battery charger or battery in the car.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer.

○Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

○Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION:

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

• If the battery is recharged when it is warm due to battery use or exposure to sunlight, the pilot lamp may not light.
  The battery will not be recharged. In such a case, let the battery cool before charging.
• If the battery charger does not work while the battery is mounted correctly, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

MAINTENANCE AND INSPECTION

⚠️ CAUTION: Pull out battery before doing any inspection or maintenance.

1. Check the Screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

⚠️ CAUTION: Using this battery charger with loosened screws is extremely dangerous.

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Fuse replacement of cigarette lighter connecting plug

CAUTION:

For continued protection against risk of fire, replace only with same type and ratings of fuse in cigarette lighter connecting plug.

250V, 6A, DC

1. Service parts list

CAUTION:

Repair, modification and inspection of Hitachi Power Tools must be carried out by an Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

STORAGE

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

SERVICE AND REPAIRS

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

NOTE: Specifications are subject to change without any obligation on the part of the HITACHI.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Black and white illustration of a hand with a lightning bolt symbol, no text or labels present

⚠ AVERTISSEMENT:

Technical line drawing of a car interior showing steering wheel, dashboard, and seatbelt (no text or symbols)

Line drawing of a car's seatbelt with a cable and plug inserted (no text or symbols)

Fig. 2

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

ADVERTENCIA:

Technical line drawing of a car interior showing dashboard, steering wheel, and dashboard lift (no text or symbols)

Line drawing of a car's seatbelt with a cable and plug inserted (no text or symbols)

Fig. 2

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

Please contact HITACHI KOKI U.S.A. LTD. at 1-800-59-TOOLS (toll free), or HITACHI AUTHORIZED POWER TOOL SERVICE CENTER recarding COLLECTION.

Pour le RAMASSAGE, contacter HITACHI KOKI U.S.A. LTD. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRES-VENTE D'OUTILS ELECTRIQUE AGREE PAR HITACHI.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Co.

450 Export Blvd. Unit B,

Mississauga ON L5T 2A4
