| Product Type | 4-Channel Amplified Receiver |
| Brand | Rockford Fosgate |
| Model | M400-4D |
| Channels | 4 |
| Output Power (RMS) | 50 W x 4 (4 Ω), 100 W x 4 (2 Ω), 200 W x 2 (4 Ω bridged) |
| Frequency Response | 20 Hz - 20 kHz |
| Signal-to-Noise Ratio | > 100 dB |
| Total Harmonic Distortion | < 0.05 % |
| Input Impedance | 20 kΩ |
| Supply Voltage | 10 - 16 V DC |
| Dimensions (L x W x H) | 368 x 53 x 206 mm |
| Weight | 2.45 kg |
| Key Features | C.L.E.A.N. (clipping limiter), differential inputs, wired remote, variable crossover |
| Maintenance and Cleaning | Clean with a soft, dry cloth. Do not use solvents. |
| Safety | Protection against short circuits, overheating, undervoltage and overvoltage |
| Spare Parts | Replacement fuses, wired remote, mounting kit (not included) |
| Repairability | Repairs must be carried out by a qualified technician. Opening the device voids the warranty. |
| General Information | Class D amplifier for marine and automotive applications |
Frequently Asked Questions - M400-4D Rockford Fosgate
User questions about M400-4D Rockford Fosgate
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Receiver in PDF format for free! Find your manual M400-4D - Rockford Fosgate and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M400-4D by Rockford Fosgate.
USER MANUAL M400-4D Rockford Fosgate
Installation & Operation
Congratulations on your purchase of the world's finest brand of car audio amplifiers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.
Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts to jackets.
To get a free brochure on Rockford Fosgate products and Rockford accessories, visit our web site at: www.rockfordfosgate.com or, in the U.S. call 1-800-669-9899 or FAX 1-800-398-3985. For all other countries, call +001-480-967-3565 or FAX +001-480-966-3983.
PRACTICE SAFE SOUND™
Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels over 130dB. Use common sense and practice safe sound.
If, after reading your manual, you still have questions regarding this product, we recommend that you your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.
The serial number can be found on the outside of the box. Please record it in the space provided by your permanent record. This will serve as verification of your factory warranty and may become useful recovering your unit if it is ever stolen.
Serial Number: ____
Model Number: ____
TABLE OF CONTENTS
| Introduction | Operation. . . 2 |
| Safety Instructions | Adjusting Gain |
| Design Features | Adjusting Crossover Frequency |
| Installation. | 2/4 ChannelSwitch |
| Installation Considerations | Punch EQ. |
| Mounting Locations. | Troubleshooting |
| Battery and Charging | Specifications |
| Wiring the System. | Limited Warranty Information |
NOTE: Review each section for more detailed information.
GETTING STARTED
Welcome to Rockford Fosgate! This manual is designed to provide information for the owner, salesperson and installer. For those of you who want quick information on how to install this product, please turn to the Installation Section of this manual. Other information can be located by using the Table of Contents.We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice.
SAFETY INSTRUCTIONS
WARNING
This symbol with “WARNING” is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.
CAUTION
This symbol with “CAUTION” is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.
CAUTION: To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.
CAUTIONIf you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
CAUTION Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.
CONTENTS OF CARTON
A Marine M400-4D or M600-4D 4 Channel Amplifier Installation & Operation Manual
Mounting Hardware Kit

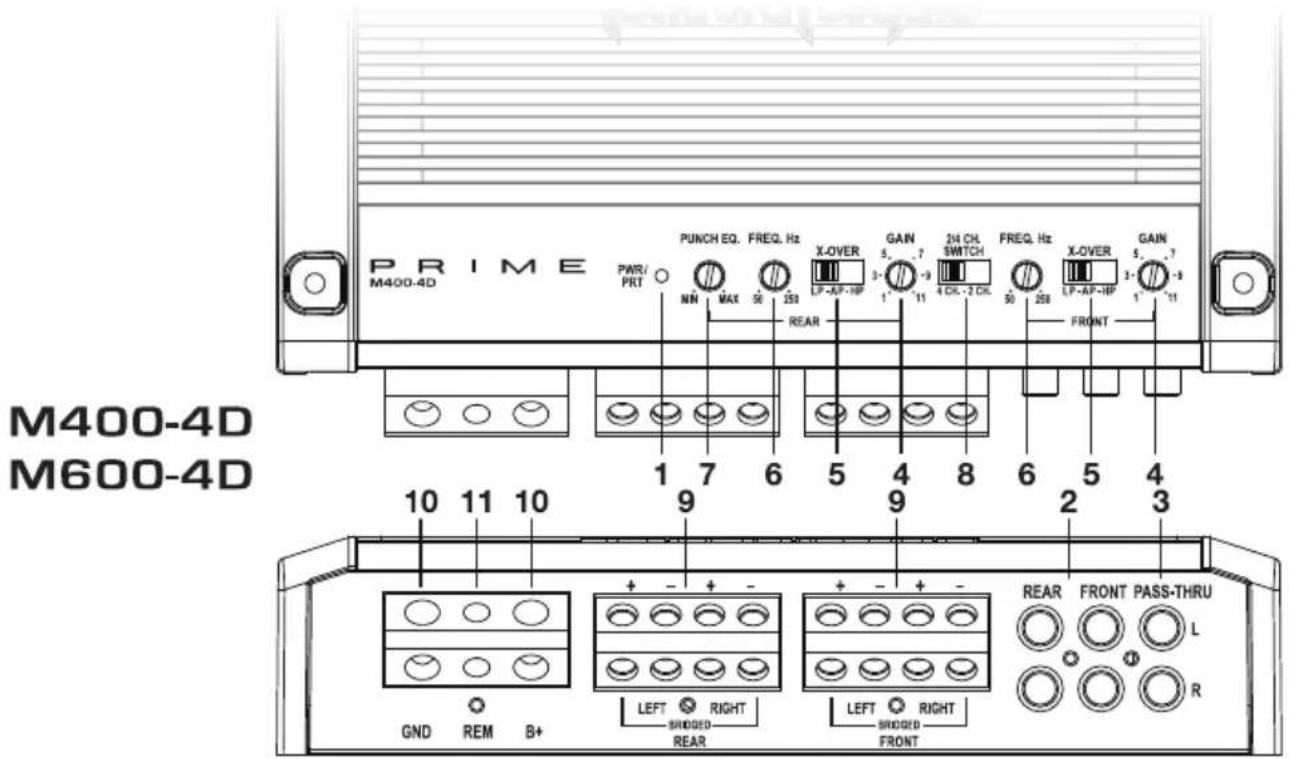

The hardware kit included with each amplifier contains the mounting hardware necessary to secure the amplifier to the vehicle.
- Power/Protect LED – Power LED illuminates blue when the unit is turned on. Protect LED illuminates red if a short circuit or to low of an impedance is detected at the speaker connection: amplifier will automatically shut down if this occurs.
- RCA Input Jacks – The industry standard RCA jacks provide an easy connection for signal level input. They are nickel-plated to resist the signal degradation caused by corrosion.
- RCA Pass-Thru Jacks – This Pass-Thru provides a convenient source for daisy-chaining an additional amplifier without running an extra set of RCA cables from the front of the vehicle to the rear an location.
- Gain Control – The input gain control is preset to match the output of most source units.
- Crossover Switch – Selectable switch for High-Pass (HP), All Pass (AP), or Low-Pass (LP) operation.
- Variable Crossover – Is a built-in 12dB/octave Butterworth filter with a crossover point variable from 50Hz to 250Hz.
- Punch EQ – A Gyrator based Punch EQ that eliminates frequency shift with boost. This works along with the crossover switch on the amplifier. When set to Low-Pass (LP) operation, this control is a band adjustment variable from 0dB to +18dB @ 45Hz.
- 2/4 Channel Switch – Setting this switch to the 2CH.position, switches the inputs to a 2-channel mode, allowing connection to only the front inputs with a 4-channel output.
- Speaker Terminals – The heavy duty, nickel-plated set-screw wire connectors (+ and -) will accommodate 8 AWG.
- Power Terminals – The power and ground are nickel-plated set-screw wire connectors and will accommodate 4 AWG.
- REM Terminal – The nickel-plated set-screw wire connector and will accommodate 8 AWG. This terminal is used to remotely turn-on and turn-off the amplifier when +12V DC is applied.
INSTALLATION CONSIDERATIONS
The following is a list of tools needed for installation:
Fuse-holder and fuse.
(See specifications for fuse rating)
Volt/Ohm Meter
Wire strippers
Wire crimpers
Wire cutters
2 Phillips screwdriver
Battery post wrench
Hand held drill w/assorted bits
Assorted connectors
Adequate Length—Red Power Wire
Adequate Length—Remote Turn-on Wire
Adequate Length—Black Grounding Wire
This section focuses on some of the vehicle considerations for installing your new amplifier.
Pre-planning your system layout and best wiring routes will save installation time. When deciding on the layout of your new system, be sure that each component will be easily accessible for making adjustments
CAUTION: If you feel unsure about installing this system yourself, have it installed by a qualified technician.
CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.
Before beginning any installation, follow these simple rules:
- Be sure to carefully read and understand the instructions before attempting to install the unit.
- For safety, disconnect the negative lead from the battery prior to beginning the installation.
- For easier assembly, we suggest you run all wires prior to mounting your unit in place.
- Route all of the RCA cables close together and away from any high current wires.
- Use high quality connectors for a reliable installation and to minimize signal or power loss.
- Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic line vacuum lines or electrical wiring when working on any vehicle.
- Never run wires underneath the vehicle. Running the wires inside the vehicle provides the best protection.
- Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.
- ALWAYS protect the battery and electrical system from damage with proper fusing. Install the appropriate fuse holder and fuse on the +12V power wire within 18" (45.7 cm) of the battery terminal.
- When grounding to the chassis of the vehicle, scrape all paint from the metal to ensure a good, clear ground connection. Grounding connections should be as short as possible and always be connected to metal that is welded to the main body, or chassis, of the vehicle. Seatbelt bolts should never be used for connecting to ground.
MOUNTING LOCATIONS
Engine Compartment
Never mount this unit in the engine compartment. Mounting the unit in the engine compartment will void your warranty.
Trunk Mounting
Mounting the amplifier vertically or inverted will provide adequate cooling of the amplifier.
Mounting the amplifier on the floor of the trunk will provide the best cooling of the amplifier.
Passenger Compartment Mounting
Mounting the amplifier in the passenger compartment will work as long as you provide a sufficient amount of air for the amplifier to cool itself. If you are going to mount the amplifier under the seat of the v you must have at least 1" (2.54cm) of air gap around the amplifier's heatsink.
Mounting the amplifier with less than 1" (2.54cm) of air gap around the amplifier's heatsink in the passenger compartment will not provide proper cooling and will severely affect the performance of the amplifier and is strongly not recommended.
BATTERY AND CHARGING
Amplifiers will put an increased load on the vehicle's battery and charging system. We recommend checking your alternator and battery condition to ensure that the electrical system has enough capacity handle the increased load of your stereo system. Stock electrical systems which are in good condition should be able to handle the extra load of any Prime Series amplifier without problems, although battery and alternator life can be reduced slightly. To maximize the performance of your amplifier, we suggest to use of a heavy duty battery and an energy storage capacitor.

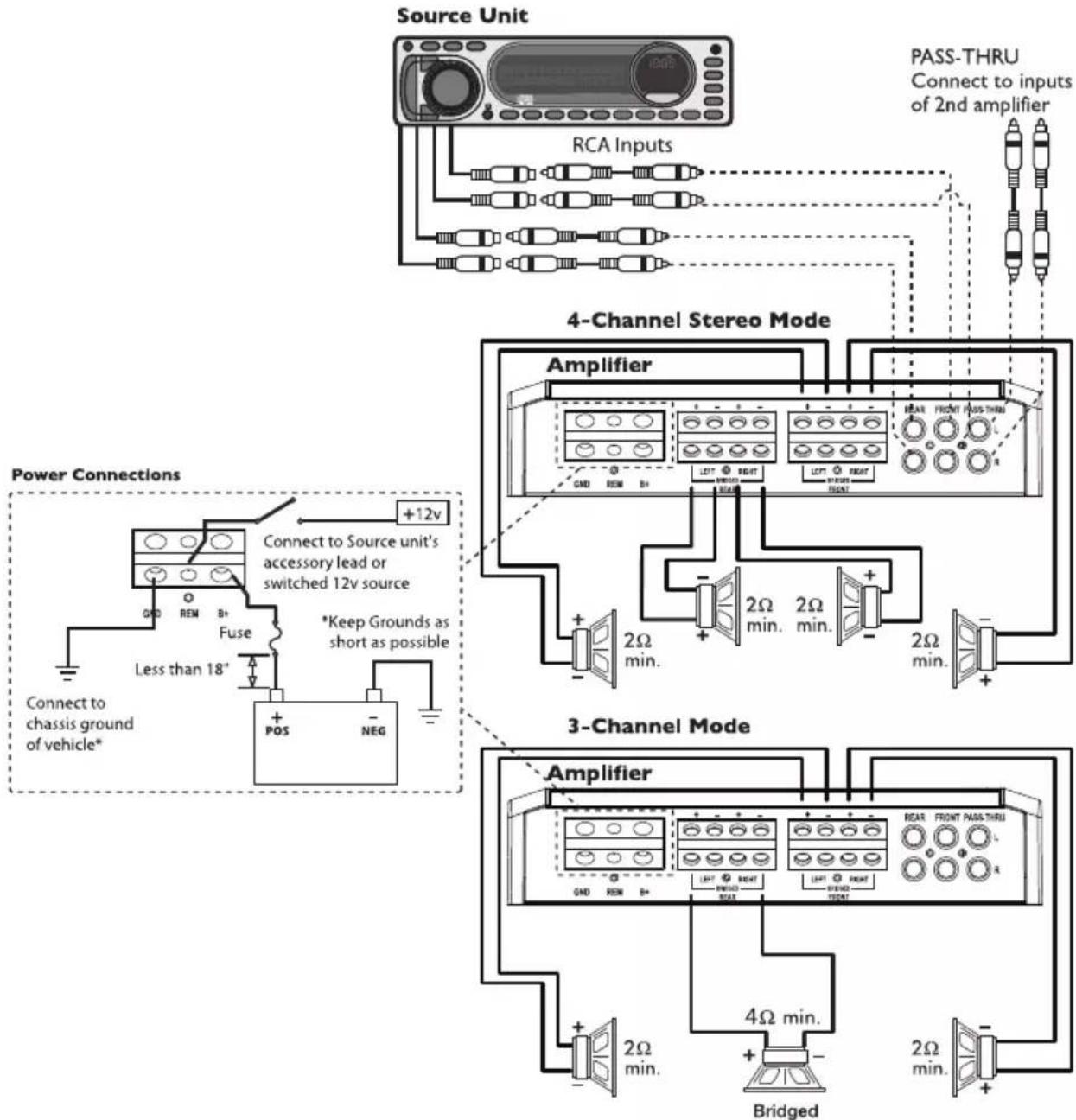

WIRING THE SYSTEM
CAUTION: If you do not feel comfortable with wiring your new unit, please see you local Authorized Rockford Fosgate Dealer for installation.
CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.
CAUTION: Avoid running power wires near the low level input cables, antenna, pow leads, sensitive equipment or harnesses. The power wires carry substantial current and could induce noise into the audio system.
I. Plan the wire routing. Keep RCA cables close together but isolated from the amplifier's power cable and any high power auto accessories, especially electric motors. This is done to prevent coupling the noise from radiated electrical fields into the audio signal. When feeding the wires through the firewall or any metal barrier, protect them with plastic or rubber grommets to prevent short circuits. Leave the wires long at this point to adjust for a precise fit at a later time.
2. Prepare the RED wire (power cable) for attachment to the amplifier by stripping 3/8" of insulation from the end of the wire. Insert the bared wire into the B+ terminal and tighten the set screw to secure the cable in place.
NOTE: The B+ cable MUST be fused 18" or less from the vehicle's battery. Install the fuseholder under the hood and ensure connections are water tight.
- Trim the RED wire (power cable) within 18" of the battery and splice in a inline fuse holder (not supplied). See Specifications for the rating of the fuse to be used. DO NOT install the fuse this time.
- Strip 1/2" from the battery end of the power cable and crimp an appropriate size ring terminal to cable. Use the ring terminal to connect to the battery positive terminal.
- Prepare the BLACK wire (Ground cable) for attachment to the amplifier by stripping 5/8" of insulation from the end of the wire. Insert the bare wire into the GROUND terminal and tighten set screw to secure the cable in place. Prepare the chassis ground by scraping any paint from the metal surface and thoroughly clean the area of all dirt and grease. Strip the other end of the wire attach a ring connector. Fasten the cable to the chassis using a non-anodized screw and a star wa
NOTE: Keep the length of the BLACK wire (Ground) as short as possible. Always less than 30"(76.2cm).
- Prepare the Remote turn-on wire for attachment to the amplifier by stripping 5/8" of insulation from the end of the wire. Insert the bared wire into the REMOTE terminal and tighten the set so to secure the wire in place. Connect the other end of the Remote wire to a switched 12 volt p source. The switched voltage is usually taken from the source unit's remote amp on lead. If the source unit does not have this output available, the recommended solution is to wire a mechanical switch line with a 12 volt source to activate the amplifier.
- Securely mount the amplifier to the vehicle or amp rack. Be careful not to mount the amplifier on
cardboard or plastic panels. Doing so may enable the screws to pull out from the panel due to road vibration or sudden vehicle stops.
- Connect from source signal by plugging the RCA cables into the input jacks at the amplifier.
NOTE: All "ACTIVE" inputs must have RCA jacks connected. Switch in 2CH. position, "ACTIVE" - Front channel inputs only. Switch in 4CH. position, "ACTIVE" - All Front and Rear channel inputs. When connecting to the 4-Channel inputs, be sure to route both front and rear RCA cables tightly together.
CAUTION: Always ensure power is off or disconnected at the amplifier before connecting RCA cables. Failure to do so may cause damage to the amplifier and/or connected components.
-
Connect the speakers. Strip the speaker wires 1/2" and insert into the speaker terminal and tighten the set screw to secure into place. Be sure to maintain proper speaker polarity. DO NOT chassis ground any of the speaker leads as unstable operation may result.
-
Perform a final check of the completed system wiring to ensure that all connections are accurate. Check all power and ground connections for frayed wires and loose connections which could cause problems. Install inline fuse near battery connection.
NOTE: Follow the diagrams for proper signal polarity.
CAUTION: This amplifier is not recommended for impedance loads below 4-Ohm
ADJUSTING GAIN
I. Turn amplifier gains to minimum (counter-clockwise).
2. Turn the source unit volume up to 7/8 maximum (or when distortion is just inaudible).
3. Slowly increase amplifier gain control until adequate volume is achieved.
NOTE: Best signal to noise and dynamic range are realized with gain set to minimum. For a more in depth setting procedure, contact Rockford Technical Support.
CAUTION: Avoid setting amplifier gain high as noise and distortion will greatly increase
Do the following individually for each channel.
Placing the crossover switch in the HP position sets the amplifier to the High Pass enabling frequencies above the cut-off point to pass, adjustable between 50-250Hz.
Placing the crossover switch in the AP position sets the amplifier to the All Pass mode, preventing any crossover adjustment, allowing all frequencies to pass.
50 250
Placing the crossover switch in the LP position sets the amplifier to the Low Pass enabling frequencies below the cut-off point to pass, adjustable between 50-250Hz.
MODE
Turn the crossover adjustment knob all the way down. With the system playing, tu crossover adjustment knob up slowly until the desired crossover point is achieved.
LP-AP-HP
2/4 CHANNEL SWITCH
Setting this switch to the 2CH. position, switches the inputs to a 2-channel mode, allowing connection to only the front inputs with a 4-channel output.
Output controls function the same as if the amplifier was in 4-channel mode.
All "ACTIVE" inputs must have RCA jacks connected.
Switch in 2CH. position, "ACTIVE" - Front channel inputs only.
Switch in 4CH. position, "ACTIVE" - All Front and Rear channel inputs.
flowing 2/4 CH.
SWITCH
4 CH. - 2 CH.
NOTE: When connecting to the 4-Channel inputs, be sure to route both front and rear RCA cables tightly together.

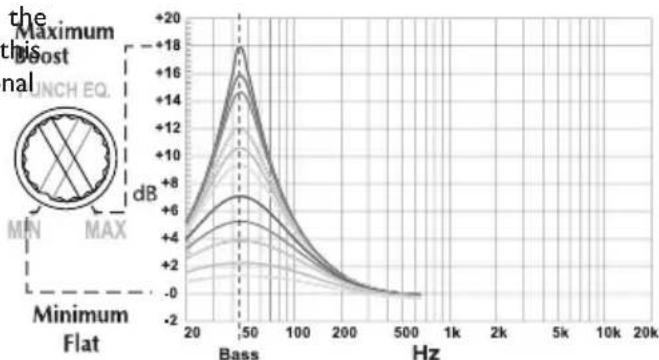

PUNCH EQ
This works along with the crossover switch on the amplifier. When set to Low-Pass (LP) operation, this is a variable Bass Boost. Set this to your personal preference while listening to the system.
CAUTION: Overexcursion and subsequent damage may occur at high levels of boost.
line
| Frequency (Hz) | Maximum Host Total (dB) | | -------------- | ------------------------ | | 20 | +4 | | 50 | +18 | | 100 | +6 | | 200 | +2 | | 500 | -2 | | 1k | -4 | | 2k | -6 | | 5k | -8 | | 10k | -10 | | 20k | -12 | | 500 | -14 | | 1k | -16 | | 2k | -18 | | 5k | -20 | | 10k | -22 | | 20k | -24 |NOTE: If you are having problems after installation follow the Troubleshooting procedures below.
Procedure I: Check Amplifier for proper connections.
Verify that POWER light is on. If POWER light is on skip to Step 3, if not contin
I. Check in-line fuse on battery positive cable. Replace if necessary.
2. Check fuse(s) on amplifier. Replace if necessary.
3. Verify that Ground connection is connected to clean metal on the vehicle's chassis. Repair/replace if necessary.
4. Verify there is 9 to 14.4 Volts present at the positive battery and remote turn-on cable. Verify quality connections for both cables at amplifier, stereo, and battery/fuseholder. Repair/replace if necessary.
Procedure 2: Protect light is on.
- If the Protect light is on, this is a sign of a possible short in the speaker connections. Check for proper speaker connections and use a volt/ohm meter to check for possible shorts in the speaker wiring. Too low of a speaker impedance may also cause Protect to light.
Procedure 3: Check Amplifier for audio output.
- Verify good RCA input connections at stereo and amplifier. Check entire length of cables for kinks, splices, etc. Test RCA inputs for AC volts with stereo on. Repair/replace if necessary.
- Disconnect RCA input from amplifier. Connect RCA input from test stereo directly to amplifier input.
Procedure 4: Check Amplifier if you experience Turn-on Pop.
I. Disconnect input signal to amplifier and turn amplifier on and off.
2. If the noise is eliminated, connect the REMOTE lead of amplifier to source unit with a delay turn-on module.
OR
I. Use a different 12Volt source for REMOTE lead of amplifier.
Procedure 5: Check Amplifier if you experience excess Engine Noise.
I. Route all signal carrying wires (RCA, Speaker cables) away from power and ground wires.
OR
- Bypass any and all electrical components between the stereo and the amplifier(s). Connect stereo directly to input of amplifier. If noise goes away the unit being bypassed is the cause of the noise.
OR
- Remove existing ground wires for all electrical components. Reground wires to different locations. Verify that grounding location is clean, shiny metal free of paint, rust etc.
OR
- Add secondary ground cable from negative battery terminal to the chassis metal or engine block of vehicle.
OR
- Have alternator and battery load tested by your mechanic. Verify good working order of vehicle electrical system including distributor, spark plugs, spark plug wires, voltage regulator etc.
MODEL- MARINE M400-4D M600-4D
Continuous Power Rating (RMS) - Measured at 14.4 Battery Volts\*
4ΩLoad Per Channel 75 Watts x 4 100 Watts x 4
2ΩLoad Per Channel 100 Watts x 4 150 Watts x 4
4ΩLoad Bridged 200 Watts x 2 300 Watts x 2
Dimensions: Height 1.97" (5.00cm) 1.97" (5.00cm)
Width 6.77" (17.20cm) 6.77" (17.20cm)
Length 9.10" (23.10cm) 11.06" (28.10cm)
Battery Fuse Rating (Amp) External (Not Supplied) 40A 60A
"A" Weighted Signal to Noise Ratio (CEA-2006)
Referenced to 1 Watt into 4 ohms ≥70 dB
"A" Weighted Signal to Noise Ratio
Referenced to rated power into 4 ohms ≥90 dB
Crossover Slope 12dB/octave Butterworth
Crossover Frequency Variable from 50Hz to 250Hz
Frequency Response 20Hz to 20kHz ±1dB
Signal Voltage Adjustment Range Variable from 100mV to 8V (RCA Input)
Protection Short circuit protection shut downs the amplifier in case of very low impedance or shorted speaker wires.
Punch EQ Variable from 0dB to +18dB @ 45Hz
Input Impedance 20K ohms
Operating Voltage 9 to 16 Volts DC
Balanced Inputs No
Damping Factor >200
THD+N (Total Harmonic Distortion + Noise) < 1.0% @ 4 ohm
Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:
Length of Warranty
Speakers, Signal Processors, PRIME and PUNCH Amplifiers - I POWER Amplifiers - 2 Years
Any Factory Refurbished Product - 90 days (receipt required)
What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country is covered only by that country's Distributor and not by Rockford Corporation.
Who is Covered
This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, d name, product purchased and date of purchase.
Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.
What is Not Covered
I. Damage caused by accident, abuse, improper operations, water, theft, shipping.
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer.
Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantability are limited duration to the period of the express warranty set forth above. Some states do not allow on the length of an implied warranty, so this limitation may not apply. No person is authorized assume for Rockford Fosgate any other liability in connection with the sale of the product
How to Obtain Service
Contact the Authorized Rockford Fosgate Dealer you purchased this product from.
If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You mu obtain an RA# (Return Authorization number) to return any product to Rockford
Fosgate.You are responsible for shipment of product to Rockford.
EU Warranty
This product meets the current EU warranty requirements, see your Authorized dealer for details.
Cher client,
www.rockfordfosgate.com/rftech
Rockford Fosgate
Rockford Corporation
600 South Rockford Drive
Tempe, Arizona 85281 U.S.A.
In U.S.A., (480) 967-3565 - Customer Service I-800-669-9899
www.rockfordfosgate.com
- PRACTICE SAFE SOUND™
- GETTING STARTED
- SAFETY INSTRUCTIONS
- WARNING
- CAUTION
- CONTENTS OF CARTON
- INSTALLATION CONSIDERATIONS
- Phillips screwdriver
- MOUNTING LOCATIONS
- Engine Compartment
- Trunk Mounting
- Passenger Compartment Mounting
- BATTERY AND CHARGING
- WIRING THE SYSTEM
- ADJUSTING GAIN
- 2/4 CHANNEL SWITCH
- PUNCH EQ
- Procedure I: Check Amplifier for proper connections.
- Procedure 2: Protect light is on.
- Procedure 3: Check Amplifier for audio output.
- Procedure 4: Check Amplifier if you experience Turn-on Pop.
- OR
- Procedure 5: Check Amplifier if you experience excess Engine Noise.
- MODEL- MARINE M400-4D M600-4D
- Continuous Power Rating (RMS) - Measured at 14.4 Battery Volts\*
- Length of Warranty
- What is Covered
- Who is Covered
- What is Not Covered
- Limit on Implied Warranties
- How to Obtain Service
- EU Warranty
Brand : Rockford Fosgate
Model : M400-4D
Category : Receiver
