Product Type	2-Way Component Speaker System
Brand	Rockford Fosgate
Model	HD14RGSG-STAGE2
Woofer Size	6.5 inches
Tweeter Size	1 inch
Peak Power Handling	200 Watts
RMS Power Handling	100 Watts
Sensitivity	90 dB @ 1W/1m
Impedance	4 Ohms
Frequency Response	40 Hz - 20 kHz
Crossver	External passive crossover (included)
Mounting Depth (Woofer)	2.5 inches
Weight (Pair)	5.5 lbs
Dimensions (Each Speaker)	7.5 x 7.5 x 3.5 inches
Material	Polypropylene cone, silk dome tweeter
Power Supply	Passive – requires external amplifier
Maintenance	Clean with a dry, soft cloth
Safety	Avoid exposure to moisture or direct sunlight
Spare Parts	Available through authorized Rockford Fosgate dealers
Repairability	Professional installation and service recommended
General Information	Designed for car audio systems, compatible with 4-channel amplifiers

Frequently Asked Questions - HD14RGSG-STAGE2 Rockford Fosgate

What is the RMS power handling of the HD14RGSG-STAGE2?

The RMS power handling is 100 Watts per channel, suitable for most car audio amplifiers.

Can I install these speakers in my car doors?

Yes, the 6.5-inch woofers fit most standard car door locations. Check mounting depth (2.5 inches) to ensure compatibility.

Do these speakers come with mounting hardware?

Yes, the system includes mounting brackets, screws, and wire connectors for installation.

What amplifier settings should I use?

Set the amplifier to 4 Ohms stereo mode. Adjust the high-pass filter around 80 Hz for optimal performance.

How do I connect the external crossover?

Connect the amplifier output to the crossover input, then connect woofer and tweeter outputs. Refer to the included wiring diagram.

What is the sensitivity rating?

The sensitivity is 90 dB @ 1W/1m, providing good efficiency with most amplifiers.

Are these speakers weather-resistant?

They are not fully waterproof. Avoid exposure to direct water. Use weatherproofing baffles if installing in doors.

What is the recommended break-in period?

Play at moderate volume for 10-20 hours to allow the suspension to loosen and achieve optimal sound quality.

Can I use these speakers in a home audio system?

They are optimized for car audio but can be used in home setups with a 12V power supply and suitable amplifier.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com or the Rockford Fosgate website.

USER MANUAL HD14RGSG-STAGE2 Rockford Fosgate

Date of Purchase: ____

Dear Customer,

Congratulations on your purchase of the world's finest brand of audio products. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts to hats.

Visit our web site for the latest information on all Rockford products;

www.rockfordfosgate.com

or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

Table of Content

2 Introduction

3-4 Contents

5 Warranty

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

Safety

This symbol with "WARNING" is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

WARNING

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

CAUTION

• To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.
• If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

Installation Considerations

This section focuses on some considerations for installing your motorcycle amplifier installation kit. This manual will illustrate the installation of two different fairing styles offered by Harley-Davidson ^® from the production years ranging from 1998 to 2013. (Ultra Classic ^® , Electra Glide ^® , Street Glide ^® , Tri Glide ^® , Road Glide ^® , Road Glide Ultra ^® and CVO ^TM .)

If you feel unsure about installing this system yourself, have it installed by a qualified technician.

Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Before beginning any installation, follow these simple rules:

• Be sure to carefully read and understand the instructions before attempting to install this motorcycle audio kit.
• Consult your motorcycle's service manual for model specific information. Models may differ from year to year depending on factory options and aftermarket accessories added.
• This motorcycle amplifier installation kit is specifically designed to work with Rockford Fosgate's POWER and PUNCH® compact chassis amplifiers in both 2 or 4-channel configurations.
• With the addition of an amplifier, be sure that your current charging system is in proper working order.
• Utilize a blanket or fender cover to protect the front fender from tools or any other items that may be accidentally dropped while removing the fairing.
• Visit rockfordfosgate.com for more comprehensive installation videos and product information.

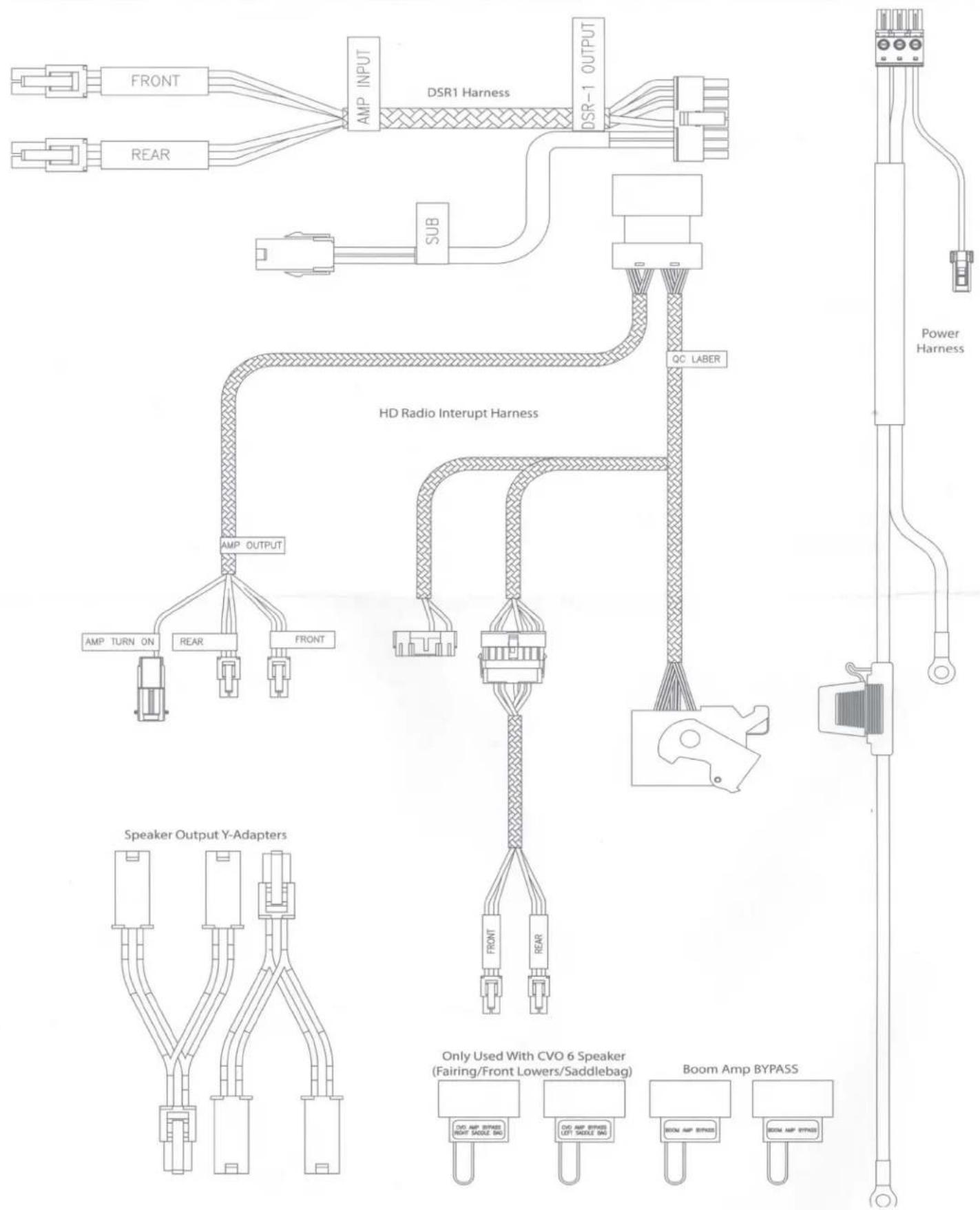

Contents

• (1)Power Harness
• (1)HD Radio Interrupt Harness
• (2) Speaker Output Y-Adapter
• (2) Boom amp Bypass Harness
• (1) CVO 6 Speaker bypass (left)
• (1) CVO 6 Speaker bypass (right)
• (8) Wire Zip Tie Wraps
• (4) Amp Screws

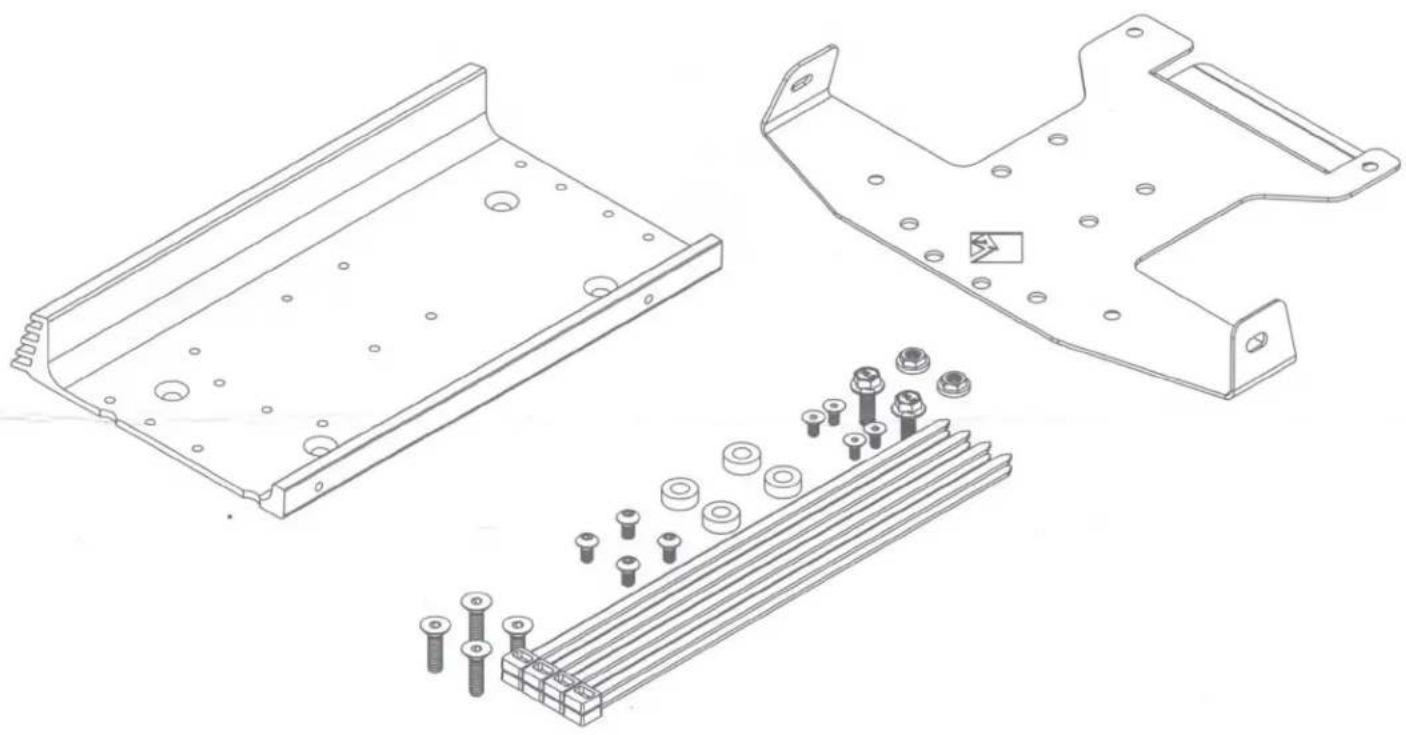

• (1) Road Glide® Amp Mounting Brackets
• () Road Glide® Amp Bracket Bolts
• (4) Road Glide® Heat Sink Screws
• (4) Street Glide® Heat Sink Screws
• (4) Street Glide® Heat Sink Spacers
(1) Amp Heat Sink

Technical line drawing of a mechanical housing assembly with exploded view and mounting holes (no text or symbols)

Technical line drawing of a metal bracket with mounting feet and mounting holes (no text or symbols)

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

POWER Amplifiers – 2 Years

BMW® Direct Fit Speakers – 2 Years

All other products - 1 Year

Any Factory Refurbished Product - 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft, shipping.
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Installation assistance available at:

RFTECH

www.rockfordfosgate.com/rftech

POWER

Serial Number: Date of Purchase:

Dear Customer,

Congratulations on your purchase of the world's finest brand of audio products. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image, order your Rockford accessories, which include everything from T-shirts to hats.

Visit our web site for the latest information on all Rockford products;

www.rockfordfosgate.com

or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

Table of Contents

2 Introduction

3-6 Specifications

7 Installation Considerations

8-11 Installation

12 Français

13 Español

14 Deutsch

15 Italiano

16 Warranty

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

PRATIQUEZ UNE ÉCOUTE SANS RISQUES

This symbol with “WARNING” is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

WARNING

CAUTION

• To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.
• If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Model	TMS65
Nominal Diameter - inch (mm)	6.5(165)
Description 2-Way
Nominal Impedance (Ohms)	4Ω
Frequency Response (Hz)	65-20kHz
Voice Coil Diameter - inch (mm)	1.4(35.6)
Power Handling - Watts (RMS/Peak)	75/150
Fs - Free Air Resonance (Hz)	86.5
Qts	0.52
Vas - cu. ft. (Liter)	0.198(5.6)
Sensitivity (1W/1M)	91dB
Sensitivity (2.83V/1M)	94dB
Xmax - inch (mm)	0.19(3.0)
Mounting Diameter	5.0(128)
Mounting Depth	2.1(53)
Grille/Trim Ring YES

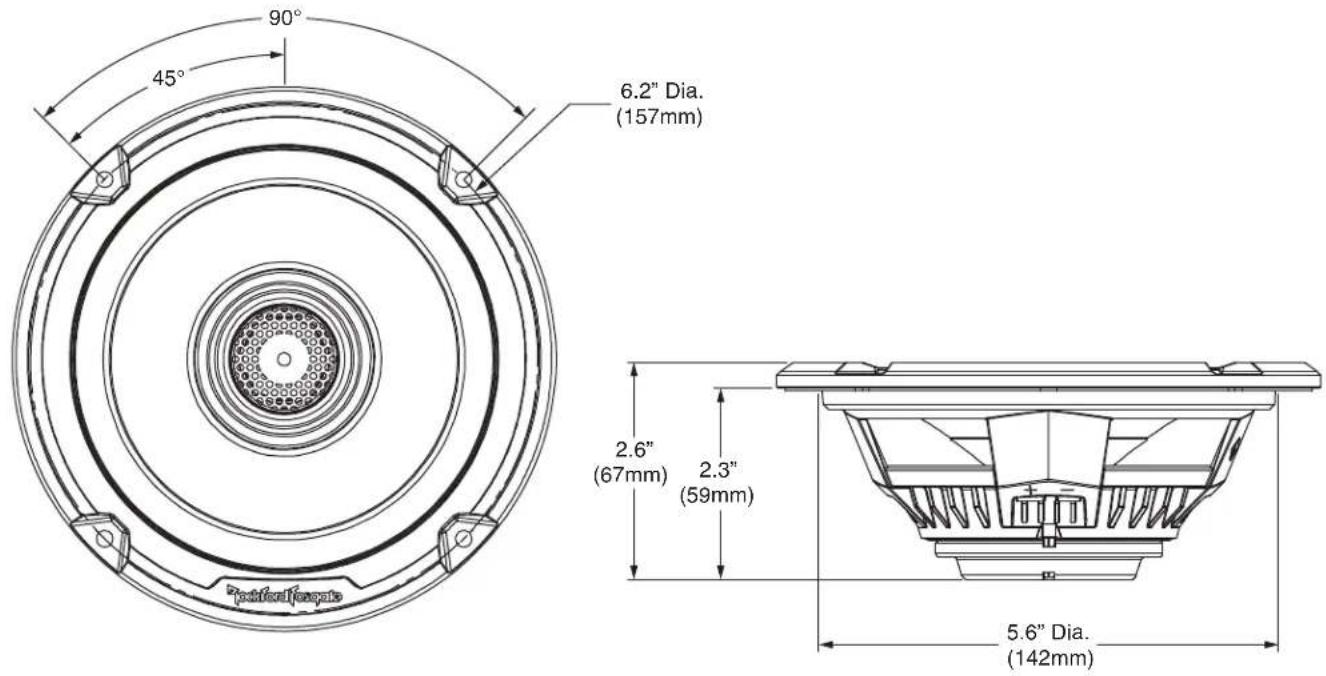

See page 4-6 for additional dimensions

CEA 2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous demand, not instantaneous power handling that over time can damage voice coils.

VERIFIED WITH KLIPPEL

To adorn the 'Verified with Klippel' mark, the qualifying company's loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test. Rockford Fosgate has made the investment in Klippel to deliver the best possible speakers and subwoofers to their customers.

TMS65

Circular patterned object with repeating geometric shapes and a small dark object at the bottom (no text or symbols)

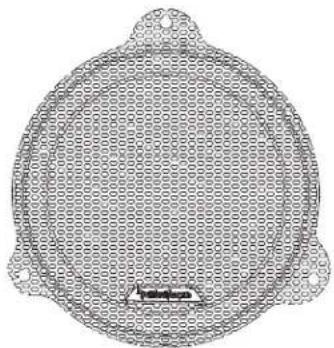

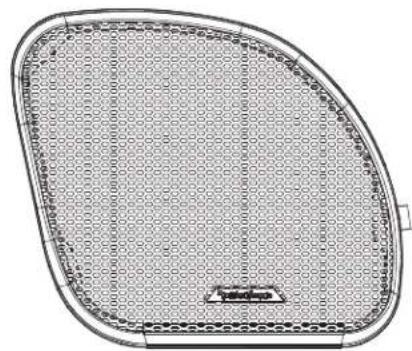

2014 & Up Street Guide® Grilles Included 2015 & Up Road Glide

Technical line drawing of a curved mechanical component with internal grid pattern (no text or symbols)

® Grilles Included

Circular patterned object with repeating geometric motifs, no visible text or symbols

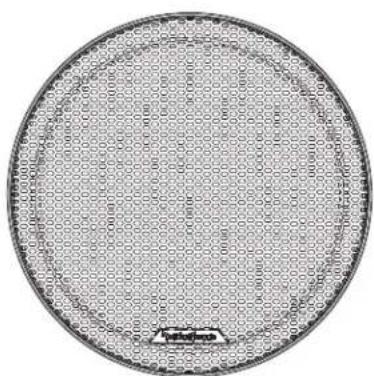

2014 & Up Tour Pak Grilles Included

Contents

• (1) Pair of 2-Way Speakers
• (1) Pair of 2015 & Up Road Glide Grilles
• (1) Pair of 2014 & Up Street Glide Grilles

• (1) Pair of 2014 & Up Tour-Pak Grilles
• Installation & Operation Manual

Installation Tools

The following is a list of suggested tools needed for installation:

• Plastic Trim Panel Pry Tool
• Allen Wrench - 3/16", 5/32"
• Torx - T10, T25, T27

Installation Considerations

This section focuses on some considerations for installing your motorcycle replacement speakers. This manual will illustrate the installation of two different fairing styles and Tour-Pak offered by Harley-Davidson® from the production years ranging from 2014 and Up. (Ultra Classic®, Electra Glide®, Street Glide®, Tri Glide®, Road Glide® and Road Glide Ultra®.)

If you feel unsure about installing this system yourself, have it installed by a qualified technician.

CAUTION

Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CAUTION

Before beginning any installation, follow these simple rules:

• Be sure to carefully read and understand the instructions before attempting to install these motorcycle speakers.
• Consult your motorcycle's service manual for model specific information. Models may differ from year to year depending on factory options and aftermarket accessories added.
• These motorcycle speakers are a complete replacement to the factory (OEM) speaker setup.
• With the addition of an amplifier, be sure that your current charging system is in proper working order.
• Utilize a blanket or fender cover to protect the front fender from tools or any other item that may be accidentally be dropped while removing the fairing.
• Visit rockfordfosgate.com for more comprehensive installation videos and product information.

Front Speakers for Ultra Classic ^® , Electra Glide ^® , Street Glide ^® and Tri Glide ^® models.

Close-up of a black motorcycle's front wheel and side-mounted sensors, no visible text or symbols

Step 1 - Fairing Removal

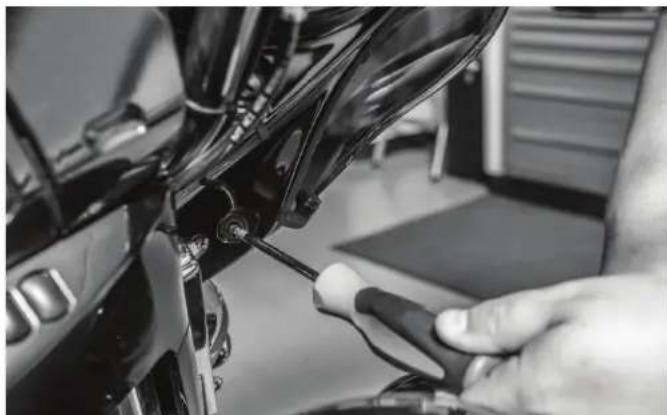

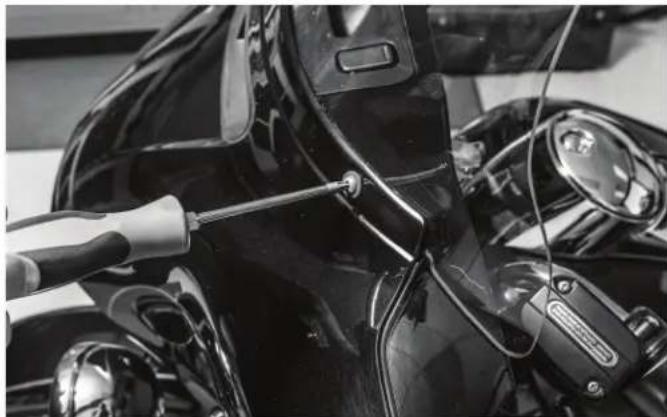

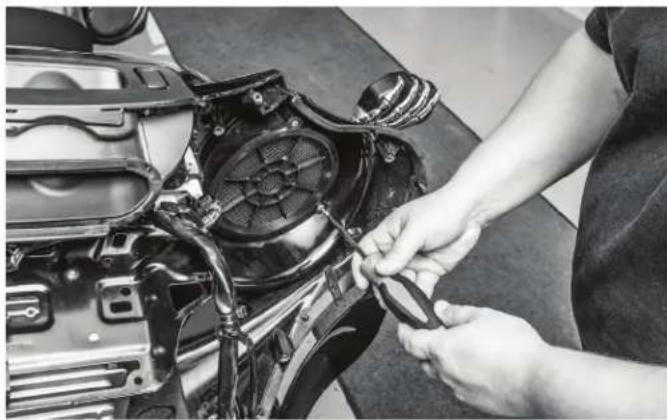

To begin with, remove the top screws below the windshield to remove the windshield.

Close-up of a hand adjusting a motorcycle's seatbelt with a tool (no visible text or symbols)

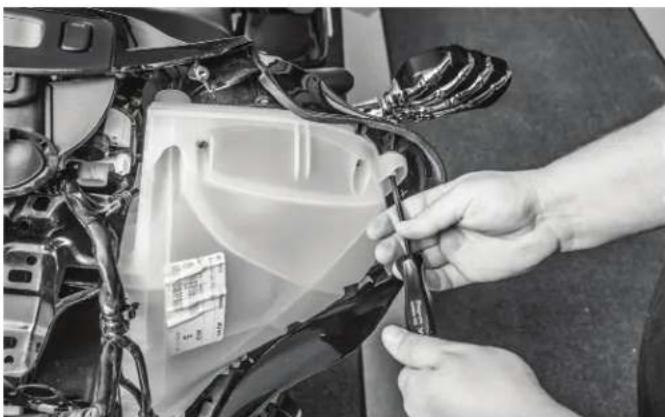

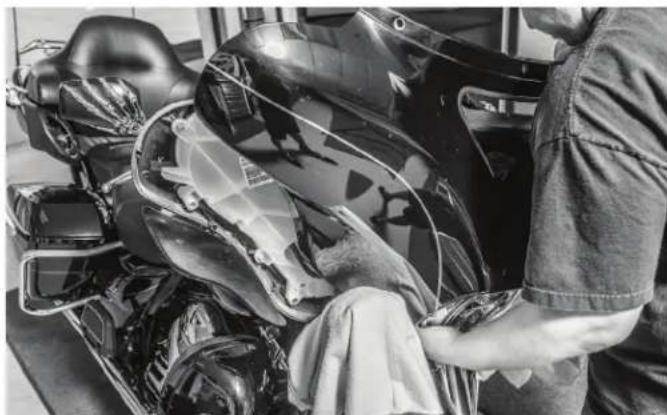

Once you have the windshield set aside, remove the remaining screws on the inside of the fairing.

Person cleaning a motorcycle with visible tire and cloth (no text or symbols)

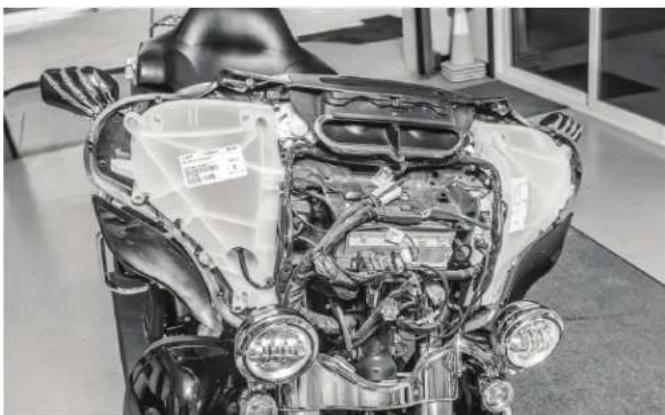

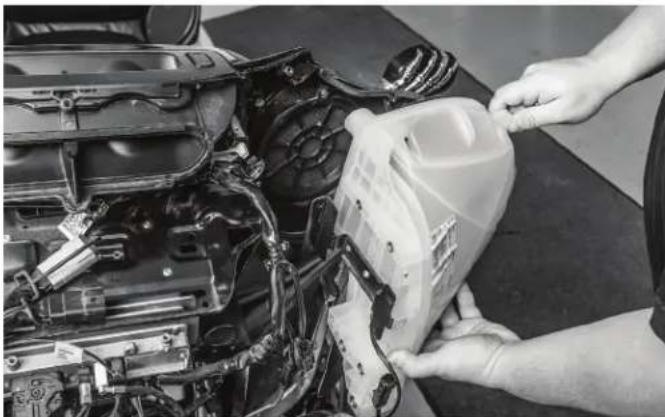

This will allow you to remove the front fairing.

Close-up of hands working on a car engine compartment with visible wiring and components (no text or symbols)

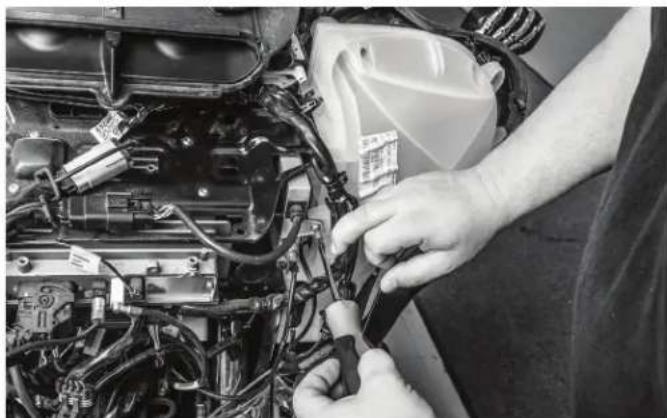

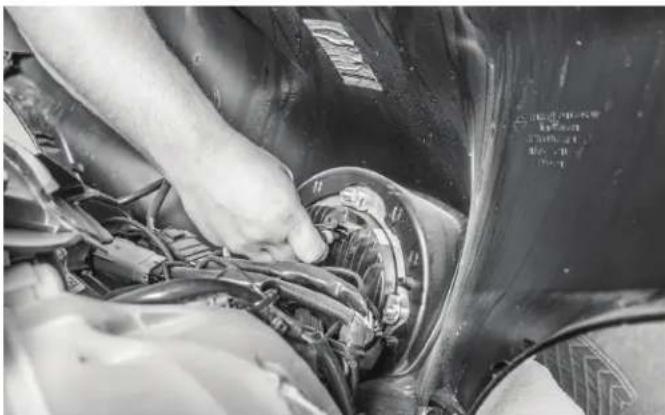

You will need to disconnect the harness from the headlight to completely take the fairing off of the motorcycle.

Close-up of a motorcycle's head assembly showing internal engine components and structural details (no visible text or symbols)

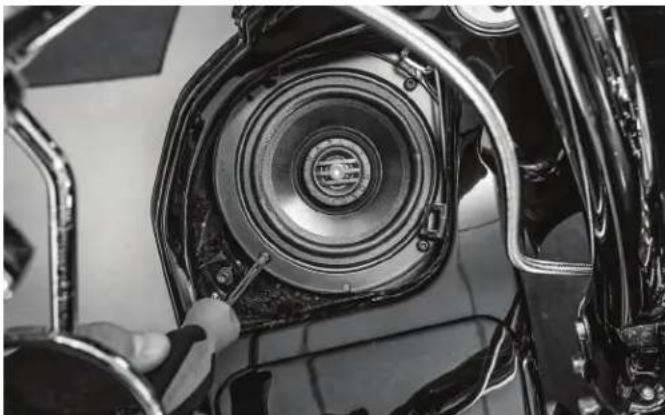

Step 2 - Speaker & Pod Removal

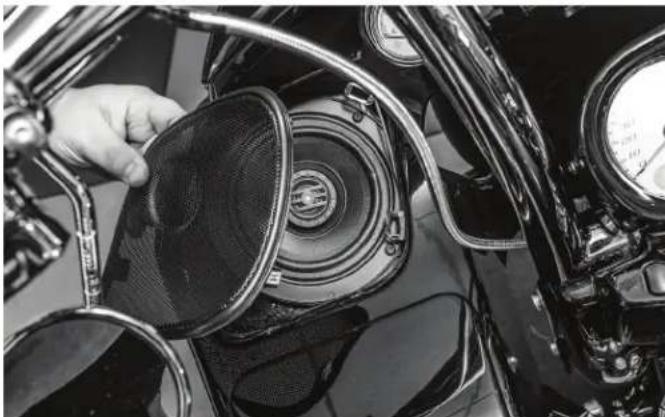

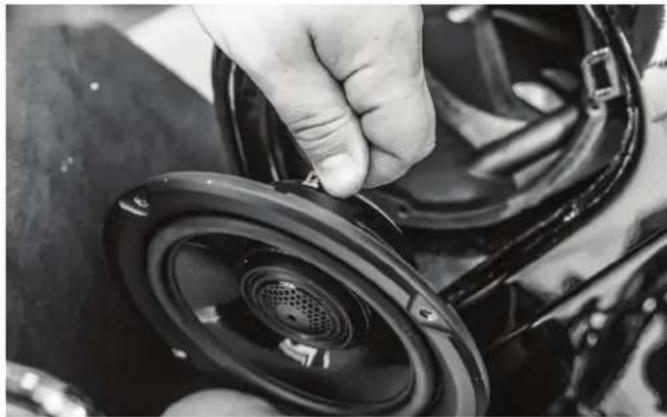

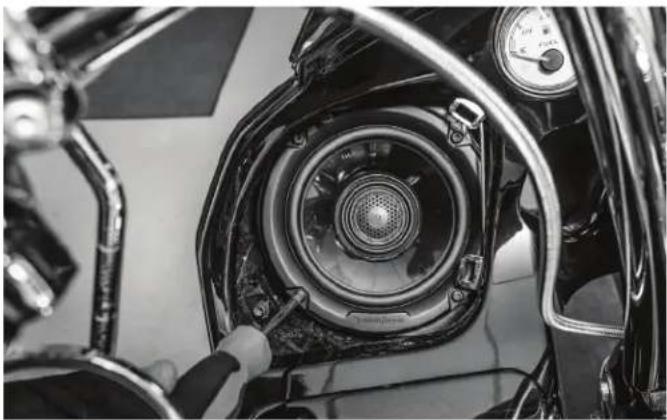

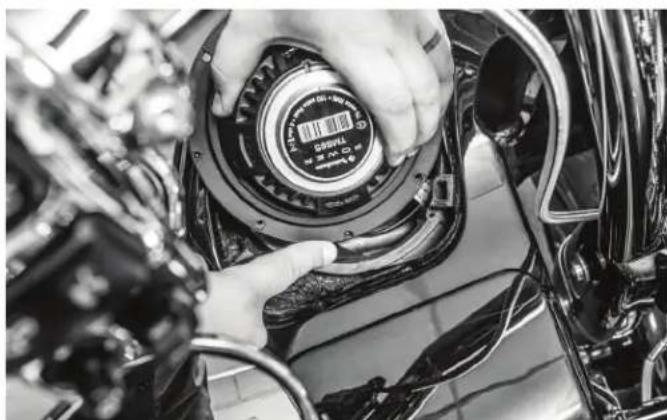

After the fairing is removed, this will provide access for the speaker pods that need to be removed so the speakers can be replaced.

Close-up of mechanical components with visible wiring and a label (no readable text or symbols)

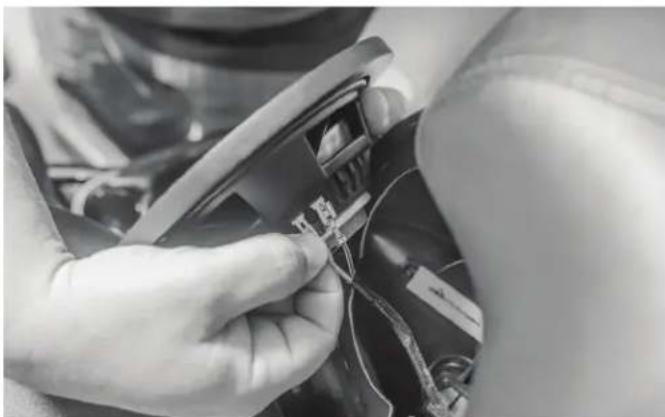

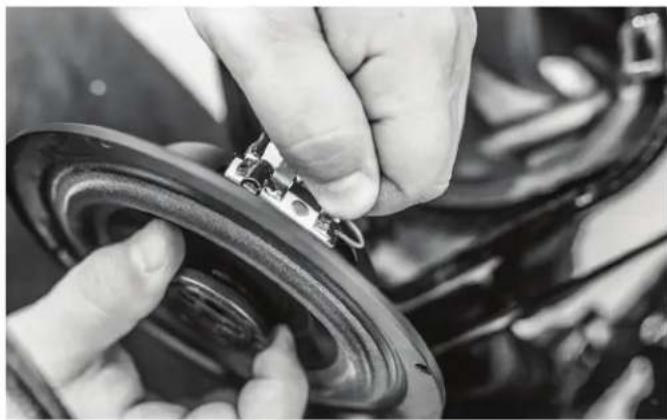

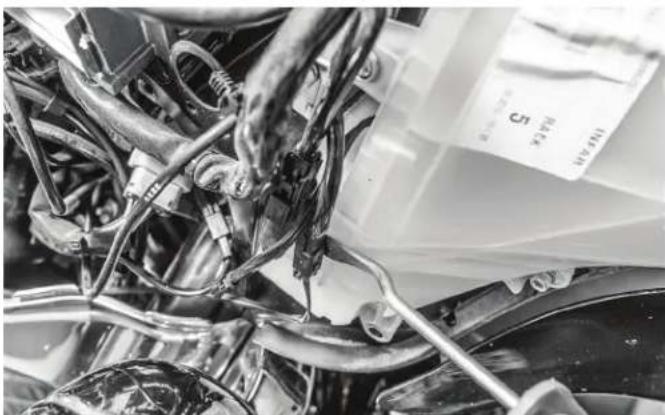

There are several wire connectors that are attached to the speaker pods and surrounding components that will need to be removed prior to unbolting allowing access to the bolts holding the pods in place.

Close-up of a damaged mechanical component with visible wiring and two white arrows pointing to specific areas (no text or symbols present)

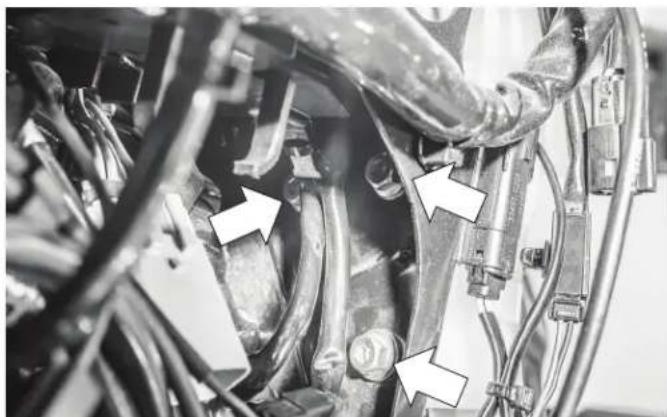

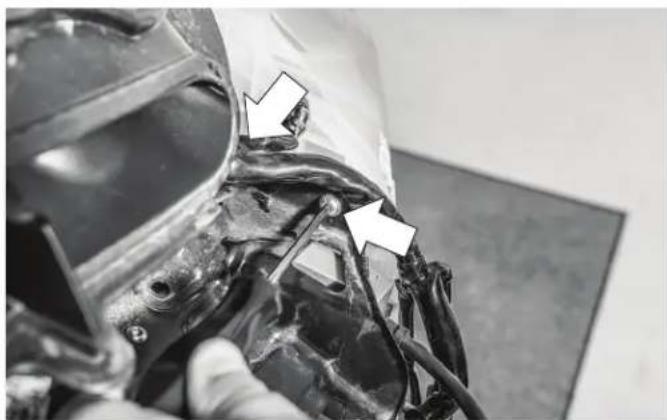

Remove the top two bolts with a allen head screwdriver or ratchet.

Close-up of hands installing or adjusting a mechanical component on a car engine (no visible text or symbols)

Unplug the module and set it aside.

Close-up of automotive engine components with white arrows pointing to specific parts (no visible text or symbols)

After the top two bolts are removed, remove the three bolts that are under the radio area.

Close-up of a hand using a tool to clean or inspect the internal components of a car engine compartment (no visible text or symbols)

Next, remove the last three screws that hold the pod to the fairing.

Close-up of hands installing or adjusting components on an engine compartment (no visible text or symbols)

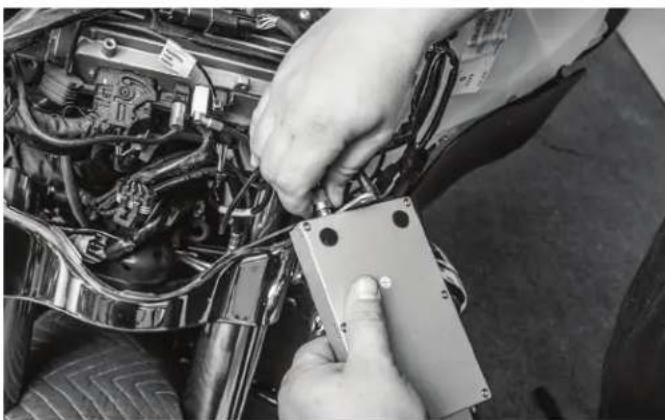

If your bike is equipped with the optional communication setup, you will need to remove the module to access mounting bolts.

Close-up of hands refueling a plastic bottle onto an engine compartment (no visible text or symbols)

Remove the fairing and set aside for the speaker removal.

Installation

Person using a tool to adjust or install the engine compartment of a car (no visible text or symbols)

Using a screwdriver, remove the speaker grille that is attached to the fairing.

Hand holding a component next to a white plastic pump assembly on a cutting mat (no visible text or symbols)

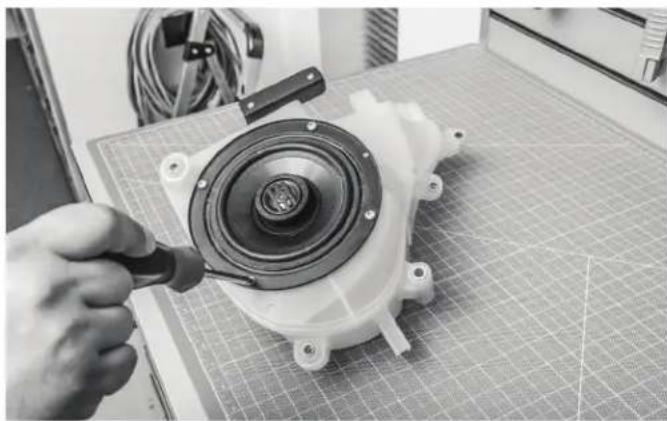

With the pod on a bench, unscrew the mounting screws to remove the factory speaker from the factory pod.

Close-up of hands installing or adjusting a mechanical component with a circular component and wires (no visible text or symbols)

Unplug the terminals to disconnect the speaker.

Close-up of a hand adjusting a mechanical component with arrows pointing to a detail (no visible text or symbols)

Step 3 - Speaker Installation

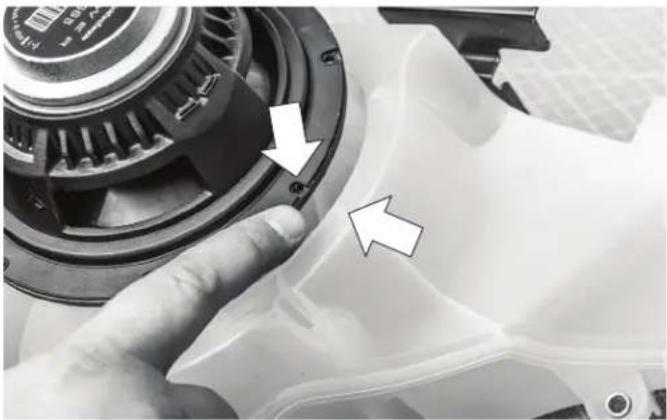

Prior to installing the speaker to the pod, there are alignment pins on the pod that the speaker needs to line up to ensure proper fit.

Close-up of hands assembling a 3D printer component on a workbench (no visible text or symbols)

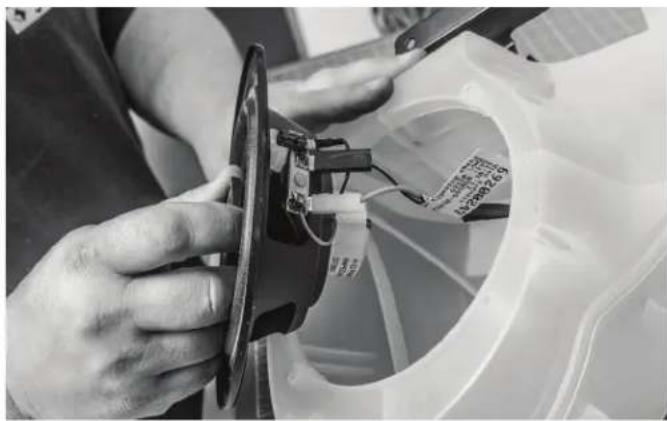

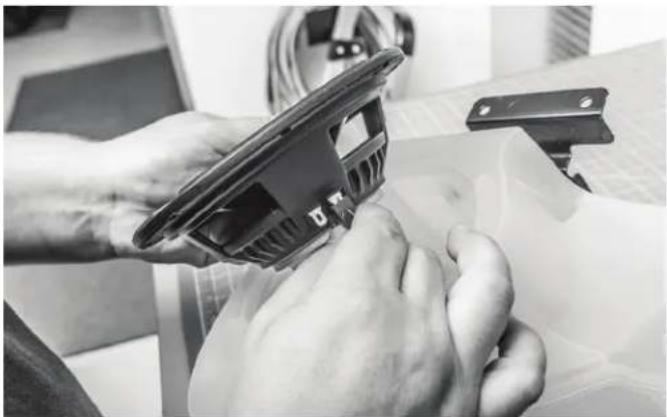

Take the new Rockford speaker and slide the wire connectors over the terminals.

NOTE: The smaller terminal is the positive (+) and the larger terminal is the negative (-).

Close-up of a mechanical component with a tool inserted, showing a circular component and a ring (no visible text or symbols)

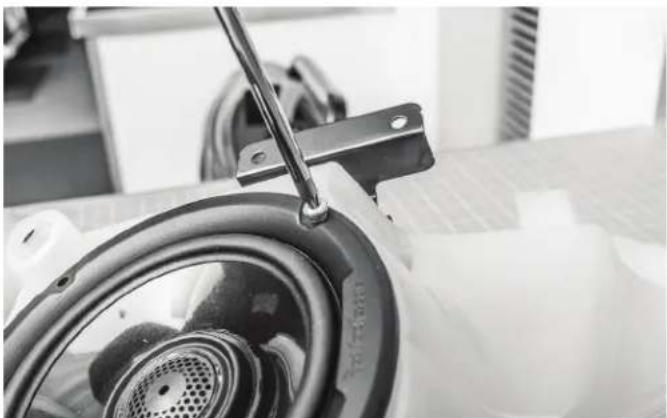

Secure the speaker to the factory pod using the factory hardware. NOTE: Do not overtighten the mounting screws. Doing so can strip the threads on the plastic pod.

Close-up of hands installing or adjusting a mechanical component with a mesh grille and tool (no visible text or symbols)

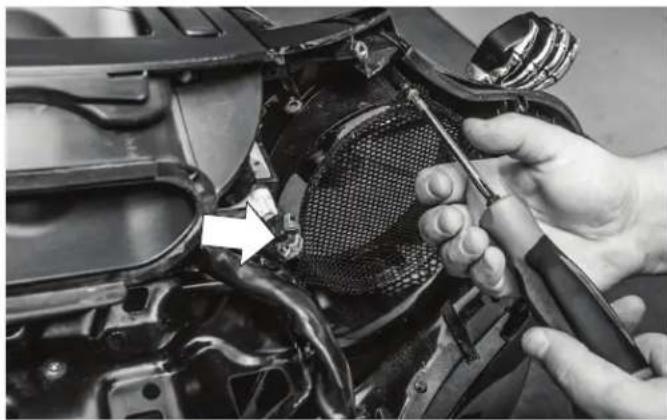

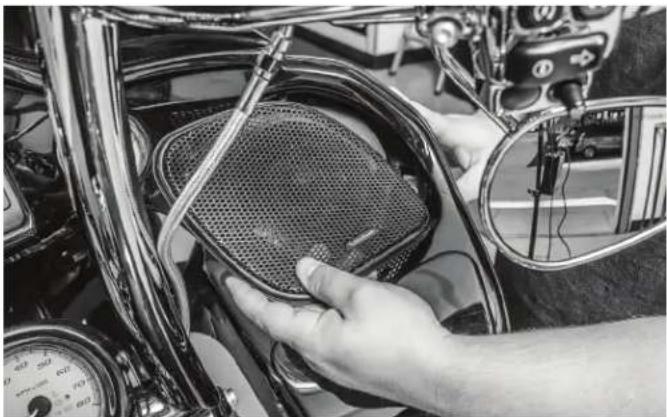

Attach the new Rockford grille to the inside of the fairing.

NOTE: The speaker grilles are side specific and have a notch in one of the mounting holes as an indicator. The notch is faced towards the middle of the bike.

Person assembling a mechanical component with visible gears and housing (no text or symbols)

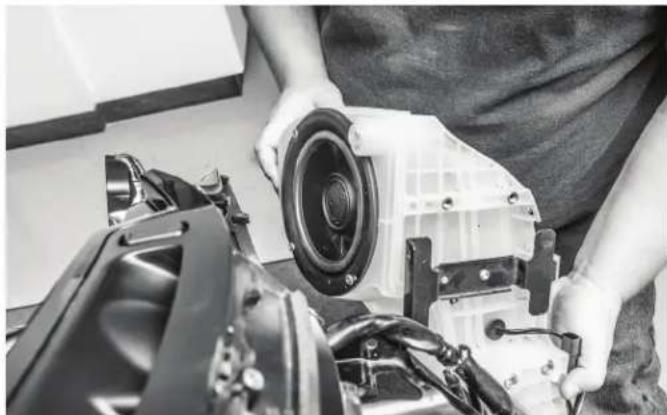

Reattach the pod with the factory hardware and reinstall any wire harnesses that were removed for the pod removal.

Close-up of a motorcycle's front wheel and dashboard with visible mechanical components (no text or symbols)

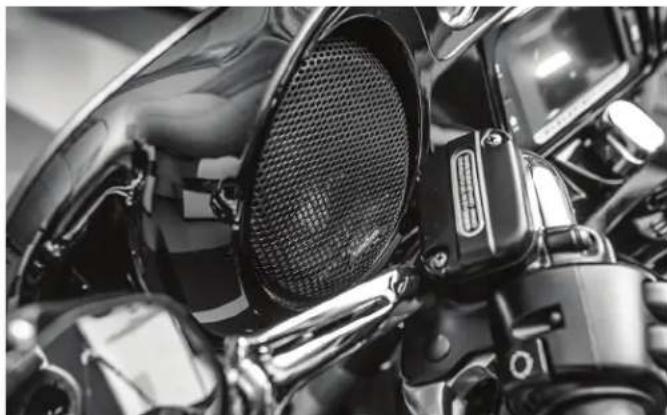

Install the outer fairing to the motorcycle after speaker pods and wiring is secured.

Close-up of a hand adjusting a car grille and vent, no visible text or symbols

Front Speakers for Road Glide® and Road Glide Ultra® models.

Step 1 - Speaker & Grille Removal

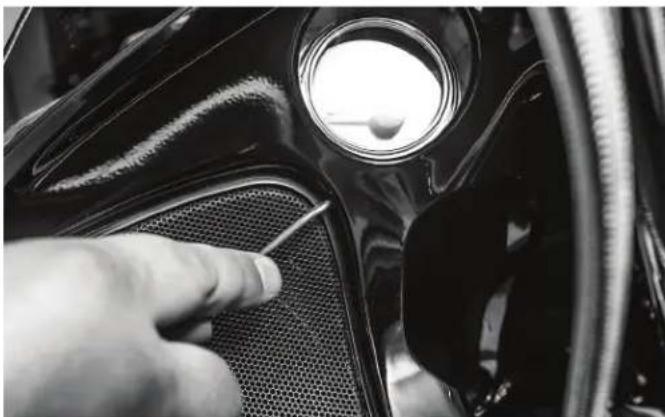

Remove the factory speaker grille with a plastic pry tool or small hook tool.

Close-up of a hand inserting a fan into a motorcycle seatbelt (no visible text or symbols)

NOTE: Pull or pry on the portion of the grille that is closer to the inside of the bike.

Close-up of a car's front bumper with a circular speaker and tool, no visible text or symbols

Remove the mounting screws holding the speaker in place.

Installation

Close-up of hands adjusting a mechanical component with a small bracket (no visible text or symbols)

Unplug the terminals to disconnect the speaker.

Step 2 - Speaker & Grille Installation

Close-up of a hand adjusting a black circular speaker grille on a car wheel (no text or symbols visible)

Take the new Rockford speaker and slide the wire connectors over the terminals.

NOTE: The smaller terminal is the positive (+) and the larger terminal is the negative (-).

Close-up of hands installing a circular mechanical component with visible branding (no text or symbols on the device itself)

Prior to installing the speaker to the pod, there are alignment pins on the pod that the speaker needs to line up to ensure proper fit.

Close-up of a motorcycle's front wheel assembly with visible mesh and pressure gauge (no text or symbols)

Secure the speaker to the pod using the factory hardware.

NOTE: Do not overtighten screws. Doing so can strip the threads on the plastic pod.

Close-up of hands installing a mesh fan component on a motorcycle, no visible text or symbols

Once the speaker is secured, press the new grille into place.

Close-up of a person adjusting a circular mechanical component on a dark leather chair (no visible text or symbols)

Rear Speakers for Tour-Pak models.

Step 1 - Rear Speaker Removal

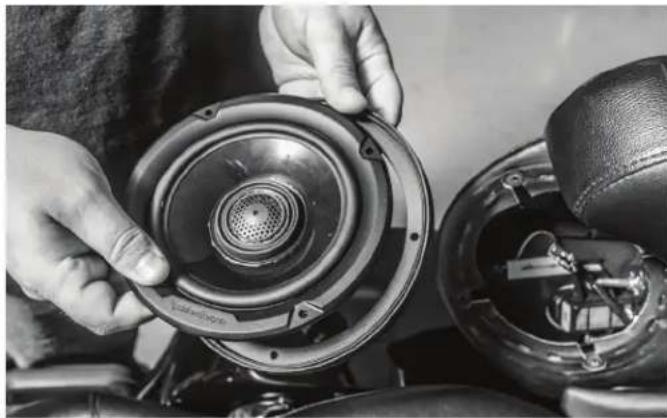

Unscrew the speaker grilles from the rear pods and remove factory speaker.

Close-up of hands assembling a car wheel assembly with visible wiring and components (no text or symbols)

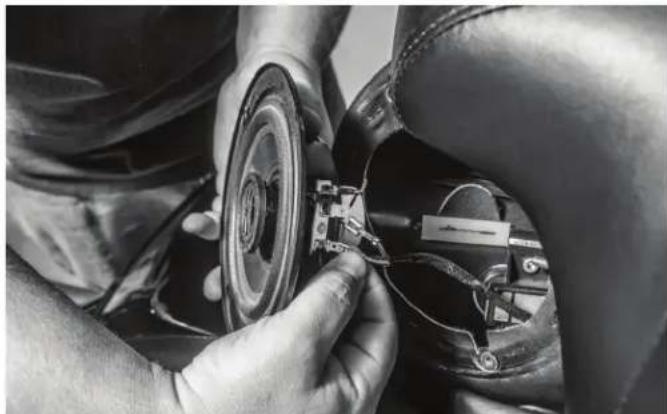

Unplug the terminals to disconnect the speaker.

Close-up of hands installing a speaker into a car seatbelt, showing internal components and wiring (no text or symbols visible)

Step 2 - Rear Speaker Installation

Before connecting the speaker wires, place the grille trim ring behind the speaker.

Close-up of hands installing or adjusting a component with wires and connectors (no visible text or symbols)

Connect the speakers by sliding the speaker wire connector over the speaker terminals

NOTE: The smaller terminal is the positive (+) and the larger terminal is the negative (-).

Close-up of a person adjusting a camera lens on a leather seat (no visible text or symbols)

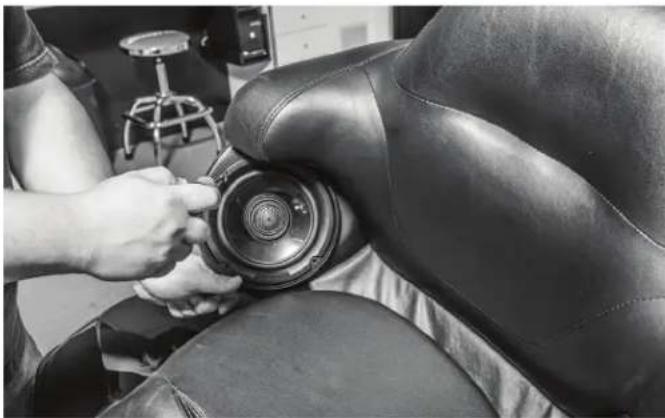

Insert the new Rockford speaker into the speaker pod and secure with mounting screws.

Close-up of a person adjusting a mesh circular component on a leather chair seat (no visible text or symbols)

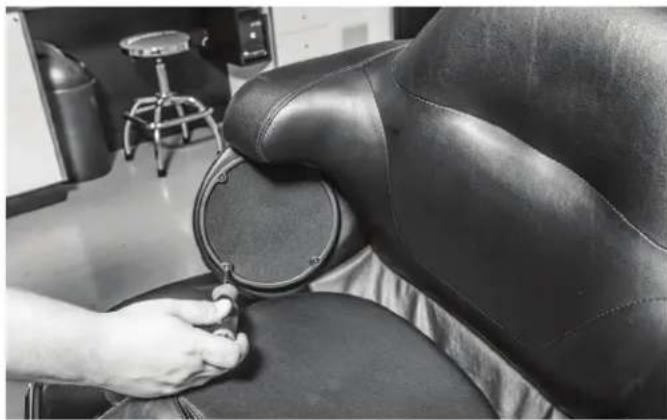

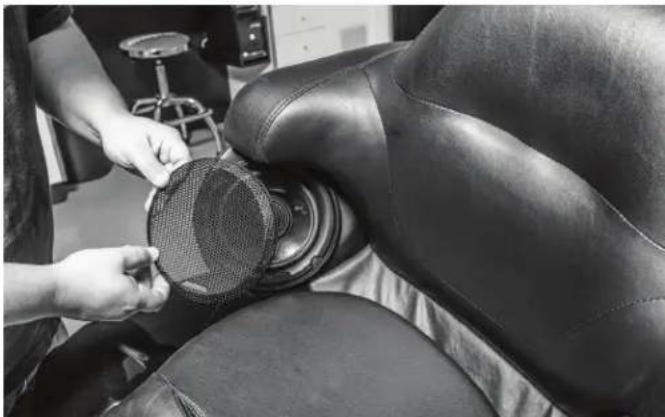

Place the grille over the speaker and press into place.

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms: Length of Warranty

POWER Amplifiers – 2 Years

BMW® Direct Fit Speakers – 2 Years

Source Units – 1 Year

All other products – 1 Year

Any Factory Refurbished Product – 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft, shipping.
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Installation assistance available at:

RFTECH

www.rockfordfosgate.com/rftech
